Coleman Powersports UT250-2 User manual

READ THIS MANUAL CAREFULLY!
Provincial / Municipal governments have dierent regulations
pertaining to owning and operating an o-road vehicle, learn the
regulations in your area.
OWNER’S MANUAL
REV# 030315
UT250-2
POWERSPORTS
(888)-405-8725
1775 E. University Dr. Tempe AZ. 85281
www.colemanpowersportsusa.com

1-1
INTRODUCTION
Congratulations on your purchase of the Coleman 250 Sidekick UTV. This Owner’s /
Operator’s manual will provide you information regarding safe operation, operational
instructions, maintenance and care. Fully understanding this manual and following all of the
instructions herein will provide the knowledge needed to have safe and enjoyable UTV
operation.
For questions regarding this UTV, please call [phone]
or go to colemanpowered.com
IMPORTANT SAFETY MESSAGES
●READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING YOUR UTV.
MAKE SURE YOU UNDERSTAND ALL INSTRUCTIONS.
●PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE UTV.
●NEVER OPERATE THE UTV WITHOUT PROPER TRAINING OR INSTRUCTION.
●THIS UTV SHOULD NOT BE OPERATED BY ANYONE UNDER 16 YEARS OF AGE.

1-2
IMPORTANT MANUAL INFORMATION
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS
INJURY OR DEATH. Particularly important information is distinguished in this manual by the
following notations:
The Safety Alert Symbol means ATTENTION!
YOUR SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to
the machine operator, bystander or a person inspecting or repairing the
machine.
A CAUTION indicates special precautions that must be taken to avoid damage
to the machine.
NOTE: A NOTE provides key information to make procedures easier
clearer.

IMPORTANT NOTICE
This UTV is designed and manufactured for OFF - ROAD use only. It is illegal and unsafe to operate this
UTV on any public street, road or highway.
This UTV complies with all applicable OFF - ROAD noise level and spark arrester laws and regulations in
effect at the time of manufacture.
Please check your local riding laws and regulations before operating this UTV.
When the temperature is below -4°F (-20°C), park the UTV in a place where the temperature is higher
than -4°F (-20°C). Start the UTV after the UTV has warmed up. Please see page 7-3 on the warming up
process.
Follow the proper parking procedures when the temperature is higher than 100°F (38°C): turn off the
engine; make sure the radiator fan is on for 3 minutes before turning off the power switch.
Starting the UTV for the first time will take longer because the fuel will need reach the fuel injectors. To
start the UTV the first time, hold the ignition key on at 5-second intervals. Allow the starter to rest 15
seconds between each start attempt.
1-3

COLEMAN POWERSPORTS LIMITED WARRANTY
This Warranty is NOT the Emissions Control Warranty Please note this is a general Limited
Warranty for this product. It IS NOT an Emissions Control Warranty. Please see the Emissions
Control Warranty in this manual for warranties covering Emission components. The Emissions
Control Warranty can be found in section 13 of this manual.
The limited warranty period for this product is 1 year from the date of purchase shown on the
original sales receipt.
What is a Defect? The Product is warranted to be free from manufacturing defects in material
and workmanship for a period of 1 year from the date of purchase shown on the sales receipt.
During this period of time Coleman Powersports will, at its option, either repair or replace any
original Coleman Powersports part which is covered by this warranty and is proven to be
defective in workmanship or material.
To qualify for this warranty the part:
1. Must have been purchased from Coleman Powersports or from an authorized Coleman
Powersports Retailer.
2. This warranty does not apply to any vehicle which is used in competition or used in a
manner not consistent with the normal and proper intended use for the vehicle. This
vehicle is not intended for rental or commercial use.
This warranty does not cover the following
1. Damage due to lack or improper maintenance as described in this manual.
2. Damage which is caused by normal use and not caused by a defect in materials or
workmanship.
3. Use of the product which is not consistent with the intended use as described in the
operating instructions.
4. Any expendable maintenance item which need replacement or service as part of normal
maintenance, unless such items have defects in material or workmanship which cause
failure or premature wear.
5. Any product which has been altered or modified in a manner not consistent with the
original design of the product or in a manner not approved by Coleman Powersports.
6. Tires
1-4
Coleman Powersports offers the following warranty to the initial purchaser of this new Coleman
Powersports product. The initial purchaser is defined as the first person to purchase a new
Coleman Powersports product from an Authorized Retailer of Coleman Powersports products.
Who Can Perform Repairs Under this Warranty?
Repairs under this warranty should be performed by an authorized Coleman Powersports
retailer or comparable servicing dealer.
How to get service under this warranty
To get warranty service call Coleman Powersports at 888-405-8725 for the location of your
local servicing retailer / dealer. Please do not return the product to the retailer where the
product was purchased unless instructed to do so by Coleman Powersports. The retailer of this
product does not make any warranty of its own and has no authority to implement this warranty
on behalf of Coleman Powersports without the approval of Coleman Powersports. A COPY OF
YOUR SALES RECEIPT IS REQUIRED FOR WARRANTY SERVICE.
What this Warranty Does Not Cover

7. Damage or failures due to abuse, neglect, or misuse of the product.
Limitations of this Warranty
This warranty does not cover and Coleman Powersports disclaims any responsibility for
1. Loss of time or loss of use of the product.
2. Transportation costs to and from the authorized service center.
3. Other loss or damage to other equipment or personal items.
Length of Implied Warranties
Any implied warranties are limited to the duration set forth in this warranty. Coleman
Powersports does not make any claim as to the merchantability or fitness for a particular
purpose which would extend longer than the duration of this written warranty.
Check your State Laws as some State Laws do not allow limitations as to the duration of an
implied warranty. Some States may also not allow limitation or exclusions based on incidental
or consequential damages.
1-5

1-6
Table of Contents
Subject
Introduction
Warnings Cautions and
Important Notice
Coleman Warranty
Table of Contents
Location of Parts
Safe Operation
Safety Instructions
Operation
Children safety instructions
Driving on a slope
Driving in harsh conditions
Driving at high speed
Instructions for carrier
Parking
Transportation
Maintenance

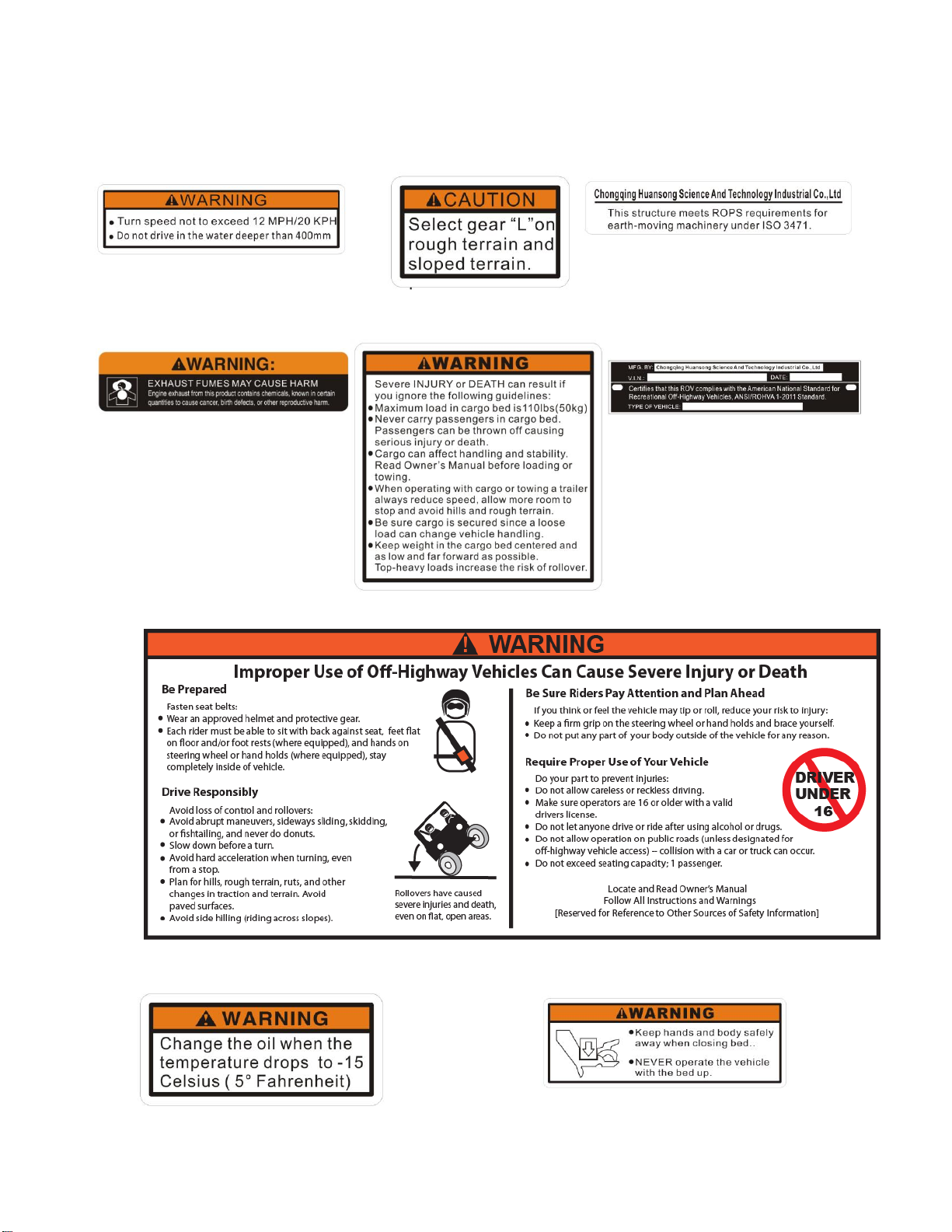

Warning and Caution Labels
Servicing of Vehicle
Specification table
Traveling speeds
Vehicle limitations
Pre-Operation
Operating the Engine
Engine and other check lamps
Stopping the engine
Operating new vehicle
Starting/Break-In
Head light switch
Emergency light switch
Turn Signal light switch
Brake Pedal
Gear shift lever
Accelerator pedal
Stopping
Fuel Gauge
Coolant temperature gauge
Speedometer
Maintenance and adjustment
Winch Mount Plate
Service intervals
Periodic Service
Hood/Cargo Bed
Jack location/Daily Check
Fuel/Oil
Coolant/Radiator Screen
Brake fluid level
Brake Pedal
Parking Brake/Tire pressure
Page
1-1
1-2
1-3
1-4
1-6
1-7
2-1
2-2
2-2
2-2
2-2
2-3
2-3
2-3
2-3
2-3
2-4
3-1
4-1
5-1
5-2
5-3
6-1
7-1
7-2
7-3
8-1
8-1
8-2
8-2
8-2
8-3
8-4
8-5
8-5
8-5
8-5
8-6
9-1
9-1
9-1
10-1
10-1
10-2
10-3
10-4
10-4
10-5
10-5
Subject
Greasing
Engine start system
Wheel bolts
Evacuator valve
Air Filter cleaning
Battery condition
Battery charging
Storage
Adjusting “toe-in”
Cleaning the
Muffler and Spark
Arrestor
Change engine oil
Replacing oil filter
Checking brake system
Radiator Hoses and
clamps
Tire Inspection
Fuel filter
Valve clearance
Fuel injection
Fuel pump
Change air cleaner
Change brake fluid
Change coolant
Antifreeze
Replacing brake
components
Replacing fuses
Replacing bulbs
Vehicle storage
Removing from
storage
Troubleshooting
Engine troubleshooting
Diagnostic code table
Battery troubleshooting
Machine
troubleshooting
Options
Emissions Warranty
Page
10-6
10-7
10-7
10-8
10-8
10-9
10-10
10-10
10-10
10-11
10-11
10-12
10-13
10-13
10-14
10-15
10-15
10-15
10-15
10-15
10-15
10-15
10-16
10-17
10-17
10-18
10-18
10-19
11-1
11-1
11-2
11-3
11-4
12-1
13-1

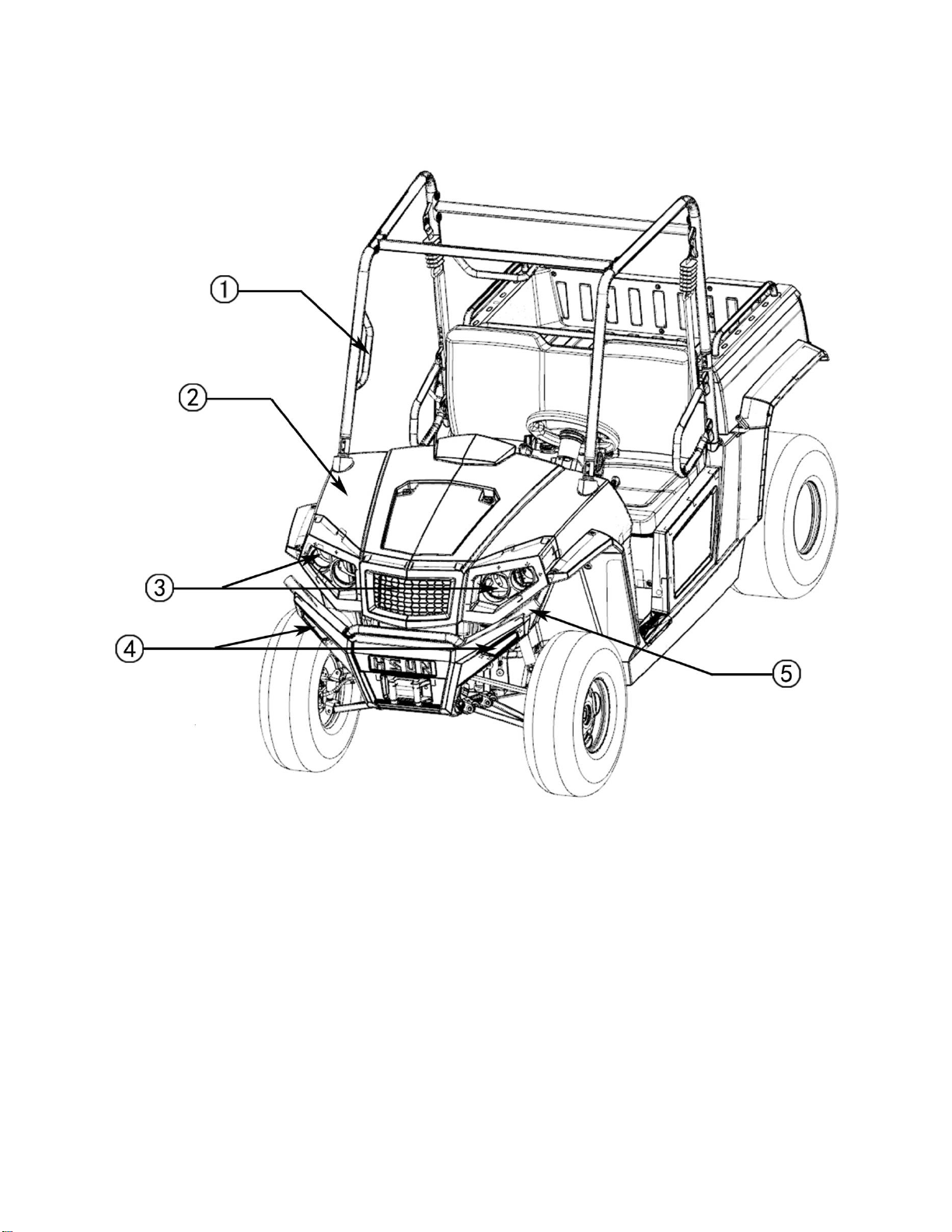

LOCATION OF PARTS
①Roll-over protective structure.
②Front hood
③Headlights
④Turn signal lights
⑤Front bumper
1-7

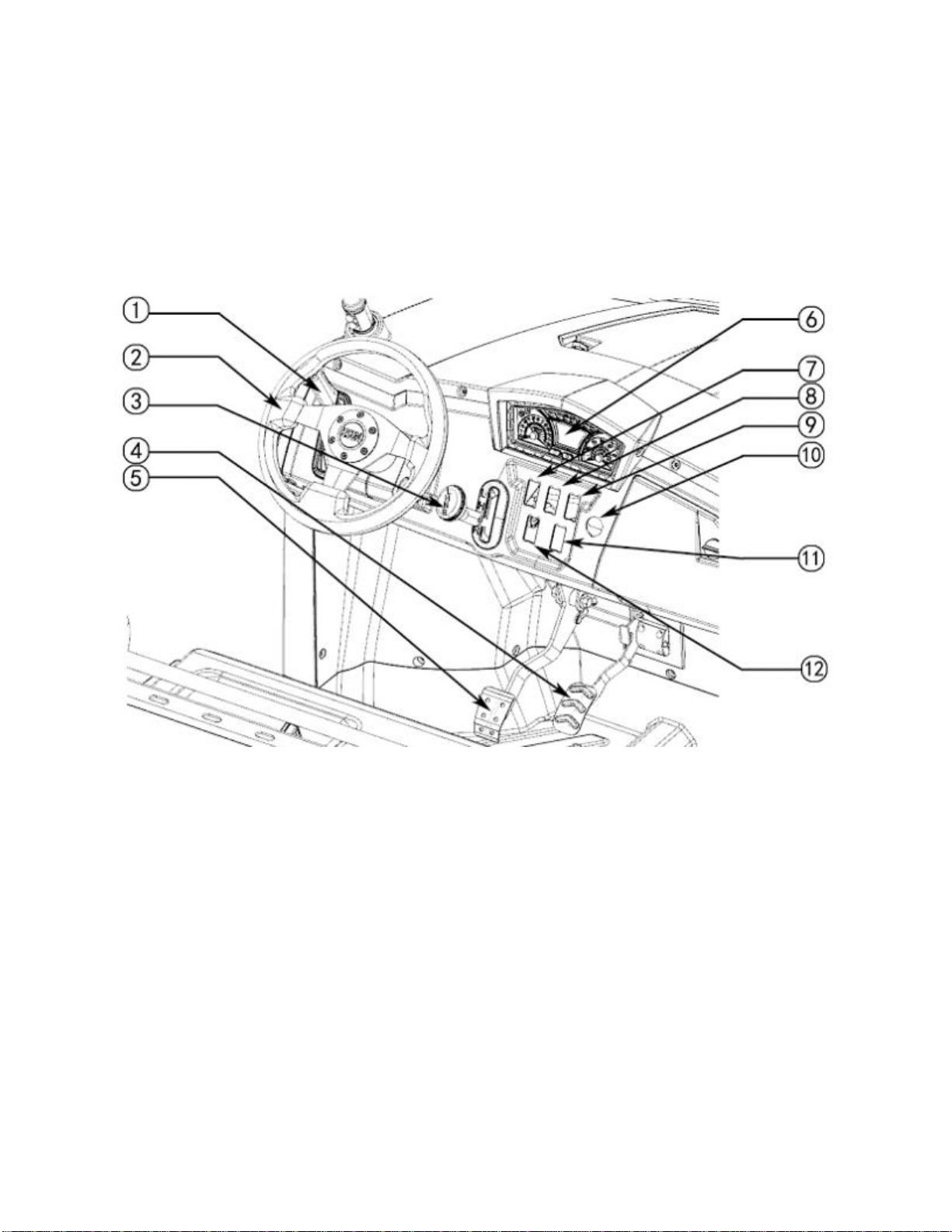

①Parking brake lever
②Steering wheel
③Range gear shift lever
④Accelerate pedal
⑤Brake pedal
⑥Fuel gauge
⑦Headlights switch
⑧High beam / Low beam
⑨Emergency light switch
⑩DC-socket
○
11 Winch in /out
○
12 Turn signal lights
LOCATION OF PARTS
1-8

①Seat belts
②Seat
①Hand Hold
②Cargo Bed
③Tail Gate
④Tail Lights
⑤Muffler
⑥Fuel Tank Cap
1
2
3
4
5
6
LOCATION OF PARTS
1-9

Safe Operation
All operators, including experienced UTV drivers
or passengers, should carefully read and fully
understand this Users Manual, and operate
strictly as the manual states in order to achieve
the best performance and avoid accidents.
Others who will use your UTV should be trained
how to operate the UTV and be required to read
this manual before operation.
1. Safety Instructions:
1. Understand this UTV by reading this manual
and understanding all the components of the
vehicle. Only start and operate the vehicle
after finishing reading this manual.
2. Pay close attention to the warning and caution
labels on the UTV.
3. Understand completely and learn to use the
safety devices (roll-over protective structure,
seat belts), and never change original safety
devices. If safety devices are damaged,
consult your local dealer for replacement.
Always use seat belts.
4. Do not wear loosen articles of clothing during
operation, as these can be drawn into moving
parts on the vehicle and could cause a severe
injury to occur.
You should always wear protective
equipment, such as helmet, boots, eye
protection, ear protection, gloves etc.
5. Only a qualified driver should operate this
UTV. Never operate after drinking, using
drugs or controlled products, or while
fatigued.
6. Always perform the pre-operation checks as
followed:
1) Check seat belt for wear or damage, if
necessary, replace the component.
2) Check brakes, throttle, brake pedal and other
mechanical parts for proper operation. If you
discover any irregularities, replace related
parts as necessary. Periodically check the
fittings and fasteners.
3) Check engine oil level and engine coolant
level.
4) Check that the UTV is equipped to handle
the surroundings.
5) Check and keep vehicle clean. Sludge,
grease and debris can cause a fire and
severe injury.
7. Passenger quantity and loading:
1) Only the driver and one passenger inside
cab. It is suggested that children under age
of 5 not be allowed as a passenger.
2) Single-row vehicle’s loading limit is
463lbs(210KG). Reduce the loading weight
according to road conditions. Never exceed
the weight limits for operation.
8. Never allow unauthorized persons to repair
this UTV. This may affect vehicle
performance and cause injury.
9. This UTV is designed and manufactured for
off-road use only. Never drive on paved
roadways.
2-1

Safe Operation
2. Operation
1. Start the engine only in an open ventilated
area. Carbon monoxide is colorless, odorless
and is emitted from the engine and can cause
death in areas with poor ventilation.
2. Never start the vehicle or operate the gear
selector unless seated in the driver’s seat.
3. Never start the engine until the select lever is
placed in “N” position and the brake is in the
brake position.
4. The driver and passenger shall always wear
their seatbelt while the vehicle is being
operated.
5. Operators of the UTV should not wear
earphones.
6. Do not accelerate quickly when starting the
engine, especially driving on rough terrain as
this can cause injury or death. Press the
accelerator pedal slowly.
7. Drive at slow speeds before braking.
8. Never drive over terrain such as a ditch, a
hole, dams, excessive mud, or the vehicle can
get stuck because of the vehicles
weight.
9. Always pay close attention to your
surroundings, and check for streets, trail
intersections or other obstacles.
10. Always use signals in advance of turns.
11. Do not allow entrance or exit of the vehicle
while it is moving.
12. Keep the floorboard free of debris that can
obstruct the ability to use the brake pedal.
13. Position your hands on the steering wheel.
Always keep your hands and feet inside
passenger area of the vehicle. Never try to
stand while operating the vehicle.
14. Do not tow passengers, or attempt to jump
the vehicle.
3. Children safety instructions
Always watch children when they are around the
vehicle. Children like to imitate adults and this
could lead to an accident.
Do not leave children alone beside the vehicle.
Keep children from the operating area of the
vehicle.
Turn off the engine and remove the key when
children are in the operating area. Never carry
children in the cargo bed. This is very dangerous
to children. Children under age of 5 should not be
allowed in this vehicle.
Never allow children to touch or climb on the
vehicle, even if they are under adult supervision.
Always check for people or obstacles behind the
vehicle before shifting the vehicle into reverse.
Avoid a collision with an obstacle or person.
Park the vehicle on a firm, flat area. If parking on
a slope, you should use the hand lever parking
brake and remove the key.
4. Driving on a slope
Be cautious when operating the UTV on a slope.
Operating on a steep slope can result in the
vehicle overturning which could result in severe
injury or death
1. Drive in a straight line on a slope at a low
speed.
2. Reduce weight when operating on a slope or
rough terrain.
3. Avoid the sudden application of the brakes
when going uphill or downhill. Be very careful
when turning vehicle on a slope.
4. If you start to lose momentum or need to
Park when climbing, use the park hand lever
brakes to come to a stop. Release the brake
and begin to coast down the hill.
2-2

Safe Operation
5. If you do not believe you can operate the
UTV safely in reverse do not attempt to
ascend the slope any further.
6. Riding in mud, a ditch, and on slopes will
increase the risk of an overturn. Be very
cautious when operating in these conditions .
7. Drive gradually and slowly when climbing.
Avoid sudden changes in vehicle speed or
direction.
5. Driving in harsh conditions
1. Vehicle can be operated during the day or
under good light conditions.
2. Under all conditions, both operator and
passengers should wear helmet and
protective equipment.
3. The driver should slow down according to
road conditions, terrain, visibility conditions.
4. Be cautious when driving over a ditch, stone
roads or hidden obstacles.
5. Avoid operating in any unknown depth of
water.（water depth should not exceed axle
height）
6. Driving at high speed
1. Check front and rear wheel condition.
2. Slow down when turning. Turning at high
speed may result in overturn or even death.
3. Turn on your headlights at high speeds.
4. Drive only when the vehicle speed can be
controlled.
5. When driving at high speeds, sudden turning
of the steering wheel will reduce vehicle
stability. Never sharply turn the steering
wheel at high speeds.
7. Instructions for cargo area
1. Never carry a passenger in the cargo area.
2. Evenly distribute the cargo to maintain proper
stability. Avoid overloading the carrier. Cargo
should be securely attached.
3. Reduce loaded weight when driving on poor
road conditions or steep inclines.
4. Do not put your hands or any other body part
under the cargo bed when it is raised. Once
lowered, lock the cargo bed in place before
operating the vehicle. Never drive before
securing and locking the cargo bed.
8. Parking
1. Before the driver exits the vehicle the parking
brake should be set by setting gear shift to the
“N” position and pulling the parking brake to
the top position.
2. Avoid stopping the vehicle on a slope. If
stopping on a slope make sure the vehicle is
stationary before exiting.
9. Transportation
1. Avoid dragging the vehicle behind another
vehicle. Use a trailer or truck to transport the
vehicle.
2. When loading or unloading, pay attention to
your surroundings and others in the area.
2-3

Safe Operation
10.Maintenance
Stop the vehicle and park it on level ground. Pull
the parking brake and remove all cargo. Place
shift lever in the “N” position, stop the engine and
remove the key.
1. When working next to the engine, exhaust or
radiator, work only after it has cooled down.
2. Wait for the engine to stop running and cool
down before checking the coolant level.
Otherwise, you could be burned by hot fluid or
steam.
3. No smoking when adding electrolyte or
refueling. Fuel tank and battery should be
kept away from sparks. Battery produces
hydrogen and oxygen during charging and
this could accelerate the risk of explosion.
4. Read and follow the instructions before
replacing the battery.
5. During maintenance, first aid kits and fire
extinguishers should be placed at your
fingertips.
6. During maintenance, you should disconnect
the battery cables.
①Battery
7. Do not open radiator cap before coolant has
cooled down. When the coolant is cold, open
slowly and let the coolant pressure reduced,
and then open radiator cap. Check for the
coolant level in the coolant reservoir. If
necessary, add coolant.
8. Tires should be mounted on rims with special
equipment, only by professionals.
9. Keep specified tire pressure to ensure driving
safety.
10. Elevate the vehicle and place a suitable stand
under the frame when removing the wheels.
Be sure to re-tighten the wheel nuts to the
specified torque.
2-4

Warning Labels
3-1
Warning and caution labels
（1）
（2）
（3）
（4）
（5）
（6）
（7）
（8）（9）

Warning Labels
3-2
（10）（11）
(12）

Vehicle Identification Number
4-1
SERVICING OF VEHICLE
Coleman Powersports and your dealer are
interested in your new vehicle and have the desire
to help you get the most value from it. After reading
this manual thoroughly, you will find you can do
some of the regular maintenance by yourself.
However, when in need of parts or major service,
contact your dealer or Coleman Powersports.
To locate a service center near you, call Coleman
Powersports at [phone].
When in need of parts, be prepared to give both the
vehicle 17 digit VIN# and engine serial number.
Locate the Vehicle VIN# and engine Serial number
and record them in the spaces provided below.
Vehicle VIN#
Engine Serial#
Model Number
Date of
Purchase
Name of Dealer
①Engine serial number
Vehicle VIN#

Specifications
5-1
SPECIFICATION TABLE
Engine
Make
Specification
Type
1cylinders, 4-cycle, gasoline, SOHC, liquid
cooled
Displacement(s)
cc
199CC/229CC
Horsepower
Kw(HP)
11.2kW or（15.02Hp @ 7500 Rpm）for 199cc
12 kW or（16.09Hp @ 7500 Rpm）for 229cc
Rated revolution
rpm
7500
Fuel Capacity
L(U.S.gas)
≤13.5（3.6 + .01 Gal）
Transmission
CVT
Wheels, Drive system
4, Rear 2WD
Gear selection
L-H-N-R
Brakes
Front/Rear
Wet disk brake
Parking brake
Rear wheel, hand lever
Steering
Mechanical power, Steering wheel
Suspension
Front
Independent, short-long arm type
Rear
Integral, rear driving axle type
Dimensions
Length
mm(in.)
2450(96.47)
Wide
mm (in.)
1300(51.18)
Height
mm (in.)
1660(65.35)
Front tread centers
mm (in.)
973(38.3)
Rear tread centers
mm (in.)
975(38.38)
Wheelbase
mm (in.)
1780(70.08)
Ground
Clearance
front axle
mm (in.)
180(7.08)
rear axle
180(7.08)
Turning diameter
m (ft)
7(22.96)
Max. rolling weight
kg (lbs.)
508(1121)
Cargo load capacity
kg (lbs.)
50(110)
Weight
kg (lbs.)
298(657.5)

Specifications
5-2
Model
Specification
Cargo bed
Width
mm (in.)
602(23.7)
Length
mm (in.)
846(33.3)
Depth
mm (in.)
208(8.2)
Volume
m3 (cu.ft.)
0.1(1.6)
Bed height
(unloaded)
mm (in.)
720(28.3)
Cargo bed capacity
kg (lbs.)
50(110.3)
Sound level, operator ear
db (A)
85
Tire
Front
22×7-10 6PR
Rear
22×10-10 6PR
Body color
Red, Black, White, Blue, Yellow, Orange, Camo
NOTE:
The values in “Ground clearance” and “Weight” are those of the machine equipped with the tires
in the table above.
The company reserves the right to change the specifications without notice.
TRAVELING SPEEDS
Range gear shift lever
km/h (mph)
Low
13（8）
High
40（25）
Reverse
16（10）

Specifications
5-3
VEHICLE LIMITATIONS
The Vehicle has been thoroughly tested for proper performance with accessories sold or approved
by the manufacturer. Use with accessories which are not sold or approved and which exceed the
maximum specifications listed below, or which are otherwise unfit for use, may result in vehicle
malfunction or failures with the possibility of vehicle damage, property damage and/or injury to
operator or others. Any malfunctions or failures of the vehicle resulting from use with improper
accessories are not covered by the warranty.
Max. Cargo loading weight
Cargo Bed Capacity= 50kg(110 lb)
Cargo Load Capacity= 176kg(388 lb)
*(operator+one passenger+opt+acc )weight
Max. rolling weight
508 kg (1121 lbs.)
1. Above mentioned specifications are based on level ground condition.
