Coleman 5035 User manual

Propane Catalytic
Heater
INSTRUCTIONS FOR USE
Model 5035
Propane Series
CAN1-11.3-M79 Camp Heater
U.S. Patent 6,213,761
© 2005 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Read this manual carefully before assembling,
using or servicing this heater.Keep this manual for
future reference. If you have questions about
assembly, operation, servicing or repair of this
heater, please call Coleman at 1-800-835-3278
or TDD: 316-832-8707. In Canada call
1-800-387-6161.

2
Contents
General Safety Information
To Set Up
To Light
To Turn Off
To Store
Things You Should Know
Replacement Parts List
Warranty
Safety precautions are essential when any
mechanical or propane fueled equipment is
involved.These precautions are necessary when
using, storing, and servicing. Using this equipment
with the respect and caution demanded will reduce
the possibilities of personal injury or property
damage.
The following symbols shown below are used
extensively throughout this manual. Always heed
these precautions, as they are essential when
using any mechanical or propane fueled
equipment.
General Safety Information
Warning
THIS APPLIANCE CONSUMES AIR
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
FOR YOUR SAFETY
Do not store or use gasoline or
other liquids with flammable vapors
in the vicinity of this or any other
appliance.
FOR YOUR SAFETY
• When used in any inside area,
provide a fresh air opening of at
least six square inches (39
square centimeters).
• Never operate the heater while
sleeping.
• Do not use other burning
appliances inside.
This manual contains important information about
the assembly, operation and maintenance of this
heater. General safety information is presented in
these first few pages and is also located
throughout the manual. Particular attention should
be paid to information accompanied by the safety
alert symbol “ DANGER”, “ WARNING”,
“ CAUTION”.
Keep this manual for future reference and to
educate new users of this product.This manual
should be read in conjunction with the labeling on
the product.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate personal injury, or property
damage.

3
General Safety Information cont.
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
• Propane is heavier than air and can accumulate in low
places.If you smell gas, leave the area immediately.
• Never install or remove propane tank while catalytic
heater is lighted, near flame, pilot lights, other ignition
sources or while catalytic heater is hot to touch.
• During operation, this product can be a source of
ignition.Never use the catalytic heater in spaces that
contain or may contain volatile or airborne combustibles,
or products such as gasoline, solvents, paint thinner,
dust particles or unknown chemicals. Minimum
clearances from combustible materials: 24 inches.
• Provide adequate clearances around air openings
into the combustion chamber.
DANGER
Failure to comply with the precautions and
instructions provided with this heater can result in
death, serious bodily injury and property loss or
damage from hazards of fire, explosion, burn
and/or asphyxiation.
Only persons who can understand and follow the
instructions should use or service this heater.
DANGER
WARNING
We cannot foresee every use which may be made
of our products. Check with your local fire
safety authority if you have questions about
use.
Other standards govern the use of fuel gases and
heat producing products for specific uses.Your local
authorities can advise you about these.
• Never refill disposable cylinders.
• Use the preset regulator that came with the
catalytic heater. Do not attempt to adjust.
WARNING
• This product is fueled by propane gas. Propane
gas is invisible, odorless, and flammable. An
odorant is normally added to help detect leaks
and can be described as a “rotten egg” smell.
The odorant can fade over time so leaking gas is
not always detectable by smell alone.
• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including matches,
lighters, sparks or open flames of any kind many
feet away from the original leak. Use only
propane gas set up for vapor withdrawal.
• Propane gas should be stored or used in
compliance with local ordinances and codes or with
ANSI/NFPA 58.Turn off propane when not in use.
CALIFORNIA PROPOSITION 65:
WARNING:This fuel, and byproducts of
combustion of this fuel, contain chemicals known
to the state of California to cause cancer, birth
defects, or other reproductive harm.
• BURN HAZARD
• Never leave catalytic heater unattended when
hot or in use.
• Keep out of reach of children.
WARNING
• SERVICE SAFETY
• Keep all connections and fittings clean. Inspect
propane cylinder and catalytic heater propane
connections for damage before attaching.
• During set up, check all connections and fittings
for leaks using soapy water. Never use a flame.
Bubbles indicate a leak. Check that the connection
is not cross-threaded and that it is tight. Perform
another leak check.If there is still a leak, remove
the cylinder and contact Coleman for service or
repairs.
• Use as a heating appliance only. Never alter in any
way or use with any device or part not specifically
designed and sold for this product.
CAUTION

4

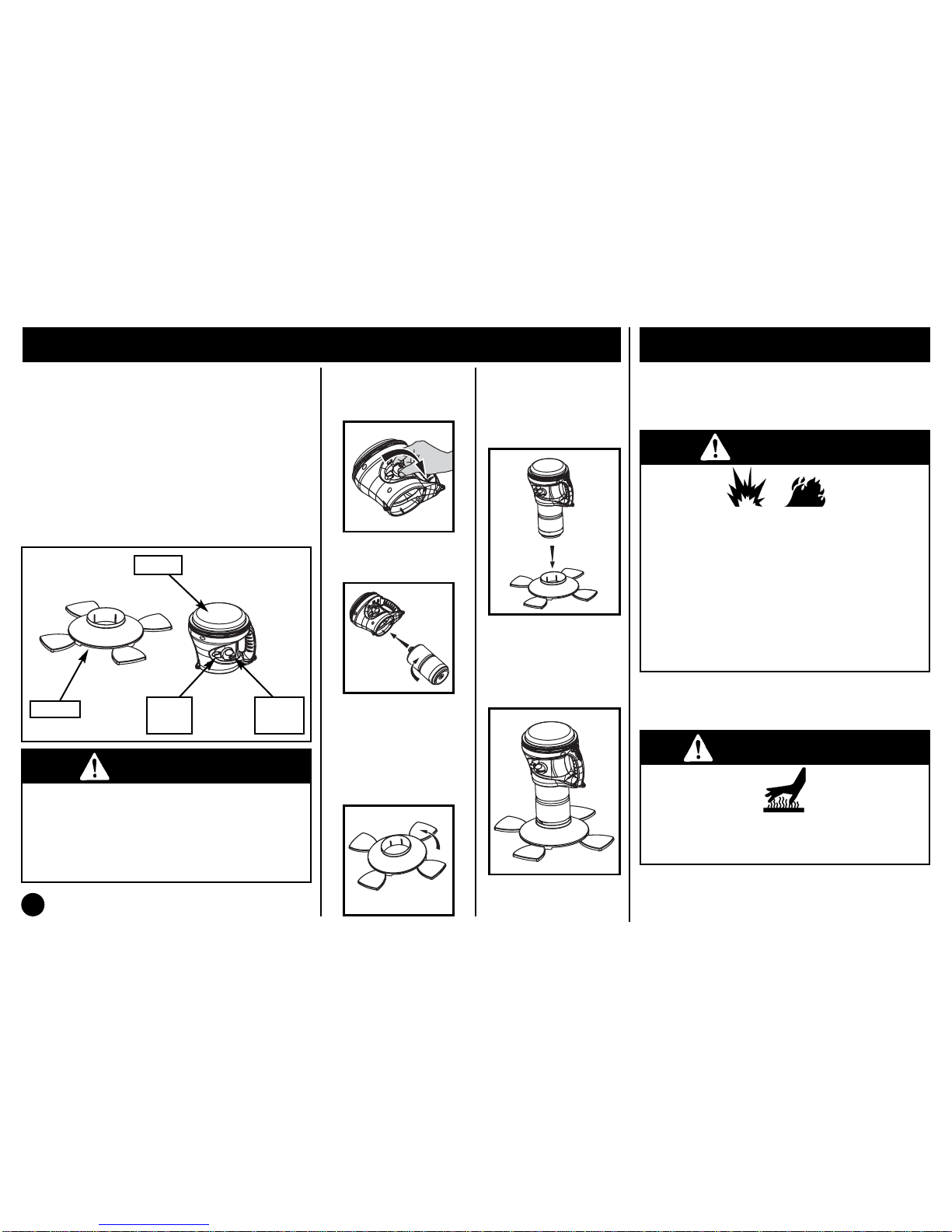

To Set Up
CAUTION
NOTE: Use 16.4 oz disposable propane cylinders
only. Do not connect to bulk propane systems.The
LP-gas cylinder(s) used with catalytic heaters must be
constructed and marked in accordance with the
specifications for LP-gas cylinders of the U.S.
Department of Transportation or
Transport Canada,
CAN/CSA B339
.
• SERVICE SAFETY
• Keep all connections and fittings clean. Inspect propane
cylinder and heater propane connections for damage
before attaching.
• During set up, check all connections and fittings for leaks
using soapy water. Bubbles indicate a leak.Never use a flame.
■Features identified are Burner, Heater Valve, Base,
and Ignition Button (Electronic Ignition only).
Propane tank is not included.
Support
Burner
Heater
Valve
■Attach CYLINDER to
HEATER outdoors.
■Turn HEATER VALVE
to OFF.
Ignition
Button
■Rotate four Support
Legs into operating
position.
■Position HEATER as
shown on flat surface.

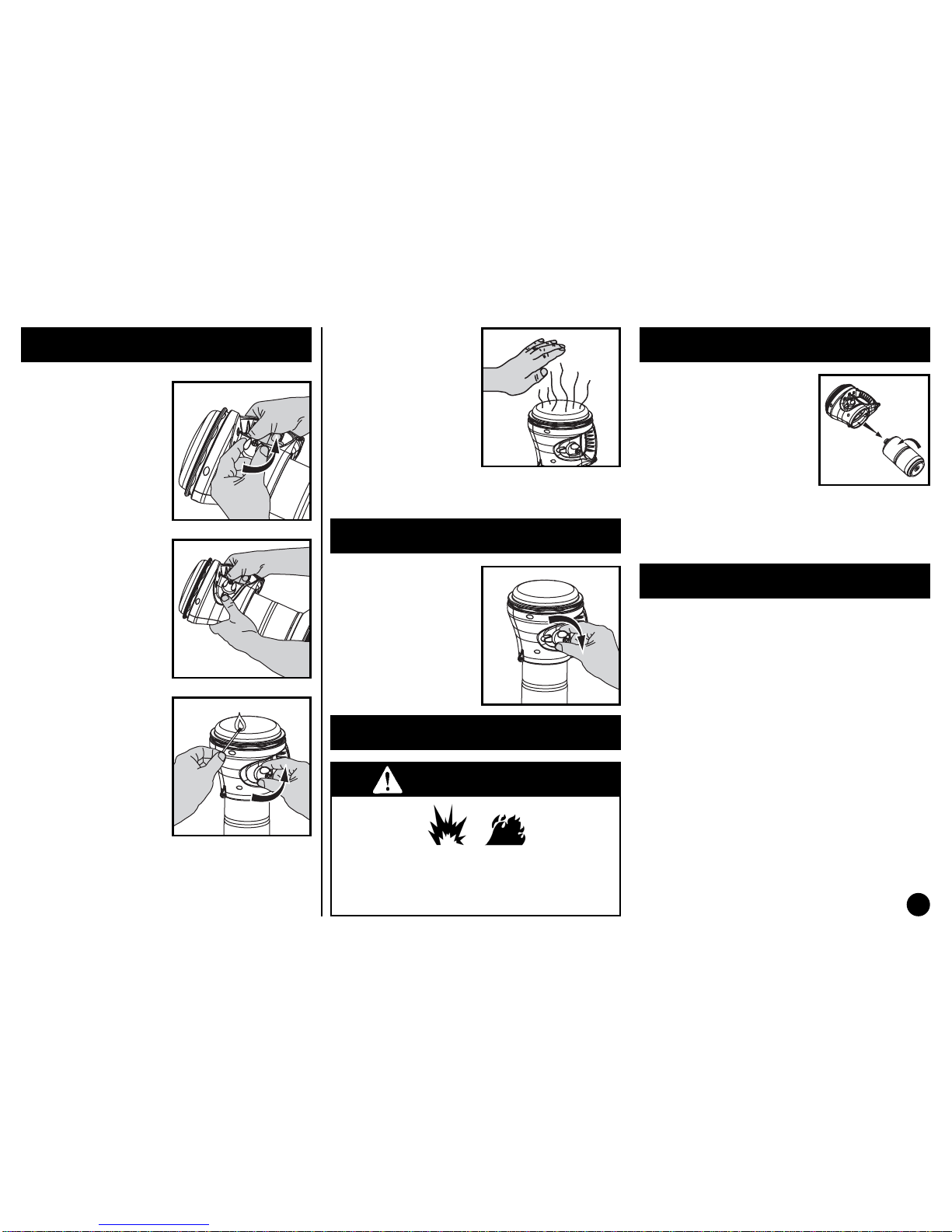

To Light
• EXPLOSION - FIRE HAZARD
• Propane is heavier than air and can accumulate in low
places. If you smell gas, leave the area immediately.
• Always attach or detach propane source outdoors;
never while heater is lighted, near flame, pilot lights,
other ignition sources or while heater is hot to touch.
• This heater is red hot during use and can ignite
flammables too close to the burner. Keep flammables at
least 24 inches from the sides and 24 inches from the
top of the heater. Keep gasoline and other flammable
liquids and vapors well away from heater.
WARNING
• BURN HAZARD
• Never leave heater unattended when hot or in use.
• Keep out of reach of children.
DANGER
■Firmly place cylinder
into support.

5
Electronic Ignition
■Hold heater with both
hands at a 45° angle,
pointing away from
yourself and others.
■Turn valve to ON
position and repeatedly
push red ignition button
until heater ignites.
■Heater will ignite with a
brief visible flame after
10-12 seconds.
■Place Heater on a flat
surface.
■Heater is not adjustable.
■NOTE: Observe heat
build up for a few minutes
to ensure heater is lit. If
heater fails to develop
substantial heat, turn
heater “OFF” and repeat
lighting procedure.
To Light cont
To Turn Off
■ Turn FUEL VALVE to
OFF.
■ Allow HEATER to cool
for 10-15 minutes.
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
To Store
■Make sure Heater is cool.
■Take unit outdoors away from
any ignition sources. Remove
Cylinder from Heater.
■Replace plastic cap on
cylinder.
■Store propane cylinder
consistent with the instructions
and warnings on the cylinder.
To Store cont
Things You Should Know
1.This is a catalytic heater. Burning occurs within
the pad at a lower temperature than a normal
flame due to evenly distributed platinum. But, heat
guard and burner rim still get hot enough to burn
you. Be careful.
2.The catalytic process takes approximately 10
minutes to reach full heat output.
3. Do not use heater for cooking or warming items,
this can destroy combustion and catalyst. This
heater has a low burn temperature (no flame) but it
can still burn clothing, sleeping bags, etc., that
might fall on the burner surface.
4.To avoid damage to the catalyst, do not allow
head pad to come in contact with or around
silicone based hand creams, paints, etc.
5. Do not touch the gray ceramic fiber head pad or
poke a hole into it.
6. Do not attempt cleaning the head assembly.
Match Light
■Hold match as shown.
■Turn valve to ON
position.
■Heater will ignite with a
brief visible flame after 10-
12 seconds.
■Heater is not adjustable.

6
7. For repair service call one of the numbers listed
below for location of your nearest Coleman Service
Center. If heater must be mailed to Service Center,
attach your name, address, and a description of
problem to product and and send to Service
Center either by UPS or Parcel Post insured with
shipping and insurance prepaid.
Do not mail
propane cylinders.
If necessary to write the
Service Center or factory, refer to your heater by
model number.
8. If not completely satisfied with performance of
this product, please call one of the numbers listed
below.
9. As with any new heating appliance, a small
amount of smoke may be seen during the initial
operation as a result of residual manufacturing oils
being heated. This is normal. Coleman suggests
the owner operate the heater for 30 minutes when
first purchased. This will also familiarize the owner
with all the features of the heater.
The Coleman Company, Inc.
3600 N. Hydraulic
Wichita, KS 67219 U.S.A.
1-800-835-3278
TDD: 316-832-8707
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
1 800 387-6161
www.coleman.com

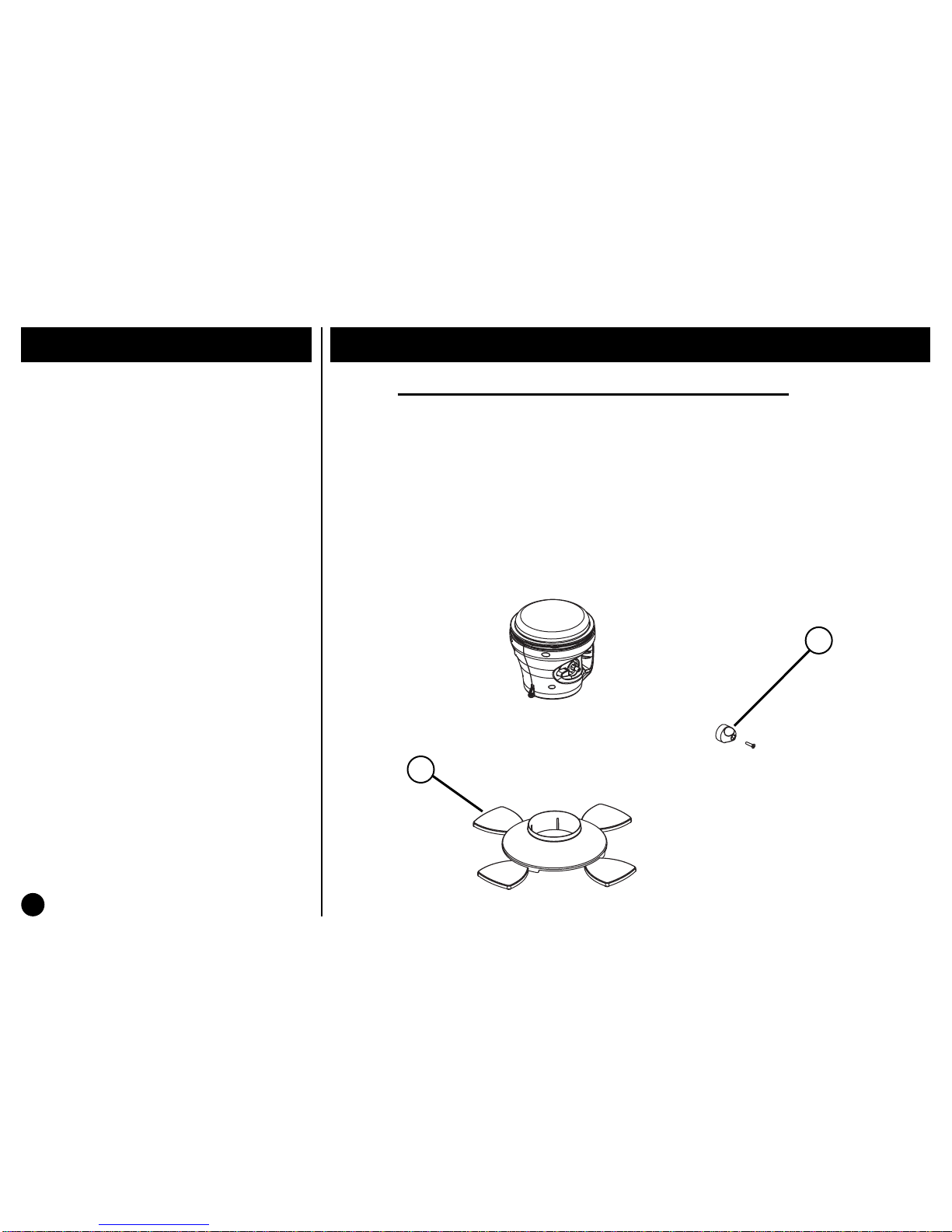

Replacement Parts List
No.
1
2
Part No.
5035-5401
5035-1491
Description
Support
Control Knob & screw
Things You Should Know cont.
1
2

Limited Five Year Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for a period of five years from the
date of original retail purchase, this product will be free from defects in material and
workmanship. Coleman, at its option, will repair or replace this product or any component of
the product found to be defective during the warranty period. Replacement will be made with
a new or remanufactured product or component. If the product is no longer available,
replacement may be made with a similar product of equal or greater value.This is your
exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase
and is not transferable. Keep the original sales receipt. Proof of purchase is required to
obtain warranty performance. Coleman dealers, service centers, or retail stores selling
Coleman® products do not have the right to alter, modify or in any way change the terms
and conditions of this warranty.
What This Warranty Does Not Cover
This warranty does not cover normal wear of parts, parts that are not genuine Coleman®
parts, or damage resulting from any of the following: negligent use or misuse of the product;
use on improper voltage or current; commercial use of the product; use contrary to the
operating instructions; disassembly, repair or alteration by anyone other than Coleman or an
authorized service center. Further, the warranty does not cover Acts of God, such as fire,
flood, hurricanes and tornadoes.Warranty void if damage to product results from the use of
a part other than a genuine Coleman® part.
COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT ARE CAUSED BY THE
USE OF UNAUTHORIZED PARTS OR SERVICE. COLEMAN SHALL NOT BE LIABLE
FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITIONS. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN
DURATION TO THE DURATION OF THE ABOVE WARRANTY OR CONDITIONS. SOME
STATES, PROVINCES, OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR
EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE OR PROVINCE TO PROVINCE.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center.You can find the nearest
authorized Coleman service center by visiting www.coleman.com or calling 1-800-835-
3278 or TDD 316-832-8707 in the United States or 1 800 387-6161 in Canada. If a service
center is not conveniently located, attach to the product a tag that includes your name,
address, daytime telephone number and description of the problem. Include a copy of the
original sales receipt. Carefully package the product and send either by UPS or Parcel Post
insured with shipping and insurance prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
The costs of transporting the product to Coleman or an authorized service center for
warranty service is the responsibility of the purchaser.
Do not mail products with fuel in tanks, or with disposable propane cylinders. Remove
glass globes from lanterns and wrap separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
If you have any questions regarding this warranty please call 1-800-835-3278 or TDD 316-
832-8707 in the United States or 1 800 387-6161 in Canada.
Warranty
7

8
Notes:
