Coleman 9946 Series User manual

9946 Series
Propane Stove
INSTRUCTIONS FOR USE
© 2002 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Read this manual carefully before assembling, using or servic-
ing these stoves. Keep this manual for future reference. If you
have questions about assembly, operation, servicing or repair
of these stoves, please call Coleman at 1-800-835-3278 or
TDD: 316-832-8707. In Canada call 1-800-387-6161.
ANS Z21.72b-CSA 11.2b (2002) Camp Stove
Model 9946-707

2
Contents
General Safety Information
To Set Up
To Light
To Tu r n O ff
To Clean
Things You Should Know
Parts List
Warranty
This manual contains important information about the assembly, opera-
tion and maintenance of these propane stoves. General safety information
is presented in these first few pages and is also located throughout the
manual. Particular attention should be paid to information accompanied by
the safety alert symbol “ DANGER”, “ WARNING”, “ CAUTION”.
Keep this manual for future reference and to educate new users of this
product. This manual should be read in conjunction with the labeling on
the product.
Safety precautions are essential when any mechanical or propane fueled
equipment is involved. These precautions are necessary when using, stor-
ing, and servicing. Using this equipment with the respect and caution
demanded will reduce the possibilities of personal injury or property
damage.
The following symbols shown below are used extensively throughout this
manual. Always heed these precautions, as they are essential when using
any mechanical or propane fueled equipment.
General Safety Information
DANGER
• CARBON MONOXIDE HAZARD
• This appliance can produce carbon monoxide
which has no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space
such as a camper, tent, car or home.
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
FOR YOUR SAFETY
Do not store or use gasoline or other liquids with
flammable vapors in the vicinity of this or any other
appliance.
FOR YOUR SAFETY

3
General Safety Information cont.
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames, pilot lights, direct
sunlight, other ignition sources or where temperatures exceed 120
degrees F (49°C).
• Propane is heavier than air and can accumulate in low places. If you
smell gas, leave the area immediately.
• Never install or remove propane tank while outdoor stove is lighted,
near flame, pilot lights, other ignition sources or while outdoor stove is
hot to touch.
• During operation, this product can be a source of ignition. Never use
the stove in spaces that contain or may contain volatile or airborne com-
bustibles, or products such as gasoline, solvents, paint thinner, dust par-
ticles or unknown chemicals. Minimum clearances from combustible
materials: 12 inches from the sides & 48 inches from the top.
• Provide adequate clearances around air openings into the combustion
chamber.
Not for home or recreational vehicle use.
WARNING
We cannot foresee every use which may be made of our products.
Check with your local fire safety authority if you have questions
about use.
Other standards govern the use of fuel gases and heat producing prod-
ucts for specific uses. Your local authorities can advise you about these.
• Never refill disposable cylinders.
• Use the present regulator that came with the stove. Do not attempt to
adjust.
DANGER
DANGER
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate personal injury, or property
damage.
Failure to comply with the precautions and instructions provided with
these stoves can result in death, serious bodily injury and property loss or
damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon
monoxide poisoning.
Only persons who can understand and follow the instructions should use
or service these stoves.
If you need assistance or information such as an instruction manual or
labels, contact the Coleman Co., Inc.
DANGER

4
General Safety Information cont.
• BURN HAZARD
• Never leave stove unattended when hot or in use.
• Keep out of reach of children.
WARNING
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and byproducts of combustion of this fuel,
contain chemicals known to the state of California to cause cancer,
birth defects, or other reproductive harm.
WARNING
• This product is fueled by propane gas. Propane gas is invisible, odorless,
and flammable. An odorant is normally added to help detect leaks and can
be described as a ”rotten egg” smell. The odorant can fade over time so
leaking gas is not always detectable by smell alone.
• Propane gas is heavier than air and leaking propane will sink to the lowest
level possible. It can ignite by ignition sources including matches, lighters,
sparks or open flames of any kind many feet away from the original leak.
Use only propane gas set up for vapor withdrawal.
• Propane gas should be stored or used in compliance with local ordinances
and codes or with ANSI/NFPA 58. Turn off propane when not in use.
DANGER
• CARBON MONOXIDE HAZARD
• This stove is a combustion appliance. All combustion appliances produce
carbon monoxide (CO) during the combustion process. This product is
designed to produce extremely minute, non-hazardous amounts of CO if
used and maintained in accordance with all warnings and instructions. Do
not block air flow into or out of the stove.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery
eyes, headaches, dizziness, fatigue and possibly death. You can't see it and
you can't smell it. It's an invisible killer. If these symptoms are present dur-
ing operation of this product get fresh air immediately!
• For outdoor use only.
• Never use inside house, camper, tent, vehicle or other unventilated or
enclosed areas. This stove consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering your life. • SERVICE SAFETY
• Keep all connections and fittings clean. Inspect propane cylinder and
stove propane connections for damage before attaching.
• During set up, check all connections and fittings for leaks using
soapy water. Bubbles indicate a leak. Never use a flame. Check that
the connection is not cross-threaded and that it is tight. Perform anoth-
er leak check. If there is still a leak, remove the cylinder and contact
Coleman for service or repairs.
• Use as a cooking appliance only. Never alter in any way or use with
any device or part not expressly approved by Coleman.
• Clean stove frequently to avoid grease accumulation and possible
grease fires.
CAUTION

5
To Set Up
DANGER
• CARBON MONOXIDE HAZARD
• For outdoor use only.
• Never use inside house, camper, tent, vehicle or other unventilated or
enclosed areas. This stove consumes air (oxygen). Do not use in unventilated
or enclosed areas to avoid endangering your life.
Note: Use Coleman 16.4 oz disposable propane cylinders. The LP-gas cylin-
ders(s) used with stoves must be constructed and marked in accordance
with the specifications for LP-gas cylinders of the U.S. Department of
Transportation or Transport Canada, CAN/CSA 339.
■ For outdoor use only.
■ Remove components from carton.
Installing Legs
■ Insert PLUGS into one end of
each leg as shown.
■Tap PLUG with hammer to drive
into place
■Insert LEGS into slots on bottom
of stove as shown. Make sure legs
are positioned solidly.
Installing Bottom Rack
■ Attach BOTTOM RACK with
screws & wingnuts as shown

6

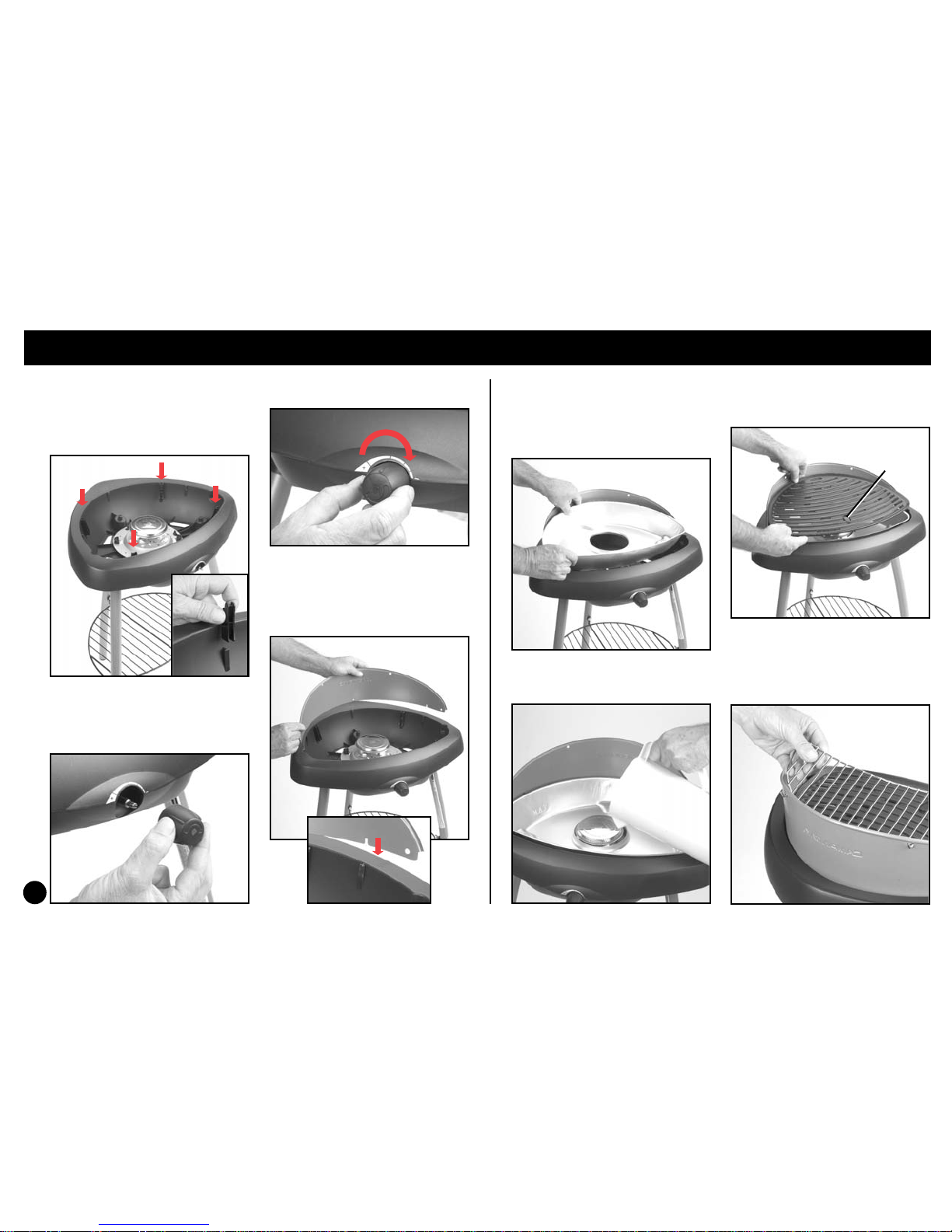

To Set Up cont.
■Place GRILLING SURFACE over
water pan as shown.
Installing Grate Supports
■ Slide 4 GRATE SUPPORTS into
channels on base. Push down
firmly.
Installing Control Knob
■ Push KNOB onto regulator as
shown.
■ Turn KNOB to off position.
Installing Windscreen
■ Align notch on WINDSCREEN
with channel on base. Push down
to secure.
Installing Water Pan, Grilling
Surface and Warming Rack
■ Position WATER PAN on grate
supports as shown.
■ Fill to line indicated on WATER
PAN
■Position WARMING RACK into
holes on windscreen.
■Be sure hooks on WARMING
RACK are facing upward.
A

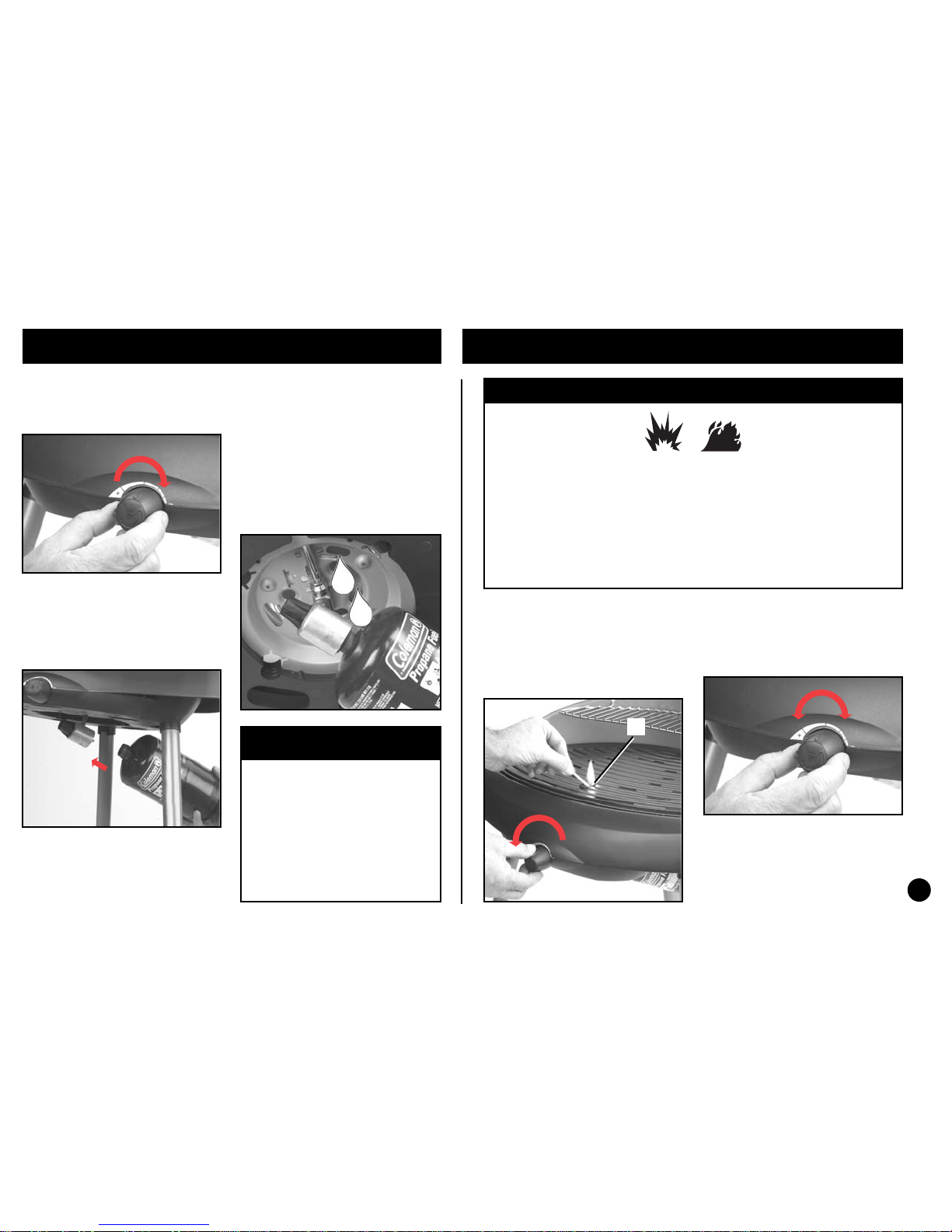

To Set Up cont. To Light
7
■ Remove plastic cap from top of
propane cylinder and screw
propane cylinder into REGULATOR
hand tight.
CAUTION
• SERVICE SAFETY
Keep all connections and fittings
clean. Inspect propane cylinder
and stove propane connections for
damage before attaching.
During set up, check all connec-
tions and fittings for leaks using
soapy water. Bubbles indicate a
leak. Never use a flame.
Attach propane cylinder
■ Make sure burner valve is
turned to off position.
■ Check the connection between
the cylinder and the regulator with
soapy water. Bubbles indicate a
leak. Never use a flame. Check that
the connection is not cross-thread-
ed and that it is tight. Perform
another leak check. If there is still a
leak, remove the cylinder and con-
tact Coleman for service or repairs.
Leak Check
■ Make 2-3 oz. of leak check solu-
tion (one part liquid dishwashing
detergent and three parts water).
DANGER
• EXPLOSION - FIRE HAZARD
• Propane is heavier than air and can accumulate in low places. If you smell
gas, leave the area immediately.
• Always attach or detach propane source outdoors; never while stove is lighted,
near flame, pilot lights, other ignition sources or while stove is hot to touch.
• This stove is red hot during use and can ignite flammables too close to the
burners. Keep flammables at least 12 inches from the sides and 48 inches from
the top of the stove. Keep gasoline and other flammable liquids and vapors well
away from stove.
■ Set on sturdy, flat area.
For outdoor use only.
■Insert lighted match through hole
in GRILLING SURFACE and open
BURNER VALVE.
■ Adjust flame with BURNER
VALVE.
■ Flame should be blue with hint of
yellow on tips.
A

8

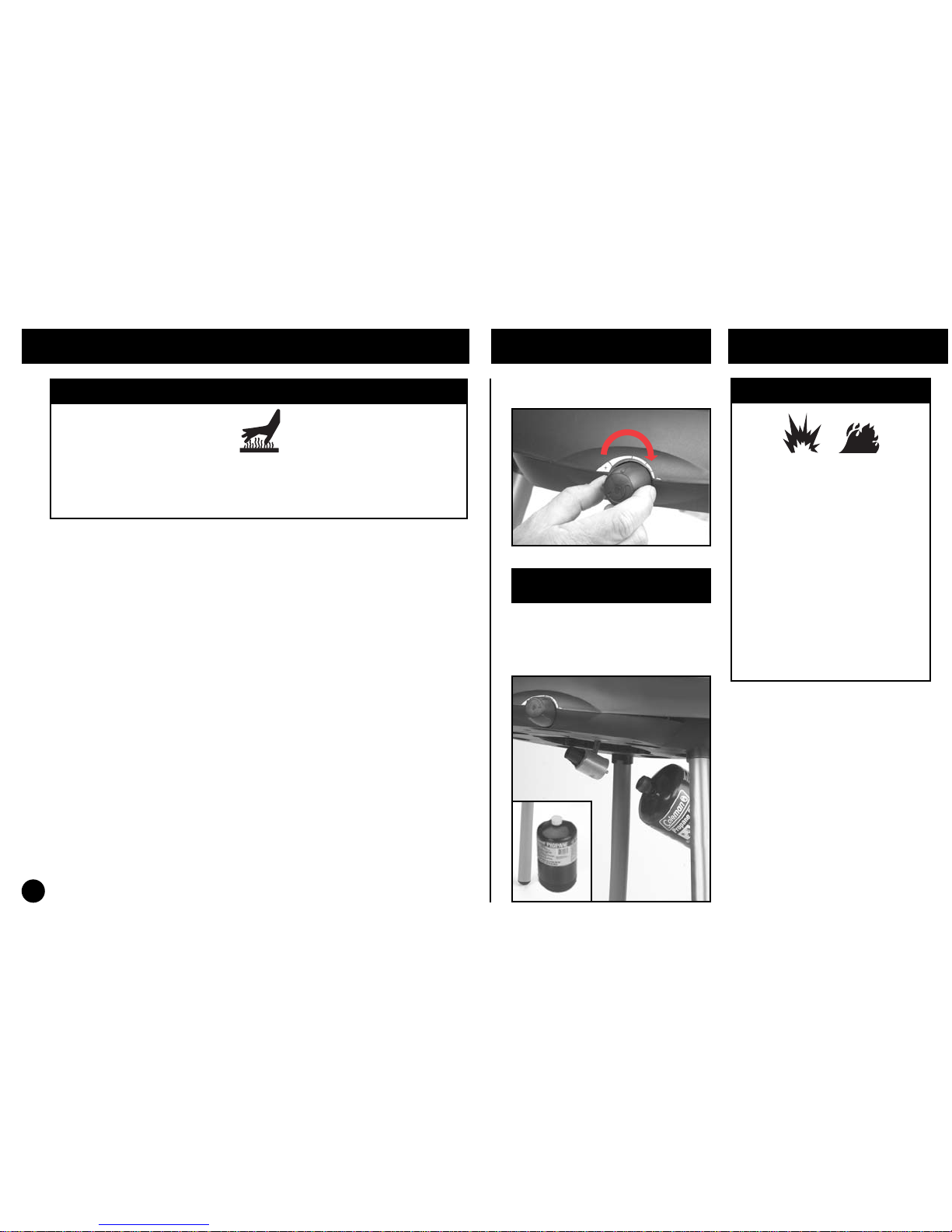

To Light cont. To Turn Off To Clean cont.
WARNING
• BURN HAZARD
• Never leave stove unattended when hot or in use.
• Keep out of reach of children.
To Clean
■ Close BURNER VALVE firmly.
■ Remove propane cylinder from
REGULATOR and replace plastic
cap on cylinder.
DANGER
• EXPLOSION - FIRE HAZ-
ARD
• Never store propane near high
heat, open flames, pilot lights,
direct sunlight, other ignition
sources or where temperatures
exceed 120 degrees F (49°C).
• Refillable propane tanks must
always be stored outdoors in a well
ventilated space. Never store
propane tank in an enclosed area
(house, garage, etc.). If stove is to
be stored indoors, disconnect the
Preheating:
■ Allow the grilling surface to pre-
heat on full power for 1 minute to
reach the ideal cooking tempera-
ture for grilling food.
Cooking:
■ The grilling surface has been
treated with a high quality, non-
stick coating on which food can be
cooked in a healthy way without
adding fat.
■ As the fat is collected in the
water tray, the food is cooked (with
no residual or burned fat) and
remains tasty and tender.
■ The grilling surface reaches its
highest temperature (ideal for sear-
ing grilled meat) after one minute of
pre-heating.
■ Never leave the cooking plate on
without food placed on it for longer
than the one minute preheating
time, otherwise you will damage
the special coating.
■ Place the food on the grilling sur-
face and then use the knob that
controls the gas output to adjust
the cooking temperature to suit
your requirements.
■ It is also possible to adjust the
cooking intensity by positioning the
food at different places on the
grilling surface. The temperature is
higher in the center and lower
towards the outer edge.
■ Do not handle the grilling surface
when it is in use. To add water to
the water tray, pour into the hole
marked “A”.

■ Wipe clean with soft cloth and
mild dish detergent. Do not use
abrasives.
■ Be sure GRILLING SURFACE
and stove are cool (approximately
15 minutes) and PROPANE
CYLINDER has been removed.
■ Lift off GRILLING SURFACE &
WATER PAN.
■ GRILL and DRIP TRAY are dish-
washer safe.
1. It is unsafe and illegal in some places to store or use propane cylinders
of greater than 1.14 kg (2.5 lbs) water capacity (approximately 1 lb.
propane) in occupied enclosures.
2. If using refillable propane cylinder, use only Coleman parts and
accessories.
3. The usual storage areas for camping and picnic equipment are the
basement, attic, or garage. To avoid the accumulation of dust, cobwebs,
etc., that is common in these areas, place your stove in a plastic bag and
seal it with a rubber band.
4. For repair service call one of the numbers on the front cover for loca-
tion of your nearest Coleman Service Center. If product must be mailed to
Service Center, attach to product your name, address and a description
of problem and mail to Service center with shipping and insurance pre-
paid. If necessary to write the Service Center or factory, refer to your
stove by model number. Do not send propane cylinder.
5. If not completely satisfied with the performance of this product, please
call one of the numbers listed on the cover.
Things You Should Know
For products purchased in the
United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
9
To Clean cont.

10
Parts List
No. Part No. Description
1 9946-4301 Leg caps (set of 3)
2 9946-4251 Leg with cap
3 9946-1351 Bottom rack w/hardware
4 9946-4151 Control knob
5 9946-1051 Water pan
6 9946-3251 Grilling surface
79946-2351 Windscreen
89946-3151 Warming rack
9 9946-5271 Burner
10 9946-4051 Grate supports
1
5
7
2
6
4
3
8
10
9

Warranty
Limited Lifetime Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for the period that you
own this product, it will be free from defects in material and workmanship.
Coleman, at its option, will repair or replace this product or any component of
the product found to be defective during the warranty period. Replacement will
be made with a new or remanufactured product or component. If the product is
no longer available, replacement may be made with a similar product of equal
or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial
retail purchase and is not transferable. Keep the original sales receipt. Proof of
purchase is required to obtain warranty performance. Coleman dealers, service
centers, or retail stores selling Coleman products do not have the right to alter,
modify or in any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from
any of the following: negligent use or misuse of the product, use on improper
voltage or current, use contrary to the operating instructions, disassembly,
repair or alteration by anyone other than Coleman or an authorized service
center. Further, the warranty does not cover Acts of God, such as fire, flood,
hurricanes and tornadoes.
Coleman shall not be liable for any incidental or consequential damages
caused by the breach of any express or implied warranty or conditions. Except
to the extent prohibited by applicable law, any implied warranty of mer-
chantability or fitness for a particular purpose is limited in duration to the dura-
tion of the above warranty or conditions. Some states, provinces or jurisdictions
do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or
exclusion may not apply to you. This warranty gives you specific legal rights,
and you may also have other rights that vary from state to state or province to
province.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center. You can find the
nearest authorized Coleman service center by calling 1-800-835-3278 or TDD
316-832-8707 in the United States or 1 800 387-6161 in Canada. If a service
center is not conveniently located, attach to the product a tag that includes
your name, address, daytime telephone number and description of the prob-
lem. Include a copy of the original sales receipt. Carefully package the product
and send either by UPS or Parcel Post insured with shipping and insurance
prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
Do not mail products with fuel in tanks, or with disposable propane cylinders.
Remove glass globes from lanterns and wrap separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE.
If you have any questions regarding this warranty please call 1-800-835-3278
or TDD 316-832-8707 in the United States or 1 800 387-6161 in Canada.
11

Litho in the France. •Lithographié aux France •Impreso en Francia
9946-050 (08/02) P.I.
The Coleman Co., Inc. • 3600 N. Hydraulic • Wichita, KS 67219 U.S.A.
1-800-835-3278 • TDD: 316-832-8707
Sunbeam Corporation (Canada) Limited • 5975 Falbourne Street
Mississauga, Ontario Canada L5R 3V8 • 1 800 387-6161
©2002 The Coleman Company, Inc. All rights reserved.
Coleman® is a registered trademark of The Coleman Company, Inc.
©2002 The Coleman Company, Inc. Tous droits réservés.
Coleman® est une marque déposée de The Coleman Company, Inc.
