Coleman 5481 Series User manual

IMPORTANT
Read this manual carefully before assembling, using or servicing these
stoves. Keep this manual for future reference. If you have questions
about assembly, operation, servicing or repair of these stoves, please
call Coleman in the United States at 1-800-835-3278 or
TDD: 1-316-832-8707 and in Canada at 1-800-387-6161.
IMPORTANT
Lisez attentivement ce manuel avant d’assembler, d’utiliser ou de
réparer le réchaud et gardez-le pour référence ultérieure. Pour toute
question en ce qui concerne l’assemblage, le fonctionnement,
l’entretien ou la réparation, appelez Coleman au 1-800-835-3278 ou
ATS 1-316-832-8707 aux États-Unis et au 1-800-387-6161 au Canada.
IMPORTANTE
Lea este manual cuidadosamente antes de ensamblar, usar o reparar
esta estufa. Guarde este manual para uso de referencia en el futuro.
Si tiene alguna pregunta acerca del ensamblaje, uso, compostra o
reparaciones a la estufa, por favor llame a Coleman al 1-800-835-3278
o TDD: 1-316-832-8707. En Canadá llame al 1-800-387-6161.
Note: Propane tank is not included.
Remarque : La bouteille de propane n’est pas incluse.
Nota: El tanque de propano no está incluido.
Electronic Ignition
Allumage électronique
Encendido electrónico
Standard Ignition
Allumage standard
Encendido estándar
© 2012 The Coleman Company, Inc
www.coleman.com
Propane Stove Oven
Four réchaud au propane
Hornillo de propano
Instructions for use
Notice d’emploi
Instrucciones de uso
5481 Series

English - 1
If you smell gas:
1. Do not attempt to
light appliance.
2. Extinguish any
open flame.
3. Disconnect from
fuel supply.
FOR YOUR
SAFETY
Do not store or
use gasoline or
other liquids with
flammable vapors in
the vicinity of this or
any other appliance.
FOR YOUR
SAFETY
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
DANGER
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
WARNING
CAUTION indicates a potentially
hazardous situation which, if
not avoided, may result in minor
or moderate personal injury, or
property damage.
CAUTION
CARBON MONOXIDE
HAZARD
•This appliance can
produce carbon
monoxide which has
no odor.
•Using it in an
enclosed space can
kill you.
•Never use this
appliance in an
enclosed space
such as a camper,
tent, car or home.
DANGER
This manual contains important
information about the assembly, operation
and maintenance of this outdoor propane
appliance. General safety information is
presented on this page and is also located
throughout these instructions. Particular
attention should be paid to information
accompanied by the safety alert symbol
“ DANGER”, “ WARNING”,
“ CAUTION”.
Keep this manual for future reference and
to educate new users of this product. This
manual should be read in conjunction with
the labeling on the product.
Safety precautions are essential
when any mechanical or propane fueled
equipment is involved. These precautions
are necessary when using, storing, and
servicing. Using this equipment with the
respect and caution demanded will reduce
the possibilities of personal injury or
property damage.
The following symbols shown
below are used extensively throughout
these instructions. Always heed these
precautions, as they are essential when
using any mechanical or propane fueled
equipment.

English - 2
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and by products
of combustion of this fuel, contain
chemicals known to the state of
California to cause cancer, birth defects,
or other reproductive harm.
• Failure to comply with the
precautions and instructions
provided with these stoves can
result in death, serious bodily
injury and property loss or damage
from hazards of fire, explosion,
burn, asphyxiation, and/or carbon
monoxide poisoning.
• Only persons who can understand
and follow the instructions should
use or service these stoves.
• If you need assistance or information
such as an instruction manual
or labels, contact The Coleman
Company, Inc.
DANGER
EXPLOSION - FIRE HAZARD
• Never store propane near high heat,
open flames, pilot lights, direct
sunlight, other ignition sources or
where temperatures exceed 120 ºF
(49 °C).
• Propane is heavier than air and
can accumulate in low places.
If you smell gas, leave the area
immediately.
• Never install or remove propane
tank while outdoor stove is lighted,
near flame, pilot lights, other ignition
sources or while outdoor stove is hot
to touch.
• During lighting and operation, this
product can be a source of ignition.
Never use the stove in spaces that
contain or may contain volatile or
airborne combustibles, or products
such as gasoline, solvents, paint
thinner, dust particles or unknown
chemicals.
• Minimum clearances from
combustible materials: 12 inches
from the sides and 48 inches from
the top.
• Provide adequate clearances around
air openings into the combustion
chamber.
DANGER
CARBON MONOXIDE HAZARD
• This stove is a combustion
appliance. All combustion appliances
produce carbon monoxide (CO)
during the combustion process.
This product is designed to produce
extremely minute, non-hazardous
amounts of CO if used and
maintained in accordance with all
warnings and instructions. Do not
block air flow into or out of the stove.
• Carbon Monoxide (CO) poisoning
produces flu-like symptoms, watery
eyes, headaches, dizziness, fatigue
and possibly death. You can’t see it
and you can’t smell it. It’s an invisible
killer. If these symptoms are present
during operation of this product get
fresh air immediately!
• For outdoor use only.
• Never use inside house, camper,
tent, vehicle or other unventilated
or enclosed areas. This stove
consumes air (oxygen) and
produces carbon monoxide
(CO). Do not use in unventilated
or enclosed areas to avoid
endangering your life.
DANGER
• This product is fueled by propane
gas. Propane gas is invisible,
odorless, and flammable. An odorant
is normally added to help detect
leaks and can be described as a
“rotten egg” smell. The odorant can
fade over time so leaking gas is not
always detectable by smell alone.
• Propane gas is heavier than air and
leaking propane will sink to the
lowest level possible. It can ignite by
ignition sources including matches,
lighters, sparks or open flames of
any kind many feet away from the
original leak. Use only propane gas
set up for vapor withdrawal.
• Propane gas should be stored
or used in compliance with local
ordinances and codes or with ANSI/
NFPA 58. Turn off propane when not
in use.
WARNING

English - 3
SERVICE SAFETY
• Keep all connections and fittings
clean. Inspect propane cylinder
and stove propane connections for
damage before attaching.
• During set up, check all connections
and fittings for leaks using soapy
water. Never use a flame. Bubbles
indicate a leak. Check that the
connection is not cross-threaded
and that it is tight. Perform another
leak check. If there is still a leak,
remove the cylinder and contact
Coleman for service or repairs.
• Use as a cooking appliance only.
Never alter in any way or use with
any device or part not expressly
approved by Coleman.
• Clean stove frequently to avoid
grease accumulation and possible
grease fires.
CAUTION
Not for home or
recreational vehicle use.
We cannot foresee every use which
may be made of our products. Check
with your local fire safety authority
if you have questions about use.
Other standards govern the use of fuel
gases and heat producing products
for specific uses. Your local authorities
can advise you about these.
• Never refill disposable cylinders.
• Use the preset regulator that came
with the stove. Do not attempt to
adjust.
• Use only Coleman®accessories or
parts. During stove set-up, check all
fittings for leaks using soapy water.
Never use a flame.
WARNING
BURN HAZARD
• Never leave stove unattended when
hot or in use.
• Keep out of reach of children.
WARNING
CARBON MONOXIDE HAZARD
• For outdoor use only.
• Never use inside house, camper,
tent, vehicle or other unventilated
or enclosed areas. This stove
consumes air (oxygen) and produces
carbon monoxide (CO). Do not use
in unventilated or enclosed areas to
avoid endangering your life.
DANGER
Remove all packing material from
inside of oven before use.
DANGER
To Set Up
NOTE: Use Coleman®16.4 oz.
disposable propane cylinders. The
LP-gas cylinder(s) used with stoves
must be constructed and marked in
accordance with the specications for
LP-gas cylinders of the U.S. Department
of Transportation or Transport Canada,
CAN/CSA B339.
Technical
Characteristics
Input (Stove):
6,000 BTU/h per burner
Input (Oven):
3,000 BTU/h
Category: Pressure regulated propane
Fuel: 16.4 oz. disposable propane cylinders
Regulator: 5481

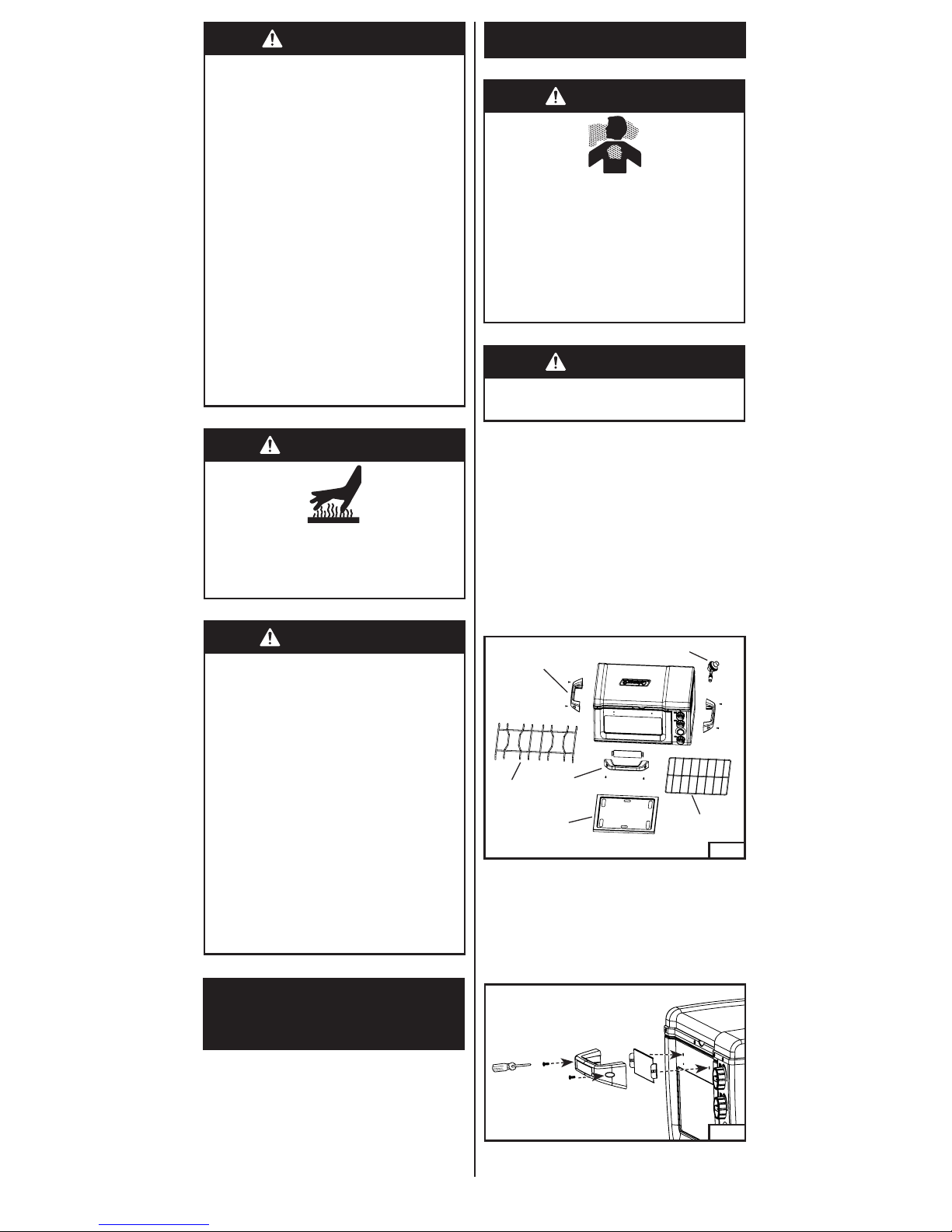

■Remove components from carton.
(Fig. 1)
Fig. 1
Oven Heat
Diffuser
Oven Rack
Side Handle
with Screws
Grate Oven Door
Handle with
Screws
Regulator
■Insert Phillips-Head screw through the
holes of oven door handle as shown.
■Using a Phillips-Head screwdriver,
tighten screws to secure. (Fig. 2)
To Install Handles
Fig. 2

English - 4
SERVICE SAFETY
• Keep all connections and fittings
clean. Inspect propane cylinder and
propane connections for damage
before attaching.
• During set up, check all connections
and fittings for leaks using soapy
water. Bubbles indicate a leak. Never
use a flame.
CAUTION
■Open the stove
lid, rotate the
wind guard
holder inside the
stove lid toward
outside. (Fig. 4)
■Insert the wind
guard holder
into the slot on
the wind guard.
(Fig. 5) Repeat
on the other
side.
■The wind guards can be opened and
used as side tables. (Fig. 6)
■Open oven door and insert the oven
heat diffuser in the lowest support
position. Make sure it is inserted
completely. (Fig. 8)
NOTE: The oven heat diffuser is
recommended to help distribute heat
evenly and keep the burner clean.
■Insert the oven rack. (Fig. 9)
NOTE: The height of the oven rack
may be adjusted to accommodate the
size of the food dish. You may insert
the oven rack at different heights.
Also, the oven rack may be ipped
for additional height adjustments. To
accommodate a large food dish, the
crumb tray may be removed and the
oven rack placed in the lowest
support position.
■Install the grate as shown. (Fig. 7)
■Push in and turn right to close the
control knob. Make sure all 3 control
knobs are in closed position. (Fig. 10,
11, 12)
NOTE: Do not put heavy objects on the
wind guards in case of destroying it when
using as side tables.
■Repeat the above steps to install the
side handles. (Fig. 3)
To Install Wind Guards
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 3
Fig. 10 Fig. 11
Fig. 12
Slot

English - 5
Leak Check
• Perform leak test outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the outdoor appliance
until connection has been leak tested
and does not leak.
WARNING
To Light
BURN HAZARD
• Never leave appliance unattended
when hot or in use.
• Keep out of reach of children.
WARNING
EXPLOSION - FIRE HAZARD
• Propane is heavier than air and
can accumulate in low places.
If you smell gas, leave the area
immediately.
• Always attach or detach propane
source outdoors; never while
appliance is lighted, near flame, pilot
lights, other ignition sources or while
appliance is hot to touch.
• This appliance is very hot during use
and can ignite flammables too close
to the burners. Keep flammables at
least 12 inches from the sides and 48
inches from the top of the appliance.
Keep gasoline and other flammable
liquids and vapors well away
from appliance.
• The appliance must not be exposed
to flammable vapors or liquids
during lighting.
DANGER
INSTASTART™
Electronic Ignition Stove oven
■Set on sturdy, at surface. For
outdoor use only.
■Open oven door. Oven door must be
opened during lighting.
■Push and turn the control knob to
the red ignition setting mark, hold
for 5 seconds until burner lights. If
appliance does not ignite within 5
seconds allow it to air out and repeat
ignite procedure. (Fig. 17)

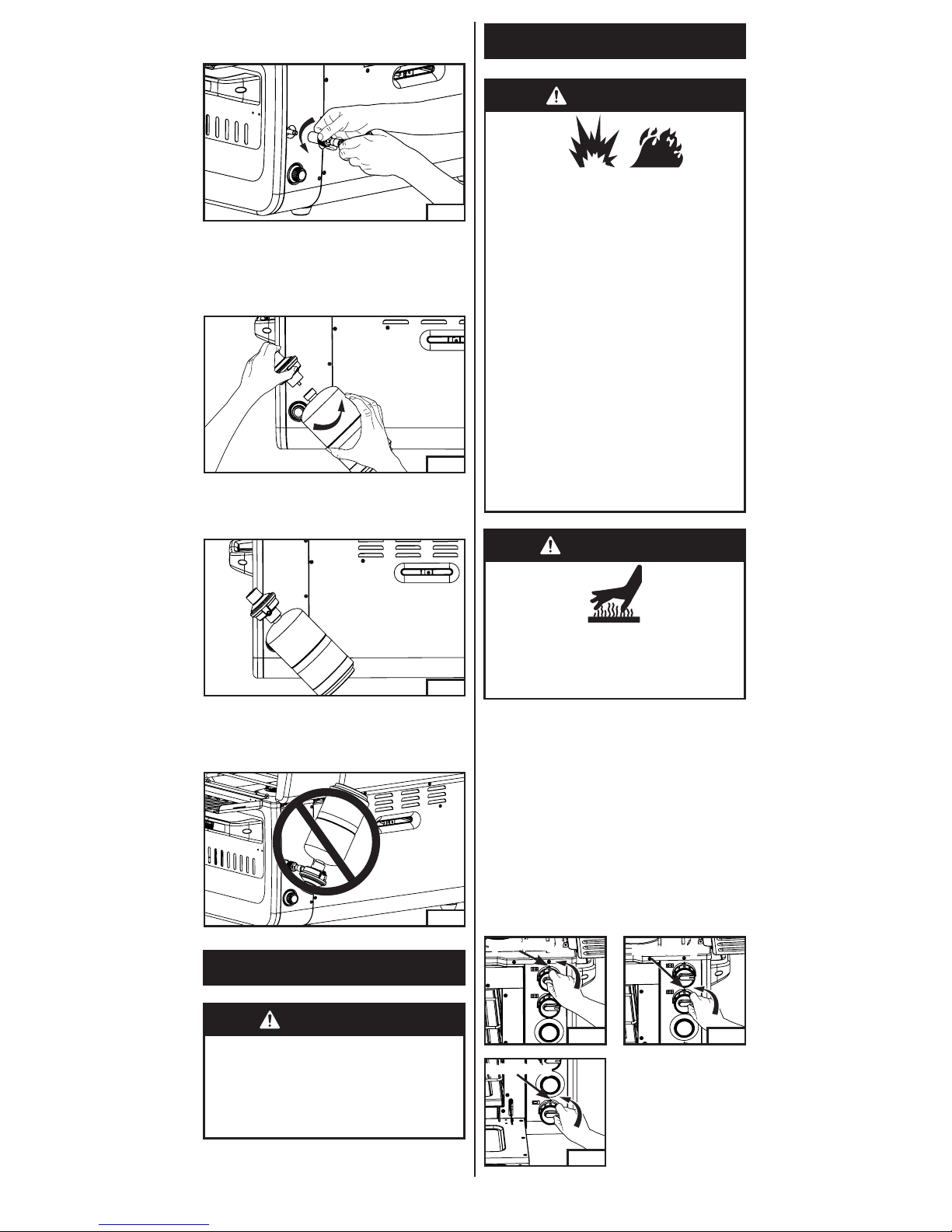

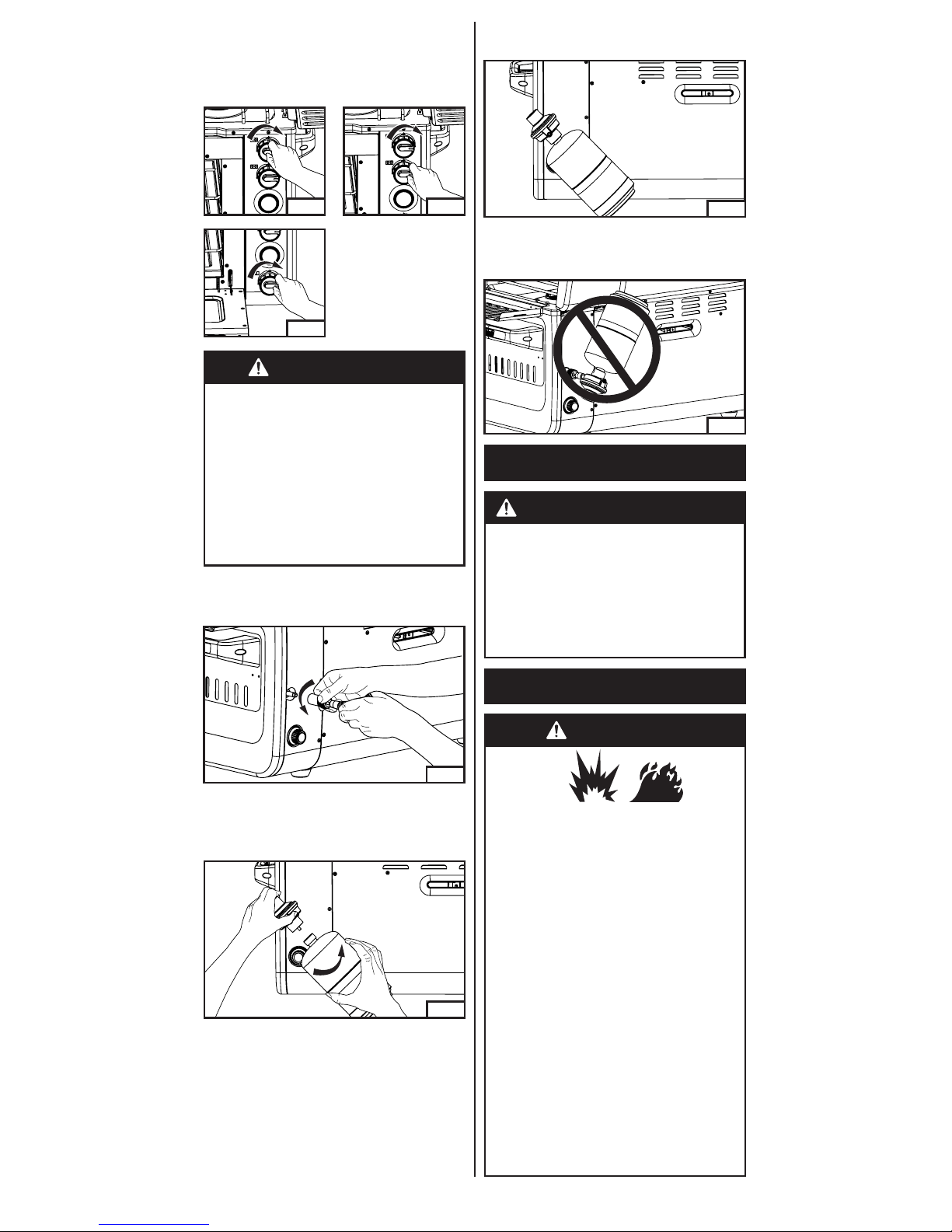

■Screw regulator into stove oven hand
tight. (Fig. 13)
■Propane cylinder correctly installed.
(Fig. 15)
■Never operate stove oven with
propane cylinder in an inverted
position. (Fig. 16)
Fig. 15
Fig. 16
Fig. 13
Fig. 14
Fig. 17 Fig. 18
Fig. 19
Ignition Setting
Ignition Setting
Ignition Setting
■Remove protective cap from top of
propane bottle and screw propane
bottle into regulator hand tight.
(Fig. 14)

English - 6

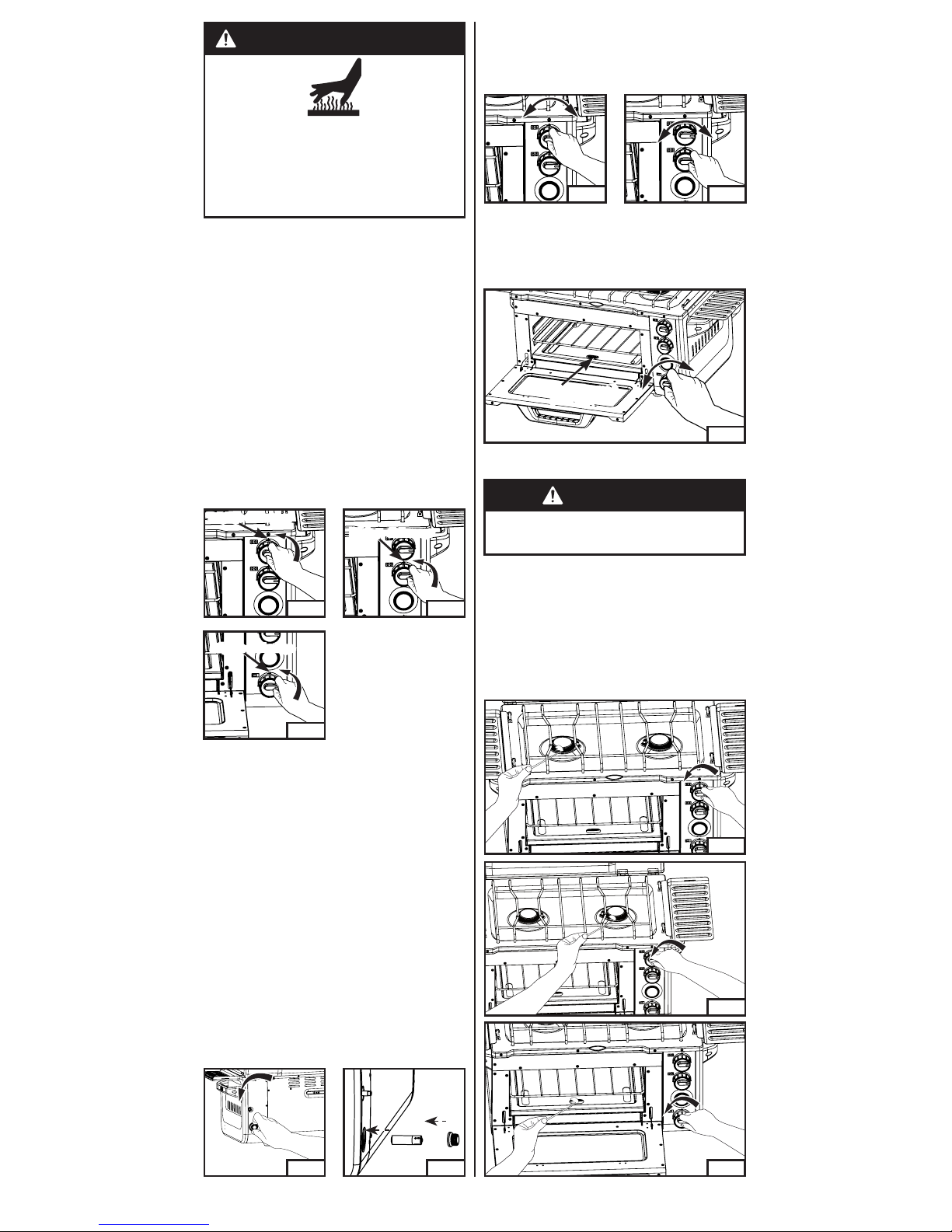

To Turn Off
To Bake
To Toast
Standard Ignition Stove oven
■Set on sturdy, at surface. For outdoor
use only.
■Hold lighted match near burner,
push control knob and turn in
counterclockwise direction open
burner valve. (Fig. 25, 26, 27)
■Use household baking dishes that
withstand normal oven temperatures.
■The cooking temperature is not
automatically regulated.
■Use the thermometer as a guide and
manually adjust the temperature with
the control knob.
■Continuously monitor the baking
process while using the oven. Adjust
the temperature and rotate the baking
dish as necessary.
■Follow the recommended food
preparation instructions on food
packages.
■Cooking times may vary depending on
weather conditions and altitude.
■Turn oven fully on.
■All rack positions may be used for
toasting. Experience shows the upper
levels tend to reduce time required
and minimize the need for ipping
the food.
Use a LONG wooden match or a
match extension.
CAUTION
■Adjust ame with control knob.
(Fig. 22, 23) Flame should be blue with
a hint of yellow on tips.
■Open the oven door to view the burner
ame below the heat diffuser. Adjust
ame with control knob. (Fig. 24)
■Turn control knobs in clockwise
direction to switch three burners off.
(Fig. 28, 29, 30)
Fig. 20
Fig. 22
Fig. 21
Fig. 23
Fig. 25
Fig. 26
Fig. 27
Fig. 28 Fig. 29
Fig. 30
View flame
from here
Fig. 24
■Repeat the steps to light other control
knobs. (Fig. 18, 19)
NOTE: If igniter fails to light stove oven,
use match to light burner. If the stove
oven is wet the igniter may not spark. If
the oven burner goes out suddenly, open
the oven door and leave about 5 minutes
before lighting again.
■If the igniter does not spark, open the
battery cover near regulator and try to
change a new battery. (Fig. 20)
■Install battery in the correct orientation
as shown on the battery cover.
(Fig. 21)

English - 7

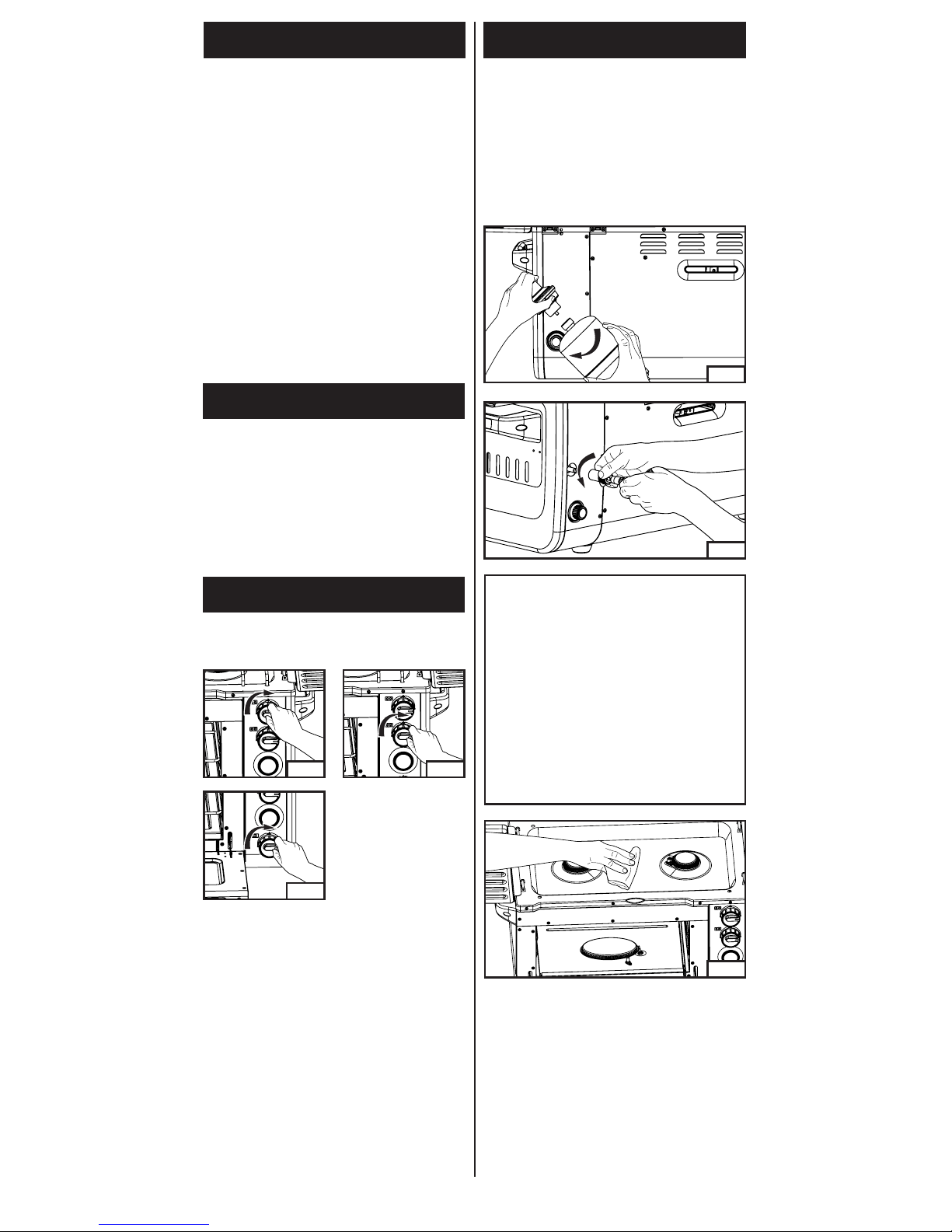

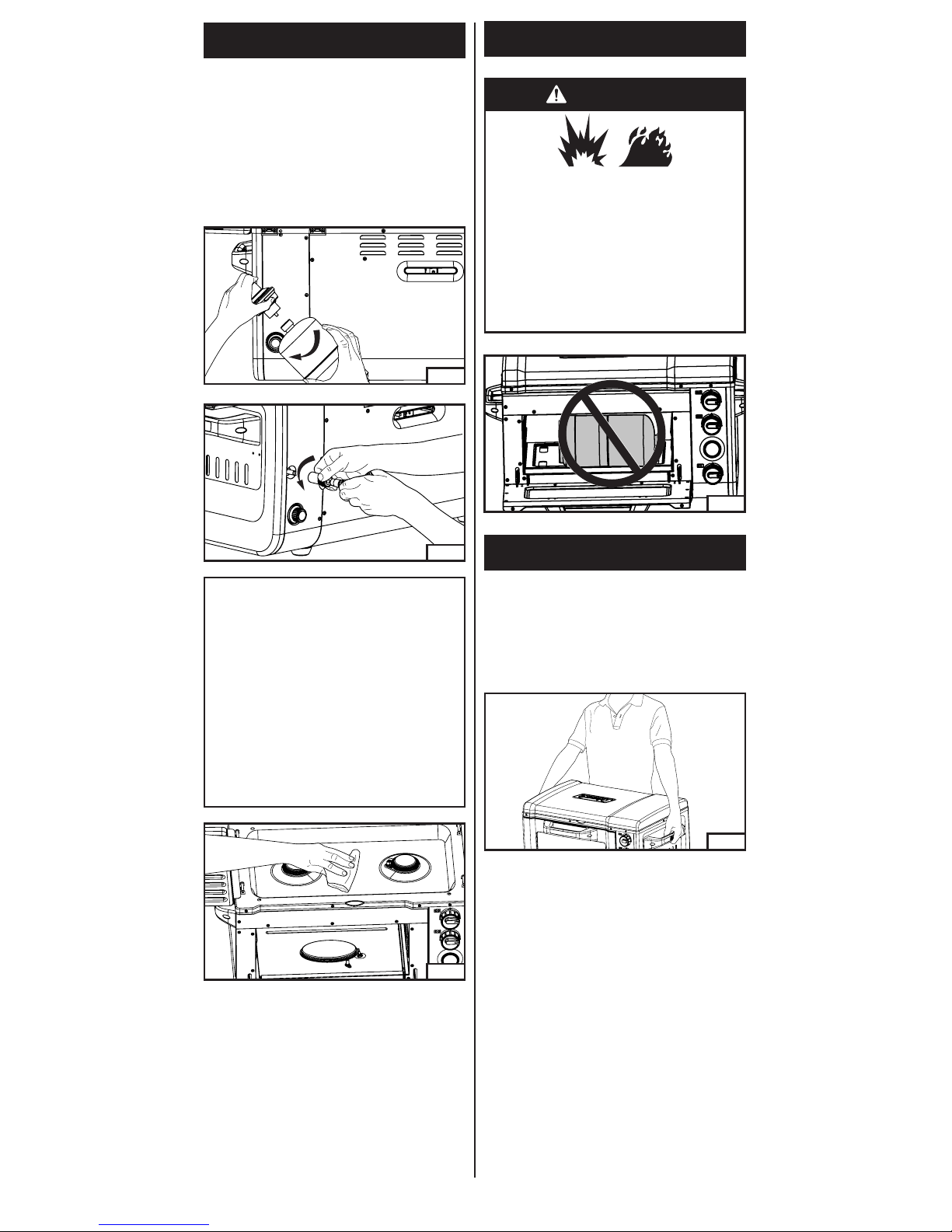

To Clean
■Make sure stove oven is cool.
■Move stove oven away from ame
(including pilot lights) and other
ignition sources.
■Remove propane cylinder from
regulator and replace protective cap
on cylinder. (Fig. 31)
■Remove regulator from stove oven.
(Fig. 32)
MAINTENANCE
• Keep appliance area clear and free
from combustible materials, gasoline
and other flammable vapors and
liquids.
• Do not obstruct the flow of
combustion and ventilation air.
• A good flame should be blue with
minimal yellow tip. Some yellow tips
on flames are acceptable as long as
no carbon or soot deposits appear.
• Wipe clean with soft cloth and mild
dish detergent. Do not use abrasives.
(Fig. 33)

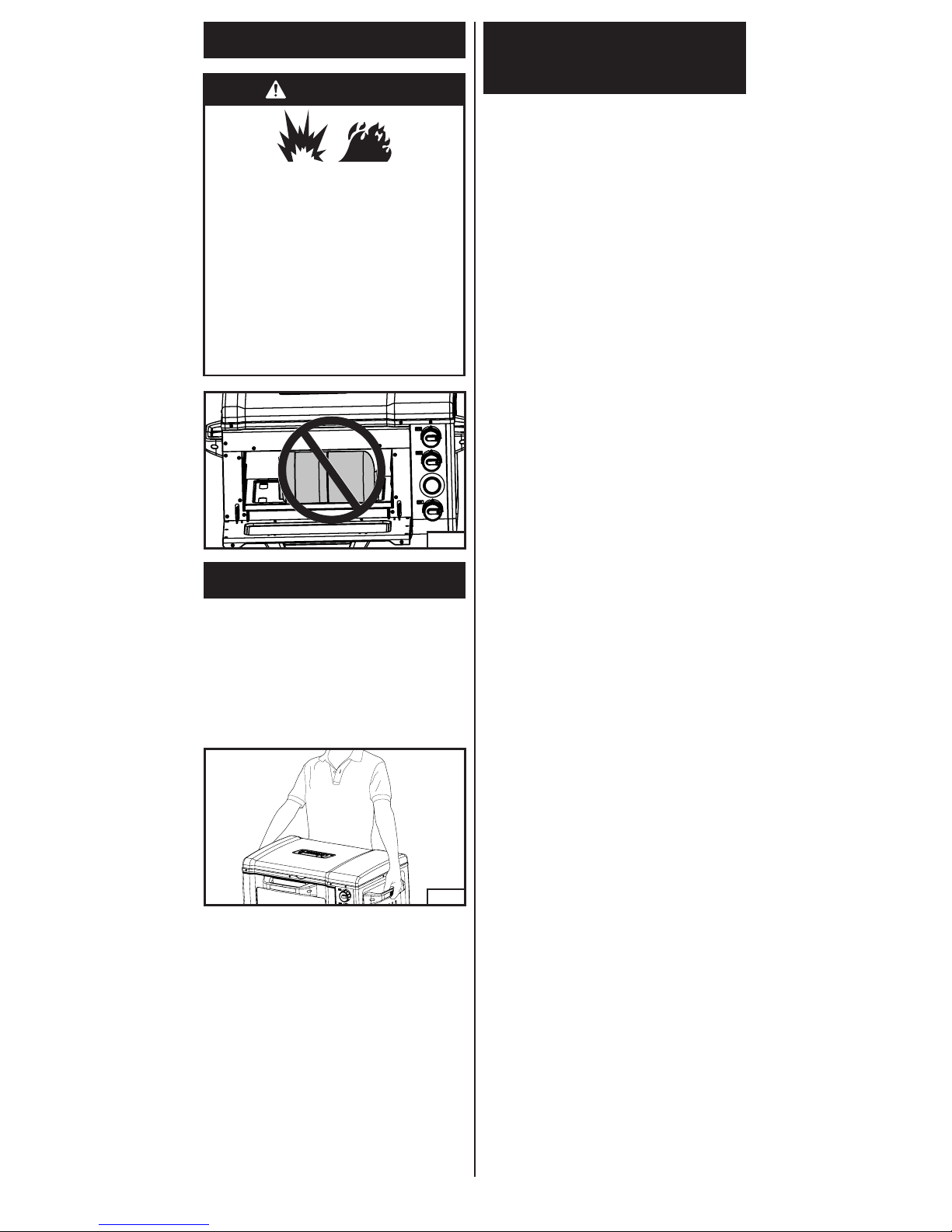

To Store
EXPLOSION - FIRE HAZARD
• Never store propane near high heat,
open flames, pilot lights, direct
sunlight, other ignition sources or
where temperatures exceed 120 ºF
(49 °C).
• The cylinder must be disconnected
when the appliance is in storage.
• Never store a propane cylinder inside
the appliance. (Fig. 34)
DANGER
To Carry
■Remove food and baking dishes from
the stove oven before carrying or
transporting the stove oven.
■Make sure stove oven is cool.
■To carry the stove oven, rmly grasp
the side handles. (Fig. 35)
Fig. 31
Fig. 32
Fig. 33
Fig. 34
Fig. 35

English - 8
Things You Should
Know
1. It is unsafe and illegal in some places
to store or use propane cylinders of
greater than 1.14 kg (2.5 lbs.) water
capacity (approximately 1 lb. propane)
in occupied enclosures.
2. The usual storage areas for camping
and picnic equipment are the
basement, attic, or garage. To avoid
the accumulation of dust, cobwebs,
etc., that is common in these storage
areas, place your stove in a plastic bag
and seal it with a rubber band.
3. If not completely satised with the
performance of this product, please
call one of the numbers listed on the
cover of this manual.
www.coleman.com

English - 9

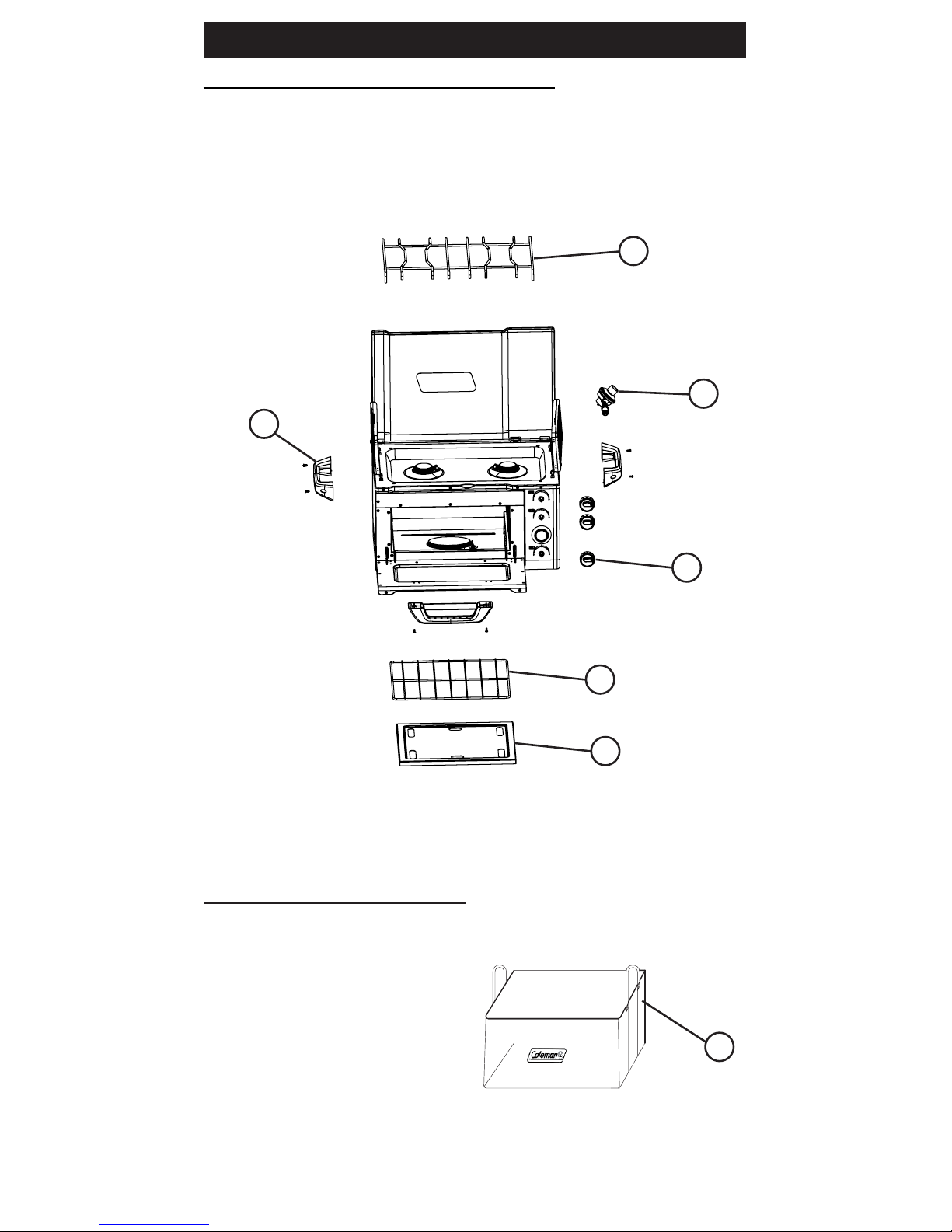

Replacement Parts List
Item Part No. Description
1 5010001085 Stove Grate
2 5010001082 Regulator Assy.
3 5010001083 Control Knob
4 5010001086 Oven Rack
5 5010001087 Oven Heat Diffuser
6 5010001084 Handle & Screw Assy.
Item Part No. Description
1 2000009648 Carry Bag 1
1
2
3
4
5
6
Additional Accessory Sold Separately
