HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]

TABLE OF CONTENTS
TITLE PAGE………........................................................................................................................................................1
TABLE OF CONTENTS.............................................................................................................................................2
WARRANTY .............................................................................................................................................................3
TERMS AND CONDITIONS..................................................................................................................................3
COLLINS HI‐SPEED®DOLLY OVERVIEW.............................................................................................................4
SAFETY PRECAUTIONS…....................................................................................................................................4
HI‐SPEED®DOLLY VISUAL INSPECTION................................................................................................................4
HI‐SPEED®DOLLY PARTS BREAKDOWN............................................................................................................5
HI‐SPEED®DOLLY COMPONENTS........................................................................................................................5
CROSS RAIL COMPONENTS...............................................................................................................................5
HUB/WHEEL ASSEMBLIES.................................................................................................................................5
HI‐SPEED®DOLLY OPERATIONS...........................................................................................................................6
TELESCOPING CROSS RAILS AND DOLLY PLACEMENT.........................................................................................6
CONFIGURING DOLLY COMPONENTS.................................................................................................................7
CONNECTING CROSS RAILS TO DOLLY ...............................................................................................................7
ENGAGING SAFETY RATCHETS...........................................................................................................................8
INSERTING PRY BAR .........................................................................................................................................8
RAISING ALL COLLINS HI‐SPEED®DOLLIES 1977‐PRESENT….................................................................................9
RAISING ALL COLLINS HI‐SPEED®DOLLIES 1986 TO PRESENT — Connued........................................................10

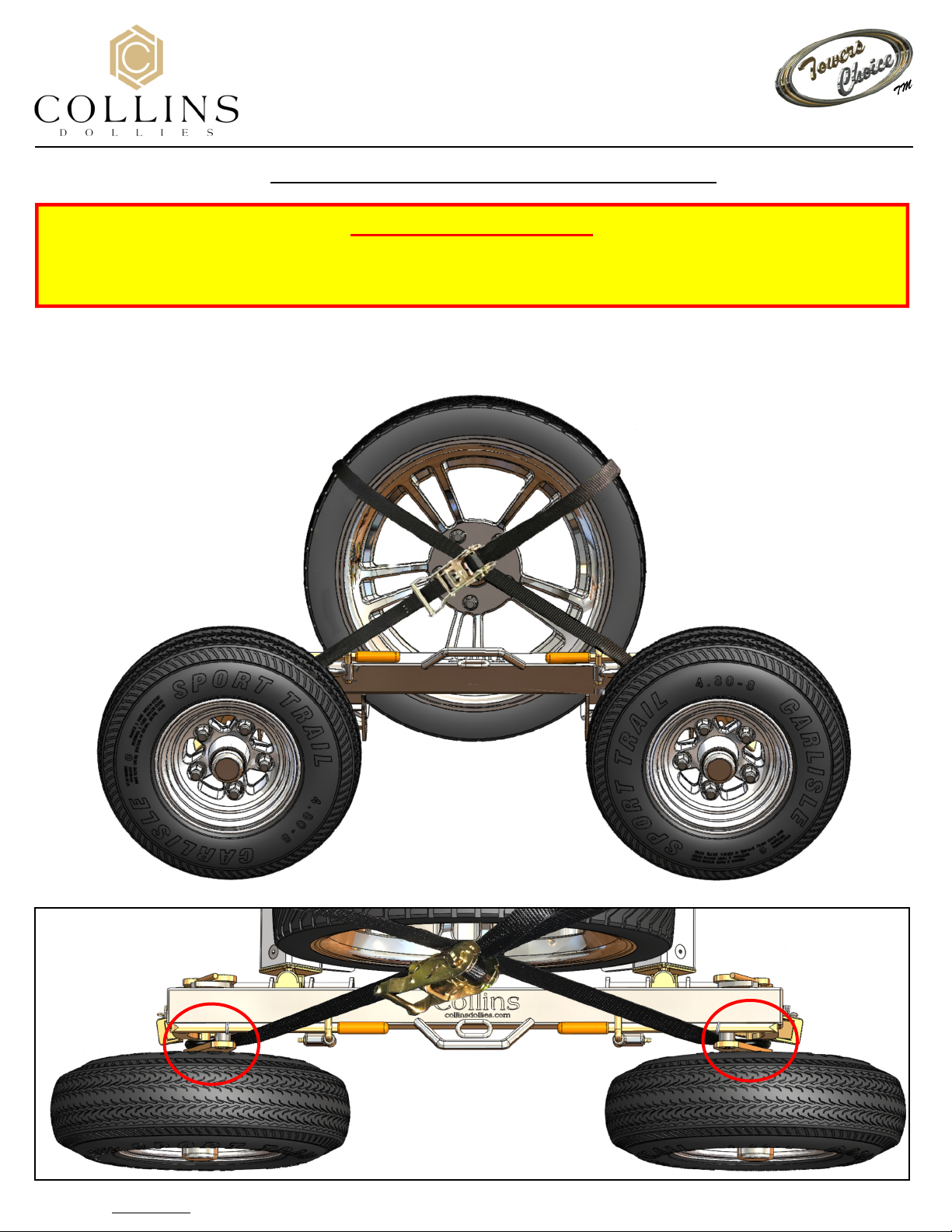

SECURING SAFETY TIE‐DOWN STRAPS TO VEHICLE..........................................................................................11
SPEED LOWERING OF ALL HI‐SPEED®DOLLIES FROM 1986‐PRESENT.................................................................12
SLOW LOWERING OF ALL HI‐SPEED®DOLLIES FROM 1986‐PRESENT.................................................................13
SLOW LOWERING OF ALL HI‐SPEED®DOLLIES FROM 1986‐PRESENT — Connued............................................14
STOWING HI‐SPEED®DOLLIES FROM 1986‐PRESENT ........................................................................................14
SAFETY TIPS FOR COLLINS HI‐SPEED®DOLLIES 1986‐PRESENT — BOWED TRIP HANDLE.............15
SAFETY TIPS FOR COLLINS HI‐SPEED®DOLLIES 1986‐PRESENT — CROSS TYING..............................16
COLLINS HI‐SPEED®DOLLY INSPECTION/MAINTENANCE SCHEDULE ..................................................17
DOLLY TIRES LOAD RATINGS............................................................................................................................17
COLLINS HI‐SPEED®DOLLY FRAME DIMENSIONS...............................................................................................17
COLLINS HI‐SPEED®DOLLY CROSS RAIL DIMENSIONS........................................................................................17
HI‐SPEED®DOLLY OPERATIONS MANUAL
Page 2

WARRANTY
TERMS AND
Limited Non‐Transferable Warranty
1. By accepng delivery of any product manufactured by Collins Manufacturing Corp. ("Collins"), through an authorized
distributor, the original purchaser ("Customer"), agrees to be bound by the terms and condions listed below. Collins and
Customer agree that the following terms and condions are the exclusive terms governing the warranty between Collins and
Customer. These terms and condions are subject to change at any me, without prior wrien noce. Therefore, terms and
condions must be reviewed each me, before Customer places an order or accepts delivery of any merchandise from
Collins, through a Collins‐approved dealer or distributor. Warranty is null and void if any Collins product is not purchased
through a Collins‐authorized dealer or distributor.
2. Collins products come with a one (1) year, from date placed in service, limited, non‐transferable warranty that covers
defects in material and workmanship in Collins products. This limited warranty does not cover issues that result
external causes such as: the typical deterioraon of coangs, paint, leering, appearance of items due to wear or exposure
to weather, road condions, road treatments, etc.; any damage or defect due to negligence, alteraon, lack of reasonable
and necessary maintenance, misuse, abuse, overloading, accident, exceeding rated speeds, improper or unauthorized
repairs, or uses for which the equipment was not designed or intended; alteraons or modificaons that affect performance,
operaons, or reliability; problems caused by using accessories or not supplied by Collins.
3. Collins' obligaon under this limited non‐transferable warranty, statutory or otherwise, is limited to the repair or
replacement of such part or parts, to be determined defecve in material or workmanship, following inspecon at Collins'
facility, or at a facility approved by Collins. Warranty items to be repaired or replaced at Collins’ discreon.
4. Under this limited non‐transferable warranty, Collins has no obligaon to shoulder the expense of labor or transportaon
in connecon with the repair or replacement of parts determined to be defecve, nor shall it apply to any product upon
which repairs or alteraons have been made, without prior authorizaon by Collins. Customer must possess wrien
authorizaon from Collins prior to commencement of any work.
5. Except as expressly set forth in this warranty, Collins makes no other warranty, expressed or implied, and hereby disclaims
all other warranes.
6. Collins' responsibility defects in materials or is limited to repair and replacement of the product, at
the discreon of Collins. express and implied warranes for the product, including, but not limited to, any implied
warranes of merchantability and fitness for a parcular purpose, are limited in me to one (1) year from date placed in
service No warranes, whether express or implied, will apply aer the limited warranty period has All warranty
claims must be filed within 10 business days of incident. shall not be obligated for any warranty nor held liable for
any incident beyond 10 business days from date of incident.
shall not accept liability beyond the remedies provided for in this limited non‐transferable warranty, nor for
consequenal or incidental damages. Collins shall have no liability third party claims for damages against customer, or
for malfuncon, delays, interrupon of loss of business, or any other loss or damage. Collins' liability shall not
extend the doll ar value of the product that is the subject of a claim, at the me of the claim. This is the
amount for which Collins shall be responsible
8. Field modificaon of this unit without the advice and consent of Collins will void all warranes pertaining to both
purchased components used in the manufacture of this unit, as well as structurally fabricated parts supplied by Collins. Use
of other than factory or factory authorized parts will also render the warranty void.
HI‐SPEED®DOLLY OPERATIONS MANUAL
Page 3
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]

HI‐SPEED®DOLLY OPERATIONS MANUAL
SAFETY PRECAUTIONS:
IF NEW TO COLLINS: BECOME THOROUGHLY FAMILIAR WITH ALL CONTENTS OF THIS HI‐SPEED®DOLLY OPERATIONS MANUAL.
IF NEW TO COLLINS: PRACTICE ALL HI‐SPEED®DOLLY OPERATIONS EMPTY FIRST, BEFORE LOADING VEHICLES.
PRIOR TO EVERY DOLLY OPERATION, VISUALLY INSPECT ALL DOLLY COMPONENTS. CHECK FOR:
ANY PHYSICAL DAMAGE THAT MIGHT COMPROMISE SAFETY
FATIGUE CRACKING OF MATERIAL OR WELDS

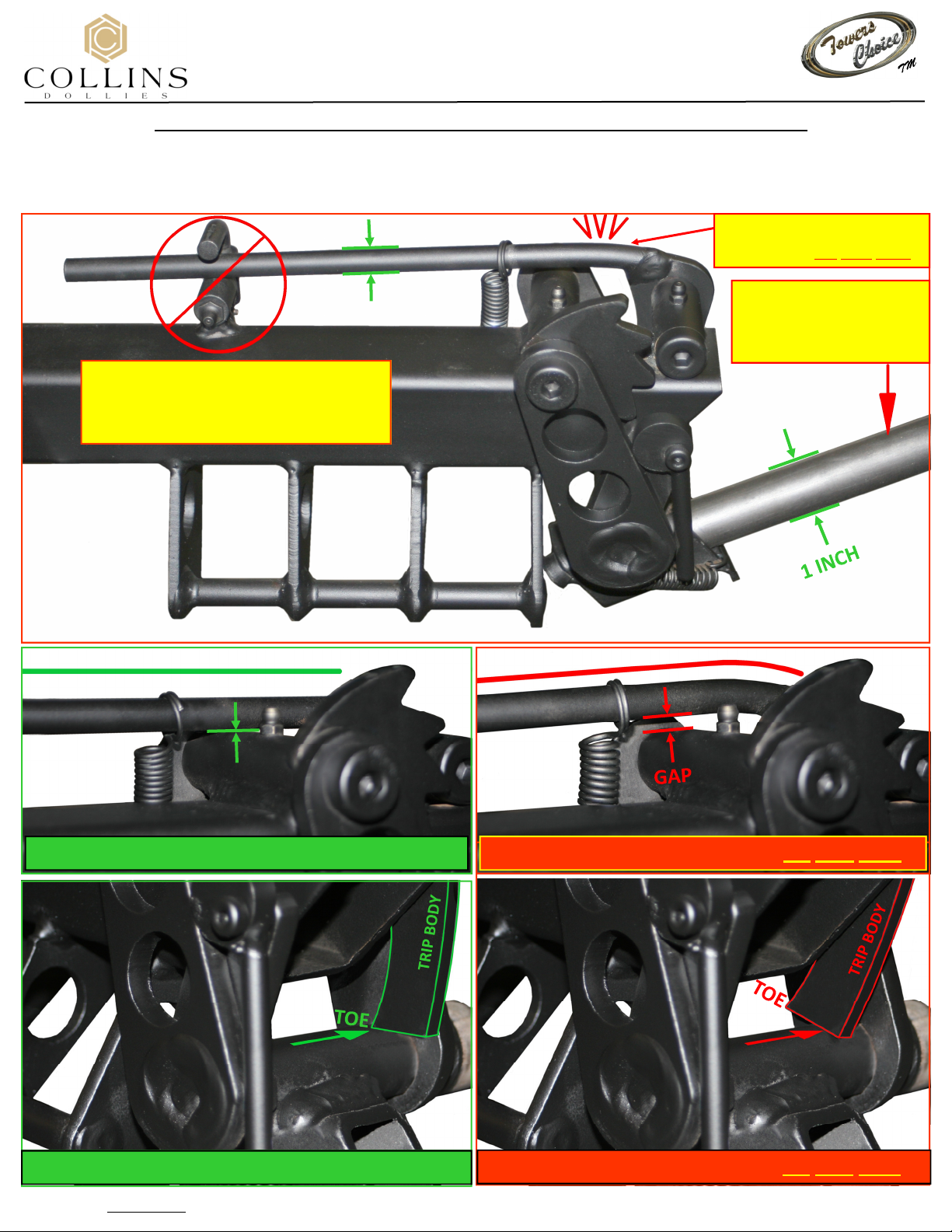

DISTORTIONS OF ANY COMPONENT — ESPECIALLY TRIP HANDLE
FREEDOM OF MOVEMENT OF ALL COMPONENTS
SMOOTH AND QUIET HUB ROTATION — FOR POSSIBLE WORN OR DRY BEARINGS
PROPER TIRE INFLATION (MINIMUM 60 PSI OR 4.14 BAR)
TIRE ISSUES: BULGES, CRACKING, WEATHER CHECKING, CUTS, IRREGULAR TREAD WEAR, ETC.
ANY LOOSE OR MISSING COMPONENTS, NUTS, OR BOLTS
SAFETY TIEDOWN STRAPS SHOULD BE FREE FROM DEFECTS OR FRAYED WEBBING
SHOULD THE “PRE‐FLIGHT” INSPECTION TURN UP ANY ANOMALIES, THE AFFECTED EQUIPMENT OR COMPONENT
SHOULD BE REMOVED FROM SERVICE UNTIL RECTIFIED, REPLACED, OR REPAIRED.
PRIOR TO LIFTING ANY VEHICLE, MAKE SURE IMMEDIATE AREA IS CLEARED OF UNECESSARY PERSONNEL
PROPER WORK GLOVES SHOULD BE WORN WITH A FIRM GRIP ON THE PRY BAR.
ENSURE SECURE FOOTING TO AVOID SLIPPING AND FALLING FROM LOOSE GRAVEL, WET OR ICY CONDITIONS, ETC.
DO NOT EXCEED MAX LOAD LIMITS OR AIR PRESSURES LISTED ON SIDEWALLS OF ALL DOLLY TIRES
DRIVE SLOW ON ROUGH ROADS — FOR POTHOLES AND RR CROSSINGS, SLOW TO A CRAWL — CHECK MIRRORS OFTEN
CONGRATULATIONS ON YOUR PURCHASE OF THE COLLINS HI‐SPEED®DOLLY, THE MOST IMITATED DOLLY IN THE WORLD.
TAKE COMFORT THAT THE SLZ MODEL IS THE MOST ADVANCED SELF‐LOADING DOLLY EVER DESIGNED. COLLINS’ DESIGN
ROOTS BEGAN IN AUGUST 1972 WHEN WE INVENTED THE FIRST ARTICULATING DOLLY TO LIFT A VEHICLE. SINCE THEN,
COLLINS HAS SINGLE‐HANDEDLY CHANGED THE DOLLY‐TOWING INDUSTRY WITH MAJOR DESIGN “FIRSTS” SUCH AS:
COLLINS HI‐SPEED®DOLLIES ARE THE SAFEST AND LIGHTEST‐WEIGHT PRIME MOVERS OF VEHICLES, WITH THE HEAVIEST
LOAD CAPACITY — UP TO 25 TIMES ITS OWN WEIGHT, AND WITH NO TOWING‐DISTANCE RESTRICTIONS, (TESTED TO
1,600 FREEWAY MILES). THEY WERE TESTED AT THE GM PROVING GROUNDS IN THE U.S., AS WELL AS UNDERGOING
EXTREME, RIGOROUS TESTING AT THE MIRA PROVING GROUNDS IN THE U.K. FOR EUROPEAN CERTIFICATION. HAVING
SUCCESSFULLY PASSED THESE GRUELING TESTS AND BECOMING CERTIFIED, THE COLLINS HI‐SPEED®DOLLY IS THE MOST
PROVEN DOLLY OF ALL TIME.
COLLINS HI‐SPEED®DOLLIES HAVE MORE SAFETY FEATURES THAN ANY OTHER DOLLY, TO PROTECT YOUR BUSINESS.
TREATED PROPERLY THEY WILL LAST YOU YEARS TO COME — MANY FROM THE 1980’S & 1990’S ARE STILL ON THE ROAD.
 1972 FIRST LEVERAGED SELF‐LOADING DOLLY
 1974 QUICK‐RELEASE TRIP ASSEMBLY
 1974 STEEL CAMBERED TELESCOPIC CROSS RAILS
 1977 SAFETY RATCHET SYSTEM
 1986 SAFETY LOCKS
 1995 ALUMINUM CAMBERED TELESCOPIC CROSS RAILS
 2000 GREASEABLE HUBS
2006 SERVICEABLE/REPLACEABLE COMPONENTS
 2006 LOAD‐BEARING SPINDLE & TRIP BOLTS
 2006 ALUMINUM GREASEABLE HUBS
 2006 ALUMINUM 8 X 3.75 WHEELS
 2010 ALUMINUM SQUARE PRY BARS
 2015 ONE‐PIECE CAST RAIL‐END PIECES
 2016 INTERNAL LOAD‐BEARING PIVOT POINTS
 2016 ZINC PLATING STANDARD
 2018 HI‐SPEED®LOAD‐RANGE ‘D’ 4.80x8 TIRES
Page 4

Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
Pat. No. 7,673,887
Pat. No. 8,657,305
Hi-SPEED®DOLLY

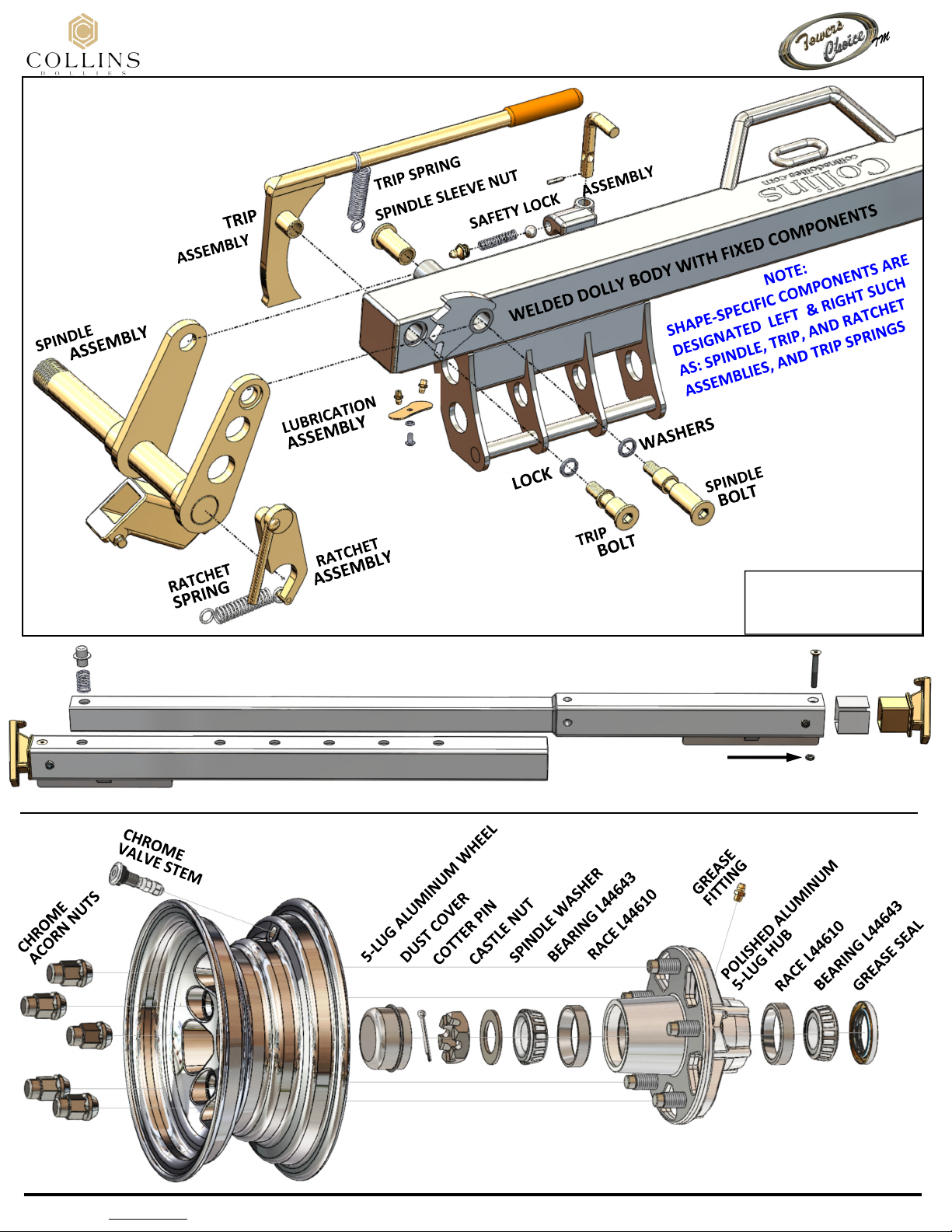

REPLACEABLE
COMPONENTS
NOTE:
ALL REPLACEMENT ALUMINUM HUBS COME
COMPLETE WITH PACKED BEARINGS, READY
FOR ASSEMBLY TO DOLLY SPINDLES.
(REFER TO CATALOG FOR SPECIFIC PART NUMBERS)
HI‐SPEED®DOLLY OPERATIONS MANUAL
Page 5
MACHINED STAINLESS STEEL RAIL PLUNGER
COMPRESSION RAIL SPRING CAMBERED ALUMINUM MALE RAIL
6‐HOLE ALUMINUM FEMALE RAIL
STAINLESS STEEL RAIL END BOLT
NYLOCK JAM NUT RAIL END WITH
PLASTIC INSERTS

PLACE CROSS RAILS FORE AND AFT OF VEHICLE'S TIRES. LENGTH OF CROSS RAILS SHOULD BE ADJUSTED AS CLOSE AS
POSSIBLE TO OUTER SIDEWALLS OF VEHICLE’S TIRES.
HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]

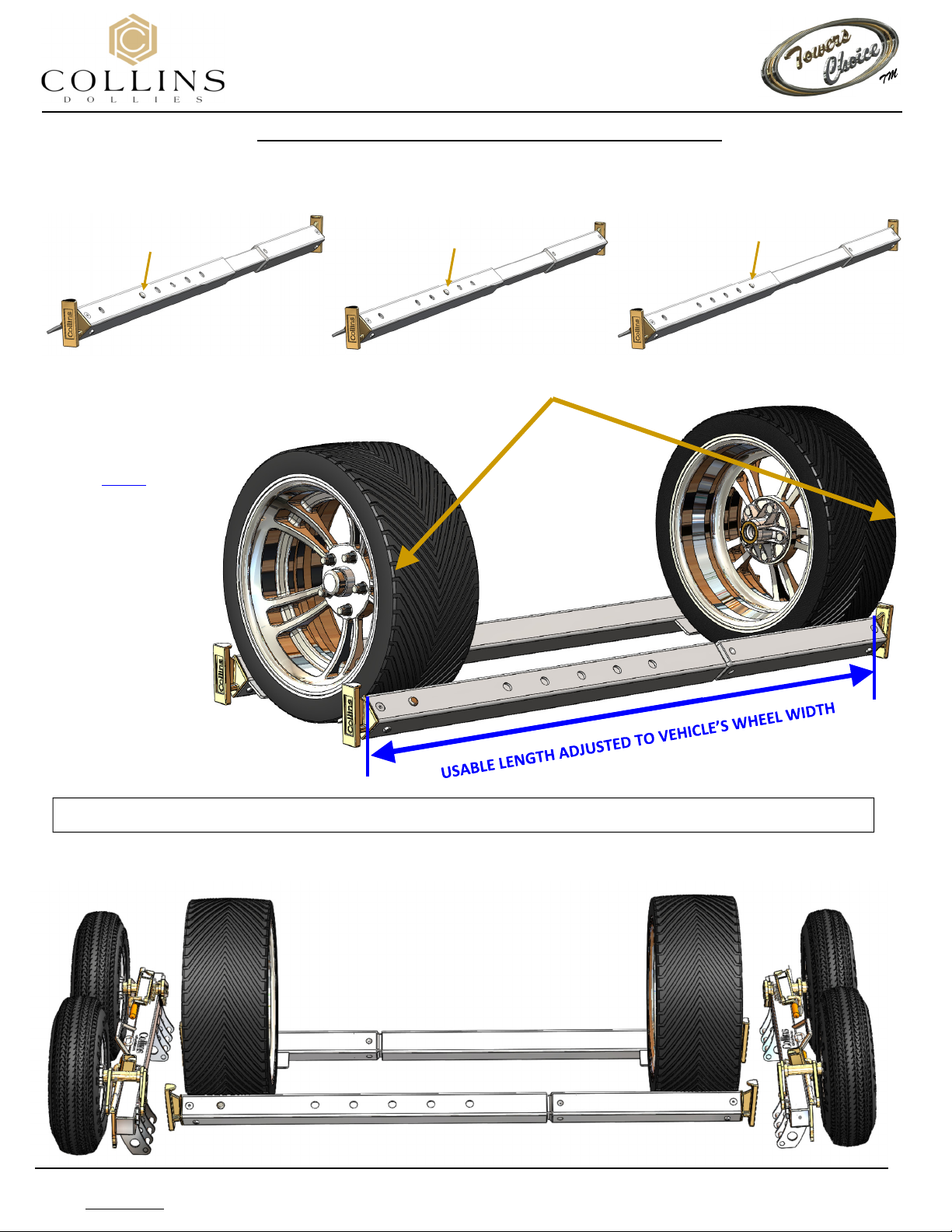

STEP 1. ADJUST TELESCOPIC CROSS RAILS BY FIRST DEPRESSING SPRING‐LOADED PLUNGER AND SLIDING OUTER
TUBE UNTIL PLUNGER LOCKS INTO HOLE THAT MATCHES TOWED VEHICLE’S TIRE WIDTH. (58” to 84” USABLE LENGTH)
68” 76” 84”
NOTE:
MAKE CERTAIN CROSS
RAILS ARE PARALLEL
AND EQUAL IN LENGTH.
STEP 2. PLACE DOLLIES BESIDE VEHICLE TIRES, WITH DOLLY IN UNLOADED POSITION: SPINDLES ABOVE DOLLY.
ALL COLLINS CROSS RAILS POSSESS AN ENGINEERED, POSITIVE CAMBER SINCE 1975. A SLIGHT “BOW” IS NORMAL.
TELESCOPING CROSS RAILS AND DOLLY PLACEMENT
Page 6

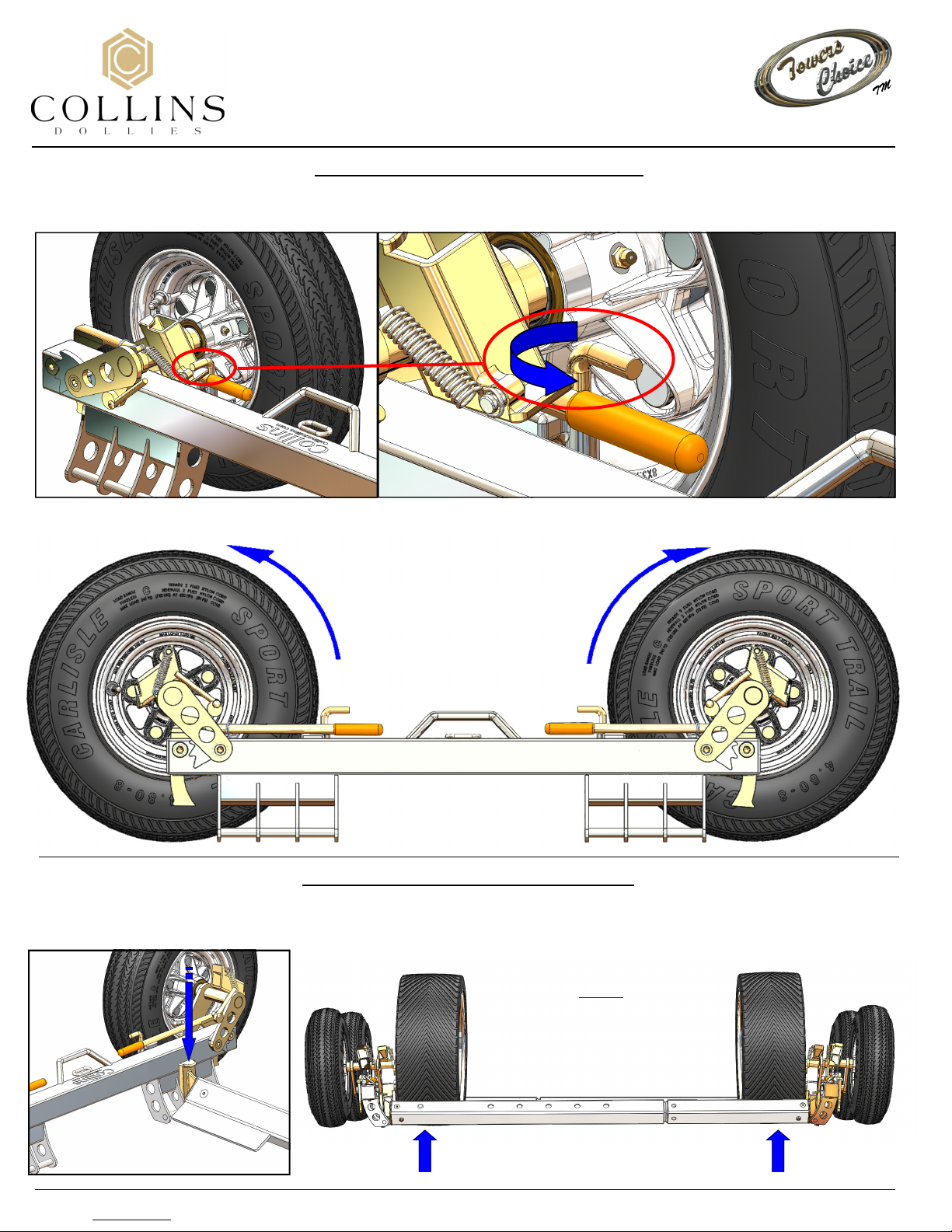

STEP 3A. ROTATE SAFETY LOCKS BY TURNING THEM 90° TO RELEASE WHEEL ASSEMBLIES FROM STOWED POSITION.
Page 7
HI‐SPEED®DOLLY OPERATIONS MANUAL
STEP 3B. ROTATE SPINDLE ASSEMBLIES TOWARD OUTSIDE OF DOLLY BODY
STEP 4. USING THUMB TABS, LOWER CROSS RAIL END PIECES INTO ONE OF DOLLY’S THREE RAIL‐POCKET SLOTS,
POSITIONING THEM AS CLOSE AS POSSIBLE TO VEHICLE TIRE TREAD, FOR MAXIMUM GROUND CLEARANCE WHEN RAISED.
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
NOTE:
VEHICLE TIRES BEST
SUPPORTED AT ENDS
OF CROSS RAILS,
CLOSE TO DOLLIES
CONFIGURING DOLLY COMPONENTS
CONNECTING CROSS RAILS TO DOLLY

Page 8
HI‐SPEED®DOLLY OPERATIONS MANUAL
ENGAGING SAFETY RATCHETS
STEP 5. ENGAGE EACH SAFETY RATCHET BY ROTATING CAM HANDLE 180° TO INTERLOCK RATCHET INTO GEAR TEETH
RATCHET ENGAGED
IN GEAR TEETH
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
SAFETY WARNING!
RAISING ANY DOLLY WITHOUT A SAFETY RATCHET SYSTEM
CAN BE HAZARDOUS, AS IT MAY LEAD TO PERSONAL INJURY,
VEHICLE OR PROPERTY DAMAGE, AND POTENTIAL LAW SUITS.
GIVE STRICT HEED TO THIS MOST CRUCIAL SAFETY WARNING!
SAFETY RATCHETS HAVE PREVENTED COUNTLESS INJURIES.
INSERTING PRY BAR
STEP 6. INSERT PRY BAR INTO EACH PRY POCKET

SAFETY PRECAUTIONS:
PRIOR TO LIFTING VEHICLE MAKE SURE IMMEDIATE AREA IS CLEARED OF OTHER PERSONNEL
ENSURE SECURE FOOTING TO AVOID SLIPPING OR FALLING.
MAINTAIN FIRM GRIP ON PRY BAR WITH BOTH HANDS.
Page 9
HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
RAISING ALL COLLINS HI‐SPEED®DOLLIES 1977‐PRESENT
STEP 7. WITH A FIRM GRIP ON END OF PRY BAR WITH BOTH HANDS, LEVERAGE THE DOLLY TIRE BENEATH THE DOLLY.
WITH THE SAFETY RATCHETS ENGAGED, THIS CAN BE DONE IN A SINGLE MOTION OR STEPPED UP FOR HEAVIER VEHICLES.
NOTE:
WHEN NEEDED, SAFETY RATCHETS ALLOW UP
TO FIVE STOP POINTS FOR HEAVIER VEHICLES,
LOOSE GRAVEL, SLIPPERY SURFACES, OR
UNEVEN ROADWAYS, PERMITTING ONE TO
PAUSE LIFTING MIDWAY, IN ORDER TO GET A
BETTER PURCHASE ON END OF PRY BAR.
WITH SAFETY LOCKS DISENGAGED — REVIEW PAGE 11 — CROSS RAILS ASSEMBLED TO DOLLIES, SAFETY RATCHETS ENGAGED IN GEAR
TEETH, AND PRY BAR INSERTED INTO PRY POCKET, DOLLY IS NOW READY FOR LIFTING. COMPLETE OPERATION FOR ALL FOUR WHEELS.
SAFETY WARNING!
BEFORE RAISING DOLLY, VERIFY ALL
SAFETY RATCHETS ARE ENGAGED

Page 10
HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
RAISING ALL COLLINS HI‐SPEED®DOLLIES 1986 TO PRESENT — Connued

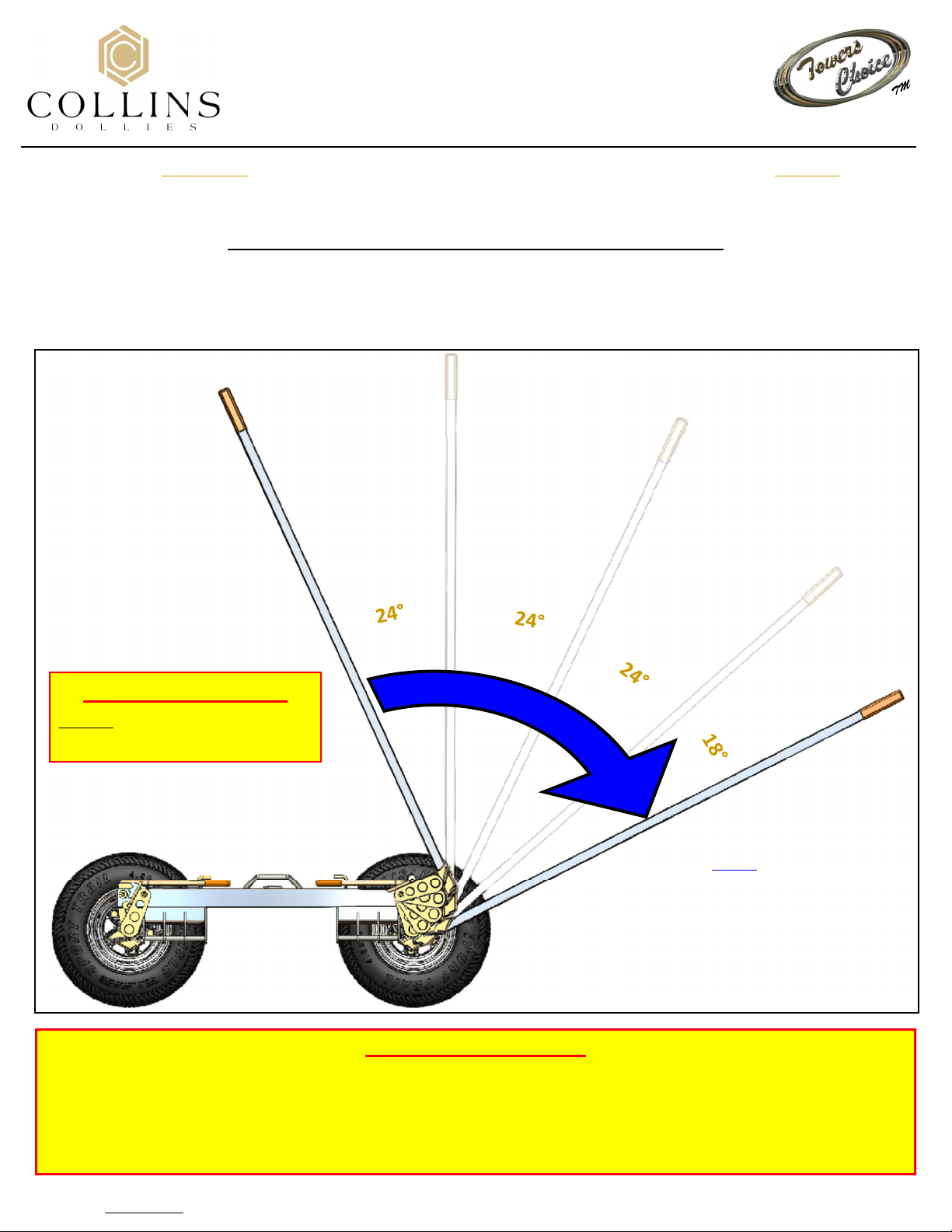

STEP 8. WHILE SWINGING PRY BAR IN A FULL ARC, SPINDLE ASSEMBLY WILL FORCE SPRING‐LOADED TRIP ASSEMBLY’S
HANDLE TO RISE AND FALL 4.25”, AUTOMATICALLY LOCKING THE DOLLY IN THE UPRIGHT, LOADED POSITION.

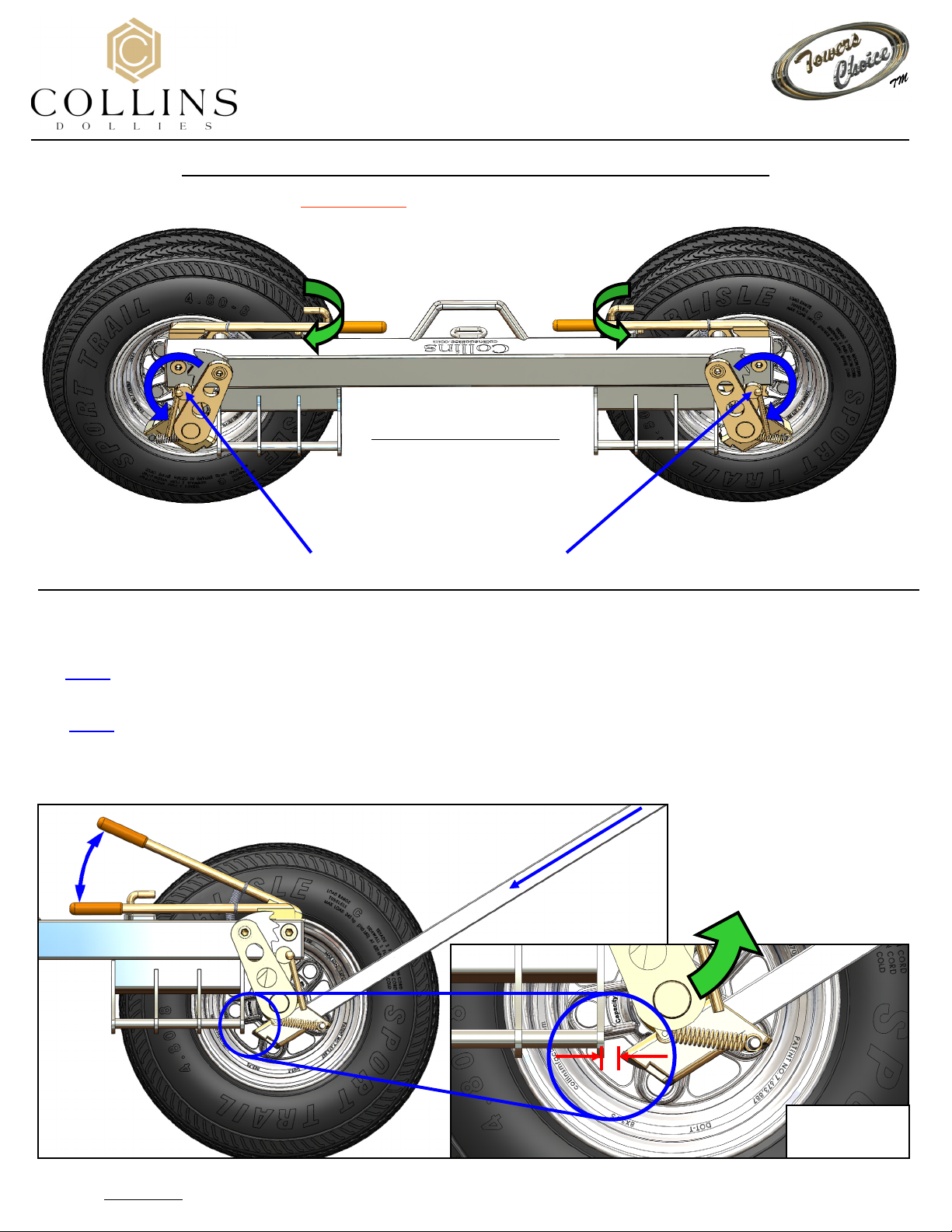

STEP 9. RE‐ENGAGE ALL FOUR SAFETY LOCKS OVER TRIP HANDLES.
NOTE:
WATCH AND LISTEN FOR TRIP HANDLE
TO RISE THEN SNAP BACK INTO PLACE.
DOLLY IS NOW LOCKED AND LOADED —
PRY BAR CAN BE REMOVED.
4.25”
SAFETY WARNING!
DO NOT TOW IF TRIP HANDLE IS NOT STRAIGHT —SEE PAGE 15

SAFETY PRECAUTION!
PRIOR TO TIE-DOWN, ALL SAFETY RATCHETS AND SAFETY LOCKS MUST REMAIN
ENGAGED TO HELP PREVENT UN-COMMANDED RELEASE OF DOLLY WHILE IN TOW.
Page 11
HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
STEP 9. COLLINS STRONGLY RECOMMENDS CROSS‐TYING SAFETY TIE‐DOWN STRAPS DIRECTLY TO DOLLY SPINDLES ON
ALL TOWS. THIS IS A BACKUP SAFETY MEASURE TO PREVENT UN‐COMMANDED RELEASE OF THE DOLLY WHILE IN TOW.
SECURING SAFETY TIE‐DOWN STRAPS TO VEHICLE

Page 12
HI‐SPEED®DOLLY OPERATIONS MANUAL
THIS PAGE LEFT BLANK INTENTIONALLY
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]

Page 13
HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
SLOW LOWERING OF ALL HI‐SPEED®DOLLIES FROM 1986‐PRESENT
1. AFTER INSERTING PRY BAR INTO PRY POCKET, PUSH DOWN TO RELIEVE PRESSURE ON THE TRIP ASSEMBLY.
2. LIFT TRIP HANDLE ABOUT 4” AND ALLOW SPINDLE ASSEMBLY TO ROTATE 3° BEHIND TRIP BODY.
NOTE: AFTER SPINDLE ASSEMBLY ROTATES A 3° ARC OR 3/8” TRAVEL, IT WILL CLEAR TRIP BODY
3. RELEASE TRIP HANDLE AND PLACE BOTH HANDS ON OF PRY BAR
NOTE: AT THIS POINT, LOAD IS ABOUT 18 LBS AT END OF PRY BAR ON HEAVIER VEHICLES, LESS ON SMALLER VEHICLES.
4. WITH A FIRM GRIP WITH BOTH HANDS, CAREFULLY LET WEIGHT SHIFT TOWARD OPERATOR AS PRY BAR IS BROUGHT
AROUND, AND DOLLY IS GENTLY LOWERED TO THE GROUND. PERFORM THIS FOR ALL FOUR ASSEMBLIES.
BEFORE LOWERING DOLLY:
 PLACE TOWED VEHICLE IN PARK/GEAR
 SET TOWED VEHICLE’S PARKING BRAKE
 REMOVE SAFETY TIE‐DOWN STRAPS
 DISENGAGE SAFETY LOCKS
 DISENGAGE SAFETY RATCHETS
SKILL‐SET LEVEL: EXPERIENCED — PRACTICE EMPTY BEFORE ACTUAL LOADING!
3° ROTATION =
3/8” TRAVEL
4”
3° SPINDLE
ROTATION

Page 14
HI‐SPEED®DOLLY OPERATIONS MANUAL
SLOW LOWERING OF ALL HI‐SPEED®DOLLIES FROM 1986‐PRESENT — CONTINUED
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
STOWING HI‐SPEED®DOLLIES FROM 1986‐PRESENT
1. RE‐ENGAGE SAFETY LOCKS OVER SPINDLE ASSEMBLIES
SAFETY WARNING!
MAINTAIN FIRM GRIP WITH BOTH HANDS
ON PRY BAR WHILE LOWERING VEHICLE.
WEIGHT INCREASES AND DECREASES
DEPENDING ON (1) THE ANGLE OF ARC,
(2) THE ORDER IN WHICH DOLLY ENDS
ARE LOWERED, AND (3) VEHICLE WEIGHT.
SKILL‐SET LEVEL: EXPERIENCED — PRACTICE EMPTY BEFORE ACTUAL LOADING!

SAFETY TIPS FOR COLLINS HI‐SPEED®DOLLIES 1986‐PRESENT — BOWED TRIP HANDLE
HANDLE IS LEVEL & STRAIGHT — OK TO TOW HANDLE IS BOWED WITH GAP: DO NOT TOW!
TOE POSITION — INCORRECT: DO NOT TOW!
TOE POSITION TOP OF SPINDLE — OK TO TOW
PLEASE REFER TO REAL‐LIFE PHOTOS BELOW. FORCING SPINDLE DOWN WITH PRY BAR, WHILE SAFETY LOCK IS ENGAGED WILL BEND TRIP HANDLE, THERE‐
BY CHANGING THE ANGLE OF THE TRIP BODY AS SHOWN BELOW IN RED, (BOTTOM RIGHT). TO STRAIGHTEN HANDLE, SIMPLY REMOVE TRIP SPRING AND
SLIDE HOLLOW BAR OVER TRIP HANDLE. PRY UPWARDS UNTIL TRIP HANDLE IS STRAIGHT AND TOE POSITION OF FOOT IS TOP CENTER OF SPINDLE, AS
SHOWN BELOW IN GREEN, (BOTTOM LEFT). REATTACH TRIP SPRING. DOLLY IS READY TO TOW.
IF SAFETY LOCK IS ENGAGED,
DO NOT RAISE DOLLY
UNTIL DISENGAGED!
LOOK FOR BOW IN HANDLE
IF PRESENT, DO NOT TOW!
DOWNWARD FORCE OF 1”
PRY BAR WILL BEND 1/2”
TRIP HANDLE, IF SAFETY
LOCK IS LEFT ENGAGED.
Page 15
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
NO GAP
1/2 INCH
HI‐SPEED®DOLLY OPERATIONS MANUAL

SAFETY TIPS FOR COLLINS HI‐SPEED®DOLLIES 1986‐PRESENT — CROSS TYING
HI‐SPEED®DOLLY OPERATIONS MANUAL
Page 16
AS A MATTER OF SAFETY, COLLINS MANUFACTURING CORP. ADVOCATES THE PRACTICE OF SAFETY TIE‐DOWN STRAPS ON ALL
DOLLY TOWS. THE 2‐FOR‐1 TIE‐DOWN METHOD SHOWN ON PAGE 11 NOT ONLY SECURES THE TOWED VEHICLE TO THE DOLLY,
BUT ALSO LENDS AN ADDED MEASURE OF SAFETY, IN PREVENTING UN‐COMMANDED RELEASE, KEEPING THE DOLLY UPRIGHT.
WITH THE HOOK COLORED IN RED, THE REAL‐LIFE PHOTOS BELOW DEMONSTRATE, IN MORE DETAIL, THE TIE‐DOWN METHOD.
Questions? Phone: [phone] or [phone] Email: [e-mail]
Hooks help keep Spindle
Assembly locked in place.
Strap Tension
Helps Dampen
Road Vibration
Tire/Wheel/Hub Removed for Viewing Purposes
Safety Tie-Down Strap
Cross-Tied Around
Towed Vehicle Tire
Hook Around
Bottom of Spindle

COLLINS HI‐SPEED®DOLLY INSPECTION/MAINTENANCE SCHEDULE
FOR SAFE DOLLY OPERATION, FOLLOW THE GUIDELINES LISTED BELOW:
DAILY/EACH‐USE INSPECTION/MAINTENANCE:
REFER BACK TO PAGE 4 UNDER “ ”
MONTHLY INSPECTION/MAINTENANCE:
ENSURE SPINDLE, TRIP, AND SAFETY LOCK ASSEMBLIES ARE ALL PROPERLY LUBRICATED AND ROTATE FREELY
COAT SAFETY RATCHETS WITH WD‐40 AS NEEDED TO PREVENT STICKING, THEN CYCLE RATCHET CAM TO TEST
QUARTERLY INSPECTION/MAINTENANCE:
INSPECT HUB BEARINGS
WHEN NECESSARY, PACK WITH HIGH‐TEMPERATURE‐RATED BEARING GREASE ONLY
MAINTAIN LUG NUT TIGHTNESS AT 85‐95 FT‐LBS.
SEASONAL MAINTENANCE:
IN HARSH CLIMATES, GENEROUSLY COAT ALL METAL COMPONENTS WITH WD‐40 TO INHIBIT CORROSION AND RUST
DOLLY‐TIRE LOAD‐RANGE RATINGS:
4.80 X 8 STATIC LOAD RANGE C = 760 LB. @ 90 PSI OR 3,040 LB PER SET (3,040 LB @ 55 MPH, 2,865 LB @ 60 MPH)
4.80 X 8 STATIC LOAD RANGE C = 345 KG. @ 6.2 BAR OR 1,379 KG PER SET (1,379 KG @ 88 KPH, 1,300 KG @ 97 KPH)
4.80 X 8 STATIC LOAD RANGE D = 992 LB @ 100 PSI OR 3,968 LB PER SET (3,968 LB @ 55 MPH, 3,740 LB @ 62 MPH)
4.80 X 8 STATIC LOAD RANGE D = 450 KG @ 9.6 BAR OR 1,800 KG PER SET (1,800 KG @ 88 KPH, 1,696 KG @ 100 KPH)
5.70 X 8 STATIC LOAD RANGE D = 1070 LB. @ 100 PSI OR 4,280 LB PER SET (4,280 LB @ 60 MPH, 4,034 LB @ 65 MPH)
5.70 X 8 STATIC LOAD RANGE D = 485 KG. @ 9.6 BAR OR 1,941 KG PER SET (1,941 KG @ 88 KPH, 1,830 KG @ 104 KPH)
Page 17
HI‐SPEED®DOLLY OPERATIONS MANUAL
Quesons? Phone: (800) 332‐9220 or (541) 774‐9220 Email: [email protected]
SAFETY PRECAUTIONS
COLLINS HI‐SPEED®DOLLY FRAME DIMENSIONS:
4.80 DOLLY LOADED LENGTH: 46.0”
4.80 DOLLY STOWED LENGTH: 36.5”
4.80 DOLLY HEIGHT: 16.5”
4.80 DOLLY DEPTH: 10.0”
5.70 DOLLY LOADED LENGTH: 48.0”
5.70 DOLLY STOWED LENGTH: 39.5”
5.70 DOLLY HEIGHT: 18.5”
5.70 DOLLY DEPTH: 10.5”
COLLINS HI‐SPEED®DOLLY CROSS RAIL DIMENSIONS:
ALUMINUM 6‐HOLE CROSS RAIL COLLAPSED OD: 61”
ALUMINUM 6‐HOLE CROSS RAIL EXTENDED USABLE: 84”
STEEL 5‐HOLE CROSS RAIL COLLAPSED OD: 61”
STEEL 5‐HOLECROSS RAIL EXTENDED USABLE: 84”
COLLINS HI‐SPEED®DOLLY SPECIFICATIONS
