Cololight Colo Play User manual

ColoPlayUserManual
Controlmethod
ColoPlayisacyber-themedknobcontrollerwithaknobandfourmechanicalkeyboard-style
buttons.Thefollowingareoperatinginstructionsfortheknobandbuttons.
Knob
Operate
Function
Shortpress
Entertheapplication
Confirmselection
Switchclock
Clockwiserotation
Next
Anticlockwiserotation
Previous
Button
Operate
Function
Shortpress
Topleft:return
Longpress
Upperleft:returnfromanyinterface
Functionbutton
Operate
Function
continue
Continuethecurrentapplication
resetcard
Resetthecurrentapplication
exittosettings
Gotosettings

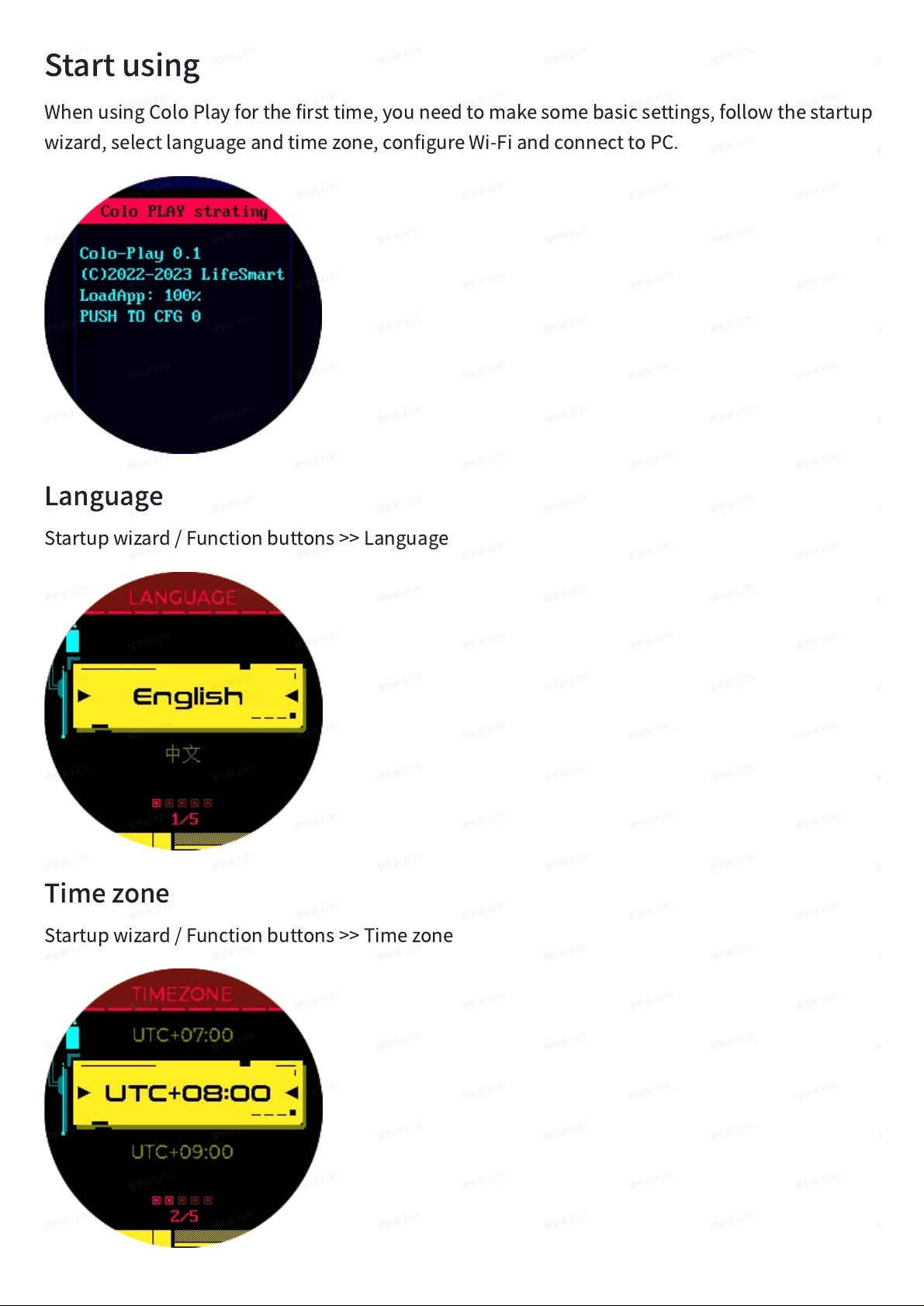

Startusing
WhenusingColoPlayforthefirsttime,youneedtomakesomebasicsettings,followthestartup
wizard,selectlanguageandtimezone,configureWi-FiandconnecttoPC.
Language
Startupwizard/Functionbuttons>>Language
Timezone
Startupwizard/Functionbuttons>>Timezone

Wi-Fi
Startupwizard/Functionbuttons>>Wi-Fi
Operate
Function
Rotateknob
Selectcharacter
Shortpressknob
Entercharacter
Shortpressbutton
Topleft:return
Topright:backspace
Bottomleft:switchcharactertype
Bottomright:confirm
Longpressbutton
Upperleft:returnfromanyinterface
PCconnection
DownloadColoPlayDesktopfromtheCololightwebsite(cololight.com),orentertheURLxxxto
download.

Mainapplications
Clocks
Thedevicehas5built-inclocks,whichcanbeswitchedbypressingtheknobintheClocks.
Operate
Function
Shortpressknob
Switchtheclock
Shortpressbutton
Topleft:return

Longpressbutton
Upperleft:returnfromanyinterface
Keypad
Default
Operate
Function
Rotateknob
Left:volume-
Right:volume+
Shortpressknob
Play/Pause
Shortpressbutton
Topleft:mute
Upperright:bosskey(WIN+D)
Bottomleft:previoussong
Bottomright:nextsong
Longpressbutton
Upperleft:returnfromanyinterface*
*Thedefaultkeypadcanonlybereturnedbylongpressingtheupperleftbutton.
Customize
ForconfigurationonthePCclient,refertoColoPlayDesktop>>PCclientconfiguration>>
customconfigurationofthekeypadinthisusermanual.
PCSwitch

PCSwitchWoL(WakeonLan)StartTutorialThemotherboardneedstosupporttheWoL
function,andthisfunctionshouldbeenabledintheBIOSinterface.
EntertheMACaddressofthehostcomputer.IfyouusetheUSBportofthePCforpowersupply,
youneedtosettheUSBportonthePCforcontinuouspowersupply.
Operate
Function
Shortpressknob
Confirminput
Longpressknob
PCswitch
Shortpressbutton
Topleft:return
Topright:backspace
Bottomleft:switchcharactertype
Bottomright:confirm
Longpressbutton
Upperleft:returnfromanyinterface*

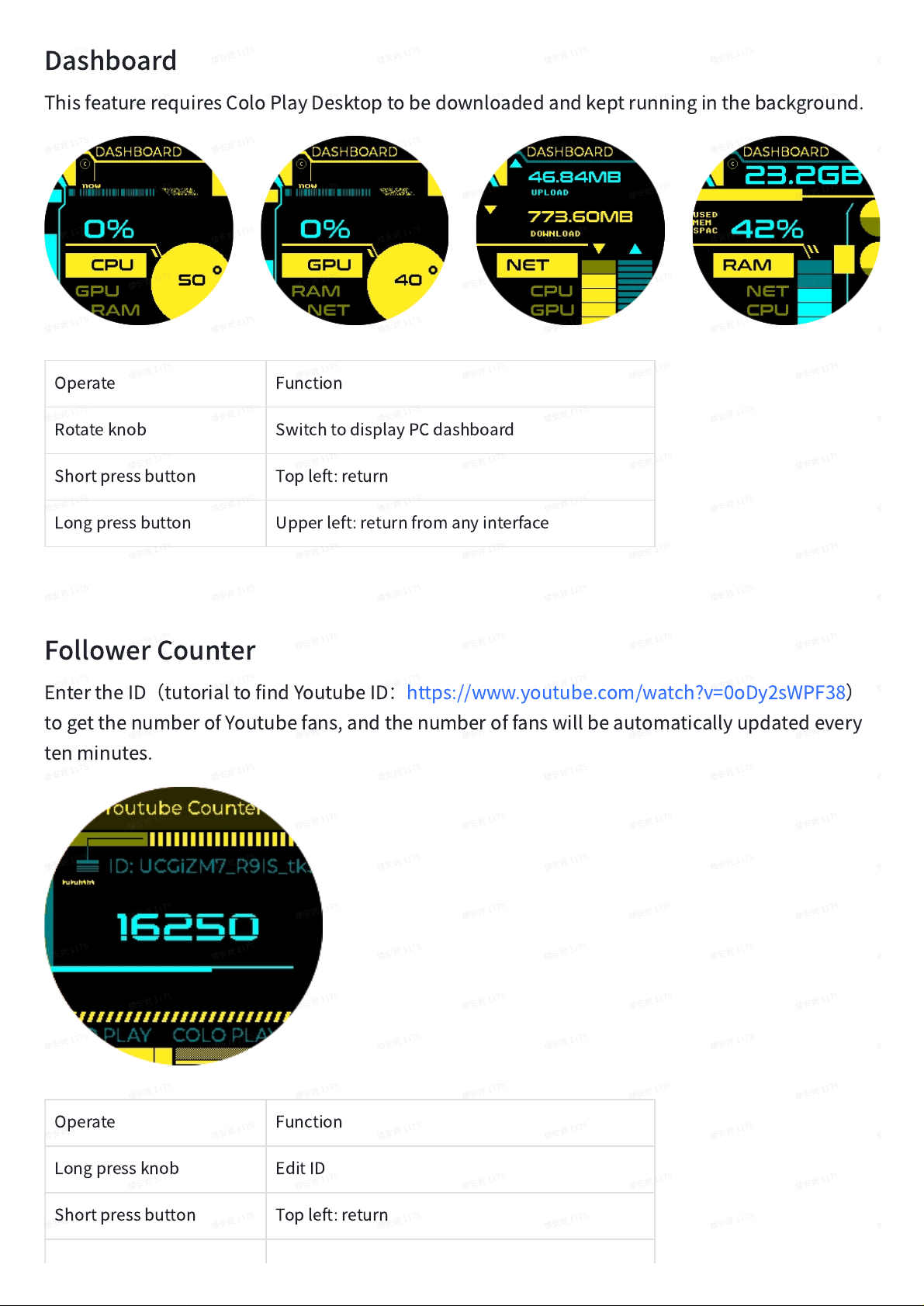

Dashboard
ThisfeaturerequiresColoPlayDesktoptobedownloadedandkeptrunninginthebackground.
Operate
Function
Rotateknob
SwitchtodisplayPCdashboard
Shortpressbutton
Topleft:return
Longpressbutton
Upperleft:returnfromanyinterface
FollowerCounter
EntertheID （ tutorialtofindYoutubeID ： https://www.youtube.com/watch v=0oDy2sWPF38 ） 
togetthenumberofYoutubefans,andthenumberoffanswillbeautomaticallyupdatedevery
tenminutes.
Operate
Function
Longpressknob
EditID
Shortpressbutton
Topleft:return

Longpressbutton
Upperleft:returnfromanyinterface

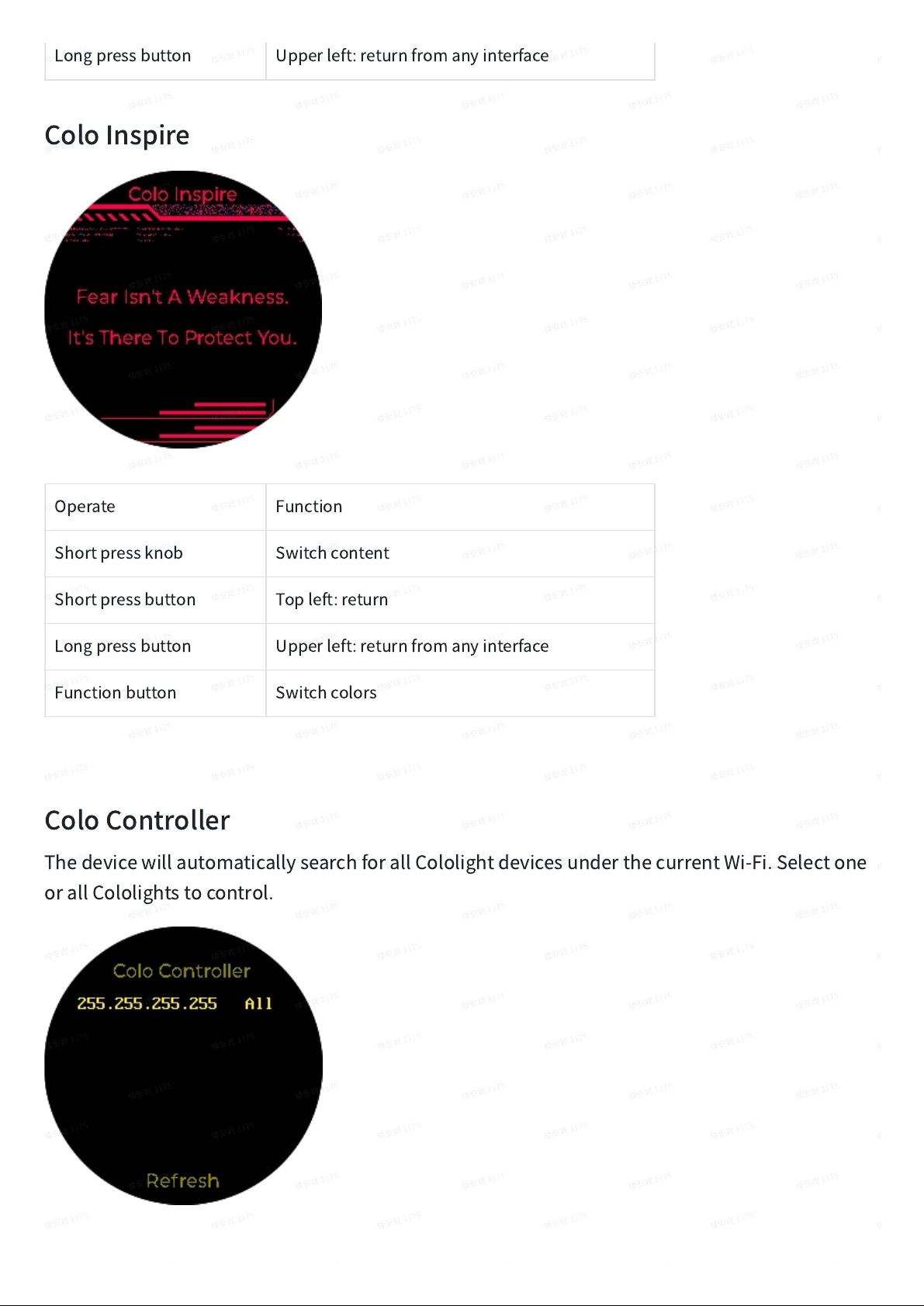

ColoInspire
Operate
Function
Shortpressknob
Switchcontent
Shortpressbutton
Topleft:return
Longpressbutton
Upperleft:returnfromanyinterface
Functionbutton
Switchcolors
ColoController
ThedevicewillautomaticallysearchforallCololightdevicesunderthecurrentWi-Fi.Selectone
orallCololightstocontrol.

Operate
Function
Shortpressknob
ON/OFF
Longpressknob
Enterthedevicelist
Rotateknob
Adjustbrightness
Shortpressbutton
Topleft:return
Upperright:dynamiclightingeffects
Bottomleft:rhythmlightingeffects
Bottomright:monochromelightingeffects
Longpressbutton
Bottomleft:enterdevicelisteningmode
Upperleft:returnfromanyinterface
Devicelisteningmode
ColoPlayactsasthemicrophoneofCololighttocollectsound,andCololightfollowstherhythm
ofthemusicreceivedbyColoPlay.

Retrogames
Factorybuilt-inretrogames,youcandownloadnewgamesinthedownloadinterface.
ColoPlayDesktop
Mainfunctionsanddownloadmethods

•
MainfunctionsofColoPlayDesktop:
-Customconfigurationofthekeypad
-PCrunninginformationacquisition
-Wi-Ficonfiguration
⚠ ThekeypadfunctionneedstoconnecttheColoPlaytotheUSBportofthePC.
DownloadColoPlayDesktopfromtheCololightwebsite(cololight.com),orenter
https://cololight.com/pages/coloplay-desktop-downloadtodownload.
Runthecoloplay_desktop.exefile.
PCclientconfiguration
Customconfigurationofthekeypad
Selectthecorrespondingbuttonwiththemouse,selectthebuttontorecord,andenterthe
shortcutkeyonthekeyboard,andthesoftwarewillautomaticallyobtaintheenteredshortcut
keyandsendittothedevice.
WhenColoPlayentersthekeypadfunction,thedisplayofthecorrespondingkeywillalso
changeaccordingly,indicatingthattheconfigurationissuccessful.

PCdatacapture
SelectthesecondoptionontheleftmenubartoviewPCdata.
PCMACaddresscapture
Selectthesecondoptionontheleftmenubartoviewthenetworkcardinformationand
configuretheMACaddressofthePCSwitch.
Wi-Ficonfiguration
Double-clicktoselectWi-Fi,entertheWi-FipasswordtoconfigureWi-FiforColoPlay.

Settings
Clickthefirsticonintheupperrightcornertoenterthesettings.
Version 

Intheversioninformation,youcanviewthecurrentsoftwareversionandupdatetheversion.
General 
SelectCommon,youcansetthelanguage,andsettheColoPlayPCclienttostartautomatically
atstartup.
Help 
YoucanviewFAQs.
Aboutus 
ClicktogetmoreinformationaboutCololight.
ColoPlaysettings
Shortpresstheknobwhenstartingup,orpressthe"functionbutton"onthebackofthedevice
toselect"exittosettings"toenterthesettinginterface.Language,network,andtimezonecan
beset,andthespecificsettingstepsareconsistentwiththestartusing.
Sound 
Enterthesoundsettings,youcanadjustthevolumeandturnonandoffthefollowerprompt
tonesound.

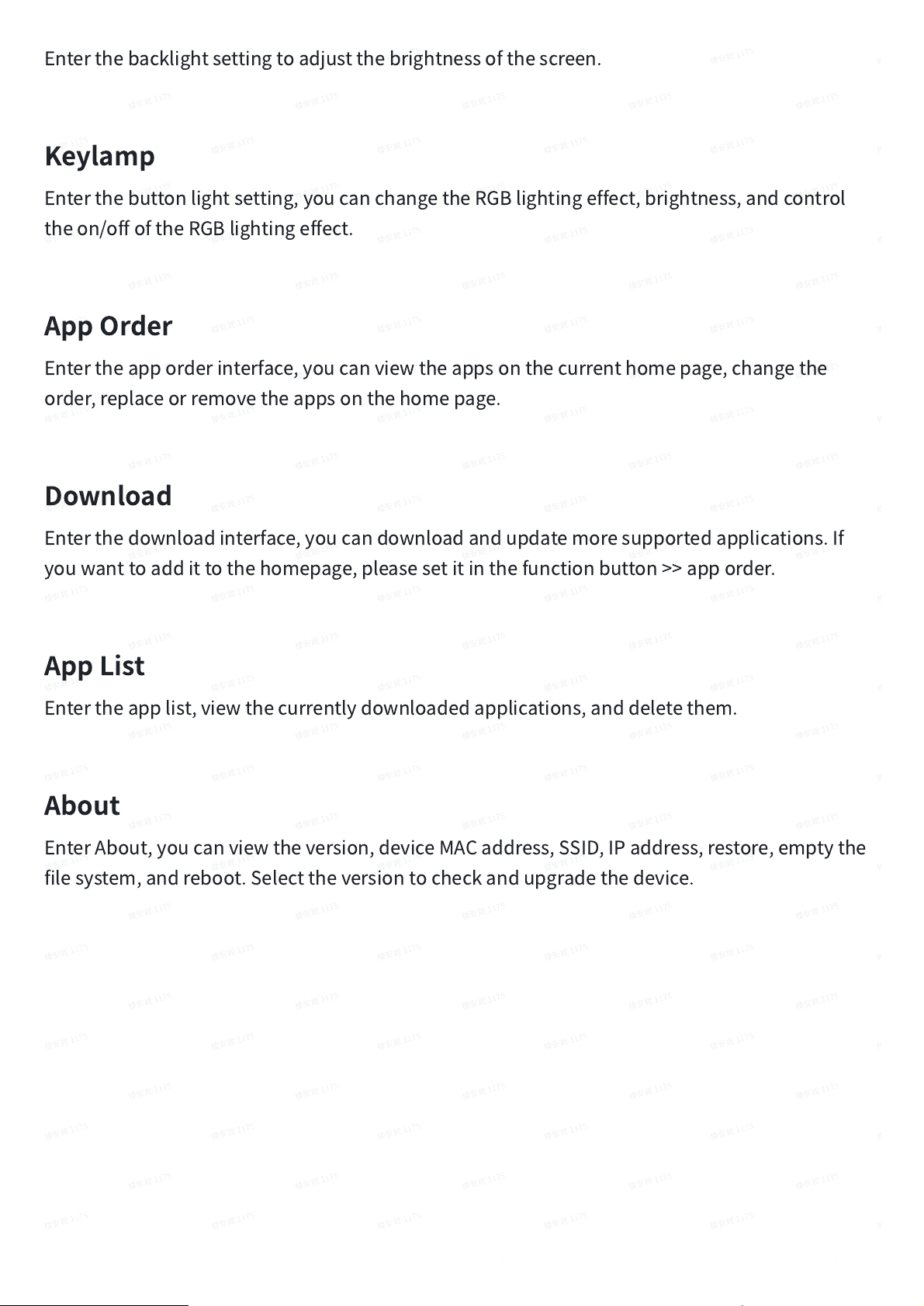

Backlight 

Enterthebacklightsettingtoadjustthebrightnessofthescreen.
Keylamp 
Enterthebuttonlightsetting,youcanchangetheRGBlightingeffect,brightness,andcontrol
theon/offoftheRGBlightingeffect.
AppOrder 
Entertheapporderinterface,youcanviewtheappsonthecurrenthomepage,changethe
order,replaceorremovetheappsonthehomepage.
Download 
Enterthedownloadinterface,youcandownloadandupdatemoresupportedapplications.If
youwanttoaddittothehomepage,pleasesetitinthefunctionbutton>>apporder.
AppList 
Entertheapplist,viewthecurrentlydownloadedapplications,anddeletethem.
About 
EnterAbout,youcanviewtheversion,deviceMACaddress,SSID,IPaddress,restore,emptythe
filesystem,andreboot.Selecttheversiontocheckandupgradethedevice.
