Color imagination LEDARC 543 User manual

LEDARC
LEDARC
LEDARC
LEDARC 543
543
543
543
W-009
W-009
W-009
W-009
User
User
User
User Manual
Manual
Manual
Manual
KEEP
KEEP
KEEP
KEEP THIS
THIS
THIS
THIS MANUAL
MANUAL
MANUAL
MANUAL FOR
FOR
FOR
FOR FUTURE
FUTURE
FUTURE
FUTURE NEEDS
NEEDS
NEEDS
NEEDS

1.
1.
1.
1. Un
Un
Un
Un packing
packing
packing
packing
Thank you for choosing Color Imagination ’ s LEDARC 543. For your own safety, please read this
manual before installing the device. This manual covers the important information on installation
and applications. Please install and operate the fixture with following instructions. Meanwhile,
please keep this manual well for future needs.
Color Imagination ’ s LEDARC 543 is made of a new type of high temperature strength of metal
casing with nice outlook. The fixture is designed and manufactured strictly following CE standards,
complying with international standard DMX512 protocol. It ’ s available independently controlled and
linkable with each other for operation. And it is applicable for large-scale live performances, theater,
studio, nightclubs and discos.
W-009 adopts 54PCS 3 W LED s (RGBW) which features high brightness and stability. Please
carefully un pack it when you receive the fixture and check whether it is damaged during the
transportation. And please check whether the following items are included inside the box:
LEDARC 543 ---- ----- O ne Signal Cable---- O ne
Power Cable----One User Manual---- O ne
11.
11.
11.
11. Maintenance
Maintenance
Maintenance
Maintenance and
and
and
and Cleaning
Cleaning
Cleaning
Cleaning
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly connected and must not
be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and installation spots
(ceiling, suspension, trussing).
3）Mechanically moved parts must not show any traces of wearing and must not rotate with
unbalances.
4）The electric power supply cables must not show any damage, material fatigue or sediments.
Further instructions depending on the installation spot and usage have to be adhered by a skilled
installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a regular cleaning to
the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights due to
accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make sure that the
circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth. Never use
alcohol or solvents.

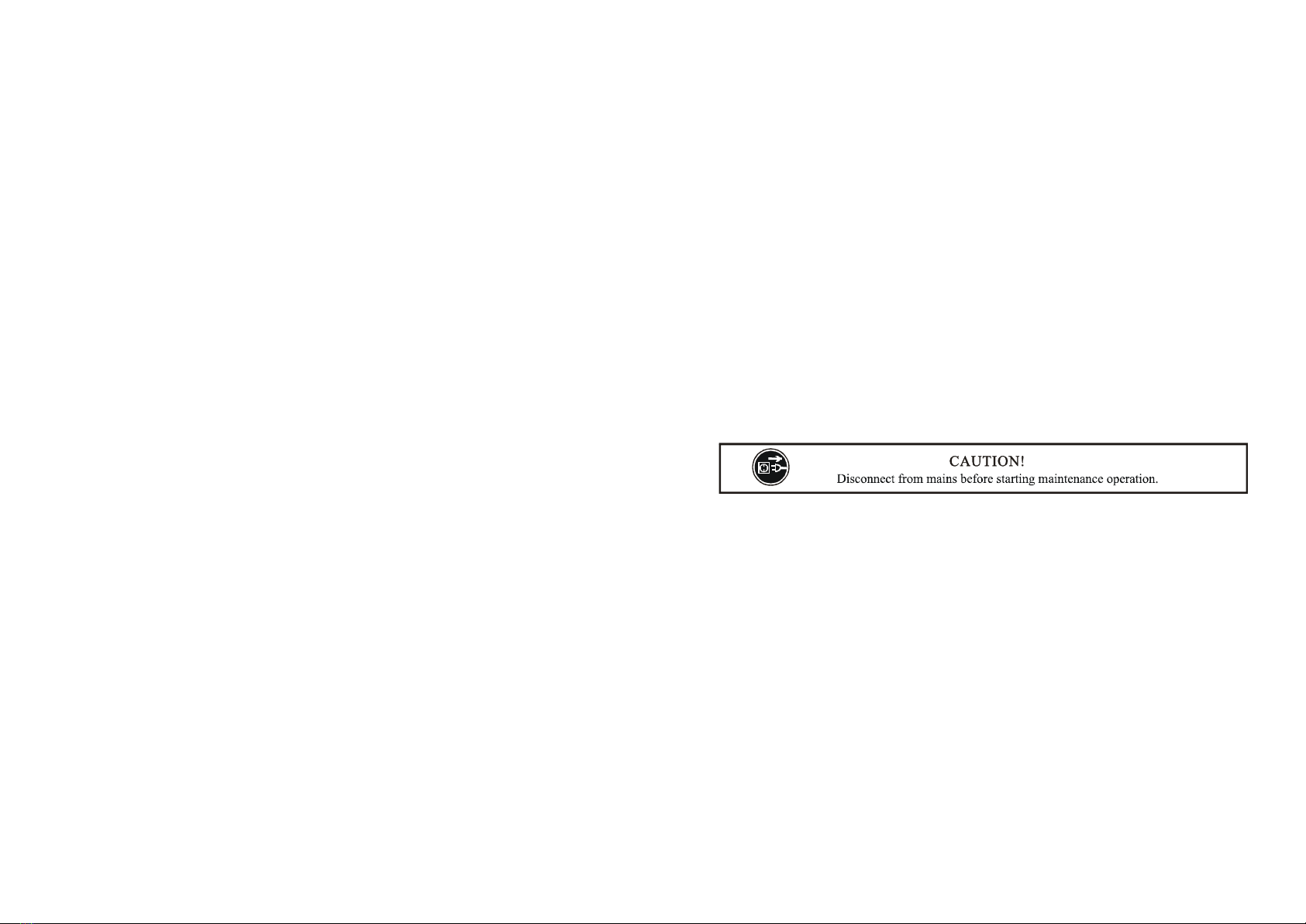

There are no serviceable parts inside the device. Please refer to the instructions under “ Installation
instructions ” .
Should you need any spare parts, please order genuine parts from your local dealer.

9
9
9
9 .
.
.
. Key
Key
Key
Key Features
Features
Features
Features
54 PCS 3W LEDs (RGB W )
16.7 millions of colors by mixing
Specific 25 degree high efficiency optic lens
50,000 hours life span and lower power consumption
Manual controllable for TILT angle adjustment
LED shutter effect
Smooth LED dimming
LED rainbow effect
Macro effect
Strobe effect with 18 flashes per second and pulse effect
General dimming and blackout for all four colors
4 / 9 DMX Channels USITT DMX-512switchable
DMX512, master-slave and sound activated controllable or auto operation
LED display
Power IN/OUT by waterproof power connectors
3-PIN DMX waterproof connectors
-40 °C to 40 ℃operation temperature
Die-cast aluminum structure
IP65 protection rating
10
10
10
10 .
.
.
. Technical
Technical
Technical
Technical Specifications
Specifications
Specifications
Specifications
Input Voltage: AC90-260V 50 / 60Hz
LED Quantities: 54 PCS 3 W LED s (RGBW)
Control Signal: DMX512, master-slave and sound activated or auto operation
Control Channel: 4 / 9 DMX Channels
Power Consumption: 170 W
Dimensions: 235 (D) *440 (W) *230 (H)mm
Packing Dimensions: 340 (D) *540 (W) *33 0(H)mm
Net Weight: 5.5 kg
Gross Weight: 7 kg
2.
2.
2.
2. S
S
S
S afety
afety
afety
afety I
I
I
I nstructions
nstructions
nstructions
nstructions

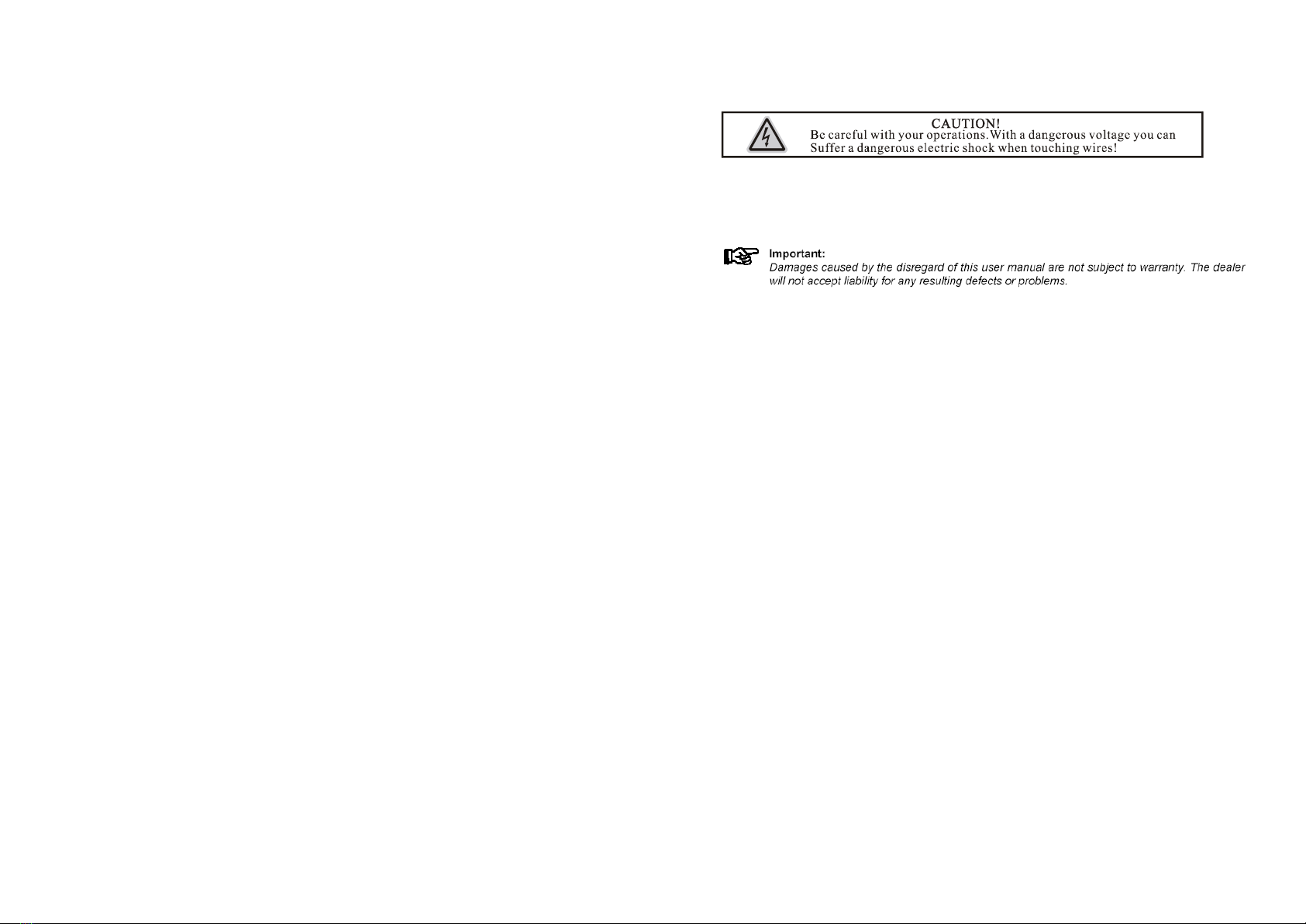

This device has left the factory in perfect condition. In order to maintain this condition and to ensure a
safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this user manual.
If the device has been exposed to temperature changes due to environmental changes, do not switch
it on immediately. The arising condensation could damage the device. Leave the device switched off
until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,
replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power cord by the plug. Never pull out the plug by tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for
smooth air flow, so there should be no shelter for fans and ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

3.
3.
3.
3. Operation
Operation
Operation
Operation Instructions
Instructions
Instructions
Instructions
-The LEDARC 543 is for wash effect for on-site decoration purpose .
-Don ’ t turn on the fixture if it ’ s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So make sure
to operate the fixture until it is in normal temperature .
- This light should be keep away from strong shaking during any transportation or movement.
-Don ’ t pull up the light by only the hea d, or it might cause damages to the mechanical parts.
- Don ’ t expose the fixture in overhea t, moisture or environment with too much dust when installing
it. And don ’ t lay any power cables on the floor. Or it might cause electronic shock to the people.
- Make sure the installation place is in good safety condition before installing the fixture.
-Make sure to put the safety chain and check whether the screws are screwed properly when
installing the fixture.
- Make sure the lens are in good condition. It ’ s recommended to replace the units if there are any
damages or severe scratch.
- Make sure the fixture is operated by qualified personnel who knows the fixture before using.
- Keep the original packages if any second shipment is needed.
- Don ’ t try to change the fixtures without any instruction by the manufacturer or the appointed
repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user manual to
operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc.
8.
8.
8.

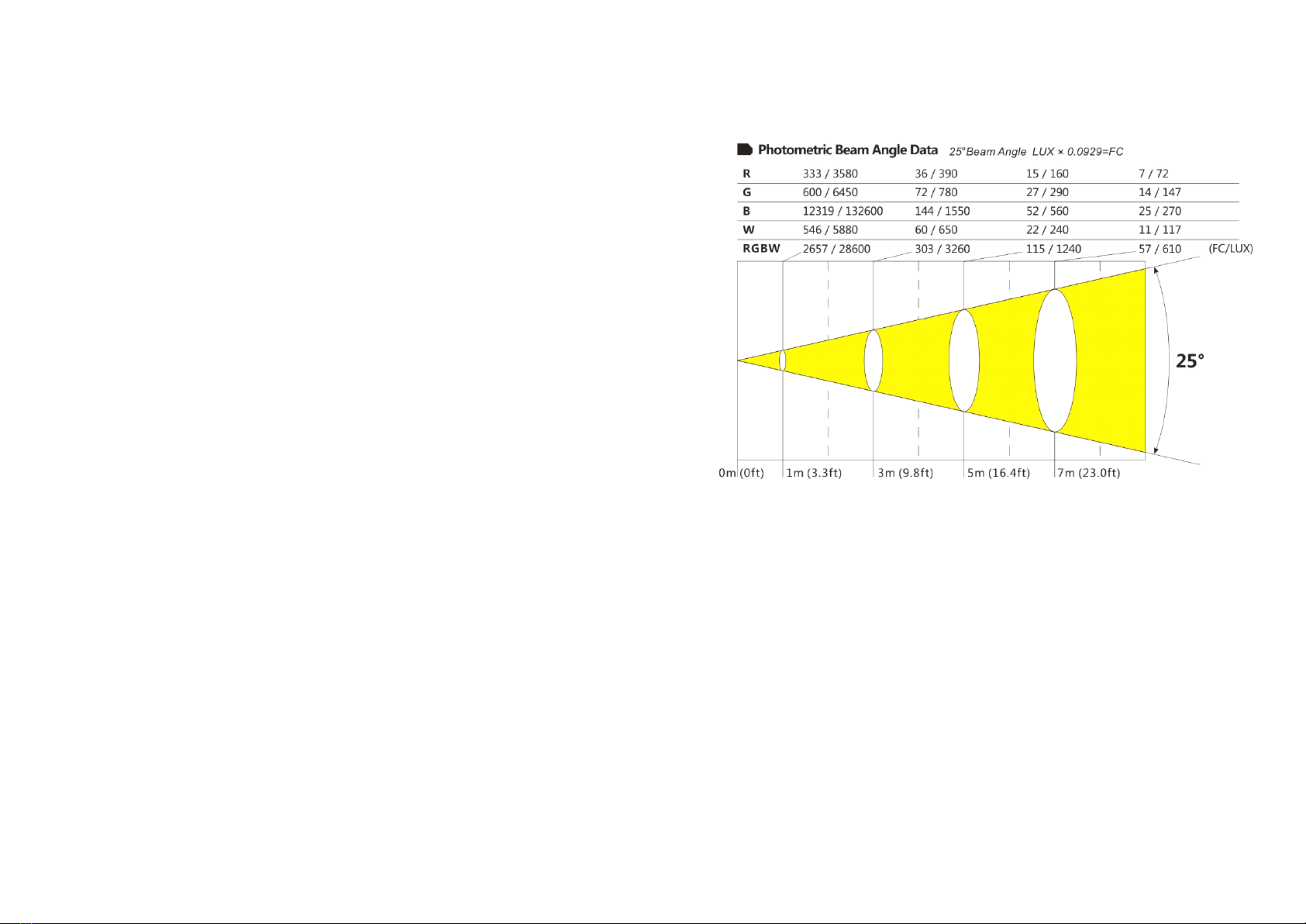

8. Photometric
Photometric
Photometric
Photometric Data
Data
Data
Data

7.
7.
7.
7. DMX
DMX
DMX
DMX Channels
Channels
Channels
Channels
3CH Mode
Channel Function Value Description
1 Red 0-255 0-100% Red Dimmer
2 Green 0-255 0-100% Green Dimmer
3 Blue 0-255 0-100% Blue Dimmer
4 White 0-255 0-100% White Dimmer
8CH Mode
Channel Function Value Description
1 Dimmer 0-255 0-100% Linear Dimmer
2 Red 0-255 0-100% Red Dimmer
3 Green 0-255 0-100% Green Dimmer
4 Blue 0-255 0-100% Blue Dimmer
5 White 0-255 0-100% White Dimmer
6 Strobe
0- 015 LED OFF
016-255 Strobe effect from slow to fast
7 Auto
0- 015 LED OFF
016-255 Auto color mixing from slow to fast
8 Speed 0-255 Speed of Auto color mixing and strobe from slow to fast
9
Sound
Control
0-127 Sound control OFF (from controller)
128-255 Sound control ON (from controller)
4.
4.
4.
4. In
In
In
In stallations
stallations
stallations
stallations
Wall
Wall
Wall
Wall or
or
or
or architecture
architecture
architecture
architecture projections:
projections:
projections:
projections: You could just install the LED543 near below the wall,
projecting angles adjustable with any angles suitable for on-site requirements.

5.
5.
5.
5. DMX-512
DMX-512
DMX-512
DMX-512 control
control
control
control connections
connections
connections
connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the
male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core, screened cable with
XLR input and output connectors. Please refer to the diagram below.
DMX-512 connection with DMX terminator .
For installations where the DMX cable has to run a long distance or is in an electrically noisy environment,
such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption
of the digital control signal by electrical noise. The DMX terminator is simply an XLR plug with a 120 Ω
resistor connected between pins 2 and 3,which is then plugged into the output XLR socket of the last
fixture in the chain. Please see illustrations below.
1
1
1
1
2
2
2
2
3
3
3
3
PIN 3
PIN 3
PIN 3
PIN 3
PIN 2
PIN 2
PIN 2
PIN 2
120
120
120
120 Ω
6.
6.
6.
6. Menu
Menu
Menu
Menu Operations
Operations
Operations
Operations
This device has 4 or 9 DMX channels. If you set, for example, the start address to channel 1, the device
will use the channels #1st to 4th or # 1st to 9 th for control. The first available channel for the next
fixture will be the 5th or 10 th. Please be sure that you do not have any overlapping channels in order to
control each device correctly and independently from any other fixture on the DMX chain. If two, three or
more devices are addressed similarly, they will work similarly.
Press the menu button until it shows AXXX in the display. XXX is the address you se last time. Press UP
or DOWN button to select your desired address, etc, A001. Press ENTER button to save or press
MENU button to exit.
LED Display Illustration
MENU: "EXIT"button. Only exit but will stay in the current working mode.
UP: Increase DMX value or to move upper menu.
DOWN: Decrease DMX value or move to next menu.
ENTER: Select the need menu.
Menu Illustration
ADDR: A001-A512
CHND: DMX channel modes, 4CH or 9CH
SLND: Select MASTER/SLAVE mode
SHND: SOUN means sound control. COLO means colors (COL1-CLO15) AUTO means auto
mode(Speed: SP01-SP08). FADE means color fading(Speed: SP01-SP08).
MANU: Manual control for colors (RED: 0-255; GREEN: 0-255: BLUE: 0-255); WHITE: 0-255. When it's
set, it will stay in current value even the power is OFF.
TEST: Colors auto test(R,G,B,W)
FHRS: Total operating times for the light.
