Color imagination SI-018R User manual

User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
ADD 3rd Floor, No. 288, Guangzhu East Line, Pingwen, Lanhe Town,
Nansha District,Guangzhou, China
Tel. [phone]
Fax [phone]
E-mail [e-mail]
Website www.color-imagination.com tc100°C
LE D 0.2m ta40°C
www.facebook.com/color.imagination.1
www.youtube.com/user/colorimaginationj
twitter.com/colorimaginej
Follow
us on
SI-018R
LEDPAR 64
54*3W (RGBW)

.01. .02.
LEDPAR 64
Signal Cable
Safety Cable
User Manual
1PC
1PC
1PC
1PC
①
②
③
④
Euro StandardUK StandardUSA Standard
Power Connector OPTIONAL
①
②
③
④
If the device has been exposed to temperature changes due to environmental changes,
do not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carr y out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
C AU T I O N
Becareful with your operations.With a dangerous voltage you cansuffer a
dangerous electric shock when touching wires!
IMPORTANT
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
SAFETY INSTRUCTIONS
1UNPACKING 2
Thank you for choosing our LEDPAR 64. For your own safety, please read this manual
before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
The LEDPAR 64 is made of a new type of high temperature strength of cast aluminum
casing with nice outlook . The fixture is designed and manufactured strictly following
CE standards, complying with international standard DMX512 protocol. It’s available
independently controlled and linkable with each other for operation. And it is
applicable for large-scale live performances, theater, studio, nightclubs and discos.
The LEDPAR 64 adopts 54PC 3W RGBW LEDs which features high brightness and
stability. Please carefully unpack it when you receive the fixture and check whether it
is damaged during the transportation. And please check whether the following
items are included inside the box:

270
320
275
330
200
Specifications
Input Voltage:
LED Quantities:
Control Signal:
Control Channel:
Power Consumption:
Dimensions:
Packing Dimensions:
Net Weight:
Gross Weight:
Features
.03.
FEATURES & SPECIFICATIONS
3
• Automatic operation with built-in programs
• DMX512 controllable
• 4CH/9CH for RGBW
• Master-slave operation
• Sound activation
• RGBW optional (3W)
• 25°beam angle default
• 50,000 hours life span and con powerconsumption
• 0-100% electronic dimming
• High speed white color or color changing strobe with 1-13Hz frequency range
• 3-pin XLR connectors IN/OUT
• 40°max environment temperature
• 60°max par light temperature
• TO.8A fuse
AC90-260V 50/60Hz
54*3W RGBW
MX512, master-slave and sound activated or auto operation
4CH/9CH for RGBW
170W
200(D)*270(W)*320(H)mm
265(D)*265(W)*385(H)mm
2.5kg
3.2kg
.04.
1m (3.3ft) 3m (9.8ft) 5m (16.4ft) 0m (0ft)
25°
7m (23.0ft)
25°Beam Angle LUX 0.0929=FC×
Photometric Beam Angle Data
734 / 7900 76 / 820 13 / 140
(FC/LUX)
1394 / 15000 186 / 2000 30 / 320
1840 / 19800
1115 / 12000
232 / 2500
149 / 1600
41 / 440
28 / 300
4830 / 52000 641 / 6900 111 / 1200
R
G
B
W
RGBW
26 / 280
61 / 660
80 / 860
52 / 560
213 / 2300
PHOTOMETRIC DATA
4

.05. .06.
Truss installing
Floor projection
Satety Clamp Safety Cable
from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injur y in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the installation
material being used, and periodic safety inspection of all installation material and the
fixture. If you lack these qualifications, do not attempt the installation yourself.
Improper installation can result in bodily injur y.
Be sure to complete all rigging and installation procedures before connecting the
main power cord to the appropriate wall outlet.
Clamp Mounting: The LEDPAR 64 provides a unique mounting bracket assembly, and
the safety cable rigging point in one unit (see the illustration below). When mounting
this fixture to truss be sure to secure an appropriately rated clamp to the handle
using a M10 screw fitted through the center hole of the handle. As an added safety
measure be sure to attached at least one properly rated safety cable to the fixture
using on of the safety cable rigging point.
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
OPERATION INSTRUCTIONS
5
INSTALLATIONS
6
· The LEDPAR 64 is an LED wash light for on-site decoration purpose.
· Don’t turn on the fixture if it’s been through severe temperature difference like
after transportation because it might damage the light due to the environment
changes. So make sure to operate the fixture until it is in normal temperature.
· This light should be keep away from strong shaking during any transportation or
movement.
· Don’t pull up the light by only the head, or it might cause damages to the
mechanical parts.
· Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
· Make sure the installation place is in good safety condition before installing the
fixture.
· Make sure to put the safety chain and check whether the screws are screwed
properly when installing the fixture.
· Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
· Make sure the fixture is operated by qualified personnel who knows the fixture
before using.
· Keep the original packages if any second shipment is needed.
· Don’t try to change the fixtures without any instruction by the manufacturer or
the appointed repairing agencies.
· It is not in warranty range if there are any malfunctions from not following the
user manual to operate or any illegal operation, like shock short circuit, electronic
shock, lamp broke, etc.

MENU
UP
LED DISPLAY
DOWN
SAVE
DMX IN DMX OUT
.08.
Regardless of the rigging option you choose for your LEDPAR 64, always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for
a safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carr ying handle.
DMX Output
3-Pin XLR Socket
DMX Input
3-Pin XLR Socket
1:Ground
2:Data(-)
3:Data(+)
1 2
3
12
3
1
2
3
1
2
3
COMMON
DMX+
DMX-
DMX512 IN
3-PIN XLR
DMX512 OUT
3-PIN XLR
2 1
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving head together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram
below.

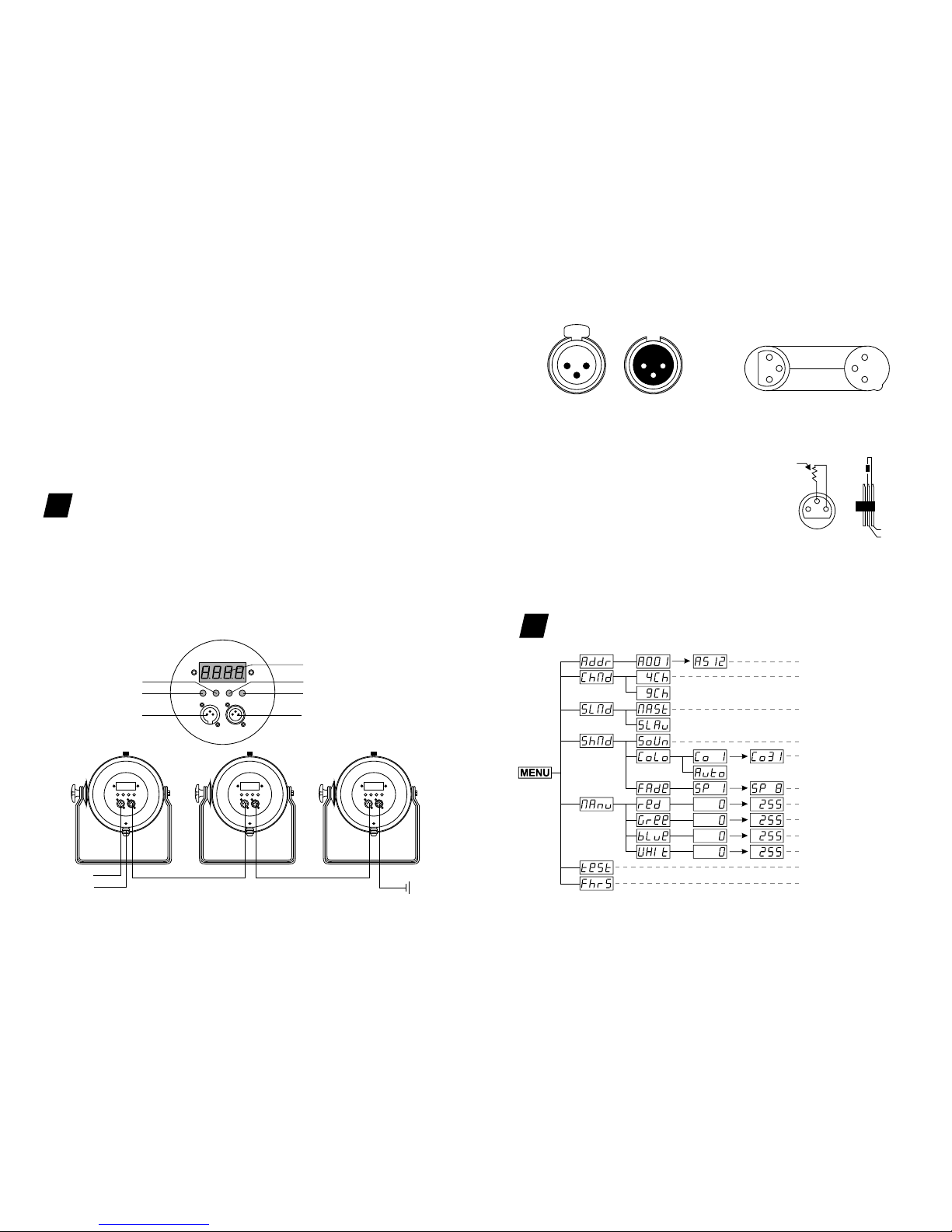

DMX-512 connection with DMX terminator
DMX-512 CONTROL CONNECTIONS
7
.07.
For installations where the DMX cable has to run a long
distance or is in an electrically noisy environment, such as
in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the
digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged
into the output XLR socket of the last fixture in the chain.
Please see illustrations below.
12
3
PIN3
PIN2
120 Ω
MENU OPERATIONS
8
POWER IN
DMX IN
Address Setting
Channel Mode
Master/Slave Setting
Color 1 to Color 31
Red Dimmer
Green Dimmer
Blue Dimmer
White Dimmer
Color auto test: R,G,B,W,RGBW
Running Time (H)
Strobe with Color Changing
Speed control of Color Changing
(SP01-SP08)

.09. .10.
DMX CHANNELS
9
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4) The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be
adhered by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of
circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
MAINTENANCE AND CLEANING
10
Disconnect from mains before starting maintenance operation.
C AU T I O N
0-100% Red Dimmer
0-100% Green Dimmer
0-100% Blue Dimmer
0-100% White Dimmer
DescriptionChannel Function Value
0-255
0-255
0-255
0-255
Red
Green
Blue
White
1
2
3
4
4CH Mode
0-100% Linear Dimmer
0-100% Red Dimmer
0-100% Green Dimmer
0-100% Blue Dimmer
0-100% White Dimmer
LED OFF
Strobe effect from slow to fast
LED OFF
Auto color mixing from slow to fast
Speed of Auto color mixing and strobe from slow to fast
Sound control OFF (from controller)
Sound control ON (from controller)
DescriptionChannel Function Value
0-255
0-255
0-255
0-255
0-255
0-015
016-255
0-015
016-255
0-255
0-127
128-255
Dimmer
Red
Green
Blue
White
Strobe
Auto
Speed
Sound
Control
1
2
3
4
5
6
7
8
9
9CH Mode
