Color imagination LEDPAR 64 User manual

User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
tc100°C
LED 0.2m ta40°C
SI-018D
36*3W (RGB)
LEDPAR 64

.01.
If the device has been exposed to temperature changes due to environmental changes,
do not switch it on immediately. The arising condensation could damage the device.
Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
CAU T I O N
Becareful with your operations.With a dangerous voltage you cansuffer a
dangerous electric shock when touching wires!
IMPORTANT
Damages caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
SAFETY INSTRUCTIONS
1

.02.
LEDPAR 64
Signal Cable
Safety Cable
User Manual
1PC
1PC
1PC
1PC
①
②
③
④
Euro StandardUK StandardUSA Standard
Power Connector OPTIONAL
①
②
③
④

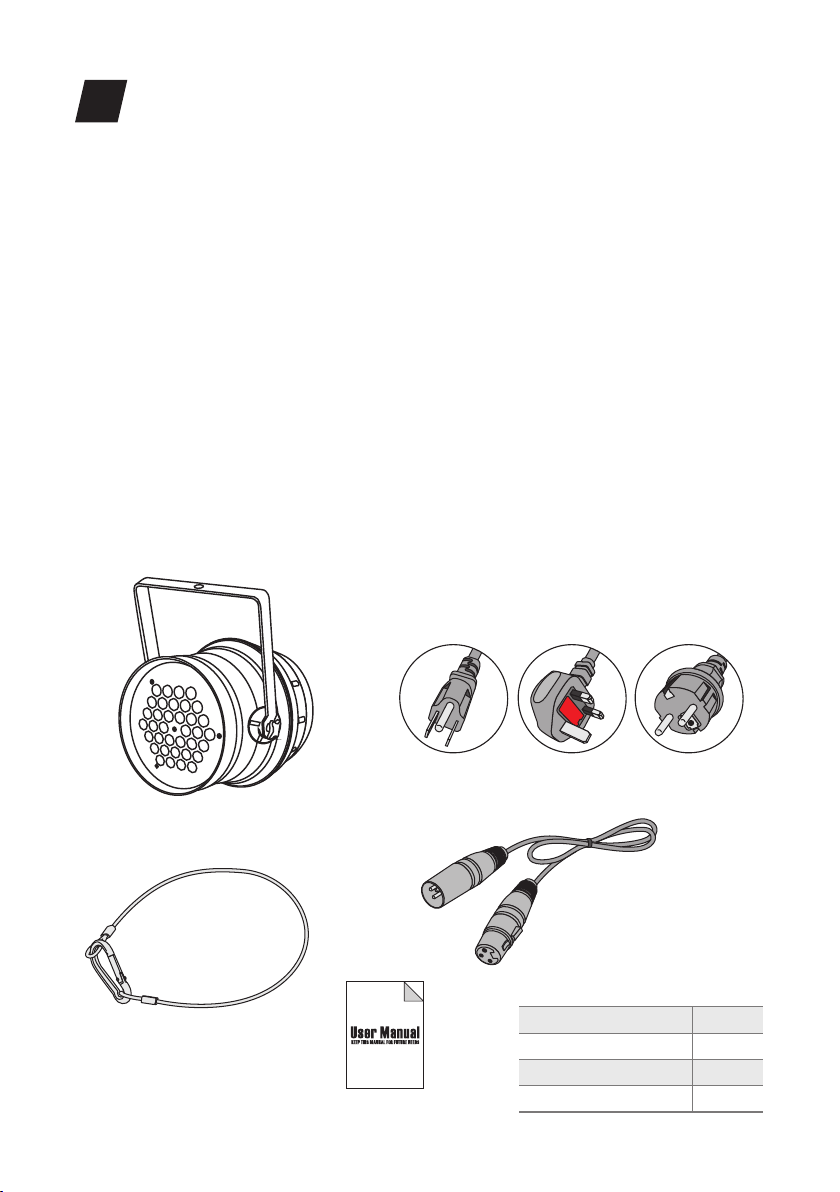

UNPACKING
2
Thank you for choosing LEDPAR 64. For your own safety, please
read this manual before installing the device. This manual covers the important
information on installation and applications. Please install and operate the fixture
with following instructions. Meanwhile, please keep this manual well for future
needs.
LEDPAR 64 is made of a new type of high temperature strength
of cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol. It’s available independently controlled and linkable with each
other for operation. And it is applicable for large-scale live performances, theater,
studio, nightclubs and discos.
LEDPAR 64 adopts 36*3W RGB LEDs which features high brightness and stability.
Please carefully unpack it when you receive the fixture and check whether it is
damaged during the transportation. And please check whether the following items
Color Imagination’s
Color Imagination’s

Input Voltage:
LED Quantities:
Control Signal:
Control Channel:
Power Consumption:
Dimensions:
Packing Dimensions:
Net Weight:
Gross Weight:
.03.
AC90-260V 50/60Hz
36*3W RGB
MX512, master-slave and sound activated or auto operation
7CH for RGB
120W
270(D)*200(W)*320(H)mm
250(D)*250(W)*360(H)mm
1.48kg
2.40kg
Specifications
Features
FEATURES & SPECIFICATIONS
3
• Automatic operation with built-in programs
• DMX512 controllable
• 7CH for RGB
• Master-slave operation
• Sound activation
• RGB optional (3W)
• 25°beam angle default
• 50,000 hours life span and con powerconsumption
• 0-100% electronic dimming
• High speed Amber color or color changing strobe with 1-13Hz frequency range
• 3-pin XLR connectors IN/OUT
• 40°max environment temperature
• 60°max par light temperature
• TO.8A fuse

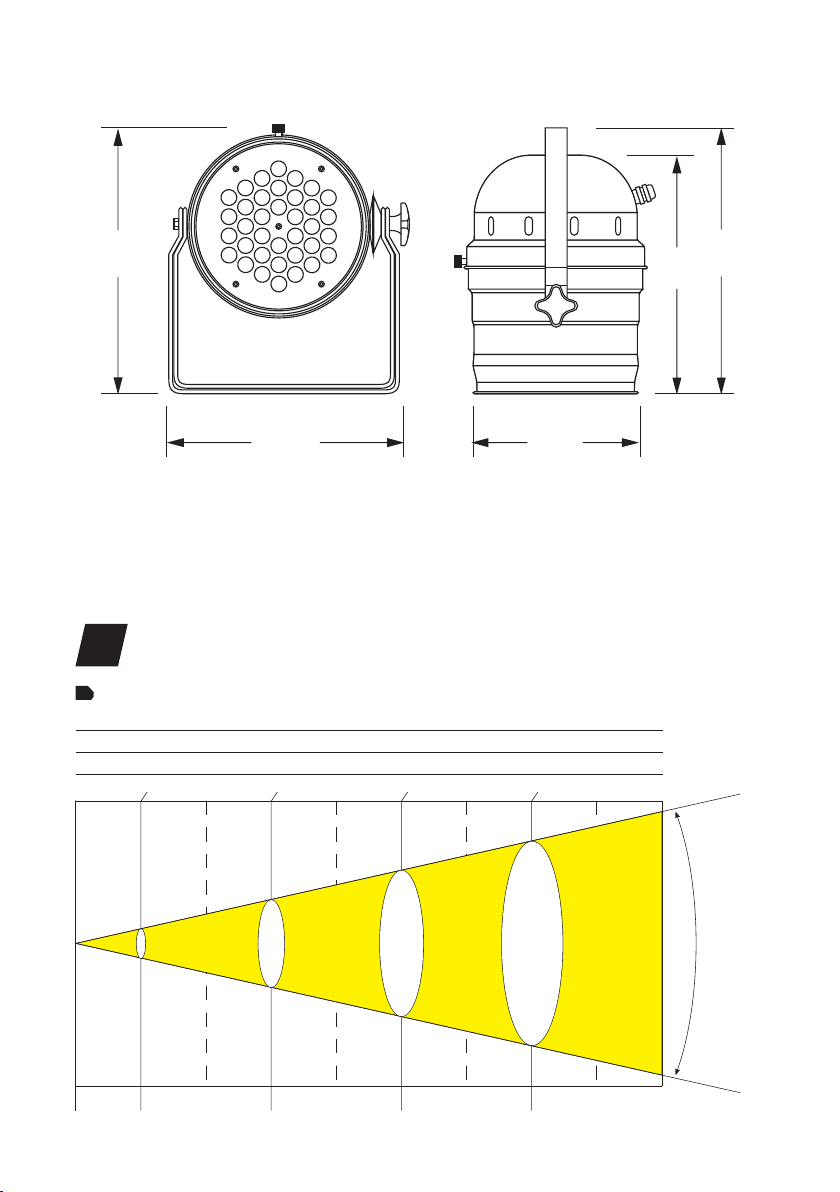

PHOTOMETRIC DATA
4
25°Beam Angle LUX 0.0929=FC×
Photometric Beam Angle Data
328 / 3530 41 / 440 9 / 100
1m (3.3ft) 3m (9.8ft) 5m (16.4ft) 0m (0ft)
(FC/LUX)
818 / 8800 93 / 1000 21 / 230
1201 / 12930
2127 / 22900
149 / 1600
262 / 2820
28 / 300
51 / 550
R
G
B
RGB
25°
154 / 160
39 / 420
53 / 570
93 / 1000
7m (23.0ft)
270
320
275
330
200
.04.

.05.
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
OPERATION INSTRUCTIONS
5
INSTALLATIONS
6
· The LEDPAR 64 is an LED wash light for on-site decoration purpose.
· Don’t turn on the fixture if it’s been through severe temperature difference like
after transportation because it might damage the light due to the environment
changes. So make sure to operate the fixture until it is in normal temperature.
· This light should be keep away from strong shaking during any transportation or
movement.
· Don’t pull up the light by only the head, or it might cause damages to the
mechanical parts.
· Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
· Make sure the installation place is in good safety condition before installing the
fixture.
· Make sure to put the safety chain and check whether the screws are screwed
properly when installing the fixture.
· Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
· Make sure the fixture is operated by qualified personnel who knows the fixture
before using.
· Keep the original packages if any second shipment is needed.
· Don’t try to change the fixtures without any instruction by the manufacturer or
the appointed repairing agencies.
· It is not in warranty range if there are any malfunctions from not following the
user manual to operate or any illegal operation, like shock short circuit, electronic
shock, lamp broke, etc.

.06.

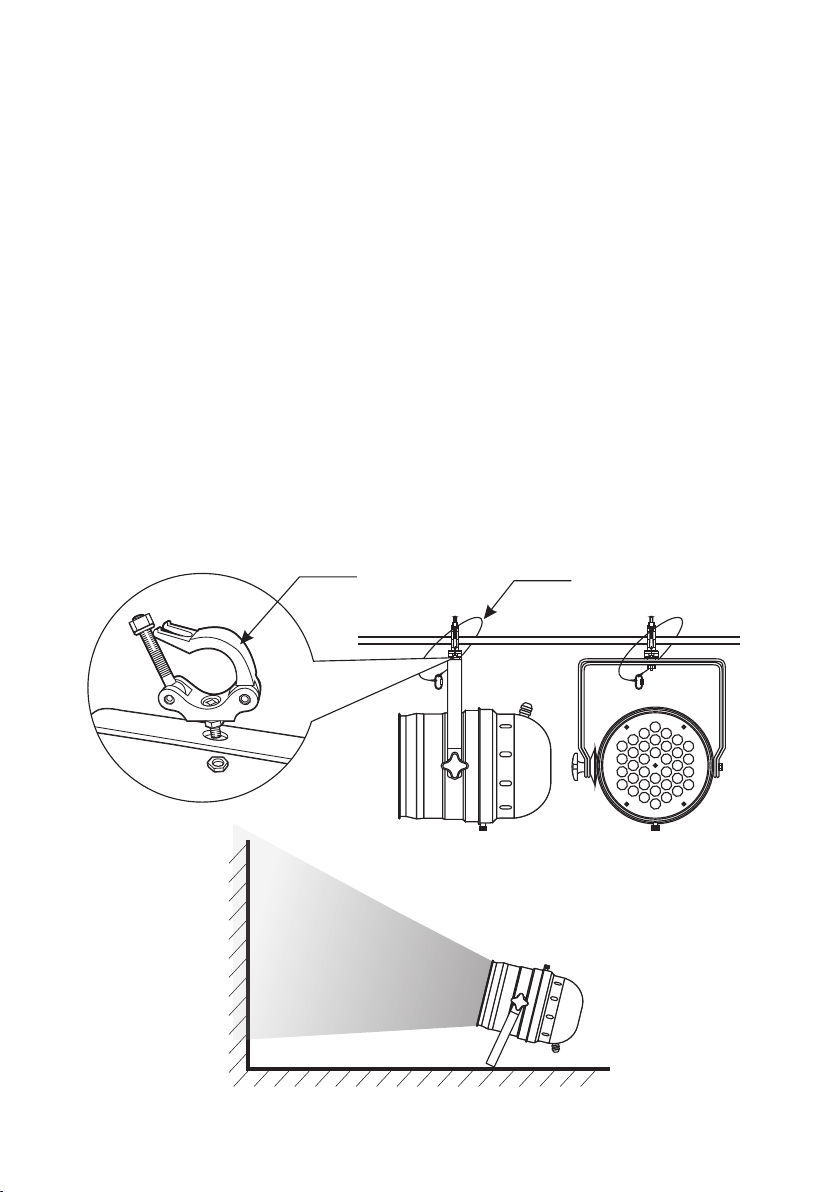

Truss installing
Floor projection
Satety Clamp Safety Cable
from a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture
is kept at least 0.5m (1.5 ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp fails.
Mounting points: Overhead mounting requires extensive experience, including
amongst others calculating working load limits, a fine knowledge of the installation
material being used, and periodic safety inspection of all installation material and the
fixture. If you lack these qualifications, do not attempt the installation yourself.
Improper installation can result in bodily injury.
Be sure to complete all rigging and installation procedures before connecting the
main power cord to the appropriate wall outlet.
Clamp Mounting: The LEDPAR 64 provides a unique mounting bracket assembly, and
the safety cable rigging point in one unit (see the illustration below). When mounting
this fixture to truss be sure to secure an appropriately rated clamp to the handle
using a M10 screw fitted through the center hole of the handle. As an added safety
measure be sure to attached at least one properly rated safety cable to the fixture
using on of the safety cable rigging point.

Regardless of the rigging option you choose for your LEDPAR 64, always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point
for a safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.

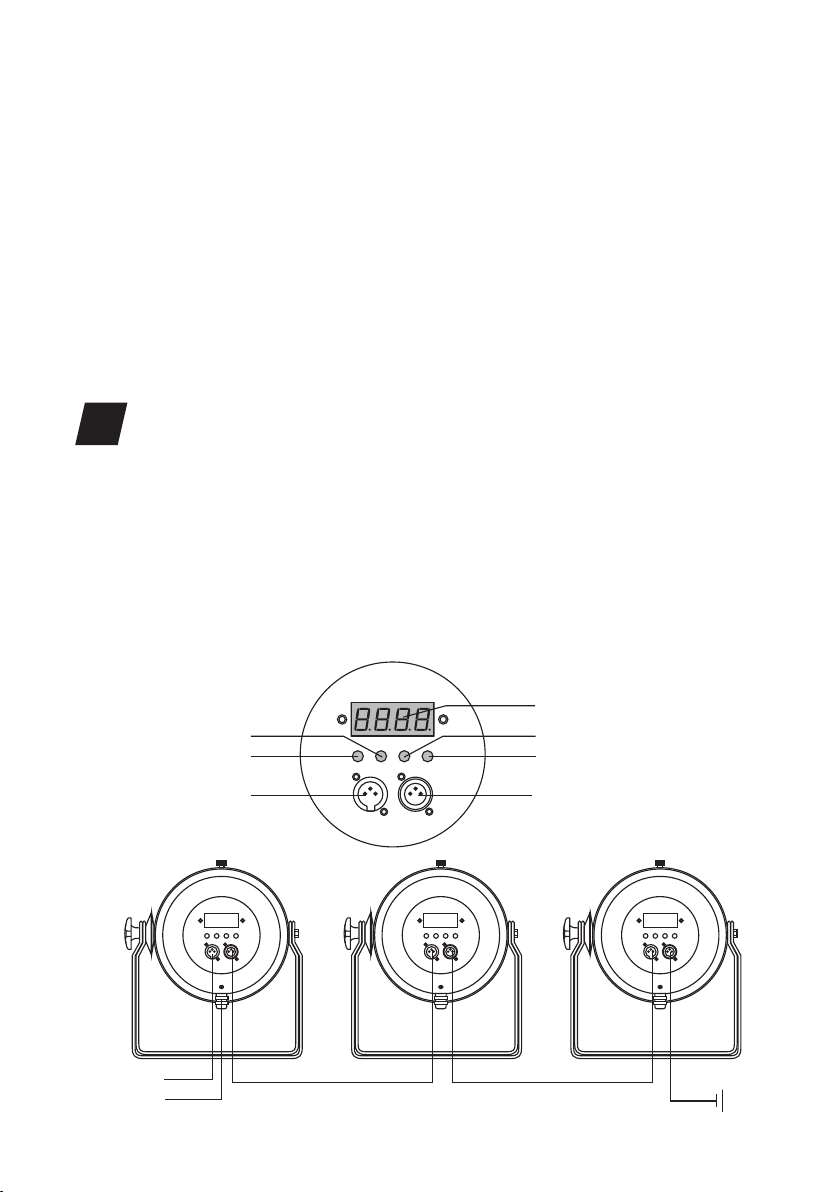

Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the par can. You can chain multiple
Par can together through serial linking. The cable needed should be two core,
screened cable with XLR input and output connectors. Please refer to the diagram
below.

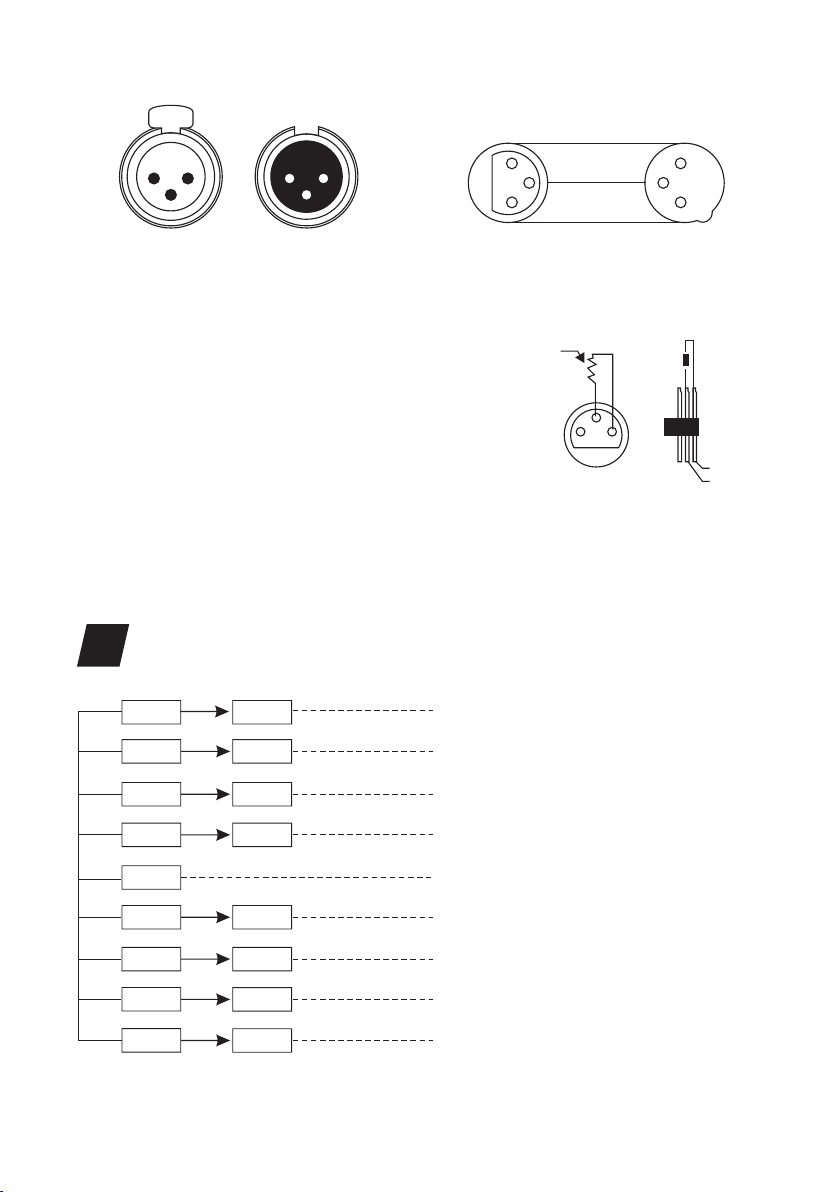

DMX-512 connection with DMX terminator
DMX-512 CONTROL CONNECTIONS
7
.07.
MENU
UP
LED DISPLAY
DOWN
ENTER
DMX IN DMX OUT
POWER IN
DMX IN

DMX Output
3-Pin XLR Socket
DMX Input
3-Pin XLR Socket
1:Ground
2:Data(-)
3:Data(+)
1 2
3
12
3
1
2
3
1
2
3
COMMON
DMX+
DMX-
DMX512 IN
3-PIN XLR
DMX512 OUT
3-PIN XLR
2 1
For installations where the DMX cable has to run a long
distance or is in an electrically noisy environment, such as
in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the
digital control signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged
into the output XLR socket of the last fixture in the chain.
Please see illustrations below.
12
3
PIN3
PIN2
120 Ω
MENU OPERATIONS
8
d001 d512
P000 P255
L000 L255
E000 E255
S0UD
r000 r255
9000 g255
b000 b255
f000
DMX address
Auto1
Auto2
Auto3
Sound control
Red dimmer
Green dimmer
Blue dimmer
Strobe
f255
.08.

DMX CHANNELS
9
0-100% Linear dimmer
0-100% Red dimmer
0-100% Green dimmer
0-100% Blue dimmer
Strobe effect from slow to fast
DMX 7CH control
Saltus step
Gradual change
Pulse variable
Sound control
Function of speed,suspended from slow to fast
DescriptionChannel Function Value
0-255
0-255
0-255
0-255
0-255
0-50
51-100
101-150
151-200
201-255
0-255
Dimmer
Red
Green
Blue
Strobe
Selection
Speed
1
2
3
4
5
6
7
7CH Mode
.09.

.10.
The following points have to be considered during the inspection:
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses, fixations and
installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4) The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be
adhered by a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of
circuit from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local dealer.
MAINTENANCE AND CLEANING
10
Disconnect from mains before starting maintenance operation.
CAU T I O N

ADD 3rd Floor, No. 288, Guangzhu East Line, Pingwen, Lanhe Town,
Nansha District,Guangzhou, China
Tel. [phone]
Fax [phone]
E-mail [e-mail]
Website www.color-imagination.com
www.facebook.com/color.imagination.1
www.youtube.com/user/colorimaginationj
twitter.com/colorimaginej
Follow
us on
