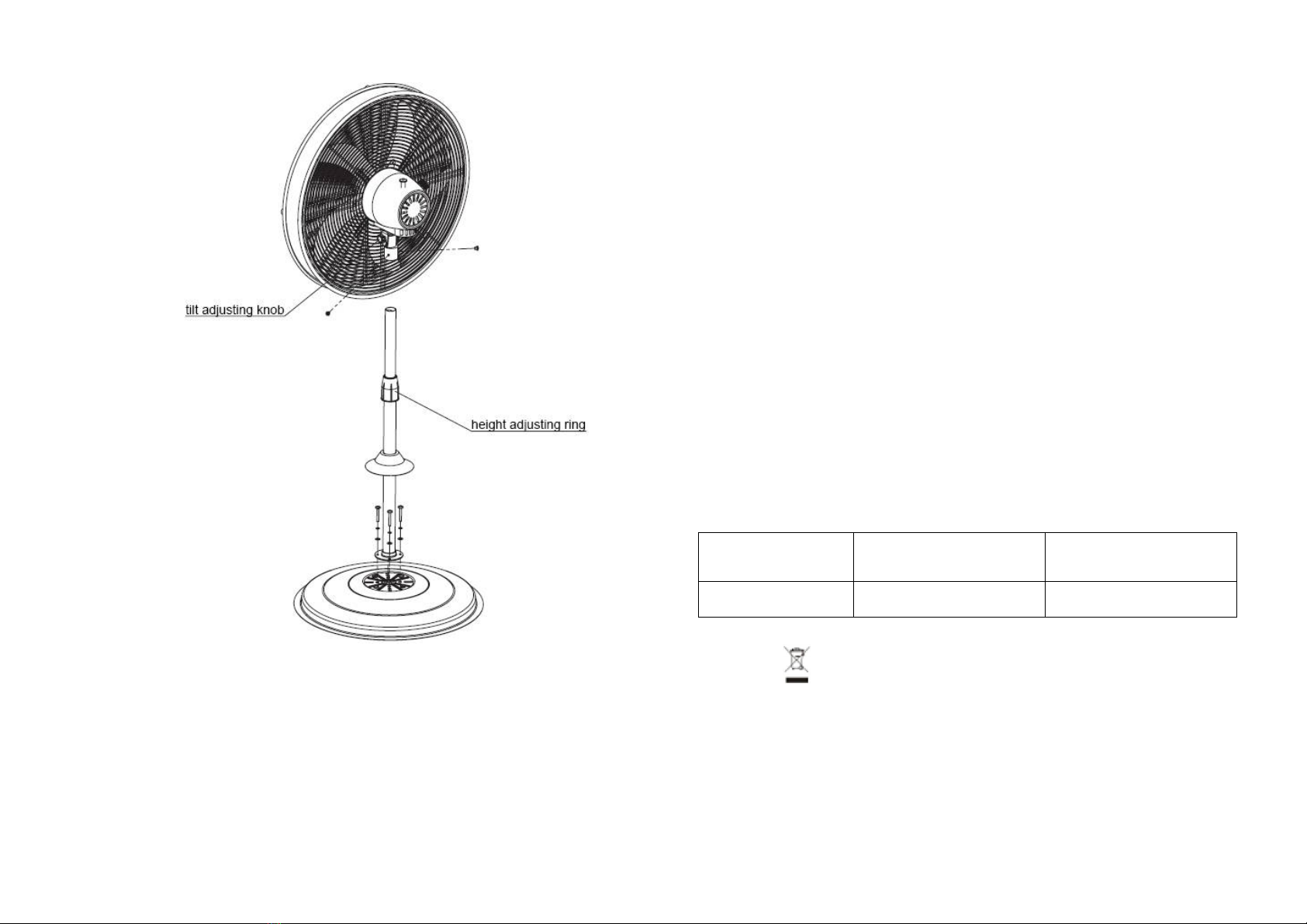

Product assembly drawing
Stand assembly instructions:
1. Attach the outer tube to the base with 4 screws as shown.
2. Slide the cover ring down on the outer tube to rest on the top of
base.
CAUTION: The screws must be fully tighten before the fan
operation.
Motor assembly instructions
Insert the motor at the top hole of the inner tube.
Then firmly tighten the screws at the holes of the fan neck.
CAUTION: The screws must be fully tightened before the fan
operating.
OPERATION INSTRUCTIONS
1. Place the fan on a safe, flat surface where it can not fall or be
pulled by the cord.
2. To adjust the height, loosen the height adjusting ring. Hold the
inner tube and stand on the edge of the base. Pull up or press
down on the inner tube .Do not adjust by holding onto the fan
head. Tighten the height adjusting ring at the desire height.
3. Select desired direction of air flow by adjusting the tilting
adjusting knob. Note: Always switch the fan off when adjusting
the height or tilt angle.
4. Turn the rotary switch for desired
speed.0=Off,1=Low,2=Med,3=High
5. Turn the oscillation function on by pressing the oscillation button
down. Turn the oscillation function off by pulling the oscillation
button up.
6. Always turn off and unplug the fan after using.
Model No. Blade Dia / Size Voltage / Hz
CLF-20S5B 500mm 20” 220~240V / 50Hz
The symbol on the product means that at the end of its life,
the appliance has not to be considered a common waste. It is a
special waste and has to be demolished in specific recovery
and disposal area, as prescribed by the EC Directive
2002/96/EC(WEEE). By disposing this product correctly, you
can avoid negative consequences for the environment and for
the human health, due to the presence of potentially dangerous
substances in the product.
