INSTRUCTION MANUAL
OF STAND MISTING FAN
MODEL: CLMFS-26
Read carefully these instructions
before using the appliance

1
FEATURE AND APPLICATION
1. Utilizes CΑD optimized design, good and graceful-looking.
2. The machine misting system adopts centrifugal misting excellent design, which does not
need nozzle and water-filtration equipment, reasonable structure and easy maintenance.
3. The machine surface adopts outdoors epoxy coating, which makes the machine be good
rust prevention and long service life. The machine has waterproof electric facility, which makes
the machine operate safe; it collocates handcart, which makes the machine move spry and
light.
4. The misting and blowing is separately moved by different motor. Motor adopts high quality
bearing, so the motor is with stable performance, low temperature-rising, low noise and strong
overload.
5. The machine's misting effect is excellent and the mist volume can be adjusted. Water pump
and floater switch collocate complete insulating equipment for protection which makes the
machine safe and reliable. Floater switch can cut off electricity of water pump and misting
motor automatically when water is not enough for mist.
6. The recycled water system can save water. Misting time is over 7 hours.
7. The machine has oscillation installation and the blow angle can be adjustable, so it is
easily, safely and reliably operated. It is suitable for cooling, dust and peculiar smell prevention
in factory, household, marketplace and field; it also can be used in animals breeding field,
flower greenhouse and mushroom breeding field and other special fields.
OPERATION INSTRUCTIONS
1. The machine must use the voltage and frequency specified on the nameplate. It isn’t
suitable to be used in too corrosive surrounding.
2. Do not install this machine in places where the altitude is higher than 1,000 meters or
temperature is over 40ºC.
3. When socket is used in power supply, the socket should meet the IEC335-1 standard;
when power liner is from direct power supply, a polarity switch should be installed with contact
gap not less than 3 mm on the fixation wiring.
4. The machine oscillation angle adjustment: Loosen the oscillation screw and move it to the
needed position (the more outward the bigger oscillation angle) and tighten this oscillation
screw.
5. The machine pitching angle adjustment: Loosen the fixing nut and move the motor to the
needed position and tighten this fixing nut.
6. The machine has two switches on the pillar. The upper switch is the switch of the fan,
which starts and tops the fan, and the lower one is the misting switch, which controls misting
motor and water pump.
7. The fan has three speed settings that can be adjusted by the switch at the back side o fthe
fan’s head.
8. If the machine is selected to operate in misting mode, its misting magnitude can be
adjusted by the valve at the left side of the pillar, with the dimension that the arrow shows, from
small mist to large.
9. lf the machine is selected to operate by misting mode, then it should be injected
appropriate water before operation (water is at least above floater switch) because it has
protection function to water pump and misting motor when water is not enough for mist. When
water is below floater switch, electricity of water pump and misting motor will be cut off and the
machine stops spraying, but it can continually blow. When water tank is injected water and
when it is at most misting state, it can continually operate 7 hours. Reinject water to get mist
when water is not enough. Open drain valve behind the tank to let water out when the water
tank needs to be cleaned.
10. The handcart is mounted on the pillar and can be kept in and out by pressing the button on
the centre of their back side.
11. When using the handcart, skid the front cartwheel to avoid glide naturally when it stops,
when moving the handcart, loosen the front cartwheel lock. Before loosening the front
cartwheel lock do not move it, to avoid damage.
12. Clean water tank before using.

2

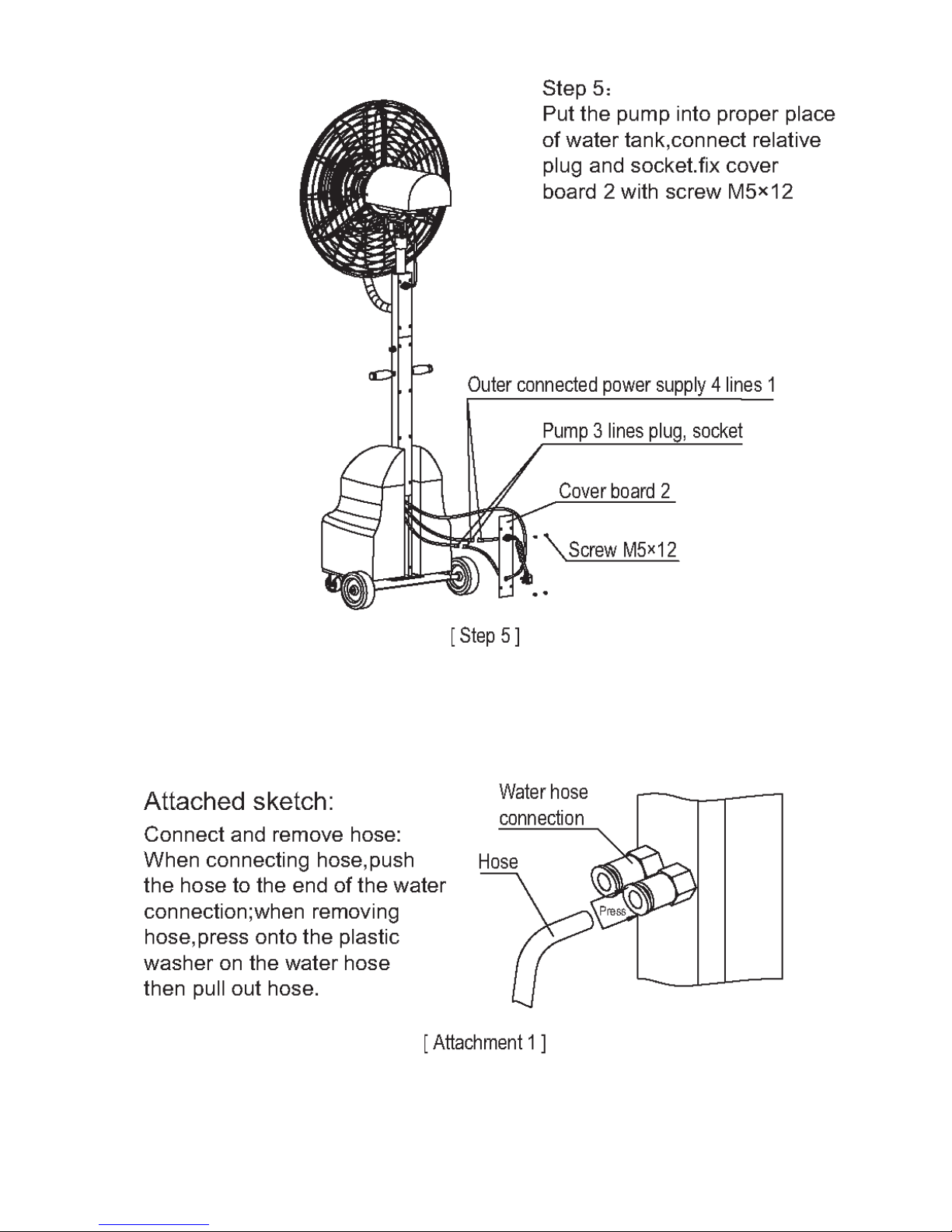

INSTALLATION SKETCH MAP
Refer to this sketch map during installation; check carefully all parts before installing to avoid
lack or damage during transportation. Gently take and move all parts to avoid damage.

3

4

5

6

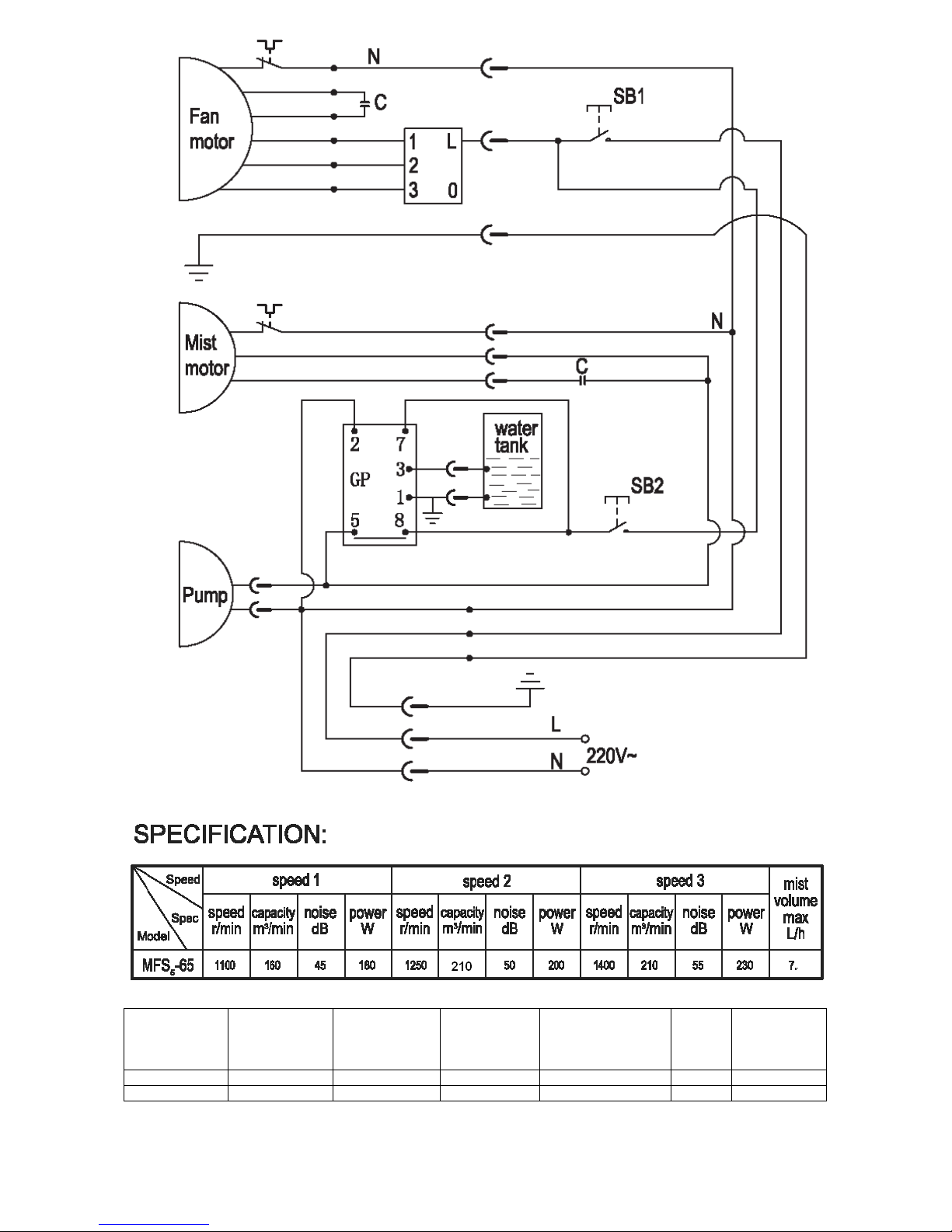

Model
Max.
Misting
Volume
Effective
delivery
distance of
mist
Water use
area Tank capacity Height
Diameter of
Blade
L/h m m² liter cm cm
CLMFS-26 7.0 6~7 30 32 202 66

7
MAINTENANCE
1. In order to keep the machine beautiful and wearing well, you should clean it timely.
2. Cut off the power before cleaning and disparting front guard and blade. Clean the machine with
soft besom and cloth if possible and you can use some cleanser (don't use gas or other corrosive
liquid). After cleaning, dry the guard and blade with dry cloth and then install the machine
reversely. (Attention: mist plate inside misting system can't be disparted).
3. Don't let water flow into the motor and wet electric elements during cleaning, also don' t crash
the blade and change the angle of the blade.
4. In order to keep water clean in water tank, wash the water tank and water-receiving plate at a
proper time.
5. To ensure machine can oscillate smoothly, add grease oil to the rotary part of oscillating
mechanism per a half year.
6. To ensure the machine can work smoothly, replace the gear box and old butter around the
bearing for over 2000 hours use (almost once a year).
7. Clean the machine and seal it with plastic bag when it is not being used for a long time.
CAUTION
1. When opening packing box, take the machine head out as per direction sign.
2. Don't insert hands or any objects into the machine guards and misting plate.
3. Upward and downward angle of machine must be adjusted within stated angle range.
4. Don't put the machine close to curtain, other easy inhalation and don't put it on uneven places
either.
5. Children, elders and weak people can’t stand in front of the machine for a long time.
6. If the power cord is broken, ask professional person to change it with special tools.
7. Immediately cut off the power and send the machine to our factory or appointed repair store to
repair by qualified maintenance man if the running machine emits unusual noise, smoke or
machine blade can not run after power supply.
8. Except maintenance scope unprofessional person can't dispart, repair and amend the machine.
9. Take away moisture proof things when starting mist function in order to avoid moisture.
GUARANTEE
1. Under the normal using conditions, the user can change a new one free and get free repair
from seller in one year (from the date of purchase) if quality problem happens.
2. We can promise to repair the machine forever, (but the repair should be charged after one
year).
3. We can’t give warranty if following problems happen:
a. The fault is caused by incorrect dispart, amendment and repair without proceeded by our
company.
b. The fault is caused by natural disaster or incorrect operation.
c. The machine is not sealed by seller and without purchasing date.
ATTENTION
The symbol on the product means that at the end of its life, the appliance has not to be
considered as a common waste. It is a special waste and has to be demolished in specifies
recovery and disposal areas, as prescribed by the EC Directive 2002/96/EC (WEEE). By
disposing this product correctly, you can avoid negative consequences for the environment

8
and for the human health, due to the presence of potentially dangerous substances in the
product.
