Colorful BATTLE-AX B360M-E PRO V21 User manual

BATTLE-AX B360M-E PRO V21
BATTLE-AX B360M-HD PRO V21
www.colorful.cn
Service hotline: [phone]
VER:1.0
User's Manual

Table of Contents
Ｃｈａｐｔｅｒ 1 Introduction..........................................................1
1-1 Motherboard features ...................................................1
1-2 Motherboard specifications ...........................................1
1-3 Motherboard Layout.....................................................3
Ｃｈａｐｔｅｒ 2 Hardware Installation.............................................4
2-1 Safety Instructions ........................................................4
2-2 Connecting header and Setting Switches.........................8
2-3 Back Panel IO Connector ............................................15
Ｃｈａｐｔｅｒ 3 BIOS Setting.........................................................17
3-1 Enter BIOS Main Menu ................................................17
3-2 Main（System Information）......................................18
3-3 Advanced（Advanced BIOS Features） ........................19
3-4 Chipset（chipset settings）........................................23
3-5 C.Oclock（OverClock Settings） ..................................24
3-6 Security（security settings） .......................................25
3-7 Boot（Startup Settings）............................................26
3-8 Exit（exit Settings）...................................................27
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

Box Contents
1* Colorful BATTLE-AX B360M-E PRO V21/ BATTLE-AX B360M-HD PRO
V21 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
Note: The box contents above are for reference only and the actual items
shall depend on the product package you obtain. The box contents are
subject to change without notice.

Ｃｈａｐｔｅｒ 1 Introduction
1-1 Motherboard features
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21 motherboard
based on Intel B360 chipset, support Intel LGA1151 Coffee Lake-S processors,
support dual channel DDR4 2133/2400/2666MHz memory, supportＰＣＩ－Ｅ３．０
standard.
The motherboard has 2*DDR4 memory slots、1*HDMI port、1*DVI port、1*VGA
port（BATTLE-AX B360M-E PRO V21 motherboard do not have VGA port）、
4*SATA3.0 ports、onboard 6-channel audio chipset、integrated 1000M LAN
chipset, it’s a Cost-effective motherboard！
The motherboard has 1*PCI Express3.0x16 slot、1*PCI Express3.0 x1 slot、1*M.2
slot,it had various extending schema and good extensibility！
1-2 Motherboard specifications
Form factor
¾mATX
Chipset
¾Intel B360
CPU
¾support Intel LGA1151 Coffee Lake－Ｓ processors
¾Tips:when using 95W processor, please match the professional
CPU cooling fan!
Memory
¾Offer 2 DIMM slots
¾Support dual channel DDR4 2133/2400/2666MHz memory
Slots
¾1*PCI Express 3.0x16 slot
¾1*PCI Express 3.0x1 slot
¾1*M.2 slot（Support PCI-e x4 and MSATA SSD）
1

Storage
¾4*SATA3.0 6Gb/s ports
6-CH audio devices
¾Onboard 6-channel audio chipset
¾Support 3D surround sound effect
LAN
¾integrated 1000M LAN chipset
¾Provides 10/100/1000Mb Ethernet
USB ports
¾6*USB2.0 and 6*USB3.0 ports(include headers)
Onboard header/jumper/button
¾1*9-pin Front panel audio connector（F_AUDIO）
¾1*System panel connector（F_PANEL）
¾2*USB2.0 header（FUSB1,FUSB2）
¾1*USB3.0 header（USB3.0）
¾2*CPU FAN（CPU_FAN, SYS_FAN）
¾1*PC speaker connector（BZ）
¾1*Debug header （CASE）
¾1*COM header（COM）
¾1*Clear CMOS jumper（CLR_CMOS）
2
Ｉｎｔｒｏｄｕｃｔｉｏｎ

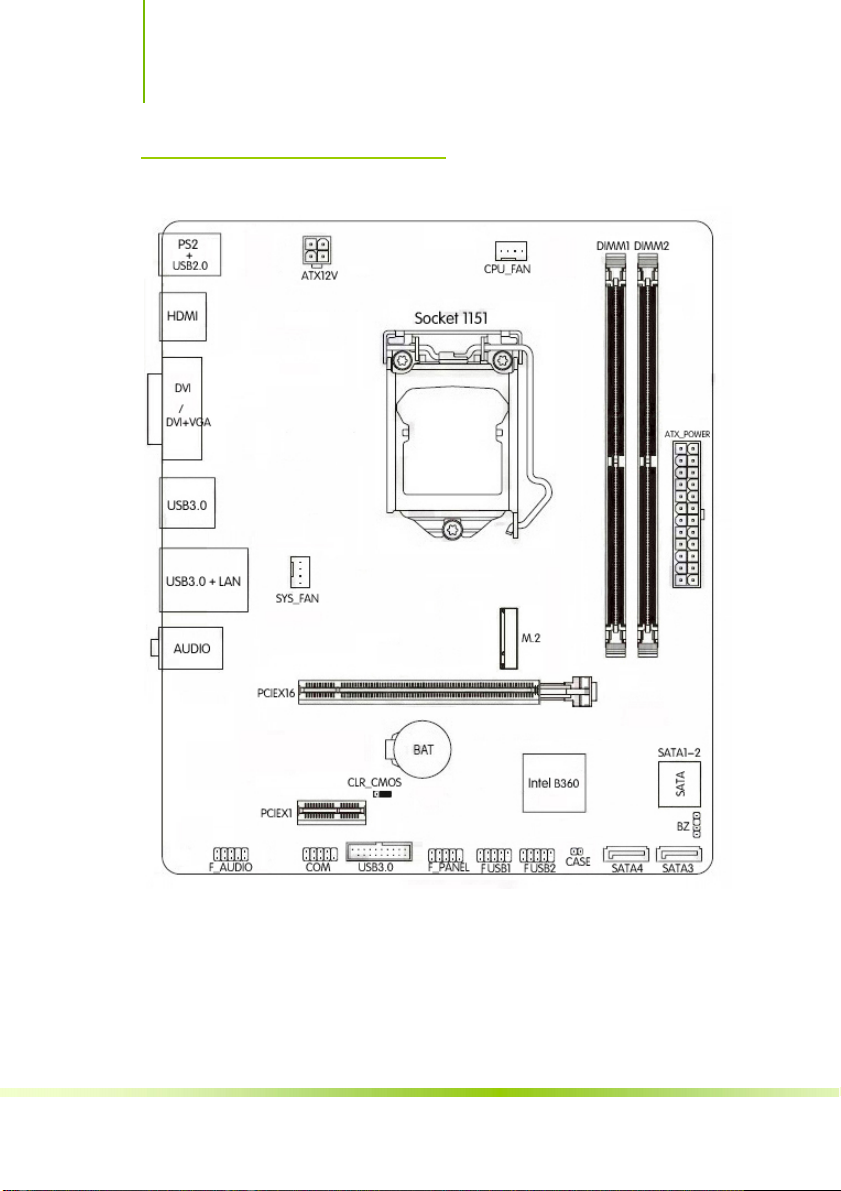

1-3 Motherboard Layout
3
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

Ｃｈａｐｔｅｒ 2 Hardware Installation
This section will guide you through the installation of the motherboard. The
topics covered in this section are:
Preparing the motherboard
¾Installing the CPU
¾Installing the CPU fan
¾Installing the memory
Installing the motherboard
Connecting cables and setting switches
2-1 Safety Instructions
To reduce the risk of fire, electric shock, and injury, always follow basic safety
precautions.
Remember to remove power from your computer by disconnecting the AC
main source before removing or installing any equipment from/to the
computer chassis.
Installing the CPU
The motherboard shipped in the box does not contain a CPU or memory. You
need to purchase a CPU, a CPU fan assembly, and memory to complete this
installation.
Be very careful when handling the CPU. Make sure not to bend or break any
pins on the back. Hold the processor only by the edges and do not touch the
bottom of the processor.

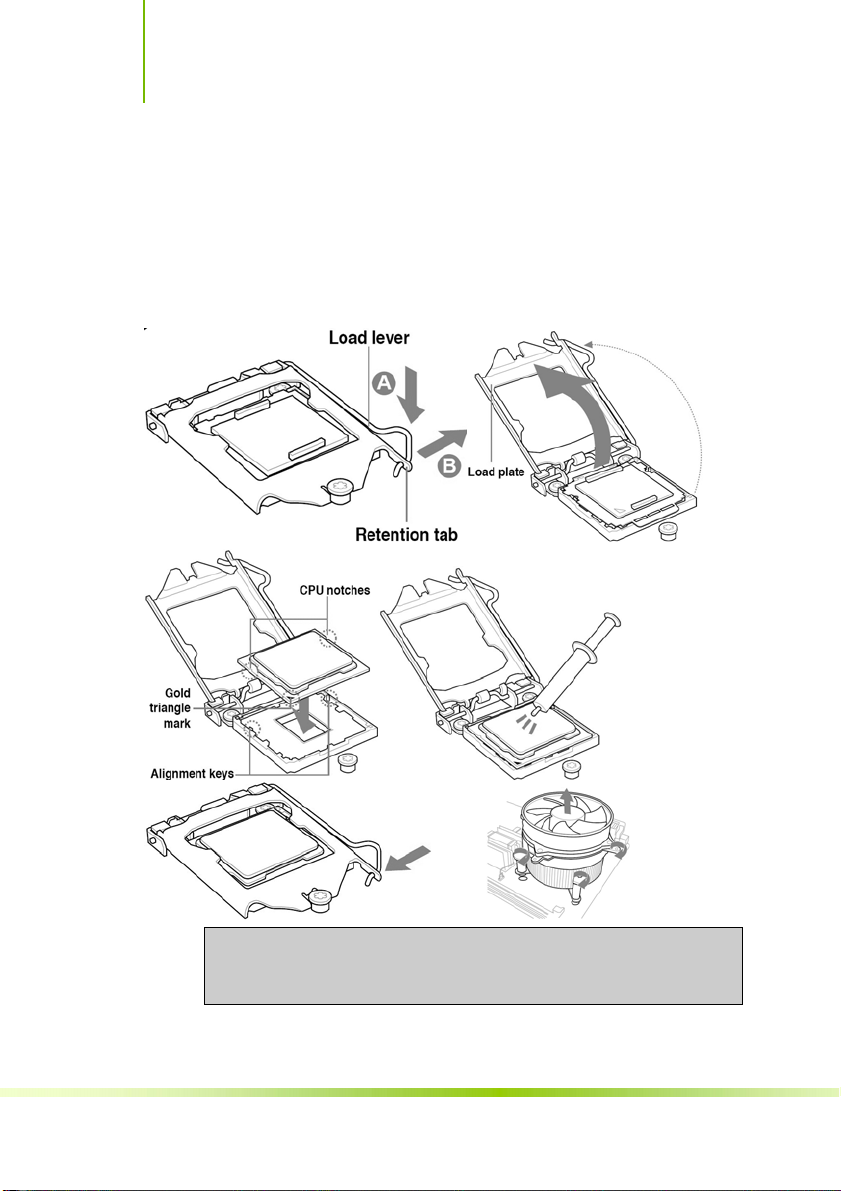

Use the following procedure to install the CPU onto the motherboard.
1. Unhook the socket lever by pushing down and away from the socket.
2. Lift the load plate. There is a protective socket cover on the load plate to
protect the socket when there is no CPU installed.
3. Remove the protective socket cover from the load plate.
4. Remove the processor from its protective cover, making sure you hold it
only by the edges.
It is a good idea to save the cover so that whenever you remove the CPU,
you have a safe place to store it.
5. Align the notches in the processor with the notches on the socket.
6. Lower the processor straight down into the socket with out tilting or sliding
it into the socket
Make sure the CPU is fully seated and level in the socket.
4

7. Close the load plate over the CPU and press down while you close and
engage the socket lever.
8. There are many different fan types that can be used with this
motherboard. Follow the instruction that came with you fan assembly. Be
sure that the fan orientation is correct for your chassis type and your fan
assembly.
9. When using 95W CPU, Please match the radiator that is suitable for the
CPU or with better heat dissipation.
The CPU fits in only one correct orientation. DO NOT force the CPU
into the socket to prevent bending the connectors on the socket and
damaging the CPU!
5
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

Installing Memory DIMMs
Your new motherboard has 2 slots for DDR4 memory. They support dual
channel DDR4 memory technology. There must be at least one memory bank
populated to ensure normal operation. Use the following the
recommendations for installing memory.
9One DIMM: Install into DIMM1. You can install the DIMM into any slot,
however, slot 1 is preferred.
92 DIMMs: Install into DIMM1&DIMM2 slot,to build dual channel.
Use the following procedure to install memory DIMMs into the slots on the
motherboard. Note that there is only one gap near the center of the DIMM slot.
This slot matches the slot on the memory DIMM to ensure the component is
installed properly.
9Unlock a DIMM slot by pressing the module clips outward.
9Align the memory module to the DIMM slot, and insert the module
vertically into the DIMM slot. The plastic clips at both sides of the DIMM slot
automatically lock the DIMM into the connector.
6
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ

Installing the Motherboard
The sequence of installing the motherboard into the chassis depends on the
chassis you are using and if you are replacing an existing motherboard or
working with an empty chassis. Determine if it would be easier to make all the
connections prior to this step or to secure the motherboard and then make all
the connections. Use the following procedure to install the I/O shield and
secure the motherboard into the chassis.
Be sure that the CPU fan assembly has enough clearance for the
chassis covers to lock into place and for the expansion cards. Also
make sure the CPU Fan assembly is aligned with the vents on the
covers.
Installing the I/O Shield
The motherboard kit comes with an I/O shield that is used to block radio
frequency transmissions, protects internal components from dust and foreign
objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the
chassis. Press the I/O shield into place and make sure it fits securely. If the
I/O shield does not fit into the chassis, you would need to obtain the proper
size from the chassis supplier.
Securing the Motherboard into the Chassis
Most computer chassis have a base with mounting studs or spacers to allow
the mother board to be secured to the chassis and help to prevent short
circuits. If there are studs that do not align with a mounting hole on the
motherboard, it is recommended that you remove that stud to prevent the
possibility of a short circuit.
1. Carefully place the motherboard onto the studs/spacers located inside
the chassis.
2. Align the mounting holes with the studs/spacers.
3. Align the connectors to the I/O shield.
4. Ensure that the fan assembly is aligned with the chassis vents according
to the fan assembly instruction.
5. Secure the motherboard with a minimum of eight-to-ten screws.
7
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

2-2 Connecting header and Setting
Switches
This section takes you through all the connections and switch settings
necessary on the motherboard. This will include:
Power Connections
¾24-pin ATX power
¾ 4-pin ATX 12V power
Internal Headers
¾Front panel
¾USB Headers
¾Audio
Serial ATA III
Chassis Fans
Rear panel USB 2.0 Adapter
Expansion slots

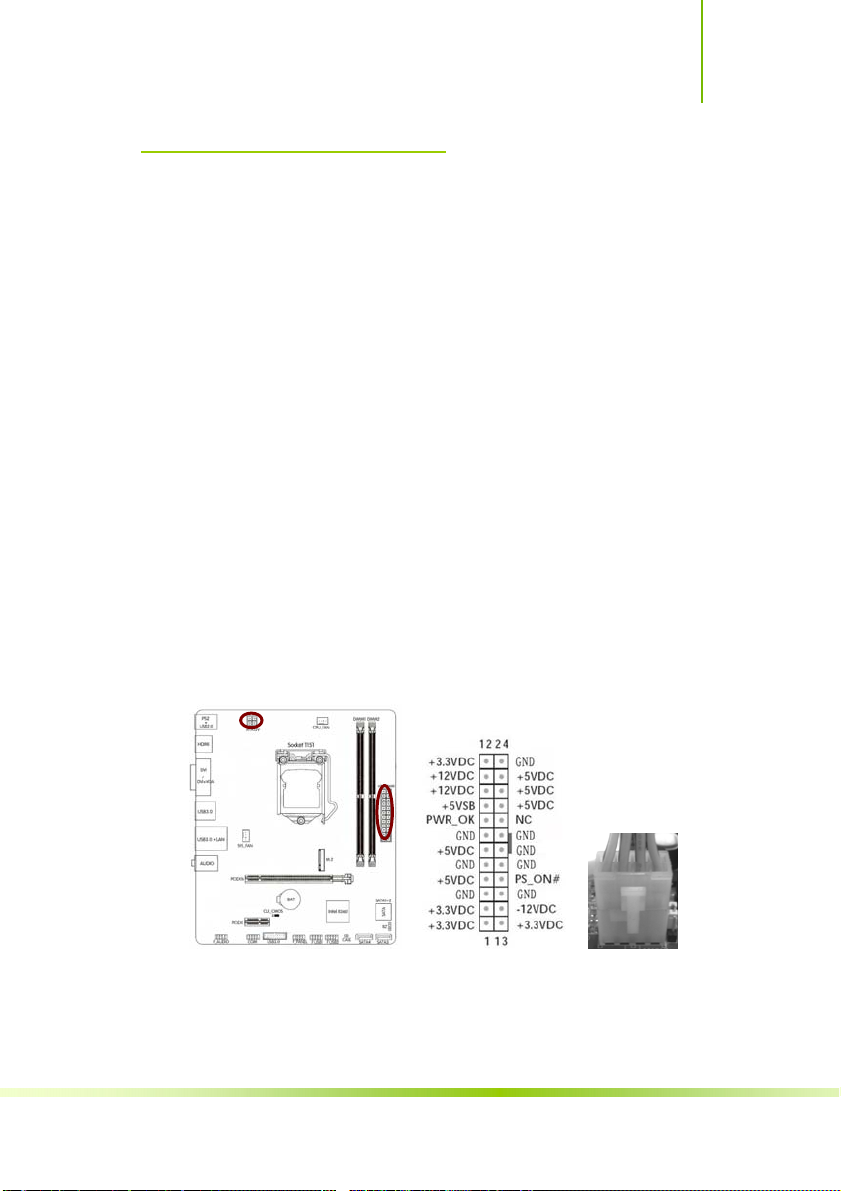

ATX power connectors (24-pin ATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the power
supply are designed to fit these connectors in only one orientation. Find the
proper orientation and push down firmly until the connectors completely fit.
8
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ

Serial ATA 3.0 6Gb/s connectors (7-pin)
These connectors connect to Serial ATA 3.0 6Gb/s hard disk drives and
optical drives via Serial ATA 3.0 6Gb/s signal cables.
USB 3.0 connectors
This connector is for USB 3.0 devices.
9
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

USB 2.0 connectors
These connectors are for USB 2.0 ports. Connect the USB module cable to
any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with the USB 2.0
specification that supports up to 480Mbps connection speed.
Front panel audio connector
This connector is for a chassis-mounted front panel audio I/O module that
supports either High Definition Audio or AC`97 audio standard. Connect one
end of the front panel audio I/O module cable to this connector.
10
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ

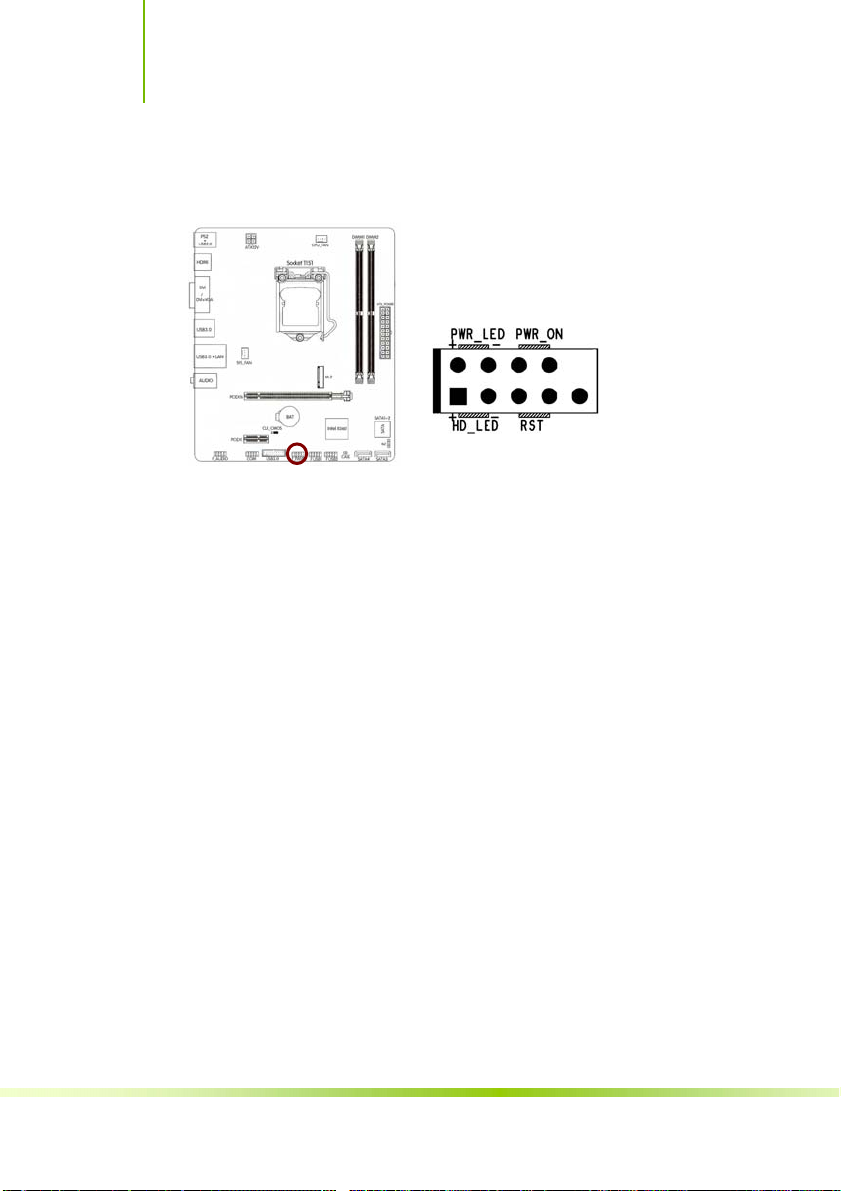

System panel connector
This connector supports several chassis-mounted functions.
System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up when
you turn on the system power, and blinks when the system is in sleep mode.
Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity
LED cable to this connector. The IDE LED lights up or flashes when data is
read from or written to the HDD.
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker.
The speaker allows you to hear system beeps and warnings.
ATX power button/soft-off button (2-pin PWRSW)
This 2-pin connector is for the system power button.
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.
11
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

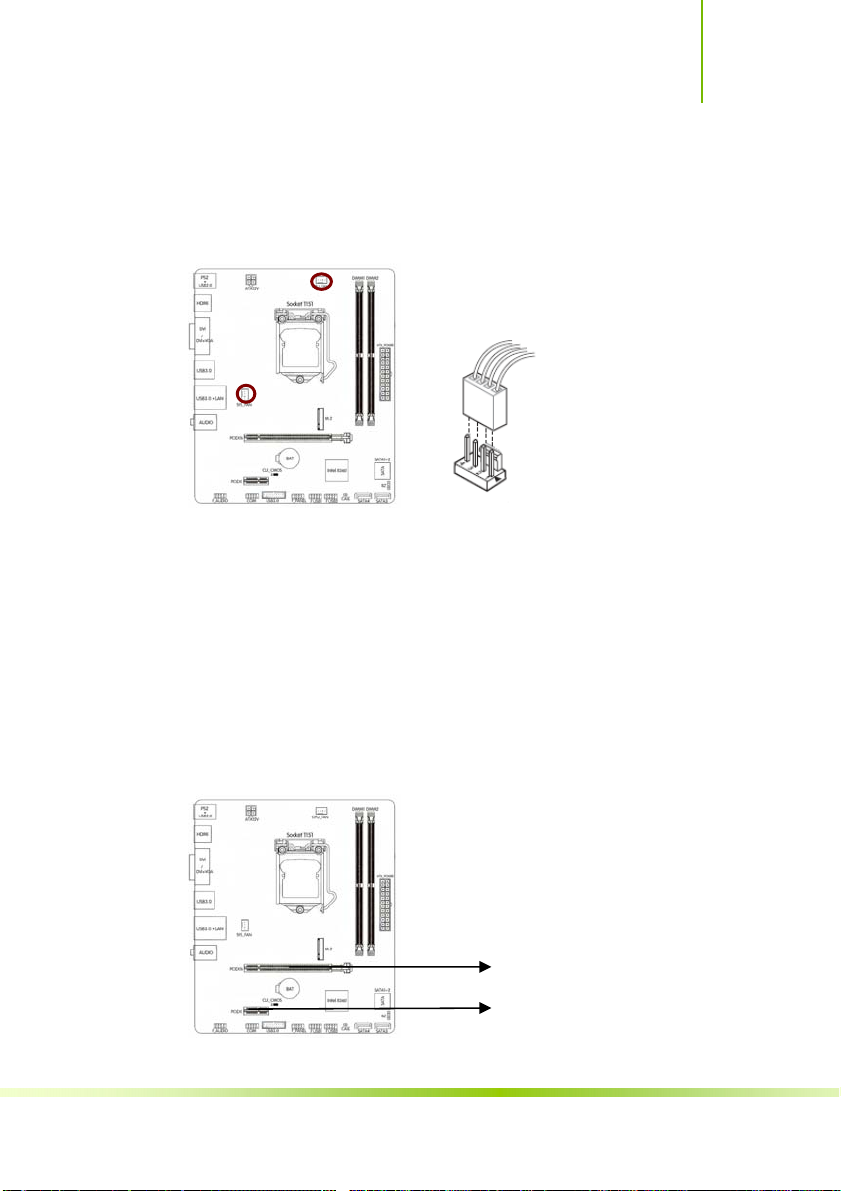

CPU、Chassis and Power fan connectors (CPU_FAN,SYS_FAN)
Connect the fan cables to the fan connectors on the motherboard, making
sure that the black wire of each cable matches the ground pin of the
connector.
PCI Express 3.0 x1 Slot
The PCI Express3.0 x1 slots that are designed to accommodate less
bandwidth-intensive cards, such as a modem or LAN card.
PCI Express 3.0 x16 Slots
The PCI Express3.0 x16 slot is reserved for a graphics or video card. The
bandwidth of the x16 slot is up to 4GB/sec(8GB/sec concurrent).
When installing a PCI Express x16 card, be sure the retention clip snaps and
locks the card into place. If the card is not seated properly, it could cause a
short across the pins. Secure the card’s metal bracket to the chassis back
panel with the screw used to hold the blank cover.
PCI Express 3.0 x16 Slot
PCI Express 3.0 x1 Slot
12
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ

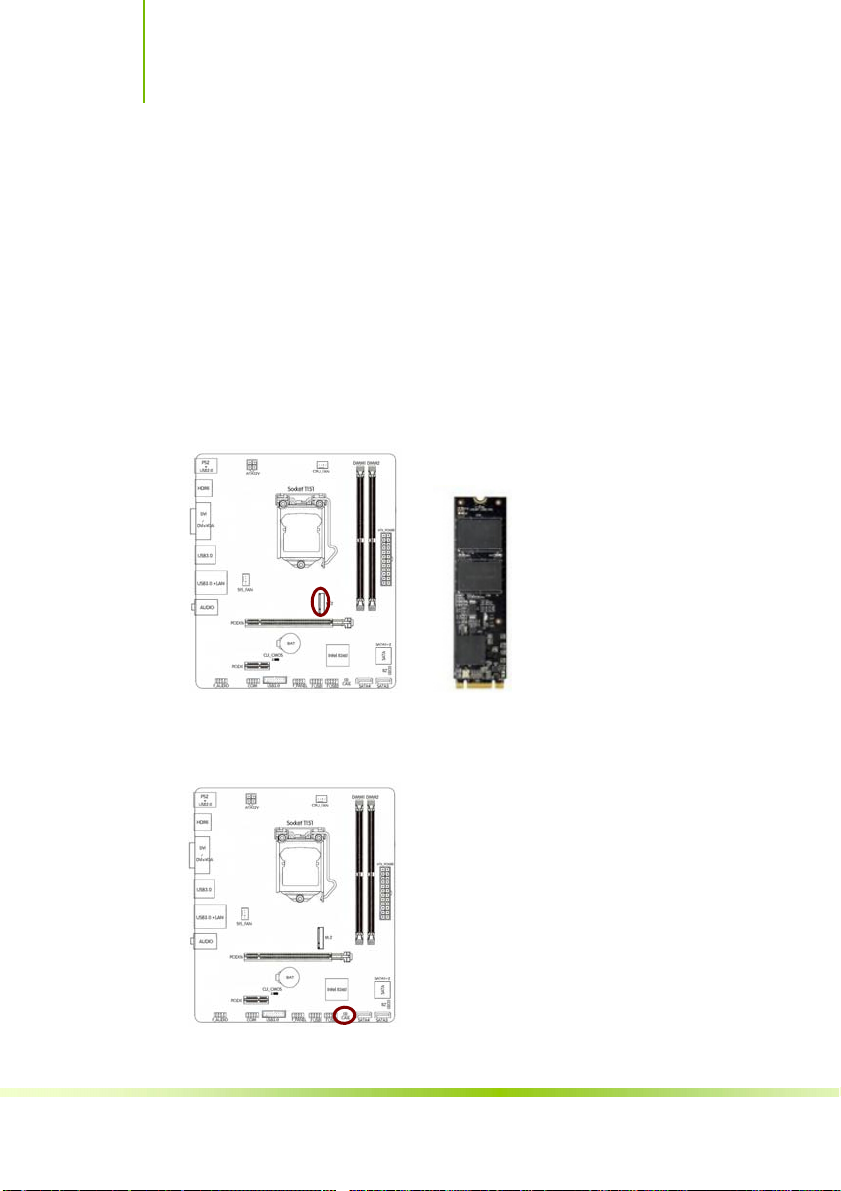

M.2 Slot
The motherboard has one M.2 slot，supports PCI-e X4 and SATA channel
M.2 SSD, the data transfer rate can be as high as 32Gb/s.
BATTLE-AX B360M-E PRO V21 supports Intel OPTANE.
Please install M.2 SSD correctly in the slot following the following steps:
1. please use a screwdriver to remove the screws and studs in order, and
then lock the stud first when the actual M.2 SSD is found to be suitable for
the screw hole position.
2. insert the M.2 SSD into the slot in a inclined angle.
3. press M.2 SSD, then lock the screw.
Debug header: CASE
This Debug header is for Debug serial devices
13
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

COM header：COM
This COM header is for COM serial devices
Clear CMOS Jumper: CLR_CMOS
There is a CMOS RAM on board that has a power supply from external
battery to keep the system configuration data. With the CMOS RAM, the
system can automatically boot OS every time it is turned on. If you want to
clear the system configuration, use the CLR_CMOS Jumper to clear data.
Clear CMOS PROCEDURE
You can clear CMOS by shorting 2-3 pin. Before you clearing the CMOS,
following next procedure:
1、Turn off the AC power supply and connect pins 2 and 3 together using the
jumper cap.
2、Return the jumper setting to normal (pin 1-2) or Remove the jumper cap
3、Turn the AC power supply back on.
14
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ

2-3 Back Panel IO Connector
<The back panel IO connector of BATTLE-AX B360M-E PRO V21>
<The back panel IO connector of BATTLE-AX B360M-HD PRO V21>
Clear CMOS
2-3 clear CMOS
CLR_CMOSCLR_CMOS
1-2 Normal
15
BATTLE-AX B360M-E PRO V21/BATTLE-AX B360M-HD PRO V21

Parts Use
PS/2 Mouse/
Keyboard
Connector
This connector is for a PS/2 mouse/Keyboard.
LAN Jack The standard RJ-45 jack is for connection to single Local Area Network (LAN). You can
connect a network cable to it.
Lie-In(Blue) Used for external CD player, tape player or
other audio devices.
Line Out(Green) This connector for speakers or headphones.
Side R/L(Gray) Side surround speakers connector
VGA Onboard VGA port, connect to VGA Monitor
DVI Onboard DVI port, connect to DVI Monitor
HDMI Onboard HDMI port, connect to HDMI Monitor
USB Ports These connectors are for attaching USB devices such as keyboard, mouse, or other
USB-compatible devices.
16
Ｈａｒｄｗａｒｅ Ｉｎｓｔａｌｌａｔｉｏｎ

Ｃｈａｐｔｅｒ 3 BIOS Setting
3-1 Enter BIOS Main Menu
BIOS (Basic Input and Output System) records hardware parameters of the system
in the CMOS on the motherboard. Its major functions include conducting the
Power-On Self-Test (POST) during system startup,saving system parameters and
loading operating system, etc.
When computer startup, and then enter the boot self test (POST) program, if there
are any errors will be shown the following information:
Press DEL to enter Setup
(Press the <DEL> key to enter BIOS Setup)
zIf the boot self test (POST) program information is disappeared
before you respond,you can turn it off and then turn on,or press
the Reset button on the chassis to restart your computer, can
also press < Ctrl > + < Alt > + < Delete > to restart the computer.
zSince the BIOS version of the motherboard is constantly
upgrading, the BIOS description is only for reference.
BIOS Setup Program Function Keys
< ↑↓← → > Move the selection bar to select a setup menu
< Enter > Execute command or enter a menu
< +/PU > Increase the value or change the selection
< -/PD > Reduce the value or change the selection
< F1 > Help topic(Only the status display menu and select
Settings menu are valid)
< F7> Restore the previous CMOS settings
< F9> Load Optimized Defaults
< F10 > Save all the changes and exit the BIOS setup program
< Esc > Main Menu: Exit the BIOS Setup program
Submenus: Exit current submenu
17
