Colorful H410M-K M.2 V20 User manual

H410M-K M.2 V20
1.1.Packing Contents
Thanks for purchasing Colorful series motherboard. This series of motherboards provides excellent performance and quality
assurance.
H410M-K M.2 V20 motherboard based on Intel H410 Chipset, support Intel LGA1200 Comet Lake-S series processors, support dual
channel DDR4 2933/2800/2666/2400/2133MHz memory, support PCI-E 3.0 standard.
The motherboard provides 1*HDMI port,1*VGA port,2*DDR4 memory slots,4*SATA3.0 ports,onboard 6-CH audio chipset,onboard
1000M LAN chipset, it’s a Cost-effective motherboard ！
The motherboard provides 1*M.2 SSD slot, 1*PCI Express3.0 x16 slot,1*PCI Express 3.0 x1 slots,it had good extensibility ！
1* Colorful H410M-K M.2 V20 motherboard
2* SATA cables
1* Driver/Utility CD
1* User's Guide
1* I/O shield
Colorful Technology Website:
http://www.colorful.cn
1.2.MOTHERBOARD SPEC
CPU
·Support Intel LGA1200 Comet Lake-S series processors
·Tips:when using 95W processor, please match the
professional CPU cooling fan!
Chipset ·Intel H410
Main
Memory
Slots
·Offer 2 DIMM slots
·Support DDR4 2933/2800/2666/2400/2133 MHz
·Support XMP memory and Dual-Channel
·Tips:the frequency of memory overclocking also depends
on the performance of matching CPU and memory itself!
·1*24-pin ATX Power connector
·1* 8-pin ATX 12V Power connector
·1*Front panel audio connector（F_AUDIO1）
·1*System panel connector（FPANEL1）
·1*USB2.0 header（FUSB1）
·1*USB3.2 Gen1 header（FUSB3）
·1*PC speaker connector（SPEAK1）
·1*COM header（JCOM1）
·1*CMOS jumper（JBAT）
·1*CPU fan header（CFAN1）
·2*System fan headers（SFAN1，SFAN2）
·1*DEBUG header（JDEBUG）
·1*ME header（JME）
·1*PS2 Mouse/Keyboard boot jumper（JPS2）
·1*Flash Bios header（JBIOS1）
·1*PCI Express 3.0 x16 slot
·1*PCI Express 3.0x1 slot
·1*M.2 SSD slots(support PCIE X2&SATA)
Storage ·3*SATA3.0 port
USB ·4*USB3.2 Gen1+6*USB2.0(including the headers)
·All USB ports support charging in shutdown state
Rear IO
Connector
Other
Connectors
·Onboard 6-channel High Definition audio chipset
High
Definition
Audio
·Onboard 1000M LAN
·Provides 10/100/1000Mb Ethernet
Onboard
LAN
·1*PS/2 Mouse or Keyboard port
·1*LAN port
·4*USB 2.0 ports
·2*USB3.2 Gen1 ports
·3*Audio ports(audio in,audio out, microphone)
·1*VGA port
·1*HDMI port

This section will guide you through the installation of the motherboard. The topics covered in this section are:
Preparing the motherboard
Installing the CPU
Installing the CPU fan
Installing the memory
Installing the motherboard
Connecting cables and setting switches

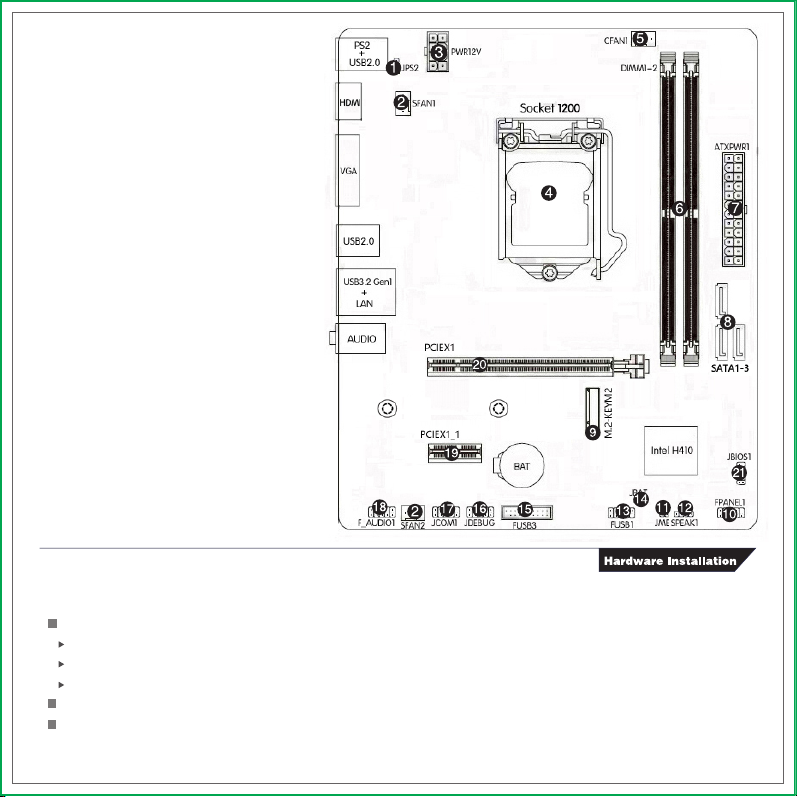

1、PS2 Mouse/Keyboard boot jumper
2、System fan connector
3、8-pin Power connector
4、Intel LGA1200 socket（Supports
Comet Lake-S processors）
5、CPU fan connector
6、DIMM slots (DDR4)
7、24-pin ATX Power connector
8、SATA3.0 ports
9、M.2 SSD slot
10、Front power on / off , restart ,
indicator light header
11、Speaker connector
12、ME header
13、USB 1.1/2.0 port
14、Clear CMOS jumper
15、USB 3.2 Gen1 header
16、DEBUG header
17、COM header
18、Front panel audio connector
19、PCI Express 3.0 X1 slot
20、PCI Express 3.0 X16 slot
21、Flash Bios header
1.3.Motherboard Layout

2.1.Safety Instructions
To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions.
Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equip-
ment from/to the computer chassis.
2.2.Preparing the Motherboard
The motherboard shipped in the box does not contain a CPU or memory. You need to purchase a CPU, a CPU fan assembly, and
memory to complete this installation.
2.2.1.Installing the CPU
Be very careful when handling the CPU. Make sure not to bend or break any pins on the back. Hold the processor only by the edges
and do not touch the bottom of the processor.
Use the following procedure to install the CPU onto the motherboard.
1.Unhook the socket lever by pushing down and away from the socket.
2.Lift the load plate. There is a protective socket cover on the load plate to protect the socket when there is no CPU installed.
3.Remove the protective socket cover from the load plate.
4.Remove the processor from its protective cover, making sure you hold it only by the edges.
It is a good idea to save the cover so that whenever you remove the CPU, you have a safe place to store it.
5.Align the notches in the processor with the notches on the socket.
6.Lower the processor straight down into the socket with out tilting or sliding it into the socket
7.Close the load plate over the CPU and press down while you close and engage the socket lever.
8.There are many different fan types that can be used with this motherboard. Follow the instruction that came with you fan assem-
bly. Be sure that the fan orientation is correct for your chassis type and your fan assembly.
The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on
the socket and damaging the CPU!
Make sure the CPU is fully seated and level in the socket.

2.3.Installing Memory DIMMs
2.4.Installing the Motherboard
2.5.Installing the I/O Shield
The sequence of installing the motherboard into the chassis depends on the chassis you are using and if you are replacing an
existing motherboard or working with an empty chassis. Determine if it would be easier to make all the connections prior to
this step or to secure the motherboard and then make all the connections. Use the following procedure to install the I/O
shield and secure the motherboard into the chassis.
The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects internal compo-
nents from dust and foreign objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and
make sure it fits securely. If the I/O shield does not fit into the chassis, you would need to obtain the proper size from the
chassis supplier.
Be sure that the CPU fan assembly has enough clearance for the chassis covers to lock into place and for the expansion
cards. Also make sure the CPU Fan assembly is aligned with the vents on the covers.

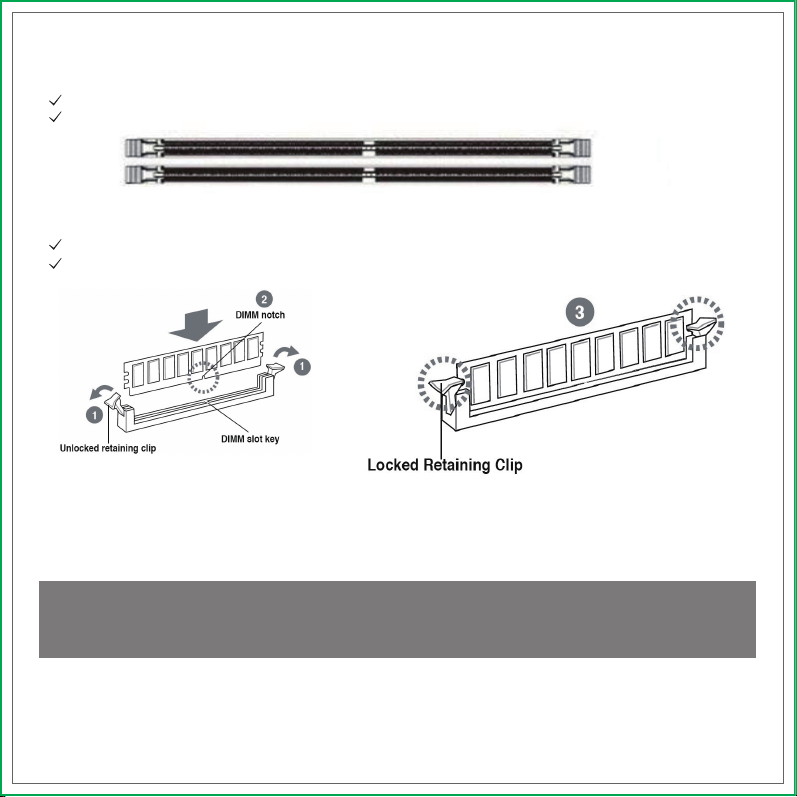

Your new motherboard has 2 slots for DDR4 memory. They support dual channel DDR4 memory technology. There must be at
least one memory bank populated to ensure normal operation. Use the following the recommendations for installing
memory.
One DIMM: Install into DIMM1 or DIMM2. You can install the DIMM into any slot, however, slot 1 is preferred.
Two DIMMs: Install into DIMM1 & DIMM2,to build dual channel.
Use the following procedure to install memory DIMMs into the slots on the motherboard. Note that there is only one gap near
the center of the DIMM slot. This slot matches the slot on the memory DIMM to ensure the component is installed properly.
Unlock a DIMM slot by pressing the module clips outward.
Align the memory module to the DIMM slot, and insert the module vertically into the DIMM slot. The plastic clips at both
sides of the DIMM slot automatically lock the DIMM into the connector.

2.6.Securing the Motherboard into the Chassis
2.7.Connecting Cables and Setting Switches
·ATX power connectors (24-pin ATXPWR, 8-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the power supply are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the connectors completely fit.
The motherboard kit comes with an I/O shield that is used to block radio frequency transmissions, protects internal compo-
nents from dust and foreign objects, and promotes correct airflow within the chassis.
Before installing the motherboard, install the I/O shield from the inside of the chassis. Press the I/O shield into place and
make sure it fits securely. If the I/O shield does not fit into the chassis, you would need to obtain the proper size from the
chassis supplier.
Most computer chassis have a base with mounting studs or spacers to allow the mother board to be secured to the chassis
and help to prevent short circuits. If there are studs that do not align with a mounting hole on the motherboard, it is recom-
mended that you remove that stud to prevent the possibility of a short circuit.
1.Carefully place the motherboard onto the studs/spacers located inside the chassis.
2.Align the mounting holes with the studs/spacers.
3.Align the connectors to the I/O shield.
4.Ensure that the fan assembly is aligned with the chassis vents according to the fan assembly instruction.
5.Secure the motherboard with a minimum of eight-to-ten screws.
This section takes you through all the connections and switch settings necessary on the motherboard. This will include:
Power Connections
24-pin ATX power
8-pin ATX 12V power
Internal Headers
Front panel
USB Headers
Audio
Serial ATA III
Chassis Fans
Rear panel USB Adapter
Expansion slots

·COM header：
This COM header is for COM serial devices
·Debug header:
This Debug header is for Debug serial devices.

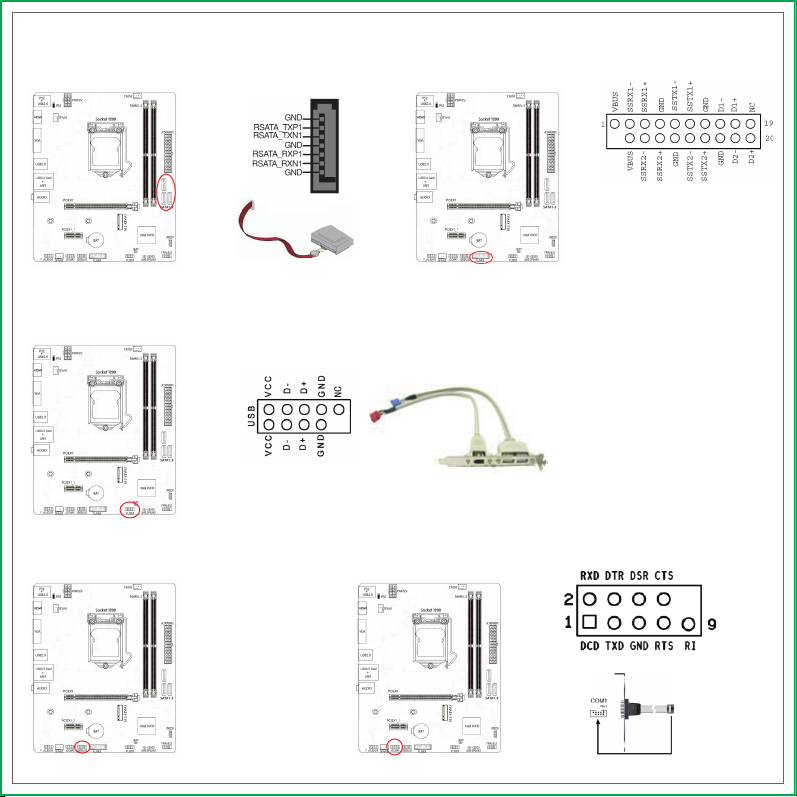

·Serial ATA 3.0 6Gb/s connectors (7-pin)
These connectors connect to Serial ATA 3.0 6Gb/s hard disk
drives and optical drives via Serial ATA 3.0 6Gb/s signal cables.
This connector is for USB 3.0 devices.
·USB 3.2 Gen1 connectors
These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot
opening at the back of the system chassis. These USB connectors comply with the USB 2.0 specification that supports up to 480Mbps
connection speed.
·USB2.0 connectors

PS/2 Mouse/ Keyboard boot settings
T
urn of functionsopen functions

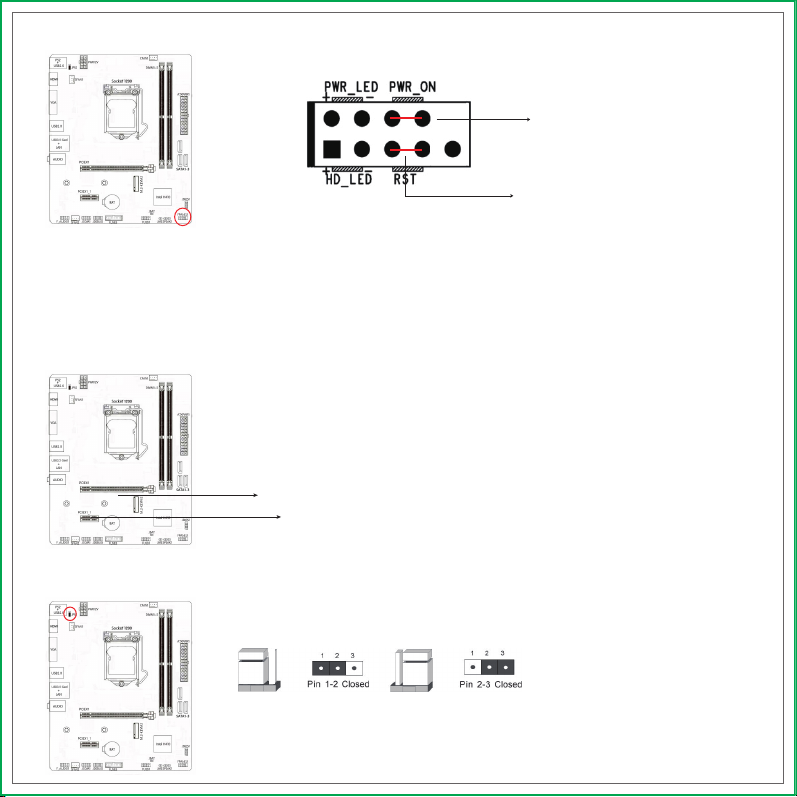

This connector supports several chassis-mounted functions.
·System panel connector
These jumpers set PS2 Mouse/ Keyboard to start up functions(you also need to open this function in Bios system)
Note: the white silk screen "1" printing on PCB board is the first pin of jumper.
·PS2 Mouse/ Keyboard boot jumper:JKB
PCI Express x1 Slot
PCI Express3.0 x16 Slot
The PCI Express x1 slots that are designed to accommodate less bandwidth-intensive cards, such as a modem or LAN card. The x1
slot provides 250 MB/sec bandwidth.
The PCI Express3.0 x16 slot is reserved for a graphics or video card. The bandwidth of the x16 slot is up to 4GB/sec (8GB/sec concur-
rent).
When installing a PCI Express3.0 x16 card, be sure the retention clip snaps and locks the card into place. If the card is not seated
properly, it could cause a short across the pins. Secure the card’s metal bracket to the chassis back panel with the screw used to
hold the blank cover.
·PCI Express3.0 x16 and PCI Express x1 slots
Short circuit these two pins to
power on
Short circuit these two pins to
restart

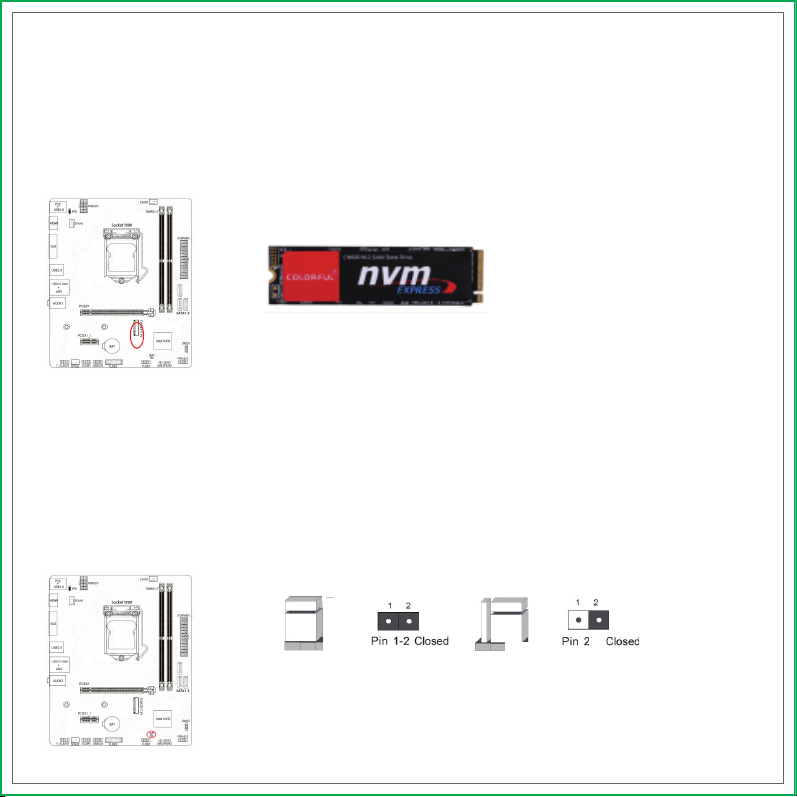

·M.2 SSD slot
The motherboard has one M.2 slot,support PCIEX2&SATA SSD,support 2242/2260/2280 size SSD.
There are two sets of switchers on the motherboard which are used to switch PCIEX2&SATA SSD.
Please install M.2 SSD correctly in the slot following the following steps:
1. please use a screwdriver to remove the screws and studs in order, and then lock the stud fifirst when the actual M.2 SSD is found to
be suitable for the screw hole position.
2. insert the M.2 SSD into the slot in a inclined angle.
3. press M.2 SSD, then lock the screw.
There is a CMOS RAM on board that has a power supply from external battery to keep the system configuration data. With the CMOS
RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the CLR_C-
MOS Jumper to clear data.
·Clear CMOS Jumper: CLR_CMOS
You can clear CMOS by shorting 1-2 pin. Before you clearing the CMOS, following next procedure:
1.Turn off the AC power supply and connect pins 1 and 2 together using the jumper cap.
2.Return the jumper setting to normal (pin 1 or 2) or Remove the jumper cap
3.Turn the AC power supply back on.
Clear CMOS PROCEDURE
1-2 clear CMOS 1or2 normal
Clear CMOS settings

·Back Panel IO Connector
Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground
pin of the connector.
·CPU, Chassis, and Power fan connectors
This connector is for a chassis-mounted front panel audio I/O module that supports either High Definition Audio or AC`97 audio
standard. Connect one end of the front panel audio I/O module cable to this connector.
·Front panel audio connector
<Backboard of H410M-K M.2 V20>

Press F1 to Run Setup
Press F2 to Load default values and continue
Use
Used for external CD player, tape player or other audio devices.
This connector for speakers or headphones.
Parts
The standard RJ-45 jack is for connection to single Local Area Network (LAN).
You can connect a network cable to it
LAN Jack
This connector is for a PS/2 mouse or Keyboard.PS/2 Mouse or Keyboard Connector
Lie-In(Blue)
Line Out(Green)
Side surround speakers connectorSide R/L(Gray)
Onboard VGA, connect to Monitor
VGA
Onboard HDMI port, connect to HDMI MonitorHDMI
These connectors are for attaching USB devices such as keyboard, mouse,
or other USB-compatible devices.
USB Ports
Power on the computer and the system will start the Power On Self Test (POST)process. When the message below appears on
the screen, press <DEL> key to enter BIOS:
CAUTION:After installing the hardware, you must install the corresponding driver to play the strong performance of the mother-
board.
The drive disc can automatically detect the chipset model, sound card model, on-board video card model or on-board
network card model used by the main board, and click the corresponding button to install the corresponding driver.
Warm tip:
The drive disc can automatically detect the chipset model, sound card model, on-board video card model or on-board
network card model used by the main board, and click the corresponding button to install the corresponding drive.
At present, the drive disc only contains sound card drive, and the sound card drive control panel can be obtained free of
charge through the following two ways:
1. Win10 automatic update.
2. Win10 app store obtains Realtek audio control for free, download the website:
https://www.microsoft.com/zh-cn/p/realtek-audio-control/9p2b8mcsvpln.
Entering BIOS Setup
4.BIOS setup
3.Driver Installation

Boot device Priority Setting.If user will install operating system, please put“Boot Option #1”set to your CD-ROM or your USB
device, After setting, press "F10" key to save and exit,System boot from CD-ROM or U disk.
Boot Option Priorities（how to install operating system）
BIOS Operation key
Function menu
System
date
System Information
Model: H410M-K M.2 V20
CPU:Intel(R)Core(TM)i5-10400F
[email protected]
Total Memory:4096MB(DDR4)
BIOS Version:1003-2020/05/20
Version Time:2020/05/20
DRAM State
DIMM_1:G.Skill 4096MB 2133MHz(DDR4)
DIMM_2: N/A
Boot Order Boot Priority
Help Info
Print Screen F8 Optimized Default F9 Advance F11 Save﹠Exit F10
XMP Disable RAID Disable
SATA Status
SATA3.0_1: Empty
SATA3.0_2: Empty
SATA3.0_3: Empty
SATA3.0_4: Empty
CPU Temperature:+31℃
OC ADVANCED BIOS SETTING LANGUAGE EXIT
Motherboard
Temperature:+36℃
Memory
Voltage:1.265V
CPU Voltage:0.916V
FAN PROFILE
CFAN1
2319 RPM
CPU FAN
EZ OC
Default Mode
Performance
Energy Save
Setting
100%
0 20 40 60 80 100℃
CFAN2
0 RPM
Fan info
and setting
Overclock
setting
Hardware
info
Boot
setting
2020/05/22

This motherboard manual belongs to Colorful Technology and Development CO, LTD. No one is permitted to copy,
change, or translate without our written permission.
Copyright
The products name we mentioned in this manual is only for identifying, all of the brands belong to other company.
The registered trademarks of IBM, VGA and PS/2 belong to International Business Machines.
The registered trademarks of Intel, Pentium, Pentium Ⅱ, Celeron, Pentium III and Pentium 4 belong to Intel.
The registered trademark of Athlon belongs to Advanced Micro Devices, Inc.
The registered trademarks of Microsoft, MS-DOS, Windows 95/98/NT, Windows2000/XP etc. belong to Microsoft.
All of the trademarks in this manual have been registered.
Disclaimer
Trademarks
6.Technical Support
5.Copyright Notice
