Colormetrics V1500 User manual

1
www.colormetrics.info Colormetrics V1500
Errors excepted; subject to change www.colormetrics.info
V1500
User Manual
Version 1.0

2
www.colormetrics.infoColormetrics V1500
Copyright 2018 Colormetrics All Rights Reserved.
This manual, software and firmware described in it are copyrighted by their respective owners and
protected under the laws of the Universal Copyright Convention. You may not reproduce, transmit,
transcribe, store in a retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, biological, molecular,m manual, or otherwise,
any part of this publication without the express written permission of the publisher.
All products and trade names described within are mentioned for identification purpose only. No
affiliation with or endorsement of the manufacturer is made or implied. Product names and brands
appearing in this manual are registered trademarks of their respective companies.
The information published herein has been checked for accuracy as of publishing time. Norepre-
sentation or warranties regarding the fitness of this document for any use are made orimplied by the
publisher. We reserve the right to revise this document or make changes in the specifications of the
product described therein at any time without notice and without obligation to notify any person of
such revision or change.
COPYRIGHT

3
www.colormetrics.info Colormetrics V1500
SAFETY INSTRUCTIONS
1. Read these instructions carefully. Keep these instructions for future reference.
2. Please disconnect this device from AC outlet before cleaning. Do not use liquid or spray
detergent for cleaning. Use moisture sheet or cloth for cleaning.
3. Please keep your device safe from high levels of humidity.
4. Install the device and its driver on a surface plate. Any tilt plate might cause damage.
5. Do not place anything over the power cord. And avoid people from stepping on it
6. Please be aware cautious note or warnings on the device.
7. If the device will not be used for a long time, please unplug the power cord to avoid damages by
transient overvoltage.
8. Never pour any liquid into the device; this could cause fire or electrical shock.
9. If one of the following situations happens, get the device checked by a service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the device.
c. The device has been exposed to moisture.
d. The device does not work well or you cannot get it work according to user manual.
e. The device has dropped and damaged.
10. Do not leave this device in an environment unconditioned, storage temperature below -20°C or
above 60°C, it may damage the device.
11. Unplug the power cord when doing any service or adding optional kits.
Lithium Battery Caution:
1. 1. Danger of explosion can happen if the battery is incorrectly replaced. Replace only the
original or equivalent type recommended by the manufacture. Dispose used batteries according
to the manufacture’s instructions.
2. Do not remove the cover, and ensure no user serviceable components are inside. Take the unit
to the service center for service and repair.

4www.colormetrics.infoColormetrics V1500
4 | 69
CE Notice
This device complies with the requirements of the CE directive.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WEEE Notice
This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste
electrical and electronic equipment (WEEE). The Directive determines the framework for the
return and recycling of used appliances as applicable throughout the European Union. This
label is applied to various products to indicate that the product is not to be thrown away, but
rather reclaimed upon end of life per this Directive.
4 | 69
CE Notice
This device complies with the requirements of the CE directive.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WEEE Notice
This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste
electrical and electronic equipment (WEEE). The Directive determines the framework for the
return and recycling of used appliances as applicable throughout the European Union. This
label is applied to various products to indicate that the product is not to be thrown away, but
rather reclaimed upon end of life per this Directive.
4 | 69
CE Notice
This device complies with the requirements of the CE directive.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WEEE Notice
This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste
electrical and electronic equipment (WEEE). The Directive determines the framework for the
return and recycling of used appliances as applicable throughout the European Union. This
label is applied to various products to indicate that the product is not to be thrown away, but
rather reclaimed upon end of life per this Directive.

5
www.colormetrics.info Colormetrics V1500
4 | 69
CE Notice
This device complies with the requirements of the CE directive.
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
WEEE Notice
This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste
electrical and electronic equipment (WEEE). The Directive determines the framework for the
return and recycling of used appliances as applicable throughout the European Union. This
label is applied to various products to indicate that the product is not to be thrown away, but
rather reclaimed upon end of life per this Directive.
1. Packing List 6
1-1 Standard Accessories 6
1-2 Optional Accessories 6
2. System View 7
2-1 Rear View 7
2-2 Side View 7
2-3 Front View 7
2-4 Back View 8
2-5 Specication 9

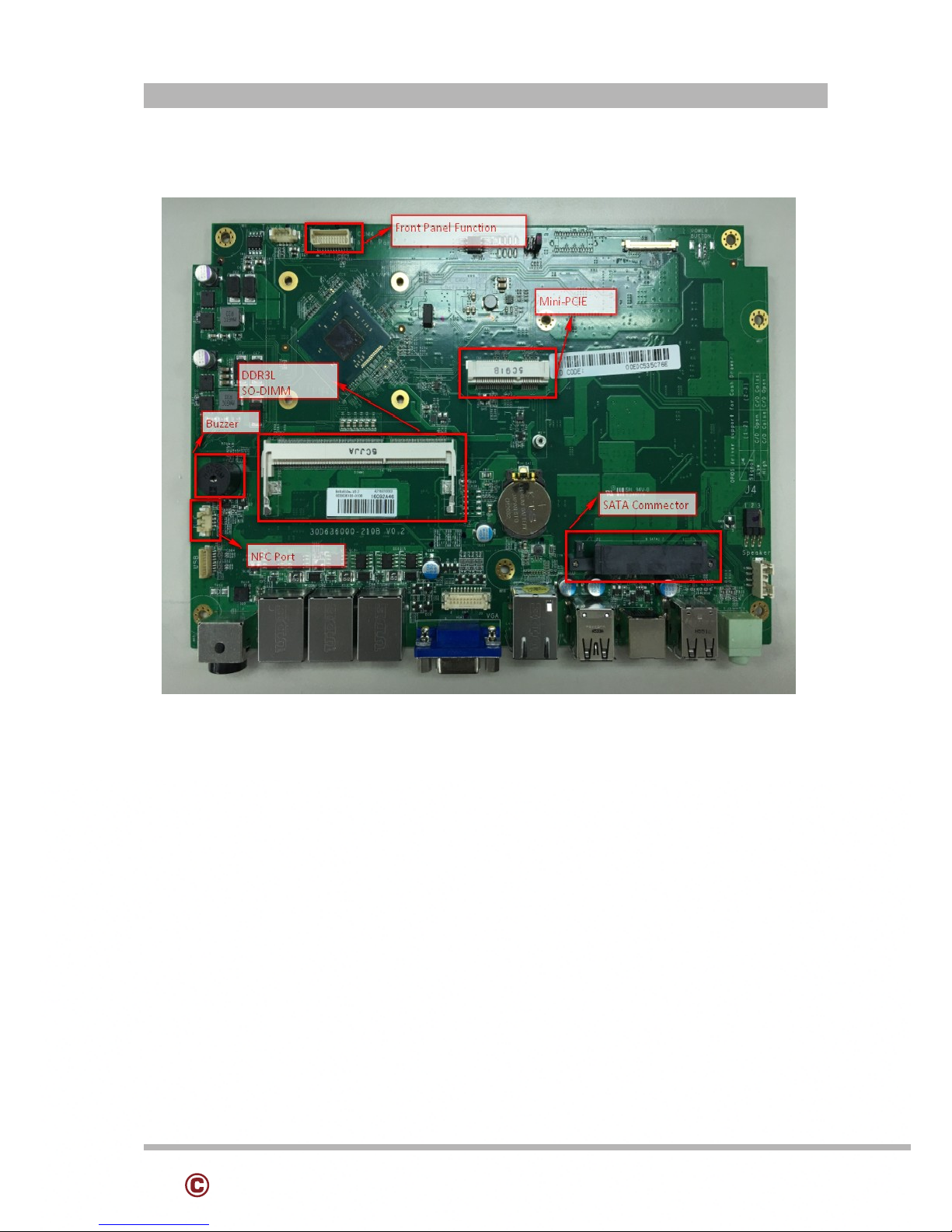

2-6 Internal Layout 10
3. Pin Denition 11
4. System Assembly & Disassembly 17

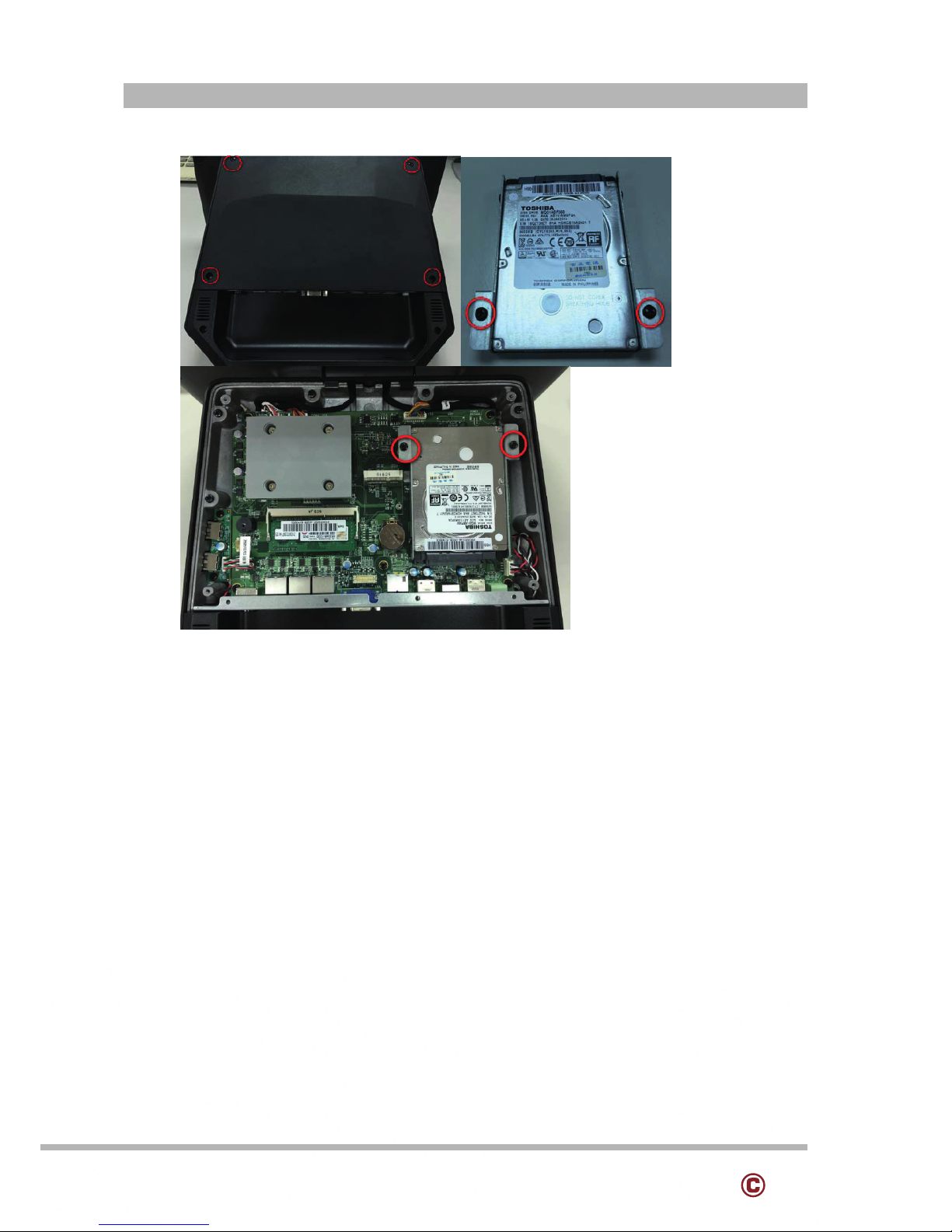

4-1 HDD 17

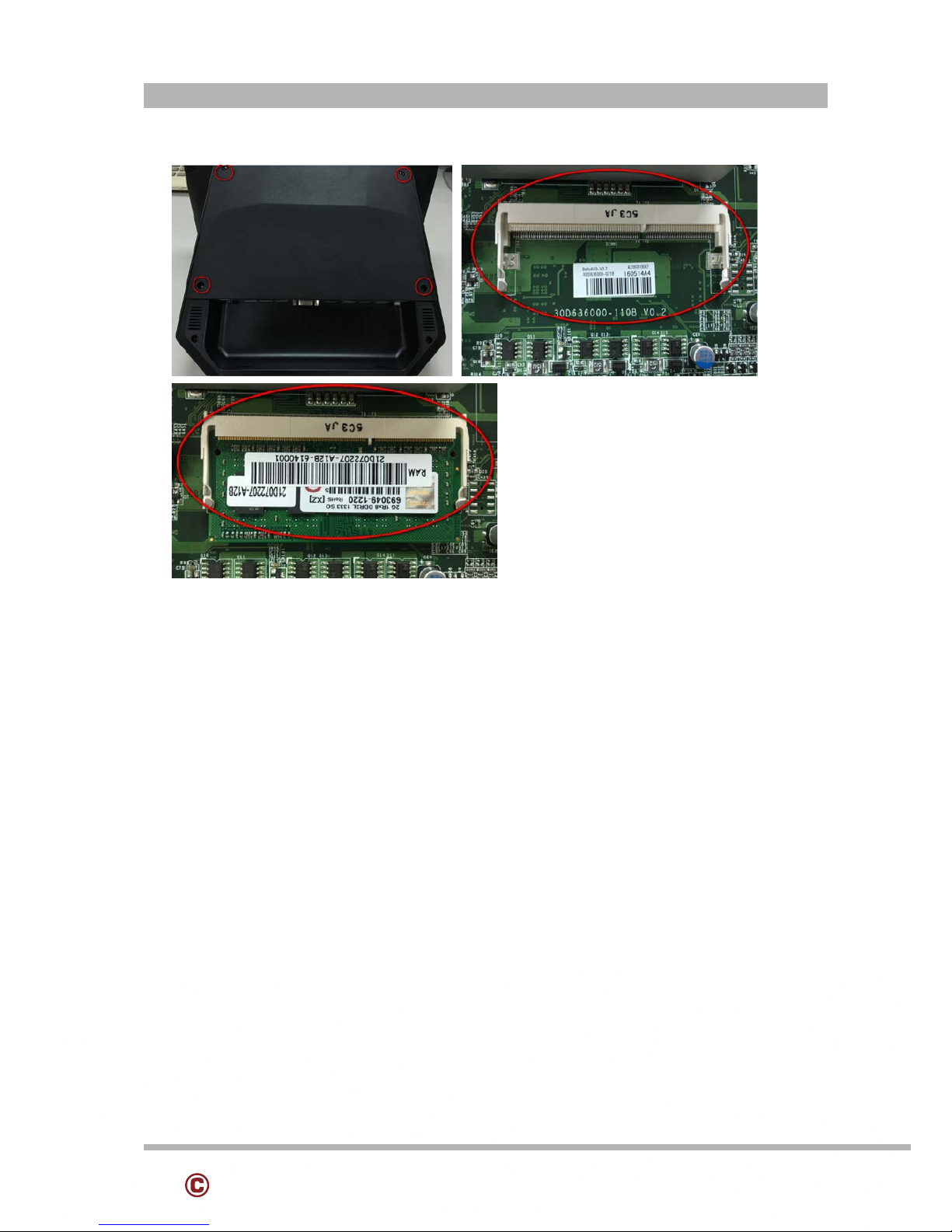

4-2 Memory 18
4-3 MSR 19
4-4 VFD 20
4-5 The 2nd Display 21
4-6 WI-FI 22
5. Device Driver Installation 23
5-1 Resistive Type Touch Panel & P-CAP 23
5-2 MagStripe Card Reader Conguration Utility 29
5-3 RFID 41
5-4 Conguration Utility of i-Button Reader 47
5-5 VFD 52
6. BIOS/Utility Setup 59
6-1 Advanced 59
6-2 Security 64
6-3 Power 65
6-4 Boot 66
6-5 Exit 67
7. LCD Surface Cleaning 68

6www.colormetrics.infoColormetrics V1500
PACKING LIST
7

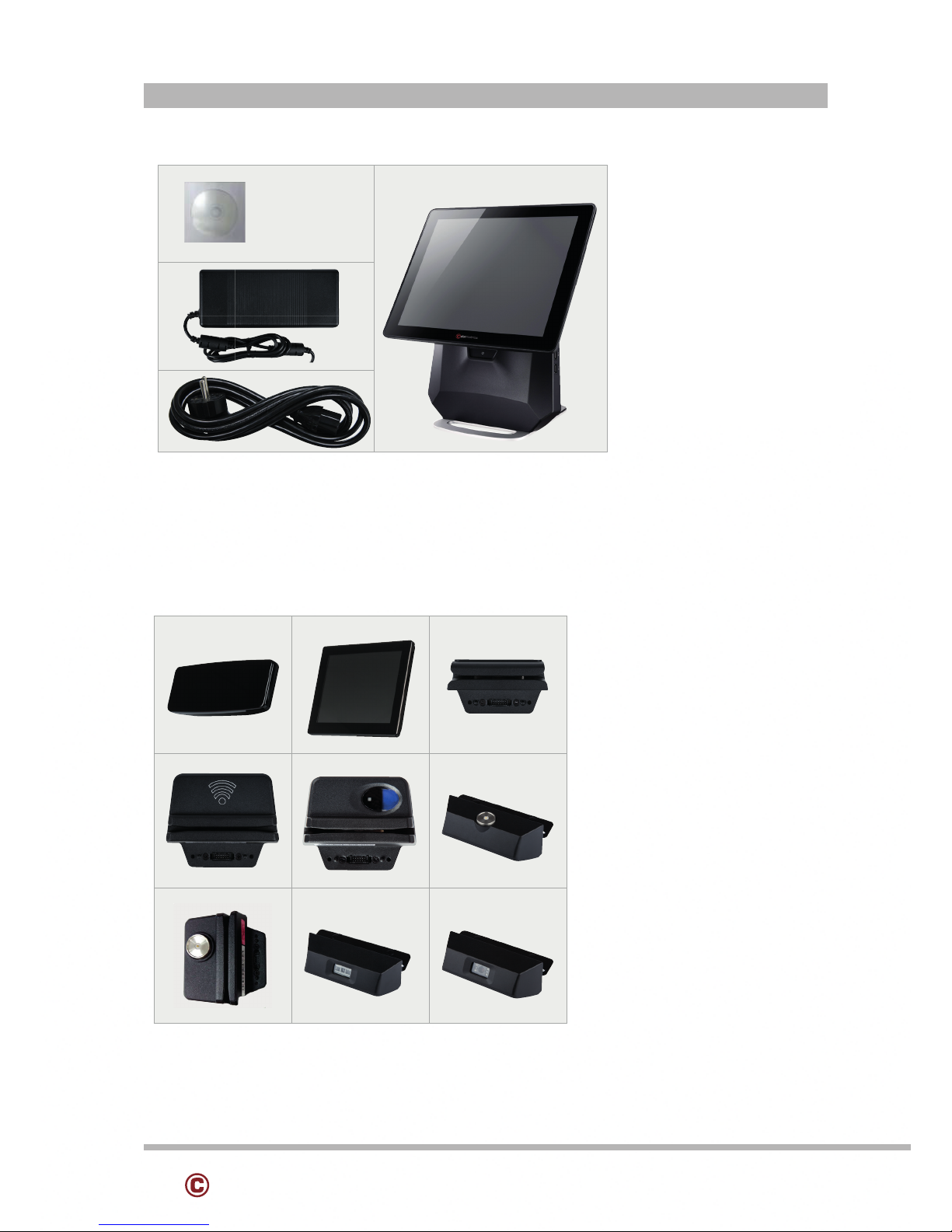

Packing List
1-1 Standard Accessories
a.
b.
a. System (with stand)
b. Power Adapter
c. Power Cord
d. Driver Bank
c.
d
1-2 Optional Accessories
a.
b.
a. Single MSR
b. VFD
c. The 2nd Display
(8”/10”)
c.
Packing List
1
System (with stand)
Power adapter
Power cord
Driver bank
7
Packing List
1-1 Standard Accessories
a.
b.
a. System (with stand)
b. Power Adapter
c. Power Cord
d. Driver Bank
c.
d.
1-2 Optional Accessories
a.
b.
a. Single MSR
b. VFD
c. The 2nd Display
(8”/10”/12”)
d. Plate for stand extend
c.
d.
Packing List
1
7
Packing List
1-1 Standard Accessories
a.
b.
a. System (with stand)
b. Power Adapter
c. Power Cord
d. Driver Bank
c.
d
1-2 Optional Accessories
a.
b.
a. Single MSR
b. VFD
c. The 2nd Display
(8”/10”)
c.
Packing List
1
VFD
2nd Display (8,10,)
MSR
RF-ID Leser
MSR+RF-ID
i-button
MSR+iButton
1D Scanner
2D Scanner

7
www.colormetrics.info Colormetrics V1500
8 | 69

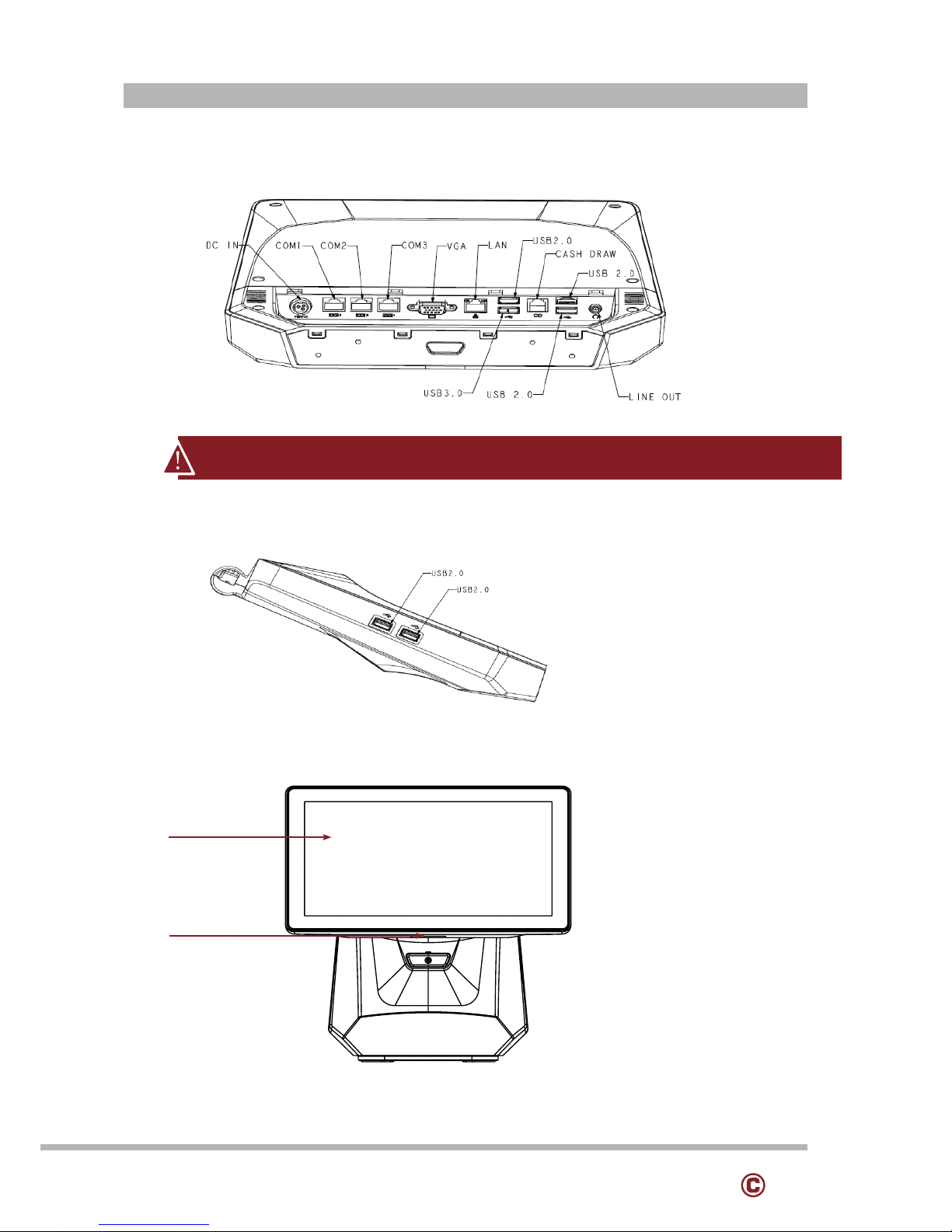

2-1 Rear View
2-2 Side View
2-3 Front View
System View
2
☆Please make sure 19V DC plug in the left righdirection before plugging in DC jack.
Please make sure the 19V DC is plugged in the right direction before plugging in DC jack.
SYSTEM VIEW
LCD
1D / 2D Scanner
(option)

8
www.colormetrics.infoColormetrics V1500
9 | 69
2-4 Back View
VFD / 2nd Display
(optional)
MSR / i-Button
RFID (optional)
HDD / RAM / WIFI
module(optional)

9
www.colormetrics.info Colormetrics V1500
10
2-5 Specification
Processor
Intel® Celeron J1900 Quad Core 2.0GHz
Memory
One SO-DIMM socket supports DDR3L 1333 up to 8GB
Storage
2.5” SATAII HDD / SSD
Audio
Line-out
Network
RJ45 10/100/1000 Base-T
USB port
5*USB 2.0 / 1*USB 3.0
COM Port
3*RJ45
BIOS
Insyde BIOS
Power
DC 19V 60W Adaptor, input AC 110-240V
Thermal Solution
Fan-less
Dimension
398(W) x 251(D) x 365(H) mm
Operating Temperature
0°C ~ 35°C
Storage Temperature
-20°C ~ 60°C
Storage Humidity
20% ~ 80%, non-condensing
Display
LCD Panel Size
15.6-inch TFT LCD (LED Backlight)
Resolution
1366*768 Pixels
Brightness
220 cd/m2
Touch Panel
5-wire Resistive Type / Projected Capacitive Type
Note:
Intel® Celeron J1900 CPU does not support POSReady 2009
Processor Intel® Celeron J1900 Quad Core 2.0GHz
Memory One SO-DIMM socket supports DDR3L
1333 up to 8GB
Storage 2.5” SATA II HDD / SSD
Audio Line-out
Network RJ45 10/100/1000 Base-T
USB port 5x USB 2.0 / 1x USB 3.0
COM Port 3x RJ45
BIOS Insyde BIOS
Power AC 19V 90W Adaptor
Thermal Solution Fan-less
Dimension 366 (W)x 377 (H) x265 (D)mm
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 60°C
Storage Humidity 20% ~ 80%, non-condensing
Display
LCD Panel Size 15.1-inch TFT LCD (LED Backlight)
Resolution 1024*768 Pixels
Brightness 350 cd/m2
Touch Panel 5-wire Resistive Type /
Projected Capacitive Type
Note:
Intel® Celeron J1900 CPU does not support POSReady 2009

10
www.colormetrics.infoColormetrics V1500
11 |69
2-6 Internal Layout

11
www.colormetrics.info Colormetrics V1500
12 |69
Pin Definition
1. 2-Layer USB2.0 connector Pin Definition
No. Definition No.
Definition
1
+5V
5
+5v
2
D-
6
D-
3
D+
7
D+
4
GND
8
GND
2. 2-Layer USB3.0+2.0 connector Pin Definition
No. Definition No. Definition
1
+5V
8
TX-
2 D- 9 TX+
3
D+
10
+5V
4GND 11 D-
5
RX-
12
D+
6RX+ 13 GND
7
GND
3. LAN: RJ45 Pin Definition
No.
Definition
1MDI0A+
2
MDI0A-
3MDI1A+
4
MDI1A-
5MDI2A+
6
MDI2A-
7MDI3A+
8
MDI3A-
4. LINE-OUT JACK Pin Definition
No.
Definition
1GND_AUD
2
GND_AUD
3LINE_OUTR2
4
LINE_OUTL2
5LINE2-JD
Pin Definition
3
PIN DEFINITION

12
www.colormetrics.infoColormetrics V1500
13 |69
5. VGA+USB+DC12V connector Pin Definition
No. Definition No. Definition
1DDC_CLK 11 GND
2DDC_DATA 12 RED
3GND 13 GND
4VSYNC 14 GND
5GND 15 +12V
6HSYNC 16 USB D-
7GND 17 +12V
8BLUE 18 USB D+
9GND 19 Reserve for VGA +5V
10 GREEN 20 +5V
6. VGA Pin Definition
No. Definition No. Definition
1Red 9N/C
2Green 10 GND
3Blue 11 N/C
4N/C 12 I2C DATA
5GND 13 HSYNC
6GND 14 VSYNC
7GND 15 I2C CLK
8GND
7. LVDS connector Pin Definition
No. Definition No. Definition
1+3.3V 2+3.3V
3+3.3V 4+3.3V
5GND 6GND
7DATA1- 8 DATA0-
9DATA1+ 10 DATA0+
11 GND 12 GND
13 CLK-14 DATA2-
15 CLK+ 16 DATA2+
17 GND 18 GND
19 N/C 20 DATA3-
21 Brightness 22 DATA3+

13
www.colormetrics.info Colormetrics V1500
14 |69
23 BKL enable 24 GND
25
GND
26
GND
27 LED Power +12V 28 LED Power +12V
29
LED Power +12V
30
LED Power +12V
8. eDP connector Pin Definition:
No.
Definition
No.
Definition
1N/C 16 GND
2GND 17 HotPlug Detect
3N/C 18 GND
4
N/C
19
GND
5GND 20 GND
6TxD0-21 GND
7TxD0+ 22 BKL enable
8GND 23 Brightness
9AUX+ 24 N/C
10 AUX-25 N/C
11 GND 26 +12V
12 +3.3V 27 +12V
13 +3.3V 28 +12V
14 N/C 29 +12V
15 GND 30 N/C
9. DC Jack Pin Definition
No. Definition
1+19V
2Ground
3+19V
10. RJ45(COM) connector Pin Definition
No. Definition
1+5V/+12V
2DSR#
3GND
4DTR#
5RST#
6CTS#

14
www.colormetrics.infoColormetrics V1500
15 |69
7TxD
8
RxD
11. SATA: 22-pin SATA Pin Definition
No.
Definition
No.
Definition
S1 GND P1 N/C
S2
SATA_TX0_P
P2
N/C
S3 SATA_TX0_N P3 N/C
S4 GND P4 GND
S5 SATA_RX0_N P5 GND
S6
SATA_RX0_P
P6
GND
S7 GND P7 +5V
P8 +5V
P9 +5V
P10 GND
P11 GND
P12 GND
P13 N/C
P14 N/C
P15 N/C
12. Mini-PCIE Pin Definition
No. Definition No. Definition
1WAKE#29 GND
2+V3.3V 30 SMB__CLK
3N/C 31 PCIE_TX_N
4GND 32 SMB_DATA
5N/C 33 PCIE_TX_P
6 +1.5V 34 GND
7CLKREQ# 35 GND
8N/C 36 USB D-
9GND 37 N/C
10 N/C 38 USB D+
11 CLK_PCIE_N 39 N/C
12 N/C 40 GND
13 CLK_PCIE_P 41 N/C
14 N/C 42 N/C
16 |69
15 GND 43 N/C
16
N/C
44
N/C
17 N/C 45 N/C
18
GND
46
N/C
19 N/C 47 N/C
20
W_DISABLE#
48
+V1.5V
21 GND 49 N/C
22
RESET#
50
GND
23 PCIE_RX_N 51 N/C
24
+3.3V_AUX
52
+V3.3V
25 PCIE_RX_P 53 GND
26
GND
54
GND
27 GND 55 GND
28
+V1.5V
56
GND
13. Int. Speaker Pin Definition
No.
Definition
1Left Out +
2
Left Out -
3Right Out-
4
Right Out+
14. Touch Button for Power On/Off connector Pin Definition
No.
Definition
1+5V Standby
2
+5V Status
3Power On#
4
GND
15. NFC port connector Pin Definition
No.
Definition
1+5V
2
USB D-
3USB D+
4
GND

15
www.colormetrics.info Colormetrics V1500
16 |69
15 GND 43 N/C
16
N/C
44
N/C
17 N/C 45 N/C
18
GND
46
N/C
19 N/C 47 N/C
20
W_DISABLE#
48
+V1.5V
21 GND 49 N/C
22
RESET#
50
GND
23 PCIE_RX_N 51 N/C
24
+3.3V_AUX
52
+V3.3V
25 PCIE_RX_P 53 GND
26
GND
54
GND
27 GND 55 GND
28
+V1.5V
56
GND
13. Int. Speaker Pin Definition
No.
Definition
1Left Out +
2
Left Out -
3Right Out-
4Right Out+
14. Touch Button for Power On/Off connector Pin Definition
No.
Definition
1+5V Standby
2+5V Status
3Power On#
4GND
15. NFC port connector Pin Definition
No. Definition
1+5V
2USB D-
3USB D+
4GND

16
www.colormetrics.infoColormetrics V1500
17 |69
16. Sideward USB port connector Pin Definition
No. Definition
1GND
2USB D+
3USB D-
4+5V
5GND
6USB D+
7
USB D-
8+5V
17. Front Panel function connector Pin Definition
No. Definition No. Definition
1
+5V
2
+5V
3 DSR4# 4TxD5 for touch panel
5
DTR4#
6
RxD5 for touch panel
7RTS4# 8GND
9
CTS4#
10
+12V
11 TxD4 12 +5V
13
RxD4
14
+3.3V
15 GND 16 GND
17
+5V
18
+5V Standby
19 USB D-20 +5V
21
USB D+
22
Power On#
23 GND 24 GND
18. RJ11(Cash Drawer) connector Pin Definition
No. Definition
1
GND
2C/D_OPEN#
3
C/D Status
4+12V/+24V
5
N/C
6GND

17
www.colormetrics.info Colormetrics V1500
18 |69
5
System Assembly & Disassembly
4-1 HDD
1. Unscrew 4 screws and remove the base cover
2. Fasten HDD on HDD bracket with 2 screws
3. Install HDD with 2 screws
System Assembly & Disassembly
4
SYSTEM ASSEMBLY & DISASSEMBLY

18
www.colormetrics.infoColormetrics V1500
19 |69
4-2 Memory
1. Put the memory into socket

19
www.colormetrics.info Colormetrics V1500
20 |69

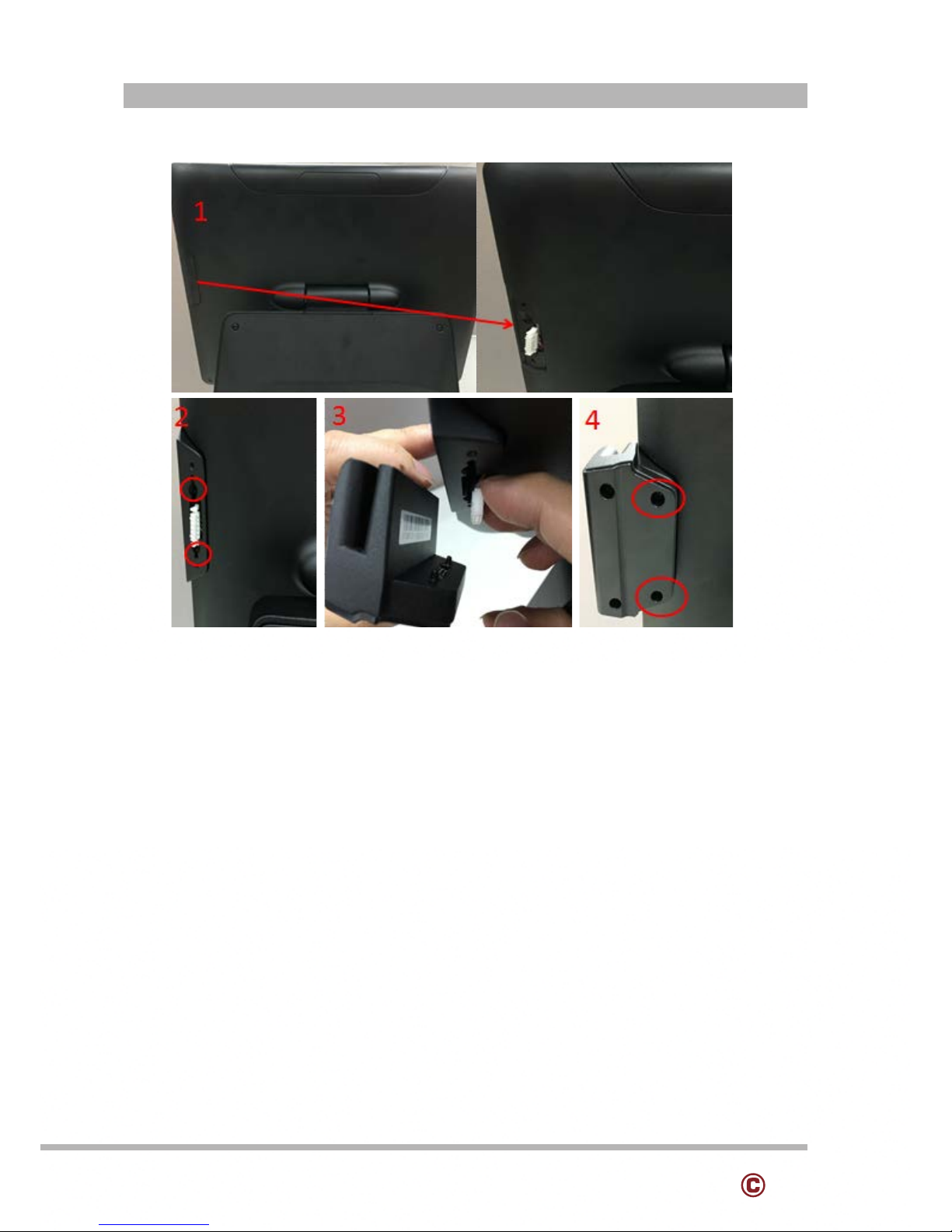

4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws
20 |69
4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws
20 |69
4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws
20 |69
4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws
20 |69
4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws
20 |69
4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws
20 |69
4-3 MSR
1. Remove MSR cover
2. Install MSR holder with 2 screws
3. Plug MSR cable
4. Install MSR with 2 screws

20
www.colormetrics.infoColormetrics V1500
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
21 |69
4-4 VFD
1. Remove the Top cover
2. Plug VFD display cable
3. Install VFD with 2 screws
4. Cover the Top cover (with Hinge hole)
