Comelit IPSWP10N02A User manual

ART. IPSWP10N02A
Please read this manual thoroughly before use and keep it for future reference

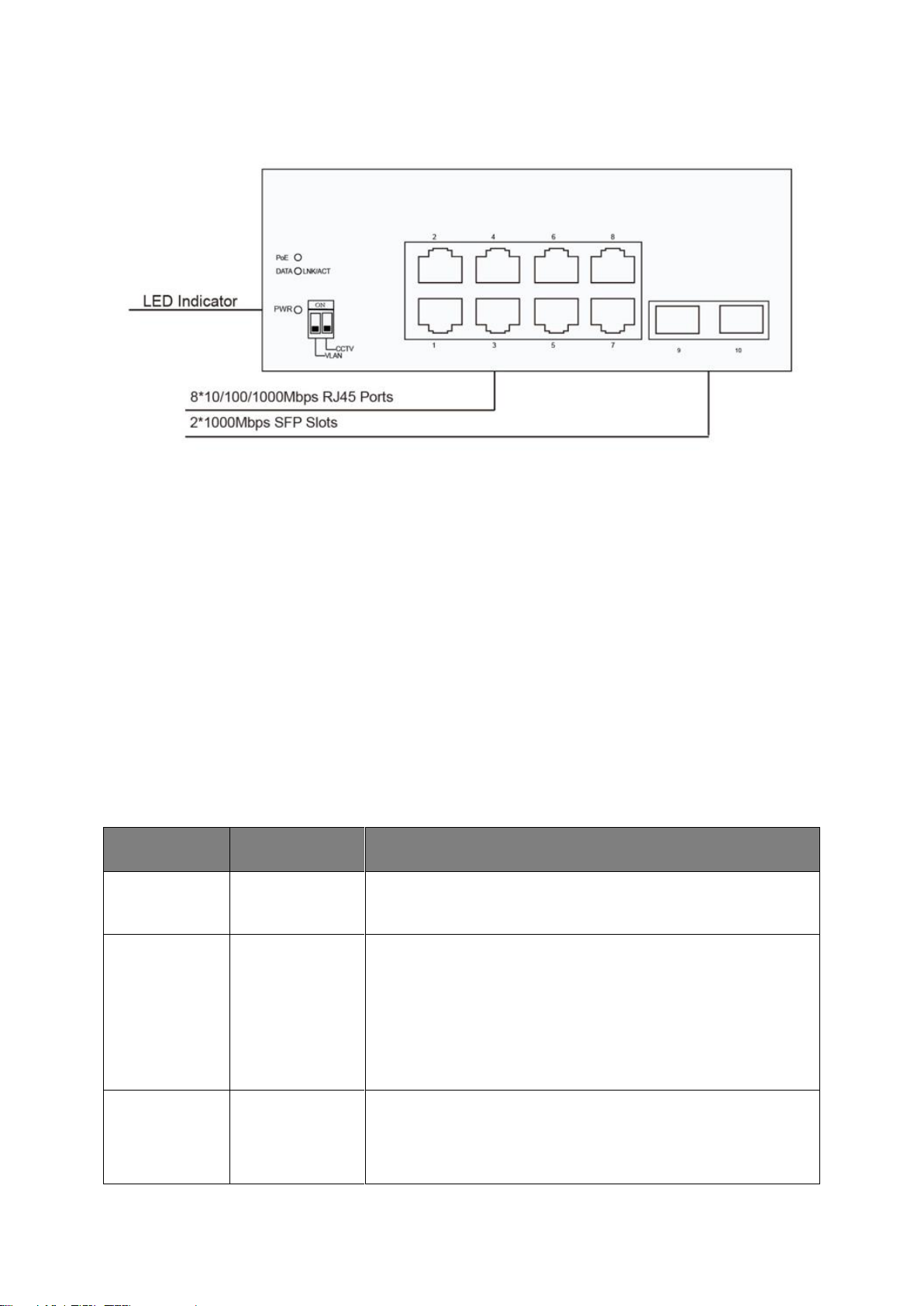

Front:
10/100/1000Mbps RJ45 Ports
Supports 10Mbps, 100Mbps, or 1000Mbps rate adaptation, auto-MDI /MDIX, and
each port has a corresponding indicator, 1-8 as shown on the panel in the figure
above.
1000Mbps SFP Slots
SFP slots are independent SFP slots on the right of the panel. Each port has a
corresponding indicator, 9-10 on the panel in the figure above.
LED Indicator:
LED
Color
Function
PWR
Green
Off: No Power supply.
Light: Indicates the Switch has power.
DATA
Green
Off: No device is connected to the corresponding port.
Light: Indicates the link through that port is successfully
established at 10/100/1000Mbps.
Blink: Indicates that the Switch is actively sending or
receiving data over that port.
PoE
Orange
Off: No PoE powered device (PD) connected.
Light: There is a PoE device connected
Blink: Indicates port abnormal PoE supply.

Side:
The DC power input (48V to 57V) of the Switch is redundant. The PWR1 and PWR2
power supplies can be used individually or connected to 2 independent DC power
supply systems to improve the reliability of network operation.
Din installation:
