Comelit AHCAM722A User manual

FULL-HD
DOME CAMERA
ART. AHCAM722A
Please read this guide thoroughly before use and keep it handy for future reference.
All manuals and user guides at all-guides.com
all-guides.com

2

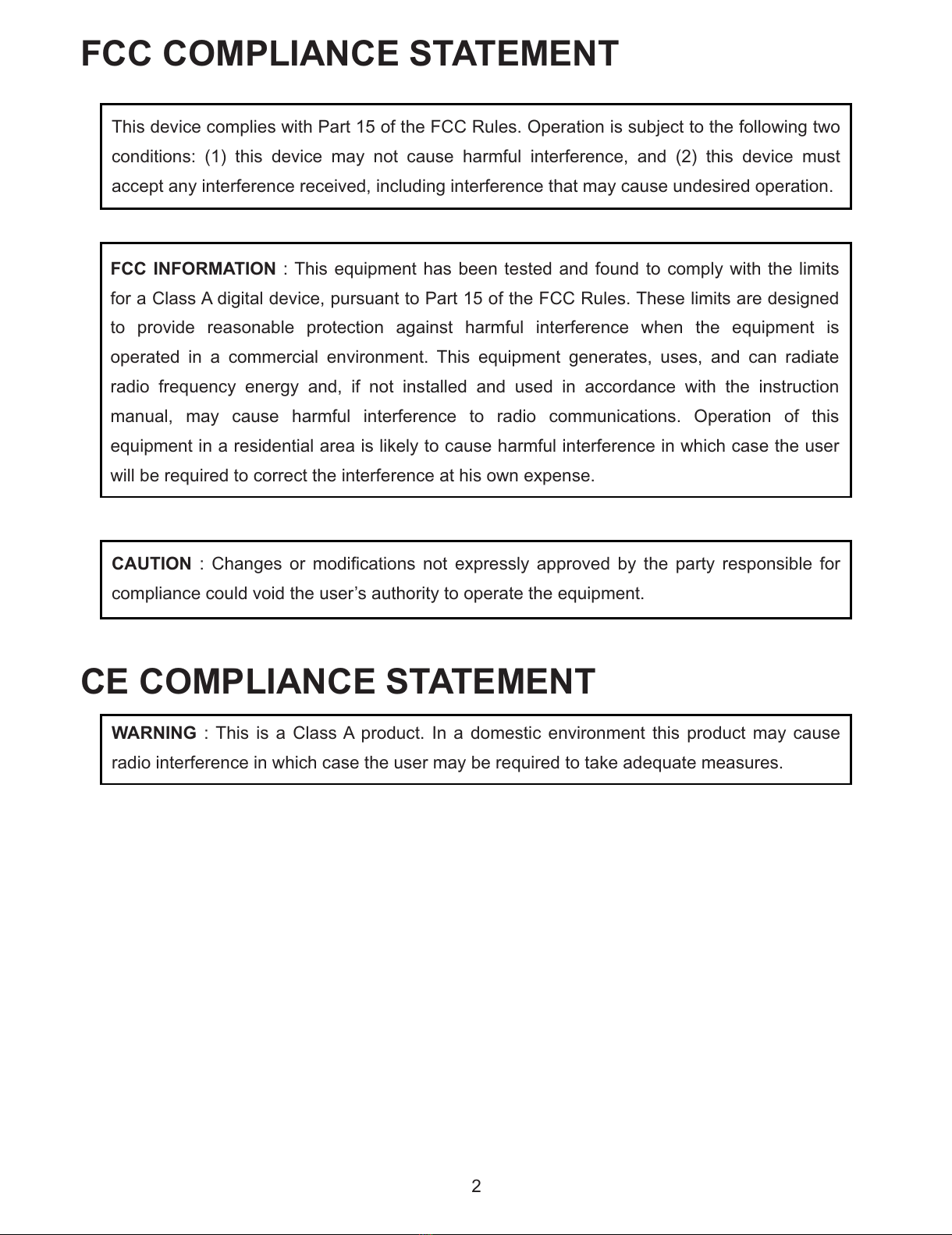

FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
CAUTION : Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
WARNING : This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate measures.
FCC INFORMATION : This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
All manuals and user guides at all-guides.com

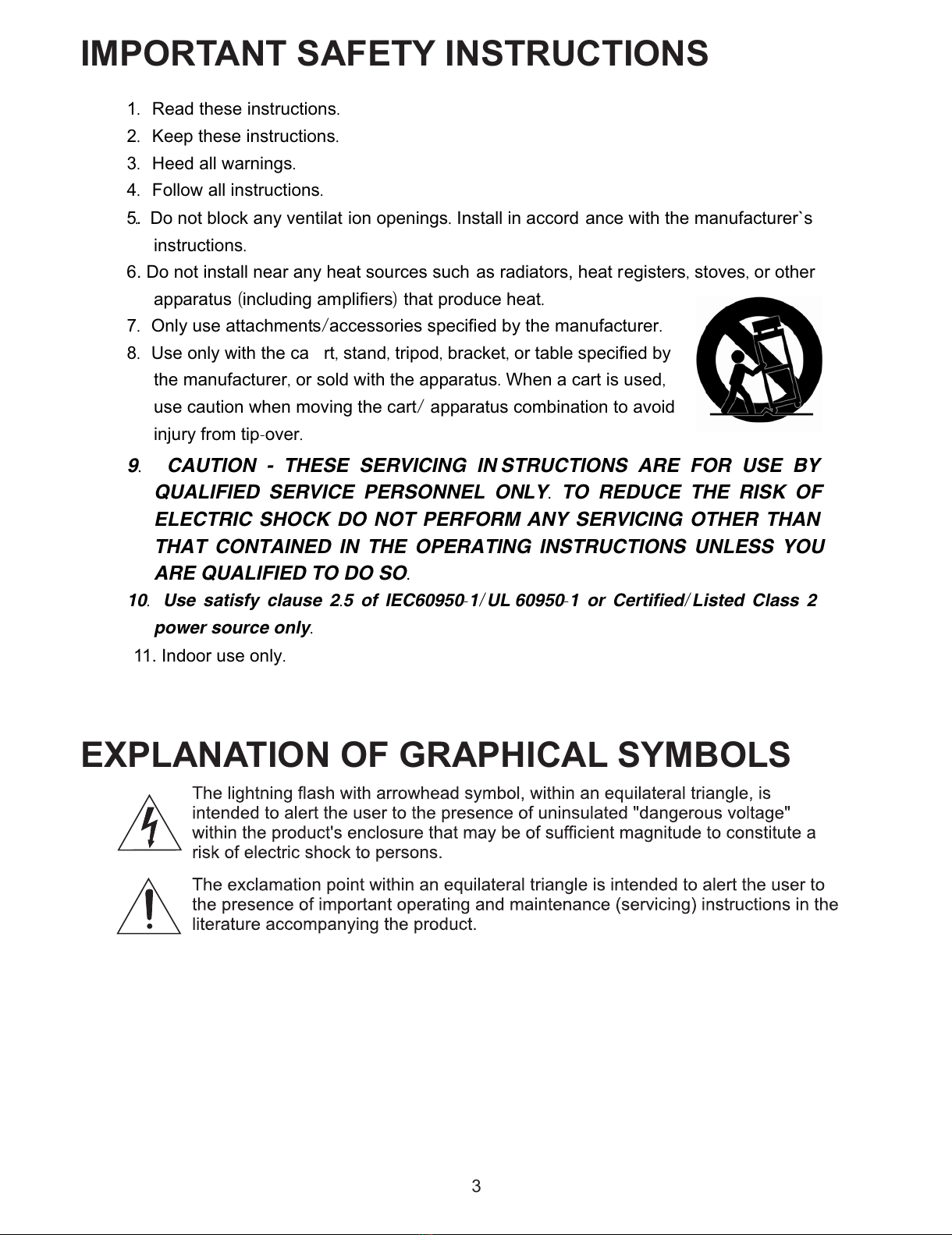

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5.. Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s
instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
7. Only use attachments/accessories specified by the manufacturer.
8. Use only with the ca rt, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
9. CAUTION - THESE SERVICING IN STRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF
ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN
THAT CONTAINED IN THE OPERATING INSTRUCTIONS UNLESS YOU
ARE QUALIFIED TO DO SO.
10. Use satisfy clause 2.5 of IEC60950-1/UL 60950-1 or Certified/Listed Class 2
power source only.
11. Indoor use only.
EXPLANATION OF GRAPHICAL SYMBOLS
IMPORTANT SAFETY INSTRUCTIONS
3
All manuals and user guides at all-guides.com

4
5
6
7
8
9
20
19
VIDEO OUT CHECK
CONTENTS & PACKAGE 6
BASE INSTALLATION
All manuals and user guides at all-guides.com

5

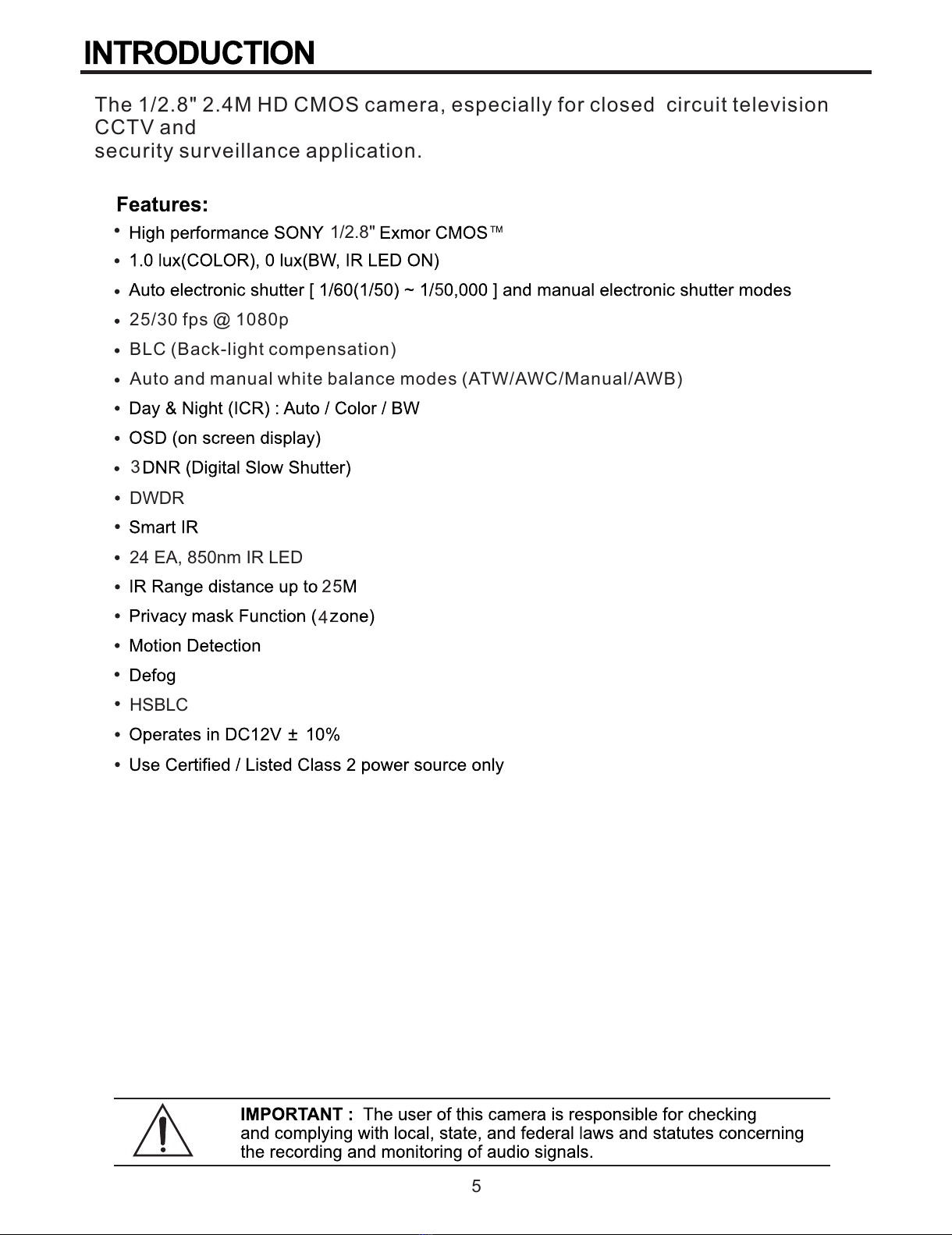

The 1/2.8" 2.4M HD CMOS camera, especially for closed circuit television
CCTV and
security surveillance application.
1/2.8"
24 EA, 850nm IR LED
Auto and manual white balance modes (ATW/AWC/Manual/AWB)
3
HSBLC
DWDR
4
BLC (Back-light compensation)
25/30 fps @ 1080p
All manuals and user guides at all-guides.com

6
(IR Model 5 Watts)

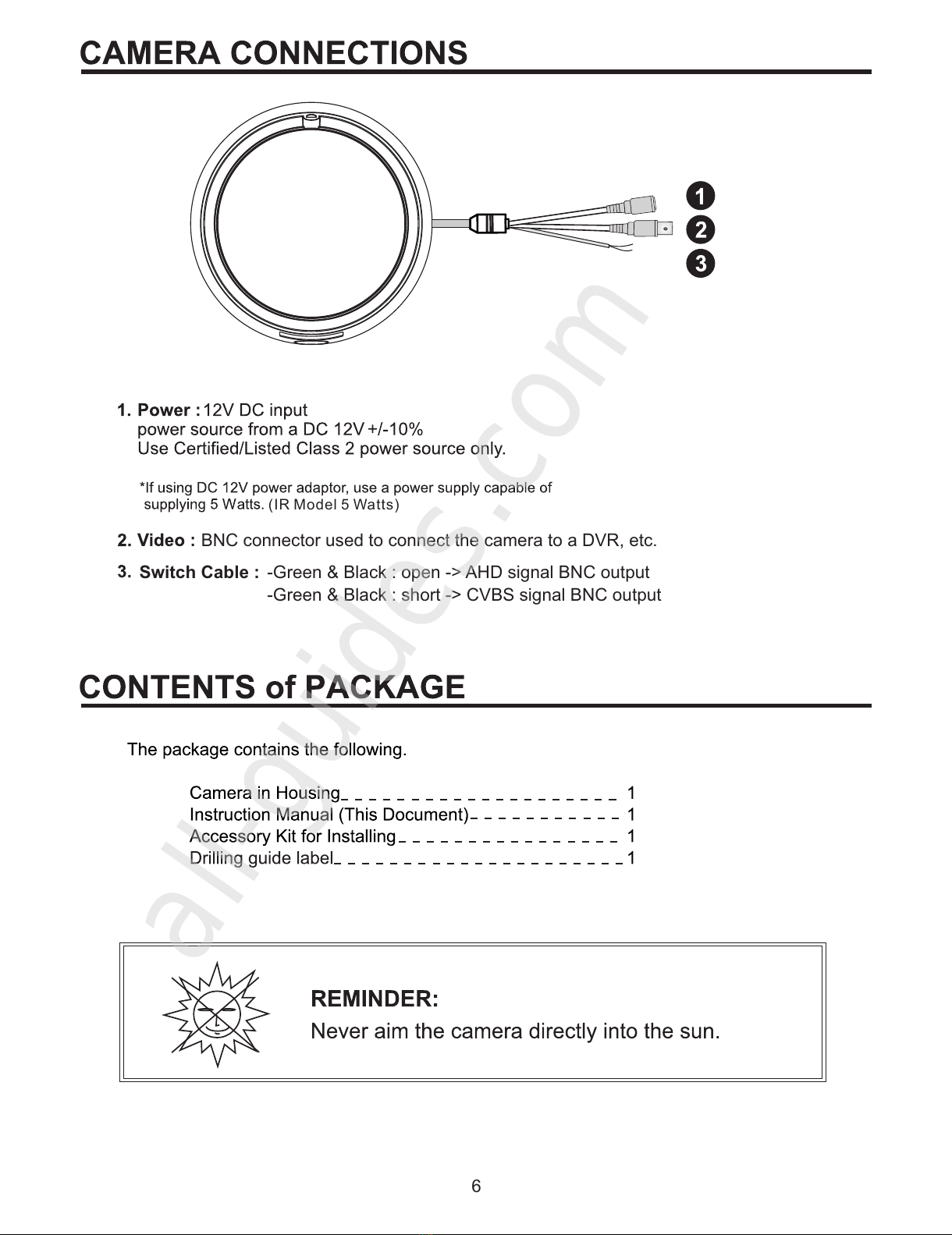

Switch Cable : -Green & Black : open -> AHD signal BNC output
-Green & Black : short -> CVBS signal BNC output
BNC connector used to connect the camera to a DVR, etc.
All manuals and user guides at all-guides.com
all-guides.com

7
1. Make mounting holes and cable hole in
the place (ceiling or wall) to which this
dome camera is installed using the
Drilling guide label.
2. Drill the mounting location, using the Drillng guide.
3. Attach the housing to the ceiling using
suitable fasteners, PTS1 5x30 screws
are supplied only use if they are suitable.
4. Tighten a mounting screws.
Press here to adjust the angle.
PTS1 5x30 <4X>
PT-Plug
All manuals and user guides at all-guides.com

WHITE BAL
BACKLIGHT
SENS-UP
D-WDR
<WHITE BAL>
OFF
BLC
HSBLC
<BACKLIGHT>
ATW
AWC->SET
INDOOR
OUTDOOR
MANUAL
AWB
<DAY&NIGHT>
SHARPNESS
LSC
D-EFFECT
RETURN
CAM TITLE
MONITOR
VIDEO OUT
LANGUAGE
COMET
RETURN
<EXIT>
SAVE& END
RESET
DEFECT DET NOT SAVE
8
All manuals and user guides at all-guides.com

9
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
MANUAL
OFF
ATW
AUTO
SAVE&END
1)
< EXPOSURE > MODE
1/50000, x2 ~ x30
Adjust the Auto Gain Control level. ▶ 0 - 15
AGC
3) SENS-UP Select the Digital Slow Shutter level. ▶ OFF, AUTO (x2 ~ x30)
BRIGHTNESS Adjust the BRIGHTNESS level. ▶ 0 - 100
D-WDR
DEFOG
Select the Digital WDR.▶ AUTO, ON(level 0~8), OFF
AUTO, OFF
POS/SIZE
GRADATION
DEFAULT
Adjust the window position & size
▶ 0~2
Initialize the setting values
SHUTTER
AGC
SENS-UP
BRIGHTNESS
D-WDR
DEFOG
RETURN
AUTO
|▪▪▪l▪| 11
AUTO
|▪▪l▪▪| 48
OFF
OFF
RET
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END

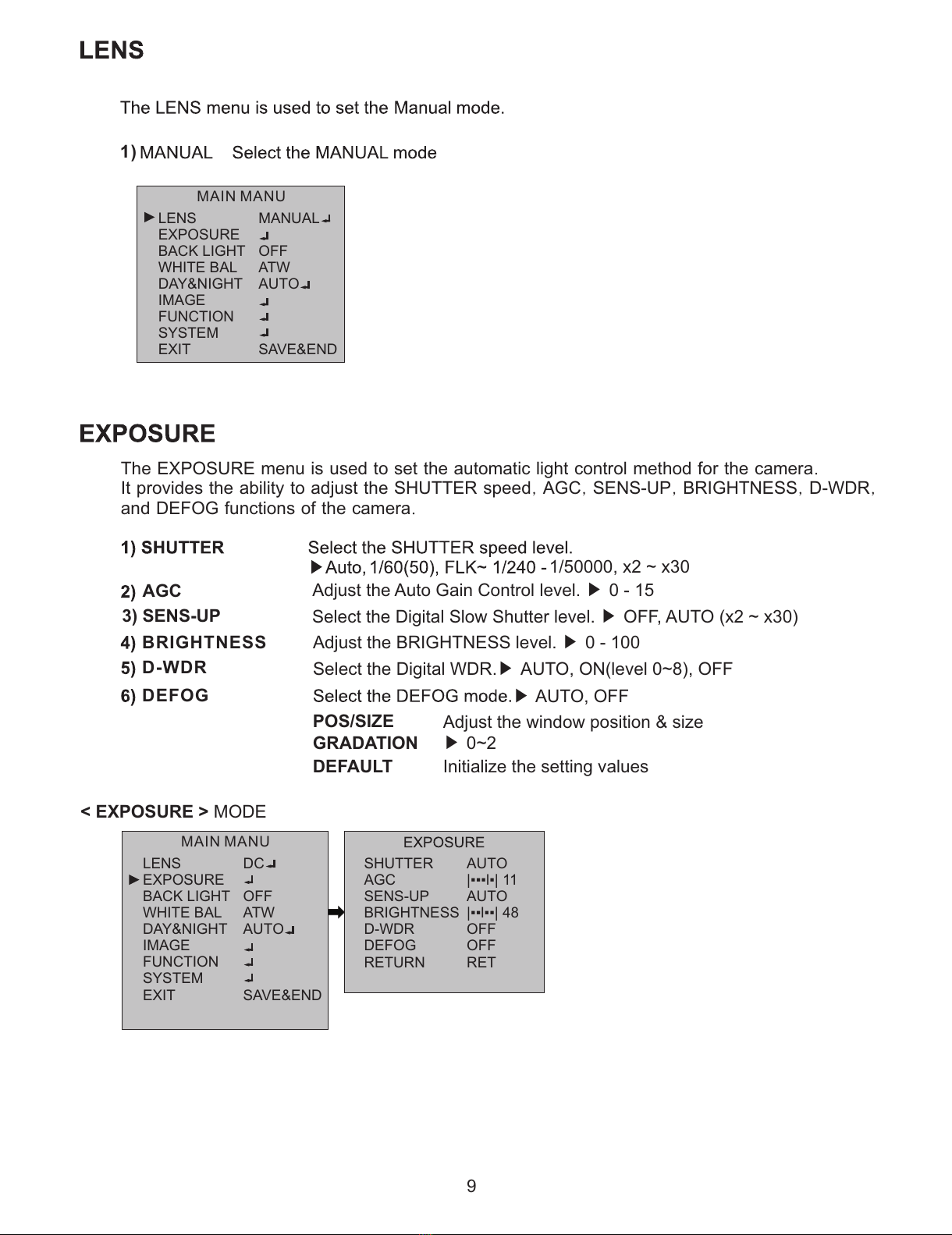

The EXPOSURE menu is used to set the automatic light control method for the camera.
It provides the ability to adjust the SHUTTER speed, AGC, SENS-UP, BRIGHTNESS, D-WDR,
and DEFOG functions of the camera.
All manuals and user guides at all-guides.com

10
BACKLIGHT
The BACKLIGHT menu is used to the ability to prevent back lighting from the image.
1)BLC Prevents such a back light effect to secure a clear image under All illumination
environments.
Adjust the size of Back Light Compensation area.
2)HSBLC Mask the high light zone with specific color & level.
Adjust the window position & sizeAREA
Initialize the setting valuesDEFAULT
Select the HSBLC area ▶ AREA1 - AREA4SELECT
Adjust the HSBLC area window position & sizeDISPLAY
Select the HSBLC level ▶ 0 ~ 100LEVEL
All Day, NightMODE
Initialize the setting values.DEFAULT
HLBLC
SELECT
DISPLAY
BLACK MASK
LEVEL
MODE
DEFAULT
RETURN
AREA
ON
ON
|▪▪l▪▪| 30
ALL DAY
RET
< BACKLIGHT >
BLC
LEVEL
AREA
DEFAULT
RETURN
MIDDLE
RET
Select the BLC gain ▶ Low, Middle, HighLEVEL
Select the BLACK MASK ▶ ON, OFFBLACK MASK
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END
All manuals and user guides at all-guides.com

11

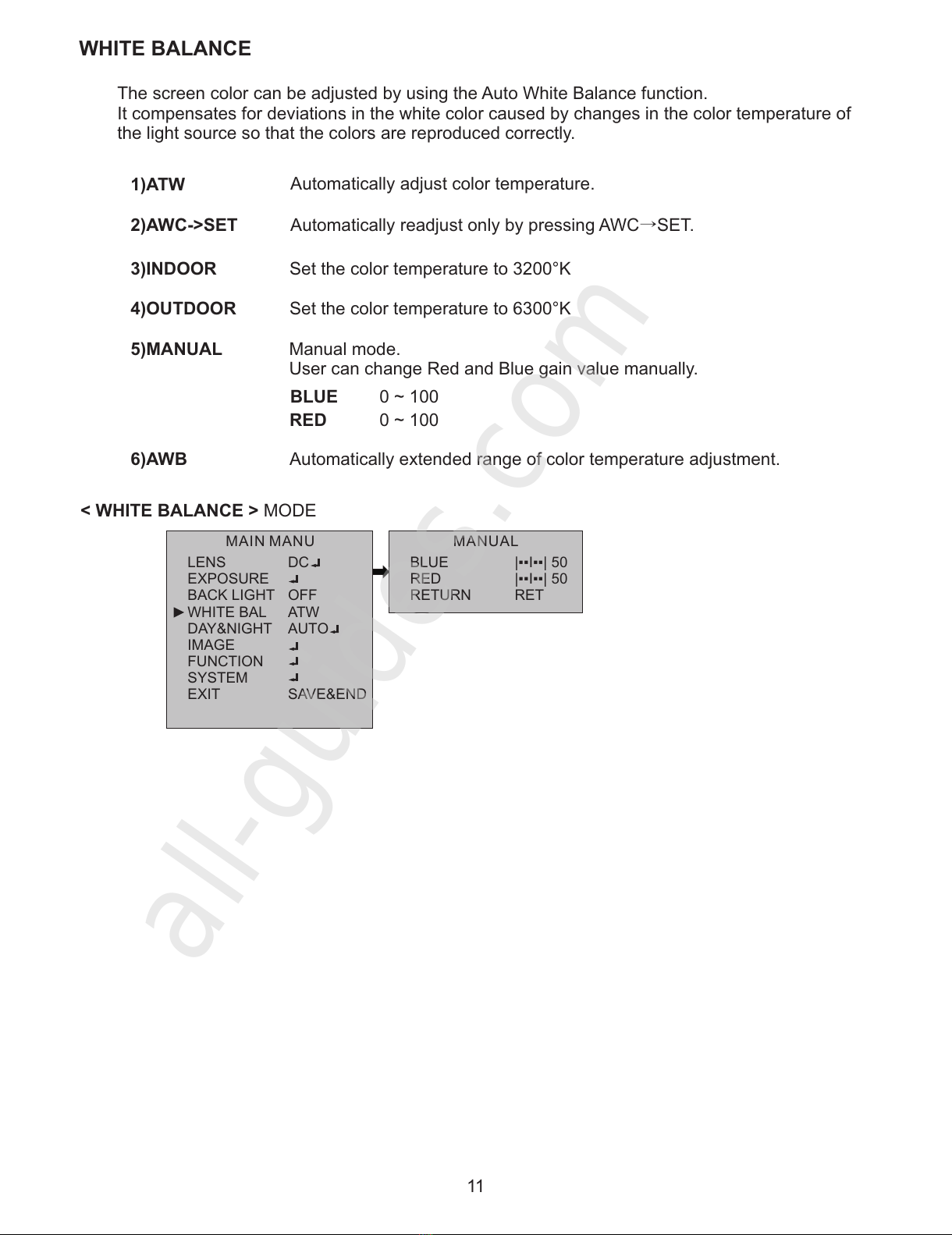

WHITE BALANCE
The screen color can be adjusted by using the Auto White Balance function.
It compensates for deviations in the white color caused by changes in the color temperature of
the light source so that the colors are reproduced correctly.
1)ATW
2)AWC->SET
3)INDOOR
4)OUTDOOR
5)MANUAL
Automatically adjust color temperature.
Automatically readjust only by pressing AWC→SET.
Set the color temperature to 3200°K
Set the color temperature to 6300°K
Manual mode.
User can change Red and Blue gain value manually.
BLUE
RED
0 ~ 100
0 ~ 100
6)AWB Automatically extended range of color temperature adjustment.
MANUAL
BLUE
RED
RETURN
|▪▪I▪▪| 50
|▪▪I▪▪| 50
RET
< WHITE BALANCE > MODE
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END
All manuals and user guides at all-guides.com
all-guides.com

12
.

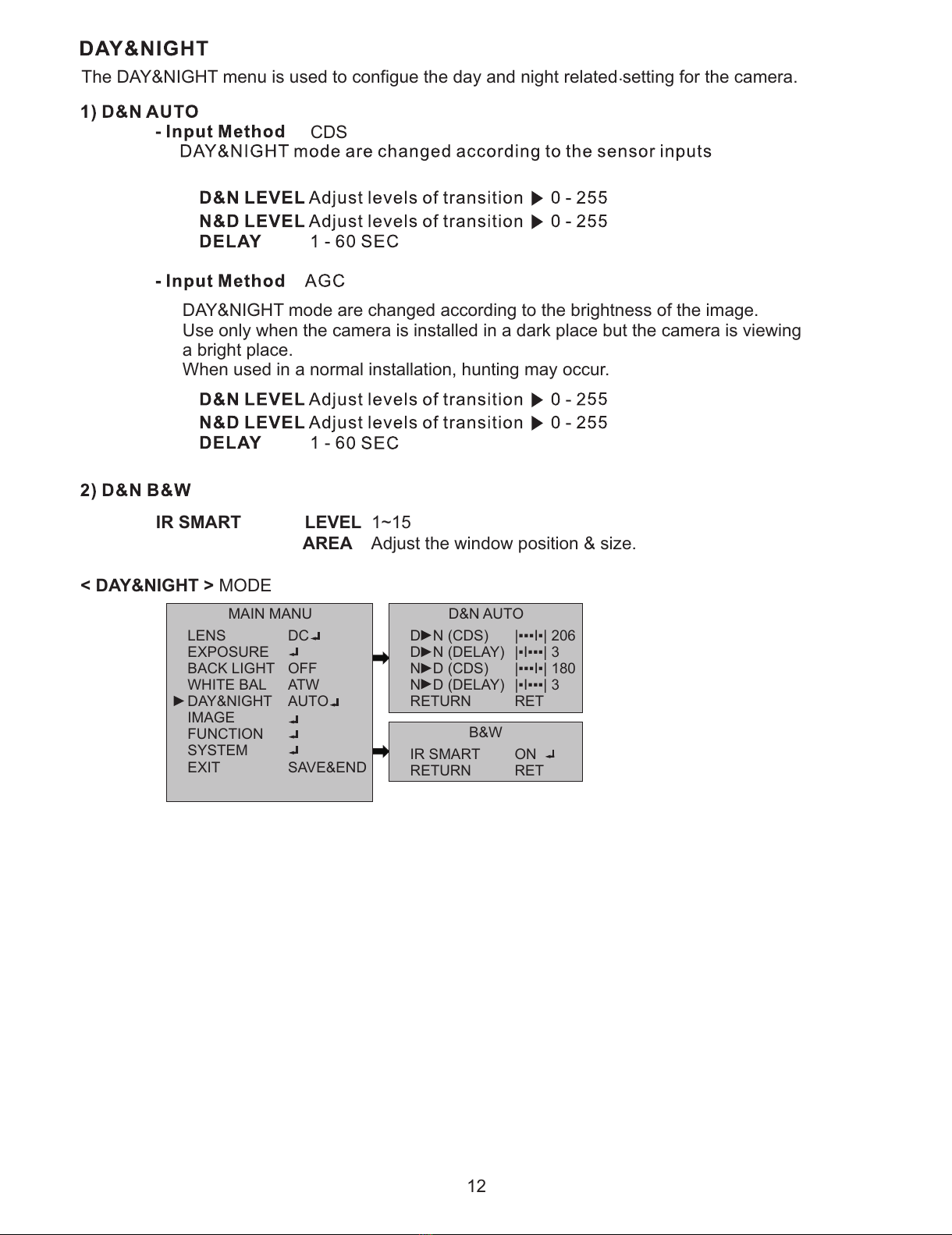

CDS
IR SMART LEVEL 1~15
AREA Adjust the window position & size.
DAY&NIGHT mode are changed according to the brightness of the image.
Use only when the camera is installed in a dark place but the camera is viewing
a bright place.
When used in a normal installation, hunting may occur.
< DAY&NIGHT > MODE
D&N AUTO
D N (CDS)
D N (DELAY)
N D (CDS)
N D (DELAY)
RETURN
|▪▪▪I▪| 206
|▪I▪▪▪| 3
|▪▪▪I▪| 180
|▪I▪▪▪| 3
RET
B&W
IR SMART
RETURN ON RET
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END
The DAY&NIGHT menu is used to configue the day and night related setting for the camera.
All manuals and user guides at all-guides.com

13
The IMAGE menu provides the ability to adjust the SHARPNESS, LSC and D-EFFECT functions
of the camera.
1) SHARPNESS Adjust the SHARPNESS level. ▶ OFF, AUTO (0 - 10)
2) LSC Select the lens Lens Shading Compensation. ▶ ON, OFF
3) D-EFFECT FREEZE Select real or still mode ▶ ON, OFF
MIRROR Select OFF, MIRROR, V-FLIP, ROTATE
NEG. IMAGE Select Negative image mode ▶ ON, OFF
SHARPNESS
LSC
D-EFFECT
RETURN
AUTO
OFF
RET
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END
< SHARPNESS >
SHARPNESS
LSC
D-EFFECT
RETURN
AUTO
OFF
RET
SHARPNESS
LEVEL
SMART AGC
END AGC
RETURN
|▪▪I▪▪| 5
|▪▪▪I▪| 128
|▪▪▪I▪| 160
RET
< D-EFFECT >
SHARPNESS
LSC
D-EFFECT
RETURN
AUTO
OFF
RET
D-EFFECT
FREEZE
MIRROR
NEG. IMAGE
RETURN
OFF
OFF
OFF
RET
All manuals and user guides at all-guides.com

14

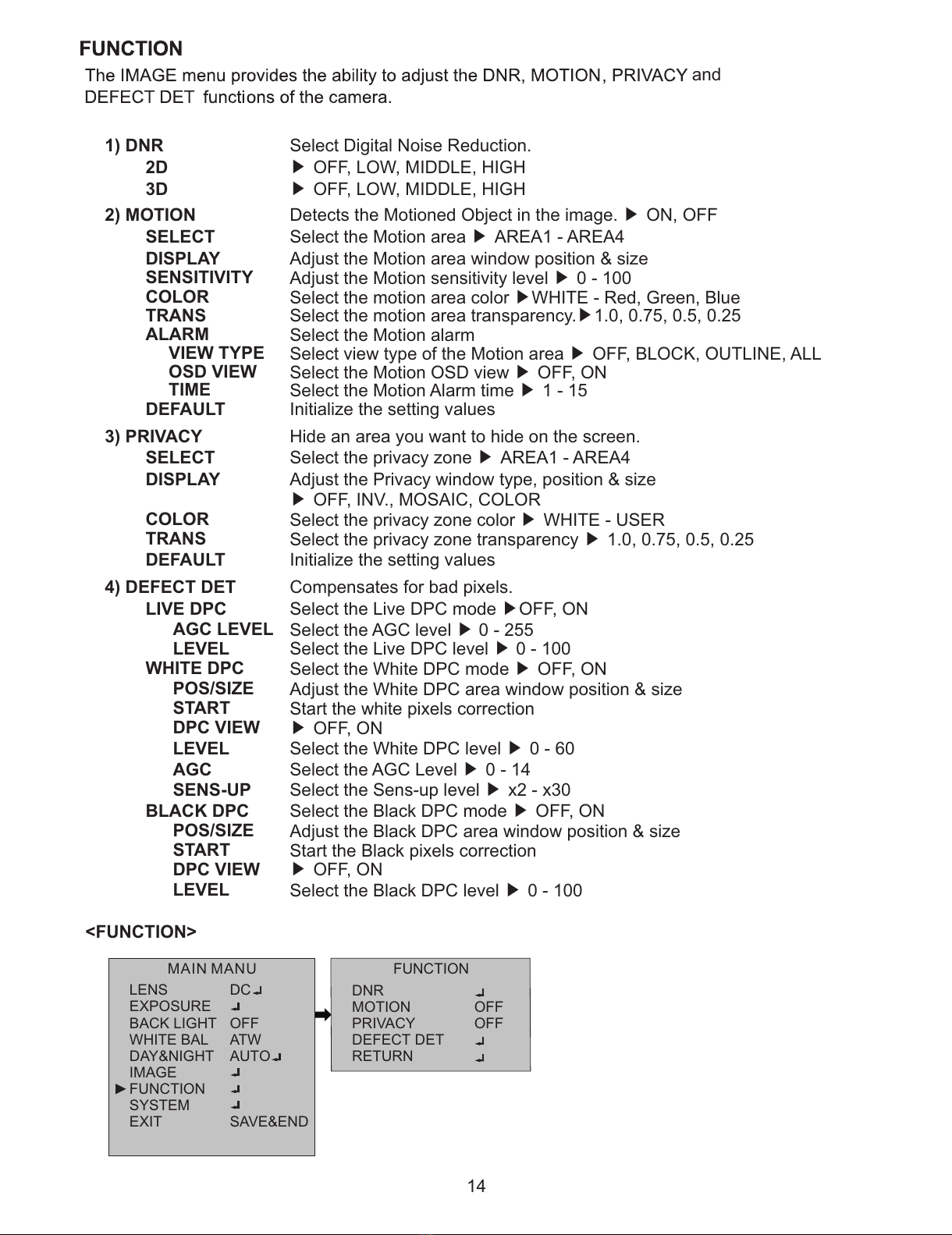

1) DNR
2D
3D
Select Digital Noise Reduction.
▶ OFF, LOW, MIDDLE, HIGH
▶ OFF, LOW, MIDDLE, HIGH
2) MOTION
SELECT
DISPLAY
SENSITIVITY
Detects the Motioned Object in the image. ▶ ON, OFF
ALARM
DEFAULT
Select the Motion area ▶ AREA1 - AREA4
Adjust the Motion area window position & size
Adjust the Motion sensitivity level ▶ 0 - 100
Select the Motion alarm
Initialize the setting values
3) PRIVACY
SELECT
DISPLAY
COLOR
Hide an area you want to hide on the screen.
TRANS
DEFAULT
Select the privacy zone ▶ AREA1 - AREA4
Adjust the Privacy window type, position & size
▶ OFF, INV., MOSAIC, COLOR
Select the privacy zone color ▶ WHITE - USER
Initialize the setting values
4) DEFECT DET
LIVE DPC
WHITE DPC
START
Compensates for bad pixels.
LEVEL
AGC
Select the Live DPC mode ▶OFF, ON
Select the White DPC mode ▶ OFF, ON
Start the white pixels correction
Select the White DPC level ▶ 0 - 60
Select the AGC Level ▶ 0 - 14
SENS-UP Select the Sens-up level ▶ x2 - x30
<FUNCTION>
DPC VIEW ▶ OFF, ON
POS/SIZE Adjust the White DPC area window position & size
BLACK DPC Select the Black DPC mode ▶ OFF, ON
START
LEVEL
Start the Black pixels correction
Select the Black DPC level ▶ 0 - 100
DPC VIEW ▶ OFF, ON
POS/SIZE Adjust the Black DPC area window position & size
COLOR Select the motion area color ▶WHITE - Red, Green, Blue
TRANS Select the motion area transparency.▶1.0, 0.75, 0.5, 0.25
and
VIEW TYPE Select view type of the Motion area ▶ OFF, BLOCK, OUTLINE, ALL
OSD VIEW Select the Motion OSD view ▶ OFF, ON
TIME Select the Motion Alarm time ▶ 1 - 15
Select the privacy zone transparency ▶ 1.0, 0.75, 0.5, 0.25
AGC LEVEL Select the AGC level ▶ 0 - 255
LEVEL Select the Live DPC level ▶ 0 - 100
FUNCTION
DNR
MOTION
PRIVACY
DEFECT DET
RETURN
OFF
OFF
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END
All manuals and user guides at all-guides.com

15

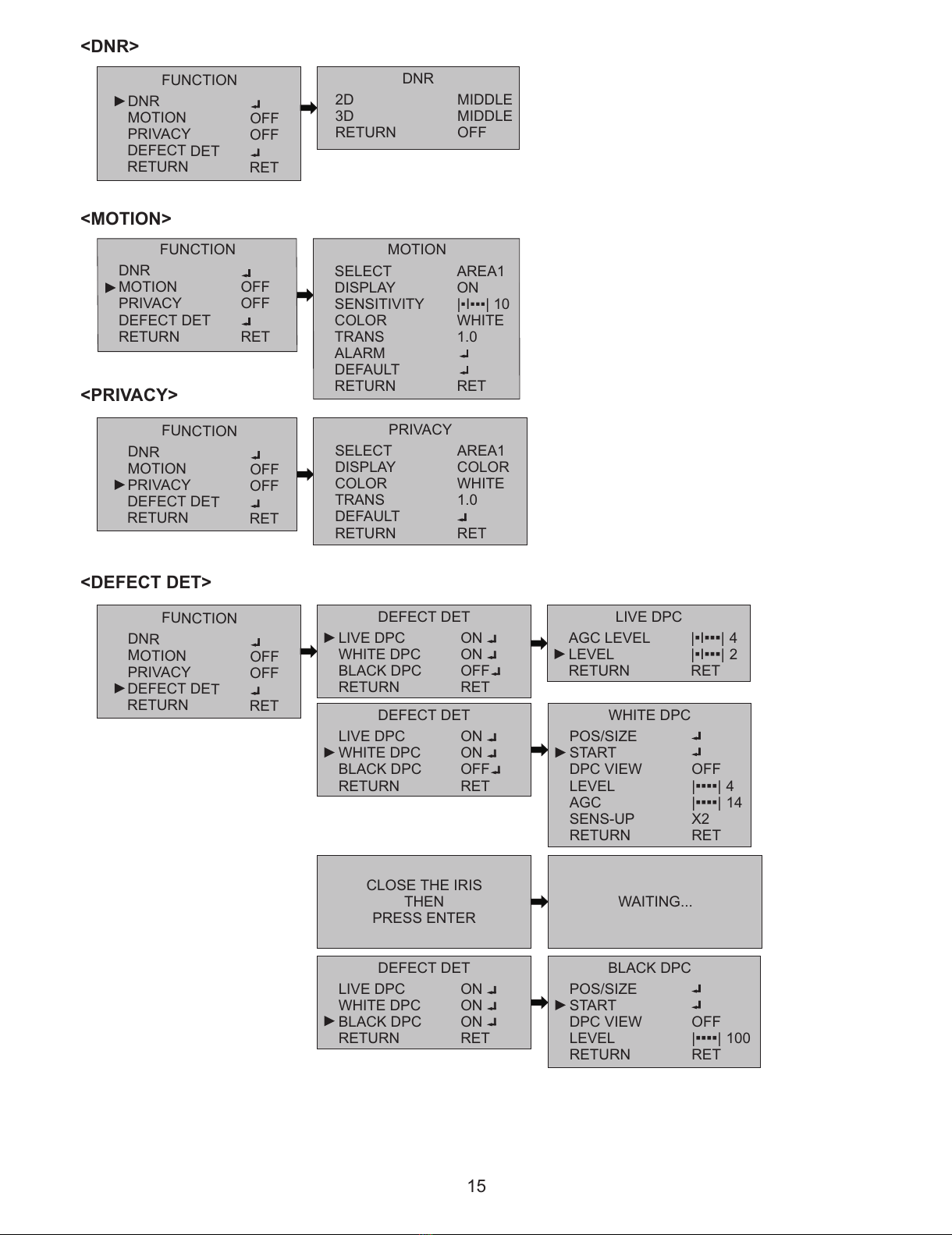

<DNR>
<MOTION>
DNR
2D
3D
RETURN
MIDDLE
MIDDLE
OFF
UNCTF ION
DNR
MN
OTIO
RIVACYP ECT DETDEF
RET NUR
OFF
FOF
RET
FUNCTION
DNR
MOTION
PRIVACY
DEFECT DET
RETURN
OFF
OFF
RET
<PRIVACY>
PRIVACY
SELECT
DISPLAY
COLOR
TRANS
DEFAULT
RETURN
AREA1
COLOR
WHITE
1.0
RET
UNCTF ION
RDN
MN
OTIO
PRIVACY
ECT DET
DEF
RET NUR
OFF
FOF
RET
<DEFECT DET>
DEFECT DET
LIVE DPC
WHITE DPC
BLACK DPC
RETURN
ON
ON
OFF
RET
T
FUNC ION
DNR
MOTION
PRIVACY
DEFECT DET
ETR URN
F
OF
OFF
RET
MOTION
SELECT
DISPLAY
SENSITIVITY
COLOR
TRANS
ALARM
DEFAULT
RETURN
AREA1
ON
|▪I▪▪▪| 10
WHITE
1.0
RET
DEFECT DET
LIVE DPC
WHITE DPC
BLACK DPC
RETURN
ON
ON
OFF
RET
LIVE DPC
AGC LEVEL
LEVEL
RETURN
|▪I▪▪▪| 4
|▪I▪▪▪| 2
RET
WHITE DPC
POS/SIZE
START
DPC VIEW
LEVEL
AGC
SENS-UP
RETURN
OFF
|▪▪▪▪| 4
|▪▪▪▪| 14
X2
RET
DEFECT DET
LIVE DPC
WHITE DPC
BLACK DPC
RETURN
ON
ON
ON
RET
BLACK DPC
POS/SIZE
START
DPC VIEW
LEVEL
RETURN
OFF
|▪▪▪▪| 100
RET
CLOSE THE IRIS
THEN
PRESS ENTER WAITING...
All manuals and user guides at all-guides.com

16

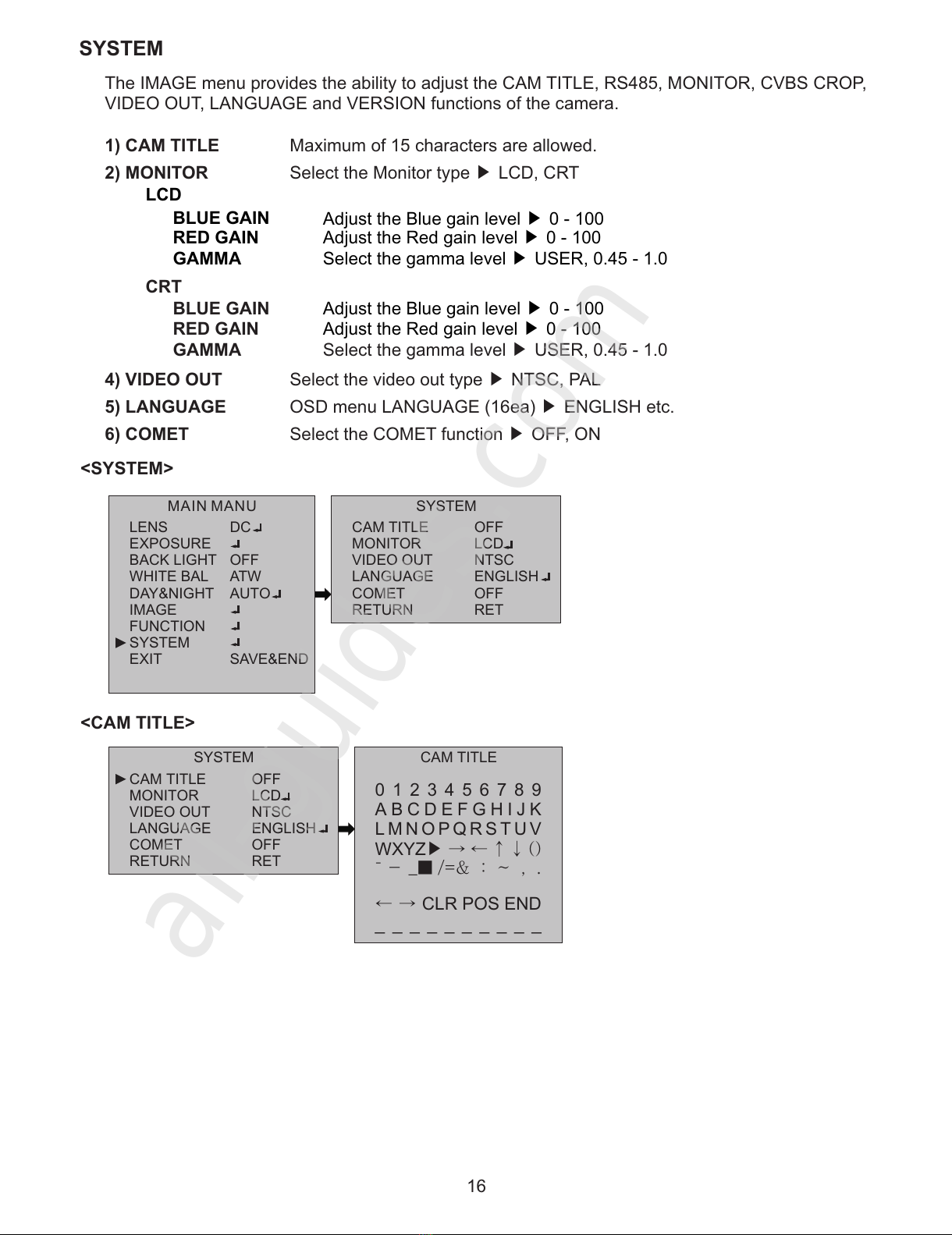

SYSTEM
The IMAGE menu provides the ability to adjust the CAM TITLE, RS485, MONITOR, CVBS CROP,
VIDEO OUT, LANGUAGE and VERSION functions of the camera.
1) CAM TITLE Maximum of 15 characters are allowed.
2) MONITOR
LCD
BLUE GAIN
Select the Monitor type ▶ LCD, CRT
RED GAIN
GAMMA
Adjust the Blue gain level ▶ 0 - 100
Adjust the Red gain level ▶ 0 - 100
Select the gamma level ▶ USER, 0.45 - 1.0
CRT
BLUE GAIN
RED GAIN
GAMMA
Adjust the Blue gain level ▶ 0 - 100
Adjust the Red gain level ▶ 0 - 100
Select the gamma level ▶ USER, 0.45 - 1.0
4) VIDEO OUT Select the video out type ▶ NTSC, PAL
5) LANGUAGE OSD menu LANGUAGE (16ea) ▶ ENGLISH etc.
6) COMET Select the COMET function ▶ OFF, ON
<SYSTEM>
<CAM TITLE>
CAM TITLE
0 1 2 3 4 5 6 7 8 9
A B C D E F G H I J K
L M N O P Q R S T U V
WXYZ▶→ ← ↑ ↓ ()
¯ － _■ /=& : ~ , .
← → CLR POS END
_ _ _ _ _ _ _ _ _ _
SYSTEM
CAM TITLE
MONITOR
VIDEO OUT
LANGUAGE
COMET
RETURN
OFF
LCD
NTSC
ENGLISH
OFF
RET
MAIN MANU
LENS
EXPOSURE
BACK LIGHT
WHITE BAL
DAY&NIGHT
FUNCTION
SYSTEM
EXIT
DC
OFF
ATW
AUTO
SAVE&END
SYSTEM
CAM TITLE
MONITOR
VIDEO OUT
LANGUAGE
COMET
RETURN
OFF
LCD
NTSC
ENGLISH
OFF
RET
All manuals and user guides at all-guides.com
all-guides.com

17

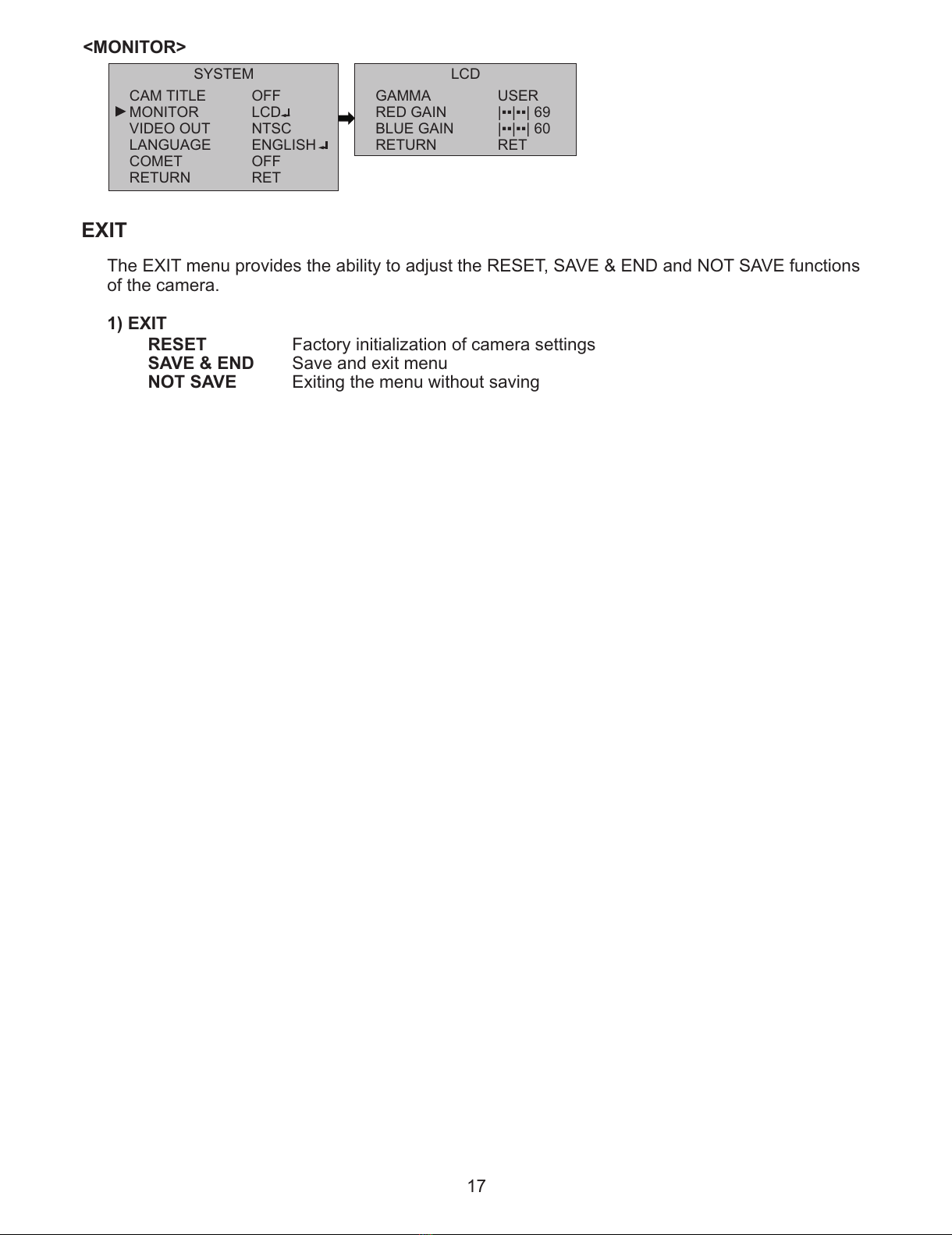

<MONITOR>
LCD
GAMMA
RED GAIN
BLUE GAIN
RETURN
USER
|▪▪|▪▪| 69
|▪▪|▪▪| 60
RET
EXIT
The EXIT menu provides the ability to adjust the RESET, SAVE & END and NOT SAVE functions
of the camera.
1) EXIT
RESET Factory initialization of camera settings
SYSTEM
CAM TITLE
MONITOR
VIDEO OUT
LANGUAGE
COMET
RETURN
OFF
LCD
NTSC
ENGLISH
OFF
RET
SAVE & END Save and exit menu
NOT SAVE Exiting the menu without saving
All manuals and user guides at all-guides.com

18
f=3.6mm F2.0 Fixed Lens, ICR (D&N)
Fixed mount
BNC Connector - AHD, CVBS
LIVE DPC / WHITE DPC / BLACK DPC
CRT / LCD
NTSC / PAL
Video out
Monitor
D-Effect OFF / FREEZE / MIRROR / NEG.IMAGE
Privacy Masking
Motion Detection OFF / ON (4 zone)
LSC (Shading) OFF / ON
Camera Title OFF / ON
OFF / LOW / MIDDLE / HIGH
D-WDR OFF / ON / AUTO
SENS-UP 1 ~ 15
1 ~ 100
MAX 4.5 Watts (370mA)
1/2.8" 2.4M Sony CMOS
2000(H) x 1121(V)
1920(H) x 1080(V)
1000 TVL
BNC(AHD high definition video output /
CVBS(srarted definition video output)
AUTO, 1/60, FLK ~ 1/50,000 sec
OFF / AUTO (x2, x4, x6, x8, x10, x15, x20, x25, x30)
DC 12V ± 10%
DC Jack
Full HD CAMERA
OSD (Joystick Switch, coaxial communication)
1920x1080@25fps ; 1920x1080@30fps
Video Frame Rate
Exposure
OFF / BLC / HSBLC
OFF / AUTO
Backlight ATW / AWC / INDOOR / OUTDOOR / AWB
White Balance
DNR 2DNR
3DNR OFF / LOW / MIDDLE / HIGH
OFF / ON (4 zone)
ENG / CHN1 / CHN2 / GER / FRA / ITA / SPA / POL
/ RUS / POR / NED / TUR / KOR / JPN / HEB / ARB
OFF / AUTO (0 ~ 10)
COMET OFF / ON
Save & Exit SAVE & EXIT / NO SAVE / RESET
Over 500m via 75-3 coaxial cable
Transmission Distance
CVBS Resolution
Sync. System
Scanning system
Active Pixels
Total Pixels
Image sensor
Power Consumption
Power Source
MODEL
Power
General
Min. illumination
Video Output
1.0 lux(COLOR), 0 lux(BW, IR LED ON)
24 IR LED(850nm)
25M
More than 50dB (AGC off)
Distance
IR LED
IR
S/N Ratio
Camera Control
Shutter
AGC
Lens
Function
Brightness
Day & Night
Defog
Language
Video mode
Sharpness
Defect Detection
Power input
Lens mount
Lens
Operating temperature
Operating humidity
Weight
External dimension
Connector
&
etc.
MANUAL
AUTO / COLOR / B&W
0 ~ 96% (non-condensing)
530g
144x 98mm(H)
All manuals and user guides at all-guides.com

144
98
44
1.14 lb. (0.530kg)
1.44 lb. (0.650kg)
1.8
95
19
All manuals and user guides at all-guides.com

50304039A
All manuals and user guides at all-guides.com
