Comelit IPTHBCAMA05F01A User manual

THERMAL CAMERAS SERIES
ART. IPTHBCAMA05F01A
IPTHBCAMA05F02A
Please read this manual thoroughly before use and keep it for future reference

Notes on Safety
This product is intended to be supplied by a Listed Power Unit, marked with
'Limited Power Source', 'LPS' on unit, output rated minimum 12VDC/2Aor POE
48VDC/350mAor 24VAC (depending on models), no more than 2000m altitude
of operation and Tma=60 Deg.C.
Do not attempt to disassemble the camera; in order to prevent electric shock, do
not remove screws or covers.
There are no user-serviceable parts inside. Please contact the nearest service
center as soon as possible if there is any failure.
Avoid from incorrect operation, shock vibration, heavy pressing which can cause
damage to product.
Do not use corrosive detergent to clean main body of the camera. If necessary,
please use soft dry cloth to wipe dirt; for hard contamination, use neutral
detergent. Any cleanser for high grade furniture is applicable.
Do not operate it in case temperature, humidity and power supply are beyond
the limited stipulations.
The thermal camera shall be used in a stable indoor environment without wind.
Please ensure the monitoring field is far away from objects that could produce
airflow, high temperature and reflection. Please do not install opposite to a door,
air conditioner or any place in sunshine.
Please put up a tent or build a closed environment to ensure the accuracy if
outdoor installation is inevitable.
If blackbody is used, please make sure it is installed opposite to the camera
(where the camera can see it).
Avoid backgrounds that are too crowded or bright.
This manual is for using and managing the product. We may reserve the rights of
amending the typographical errors, inconsistencies with the latest version,
software upgrades and product improvements, interpretation and modification.
These changes will be published in the latest version without special notification.
All pictures, charts, images in this manual are only for description and
explanation of our products. The ownerships of trademarks, logos and other
intellectual properties related to Microsoft, Apple and Google belong to the
above-mentioned companies.
This manual is suitable for thermal network cameras.

Disclaimer
With regard to the product with internet access, the use of product shall be
wholly at your own risks. Our company shall be irresponsible for abnormal
operation, privacy leakage or other damages resulting from cyber-attack, hacker
attack, virus inspection, or other internet security risks; however, our company
will provide timely technical support if necessary.
Surveillance laws vary from country to country. Check all laws in your local
region before using this product for surveillance purposes. We shall not take the
responsibility for any consequences resulting from illegal operations.
Regulatory Information
FCC Information
1.FCC compliance
The products have be tested and found in compliance with the council FCC rules
and regulations part 15 subpart B. These limits are designed to provide
reasonable protection against harmful interference. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur
in a particular installation. The user will be required to correct the interface at his
own expense in case the harmful interference occurs.
2. FCC conditions:
Operation of this product is subject the following two conditions: (1) this device
may not cause harmful interface, and (2) this device must accept any
interference received, including interference that may cause undesired
operation.
CE Information
The products have been manufactured to comply with the following
directives.
EMC Directive 2014/30/EU

RoHS
The products have designed and manufactured in accordance with Directive EU
RoHS Directive 2011/65/EU and its amendment Directive EU 2015/863 on the
restriction of the use of certain hazardous substances in electrical and electronic
equipment.
2012/19/EU (WEEE directive): The Directive on waste electrical and
electronic equipment (WEEE Directive). To improve the environmental
management of WEEE, the improvement of collection, treatment and
recycling of electronics at the end of their life is essential. Therefore, the
product marked with this symbol must be disposed of in a responsible
manner.
Directive 94/62/EC: The Directive aims at the management of packaging and
packaging waste and environmental protection. The packaging and packaging waste
of the product in this manual refers to must be disposed of at designated collection
points for proper recycling and environmental protection.
REACH(EC1907/2006): REACH concerns the Registration, Evaluation, Authorization
and Restriction of Chemicals, which aims to ensure a high level of protection of
human health and the environment through better and earlier identification of the
intrinsic properties of chemical substances. The product in this manual refers to
conforms to the rules and regulations of REACH. For more information of REACH,
please refer to DG GROWTH or ECHAwebsites.

Table of Contents
1Introduction.....................................................................................................1
2Network Connection........................................................................................2
2.1 LAN..........................................................................................................2
2.1.1 Access through Comelit Advance IP Tool.................................. 2
2.1.2 Directly Access through Internet Explorer................................. 4
2.2 WAN........................................................................................................6
3Temperature Measurement Configuration.........................................................9
3.1 Temperature Measurement Requirements....................................................9
3.2 Enable Face Detection .............................................................................. 11
3.3 Temperature Measurement Settings........................................................... 11
3.4 Temperature Calibration ............................................................................13
4Live View ......................................................................................................16
5Other Configurations......................................................................................19
5.1 System Settings........................................................................................19
5.1.1 Basic Information....................................................................... 19
5.1.2 Date and Time........................................................................... 19
5.1.3 Local Config .............................................................................. 20
5.1.4 Storage...................................................................................... 20
5.2 Image Configuration..................................................................................23
5.2.1 Display Configuration................................................................. 23
5.2.2 Video / Audio Configuration........................................................ 26
5.2.3 OSD Configuration..................................................................... 27
5.2.4 Video Mask................................................................................ 28
5.2.5 ROI Configuration...................................................................... 29
5.3 PTZ Configuration.....................................................................................30
5.4 Alarm Configuration...................................................................................30
5.4.1 Motion Detection........................................................................ 30
5.4.2 Other Alarms.............................................................................. 32
5.4.3 Alarm In..................................................................................... 34
5.4.4 Alarm Out .................................................................................. 35
5.4.5 Alarm Server.............................................................................. 36
5.4.6 Audio Alarm............................................................................... 36
5.4.7 Light Alarm ................................................................................ 37
5.5 Smart Event Configuration.........................................................................38
5.5.1 Face Detection Settings............................................................. 38
5.5.2 Exception Settings..................................................................... 40
5.5.3 Line Crossing Detection Settings ............................................... 42
5.5.4 Intrusion Detection Settings....................................................... 44
5.5.5 Region Entrance Detection Settings........................................... 45

5.5.6 Region Exiting Detection Settings.............................................. 47
5.5.7 Target Counting Settings............................................................ 48
5.6 Network Configuration...............................................................................49
5.6.1 TCP/IP....................................................................................... 49
5.6.2 Port ........................................................................................... 51
5.6.3 Server Configuration.................................................................. 51
5.6.4 DDNS........................................................................................ 51
5.6.5 RTSP......................................................................................... 52
5.6.6 802.1X....................................................................................... 53
5.6.7 UPnP......................................................................................... 53
5.6.8 Email......................................................................................... 54
5.6.9 FTP........................................................................................... 55
5.6.10 HTTPS .................................................................................... 55
5.6.12 QoS......................................................................................... 57
5.7 Security Configuration...............................................................................57
5.7.1 User Configuration..................................................................... 57
5.7.2 Online User ............................................................................... 59
5.7.3 Block andAllow Lists ................................................................. 59
5.7.4 Security Management................................................................ 60
5.8 Maintenance Configuration........................................................................61
5.8.1 Backup and Restore.................................................................. 61
5.8.2 Reboot....................................................................................... 61
5.8.3 Upgrade .................................................................................... 62
5.8.4 Operation Log............................................................................ 62
6Search..........................................................................................................63
6.1 Image Search............................................................................................63
6.2 Video Search ............................................................................................65
6.2.1 Local Video Search.................................................................... 65
6.2.2 SD Card Video Search............................................................... 66
6.3 Data Record Search..................................................................................67
Appendix - Troubleshooting ..................................................................................69

1
1 Introduction
Thermal Network camera series is specially designed to detect human body
temperature with high accuracy in real time. This series of product supports real-time
temperature measurement, face capture, smart event detection and alarm linkages. It
can help you discover abnormal body temperature of people entering and exiting and
other unexpected events immediately and protects you from property loss.
It can be used for preliminary temperature screening in office buildings, factories,
stations, airports and other public places compared to other visible light cameras.
Main Features
Temperature Measurement
Temperature measurement range: 30~42℃
Temperature accuracy: ±0.5°C(without blackbody); ±0.3°C(with blackbody)
3 view modes: optical image and thermal image, optical image, thermal
Multi-target automatic temperature measurement
Audio and light alarm linkage
Intelligent Analytics
Abnormal video signal detection: including scene blur detection, video blur
detection, video color cast detection
Perimeter Alert: Line crossing detection (human/motor vehicle/non-motor
vehicle classification), Region intrusion/entrance/exiting detection
(human/motor vehicle/non-motor vehicle classification)
Target Counting: line crossing people/motor vehicle/non-motor vehicle
counting
Face detection: face capture, face detection
Audio and light alarm linkage

2
2 Network Connection
Connect the IP-Cam via LAN or WAN via Internet Explorer browser.
2.1 LAN
In LAN, there are two ways to access IP-Cam: 1. access through Comelit Advance IP
Tool; 2. directly through Internet Explorer browser.
2.1.1 Access through Comelit Advance IP Tool
Network connection:
①Make sure the PC and IP-Cam are connected to the LAN and the Comelit Advance
IP Tool is installed in the PC.
②Double click the comelit Advance IP Tool icon on the desktop to run the software
as shown below:
③Modify the IP address. The default IP address of the camera is 192.168.1.150.
Click the information of the camera listed in the above table to show the network
information on the right hand. Modify the IP address and gateway of the camera and
make sure that its network address is in the same local network segment as the
computer’s.

3
For example, the IPaddress of your computer is 192.168.1.4. So theIP address of the

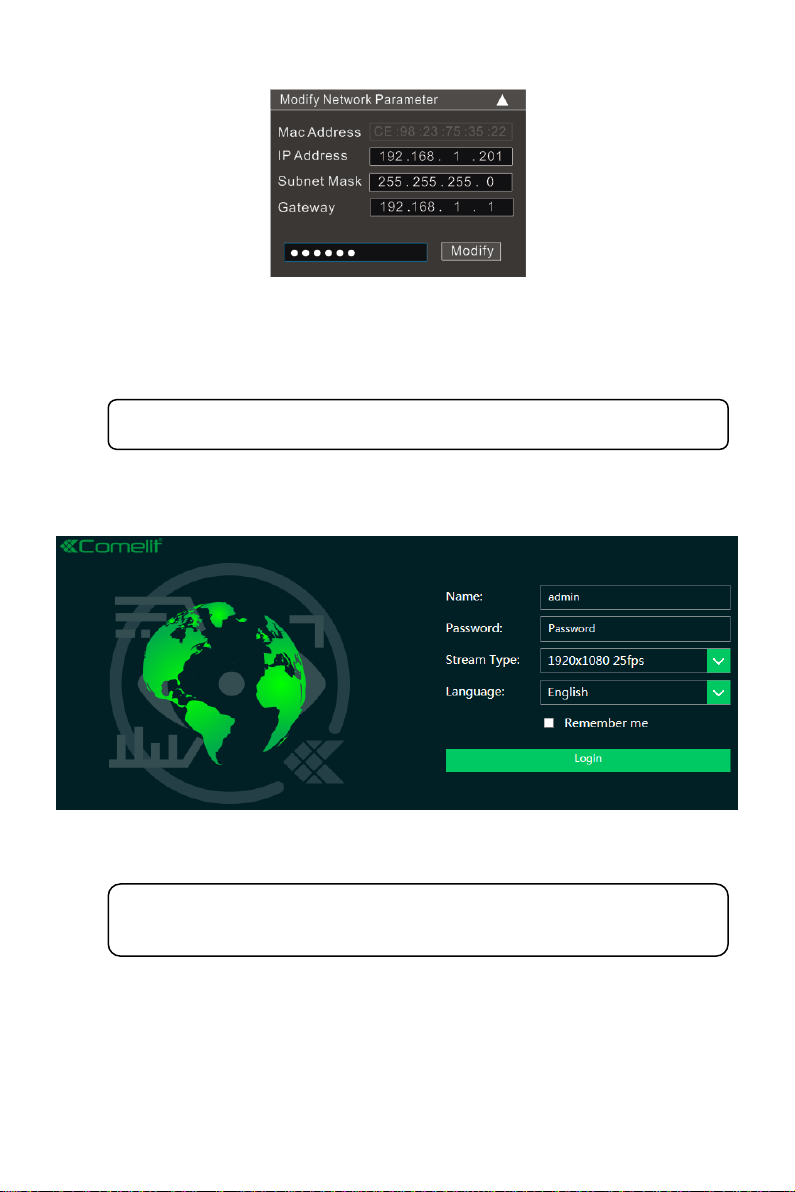

camera shall be changed to 192.168.1.X. After modification, please enter the
password of the administrator and click the “Modify” button to modify the setting.

④Double click the IP address and then the system will pop up IE browser to connect
IP-CAM. Follow directions to download, install and run the Active X control.
Enter the username and password in the login window to log in.

The default Password of the administrator is admin
The default Username is admin; the default Password is
admin.

4
The system will pop up the above-mentioned textbox to ask you to change the default
password. It is strongly recommended to change the default password for account
security. If “Do not show again” is checked, the textbox will not appear next time.
2.1.2 Directly Access through Internet Explorer
The default network settings are shown below:
IP address: 192.168.1.150
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
HTTP: 80
Data port: 9008
Use the above default settings when logging in the camera for the first time. Connect
the camera to the computer directly through network cable.
①Manually set the IP address of the PC and the network segment should be as the
same as the default settings of the IP camera. Open the network and share center.
Click “Local Area Connection” to pop up the following window.
