Comfast CF-WR758AC User manual

CF-WR758AC
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch • Manuel d'utilisation

4
Product Manual

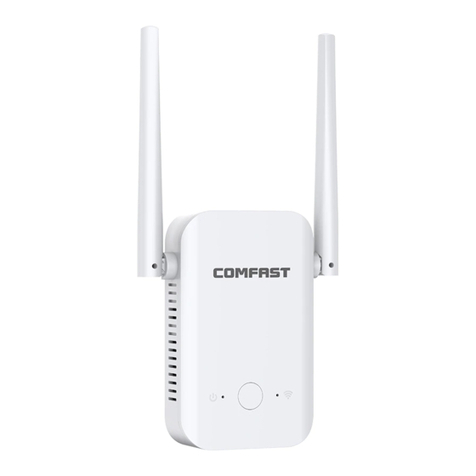

•Product Structure:
WAN/LAN Port
Wi-Fi Signal Indicator
WPS/Reset
Replacable
Vens
Power switch button

5
Simple Installation Steps
•Plug in, switch “ON” button on the side, the lights will al light up
•Wait about 60s, connect WiFi “COMFASR_XXX_2G” or “COMFAST_XXX_5G”
•Click on the WIFi signal “COMFAST_XXX_2G” or “COMFAST_XXX_5G”
The login interface will pop up, enter the password “admin” in the password box, and
click “Set Password”
Tip: When logging in for the first time, the login interface will pop up automatically.
There are two cases when there is no login interface: First, the mobile phone itself does
not support pop-up windows; Second, once set, once again enter the interface, you need
to manually, Manual entry method: Open the mobile phone browser, enter
“192.168.10.1” in the address bar.
•After setting the password for the first time, it will automatically enter the relay
scanning page. Set the trunk then choose SSID of the relay, enter the upper routing
password and click Save to complete the relay, reconnect Connect to the wireless
network to access the Internet, the wireless password is the superior routing
password (the expanded signal will be in the superior Add “-2G / 5G” suffix such as
XXXX-2G / 5G after the WiFi name.

6
Warm Tips:
Combine wifi: Turn on this option, it will automatically switch to high-quality band for
better performance.
Sync your device: Turn on this option, the new WiFi will be same as your original WiFi and
there is no need to reconnect the extended WiFi anymore.

7
Operating mode
•The software has four working modes, including relay mode, bridge mode, AP mode,
Routing mode (PPPoE dial-up, static IP, dynamic IP).
•Bridge mode setting: Find and set in the advanced mode.
•AP mode settings: Enter the software management page, click on the AP mode, in
order to facilitate management, this The IP address and default gateway entered
here should be the IP segment of the superior router, and the IP address cannot be
the same as the superior The router´s IP conflicts. After setting, the device´s WAN
port can access the external network through the setting IP address to access the
management device.
Note: Access to external network in AP mode, other mobile devices access the AP´s
wirelessly obtained IP address The network segment is allocated by the superior
device.
According to the default setting, it is not necessary to set the device-specific intranet
IP adress; In this case, you must manually set the IP address of the local network
card connected to the computer.
•In AP mode, you can set 2.4G / 5.8G wireless SSID name and password. After setting,
set The prepared WAN port is connected to the external network; other mobile
devices connect the SSID name of the device through wireless, enter Connect to the
Internet with a password.

8
•Routing mode settings: Enter the software management page, only display the
routing mode, click Routing mode, which can select “PPPoE, “StaticIP”, “Dynamic
IP” Three ways to get online.
1. PPPOE dial-up mode: This mode requires the Internet account provide b the
network service provider to be filled in Number and password, below can set
2.4G / 5.8G wireless SSID name, wireless password.
2. Static IP mode: This mode needs to fill in the IP address provided by the network
service provider, Subnet mask, gateway, main DNS address, 2.4 G / 5.8G wireless
SSID can be set below Name, wireless password.
3. Dynamic IP mode: In this mode, the WAN port is assigned IP by the superior
network device to access the Internet. The 2.4G / 5.8G wireless SSID name can be
set below.

9
FAQ
Q: What´s the role of WiFi extender?
A: Boosts the range of your existing WiFi anc creates stronger signal in hard-to-reach
areas. Please note that it can´t increase your wifi speed of your router, the of extending
wifi will be reduced.
Q: Where shall I place the WiFi extender?
A: We would suggest that after setting up successfully, please move this wifi extender on
the halfway between your router and your weak signal area. The location that you
choose must be within the range of your existing WiFi router network.
Q: How to reset the WiFi extender?
A: Press the WPS/Reset button of your extender for 10 seconds, wait to restore factory
settings, when the lamp will go out and then light up again, you can begin to set up it
again.
Q: Why douse WiFi keep disconnecting?
A: We recommend resetting the WiFi extender.
For more questions, please visit www.szcomfast.com official website.

10
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation, and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g., during transport,
cleaning by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.
