Comfee D30-15ED3 User manual

Storage Electric Water Heater
The diagram above is just for reference. Please take the
appearance of the actual product as the standard.
Instruction Manual
For Model: D50-15ED3
D80-15ED3
Thank you very much for purchasing our water heater.
Before installing and operating your water heater, please
read this manual carefully and keep it for future reference.

1
The installation and maintenance has to be carried out by qualified professionals or Midea
authorized technicians.
The manufacturer shall not be held responsible for any damage or malfunction caused by wrong
installation or failing to comply with following instructions included in this pamphlet.
For more detailed installation and maintenance guidelines, please refer to below chapters.
TABLE OF CONTENTS
TITLE PAGE
1.Cautions ...........................................................................................................................(2)
2.Product introduction .........................................................................................................(3)
3.Unit installation .................................................................................................................(5)
4.Methods of using ..............................................................................................................(8)
5.Maintenance...................................................................................................................(10)
6.Troubleshooting.............................................................................................................. (11)
7. Produce information with EU regulation ........................................................................(12)
●
●
●
General Remark

2
The supply socket must be earthed reliably. The rated current of the socket shall not be lower
than 10A. The socket and plug shall be kept dry to prevent electrical leakage.
The installation height of the supply socket shall not be lower than 1.8m.
The wall in which the electrical water heater is installed shall be able to bear the load more than
two times of the heater filled fully with water without distortion and cracks. Otherwise, other
strengthening measures shall be adopted.

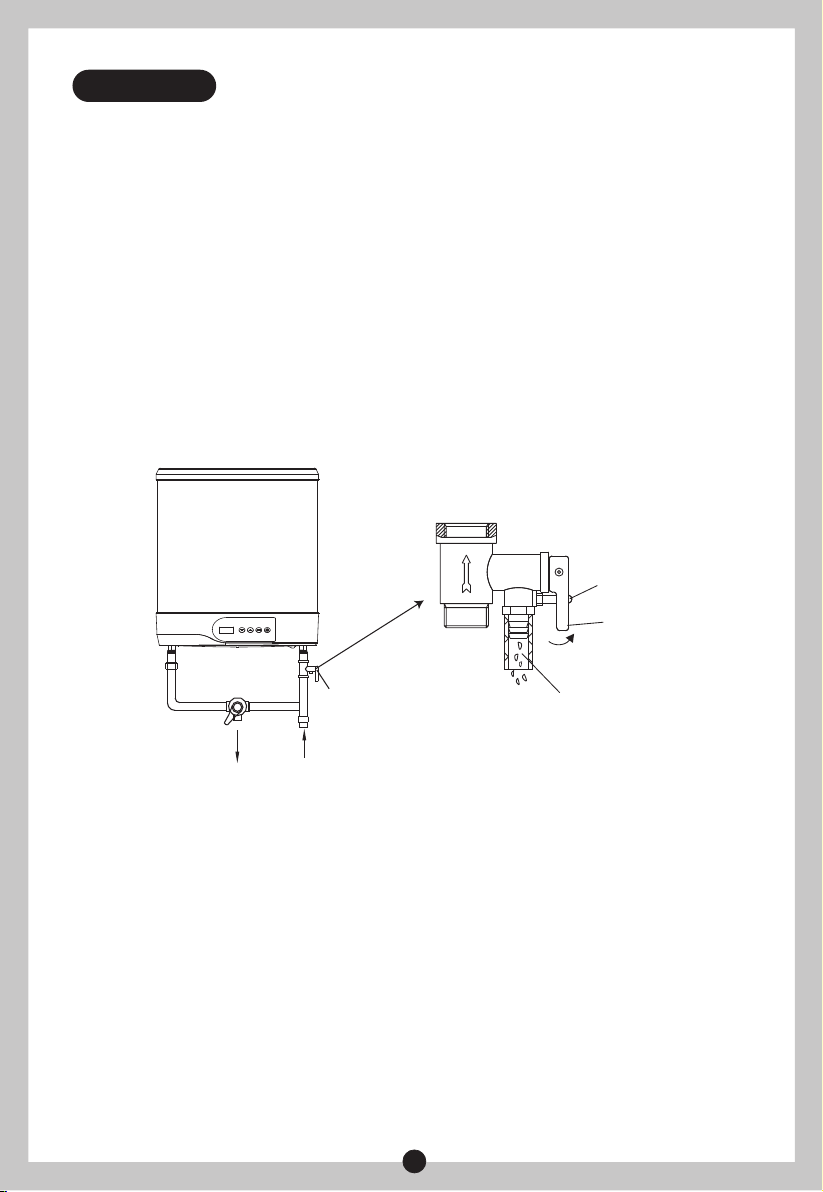

The pressure relief valve attached with the heater must be installed at the cold water inlet of this
heater(see Fig.1), and make sure it is not exposed in the foggy. The water may be outflowed from
pressure relief valve, so the outflow pipe must open wide in the air; The pressure relief valve
need to be checked and cleaned regularly, so as to make sure it will not be blocked.
Before installing this water heater,check and confirm that the earthing on the supply socket is
reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not
use extension boards. Incorrect installation and use of this electrical water heater may result in
serious injuries and loss of property.
Special Cautions
Hot water
1. CAUTIONS
●
●
●
●
●
●
●
●
●
●
Cold water (Fig.1)
Pressure relief valve
Thread screw
Drain handle
Pressure release hole
When using the heater for the first time(or the first use after maintenance), the heater can not be
switched on until it has been filled fully with water. When filling the water, at least one of the outlet
valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed
after the heater has been filled fully with water.
The water heater is not intended for use by persons(including children)with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instructions concerning use of the appliance by a person responsible for
their safety. Children should be supervised to ensure that they do not play with the heater.
During heating, there may be drops of water dripping from the pressure release hole of the
pressure relief valve. This is a normal phenomenon. If there is a large amount of water leak,
please contact customer care center for repair. This pressure release hole shall, under no
circumstances, be blocked; otherwise, the heater may be damaged, even resulting in accidents.
The drainage pipe connected to the pressure release hole must be kept sloping downwards.
Since the water temperature inside the heater can reach up to 75℃, the hot water must not be
exposed to human bodies when it is initially used. Adjust the water temperature to a suitable
temperature to avoid scalding.
If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer
must be selected, and replaced by the professional maintenance personnel.

3
2. PRODUCT INTRODUCTION
2.1 Nomenclature
D -
NOTE
This manual is applicable to the storage electric water heaters (D *-***) manufactured by
this company.
is the product code of the storage electric water heater;
is the capacity (L);
represents the rated power (*100W);
represents the pattern code (eg : A,B,C...);
represents the extension of pattern (eg : 1,2,3...);
①
①
②
②
③
③
④
④
⑤
⑤
Model
Rated
Voltage
(ACV)
IPX4
IPX4
IPX4
75
75
75
0.8
0.8
0.8
0.8
220-240
220-240
220-240
1500
1500
1500
1500
D30-15ED3
D50-15ED3
Rated
Power
(W)
Volume
(L)
Rated
Pressure
(MPa)
Max Of Water
Temperature
(℃)
Protection
Class
Waterproof
Grade
2.2 Technical Performance Parameters
I
I
I
D80-15ED3
D100-15ED3
●
●
●
●
●
●
If any parts and components of this electrical water heater are damaged please contact customer
care center for repair.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
The maximum inlet water pressure is 0.5MPa; the minimum inlet water pressure is 0.1MPa, if this
is necessary for the correct operation of the appliance.
The water may drip from the discharge pipe of the pressure-relief device and that this pipe must
be left open to the atmosphere; The pressure-relief device is to be operated regularly to remove
lime deposits and to verify that it is not blocked.
In order to drain away the water inside the inner container, it can be drained away from the
pressure release valve. Twist the thread screw of the pressure release valve off, and lift the drain
handle upwards.(See Fig.1) A discharge pipe connected to the pressure-relief device is to be
installed in a continuously downward direction and in a frost-free environment.
IPX475
220-240 I
28
47
74
93

4
2.3 Brief introduction of product structure
(Note:All dimensions are in mm)
PRODUCT STRUCTURE FOR D*-*ED3
B
AC
D
E
F
A
B
C
D
E
F
D50-15ED3 D80-15ED3
355
470
250
871
470
183
415
470
280
1014
530
269
D30-15ED3
355
302
250
586
470
183

3. UNIT INSTALLATION
2.4 Internal Wire Diagram
5
WIRING DIAGRAM
Thermal
Cut Out
Thermal
Cut Out
Power
Indicator
Heating Indicator
Thermostat
Thermostat
Heating Element
Power
Brown
Blue
Yellow/Green
E
N
L
Q Q
01
2
1
0
2
Q
Q
3.1 Installation Instruction
①
②
This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot
bear the load equal to two times of the total weight of the heater filled fully with water, it is
then necessary to install a special support.
Incase of hollow bricks wall, ensure to fill it with cement concrete completely.
After selecting a proper location, determine the positons of the two install holes used for
expansion bolts with hook, Make two holes in the wall with the corresponding depth by using
a chopping bit with the size matching the expansion bolts attached with the machine, insert
the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electri-
cal water heater on it (see Fig.2).
(Fig.2)
Expansion bolt (with hook)

3.2 Pipelines Connection
6
①
②
③
The dimension of each pipe part is G1/2” ; The massive pressure of inlet should use Pa as
the unit; The minimum pressure of inlet should use Pa as the unit.
Connection of pressure relief valve with the heater on the inlet of the water heater.
In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with
the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).
(Fig.4)
Hot water outlet Cold water inlet
Rubber seal gaskets
Pressure relief valve
Pressure release hole
Joint screw for cold water inlet
Adjusting handle for
mixing valve
③
④
Install the supply socket in the wall. The requirements for the socket are as follows: 250V/10A,
single phase, three electrodes. It is recommended to placed the socket on the right above
the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3).If
there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified
person who is able to do this so as to ensure the safety.
If the bathroom is too small, the heater can be installed at another place. However, in order
to reduce the pipeline heat losses, the installation position of the heater shall be closed to
the location shall be as near as possible to the heater.
(Fig.3)
N (Blue)
Ground
≥1.8m
L (Brown) E (Yellow/Green)
Hot water
Rubber seal gaskets
Power cord

If the users want to realize a multi-way supply system, refer to the method shown in fig.5
and fig.6 for connection of the pipelines.
7
④
(Fig.6)
(Fig.5)
Pressure relief valve
Water inlet valve
Pressure relief valve
Water inlet valve
Water inlet valve
Running water pipe
Running water pipeMixing valve
Mixing valve
Water pool
Water pool
Triple joint
Triple joint
Shower nozzle
Water inlet valve
Shower nozzle
Hot
water
outlet
Hot
water
outlet
Cold
water
inlet
Cold
water
inlet
VERTICAL INSTALLATION
HORIZONTAL INSTALLATION
Power cord
Power cord

8
NOTE
Please be sure to use the accessories provided by our company to install this electric
water heater. This electric water heater can not be hung on the support until it has been
confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from
the wall, resulting in damage of the heater, even serious accidents of injury. When
determining the locations of the bolt holes, it shall be ensured that there is a clearance
not less than 0.2m on the right side of the electric heater, to convenient the maintenance
of the heater, if necessary.
(Fig.7)
4.1 Operating Of The Unit
4. METHODS OF USING
NOTE
During normal operation, the inlet valve shall be always kept open.
12
First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet
valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies
that the heater has been filled fully with water, and the outlet valve can be closed.
Insert the supply plug into the supply socket, the indicator will light up this time.
The thermostat will automatically control the temperature. When the water temperature inside
the heater has reached the set temperature, it will switch off automatically, when the water
temperature falls below the set point the heater will be turned on automatically to restore the
heating.
●
●
●
PRODUCT FOR D*-*ED
5
6
7
3
4
8

9
①
②
③
"2"button is for frequency switch. When press firstly, display screen "4" will show the three
frequency option( index number "1" means 1200W, index number "2" means 2000W,index
number "3" means Smart Function) , the three display number will be displayed back and
forth.
"3" is for temperature adjustment knob with up and down. Temperature increases by
clockwise rotation, and decreases if anticlockwise. During the rotation , desplay screen " 4"
will change accordingly. When temperature setting meets customers' requirements, stop
rotating and display screen "4" will flash for around 3 seconds, which means temperature
has been setted successfully. After flashing ,display screen "4" value will return to current
inner water heater temperature.
"1" is the on/off button, when press , water heater start working,display screen will be lighted
up. Then press again, electricty will be cut off, and display screen will be shut down.
④
"6" is for frequency display. If number " 1" comes out , it means 1200W(only one tank is
heating ) ; If number "2" comes out , it means the two inner tank has been being heated up ,
i.e 2000W.If number "3" comes out , it means Smart Function. Press buttons SET simultane-
ously and keep them pressed for 3 seconds , it means antibacterial mode.
⑤
From "5" &"7"(this horizontal strip ) , customer could tell heating status . The light "5" will
turn on when power is connected. According the temperature setted, the light "7" will be
shown in red which means water heater is being heated. When inner water heater tempera-
ture reaches the setted value , light "7" will turns off , which means water heater enter into
warm-keeping status.
⑥
"4" could show the current inner water temperature as well as setted temperature value.If
no person operates on water heater , the value in display screen " 4" means current
temperature value .By spinning knob "3" , "4" values will vary accordingly ( i.e temperature
setting process) , when finish temperature setting , "4" values will return back to actual
current inner water heater temperatrue
⑦
Long press the on on/off button(“1”) for 3 seconds, and the WiFi light starts to flash. After
the connection is completed, the WiFi light is always on.
4.2 Error code for serviceman’s use (D*-*ED3)
E2: Dry Ashing---Top up with water and re-heat.
E3: Overheating---Check the heating system or replace it.
E4: Sensor Fault---Check the sensor or replace it.

5. MAINTENANCE
WARNING
Non-professionals are not allowed to disassemble temperature limiter to reset . Please
contact prefessionals to maintain. Otherwise our company will not take responsiblity if any
quality accident happens because of this
!
Check the power supply plug and socket frequently to make sure that they have good, reliable
contact and are well grounded without overheating phenomenon.
If the heater is not used for a long time, especially in the regions with low atmospheric tempera-
ture(lower than 0℃), the water inside the heater shall be drained away. This will prevent the
damage to the heater due to water freezing in the inner container, (Refer Cautions in this
manual for the method to drain away the water from the inner container).
In order to ensure that the water heater operates efficiently for a long time, it is recommended
to clean the inner container and the deposits on the electrical heating components periodically.
It is recommended to examine the magnesium anode protection materials every six months or
so. If all the material has been consumed, please replace with the new material.
●
●
●
●
WARNING
Do cut off power supply before maintenance, to avoid danger like electric shock.
!
Temperature limiter cut off electricty if water heater is overheated or thermostat damages.Manual
resetting is needed. Ressetting knob is as follows (see Fig.9).
●
(Fig.9)
Manual reset button
10

11
6. TROUBLESHOOTING
NOTE
This products are not equipped with plug. Please contact prefessionals to purchase and
install plug. Parts illustrated in this use and care manual are indicative only, parts provided
with the product may differ with illustrations.This product is intended for household use only.
Specifications are subject to change without notice.

12
The electrical storage water heater D50-15ED3 of the company MIDEA Ltd. was tested with a declared
load profile of the size “M”
that correspond to the water heating efficiency class “B”
The product fulfills and corresponds to the requirements of the commission regulation standards (No
814/2013) for electrical storage water heater and achieved a water heating energy efficiency of
In accordance with AnnexⅡEnercy Efficiency Classes article 1 of the commission regulation (No
812/2013)
The evaluation of the result of this report with respect of conformity with the related commission regulation
(No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.
Electricity consumption Qelec, water heating energy efficiency ηwh and mixed water at 40°C (V40).
ηwh=39%
Description Parameter Value Unit
k-Value k
Smart control compliance smart
Smart control factor SCF
Conversion coefficient CC
Ambient correction term Qcor
Referenct energy Qref
Useful energy content QH2O
Correction ratio of reference and useful energy Qref/QH2O
Daily electricity consumption (measured) Qtest_elec
Water temperature at the beginning of the 24h measurement
cycle T3
Water temperature at the end of the 24h measurement cycle T5
Storage volume Mact
Storage volume Cact
Daily electricity consumption (corrected) Qelec
Water heating energy efficiency ηwh
Annual Electricity Consumption AEC
Water heating energy efficiency class
Water temperature without tapping Tset
Average water temperature of inlet cold water θc
Normalised value of the average temperature θp
Calculated volume that delivered hot water of at least 40℃V40
%
kWh
kWh
kWh
kWh
℃
℃
kg
L
kWh
kWh
kWh
kWh
kWh
kWh
℃
℃
℃
L
%
Sequence of SMART tapping cycles used during the test
Useful energy content of the hot water drawn-off during
smart period Qreference,H2O expressed in kWh:
Useful energy content of the hot water drawn-off during
smart period Qsmart,H2O expressed in kWh:
The weekly electricity consumption with smart controls
The weekly electricity consumption without smart controls
Qelec,week,smart
Qelec,week
Qreference,H2O
Qsmart,H2O
7. Produce information with EU regulation
0.23
1
23.2
2.5
-0.082
5.845
5.958
0.981
7.423
73.9
71.4
47
47
7.417
22.161
22.157
26.662
29.288
39.2
1309
B
73
10.4
72.6
75
M/S/M/S/M

13
The electrical storage water heater D80-15ED3 of the company MIDEA Ltd. was tested with a declared
load profile of the size “M”
that correspond to the water heating efficiency class “B”
The product fulfills and corresponds to the requirements of the commission regulation standards (No
814/2013) for electrical storage water heater and achieved a water heating energy efficiency of
In accordance with AnnexⅡEnercy Efficiency Classes article 1 of the commission regulation (No
812/2013)
The evaluation of the result of this report with respect of conformity with the related commission regulation
(No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.
Electricity consumption Qelec, water heating energy efficiency ηwh and mixed water at 40°C (V40).
ηwh=39%
Description Parameter Value Unit
k-Value k
Smart control compliance smart
Smart control factor SCF
Conversion coefficient CC
Ambient correction term Qcor
Referenct energy Qref
Useful energy content QH2O
Correction ratio of reference and useful energy Qref/QH2O
Daily electricity consumption (measured) Qtest_elec
Water temperature at the beginning of the 24h measurement
cycle T3
Water temperature at the end of the 24h measurement cycle T5
Storage volume Mact
Storage volume Cact
Daily electricity consumption (corrected) Qelec
Water heating energy efficiency ηwh
Annual Electricity Consumption AEC
Water heating energy efficiency class
Water temperature without tapping Tset
Average water temperature of inlet cold water θc
Normalised value of the average temperature θp
Calculated volume that delivered hot water of at least 40℃V40
%
kWh
kWh
kWh
kWh
℃
℃
kg
L
kWh
kWh
kWh
kWh
kWh
kWh
℃
℃
℃
L
%
Sequence of SMART tapping cycles used during the test
Useful energy content of the hot water drawn-off during
smart period Qreference,H2O expressed in kWh:
Useful energy content of the hot water drawn-off during
smart period Qsmart,H2O expressed in kWh:
The weekly electricity consumption with smart controls
The weekly electricity consumption without smart controls
Qelec,week,smart
Qelec,week
Qreference,H2O
Qsmart,H2O
0.23
1
21.5
2.5
-0.107
5.845
5.958
0.981
7.803
74
71.9
74
74
7.781
22.157
22.156
28.364
31.426
39.0
1315
B
73
10.4
72.6
110
M/S/M/S/M

www.midea.com/global
The product is subject to change without notice.
Please keep this manual properly.
Midea Italia S.r.l. a socio unico:
Viale Luigi Bodio 29/37
20158 Milano Italia
midea.com/it

Storage Electric Water Heater
L'immagine sopra indicativa e ha il solo scopo di descrivere il prodotto.
Considerare le informazioni del manuale e le specifiche di
riferimento per le informazioni effettive.
Manuale utente e di
installazione
Modelli: D50-15ED3
D80-15ED3
Grazie per aver acquistato uno scaldacqua Midea! Questo prodotto
conforme ai pi elevati standard di qualit disponibili. Prima di installare
ed utilizzare il prodotto, leggere questo manuale e conservarlo per le
future necessit di consultazione.

1
Titolo Pagina
1.Precauzioni.......................................................................................................................(2)
2.Introduzione al prodotto....................................................................................................(3)
3.Installazione dell’unit ........................................................................................................(5)
4.Metodi di utilizzo ..............................................................................................................(7)
5.Manutenzione...................................................................................................................(9)
6.Risoluzione dei problemi ................................................................................................(10)
7.Informazioni sul prodotto in merito alle normative EU.................................................... (11)
●
●
●
L'installazione e la manutenzione del prodotto devono essere effettuate da personale qualificato
o da centri assistenza tecnica autorizzati da Midea.
Il produttore non deve essere ritenuto responsabile per qualsiasi danno o malfunzionamento
causato da installazione errata o dal mancato rispetto delle istruzioni incluse in questo libretto.
Per maggiori informazioni sulle condizioni di installazione e manutenzione dei prodotti, fare
riferimento a quanto segue.
Indicazioni generali
TABLE OF CONTENTS

●
●
●
●
●
●
●
●
2
La presa di alimentazione deve essere collegata alla messa a terra. La corrente nominale della
presa non deve essere inferiore a 10A. La presa e la spina non devono venire in contatto con
liquidi o vapore per evitare cortocircuiti.
La presa non deve essere posizionata ad un’altezza dal suolo inferiore a 1.8m.
La parete in cui deve essere installato lo scaldabagno elettrico deve poter sorreggere il doppio
del peso dell'elettrodomestico completamente pieno d'acqua senza deformazioni o crepe.
In caso contrario, necessario adottare delle misure di rinforzo della parete.
La valvola di sicurezza collegata allo scaldabagno deve essere installata in prossimit della
presa di ingresso dell'acqua fredda. Assicurarsi che la valvola non sia non sia esposta a vapore.
Il prodotto pu essere svuotato mediante lo scarico della valvola di sicurezza: agire sulla leva per
aprire la valvola e consentire lo scarico dell'acqua (Vedi Fig. 1)., rivolta verso il basso e deve
essere previsto un sistema di scarico che non sia soggetto a congelamento.
Prima di installare questo scaldabagno, verificare che l'alimentazione elettrica sia correttamente
connessa e che il collegamento di messa a terra sia adeguato. In caso contrario, lo scaldabagno
non pu essere installato e utilizzato. Non utilizzare prolunghe. La non corretta installazione e lo
scorretto utilizzo di questo scaldabagno possono essere causa di lesioni e danni materiali alle
propriet.
Avvertenze speciali
1. Precauzioni
(Fig.1)
In corrispondenza del primo avviamento del prodotto o dopo un'attivit di manutenzione, l'appare-
cchio non pu essere attivato se non completamente riempito di acqua. Durante il riempimento, il
rubinetto dell'acqua calda deve essere mantenuto costantemente aperto per far fuoriuscire l'aria
dal prodotto. Chiudere il rubinetto quando il prodotto pieno di acqua e procedere all'accensione
dell'unit.
Lo scaldabagno non destinato all'utilizzo da parte di persone (inclusi bambini) con capacit
motorie, sensoriali o mentali ridotte, o mancanza di competenza o esperienza, a meno che non
siano supervisionati o guidati nell'uso dell'elettrodomestico da una persona responsabile per la
loro sicurezza. Assicurarsi che i bambini non giochino con lo scaldabagno.
Durante il riscaldamento dell'acqua possibile che alcune gocce di acqua fuoriescano dalla
valvola di sicurezza: Questo fenomeno normale. Se la quantit dell’acqua espulsa maggiore ad
alcune gocce, contattare un centro assistenza tecnica autorizzato dal produttore o il rivenditore.
Non ostruire mai, per nessun motivo il condotto di scarico; se il condotto di scarico ostruito, si
possono determinare gravi danni o incidenti con possibili danni a cose o persone.
Lo scarico dell’acqua deve essere rivolto verso il basso e deve essere previsto un sistema di
scarico che non sia soggetto a congelamento.
Acqua calda Acqua fredda
Vavola di sicurezza
Perno valvola
Leva
Foro uscita acqua

●
●
●
●
●
●
●
3
2. Introduzione al prodotto
2.1 Nomenclatura
D -
NOTA
Questo manuale si riferosce esclusivamente ai prodotti commercializzati da Midea Italia
S.r.l. a socio unico.
①Codice prodotto: D = Scaldacqua elettrico
②Capacit (L)
③Potenza elettrica (W Moltiplicato 100)
④Codice prodotto (es: A,B,C...);
⑤Serie produttiva (es: 1,2,3...)
①② ③ ④ ⑤
Modello
Tensione
Nominale
(VAC)
IPX4
IPX4
IPX4
75
75
75
0.8
0.8
0.8
220-240
220-240
220-240
1500
1500
1500
28
47
74
D30-15ED3
D50-15ED3
Potenza
Nominale
(W)
Volume
(L)
Pressione
(MPa)
Temperatura
(℃)
Grado di
protezione
2.2 Dati tecnici prodotti
I
I
I
D80-15ED3
La temperatura dell'acqua nello scaldacqua pu raggiungere valori prossimi a 75℃.Utilizzare un
sistema di miscelazione termostatica dell'acqua per i punti di prelievo, al fine di evitare ustioni e
ferite.
Se il cavo di alimentazione danneggiato, sospendere l’utilizzo del prodotto in attesa della sua
sostituzione che dovr essere operata da personale qualificato oppure da un centro assistenza
autorizzato dal produttore.
Se una o pi componenti del sistema necessitano di sostituzione perch danneggiate o degradate,
contattare l'assistenza tecnica Midea.
Assicurarsi che I bambini non giochino con il prodotto.
La pressione massima per l'adduzione acqua pari a 0.5Mpa. La pressione minima di adduzione
acqua pari a 0.1Mpa. Utilizzare gli adeguati accorgimenti per assicurare l'erogazione di acqua
entro questi limiti di pressione.
Durante il riscaldamento dell'acqua è possibile che alcune gocce di acqua fuoriescano dalla
valvola di sicurezza: la tubazione di espulsione deve essere lasciata libera di scaricare in
ambiente. La valvola di sicurezza deve essere verificata periodicamente per assicurarsi del suo
corretto funzionamento.
Il prodotto può essere svuotato mediante lo scarico della valvola di sicurezza: agire sulla leva per
aprire la valvola e consentire lo scarico dell'acqua (Vedi Fig. 1).
Lo scarico dell'acqua deve essere rivolto verso il basso e deve essere previsto un sistema di
scarico che non sia soggetto a congelamento.
IPX4750.8
220-2401500
93
D100-15ED3
I
Classe di
protezione

A
B
C
D
E
F
D50-15ED3 D80-15ED3
355
470
250
871
470
183
415
470
280
1014
530
269
4
2.3 Schemi dimensionali
(Nota: tutte le dimensioni sono espresse in mm)
2.4 Internal Wire Diagram
Protettore
Termico
Protettore
Termico
Indicatore
Presenza
Rete
Indicatore di riscaldamento
Termostato
Termostato
Resistenza di riscaldamento
Modulo di
potenza
Marrone
Blu
Giallo/Verde
E
N
L
Q Q
01
2
1
0
2
Q
Q
B
AC
D
E
F
SCHEMA ELETTRICO
D30-15ED3
355
302
250
586
470
183
