Comfort Bilt HP61 User manual

Operator's
Manual
HP61
Pellet Stove
WWW.COMFORTBILT.NET

TABLE OF CONTENTS
Safety Precautions...........................3-6
Introduction and Pellets......................7
Safety and Other Features..................8
Specifications.......................................9
Installation and Placement................10
Floor Protection Requirements........10
Clearances to Combustibles.............11
Stove Venting................................12-14
Outside Air Connection.....................15
Mobile Home Installation...................15
Stove Venting Examples..............16-21
Controller Operations...................22-23
Pre-Operation.....................................24
Startup and Operation Modes...........25
Setting Data on Controller...........26-28
Diagnostics.........................................29
Maintenance and Care..................30-32
Troubleshooting & Warranty............33

WARNING
Please read this entire manual before
installation or use of this pellet fuel-
burning room heater. Failure to follow
these instructions may result in property
damage, bodily injury, or even death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance
Do not overheat - If any external
component starts to glow, the stove is
overheating. Reduce the feed rate as
over-firing will void the warranty
Comply with all minimum clearances to
combustibles as specified. Failure to
comply may cause a house fire.
WARNING
HOT! Do not touch. Severe burns
and/or the ignition of clothing may
occur. Glass and other surfaces are hot
during operation and cool down.
Keep children away
Carefully supervise children in
same room as appliance.
Do not operate without
protective barriers in place.
Keep clothing, furniture,
draperies, and other flammable
materials away.
CAUTION
Check building codes prior to installation. Contact
the regulating authority prior to installation to
determine the need for a permit.
Installation must comply with local, regional,
state, and national codes and regulations.
Consult local building or fire officials about
restrictions or inspection requirements in your
area.
Important operating and maintenance
instructions included.
Read, understand, and follow these
instructions for safe installation and
operation.
This manual is to be left with the party
responsible for use and operation.
CAUTION
DO NOT DISCARD!
3

OWNER'S RESPONSIBILTY
Proper assembly, safety, and use of the
stove is the owner's responsibility.
Read and follow all safety instructions.
Carefully follow all assembly instructions.
Maintain the stove according to the directions
and schedule provided within this operator's
manual.
Ensure that anyone who operates the stove is
familiar with all controls and safety
precautions.
SPECIAL MESSAGES
This Manual contains special messages to bring
attention to potential safety and product
damaging concerns, as well as helpful operating
and servicing information. Please read all of the
information carefully to avoid potential injury and
stove damage.
NOTE: General information is given
throughout the manual that may aid in the
operation or service of the stove.
IMPORTANT SAFETY PRECAUTIONS
Please read this section carefully.
Operate the stove according to the safety
instructions and recommendations outlined here
and inserted throughout the text. Anyone who
uses this stove must read the instructions and be
familiar with the controls
This symbol points out important
safety instructions which, if not
followed, could endanger your
personal safety. Read and follow all
instructions in this manual before
attempting to operate this
equipment.
4
You must read, understand, and comply with all
safety and operating instructions in this manual
before attempting to setup and operate your stove.
Failure to comply with all safety and operating
instructions can result in serious personal injury to
you and/or bystanders, and/or property damage.
DANGER
Indicates a serious injury or fatality WILL result if
the safety instructions that follow this signal word
are not obeyed.
WARNING
Indicates a serious injury or fatality COULD result
if the safety instructions that follow this signal
word are not obeyed.
CAUTION
IMPORTANT
Indicates minor or moderate injury to you or your
property COULD result if the safety instructions
that follow this signal word are not obeyed.
Indicates helpful information for proper assembly,
operation, or maintenance of your equipment.
WARNINGS AND SAFETY
PRECAUTIONS

Read this entire manual before you install and
use your new pellet stove. Failure to follow
instructions may result in property damage,
bodily injury, or even death.
Children and adults should be alerted to the
hazards of high surface temperatures and
should avoid contact to skin and/or clothing.
Young children should be carefully supervised
when they are in the same room as the stove
Clothing and other flammable materials should
not be placed on or near this unit
Flammable or explosive liquids such as gasoline,
naphtha, alcohol, or engine oil must NEVER be
used in or around stove. These liquids must be
stored in a separate room as the open flame in
the fire box could ignite the fumes of such
liquids.
WARNING
Proper installation of this stove is necessary for
safe and efficient operation. Installing this product
improperly may result in a house fire and/or
personal injury.
All applicable building codes for your location must
be followed. In areas where building codes require
additional steps to the installation of this product not
included in this manual, the building codes will take
precedence and must be followed. Contact your
local building inspector to obtain any necessary
permits or inspection guidelines before installing the
product.
WARNING
CAUTION
Tested and approved for pellet fuel. Burning
any other type of fuel voids warranty.
5
WARNING
If the electrical power fails at any time when
the stove is hot, keep all stove doors closed.
The automatic safety features must not be
bypassed.
CAUTION
Burning wood pellets according to recommendations
will assure longer stove life and less fuel related
problems. The use of grates or other methods of
supporting the fuel in this stove is prohibited and will
void all warranties.
DO NOT
Burn garbage in this unit. The burning of
other solid fuels such as cord wood or wood
chips in this stove is not permitted. Any
fuels not certified which are burned in this
stove will void the warranty
Route power cord in high traffic areas. A
power surge protector plugged into a
grounded 230 volt power source is required.
Install a flue damper in the exhaust venting
system of this unit.
Connect this unit to a chimney flue servicing
another appliance
Install in a sleeping room.
Connect to any air distribution duct or
system.
Connect directly to a masonry chimney
Terminate vent in any enclosed or semi-
enclosed area, such as; carports, garage,
attic, crawl space, under a sun deck or
porch, narrow walkway or closed area, or
any location that can build up a
concentration of fumes such as a stairwell,
covered breezeway etc
NEVER touch door latches or heat tube
scraper while stove is in operation; they get
extremely hot.
WARNING

6
All applicable building codes for your location
must be followed. In areas where building codes
require additional steps to the installation of this
product that are not included in this manual, the
building codes will take precedence and must be
followed. Contact your local building inspector to
obtain any necessary permits or inspection
guidelines before installing the product.
Contact local building or fire officials about
restrictions and installation inspection
requirements in your area
Contact your local authority (such as municipal
building department, fire department, fire
prevention bureau, etc.) to determine the need
for a permit
This pellet stove is designed to burn pellet fuel
only
A working smoke detector is required and must
be installed in the same room as the stove.
This stove is not intended for use in
commercial applications
Door and ash pan must be closed and latched
during operation
Notify your insurance company of pellet stove
installation
This installation must conform with local codes.
In the absence of local codes you must comply
with EN 14785.
The structural integrity of the manufactured
home floor, wall, and ceiling/roof must be
maintained.
Keep combustible materials (such as grass,
leaves, etc.) at least three feet away from the
flue outlet on the outside of the building.
This stove should not be used as the only
source of heat in the house. Power outages
and periodic maintenance will result in a total
loss of heat.
Do not leave hopper door open while
unattended.
CAUTION CAUTION
Installation and repair of this pellet stove
should be done by a qualified service person.
The appliance should be inspected before
use and at least once per year by a qualified
service person. It is imperative that the control
compartments, fire box, and circulating air
passageways of the stove are kept clean.
The operation of exhaust fans such as
bathroom fans, attic fans, etc... might starve
the pellet stove of combustible air, creating a
negative pressure in the room. Provide
adequate ventilation of the room the stove is
installed in, otherwise the pressure switch may
shut off operation of the pellet stove.
The moving parts of this stove are propelled
by high torque electric motors. These parts
can cause severe damage to body parts that
get near them. Keep all body parts away from
auger and fans while the stove is plugged into
an electrical outlet. Moving parts are subject
to begin moving while power is supplied.
The venting surfaces can become hot enough
to cause burns if touched. Non combustible
shielding or guards may be required.
Install all venting at the clearances specified
by the vent manufacturer. All venting joints,
whether vertical or horizontal, should be made
gas-tight with recommended sealants
specified by vent manufacturer.
According to HUD (Housing & Urban
Development) requirements, when installing
within a mobile home, this stove must be
grounded directly to the steel chassis of the
mobile home, and bolted to the floor. Direct air
access must be provided by way of a fresh air
intake kit.
For use in the United States and Canada.
Approved for installation in mobile homes.
Producer of this appliance reserves the right to
alter its products, specifications, and/or price
without notice.

INTRODUCTION
Congratulations on your investment in quality. We
have worked hard to ensure that this pellet stove
meets the highest standards for usability and
durability. With proper care, your stove will provide
many years of dependable service. Please read
entire manual before installation and use.
Complies with the ASTM E1509, (UM) 84-HUD,
ULC/ORD-C-1482.
U.S. Environmental Protection Agency Certified to
comply with 2020 particulate emission standards
using pellet fuel.
BURNING PELLET FUEL
Ashes need to be removed from the stove
periodically. See Normal Care & Maintenance
section for cleaning procedures.
Due to the nature of pellet fuels, this stove will
require attention periodically. Regular cleaning is
an important part of burning pellet fuel.
PELLETS
This pellet stove is designed and approved to
burn wood pellets, that comply with pellet fuels
industry standards. Minimum of 40 lbs. density
per cubic foot, 1/4" to 5/16" in diameter, with a
maximum length of 1" to 1/2", and less than 1%
ash.
The performance of your pellet stove is greatly
affected by the type and quality of the wood
pellets you use. As the heat output of various
quality wood pellets differ, so too will the
performance and heat output of the pellet stove.
Wood pellets are generally produced out of
wood waste such as sawdust and shavings.
The raw material is dried, mechanically
fractioned to size and extruded into pellets
under high pressure. Wood pellets need to be
protected from direct exposure to moisture.
Water, from sources such as condensation and
humidity, causes pellets to expand and break
down into unusable fuel. Keep fuel dry.
It is important to select and use only pellets that
are dry and free from dirt and debris. Dirty fuel
will adversely affect the operation and
performance of the unit, and will void the
warranty. The Pellet Fuel Institue (PFI) has
established standards for wood pellet
manufactuerers. Only use pellets that meet or
exceed PFI standards for premium fuels.
7
CLINKERS
Impurities, such as silica (clinkers), will need to be
regularly cleaned and removed from the pellet
stove. Clinkers will form a hard mass and block
airflow through the pot liner. High quality fuels will
usually result in fewer clinkers.
Pellet fuel quality can greatlly fluctuate. The unit
was tested with premium grade pellets. You
cannot use a lesser grade, but higher grades can
be used.
Do Not Burn:
Garbage
Lawn clippings or yard waste.
Materials containing rubber, including tires.
Materials containg plastic.
Waste petroleum products, paints or paint
thinners, or asphalt products.
Materials containing asbestos.
Construction or demolition debris.
Railroad ties, or pressure-treated wood.
Manure or animal remains
Paper products, cardboard, plywood, or
particleboard. The prohibition against using
these materials does not prohibit the use of fire
starters made from paper, cardboard, saw dust,
wax and similar substances for the purpose of
starting a fire in an affected wood heater.
Burning these materials may result in the release of
toxic fumes or render the heater ineffective and
cause smoke.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

AUTOMATIC SAFETY FEATURES
During a power outage, the stove will shut down
safely. Do not open the main door or ash pan
door. During a power failure, the exhaust fan will
not run. Keeping the doors sealed will allow the
exhaust vent to draft out naturally. When the
power is restored, the stove will not restart. If the
exhaust temperature is still 120 degrees
Fahrenheit when power is restored, the exhaust
and convection fans will continue to run until the
stove cools. See lighting instructions to restart
stove.
POWER OUTAGE
OVERHEATING
Over Fire Protection: If the stove is being over
fired or burning too hot, the high limit switches will
automatically shut down the stove to avoid
damage to other components. If the temperature
on the hopper reaches 200 degrees Fahrenheit,
the auger will automatically stop and the stove will
shut down. The exhaust fan will continue to run
until the proof of fire switch cools. Allow the stove
to cool before attempting to re-ignite. See Start-
Up.
UNDERSTANDING YOUR STOVE
Your stove utilizes a vertical auger fuel feed system
that is operated by a microprocessor controlled
digital circuit board. The digital circuit board allows
the vertical auger fuel system to run in a timer
based, non-continuous cycle. This cycling allows
the auger to run for a predetermined amount of
time. The auger pushes pellets up a chute located
in the hopper. The pellets will then turn and fall
through another chute into the burn pot. Your stove
is equipped with an automatic ignition system that
should ignite the fuel within 3-5 minutes of pressing
the On/Off button. As pellets fill the burn pot and
ignite, outside air is drawn across the fuel and
heated during the combustion process with is then
pulled across the heat exchange tubes by the
exhaust motor. As the stove reaches operating
temperature, the room air is then circulated around
the heat exchange tubes by a room air blower,
distributing warm air into the room. The amount of
heat that is produced by the stove is proportional to
the rate of fuel that is burned. Because a forced
draft pressure is required for the combustion
process inside the stove, it is extremely important
that the exhaust system be properly installed and
maintained. Also, the doors must remain closed
while in operation and the seals on the doors must
be properly maintained.
Install at least one smoke detector on each floor
of your home to ensure your safety. They should
be located away from the stove, and close to the
sleeping areas.
You should have separate CO monitors for areas
near the stove
8
OTHER STOVE FEATURES
Exchange Tube Scraper: Scrapes the carbon
buildup that can accumulate on the heat-transfer
tubes. Never touch while stove is Hot.
See Figure A
Glass Air Wash System: Allows the stove to
draw in air, through the lined up slots, to gently
wash against the interior of the glass to help
keep it free of soot buildup. To the right is open,
to the left is closed. See Figure B Figure A: Scraper Figure B: Glass Airwash

9
SPECIFICATIONS
GLASS SPECIFICATIONS
This stove is equipped with ceramic glass.
Replace glass only with Qualified ceramic glass.
Model Number
BTU/Hour Output (1)
Heating Capacity (2)
Particulate Emissions
Efficiency
Power Consumption
Power Consumption
Fuel Storage Capacity
Exhaust Size
Width
Height
Depth
Weight
Exhaust center to floor
Exhaust center to side
Room Blower CFM
HP61
22,000-50,000
Up to 3,000 sq. ft.
1.211 g/hr
84%
520 Watts ignition
150 Watts operaton
51 lbs
3" Standard
24"
33"
27.5"
280 lbs.
12.5"
6.75"
142 CFM
WARNING
If you see black smoke at the end of the
exhaust/chimney, these are not normal emissions.
Check for clinkers or blockages in the burn pot.
Check for leakages around the stove, such as
glass door or ash pan.
Check for potential blockages in the exhaust
channels.
Check that the exhaust voltages are correctly set.
1.
2.
3.
4.
WARNING
(1) Heat output will vary depending on the brand,
type and quality of fuel, and the moisture content.
Consult your dealer for best results.
(2) Based on post 1982 home construction,
requiring 35 BTU/Hr. per Sq. Ft.
Emissions will vary, depending on the feed
level, burning time, and fuel. Consult your
dealer for best results.
Figure 1: Intake and exhaust positions
UNPACKING
Your stove will come fully assembled.
Remove all packing material and tape from the inside
of the firebox.
Remove any tape on the outside of the glass.
Open hopper, and remove all packing material and
power cord.
Note: Make sure the hopper is free of all forign matter
before filling with fuel. Forign material will cause auger
jams and will void stove warranty.
This stove has a manufacturer set minimum low
burn rate that must not be altered. It is against
federal regulations to alter this setting or otherwise
operate this stove in a manner inconsistent with the
operating instructions within this manual. If the unit
is modified, it will no longer be compliant with the
EPA regulations.

10
INSTALLATION
It is recommended that the stove be installed and
serviced by an authorized professional.
Proper installation of this stove is necessary for
safe and efficient operation. Installing this product
improperly may result in a house fire and/or
personal injury.
STOVE PLACEMENT
Sketch out a plan for installing the stove, including
dimensions, before permanent placement. When
determining the location for the stove, wall stud
location is critical. You may need to adjust the
location of the stove to avoid encountering a wall
stud. Before placing the pellet stove, connect the
vent to allow for minimum clearance to
combustable walls.
FLOOR PROTECTION REQUIREMENTS
The stove must be installed on a noncombustible
floor, with proper floor protection, or on a masonry
hearth. When a clean out T-vent is installed on the
inside of a home, the floor protector must extend 2"
beyond the rear of the T-vent. See Figure 2
When stove is vented straight through the wall and
the clean out T-vent is on the exterior of the home,
the minimum clearance is 2" from the back of the
stove to the wall. See Figure 3
Figure 2 Figure 3
Figures 2 and 3: Pellet stove floor pad clearances
WARNING
Read this entire manual before you install and use
this stove. Failure to follow the instructions may
result in property damage, bodily injury, or even
death.
Do not install a flue damper in the exhaust
venting system of this unit.
Do not connect this unit to a chimney flue that
services another appliance.
Children and adults should be aware of the
hazards of high surface temperatures and should
stay away to avoid burns to skin and/or clothing.
Young children should be carefully supervised
when they are in the same room as the stove.
Clothing and other flammable materials should
not be placed on or near this unit.
CAUTION
This stove should not be used as the only source of
heat in the home. Power outages and periodic
maintenance will result in a total loss of heat.
Contact local building or fire officials regarding
restrictions and installation inspection
requirements for your area.
Contact your local authority (Municipal building
department, Fire department, Fire prevention
bureau, etc...) to determine the need for a permit.
Keep combustible materials (such as grass,
leaves, etc...) at least 3 feet away from the flue
outlet on the outside of the building.
Installation and repair of this pellet stove should
be done by a qualified service person. The
appliance should be inspected before use, and at
least annually by a qualified service person. It is
imperative that the control compartments, fire
box, and circulating air passageways of the stove
be kept clean.

CLEARANCES TO COMBUSTIBLES
NOTE: These are minimum clearances to combustible walls.
3"
3"
3"
3"
2
"
2"
6"
6"

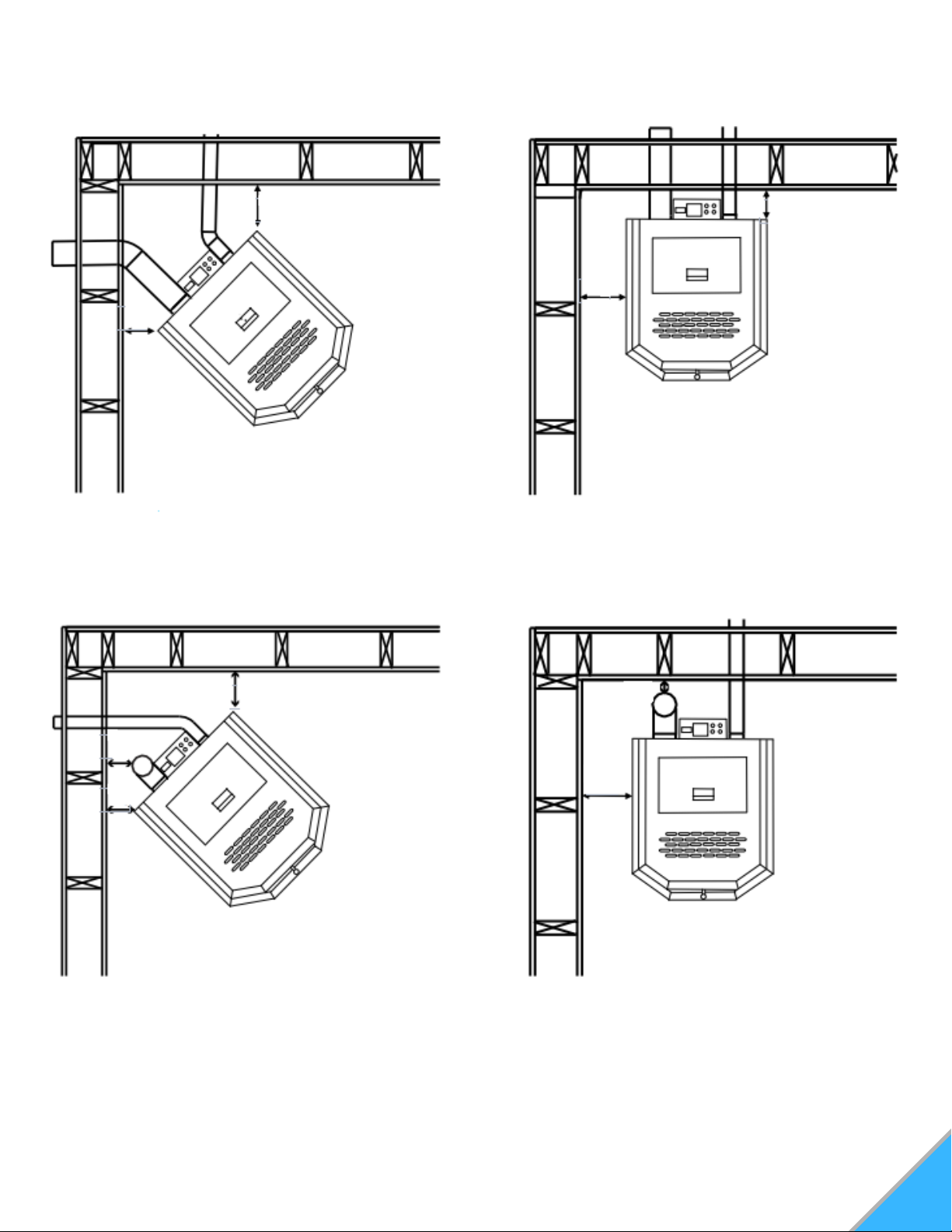

Figure 4: Corner Insallation through wall Figure 5: Straight Insallation through wall
Figure 7: Straight Insallation interior vertical ventsFigure 6: Corner Insallation interior vertical vents
NOTE: When Interior Vent is installed vertically, the clearance to the back wall is determined by the vent size
used. Install vent at clearance specified by the vent manufacturer. Take into consideration any upward turning
elbows or tees.
11
2"

VENTING
Before venting, consult vent manufacturer's
specifications and recommendations for all
venting installations.
The following installation guidelines must be
followed to ensure conformity with both the safety
listing of this stove and to local building codes.
TYPE OF VENT
The pellet venting pipe (also known as L vent) is
constructed of two layers with air space between
the layers. This air space acts as an insulator and
reduces the outside surface temperature of pipe to
allow a clearance to combustibles. A cap must be
used at the termination of type L vent chimneys.
For elevations above 5,000 feet above sea level, 4"
venting is required.
PELLET VENT INSTALLATION
Vent termination MUST exhaust above the
elevation of the air inlet. It is recommended to
install at least 3 feet of vertical pellet vent pipe.
This vertical pipe will create some natural draft to
reduce the possibility of smoke or odor during
appliance shutdown, and will keep exhaust from
causing a nuisance or hazard from exposure to
high temperatures.
The installation must include a clean out tee to
enable the collection of fly ash and to permit
periodic cleaning of the exhaust system. Total
length of horizontal vent must not exceed 10 feet.
The maximum recommended vertical venting
height is 18 feet.
All joints for pellet vent are required to be
fastened with at least three screws and
all connections (including adapters,
elbows, etc...) should be sealed airtight
by injecting 500° F RTV silicone into the
gap between sections.
The area where the vent pipe goes
through to the exterior of the home must
be sealed with silicone or other means to
maintain the vapor barrier between the
exterior and the interior of the home.
12
WARNING
Do Not connect this unit to a chimney flue that
services another appliance.
Do Not install a flue damper in the exhaust
venting system of this unit.
Do Not connect directly to a masonry chimney.
Do Not terminate vent in any enclosed or semi-
enclosed area, such as; Carport, garage, attic,
crawl space, under a sun deck or porch, narrow
walkway, or any location that can build up a
concentration of fumes such as a stairwell,
covered breezeway, etc...
CAUTION
Vent surfaces can get hot enough to cause burns if
touched. Non-combustible shielding or guards may
be required.
Pellet vent must maintain minimum clearances
to combustibles specified by vent manufacturer.
Install vent at clearances specified by the vent
manufacturer.
All venting joints, whether vertical or horizontal,
should be made gas tight with recommended
sealants.
WARNING
Never shut the stove down by unplugging it from
the power source.
Never shut the stove down from by switching off
the main power switch on the rear of the stove.

PELLET VENT TERMINATION CLEARANCE
The stove vent must terminate on the outside of the building. Horizontal terminations must extend a
minimum of 12" from the wall. Vertical terminations must protrude a minimum of 24" from the roof
surface.
In addition, all clearances listed below must be met. SEE FIGURE 8
Must have an approved cap (to prevent water from entering) or a 45 degree downturn with rodent
screen.
If the termination is located on a windy side of the house, we suggest using an approved house shield
to prevent soot from building up on the side of the house.
A vent must not be located where it may become plugged by snow or other material.
Figure 8: Vent Termination
A: Minimum 48" clearance below or beside any door or window that opens. (This clearance may be
reduced to 18" if using outside air). We recommend the door or window be kept closed during operation.
Minimum 12" clearance below or beside any window that does not open.
B: Minimum 12" clearance above any door or window that opens.
C: Minimum 24" clearance from any adjacent building.
D: Minimum 7' clearance above any grade, when adjacent to public walkways.
E: Minimum 24" clearance above any grass, plants, or other combustible materials.
F: Minimum 36" clearance from any forced air intake of another appliance.
G: Minimum 24" clearance below eaves or overhangs.
H: Minimum 12" clearance horizontally from combustible wall.
X: Must be a minimum of 24" above the roof.
NOTE: May not vent into covered walkway or breezeway.
13

14
VENTING THE PELLET STOVE
Do not install flue damper in the exhaust
venting system of this unit.
Use an approved wall thimble when
passing the vent through walls. Use a
ceiling support/fire stop spacer when
passing the vent through ceilings. (Make
sure to maintain minimum clearances to
combustibles)
If using more than one T-vent or exceed
180° of elbows, you must use 4" venting
pipe.
NOTE: In order to achieve optimum
performance, it is recommended that you keep
the vent as short as possible, especially in
regards to the horizontal run.
The vent must have a support bracket
every 5' of pellet vent when on the exterior
of the structure.
The vent height and run must not exceed
the distance as illustrated in diagram
Figure 9.
Venting into the lighter shaded area may
require combustion motor voltage
adjustments and/or inlet air adjustments
(intake).
See Figure 9

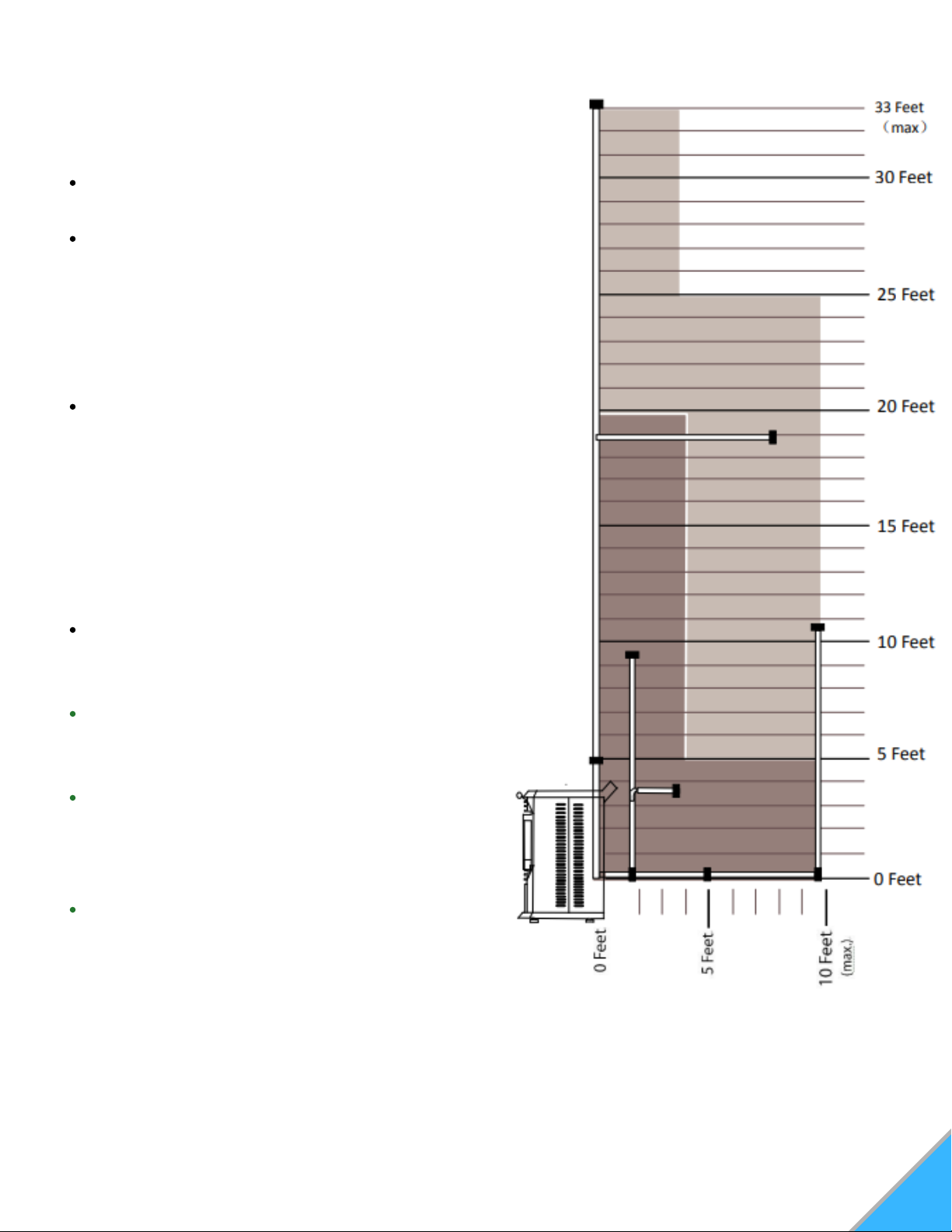

Figure 9: Venting and combustion motor
voltage adjustment chart

OUTSIDE AIR CONNECTION
Connection from the intake pipe (2" diameter
pipe in rear of stove) to the outside of the house
is REQUIRED for mobile home installation. It is
recommended in tightly sealed homes with
exhaust fans such as kitchen or bathroom fans,
or in basement installations. This will eliminate
poor performance due to negative pressure.
Only noncombustible pipe 2" (or greater) in
diameter is approved for outside air connections
(Straight of flexible). PVC pipe is NOT approved
and should NEVER be connected to the stove.
If the air inlet is connected to the outside, it
MUST be terminated with a vertical 90° bend
down, or with a wind hood. Failure to do so
could result in a burn-back if high winds blow
directly up the air inlet during a power outage.
Blockage, excessive length (more than 6-8 ft),
or extra bends in the air intake could lead to
starvation of combustible air to the stove.
15
MOBILE HOME
Installation in a mobile home should be in
accordance with the manufactured home and
safety standard (HUD), CFR 3280, Part 24. This
stove must be vented to the outside. In addition to
the standard installation instructions, the following
requirements are mandatory for installation in a
mobile home:
The stove must be permanently attached to the
floor.
Stove must have an outside air source.
Stove must be electrically grounded to the steel
chassis of the mobile home, unless 3-prong or
GFCI power outlets are provided.
All vertical chimney vents must have wall
supports.
All exhaust systems must have a spark arrestor.
Check with local building officials to see if other
codes may apply.
Structural integrity of the floor, wall and
ceiling/roof must be maintained.
1.
2.
3.
4.
5.
6.
7.
WARNING
Do not connect to any air distribution duct or
system.
Do not install in a sleeping room.
CAUTION
The operation of exhaust fans, such as bathroom
and attic fans, could create a negative pressure in
the room, causing the stove to be starved of
combustible air. Be sure to provide adequate
ventilation in the room the pellet stove is located. If
not, the pressure (vacuum) switch may shut off the
operation of the pellet stove.
The efficiency of ComfortBilt pellet stoves can be
impacted by the temperature of the air supplied to
the burn pot, and the temperature of the air that is
drawn past the heat exchange tubes to heat the
room. When exterior air supplied to the burn pot is
extremely cold, slightly more energy is required to
burn pellets at optimum temperatures. A
disadvantage of supplying interior room air to the
burn pot is that the room air used by the burn pot
(and sent out to the exhaust pipe) must be
replaced by air drawn through windows, doors,
and cracks. Using interior air is not recommended
in newer houses that are tightly sealed. Air drawn
in by the room blower is always interior room air
and should be the coolest air in the living space.
Stoves typically work best when placed on the
lower level of the home, and located so that all the
air in the space is freely available to the stove's
heat exchanger.

16

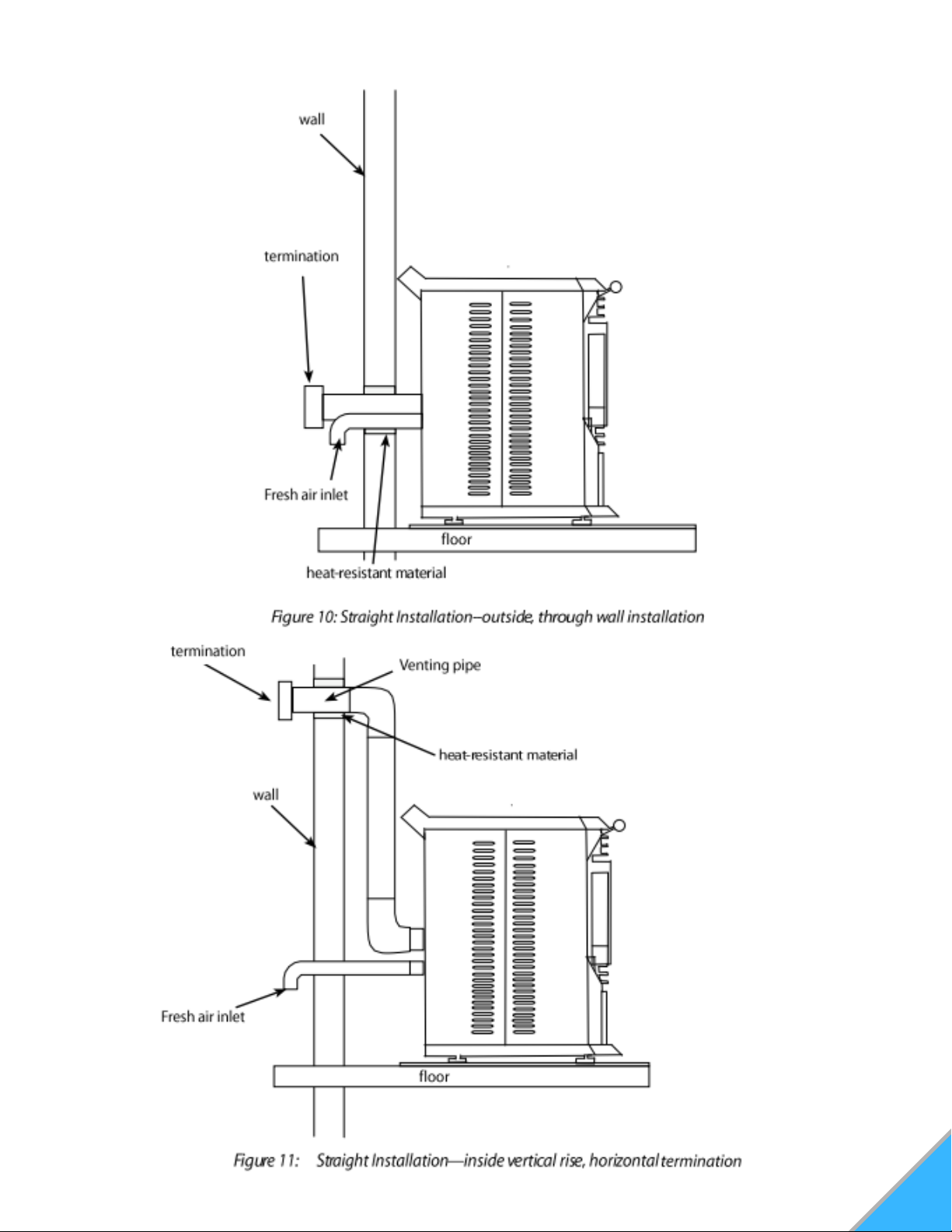

SIMPLE STOVE VENTILATION EXAMPLES

COMPLEX STOVE VENTILATION EXAMPLES
INTERIOR VERTICAL INSTALLATION
17

18
CLASS A CHIMNEY RETROFIT

19

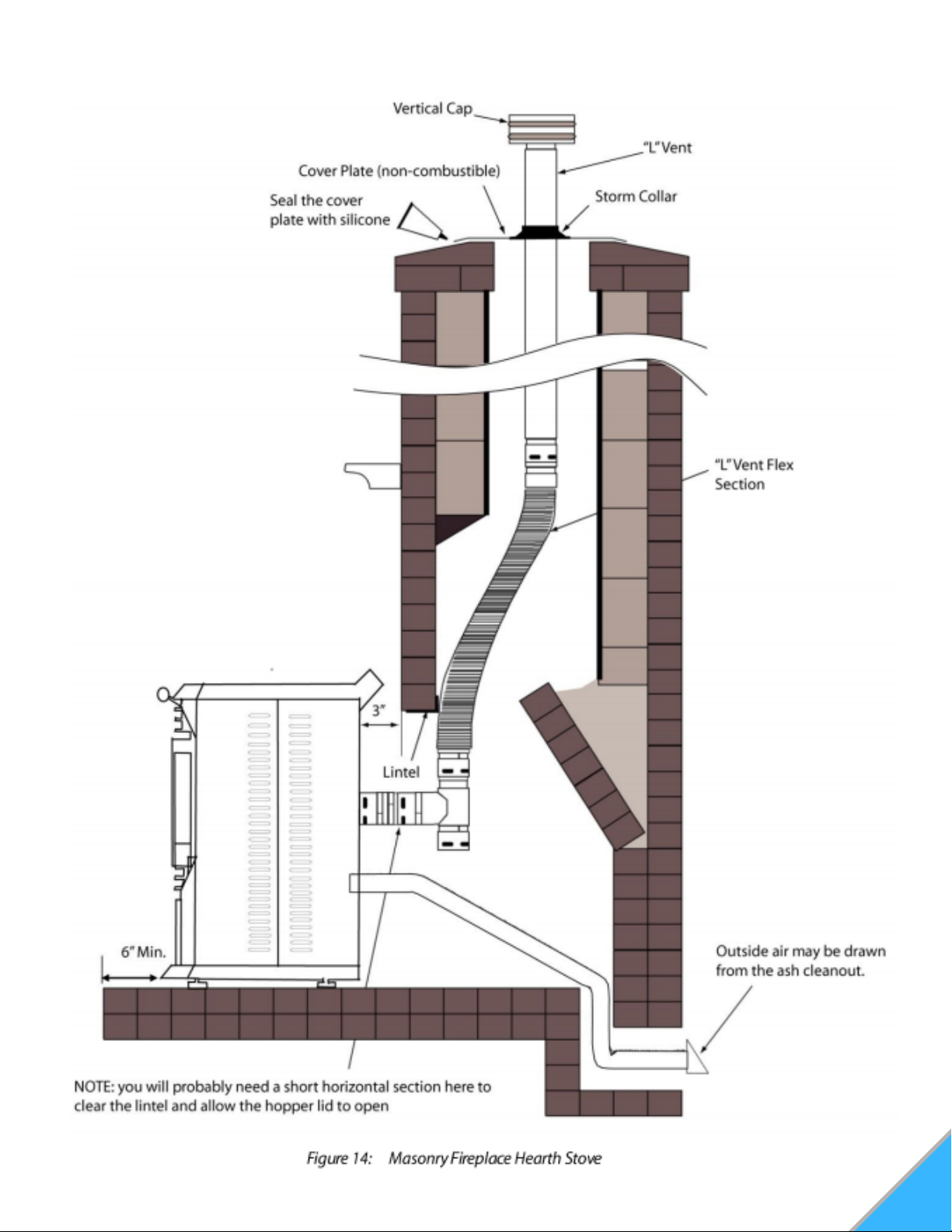

MASONRY FIREPLACE HEARTH STOVE

20
ZERO-CLEARANCE (METAL) FIREPLACE
HEARTH STOVE
