Owner’s Manual Room Air Heat Pump with R-410A
1
Room Air Conditioner & Heat Pump
Use and Care Manual
Introduction
Room air conditioners cool, dehumidify, and filter air inside
your home.Heat pump and electric heat models offer both
heating and cooling. Opening sections of manual provide
general information for all room air conditioner models.
Operating Controlssection describes operation of controls
for each model.After reading the opening sections, turn to
Operating Controlssection and find the panel layout that
matches the model of your unit.
Readentiremanualthoroughlybeforebeginninginstallation
andoperationofyournewroomairconditioner.Besureyou
have all necessary tools and materials on hand for the job.
Study illustrations to familiarize yourself with important
detailsoftheinstallationprocess. Reviewmanualforoper-
ating instructions.
NOTE
1. Mechanical experience is required to install air condi-
tioner.
2. Installation can take from 1 to 3 hours, depending on
installer’s knowledge and skill.
3. If you encounter problems during installation, call our
consumerinformationline at (86-756)8617555.
If your problem cannot be resolved by phone, contact an
authorizedGREE®brandservicer. Contactandservice
will be at your expense.
SafetyInformation
Besureelectricalserviceisadequateforchosenmodelofair
conditioner. Complete electrical rating for unit is found on
serialplatelocatedbehindfrontgrille.Electricaloutlet must
becloseenoughtounitforpowercordtoreachwithoutstrain.
Air conditioner should be the only appliance on individual
circuit.
For personal safety and to avoid possible damage to appli-
anceorhome,observeallsafetyinstructionshighlightedby
symbolshownbelow.
RECOGNIZE THIS SYMBOL AS A
SAFETY PRECAUTION.
Afterinstallingunit,rereadinstructions to ensure eachstep
iscompleteandthatallpartsarefastenedinplace.Forbest
results and to minimize installation time, perform all proce-
dures inthe order shown.
Contents
Introduction.................................................................. 1
Safety Information....................................................... 1
Normal Care & Maintenance ...................................... 3
Installation Requirements........................................... 5
Electrical Requirements.............................................. 6
InstallationInstructions ............................................... 8
Through-The-Wall Cabinet Instructions.....................10
Complete Instructions ...............................................12
General Instructions .................................................. 13
Before Calling Services...............................................17
When Service Is Required.......................................... 17
AnyQuestions?........................................................... 17
Through-The-Wall InstallationsInstructions............ 18
Set
+
-
TIMER
MED
HIGH
LOW
AUTO
POWER
FAN
SPEED MODE
COOL
ENERGYSAVER
FANONLY
HEAT
1-24HR
TEMP/TIMER
1
Operating Controls .................................................... 14
If you encounter problems during installation, call our
consumer information line at [phone] and ask for
the technical service deparment. If your problem cannot
be resolved by phone, contact an authorized servicer.
Introduction.............................................................1
Safety Information .................................................. 1
Normal Care & Maintenance.................................. 3
Installation Requirements.......................................5
Electrical Requirements..........................................6
Installation Instructions...........................................8
General Instructions ..............................................11
Operating Controls ............................................... 12
Troubleshooting....................................................14
When Service is Required....................................14
Any Questions...................................................... 14
your home. Heat pump models offer both heating and cool-
ing. The opening sections of this manual provides some
general information for all room air conditioner models. The
Operating Controls section describes operation of controls
for each model. After reading the opening sections, turn to
that matches your model.
AITONS EQUIPMENT

Room Air Heat Pump with R-410A Owner’s Manual
2
2
OWNER'S PRODUCT IDENTIFICATION
MODEL NUMBER
SERIAL NUMBER
MANUFACTURING NUMBER
Owner's Name
Address
City State Zip
//
Date of Purchase
Authorized Dealer
Address
City State Zip
( )
Phone Number
To avoid death, personal injury or property
damage due toelectrical shock:
• Observe all local codes and ordinances.
•Disconnect electrical power to unit before servicing.
• Ground appliance properly.
• Check with a qualified electrician if you are not
sure this appliance is properly grounded.
• DO NOT ground to gas line.
• DO NOT ground to cold water pipe if pipe is
interrupted by plastic, non-metallic gaskets, or
other insulating (non-conducting) materials.
• DO NOT modify plug on power cord. If plug
does not fit electrical outlet, have proper outlet
installed by qualified electrician.
• DO NOT have a fuse in the neutral or ground
circuit. A fuse in the neutral or ground circuit
could result in an electrical shock.
• DO NOT use an extension cord with this appliance.
• DO NOT use an adapter plug with this appliance.
• DO NOT pinch power cord.
•DO NOT REMOVE warning tag from power cord.
WARNING
ElectricalRequirements
GroundingInstructions
Thisapplianceisequippedwithathree-pronggroundingplug
forprotectionagainstpossibleshockhazards. Ifatwo-prong
To prevent heat related illness or death, do
not use this device for unattended cooling
of persons or animals unable to reactto
product failure. Failure of unattended air
conditioner may result in extreme heat in
area intended for cooling, causing heat-
related illness or death of persons or
animals.
WARNING
HIGH TEMPERATURE STRESS HAZARD
This room air conditioner is not meant to
provide unattended cooling or life support
for persons or animals that are unable to
react to failure of the product.
The failure of an unattended air conditioner
may result in extreme heat in the cond-
itioned space causing overheating or
death of persons or animals.
Precautions must be taken to ward off or
guard against such an occurrence.
WARNING
Unpacking
Unpackandvisuallyinspecttheunit. Reportanydamageto
the delivering carrier immediately.Remove and discard all
packingmaterial.
Do NOT operate unit with shipping foam
blocks in place. Always remove prior to
running unit.
WARNING
Onsomemodelstheairconditionerfrontand/ormountingkit
hardwaremaybepackedseparately.
Recordthemodel,serialandmanufacturingnumbersofyour
unitinthespaceprovidedbelow.Thisinformationisfoundon
a nameplate visible after the front of the air conditioner has
beenremoved.Theratedvoltage,amperageandcapacityfor
your specific model can also be found on this nameplate.
Readthewarrantypackagedwiththeunit. Keepthewarranty
andacopyofyoursalesreceiptforfuturereference. Youmay
alsowanttorecordinthespaceprovidedthedatepurchased
andthesellingdealer.
To prevent heat related illness ordeath,
do notuse thisdevice unattended.
Failure of an unattended air conditioner
may resultin extreme heat in area
intended for cooling, causing heat related
illness ordeath ofpersonsor animals.
Record the model and serial numbers of your unit in the space
provided. This information is found on a nameplate visible after
the front of the air conditioner has been removed. The rated
also be found on this nameplate. Read the warranty packaged
with the unit. Register your unit and keep the warranty and a
copy of your sales receipt for future reference. You may also
want to record in the space provided the date purchased and
the selling dealer.
Unpack and visually inspect the unit. Report any damage to
the delivering carrier immediately. If your unit is not damaged,
remove and disgard all packing materials.
AITONS EQUIPMENT

Owner’s Manual Room Air Heat Pump with R-410A
3
3

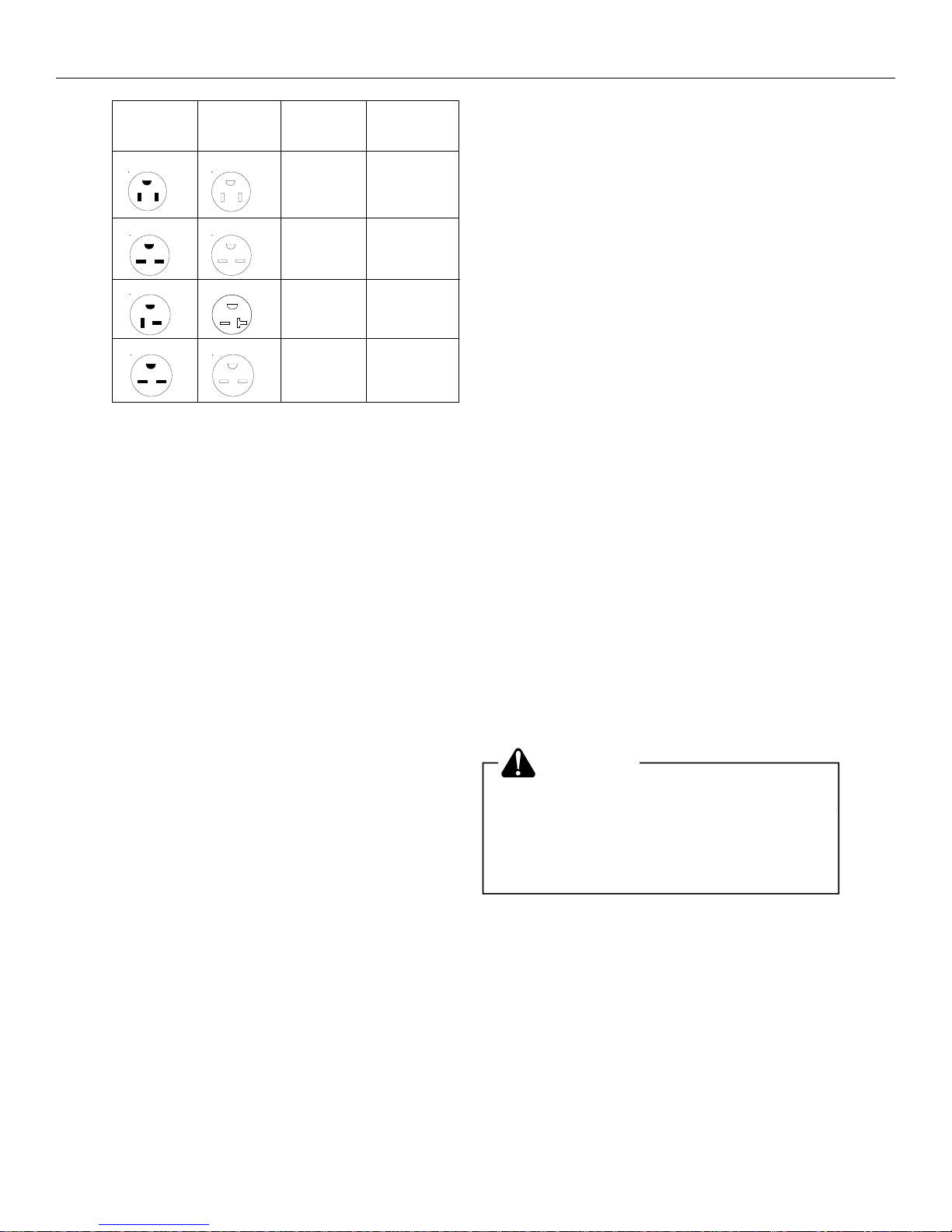

NEMA No. 5-15P NEMA No. 5-15R125V-15AMP 115V
