#10023 BASIN BENCH - DOUBLE #10010 BENCH KIT - WHITE BASIN
RELATED PRODUCTS
#10011 BENCH KIT - BLACK BASIN
basin bench
double
owners manual
comfortel.com.au
EXAMPLE OF SETUP

GET STARTED
BASIN BENCH DOUBLE
For a 4 Position Bench, please see 4 Position Diagram, where 2 x Basin Bench Doubles are installed next to each other.
For more information about the product go to www.comfortel.com.au.
400
DRAWN
CHK'D
APPV'D ALL DIMENSIONS IN MILLIMETERS
DEBURR AND
BREAK SHARP
EDGES
NAME SIGNATURE DATE MATERIAL:
DO NOT SCALE DRAWING REVISION
NAME:
DWG NO.
SCALE:1:14 SHEET 1 OF 9
A3
SANDRA SUNDELIN 05/05/17
#10020
1.0
BENCH KIT 2POS
1.3
ITEM NUMBER:
ALL DESIGNS SHOWN ARE REGISTERED AND COPYRIGHTED TO COMFORTEL PTY LTD
ALL RIGHTS RESERVED. THESE DESIGNS ARE CONFIDENTIAL AND ARE NOT TO BE
USED OR SHOWN TO A THIRD PART WITHOUT EXPRESSED WRITTEN AUTHORIZATION
BY COMFORTEL. ALL DESIGNS REMAIN THE SOLE PROPERTY OF COMFORTEL AND
ANY UNAUTHORIZED USE OF THESE DESIGNS WILL BE CONSIDERED AN
INFRINGEMENT OF COPYRIGHT AND WILL BE PROSECUTED.
NOTES:
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
1600
650
IMAGE EXAMPLE
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 Top Panel 1
2 Side Panel Left 1
3 Side Panel Right 1
4 Front Panel 1
5 Shelf 1
6 Back Panel 1
7 Foot 4
8 Basin Frame 2
9 Dowel 6 x 20mm 36
10 Cam Screw Fastener 6 x 40mm 20
11 Cam Nut 15 x 12mm 20
12 Bolt Countersunk M4 x 30mm 8
13 Nut M4 8
14 Spring Washer 8
15 Washer 8
?
1
4
2
5
6
3
GENERAL SAFETY
1. Read carefully and keep these instructions in a
safe place.
2. Use this product only for its intended function and
do not use attachments not recommended by the
manufacturer.
3. Do not use outdoors.
PLUMBING
1. This unit must be installed by a licensed plumber.
IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS
DO NOT ALLOW CHILDREN AROUND
THE WASHLOUNGE WHEN IN USE
ALL PLUMBING MUST BE COMPLETED
BY A LICENSED PLUMBER
IMPORTANT
IMPORTANT
BASIN BENCH DOUBLE
Basin Bench can be used in situations requiring
washing from behind.
Width: 1600mm
Depth: 400mm
Bench Height: 650mm
Basin Height: 900mm
*Basin not pictured

242
225
35
35 330
161 85
400
CUT OUT DETAIL
DRILL 4 HOLES
7
400 400800 400 400 800
3200

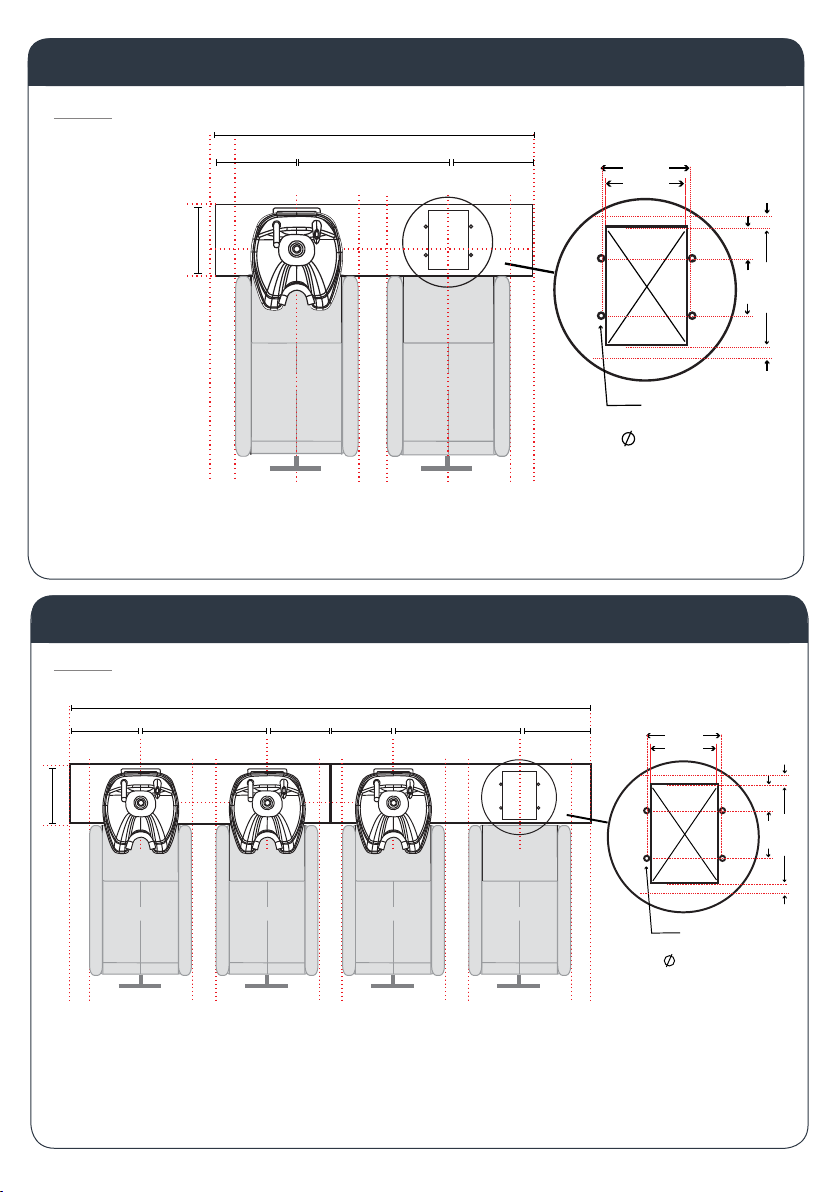

POSITIONING : BASIN BENCH DOUBLE X 2  4 POSITION
All measurements are in mm.
All measurements are in mm.
242
225
35
35 330
161 85
400
CUT OUT DETAIL
DRILL 4 HOLES
7
400 400800
1600
AERIAL VIEW
AERIAL VIEW
POSITIONING : BASIN BENCH DOUBLE  2 POSITION

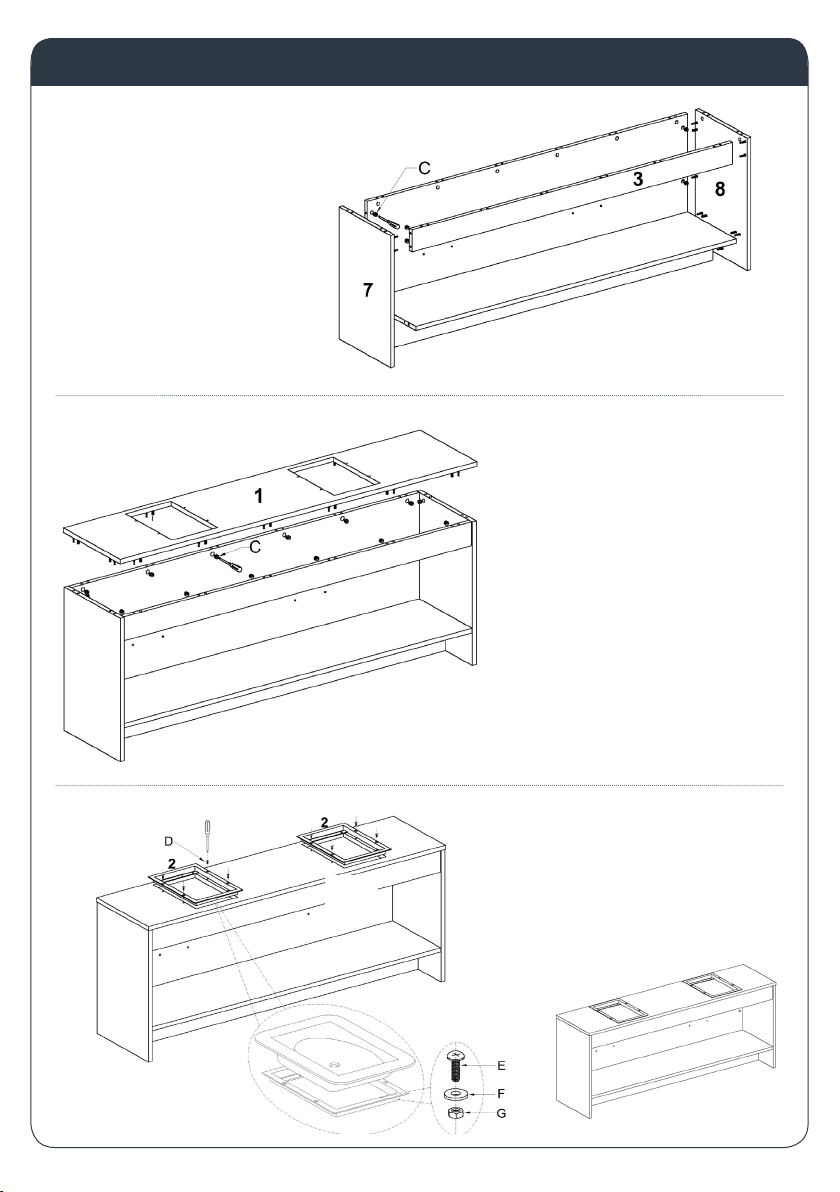

ASSEMBLY: BENCH
STEP 1
STEP 2
STEP 3
NYLOCK NUT

ASSEMBLY: BENCH
STEP 4
STEP 5
STEP 6
FINISH

INSTALLATION & ASSEMBLY: BASIN
2
7
8
10
11
9
12
13
5 6
3
4
1
17
16
15
14
BENCH FIXING DETAIL
1. Position Bench as required.
2. Bench must be secured to the floor, or wall.
(Fasteners not provided)
3. Seal base – seal the base of the bench inside and outside
with silicone.
BASIN ASSEMBLY
4. Install Flick Mixer using the O-ring, plastic and metal
washers & Long Nut, and Showerhead using the
Showerhose Basin Collar, O-ring, Foam Washer and
Plastic Nut as indicated.
5. Place Flick Mixer and Showerhead Hoses through the
holes in the Vinyl Strap.
6. Connect Flexible Waste Pipe to Plug and Waste which is
already installed making use of end with Flat Seal and
fitted flange.
BENCH KIT ASSEMBLY
7. Connect hot and cold (½” connection) water braided
hoses to respective supplies.
8. Connect Flexible Waste Pipe (supplied) to P Trap (not
supplied) making use of Seal and Flange.
9. Connect Basin Spring which is already connected to the
tilt and slide plate to the hole in the Bench Kit Frame at
the front left corner.
10. Place both ends of Vinyl Cover into the slots provided on
front and back of Bench Kit Frame.
1Flick Mixer
2Showerhead
3Showerhose Basin Collar
4Comfortneck
5Foam Washer
6Plastic Nut
7Showerhead hose
8Vinyl Strap
9Flat seal
10 Flexible Waste Pipe
11 Fitted flange
12 Flange
13 Seal
14 Long nut
15 Plastic & Metal Washers
16 O-ring
17 O-ring
18 Basin spring
19 Bench Kit Frame
