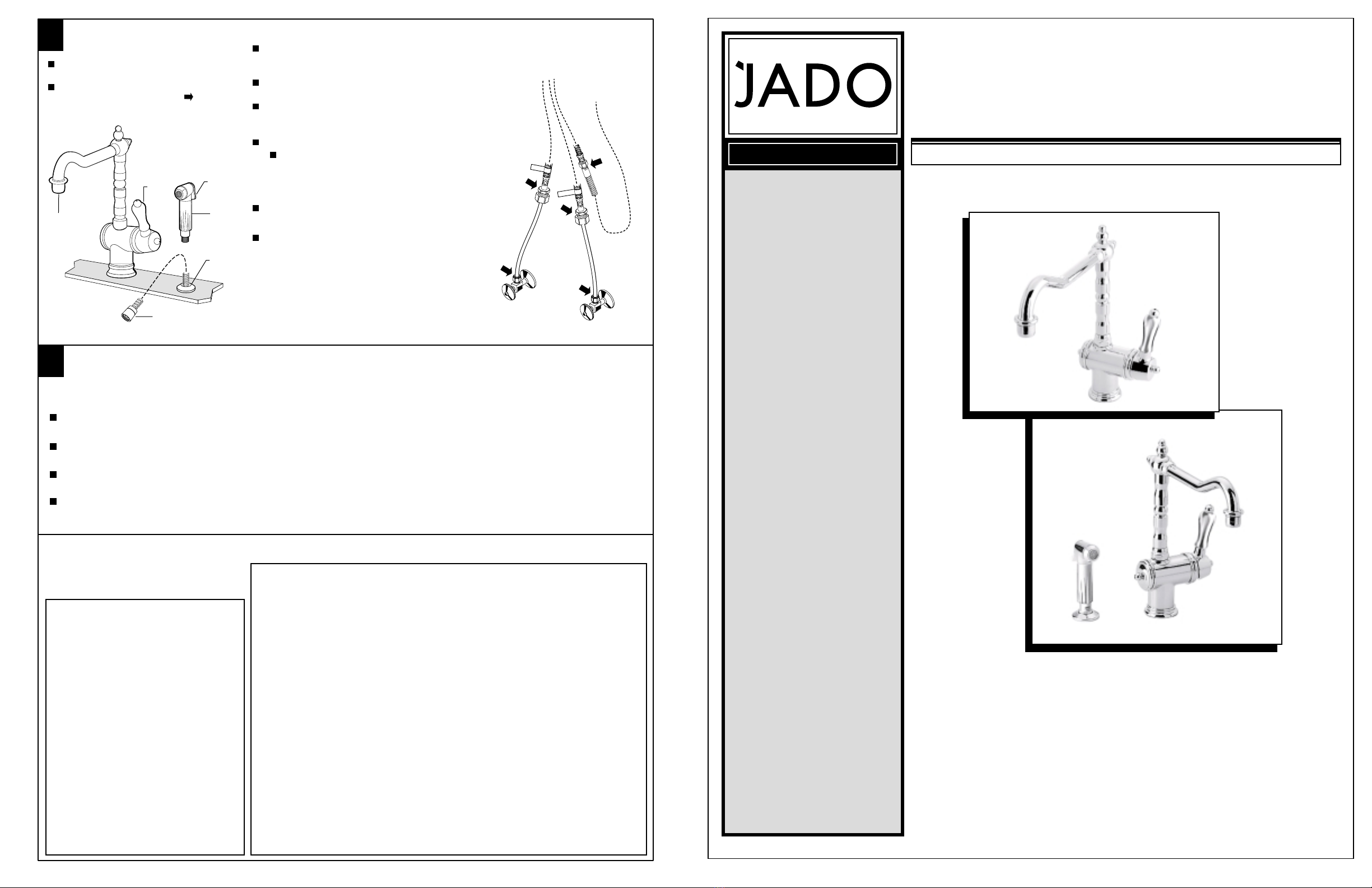

JADO Victorian 850 800 User manual

Installation Instructions
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
©JADO USA 2003
Products Luxury Faucets and Accessories
109161
Single Lever Kitchen Faucet
Single Lever Kitchen Faucet
JADO USA
7845 East Paradise Lane
Scottsdale, AZ 8526O
Phone: 8OO) 227-2734
Fax: 8OO) 552-JADO 5236)
www.jadousa.com
Product Number
85O/8OO/...
Product Number
Faucet with Spray
85O/86O/...
Victorian
109161
4HELPFUL HINTS FOR CLEANING AND MAINTENANCE
The solid brass product you have just purchased has been designed to give you years of beauty and service. It is
important to bring to your attention proper care and maintenance procedures, which will ensure its lasting beauty.
First and foremost, it is important (as it is with any fine piece of jewelry or furniture) that the product be wiped clean and
dry with a soft damp cloth after every use.
Second, under no circumstances should an abrasive cleaner or combination cleaner/polish be used on JADO products.
The abrasive nature of such products will eventually destroy the finish and void the warranty.
In the event of stubborn blemishes shown on the finish, we recommend use of Windex window cleaner with a soft cloth,
but we do not recommend it be used on an everyday basis.
It is important to note that it is normal to expect signs of usage over time.
Thank you for selecting JADO for your home.
TO THE PURCHASER OF JADO BRASS PRODUCTS
Attention installer:
Please leave This Pamphlet for The Owner
POLISHED BRASS AND CUSTOM FINISHWARRANTY: A 1YEAR LIMITED FINISH WARRANTY from date of purchase is provided to the
first residential owner against defects in materials and workmanship. Due to the ever-changing finish of Patina products, the finish warranty
is excluded. Warranty shall not include problems related to the installation of the product.
MECHANICS
MECHANICAL WARRANTY: A LIFETIME LIMITED WARRANTY is provided to the first residential owner on parts to be free from failure
related to defects in materials and workmanship but not installation.
CONDITIONSTOWARRANTIES
JADO Bathroom & Hardware Manufacturing Corp.places the following conditions on its finish and mechanical warranties to the first residential owner only.
JADO finish and mechanical warranties are limited to products correctly installed and used in a residential environment.
JADO warranties will not assume liability for damage due to abuse, mishandling, incorrect installation, improper maintenance, or deterioration
due to normal use.
JADO will not be liable for labor or other costs relating to the sale, installation, or replacement of their products.
In the event of a defect in any JADO product covered by this warranty, the product must be returned to the dealer where originally purchased
along with proof of purchase.
JADO's obligation under the warranty shall be limited to the repair or exchange of any product which has been determined by JADO to be
defective after appropriate examination.
The state of California has mandated under Proposition #65 that
manufactures of products, including faucets which come into
contact with potable water, must warn the consumer if the product
contains materials listed by the state as a carcinogen or
reproductive toxin. Lead, which is contained in all brass faucets in
limited amounts appears on the State's list.
Preliminary industry tests have indicated that users of faucets
made from brass face no significant danger, however,
California Proposition #65 requires that we provide you with the
following notice:
NOTICE: JADO products conform to industry
requirements of water conservation under the
ASTM / ANSI A112.18.1M-1994 plumbing code.
Lavatory, bidet, wet bar and kitchen faucet sets
have a maximum flow rate of 2.2GPM. Shower
heads, hand showers and body sprays have a
maximum flow rate of 2.5GPM.
Warning: This product contains an element
known to the State of California to cause cancer
of reproductive harm.
JADO BATHROOM AND HARDWARE MFG.CORP.
7845 East Paradise Lane
Scottsdale, AZ 85260
JADO warrants this product to be free from defects in materials or workmanship for as long as the original consumer purchaser
owns their home.
JADO will provide, free of charge, at it’s sole option, replacement part(s) or product (or if no longer available, a comparable
product) to replace those which have proven defective in materials or workmanship.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to JADO for all limited
warranty claims.This limited warranty is non transferable.It does not apply in the event of product damage due to the use of other than
genuine JADO replacement parts, installation error, abuse, misuse, or improper care and maintenance (whether performed by
a plumber, contractor, service provider or member of the purchaser’s household).The limited warranty excludes damage due to aggressive
air or water conditions, or harsh or abrasive cleaners and/or materials.This limited warranty excludes all industrial, commercial and business
usage, whose purchasers are hereby extended a two year limited warranty (with the exception of solenoid valves and other electronic
components which carry a one year limited warranty) applying to all other terms of this limited warranty except duration. This limited warranty
does not cover labor charges incurred and/or damages sustained in installation, repair or replacement, nor incidental or consequential
damages, all of which are expressly disclaimed.This limited warranty is applicable only to JADO faucets manufactured after June 1, 1996
and installed in the United States and/or Canada.
This limited warranty gives the original consumer purchaser of an JADO faucet specific legal rights which may vary from state to
state or from province to province.This limited warranty does not cover any liability for consequential or incidental damages, all of which
are hereby expressly disclaimed, or the extension beyond the duration of this limited warranty of any implied limited warranties, including
those of merchantability or fitness for an intended purpose.In some states or provinces the exclusion or limitation of incidental or consequential
damages is not allowed, so those exclusions may not apply to you.
JADO Bathroom & Hardware Manufacturing Corp. provides the following warranties only to the first residential owner of our products.
FINISHES
JADO FAUCET LIFETIME FUNCTION AND FINISH LIMITEDWARRANTY
BLUE
RED
3TEST INSTALLED FAUCET
TROUBLE SHOOTING
Move HANDLE (1) into "off"
position.
Turn on water supplies and check
all connections for leaks.
Operate handle, in COLD and HOT positions, to flush
water lines thoroughly.
Connect HAND SPRAY (2) to HOSE END (4). Place
HAND SPRAY (2) back into HOLDER (3), operate
HANDLE (1) and check all connections for leaks.
Pull HAND SPRAY (2) from HOLDER (3) and disconnect HAND SPRAY (2)
from HOSE (4). Pull HOSE (4) (HOSE should pull approximately 2 feet) and
direct open HOSE END (4) into sink.
Check HAND SPRAY (2) operation:
Low water flow from faucet:
Remove AERATOR (6) and clean if necessary.
Pull-Out Spray will not remove from faucet freely:
Check that pull-out spray hose is not
obstructed with plumbing connections or
fittings under faucet.
With faucet on push front of LEVER (5) for
a broad cleansing spray.
2
3
5
1
4
6

Single Lever Kitchen Faucet
BLUE
109161 109161
ROUGHING-IN DIMENSIONS
Plumbers' Putty or Caulking
Adjustable Wrench
Phillips Screwdriver
Channel Locks
TOOLS REQUIRED
Tubing Cutter Regular Screwdriver
Basin Wrench
Turn off hot and cold water
supplies before beginning.
CAUTION
1INSTALL FITTING WITH OR WITHOUT ESCUTCHEON PLATE
1
6
9
7
11 12
3
2
8
11 11
10
9
12
13
RED
10" ESCUTCHEON
PLATE KIT
4
6
5
BLUE
RED
7
FERRULE
SUPPLY STOPS
HOT
COLD
PUTTY
1
10
5
8
2
3
4
NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE
PURCHASED SEPARATELY.
Connect the HOT water supply line to FLEXIBLE SUPPLY marked
with a Red tag. Connect the COLD water supply line to FLEXIBLE
SUPPLY marked with a Blue tag.
2b WATER SUPPLY CONNECTIONS
2a INSTALL HOSE AND SPRAY (Model 850/860/...)
Use 1/2" IPS FLEXIBLE SUPPLIES (11) or 3/8" O.D.
BULL-NOSE RISERS (12). Use adjustable wrench to tighten
connections. Do not over tighten. Be careful not to kink
copper supply when bending. Use tubing cutter to cut to
proper length.
2
Apply a bead of putty to the underside lip of SPRAY HOLDER (1).
Place the SPRAY HOLDER (1) into the appropriate mounting hole.
Assemble the RUBBER WASHER (2), BRASS WASHER (3) and
LOCK NUT (4) onto the shank of SPRAY HOLDER (1). From
below tighten LOCK NUT (4) to secure SPRAY HOLDER (1).
Remove RUBBER WASHER (5) and FIBER WASHER (6)
FROM SPRAY HOSE (7). Feed the small end of the
SPRAY HOSE (7) through the SPRAY HOLDER (1).
Install the FIBER WASHER (6) into the COUPLING (9) of
the spray connection on faucet. Tighten with two
wrenches to make a water tight connection.
Install the RUBBER WASHER (5) into the COUPLING (10) for
the HAND SPRAY (8) and hand tighten. Place the HAND
SPRAY (8) into the Spray holder (1).
INSTALL SPRAY HOLDER (Model 850/860/...)
If using the optional ESCUTCHEON PLATE (4) make sure the
O-RING (6) is against the sink and the ESCUTCHEON PLATE
ADAPTER (5) is under the ESCUTCHEON PLATE (4). Use
ESCUTCHEON MOUNTING KIT (7) to secure ESCUTCHEON
PLATE (4) to mounting surface. Mount Faucet (1) onto
ESCUTCHEON PLATE (4) as detailed below.
Install ESCUTCHEON BASE (3) with O-ring over the SUPPLY
ADAPTERS (12), SPRAY HOSE ADAPTER (9) and MOUNTING
STUD (2).
Install the FAUCET (1) into it's mounting hole in the sink counter
top or ESCUTCHEON PLATE (4).
Assemble the two BRASS SCREWS (11) into the RETAINING
WASHER (10).
Assemble SUPPORT PLATE (8) with collar facing down, RETAINING
WASHER (10) and thread LOCKNUT (13) onto SHANK (2) from
underside of sink or countertop.
Align and center FAUCET (1). Tighten LOCKNUT (13) on SHANK (2)
to secure FAUCET (1) to mounting surface.
8-5/8"
12"
5-7/8"
2"
2"
3-7/8"
5-1/4"
2-3/4"
8-7/8" 1-3/4"
1-3/4"
1"
1-1/4"
2-1/4" D.
1/2"NPT
SUPPLIES
NOTE: Bore hole size is 1-3/8"
1314
With HAND SPRAY seated in faucet body, install WEIGHT (13)
onto HOSE (7) using two SCREWS (14). Locate the WEIGHT
(13) two feet (2') from the underside of the sink deck. Tighten
SCREWS (14) firmly.
