Your new thermostat is pre-programmed and ready to go. Just check the settings
below and change if needed:
1. Set date and time ....................................................................................See page 4
2. Select fan setting ....................................................................................See page 5
3. Select system setting .............................................................................See page 6
4. Program schedules: Preset for maximum cost savings ..................See pages 7-10
5. Set humidification, dehumidification and ventilation ...............See pages 16-19
About your new thermostat
ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and manually
adjust the temperature (see pages 9-10).
Need Help?
For assistance please call toll-free: [phone]

ComfortNet™ Communicating Thermostat
169-2687EFS— 03
Programming & Operation
Quick reference ...................................2
Date/time settings................................4
Fan settings .........................................5
System settings ...................................6
Energy Saver settings..........................7
Using program schedules....................8
Schedule overrides..............................9
Menu options
System status....................................11
Vacation/event scheduler...................12
Humidity controls...............................16
Ventilation controls.............................19
Preferences menu .............................20
Temporary schedule changes............21
Screen cleaning.................................22
Security settings ................................23
Installer contact information...............24
Advanced features.............................25
Appendices
Installer options .................................26
Battery replacement ..........................27
Humidity display.................................29
Optional accessories .........................30
In case of difficulty.............................33
Limited warranty ................................34
Table of contents
CAUTION: EQUIPMENT DAMAGE HAZARD.To prevent possible compressor damage, do not
operate cooling system when outdoor temperature is below 50˚F (10˚C).
This thermostat contains a Lithium battery which may contain Perchlorate material.
Special handling may be required. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Operating Manual
2
69-2687EFS— 03
Control fan operation
(see page 5)
Display
home screen
Change date or
time (see page 4)
Outdoor
temperature
and humidity
Current system
status
Display menu
options (see
pages 11-24)
Adjust
temperature
settings (see
pages 9-10)
Current program status Indoor temperature and
humidity
Quick reference: residential use
Select system
type (see page 6)
Outdoor temperature and humidity are displayed
only if an optional outdoor air sensor is installed.

ComfortNet™ Communicating Thermostat
369-2687EFS— 03
Control fan operation
(see page 5)
Display
home screen
Change date or
time (see page 4)
Outdoor
temperature
and humidity
Current system
status
Display menu
options (see
pages 11-24)
Adjust
temperature
settings (see
pages 9-10)
Indoor
temperature
and humidity
Press to override program temporarily Thermostat location and
current program status
Quick reference: commercial use
Select system
type (see page 6)
Outdoor temperature and humidity are displayed
only if an optional outdoor air sensor is installed.

Operating Manual
4
69-2687EFS— 03
Date/time settings
Press arrow buttons to change
Press date/time display
Press to select date or time
To set the date or time, press the date/
time display, then select SET TIME or SET
DATE.
Press the s or t buttons until the
proper time/date is displayed, then
press DONE to save and exit (or press
CANCEL to exit without changing the
time).
The thermostat will switch to and from
Daylight Saving Time automatically.
MCR32960

ComfortNet™ Communicating Thermostat
569-2687EFS— 03
FAN
MCR32961
• On: Fan is always on.
• Auto: Fan runs only when heating or
cooling system is on.
• Circulate: Fan runs randomly, about
35% of the time (residential models
only).
• Follow Schedule: Fan controlled by
program (see pages 7-8).
Fan settings
In commercial use, the CIRCULATE option is
not available.
Press FAN
Press any displayed option
In commercial use, press AUTO or ON to
temporarily override the programmed fan
schedule.
The fan speed can be adjusted from
Low to High when the fan is set to ON or
CIRCULATE.

Operating Manual
6
69-2687EFS— 03
Automatic
MCR32964
SYSTEM
MCR32963
System settings
Press any displayed option
Press SYSTEM, then select any option
(press s or t to scroll menu):
• Heat: Thermostat controls only the
heating system.
• Cool: Thermostat controls only the
cooling system.
• Automatic: Thermostat selects
heating or cooling as needed.
• Off: Heating and cooling system is
off. Fan will still operate if fan is set to
On or Circulate.
• Emergency Heat (only for heat
pumps with auxiliary heat):
Thermostat controls Auxiliary Heat.
Compressor is not used.
Press HELP for more information about
these options.
Press SYSTEM

ComfortNet™ Communicating Thermostat
769-2687EFS— 03
These default Energy Saver settings can reduce expenses. (See next page to cus-
tomize each time period.)
Energy Saver settings for maximum cost savings
Wake 6:00 am 70° 78° 70° 78°
Leave 8:00 am 62° 85° 62° 85°
Return 6:00 pm 70° 78° 70° 78°
Sleep 10:00 pm 62° 82° 62° 82°
Cool
(Mon-Fri)Start time Heat (Mon-Fri)Period Heat (Sat-Sun) Cool (Sat-Sun)
Residential Use
Occupied 1 8:00 am 70° 75° On
Unoccupied 1 10:00 pm 55° 85° Auto
Occupied 2* 12:00 am 70° 75° On
Unoccupied 2* 12:00 am 55° 85° Auto
CoolStart time HeatPeriod Fan
Commercial Use
* Period 2 is cancelled by default. If you activate it, the values shown above are default settings.

Operating Manual
8
69-2687EFS— 03
MENU
MCR32965
MCR32966
Create/Edit Schedule
Guide me through
scheduling
MCR32967
To adjust program schedules
Press MENU, then CREATE/EDIT
SCHEDULE to display options:
• Guide me: This option creates a
schedule for you, by asking simple
questions.
• I’ll do it myself: This is a faster way
to create a schedule manually.
• View/Edit: This displays the full
schedule, so you can make quick
adjustments.
Press CREATE/EDIT SCHEDULE
Press any displayed option
Press HELP at any menu screen for more
information about schedule options.
To reduce costs, you should use the pre-set
Energy Saver settings (see page 7).
Press MENU

ComfortNet™ Communicating Thermostat
969-2687EFS— 03
Cancel
Hold Done
MCR32968
Program schedule override: residential use
Press s or t to change the tempera-
ture. It will be maintained until the “hold”
time you set.
Press the PERMANENT HOLD button to
keep the same temperature until you
manually change it or resume the
program schedule.
To cancel these settings at any time,
press CANCEL HOLD.
Press to change temperature
Press to set
“hold” time
Press to
cancel
“hold”
Press to
begin “hold”

Operating Manual
10
69-2687EFS— 03
Cancel
Hold Done
MCR32970
MCR32969
OVERRIDE
Program schedule override: commercial use
Press s or t to change the
temperature. It will be maintained until
the “hold” time you set.
Press OVERRIDE to use a pre-set
“occupied” temperature if a person is
present during an unoccupied period.
The new temperature will be maintained
for at least 1 hour, and can be adjusted
up to the maximum time set by the
installer. To change the time, press the
HOLD UNTIL arrow buttons.
The programmed schedule will resume
when the override timer expires. To
cancel the override at any time, press
CANCEL HOLD.
Press to change temperature
Press to set
“hold” time
Press to
cancel
“hold”
Press to
begin “hold”
Press to activate “occupied” mode

ComfortNet™ Communicating Thermostat
11 69-2687EFS— 03
Equipment Status
MCR32971
MENU
MCR32965
System status information
Press MENU, then select EQUIPMENT
STATUS.
Depending on how your thermostat was
installed, the Equipment Status screen
can report data about the following sys-
tems:
• Heating and cooling
• Fan
• Humidification
• Dehumidification
• Ventilation
• Maintenance reminders
• Thermostat information
Scroll to select EQUIPMENT STATUS
Press MENU

Operating Manual
12
69-2687EFS— 03
MCR32972

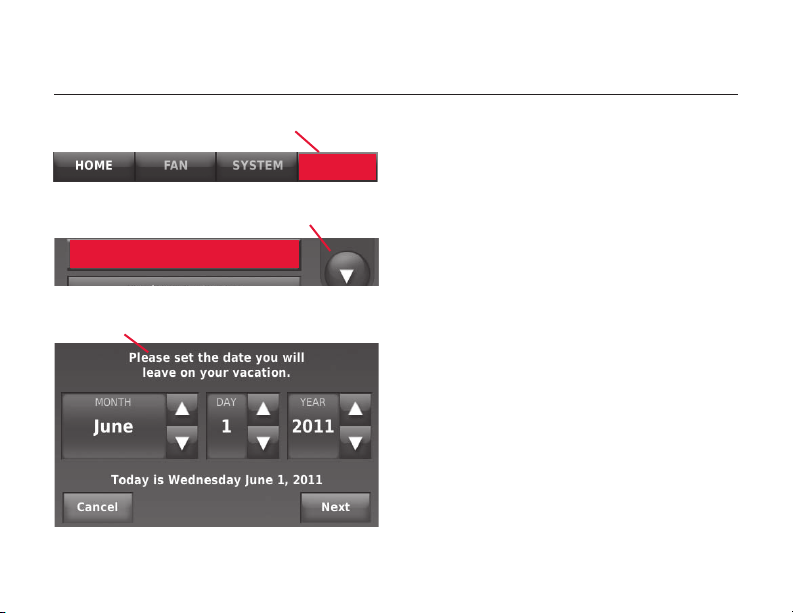

Vacation Mode
MENU
MCR32965
Menu: Vacation scheduling (residential use)
This feature lets you conserve energy
while away, and restores a comfortable
temperature just before you return to
your home.
Press s or t at each screen to enter
temperatures, dates and times as
prompted, then press DONE.
The temperature you set will be
maintained until you return, then the
program schedule will resume.
Scroll to select VACATION
Follow screen prompts, then press DONE
Press MENU

ComfortNet™ Communicating Thermostat
13 69-2687EFS— 03
MCR32973
Holiday / Event Scheduler
MENU
MCR32965
Menu: Holiday/event scheduling (commercial use)
This feature lets you conserve energy
when the workplace is unoccupied for
special events or on holidays.
The US (United States) and CANADIAN
options allow you to select from a list of
holidays commonly observed in each
country.You can set the system to
“unoccupied” or “occupied” mode for the
days you select.
The CUSTOM EVENTS button gives you
more options to customize temperatures
for specific dates and times in the future.
Scroll to select HOLIDAY / EVENT SCHEDULER
Choose an option below
Press MENU

Operating Manual
14
69-2687EFS— 03
Holiday Mode
MCR32974
Menu: Holiday override (commercial use)
Press HOLIDAY MODE to set temperatures
that will be maintained from now until the
date you expect to return.
The thermostat will resume the normal
schedule on the date you set.You can
press CANCEL at any time to resume the
normal schedule.
Follow screen prompts, then press DONE
Scroll to select HOLIDAY MODE
The cool temperature setting can only be
set higher than the unoccupied program
setting and the heat temperature setting
can only be set lower than the unoccupied
program setting.

ComfortNet™ Communicating Thermostat
15 69-2687EFS— 03
Press to start
occupancy
MCR32975
Initiate Occupancy mode (commercial use)
This feature keeps temperature at an
energy-saving level until the PRESS TO
START OCCUPANCY button is pressed.
When you arrive, press the button to
maintain a comfortable temperature
while the room is occupied.
Press the s or t buttons to set the
temperature or “Hold Until” time. The
temperature is maintained until the time
you set. Temperature returns to an ener-
gy-saving level after the timer expires, or
the “Occupied” period ends.
The thermostat keeps temperature at
an energy saving level until OVERRIDE
or PRESS TO START OCCUPANCY button is
pressed.
Press to maintain comfortable
temperature while room is occupied
This feature is available only if it is
programmed by the installer.

Operating Manual
16
69-2687EFS— 03
MCR32976
Humidification
Menu: Humidification
Move the slider bar to the humidity level
you prefer, then press DONE.
Press MORE SETTINGS if frost or con-
densation appears on windows. A lower
number adjusts humidity to help prevent
these problems. Use a higher number if
indoor air is too dry.
Scroll to select HUMIDIFICATION
Set humidity to desired level
Window Protection limits the amount of humidity
to prevent frost or condensation on windows
The Window Protection option is only
available if an optional outdoor sensor is
installed.
MENU
MCR32965
Press MENU

ComfortNet™ Communicating Thermostat
17 69-2687EFS— 03
MCR32977
Dehumidification
Menu: Dehumidification (residential use)
This feature can control your air con-
ditioner to reduce humidity. Move the
slider bar to the humidity level you pre-
fer, then press DONE.
Scroll to select DEHUMIDIFICATION
Set humidity to desired level
If your air conditioner is used to control
humidity, temperature may drop as much as
3° F below the level you set until humidity
reaches the desired level.
MENU
MCR32965
Press MENU

Operating Manual
18
69-2687EFS— 03
MCR32977
Dehumidification
Menu: Dehumidification (commercial use)
Move the slider bar to the humidity level
you prefer, then press DONE. If your air
conditioner is used to control humid-
ity, the thermostat may use the follow-
ing methods to maintain your desired
humidity:
• Cool from 1° to 5° F lower than your
temperature setting.
• Run cooling for the minimum “on”
time to reduce humidity.
Scroll to select DEHUMIDIFICATION
Set humidity to desired level
MENU
MCR32965
Press MENU
