This document provides information for installation of the touchscreen control only.

Installation instructions for the furnace or air handler and outdoor AC condensing unit

or heat pump are provided with each of these devices.

This thermostat is designed exclusively for Amana/Goodman brand ComfortNETTM

System equipment ONLY. This thermostat can ONLY be used with compatible Amana®

brand or Goodman brand Air handlers or Furnaces, and outdoor AC or Heat Pump

condensing units.

Co n t r o l Ki t S Co n t e n t S

This communicating control kit contains the following components:

(1) Communicating touchscreen control with sub base

(1) 230 VAC to 24 VAC, 40 VA transformer (B1141643)

(2) Tyco 284041-4, 4-position plug color-coded connectors

(1) Blue wire jumper (14”)

(1) Red wire jumper (22”)

(1) Black wire jumper (22”)

(1) Red wire jumper (14”)

(2) #10 Sheet metal screws

(1) Instruction manual (IO-350)

(1) Homeowner User Guide (HI-123)

(1) Quick Start Guide (IO-722)

Va l i D Sy S t e m Co n f i g u r a t i o n S

This control may only be used with certain system congurations. Valid system

congurations for which this control can be used are:

A communicating air handler matched with a communicating outdoor

AC condensing unit

A communicating air handler matched with a communicating outdoor

heat pump unit

In s t a l l a t I o n NOTES

WARNING

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS

ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u



32

5

In s t a l l a t I o n

A communicating furnace matched with a communicating outdoor AC condensing

unit

A communicating furnace matched with a communicating outdoor heat pump unit

A communicating furnace matched with a non-communicating, single stage AC

condensing unit

System congurations other than those noted above will not function or may function

properly at greatly reduced performance.

Ba t t e r y lo C a t i o n

2 “AA” alkaline batteries are included in the

control with a battery tag to prevent power

drainage. The battery tag must be removed

to engage the batteries. The batteries are

required to maintain time during a power

outage. They are also required for armchair

programming.

If “LOW BATTERY” is displayed in the

scrolling area, the batteries are low and

should be replaced with fresh batteries. For

best results, use premium brand alkaline

batteries.

To replace batteries, set control system touch key to OFF, remove control from wall by

grasping the top and bottom of the control and pulling straight away from the wall. The

base will remain on the wall. Install the batteries in the rear along the top of the control.

Reposition the control over the base plate and gently snap into place.

2 "AA" Batteries

he a t Se t -u P (he a t Pu m P on l y )

Sub-menu Item User Modiable

Options

Comments

Heat Airow Trim

(HT TRM)

-10% to +10% in 2%

Increments

Selects the airow trim amount;

applies to heat pump only.

Heat ON Delay

(HT ON)

5, 10, or 15 seconds

(5-min. default)

Selects the indoor blower on delay;

applies to heat pump only.

Heat OFF Delay

(HT OFF)

30, 50, 70, or 90 seconds

(30-min. default)

Selects the indoor blower o delay;

applies to heat pump only.

Defrost Interval

(DEFROST)

30, 60, 90, or 120 min-

utes (30-min. default)

Selects the time interval between

defrost; applies to heat pump only.

Compressor Delay

(CMP DLY)

0, 5, 15, or 30 seconds

(5-min. default)

Selects the compressor o time after

a reversing valve shift; applies to heat

pump only.

Status

Sub-menu Item Indication (for Display Only; not User Modiable)

Mode (MODE) Displays the current air handler operating mode

CFM (CFM) Displays the airow for the current operating mode

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



6

31

In s t a l l a t I o n ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

Co n t r o l in S t a l l a t i o n lo C a t i o n

Locate the control on a vibration-free inside wall in an area having good air circulation.

The control should be located approximately ve feet high. The control should be

located in an area such that it is not inuenced by the following:

Drafts

Dead spots behind doors, in corners, or under cabinets

Cold or hot air from registers

Sunlight

Light from xtures or other appliance

Radiant heat from a replace or other heat source

Concealed water pipes (hot or cold)

Unconditioned areas behind the control

NOTE: It is recommended that multiple wires into a single terminal be twisted together prior to inserting into the plug

connector. Failure to do so may result in intermittent operation.

Wi r i n g re Q u i r e m e n t S

Each digitally communicating device in the system requires four wire connections:

24VAC Hot (R), 24VAC Common (C), Data 1 (1), and Data 2 (2). The R and C connections

provide a 24VAC power supply that can be shared between the indoor and outdoor units

and the thermostat. The data 1 and data 2 connections provide the communications bus

between the indoor unit, outdoor unit and thermostat. Thus, the R, C, 1, and 2 terminals

must be wired consistently. See the indoor unit and outdoor unit respective installation

manuals for additional wiring details.

Se n S o r S

Sub-menu Item Indication/User

Modiable Options

Comments

Outdoor Air

Temperature

(AIR TMP)

Displays the outdoor

air temperature

Sensor may or may not be available

on an air conditioner. Check air

conditioner instructions for details.

Outdoor Coil Tem-

perature (COIL TMP)

Displays the outdoor

coil temperature

Required for heat pump operation.

Co o l Se t -u P

Sub-menu Item User Modiable

Options

Comments

(applies to AC and HP models)

Cool Airow Trim

(CL TRM)

-10% to +10% in 2%

Increments

Selects the airow trim amount;

applies to air conditioner only.

Cool Airow Prole

(CL PRFL)

A, B, C, or D Selects the airow prole; applies to

air conditioner only.

Cool ON Delay

(CL ON)

5, 10, 20, or 30

seconds

Selects the indoor blower on delay;

applies to air conditioner only.

Cool OFF Delay

(CL OFF)

30, 60, 90, or 120

seconds

Selects the indoor blower o delay;

applies to air conditioner only.

Dehumidication

Select (DEHUM)

ON or OFF (default

is OFF)

Selecting“OFF”disables dehumidication;

selecting“ON”enables dehumidication;

applies to air conditioner only.

Indoor unit to thermostat wiring:

Connect a wire between terminal “R” on

the thermostat sub base and terminal

“R” on the 4-position plug connector for

the indoor unit. Repeat for the C, 1, and 2

terminals.

Indoor unit to outdoor unit wiring:

Connect a wire between terminal “R”

on the indoor unit’s 4-position plug and

the terminal “R” on the outdoor unit’s

4-position plug connector. Repeat for

the C, 1, and 2 terminals.

T o uchscreen

Thermostat

Indoor

Board T e rminal

Connections

Outdoor

Board T e rminal

Connections

24VAC (Hot)

24VAC

(Common)

Data 1

Data 2

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



30

7

In s t a l l a t I o nad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

 Alternate indoor unit to outdoor unit wiring: In some installations, only two wires

may be available for low voltage control wiring at the outdoor unit. If this is the case,

use the existing low voltage control wires and connect the 1, and 2 terminals as

shown in the gure below. Follow instructions below to wire the system.

° Install the supplied 40 VA transformer in the outdoor unit using the screws

provided. Align the holes in the transformer mounting bracket with the holes in

the sheet metal mounting panel and secure with screws.

° Connect one terminated end of the black 22”wire jumper to the 240VAC terminal

on the transformer (or 208VAC terminal if 208VAC system). Connect the other

terminated end of the wire jumper to L1 on the outdoor unit’s control.

° Connect the red 22”wire jumper to the 240VAC COM terminal on the transformer.

Connect the other end of the wire jumper to L2 on the outdoor unit’s control.

° Connect the terminated end of the red 14” wire jumper to the 24VAC terminal on

the transformer. Connect the other end to the “R” terminal on the included plug

connector.

° Connect the terminated end of the blue 14” wire jumper to the 24VAC COM

terminal on the transformer. Connect the other end to the “C” terminal on the

included plug connector.

he a t Pu m P /ai r Co n D i t i o n e r uS e r me n u S

Co n f i g u r a t i o n

Sub-menu Item Indication (for Display Only; not User Modiable)

Number of AC Stages

(CL STG)

Displays the number of air conditioning stages; applies to AC

and HP.

Number of HP Stages

(HT STG)

Displays the number of heat pump stages; applies to HP only.

AC Tonnage (TONS) Displays the air conditioning tonnage; applies to AC and HP.

Di a g n o S t i C S

Sub-menu Item Indication/User

Modiable Options

Comments

Fault 1 (FAULT #1) Most recent AC/HP fault For display only

Fault 2 (FAULT #2) Next most recent AC/HP fault For display only

Fault 3 (FAULT #3) Next most recent AC/HP fault For display only

Fault 4 (FAULT #4) Next most recent AC/HP fault For display only

Fault 5 (FAULT #5) Next most recent AC/HP fault For display only

Fault 6 (FAULT #6) Least recent AC/HP fault For display only

Clear Fault History

(CLEAR)

NO or YES Selecting “YES”clears the fault

history

iD e n t i f i C a t i o n

Sub-menu Item Indication (for Display Only; not User Modiable)

Model Number

(MOD NUM)

Displays the air conditioner or heat pump model number

Serial Number

(SER NUM)

Displays the air conditioner or heat pump serial number

(Optional)

Software (SOFTWARE) Displays application software revision

Touchscreen

Thermostat

Indoor

Board Te rminal

Connections

Outdoor

Board Te rminal

Connections

24VAC (Hot)

24VAC 230V

24VAC

(Common)

Data 1

Data 2

Outdoor 40VA

Tr ansformer

NOTE: Consecutively repeated faults are shown a maximum of 3 times.

° Dual Fuel Systems: It is highly recommended that the supplied 40VA transformer

be used in the outdoor unit. See Alternate indoor unit to outdoor unit wiring

for transformer wiring instructions.

° To maintain the UL rating on all AC and heat pump models the installing

contractor is required to use the low voltage wiring provided inside the control

panel when converting to the communicating control system.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



8

29

Qu i C K in S t a l l a t i o n St e P S

Determine location of thermostat installation.

Mount thermostat base to wall.

Connect wires to thermostat base.

Remove battery tag to provide battery power to the thermostat.

Attach thermostat to base.

Turn on power to system.

Set the time.

Select thermostat operating options in the Thermostat Options Conguration

Menu.

Perform thermostat/system operation checkout.

Program thermostat or accept factory programming.

Touch Run Schedule.

in S t a l l i n g t h e th e r m o S t a t

Pull the thermostat body o the thermostat base. Forcing or prying on the

thermostat will cause damage to the unit.

Place base at installation location and mark mounting hole locations on wall using

base as a template.

Move base out of the way. Drill mounting holes.

Attach base securely to wall using two mounting screws. Levelling is for

appearance only and will not aect thermostat operation.

Connect wires to terminal block on base.

Push excess wire into wall and plug hole with a re resistant material (such as

berglass insulation) to prevent drafts from aecting thermostat operation.

Remove battery tag to provide battery power to thermostat.

Carefully line the thermostat up with the base and snap into place.

In s t a l l a t I o n ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

Se t -u P

Sub-menu Item User Modiable Options Comments

Heat Airow Trim

(HT TRM)

-10% to +10% in 2% Incre-

ments

Trims the electric heating airow

by the selected amount.

St a t u S

Sub-menu Item Indication (for Display Only; not User Modiable)

Mode (MODE) Displays the current air handler operating mode

CFM (CFM) Displays the airow for the current operating mode

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



28

9

ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u In I t I a l Po w e r uP

Po W e r uP

Turn on AC power to the system. The thermostat will automatically search for and

identify the digitally communicating components installed.

th e r m o S t a t me S S a g e S

While searching for system components,

the thermostat will scroll the word

“SEARCHING” in the message area to

indicate that the system is looking for

components (Air Handler, Furnace, Heat

Pump, Air Conditioner) on the Climate

Talk network. Once the components are

identied, the message display will indicate

the components found. Conrmation will

be displayed in the message area that

the equipment has been found with the

message <equipment> FOUND.

au t o -Co n f i g u r a t i o n

The system will auto-congure itself

once all system components have been

identied. The result is that the system

automatically congures all airows, adjust-

ments, and timings. However, the system

oers additional exibility that allows for

the modication of certain auto-congured

parameters. See air handler/ furnace and

AC/heat pump instructions for additional

information.

Di a g n o S t i C S

Sub-menu Item Indication/User

Modiable Options

Comments

Fault 1 (FAULT #1) Most recent air handler fault For display only

Fault 2 (FAULT #2) Next most recent

air handler fault

For display only

Fault 3 (FAULT #3) Next most recent

air handler fault

For display only

Fault 4 (FAULT #4) Next most recent

air handler fault

For display only

Fault 5 (FAULT #5) Next most recent

air handler fault

For display only

Fault 6 (FAULT #6) Least recent air handler fault For display only

Clear Fault History

(CLEAR)

NO or YES Selecting “YES”clears the fault

history

Identication

Sub-menu Item Indication (for Display Only; not User Modiable)

Model Number

(MOD NUM)

Displays the air handler model number

Serial Number

(SER NUM)

Displays the air handler serial number (Optional)

Software

(SOFTWARE)

Displays application software revision

NOTE: Consecutively repeated faults are shown a maximum of 3 times.

If the thermostat continues to display

the word “SEARCHING” after 2-3 minutes,

this indicates that no components were

found. Check the components for proper

connection of the 4 wire network. If

after 2-3 minutes, the message “CHECK

SYSTEM” appears, this indicates that an

outdoor unit was found but not an indoor

unit. Check the connection of the indoor

component.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



10

27

In I t I a l Po w e r uPad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

Ch e C K Sy S t e m oP e r a t i o n

Fan Operation

Turn power on to the system.

Press Run Schedule.

Press FAN until FAN On is displayed. The fan should begin to operate.

Press FAN until FAN Auto is displayed. The fan should stop operating.

Heating System

Press Run Schedule.

Press to adjust thermostat setting above room temperature. The heating system

should begin to operate.

Press to adjust thermostat setting below room temperature. The heating system

should stop operating.

Cooling System

Press SYSTEM key until Cool is displayed.

Press to adjust thermostat setting below room temperature. The cooling system

should begin to operate.

Press to adjust thermostat setting above room temperature. The cooling system

should stop operating.

St a t u S

Sub-menu Item Indication (for Display Only; not User Modiable)

Mode (MODE) Displays the current furnace operating mode

CFM (CFM) Displays the airow for the current operating mode

no n -Co m m (aP P l i e S o n l y t o aC o m m u n i C a t i n g f u r n a C e m a t C h e D W i t h a

n o n -C o m m u n i C a t i n g aC) (Se e Va l i D Sy S t e m Co n f i g u r a t i o n S )

Sub-menu Item User Modiable Options Comments

Cool Airow

(CL CFM)

18, 24, 30, 36, 42, 48, or 60 Selects the airow for the non-

communicating 1-stage AC unit

Cool Airow Trim

(CL TRM)

-10% to +10% in 2%

Increments

Selects the airow trim amount

for the non-communicating

1-stage AC unit

Cool Airow Prole

(CL PRFL)

A, B, C, or D

Selects the airow prole for the non-

communicating 1-stage AC unit

Cool ON Delay

(CL ON)

5, 10, 20, or 30 seconds Selects the indoor blower on

delay for the non-communicating

1-stage AC unit

Cool OFF Delay

(CL OFF)

30, 60, 90, or 120 seconds Selects the indoor blower o

delay for the non-communicating

1-stage AC unit

ai r ha n D l e r uS e r me n u S

Co n f i g u r a t i o n

Sub-menu Item Indication (for Display Only; not User Modiable)

Electric Heat Size (HTR KW) Displays the size, in kW, of the selected electric heaters*

Motor HP (1/2, 3/4 or 1

MTR HP) Displays the indoor blower motor horse power

Heat ON Delay (HT ON) Displays the electric heat indoor blower on delay

Heat OFF Delay (HT OFF) Displays the electric heat indoor blower o delay

Note: Heater kit selection is done via dipswitches on the air handler control - not via user menu.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



26

11

ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u th e r M o s t a t se t -u P

Se t Cu r r e n t ti m e a n D Da y

On Home Screen Display, touch the Menu key to display additional key choices.

Touch Set Time once to display hour and

AM or PM designation in clock display.

Touch either the or key until you reach

the correct hour and AM or PM designation.

Then touch Set Time again to display min-

utes only in clock display.

Touch and hold either the or keys until

you reach the correct minutes. Then touch

Set Time once again to display the day of

the week.

Touch either the or key until you reach

the correct day.

Touch Run Schedule to save the Time and

Day settings and return to the Home Screen

Display.

iD e n t i f i C a t i o n

Sub-menu Item Indication (for Display Only; not User Modiable)

Model Number

(MOD NUM) Displays the furnace model number

Serial Number

(SER NUM) Displays the furnace serial number (Optional)

Software

(SOFTWARE)

Displays application software revision

Se t -u P

Sub-menu Item User Modiable Options Comments

Heat Airow Trim

(HT TRM)

-10% to +10% in 2% Incre-

ments

Trims the heating airow by the

selected amount.

Heat ON Delay

(HT ON)

5, 10, 15, 20, 25, or 30

seconds

Selects the indoor blower heat

on delay

Heat OFF Delay

(HT OFF)

30, 60, 90, 120, 150, or 180

seconds

Selects the indoor blower heat

o delay

Heating Air Flow

(HT ADJ)

1, 2, 3, 4 Selects the nominal heating

airow

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



12

25

th e r M o s t a t se t -u P ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

Wake Up

(Morning)

Leave For Work

(Day)

Return Home

(Evening)

Go To Bed

(Night)

Heating Program 6:00 AM 70°F 8:00 AM 62°F 5:00 PM 70°F 10:00 PM 62°F

Cooling Program 6:00 AM 75°F 8:00 AM 83°F 5:00 PM 75°F 10:00 PM 78°F

Factory Pre-Programmed heating and cooling schedule for all days of the week

Ch o o S e t h e Sy S t e m Se t t i n g (Co o l , of f , he a t , Emer, Auto)

Touch the SYSTEM key to select:

Heat: Thermostat controls only the heating

system.

O: Heating and Cooling systems are o.

Cool: Thermostat controls only the cooling

system.

Em: Emergency setting available only when

the thermostat detects a heat pump in the

system

Auto: Auto Changeover is used where both

heating and cooling may be required during

the same day. Auto allows the thermostat

to automatically select heating or cooling

depending on the indoor temperature and

the selected heat and cool temperatures. This

thermostat will not allow you to program a

conict between Heating and Cooling set-

points.

en e r g y -Sa V i n g fa C t o r y Pr e -Pr o g r a m

This touchscreen control is programmed with the energy saving settings shown in the

table below for all days of the week. If this program suits your customer’s needs, simply

set the thermostat clock and touch the Run Schedule key.

Instructions for changing the programming are in the Homeowner User Guide.

fu r n a C e uS e r me n u S

Co n f i g u r a t i o n

Sub-menu Item Indication (for Display Only; not User Modiable)

Number of Heat

Stages (HT STG)

Displays the number of furnace heating stages

Input Rate (BTU/HR) Displays the furnace input rate in kBtu/hr

Motor HP (1/2, 3/4

or 1 MTR HP)

Displays the furnace indoor blower motor horse power

Di a g n o S t i C S

Sub-menu Item Indication/User

Modiable Options

Comments

Fault 1 (FAULT #1) Most recent furnace fault For display only

Fault 2 (FAULT #2) Next most recent furnace fault For display only

Fault 3 (FAULT #3) Next most recent furnace fault For display only

Fault 4 (FAULT #4) Next most recent furnace fault For display only

Fault 5 (FAULT #5) Next most recent furnace fault For display only

Fault 6 (FAULT #6) Least recent furnace fault For display only

Clear Fault History

(CLEAR)

NO or YES Selecting “YES”clears the fault

history

NOTE: Consecutively repeated faults are shown a maximum of 3 times.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS

ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u



24

13

th e r M o s t a t se t -u P

th e r m o S t a t Se t -u P oP t i o n S

The Thermostat has options that can be selected and adjusted. These options are in the

Thermostat Options Conguration Menu. To enter the menu from the Home Screen Dis-

play, touch the Menu key to display additional key choices.

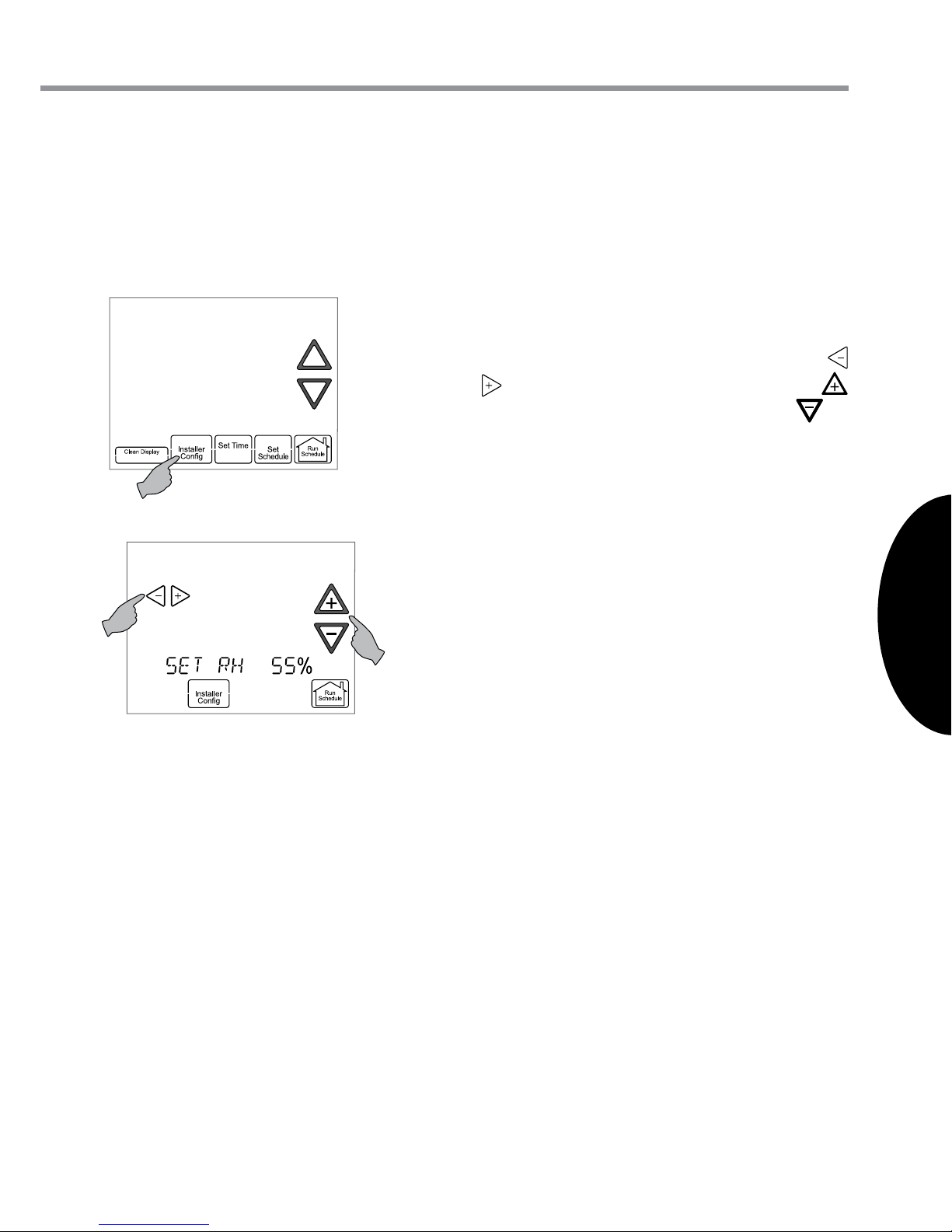

Touch and hold for 3 seconds the Installer

Cong key. This displays the rst menu

item as shown in the next step. Touch

or to change a menu option. Touch

to advance to the next menu item or to

return to the previous menu item.

Select On Demand Dehumidication

setting. Default is OFF. It can be set in the

range of 40 to 94%. Above 94% is the OFF

setting. Ideally, the indoor humidity should

be set in the range of 40 to 60%.

When On Demand Dehumidication is

selected On, the thermostat will indicate

the current humidity on the home screen.

The display will show RH with the humidity

%. If the current humidity is above the

selected setting, the thermostat will send

an On Demand Dehumidication request.

On Demand Dehumidication improves

the comfort level in your home by reducing

the humidity level. This is accomplished by

slowing down the system fan speed and

lengthening the run time. The humidity

setting may not be reached before the call

for cool has been satised as the system

priority is to maintain the temperature in

the home.

th e r m o S t a t uS e r me n u S

Se t -u P

Sub-menu Item User Modiable Options Comments

Outdoor

Temperature Display

(od TEMP)

ON = OD Temp is displayed

continuously

bL = Alternates OD temp

and time

OFF = Time is displayed

continuously

Resistance Heat

Disable Temperature

(AUX HT LOCKOUT)

From heat pump disable

temperature to 95˚F in 5˚F

increments

Available only for air handler + heat

pump systems. Disables electric

resistance heat above the selected

temperature.

Heat Pump Disabled

Temperature

(HP BAL PNT)

OFF or 0 to 50˚F in 5˚F

increments

Available only for air handler + heat

pump systems. Disables heat pump

below the selected temperature.

Balance Point

Temperature

(df BAL PNT)

OFF or 0 to 50˚F in 5˚F

increments

Available only for furnace + heat

pump systems (dual fuel systems).

Switches from heat pump to fossil

fuel equipment (furnace) below the

selected temperature.

System Test

(TEST SYSTEM)

NO or YES Starts a system test that steps

the system through the available

system modes of operation.

St a t u S

Sub-menu Item Indication (for Display Only; not User Modiable)

Conguration

(CONFIG)

Displays the actual system conguration (1-stage, 2-stage,

dual fuel, etc.)

Operational Status

(STATUS)

Displays the current operating status for the thermostat

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



14

23

th e r M o s t a t se t -u P ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

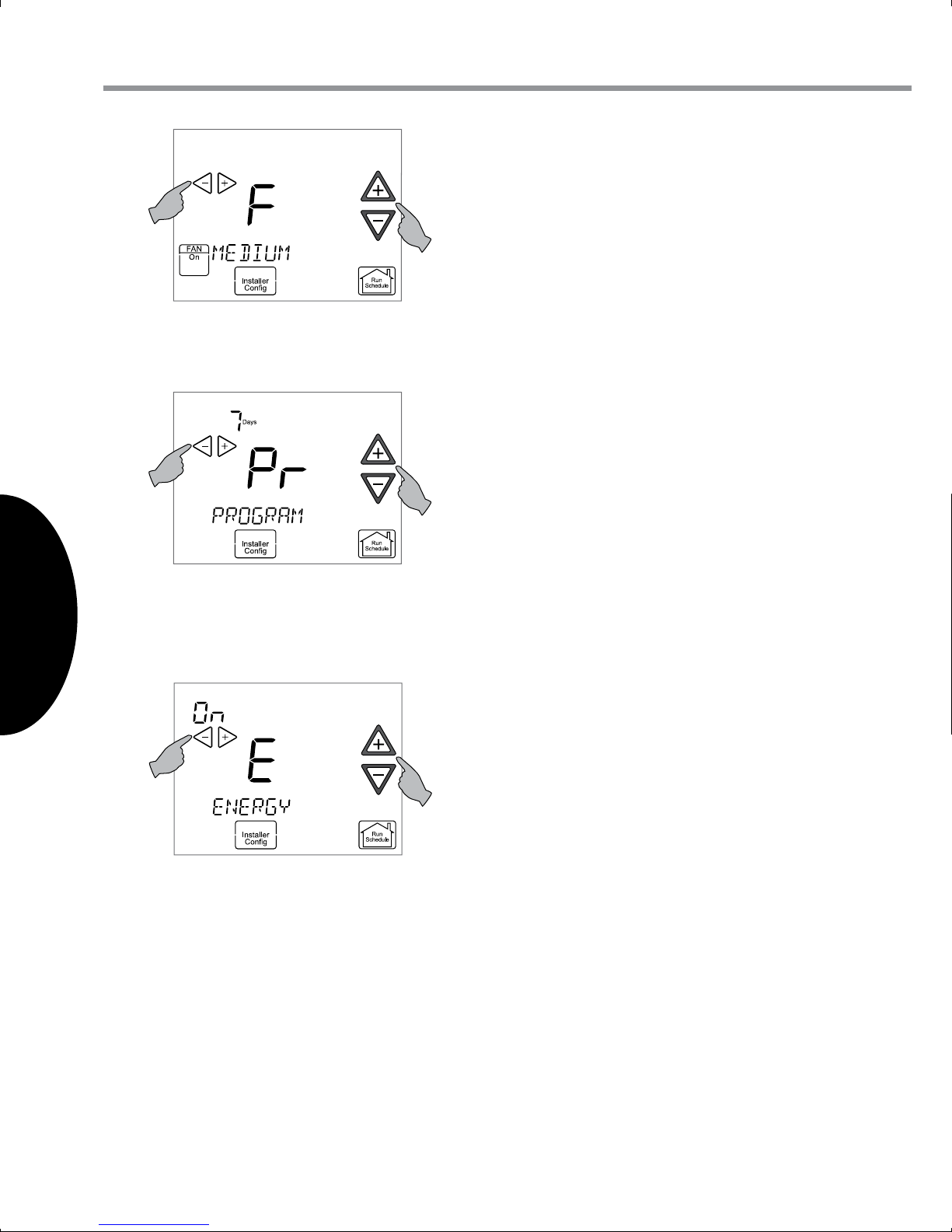

Select Continuous FAN speed. Default fan

speed is Medium. The fan speed can be set

to High, Medium or Low. In High, the fan

will run at 70% of the highest fan speed. In

Medium, the fan speed will be 50% of the

highest fan speed. In Low, the fan speed

will be approximately 30% of the highest

fan speed.

Select program days per week. Scrolling

message will show “PROGRAM TYPE”.

Default is 7 Days to indicate 7 program

days a week. It can be changed to 0 Days

to indicate no programs will be run. When

set for 7 Days, the thermostat will follow

the factory program or the program that

you entered.

Select Energy Management Recovery.

Scrolling Message will show “ENERGY

MANAGEMENT RECOVERY”. (Will not

appear if Program days per week is set to

0 Days.) When selected On, the thermostat

will begin heating or cooling early to

have the building temperature reach the

program set-point at the program period

start time.

Example: The heating program is 65°F at

night and 70°F at 7 AM for the Morning

period. The building temperature is 65°F, a

dierence of 5°F. Allowing 5 minutes per °F

rise, the thermostat will begin the system at

6:35 AM to reach 70°F at 7 AM.

eQ u i P m e n t uS e r me n u S

Each Equipment User Menu has sub-menus to divide the information into categories.

Each piece of equipment has a dierent set of sub-menus, with dierent parameters

depending on the equipment. The sub-menus are showing the similar information for

each piece of equipment. The sub-menus and information they provide are:

Conguration: This sub-menu item provides access to information regarding the

conguration of the particular piece of equipment. An example of conguration data

is the number of cooling stages for an AC condensing unit.

Diagnostics:This sub-menu item provides access to the fault history for the particular

piece of equipment. It also provides a means to clear the fault history.

Identication: This sub-menu item provides access to the model number and serial

number (optional) for the particular piece of equipment.

Sensors: This sub-menu item provides access to available sensor data for the

particular piece of equipment. In some instances, it may also provide a means to

enable or disable a particular sensor. This sub-menu may not be available for all

equipment.

Set-up: This sub-menu item provides access to modiable operational parameters

for the particular piece of equipment.

Status: This sub-menu item provides access to the current status of a particular piece

of equipment.

The following sections provide detailed listings of the available sub-menus for the various

types of equipment that may be used with this digitally communicating thermostat. The

sub-menu listing is further broken down into the various sub-menu items.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



22

15

th e r M o s t a t se t -u P

ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

Select continuous backlight. Scrolling

message will show “BACKLIGHT”. When

bL is selected On the backlight will be on

continuously. Selecting bLOFFwillallowthe

backlight to turn on momentarily when any

key is touched. If thermostat is operating

with battery power only, and bL is On, the

backlight will turn on momentarily.

Select temperature oset. Scrolling

message will show “TEMPERATURE

ADJUSTMENT”. Default is 0 with

current temperature. Adjustment can

be made from 5 Lo to 5 HI to change the

displayed temperature. Your thermostat

was accurately calibrated at the factory,

however this option allows you to change

the display temperature to match your

previous thermostat if you prefer.

Select temperature display as Fahrenheit

or Celsius. Scrolling message will show

“SELECT TEMPERATURE DISPLAY”. This

option selects the temperature display as

°F or °C.

Touch or to step through the items

of the equipment sub-menu and view

settings.

If a setting can be adjusted, the and

keys will appear. Change the setting as

required. Touch or to step to the next

item. “WORKING” will appear and then the

display will show “DONE” to indicate the

change is accepted. If the change does not

get accepted, the display will show “FAIL”

and then change back to the Fault Screen.

Some of the parameters being displayed on

a sub-menu are long and switch between

the name and the value. Touch the Hold

key to momentarily stop the display from

switching.

Touch Menu to step out of the equipment sub-menu parameters back to the equipment

sub-menu. Each touch of Menu will step up one menu level back to the Thermostat

Options Conguration Menu. Touch the Run Schedule to step out of all menus and back

to the Home Screen Display.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



16

21

th e r M o s t a t se t -u P ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u

Select beeper (audio prompt) Default is

On for the beeper to indicate a touch key

touch. It can be changed to OFF.

Select air lter maintenance reminder.

Scrolling message will show “AIR FILTER

MAINTENANCE”. Default is OFF. It can be

changed to a setting from 25 to 1975 hours

in increments of 25 hours to select the

amount of time for the reminder. A setting

of 225 hours is typically 3 months of run

time.

When the system has run for the selected

length of time, the scrolling message area

will show “CHANGE FILTER”.

eQ u i P m e n t uS e r me n u S

The equipment found in the system will display in the scrolling message area.

Touch or to step through the

list of equipment connected, including

thermostat.

To view the Equipment Menus information

for the equipment displayed in the scrolling

message area, touch Installer Cong to

enter that equipment sub-menu listing.

The scrolling message area will show

“WORKING”to indicate that the thermostat

is retrieving data. Then the rst equipment

sub-menu name appears in the scrolling

message area.

Touch or to step through the list

of equipment sub-menus. Each piece of

equipment may have dierent sub-menus.

When the equipment sub-menu you

want is showing in the scrolling message

area, touch Installer Cong. The scrolling

message area will show “WORKING” and

then change to the rst parameter on the

equipment sub-menu. Settings for the

parameter will also appear on the display.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS

The Advanced Installer Conguration Menu provides access to system conguration

options, diagnostics, and identication information.

en t e r i n g a n D na V i g at i n g t h e aD V a n C e D in S t a l l e r Co n f i g u r a t i o n

me n u /Se r V i C e in f o r m a t i o n

On the Home Screen Display, touch the Menu key to display additional key choices.



20

17

ad v a n c e d In s t a l l e r co n f I g u r a t I o n Me n u us I n g t h e th e r M o s t a t

Ch o o S e t h e Sy S t e m Se t t i n g

Touch the SYSTEM key to select:

Heat: Thermostat controls only the heating

system.

O: Heating and Cooling systems are o.

Cool: Thermostat controls only the cooling

system.

Em: Setting is available only when the

system is a heat pump. This setting controls

the auxiliary heat source in a heat pump

system. The auxiliary heat source may be

electric strip heaters or a gas furnace (dual

fuel system).

Auto: Auto Changeover is used in areas

where both heating and cooling may be

required on the same day. Auto allows

the thermostat to automatically switch

between heating and cooling operation.

au x i l i a r y he a t i n g

When the thermostat is congured for Heat Pump mode and an outside remote sensor

is installed, the thermostat can monitor the outside temperature. When the outside

temperature falls below a user selectable temperature, the thermostat will energize the

auxiliary heat source. Depending on the type of auxiliary heat source, the thermostat

may shut down the compressor.

Pr o g r a m m a B l e mo D e

If Program days per week is set for 7 (7 days) in the Thermostat Options Conguration

Menu the thermostat can follow the program entered. Press the Run Schedule key. The

thermostat will follow the program that you entered or the factory program.

Touch and hold the Installer Cong key

for approximately 3 seconds to enter the

Thermostat Options Conguration.

Touch and hold the Installer Cong key

again for approximately 3 seconds to

enter the Advanced Installer Conguration

menu.

fa u l t St a t u S

The display will change to the Fault Screen

indicating any faults that may be present

in the indoor or outdoor equipment.

Advanced will appear on the right of the

display to indicate the Advanced Installer

Conguration Menu.

If a fault is present, the Fault Screen will

show the equipment and an error code

with a description of the fault. Touch

or keys to view the fault status of any

remaining equipment found.

If no errors are present, the scroll area will

indicate NO FAULTS. Touch or keys

to view the fault status of any remaining

equipment found. Touch or to

change the display to the Equipment User

Menu.

INSTALLATION POWER UP SETUP USAGE GUIDE ADVANCED MENUS

INSTALLATIONPOWER UPSETUPUSAGE GUIDEADVANCED MENUS



18

19

us I n g t h e th e r M o s t a t us I n g t h e th e r M o s t a t

te m P o r a r y Pr o g r a m oV e r r i D e

This feature will override the program temperature setting until the next program

period begins. Touch or keys to adjust the temperature. The display will indicate

“Temporary Hold At” to the left of the set-point temperature. To cancel the temporary

setting before the next period begins, touch Run Schedule to return to the program.

Example: If you turn up the heat during the Morning program, it will remain at the new

temperature until the time for the next program period (Day).

Pe r m a n e n t te m P e r a t u r e ho l D

The Permanent Temperature Hold feature bypasses the program and allows you to

adjust the temperature manually as needed. The temperature you set in HOLD will

be maintained indenitely. Touch Run Schedule to cancel HOLD and resume the

programmed schedule.

Touch or keys to adjust the temperature. The Hold key will appear on the screen.

Touch the Hold key to maintain the new set-point temperature. ”Hold At” will display to

the left of the temperature set-point. To cancel the permanent hold setting at any time

and return to the program, touch Run Schedule.

Example: If you turn up the heat during the morning program and touch the Hold key,

it will remain at the new temperature until you touch Run Schedule or you manually

adjust to another temperature.

no n -Pr o g r a m m a B l e mo D e

If Program days per week is set for 0 Days (Non-programmable) in the Thermostat

Options Conguration Menu, the thermostat will not follow any program periods. Touch

the SYSTEM key to select Heat or Cool and use the or buttons to adjust the

temperature to your desired setting. After selecting your desired settings you can also

touch the SYSTEM key to select AUTO to allow the thermostat to automatically change

between Heat and Cool. If the SYSTEM key is touched to select Auto the thermostat will

change to Heat or Cool, whichever ran last. If it switches to heat but you want cool, or it

changes to cool but you want heat, touch both or keys simultaneously to change

to the other mode.

Ch o o S e t h e fan Se t t i n g (au t o o r on)

FAN Auto is the most commonly selected setting and runs the fan automatically when

the heating or cooling system is on during a program period.

Fan On selection runs the fan continuously for increased air circulation or to allow

additional air cleaning. When FAN is selected On, it will run at the speed selected in the

Thermostat Options Conguration Menu.

Fan Prog - When a period that has FAN Prog in the program begins, the fan will turn on

and stay on during the complete period. The display will show FAN On Prog.

Ch e C K Sy S t e m St a t u S

If the Home Screen Display indicates “Call

for Service” and “Check <Equipment

Name>”in the scrolling message area, there

is a fault in the system. When this message

is displayed, contact your heating and

cooling service contractor or the installing

contractor for service.

ma i n t e n a n C e re m i n D e r me S S a g e

A reminder will display in the scrolling

message area when it is time for accessory

maintenance if selected in the Thermostat

Options Conguration Menu. When a

reminder appears, it can be cleared by

touching the Clean Display key. This will

also reset the timer to begin a new time

period for the reminder.

Air Filter Maintenance - When the system

has run for the selected length of time, the

scrolling message area will show“CHANGE

FILTER”.
