Comma CommaGlove 1S User manual
Shenzhen Comma Technology., Ltd.
December 18, 2016
1
CommaGlove 1S User Manual
Contents
A. Introduction of CommaGlove ............................................................................................................... 3
1. CommaGlove Overview..................................................................................................................... 3
2. Packing List ........................................................................................................................................ 3
3. Accessories of CommaGlove ............................................................................................................. 4
4. Button Functions ............................................................................................................................... 4
5. LED Indicator Table............................................................................................................................ 4
6. Buzzer Indicator Table ....................................................................................................................... 5
B. Introduction of Application................................................................................................................... 6
1. Overview............................................................................................................................................ 6
2. Download and Installation ................................................................................................................ 6
3. Demo Application Quick Start ........................................................................................................... 6
I. Turn on the device......................................................................................................................... 6
II. Open Application ........................................................................................................................... 6
III. Add Comma’s devices ................................................................................................................ 7
IV. Search BLE Device ...................................................................................................................... 8
V. Establish Bluetooth connection..................................................................................................... 9
VI. Read Data.................................................................................................................................10
4. Device Configuration .......................................................................................................................12
2
CommaGlove User Menu
CommaGlove 1S User Operation Menu（Hardware）
A. Introduction of CommaGlove 1S
1.
CommaGlove 1S Overview
The overview of CommaGlove 1S is shown in Figure 1.

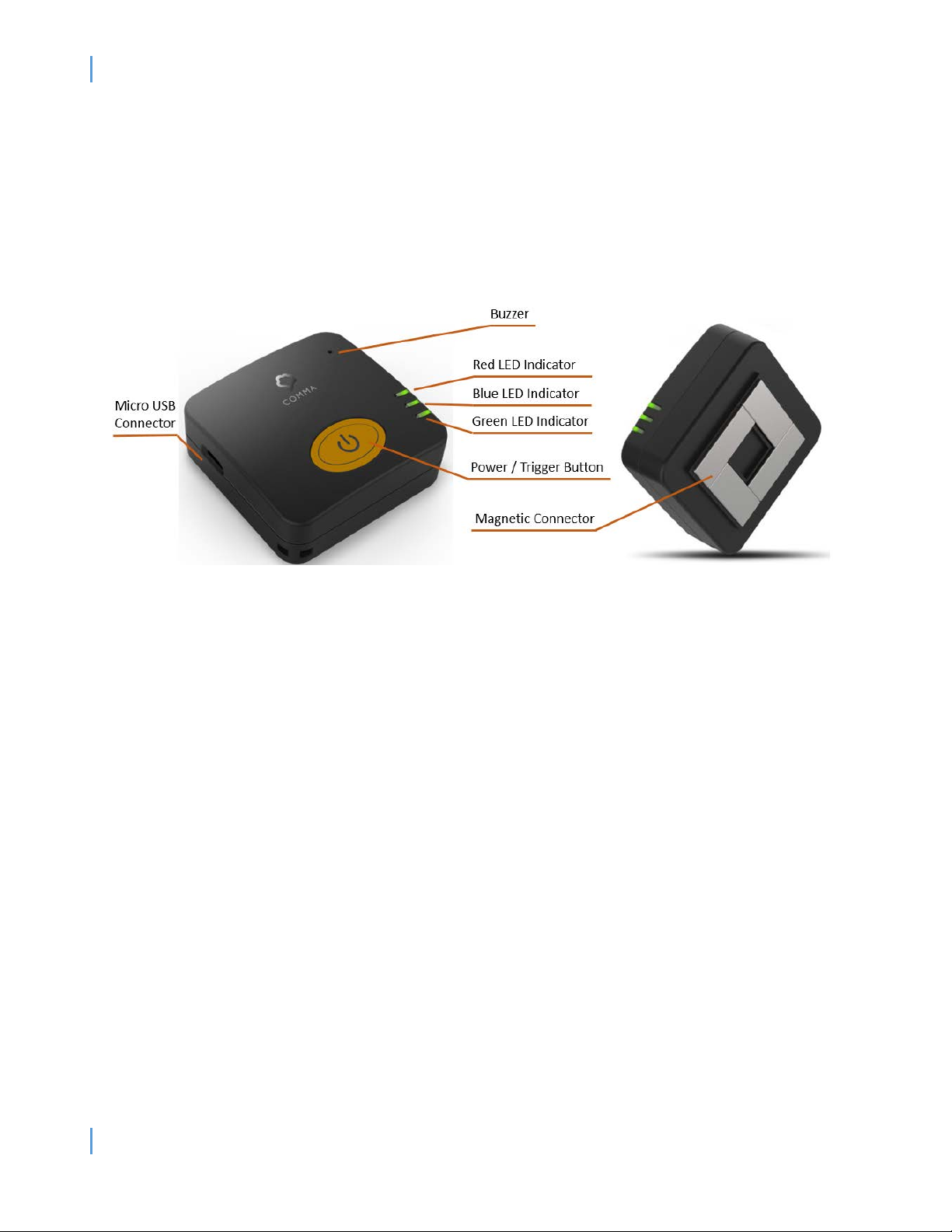

Figure 1 CommaGlove 1S Overview
2.
Packing List
The following items are included in your packaging box of CommaGlove
•CommaGlove 1S scanner
•USB connecting line
•User’s manual
3
3.
Accessories of CommaGlove 1S
Smart glove, which is shown in Figure 2, is an optional accessory that make CommaGlove wearable.
Smart glove has magnetic connector that can attach CommaGlove. Left hand or right hand smart
glove will be provided.
Figure 2 CommaGlove Overview (Optional Accessory)
The USB Auxiliary Trigger is another accessory that acts as the additional scanning trigger. It could be
fixed on the smart glove to assist with scanning operations.
4.
Button Functions
The followings are the brief description of the Button Functions
Operation Description
Power on / off •Long press the power / trigger button to power on / off the device
•1 short beep sound
Trigger Scan •Press the power / trigger button
•Short beep sound for scanning success
5.
LED Indicator Table
Operation Status Color LED Status Description
Power Status Red
Static Full battery (charging)
Slow Blinking Low battery
Long Blinking Charging
Bluetooth Status Blue Static Connected
4
Blinking Disconnected
Scan Result Status Green Flash 1 time Scan success
6.
Buzzer Indicator Table
Buzzer Status Time Description
Short Beep Once Scanning success
Twice Bluetooth connection success
Long Beep 2 Seconds- Bluetooth disconnect
Off-line cache memory full
5
CommaGlove 1S User Operation Menu (Application)
B. Introduction of Application
1.
Overview
We provide a SDK for developer to integrate our product to their own application. Also, a demo
application, Comma Family App, is provided for user to test and experience our products.
2.
Download and Installation
User can visit our website https://www.pgyer.com/CommaDevice, or scan the below 2D barcode to
download and install the latest demo application to your android device (requires Bluetooth BLE and
Android 4.3 or above).
Figure 3 URL for Comma Family Application
3.
Demo Application Quick Start
After install the application, the operation of the demo application as follow
I. Turn on the device
Press the power button on the top of the CommaGlove to turn on the device. When a beep sound
occurs and the blue LED starts flashing, the device has finished bootup.
II. Open Application
Click the CommaFaily icon to open the demo application.
6
Figure 4 Comma Family Application
III. Add Comma’s devices
The main interface of Comma Family is register devices list, which is shown in the left-hand side of
Figure 5. To add a new Comma’ device, click the “+” button in the upper right corner and the device
selection screen will be displayed, which is shown in the right-hand side of Figure 5. Then, select
CommaGlove icon to register CommaGlove.
7

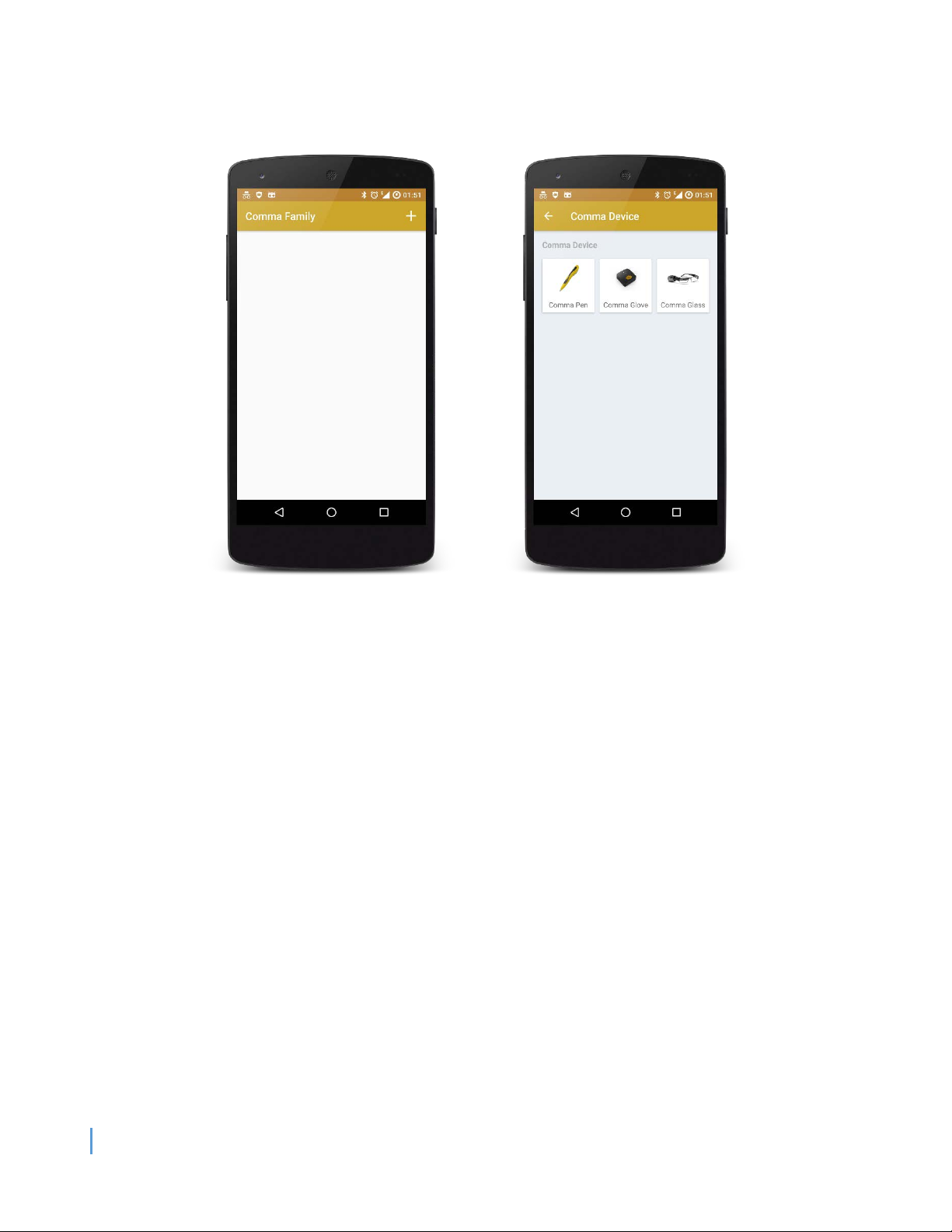

Figure 5 Application Main Screen (Left), Add Comma’s Devices Interface (Right)
IV. Search BLE Device
After select the device type, the demo application will jump to device discovery interface and start
searching and listed all available BLE devices. (Right-hand side of Figure 6) If the Android Bluetooth
is not open, the application will ask for open the Bluetooth (Left-hand side of Figure 6).
8

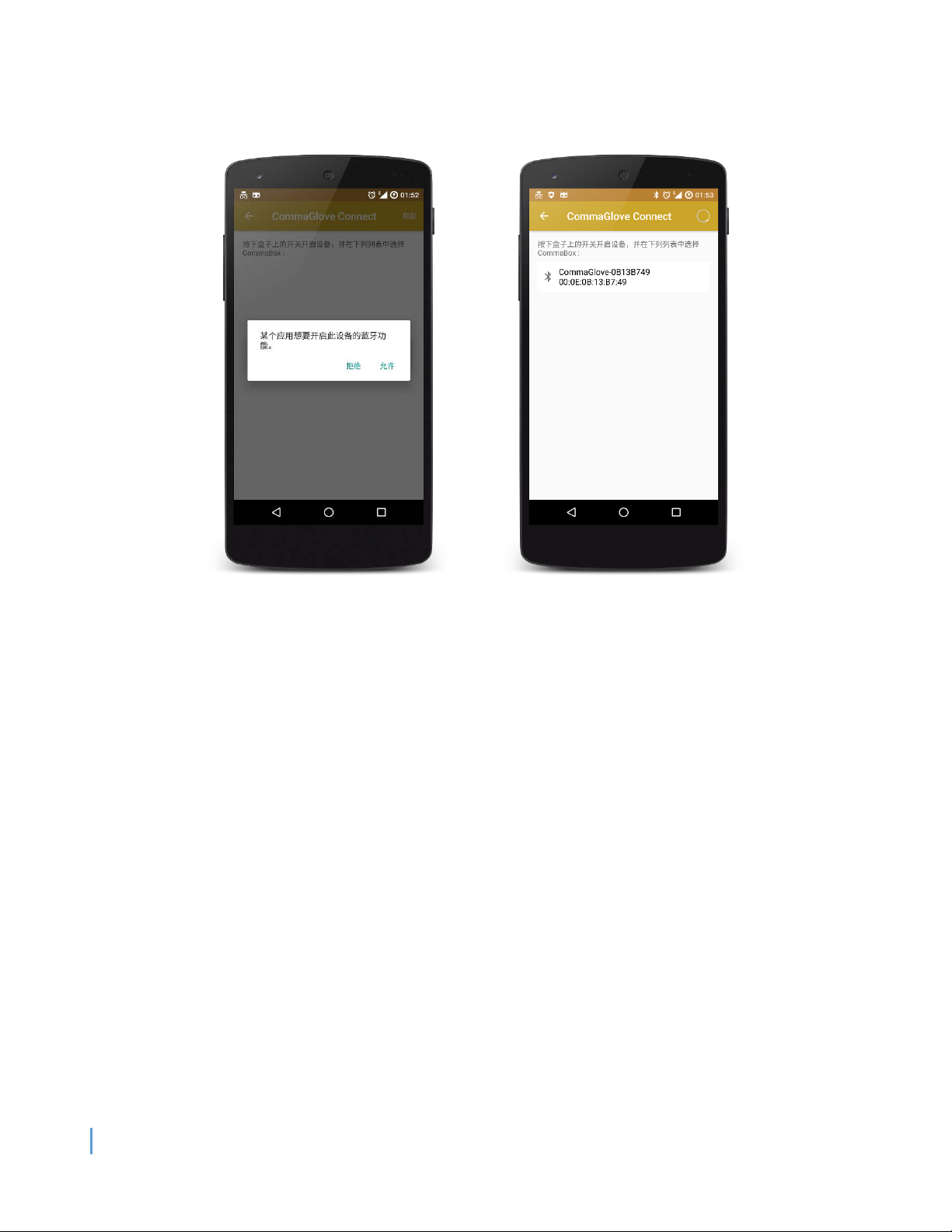

Figure 6 Bluetooth Discovery Interface
V. Establish Bluetooth connection
Click the CommaGlove device in the list to connect the device. If the connection success, the device will
emit 1 beep sound and the blue LED will light static. The application will redirect to the device main
interface (Figure 7).
In the device main interface, the upper right-hand corner shows the Bluetooth connection status. You
can click the status to toggle the Bluetooth connection.
** In the current version (v1.1.24.161208.ed09dfe), if user back to Comma Family main interface or exit
the application, the application will disconnect the current device.
9
Figure 7 Device Main Interface
VI. Read Data
You can trigger CommaGlove to read data in 3 ways. If the read process success, the device will emit
a beep sound and a green LED will light 1 time.
a) Soft trigger by click the “Scan” button (Left-hand side of Figure 8).
b) Press the power / trigger button on the top of the CommaGlove (Figure 1)
c) Press the read button via the USB auxiliary trigger (require CommaGlove accessory, Figure 2)
If the read operation success, the result will display in the result list (Right-hand side of Figure 8).
10
Figure 8 Data Reading
11
4.
Device Configuration
In the device configuration tab (Figure 9), user can change the CommaGlove setting or reading
behavior. The details of configurations are descripted as follows.
Figure 9 Device Configuration
a) Bluetooth Setting
Turn on or off the Android device Bluetooth.
b) Cache Mode
If the cache mode is on, the Comma’s devices will cache the scanning data while the Bluetooth
connection discounted from the Android device, and transmit cached data to Android device while
the Bluetooth connection resume.
c) Continuous Read Mode
If the continuous read mode is on, the Comma’s device will auto trigger scan action with a
predefined time interval (Figure 10).
** The Cache Mode and Continuous Read Mode cannot enabled at the same time in current version
(v1.1.24.161208.ed09dfe)
12
e) Barcode Advance Setting
User can change the CommaGlove scanning behavior via scan the function quick code.
Each configuration requires three steps action to apply the setting.
I. Scan “initiation” code
II. Scan “function” quick code
III. Scan “ending” code
The following example is the operation to disable / enable the GB code filtering function.
I. Select “Filter GB Code”, then, use CommaGlove to scan the “Initiation” code (Figure 12).
II. Select the mode to enable / disable, then, scan the function quick code (Figure 13).
III. Finally, scan the “Ending” code to complete the operation (Figure 14).

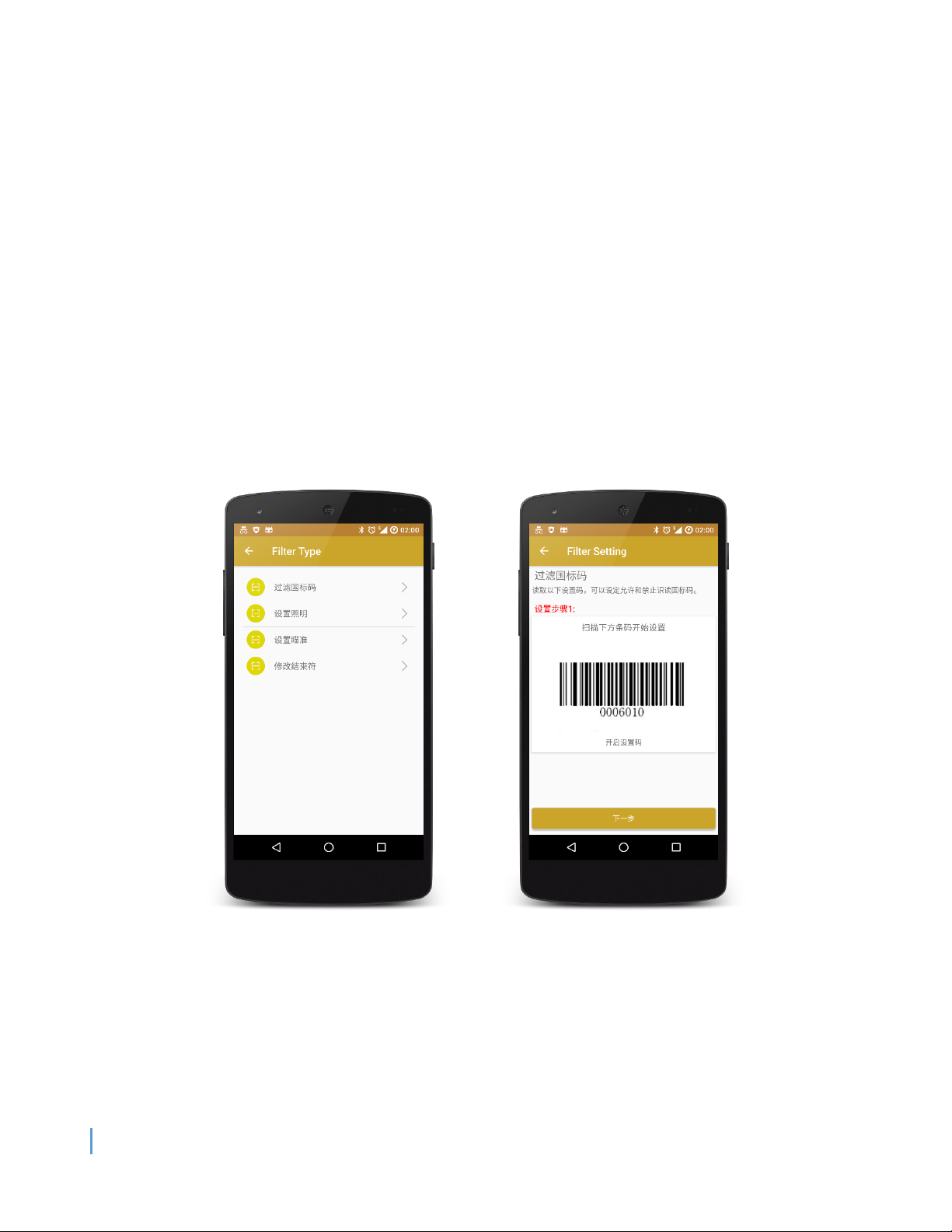

Figure 12 Scan the initiation code
14

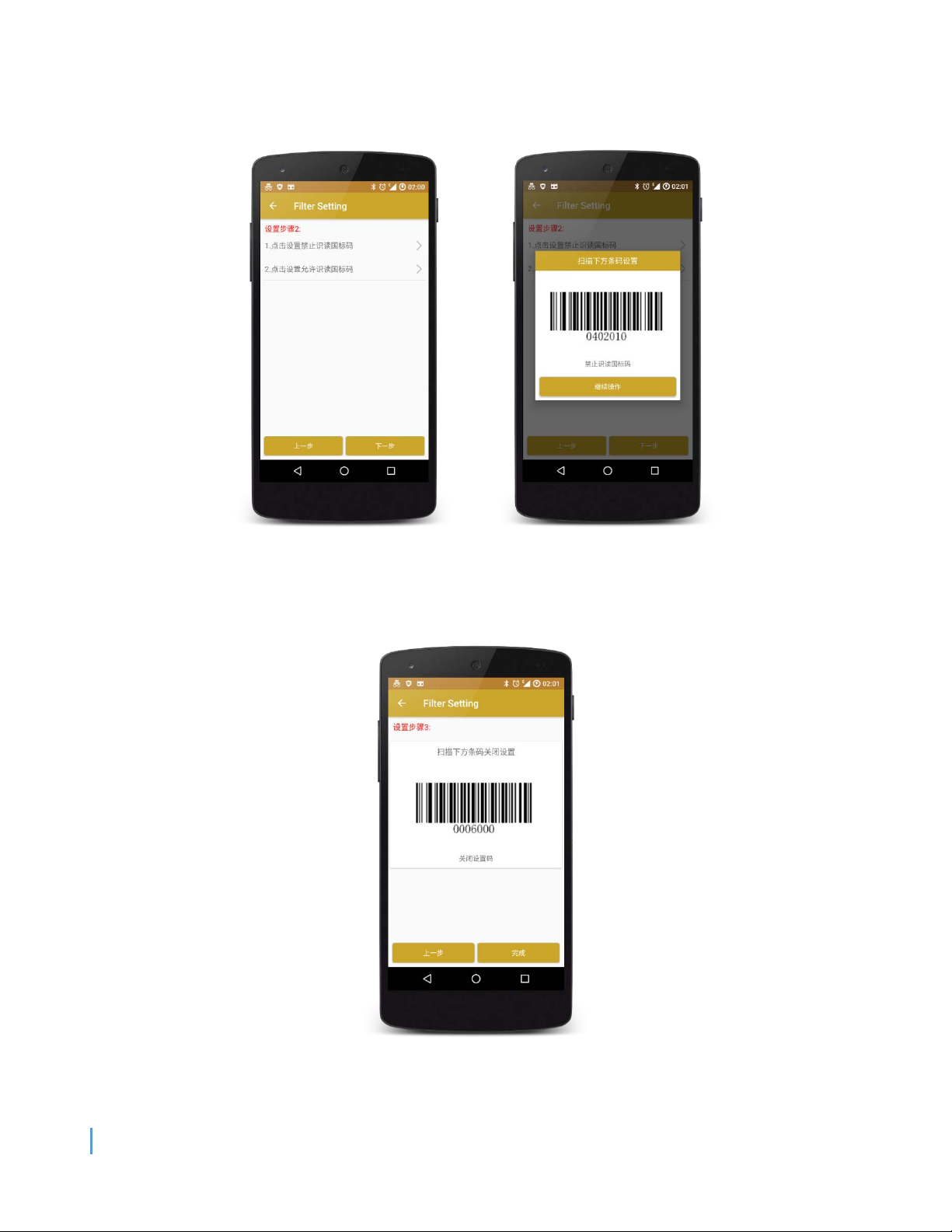

Figure 13 Scan the function quick code
Figure 14 Scan the ending code
15
FCC Warning:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by
manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
