Commell LV-67A User manual

LV-67A

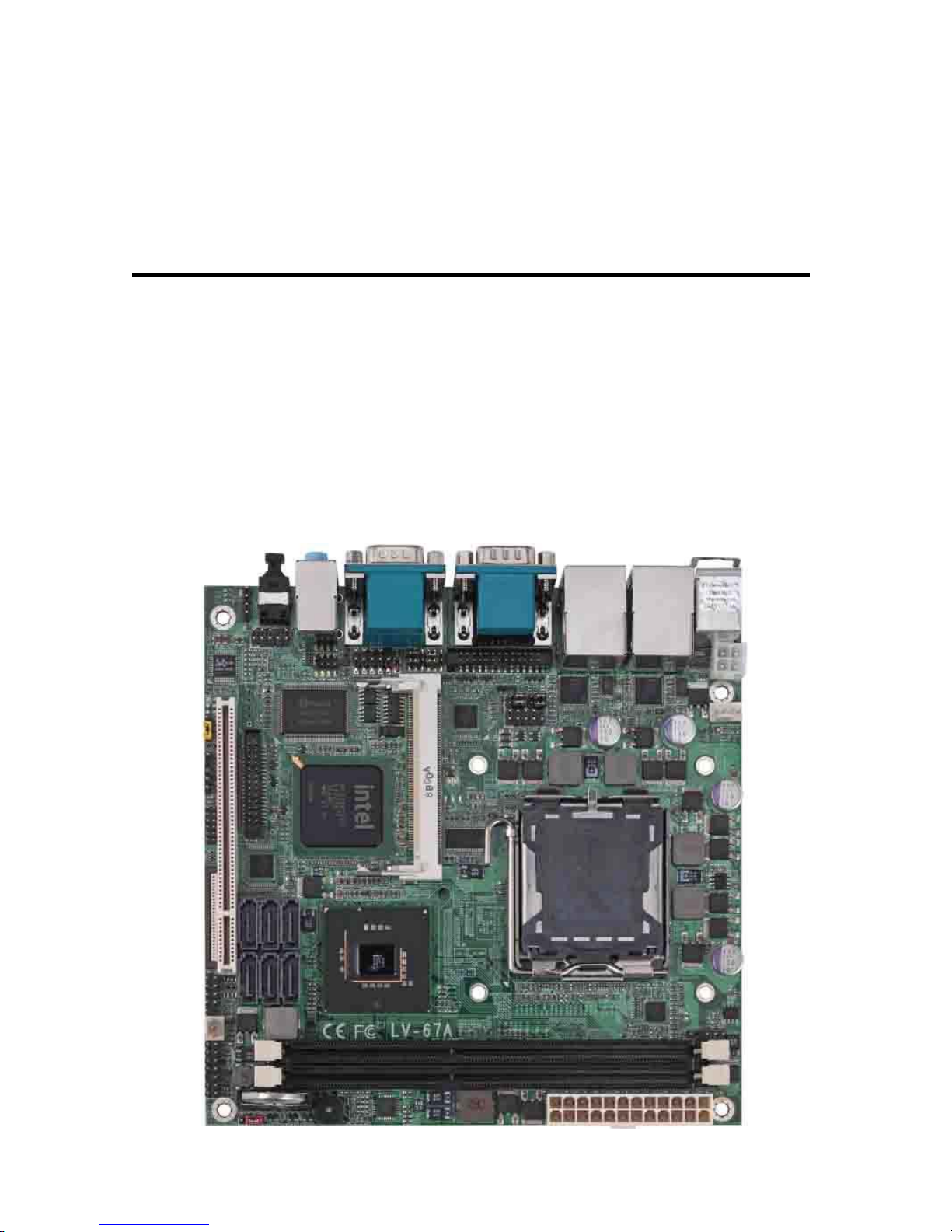

Mini-ITX motherboard
User’s Manual
Edition: 1.0
2009/04/10

LV-67AUser’sManual
2
Copyright
Copyright 2009. All rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT.

LV-67A User’s Manual Packing List
Product Specification 3
Packing List
Please check package component before you use our products.
Hardware:
LV-67A Mini-ITX motherboard x 1
Cable Kit:
Other Accessories:
Divers CD (including User’s Manual) x 1
RAID drivers Disc for Windows XP
SATA Cable x 2 26-pin Slim Type Floppy Cable x 1
DVI module with bracket x 1
(LV-676D Only)
I/O Shield x 1
USB Cable x 1 COM Port Cable x 1 VGA cable x 1
(LV-67T only)
DVI module with bracket x 1
(LV-67D2 Only)

LV-67AUser’sManual Index
4
Index
Chapter1 <Introduction>............................................................7
1.1 <Product Overview> .............................................................................................7
1.2 <Product Specification> ........................................................................................8
1.3 <Block Diagram> ................................................................................................10
1.4 <Mechanical Drawing > ......................................................................................11
Chapter 2 <Hardware Setup>.................................................12
2.1 <Connector Location>.........................................................................................12
2.2 <Jumper Reference>..........................................................................................13
2.3 <Connector Reference>......................................................................................14
2.3.1 <Internal Connectors> ..............................................................14
2.3.2 <External Connectors> .............................................................14
2.4 <CPU and Memory Setup>.................................................................................15

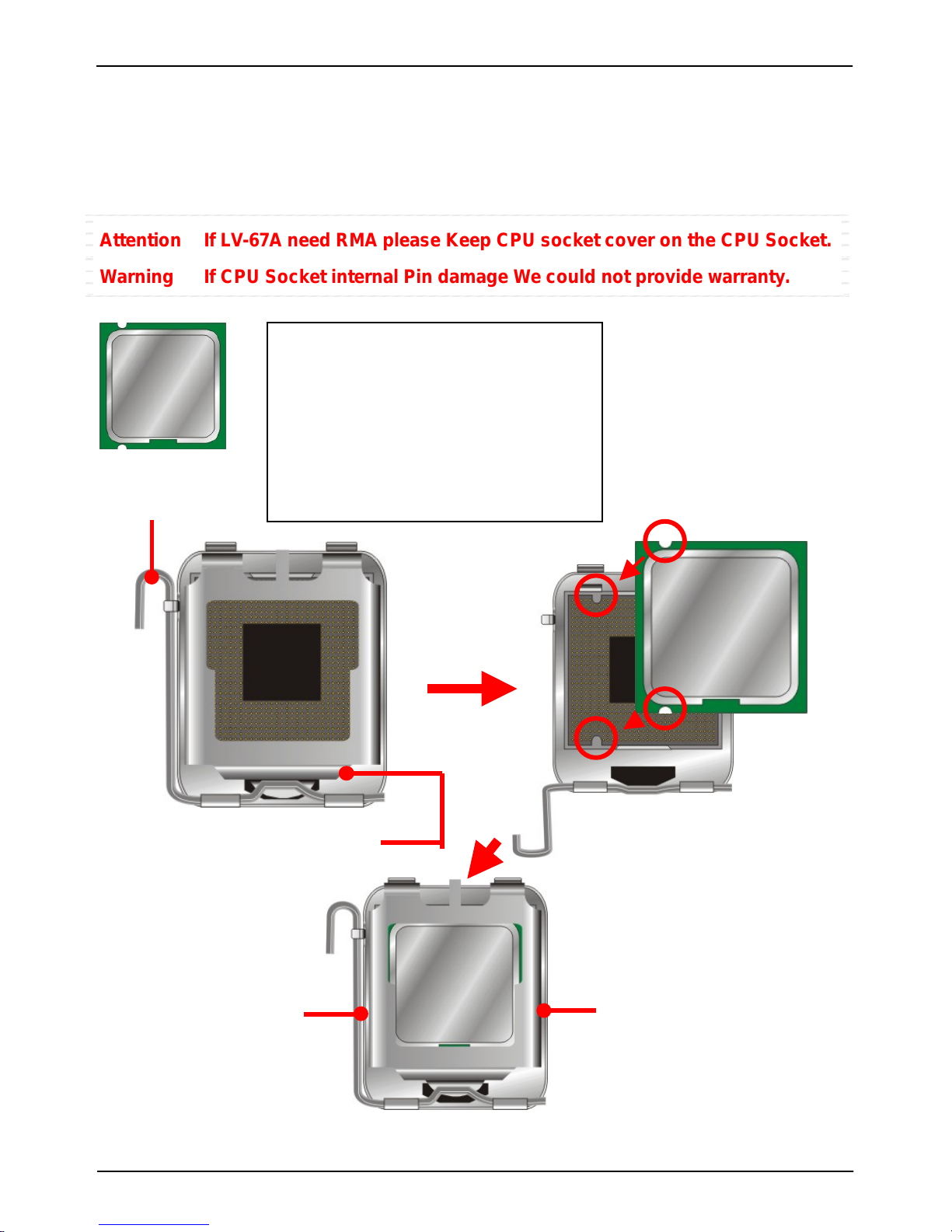

2.4.1 <CPU installation>...................................................................15

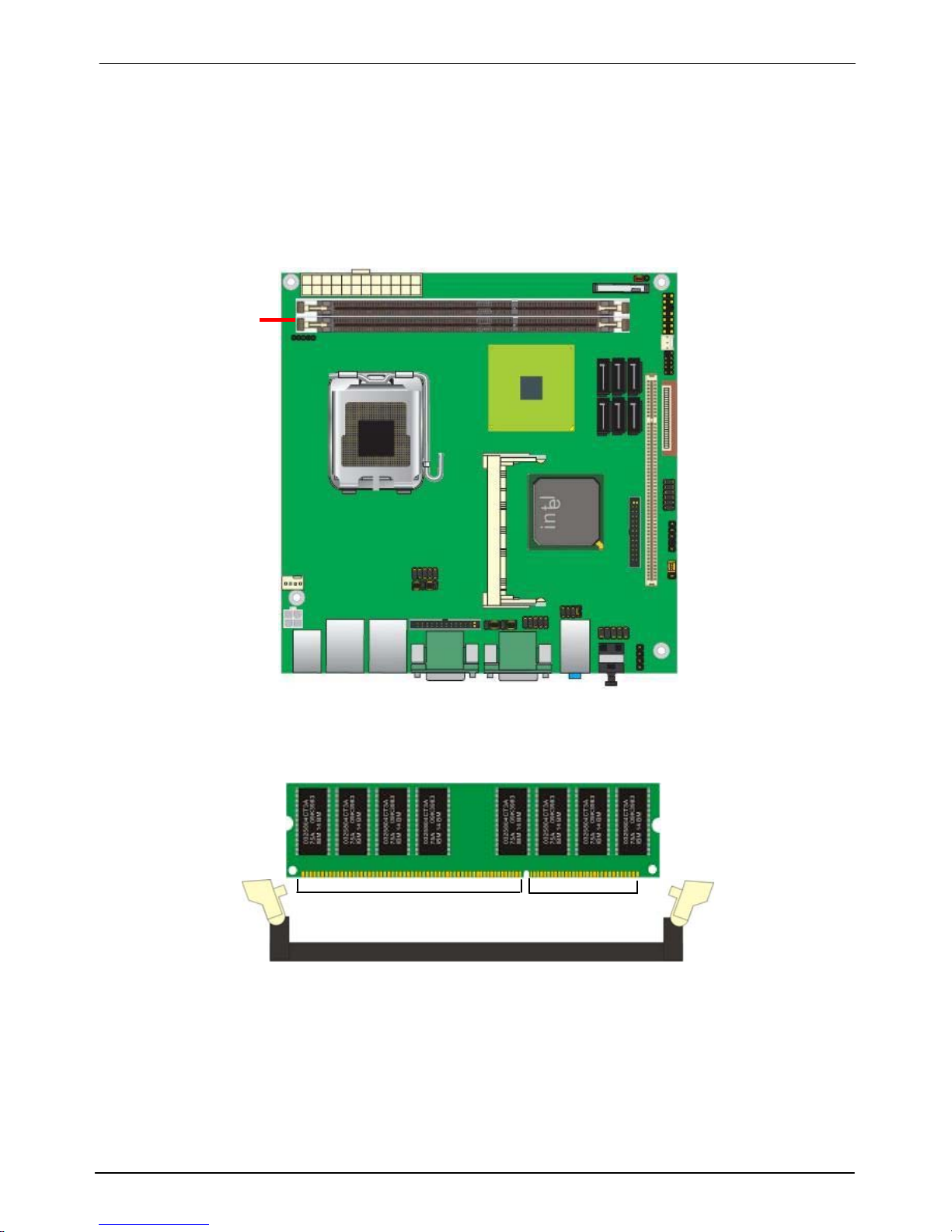

2.4.2 <Memory installation>..............................................................16
2.5 <CMOS Setup>...................................................................................................17
2.6 <Serial ATA installation>......................................................................................18
2.7 <Floppy Installation>...........................................................................................19
2.8 <LAN installation>...............................................................................................20
2.9 <Onboard Display Interface>..............................................................................21
2.9.1 <Analog Display>....................................................................21
2.9.2 <LVDS Display LV-67AX Only >...............................................23
2.9.3 <DVI Display LV-67AD and LV-67AD2> ....................................26
2.10 <Audio Installation> ..........................................................................................27
2.11 <GPIO and SMBUS interface>..........................................................................29
2.12 <USB Installation> ............................................................................................30
2.13 <Power and Fan Installation> ...........................................................................32
2.14 <Serial Port>.....................................................................................................34
2.15 <Switch and Indicator> .....................................................................................37

LV-67A User’s Manual Introduction
Product Specification 5
Chapter 3 <System Configuration>.......................................39
3.1 <SATA configuration>..........................................................................................39
3.2 <SATA RAID Configuration> ...............................................................................40
3.3 <Audio Configuration> ........................................................................................45
3.4 <Video Memory Setup> ......................................................................................46
3.5 <Display Properties Setting>...............................................................................48
Chapter 4 <BIOS Setup>.........................................................50
Appendix A <I/O Port Pin Assignment>................................52
A.1 <Serial ATA Port>................................................................................................52
A.2<Floppy Port>......................................................................................................52
A.3 <IrDA Port>.........................................................................................................53
A.5 <VGA Port> ........................................................................................................54
A.6 <LAN Port>.........................................................................................................54
Appedix B <System Resources>...........................................55
Appedix C <Flash BIOS>.........................................................59
C.1 BIOS Auto Flash Tool..............................................................................59
C.2 Flash Method ...........................................................................................59
Appendix D <Programming GPIO’s>....................................60
Appendix E <Watch Dog timer Setting >..............................61
Contact Information...................................................................62

LV-67AUser’sManual
6
(This Page is Left for Blank)

LV-67A User’s Manual Introduction
Product Specification 7
Chapter1 <Introduction>
1.1 <Product Overview>
LV-67A is the motherboard with last Intel desktop technology with Mini-ITX form factor.
Based on Intel®Q45 and ICH10DO, the board integrates a new Core 2 Quad / Core 2 Duo
Celeron processor 775-pin socket, DDR3 memory socket, Intel®Graphic Media Accelerator
4500 technology, Serial ATA II with RAID function for a powerful desktop system.
Intel®LGA775 processor
The Intel® Core 2 Quad / Core 2 Duo / Celeron processor now comes with a new form
factor with 775-pin PLGA package, for 800/1066/1333MHz front-side-bus, 12MB L2 cache,
for 65nm and 45nm manufacturing technology, the PLGA processor without pin header on
solder side can make user installing the processor on the socket easier.
Intel®Q45 and ICH10DO chipset
The Intel Q45 integrates DDR3 800/1066MHz for memory, and Graphic Media Accelerator
(GMA) 4500 technology for new graphic engine. It can provide up to 1024MB of frame
buffer when you install over 1GB of system memory. The ICH10DO integrates with up to 8
USB2.0 interfaces, and serial ATA II interface with RAID function.
Flexible Extension Interface
The board provides one PCI-slot for graphics card, it also can support PCI-slot for LAN card
or other devices. The board also provides mini-PCI socket.

LV-67A User’s Manual Introduction
Product Specification8
1.2 <Product Specification>
General Specification
Form Factor Mini-ITX motherboard
CPU Intel® Core 2 Quad/ Core 2 Duo / Celeron processor
With LGA775 socket
Package type: PLGA 775
Front side bus: 800/1066/1333MHZ (200/266/333MHz x 4)
Memory 2 x 240-pin DDR3 800/1066MHz SDRAM up to 4GB
Unbufferred, none-ECC memory supported only
Chipset Intel® Q45 (Northbridge) and ICH10DO (Southbridge)
BIOS Phoenix-Award v6.00PG 8Mb SPI flash BIOS
Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant
Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value
Real Time Clock Intel® ICH10DO built-in RTC with lithium battery
Serial ATAII Intel® ICH10DO integrates 4 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel® 82801HDO( ICH10DO) with Winbond® W83627DHG
controller
Serial Port Three RS-232 and one RS232/422/485 serial ports
USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate
Floppy Port One slim type Floppy port
IrDA Port One IrDA compliant Infrared interface supports SIR
K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel
GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface
Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel® Q45 GMA4500 (Graphic Memory Controller Hub)
Frame Buffer Up to 1024MB shared with system memory
Display Type CRT, LCD monitor with analog display
Onboard 18/24-bit dual channel LVDS interface (LV-67AX)
Onboard DVI interface (LV-67AD/LV-67AD2)
Optional Secondary CRT Connector (LV-67AT)
Connector External DB15 female connector on rear I/O panel
Onboard 40-pin LVDS connector (LV-67AX)
Onboard 26-pin DVI Connector (LV-67AD/L-67AD2)

LV-67A User’s Manual Introduction
Product Specification 9
Ethernet Interface
Controller Two Intel 82574L Gigabit Ethernet controller
Type Triple speed 10/100/1000Base-T
Auto-switching Fast Ethernet
Full duplex, IEEE802.3U compliant
Connector Two External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset Intel® ICH10DO with Realtek ALC888HD Audio
Intel High Definition Audio compliance
Interface 2 channels sound output
Connector External 3 phone jack for 2 channel audio on rear I/O panel
External SPDIF connector on rear I/O panel
Internal 10-pin header for line-in/-out, MIC-in, 4-pin header for
CD-IN
Expansive Interface
Mini PCI One Mini-PCI socket TYPE III A (32-bit, 33MHz)
Power supply: +3.3V, +5V
Power and Environment
Power
Requirement Standard ATX 24-pin (20-pin is compatible) power supply Additional +12V 4-pin power connector
Dimension 170 (L) x 170 (H) mm
Temperature Operating within 0 ~ 60P
O
p
C (32 ~ 140P
O
p
F)
Storage within –20 ~ 85P
O
p
C (-4 ~ 185P
O
p
F)
Ordering Code
LV-67AD Onboard VGA, 2 x Intel® Gigabit LAN, 8 x USB2.0, Mini-PCI,
PCI, 4 x serial Port, 1 x FDD, Realtek ALC888 HD Audio, 6 x
SATA
1 x IrDA , 1x DVI Interface
LV-67AD2 Same as LV-67AD with secondary DVI Interface
LV-67AX Same as LV-67AD with 18/24-bits LVDS instead of DVI
LV-67AT Same as LV-67AD with secondary CRT instead of DVI
The specifications may be different as the actual production.
For further product information please visit the website at u
Thttp://www.commell.com.twUT

LV-67A User’s Manual Introduction
Block Diagram10

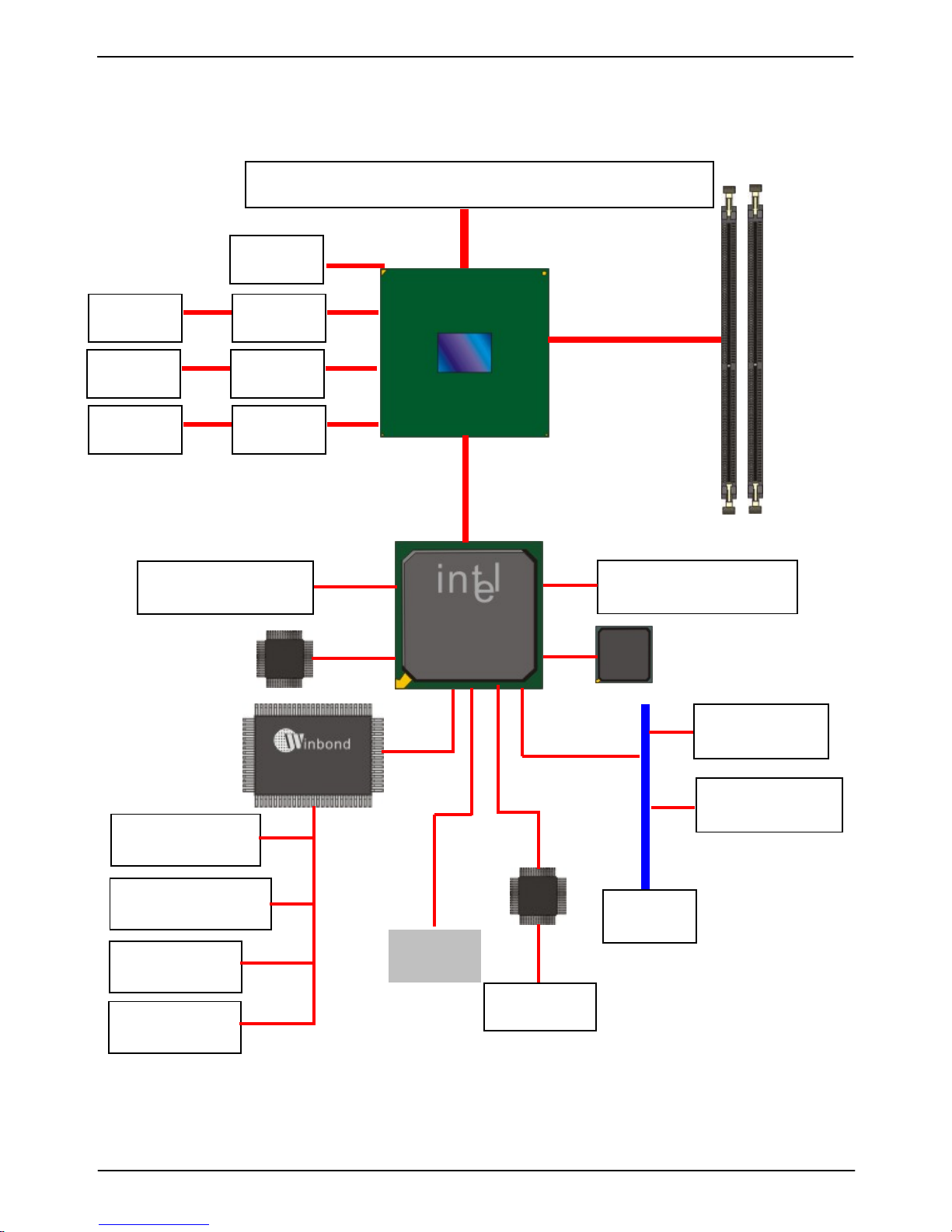

1.3 <Block Diagram>
Intel Core 2 Quad / Core Due with 775 Pin PLGA
Intel Q965 2 x 240-pin DDR3
800/1066MHz up
to 4GB
PCI bus
Mini-PCI slot
2 x Serial ports
1 x Floppy port
8-bit GPIO
8 x USB2.0 ports
PCI Slot
HD Audio ICH8DO
LVDS
DVI
6 x Serial ATAII ports
Intel 82574L
2 x GLAN
IrDA
CH7308
CH7318
BIOS
SPI
CRT2 CH7317
COM3/4
CRT1

LV-67A User’s Manual Introduction
Mechanical Drawing 11
1.4 <Mechanical Drawing >

LV-67AUser’sManual HardwareSetup
Jumper Reference12
PS2
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CN_12
V
CN_DVI1
CPUFAN
CN_COM4
CN_DIO
FDD
SYSFAN
JFRNT
CN_USB
CN_AUDIO
SPDIF
CDIN
CN_I
R
AT
X
COM1 + CRTUSB_RJ45_1/2 Audio
DDRIIIA/B
S_ATA1~6
PCI
Mini-PCI
COM2+COM3
CN_DVI1
CN_SMBUS
CN_USB4
JAT
JCSEL2
JCSEL1
JP1/JP2

LV-67AUser’sManual HardwareSetup
Connector Location 13
JAT
1
3

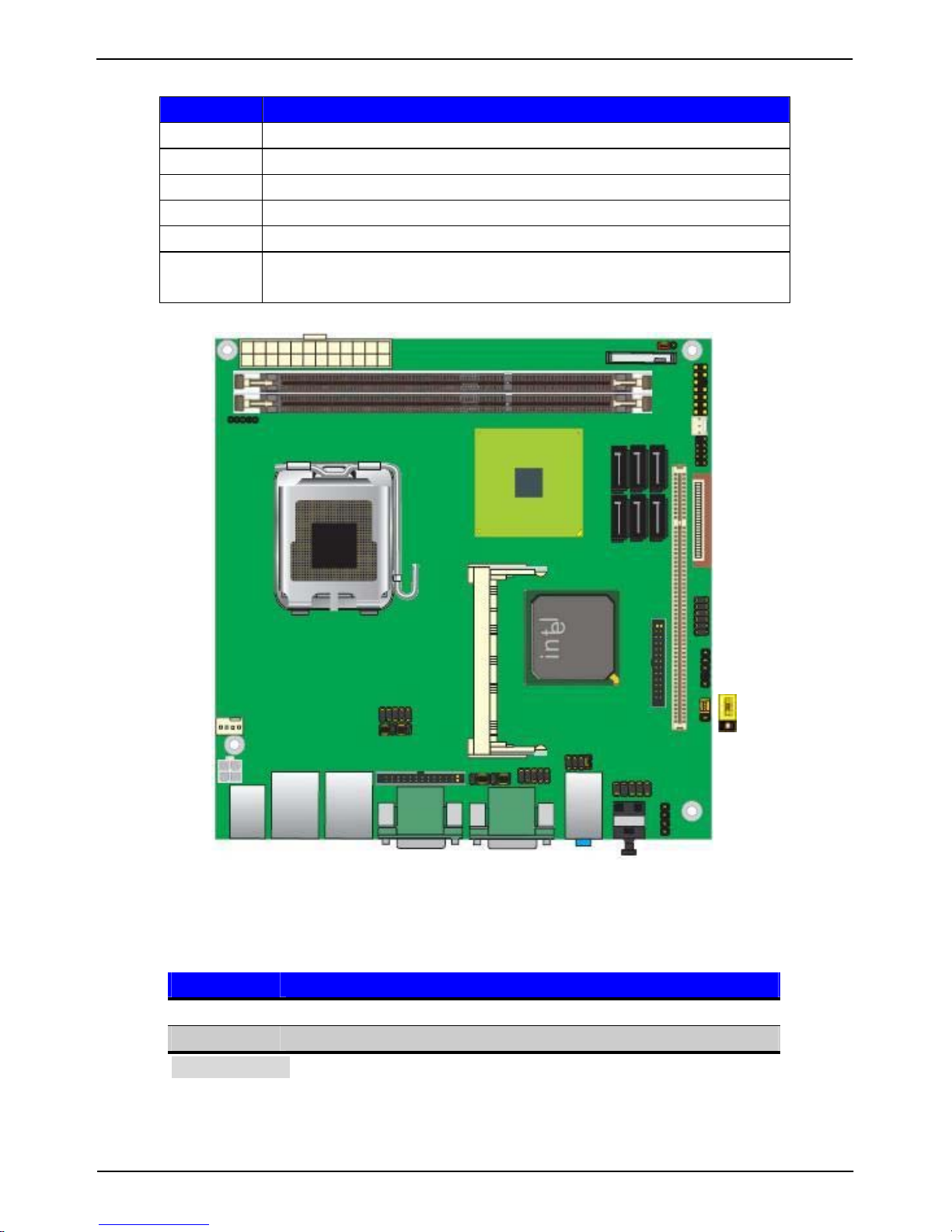

2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting (LV-67AX)
JP1 COM1 signal mode switch (For Pin-1 & Pin-9)
JP2 COM2 signal mode switch (For Pin-1 & Pin-9)
JAT Power mode select
JCSEL1
JCSEL2 CN_COM2 RS-232 RS422 RS485 Setting
CN_IR IrDA Setting
Jumper: JAT
Type: Onboard 3-pin jumper
JAT Mode
1-2 AT Power mode
2-3 ATX Power mode
Default setting

LV-67AUser’sManual HardwareSetup
Connector Reference14
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket
DDRIII1/2 240 –pin DDR2 SDRAM DIMM socket
FDD 26-pin slim type floppy connector
S_ATAII1/2/3/4/5/6 7-pin Serial ATA II connector
ATX 24-pin power supply connector
CN_12V 4-pin +12V additional power supply connector
CN_AUDIO 5 x 2-pin audio connector
CDIN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB1/4 10-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
NBFAN 3-pin Northbridge cooler fan connector
CN_IR 5-pin IrDA connector
CN_SMBUS 5-pin SMBUS connector
CN_INV 5-pin LCD inverter connector LV-67AX
CN_LVDS 20 x 2-pin LVDS connector LV-67AX
JFRNT 14-pin front panel switch/indicator connector
PCI1 120-Pin PCI socket
Mini-PCI 1 x Mini-PCI socket
CN_DVI1 26-Smd Pin connector LV-67AD
CN_DVI2 26-Pin connector LV-67AD2
CN_CRT 10-Pin connector LV-67AT
CN_COM2 5 x 2-pin com connector
2.3.2 <External Connectors>
Connector Function Remark
PS2 PS/2 Keyboard/Mouse connector
CRT+COM1 DB15 VGA + Serial port connector
USB_RJ45_1/2 Dual USB and one RJ45 LAN Port
COM 2/3 Serial port connector
AUDIO Audio connectors
SPDIF SPDIF digital audio output connector

LV-67AUser’sManual HardwareSetup
CPU installation 15
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
LV-67A has a LGA775 CPU socket onboard; please check following steps to install the
processor properly.
Attention If LV-67A need RMA please Keep CPU socket cover on the CPU Socket.
Warning If CPU Socket internal Pin damage We could not provide warranty.
Intel®Quad Core 2 Quad/Core 2 Duo
/Cleron processor
Package type: 775 pin PLGA
FSB:/800/1066/1333MHz
Manufacturing: 65nm / 45nm
Intel Hyper Threading Technology and
Core 2 Duo Quad / Duo supported
1. Lift this bar
2. Uncover this plate
Check point
3. Place the CPU on the top o
f
the
p
ins
3. Cover this plate
4. Lock this bar
Notice: Please place the CPU on the pins tenderl
y
to avoid bendin
g
the pins

LV-67AUser’sManual HardwareSetup
Memory Installation16
2.4.2 <Memory installation>
LV-67A has two 240-pin DDR3 DIMM support up to 4GB of memory capacity. The memory
frequency supports 800/1066 MHz . Only Non-ECC memory is supported.
DDRIII A/B
96-pin
144-pin
Please check the pin number to match the socket side well
before installing memory module.

LV-67AUser’sManual HardwareSetup
CMOS Setup 17
2.5 <CMOS Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting
JRTC
1
3

LV-67AUser’sManual HardwareSetup
Serial ATA Installation18
2.6 <Serial ATA installation>
LV-67A has four Serial ATA II interfaces with RAID function, the transfer rate of the Serial
ATA II can be up to 300MB/s. Please go to http://www.serialata.org/ for more about Serial
ATA technology information. Based on Intel®ICH10DO, it supports Intel®Matrix Storage
Technology with combination of RAID 0,1,5 and 10. The main features of RAID on
ICH10DO are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six SerialATA ports.
3. Supports for Serial ATAATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
SATA1/2/3/4/5/6

LV-67AUser’sManual HardwareSetup
Floppy Installation 19
2.7 <Floppy Installation>
LV-67A has one slim type 26-pin floppy interface, it supports notebook use floppy and
powering from onboard, please follow up the steps below to install the device.
FDD
4. Lift up this plastic bar
5. Slot the cable in (Blue paste for outside)
6. Press back the plastic bar
Floppy rear side
1. Lift up the brown plastic bar
2. Slot the cable in (Blue paste for
brown bar side)
3. Press back the plastic bar

LV-67AUser’sManual HardwareSetup
LAN Installation20
2.8 <LAN installation>
The board integrates with two Intel 82574L Gigabit Ethernet controllers, as the PCI bus with
133MB/s of transfer rate. The Intel 82574L supports triple speed of 10/100/1000Base-T,
with IEEE802.3 compliance and Wake-On-LAN supported.
LAN1LAN2
