Commell HS-773 User manual

HS-773
Half-size PCI Bus CPU Card
User’s Manual
Edition 1.3
2013/10/09

HS-773 User’s Manual
-1-
Copyright
Copyright 2011, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

HS-773 User’s Manual
-2-
Dual COM PORT cable x 1
(1040087)
Packing List:
Please check the package contents before you starting using the board.
Hardware:
HS-773 PCI-bus SBC x 1
Cable Kit:
SATA Cable x 2
(1040529)
Printed Matters:
Driver CD (Including User’s Manual) x 1
CPU Cooler x 1
(1190046)
Audio Cable x 1
(1040120)
USB Cable x 1
(1040172)
PS/2 Keyboard & Mouse Cable x 1
(1040134)
4-pin to 3-pin ATX cable x 1
(1040184)
DVI VGA Cable x 1
(1040078)

HS-773 User’s Manual
-3-
Index
Chapter 1 <Introduction>.............................................................6
1.1 <Product Overview>.....................................................................................6
1.2 <Product Specification>................................................................................7
1.3 <Mechanical Drawing>.................................................................................8
1.4 <Block Diagram>..........................................................................................9
Chapter 2 <Hardware Setup>..................................................10
2.1 <Connector Location>................................................................................10
2.2 <Jumper Location & Reference>................................................................ 11
2.3 <Connector Reference>.............................................................................12
2.3.1 <Internal Connectors>..............................................................12
2.3.2 <External Connectors>.............................................................12
2.4 <CPU and Memory Setup> ........................................................................ 13
2.4.1 <CPU Setup>.............................................................................13
2.4.2 <Memory Setup>.......................................................................14
2.5 <CMOS & ATX Setup>...............................................................................15
2.6 <Serial ATA Interface>................................................................................16
2.7 <Ethernet Interface>...................................................................................17
2.8 <Onboard Display Interface> .....................................................................18
2.8.1 <Analog Display>.......................................................................18
2.8.2 <Digital Display>........................................................................19
2.9 <Integrated Audio Interface>......................................................................24
2.10 <USB Interface>.......................................................................................26
2.11 <Serial Port>.............................................................................................28
2.12 <PCIE Mini Card and SIM Interface>.......................................................30
2.12.1 <SIM Setup>................................................................................32
2.13 <GPIO and SMBUS Interface>.................................................................34
2.14 <Power Supply and Fan Interface >.........................................................35
2.14.1 <Power Input>..........................................................................35
2.15 <Switch and Indicator>.............................................................................36

HS-773 User’s Manual
-4-
Chapter 3 <System Setup>.......................................................37
3.1 <Audio Configuration>................................................................................37
3.2 <Display Properties Setting> ......................................................................38
3.3 <SATA configuration> .................................................................................40
3.4 <SATA RAID Configuration>.......................................................................41
Chapter 4 <BIOS Setup>.............................................................43
Appendix A <I/O Port Pin Assignment>..........................45
A.1 <Serial ATA Port> .......................................................................................45
A.2 <IrDA Port>.................................................................................................45
A.3 <VGA Port>................................................................................................45
A.4 <LAN Port>.................................................................................................45
A.5 <LAN LED Port>.........................................................................................46
Appendix B <Flash BIOS>.........................................................47
B.1 <Flash Tool>...............................................................................................47
B.2 <Flash BIOS Procedure> ...........................................................................47
Appendix C <System Resources>......................................48
C.1 <I/O Port Address Map>.............................................................................48
C.2 <Memory Address Map>............................................................................50
C.3 <System DMA& IRQ Resources> .............................................................51
Appendix D <Programming GPIO’s>.................................52
Appendix E <Programming Watchdog Timer >.........53
Contact Information.......................................................................54

HS-773 User’s Manual
-5-
(This page is left for blank)

HS-773 User’s Manual
-6-
Chapter 1 <Introduction>
1.1 <Product Overview>
HS-773 the 2nd Generation Intel of PCI-bus SBC, supports 2nd Generation Intel® Core™
i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features Intel QM67
chipset, integrated HD Graphics, DDR3 memory, REALTEK High DefinitionAudio,
Serial ATA with RAID function for a system and Intel Gigabit LAN.
Intel Sandy Bridge Processor
The 2nd Generation Intel® Core™ processor family mobile is the next generation of
64-bit, multi-core mobile processor built on 32- nanometer process technology. Based
on a new micro-architecture.
New features for Intel QM67 chipset
The board integrates Intel QM67 chipset, supports integrated HD Graphics, built-in high
speed mass storage interface of Serial ATA interface with RAID function, High Definition
Audio with 2 channels surrounding sound.
All in One multimedia solution
Based on Intel QM67 chipset, the board provides high performance onboard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the requirement of the multimedia application.
Flexible Extension Interface
The board provides, two mini-PCIE socket and PCI bus.

HS-773 User’s Manual
-7-
1.2 <Product Specification>
General Specification
Form Factor Half-size PCI Bus CPU Card
CPU 2nd Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron®
Mobile Processor
Package type: rPGA988B
Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB
Support Non-ECC, unbuffered memory only
Chipset Intel QM67 Express chipset
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~255min/s
Power Management Supports ACPI 3.0 compliant,
Serial ATA Interface 2 x serial ATAII interface with 300MB/s transfer rate
2 x serial ATAIII interface with 600MB/s transfer rate
Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology
LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
supply
Audio Interface Realtek ALC888 HD Audio
LAN Interface 2 x Intel 82574L Gigabit LAN
GPIO interface Onboard programmable 8-bit Digital I/O interface
Extended Interface 2 x PCIE mini card socket, 1 x SIM socket
Internal I/O Port 5 x RS232, 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 8 x USB2.0 ports,
1 x IrDA, 1 x VGA, 1 x LVDS, 2 x Serial ATAII, 2 x Serial ATAIII,
1 x Front panel Audio and 1 x CDIN
External I/O Port 1 x DVI-I Port, 2 x RJ45 and 1 x PS/2 Keyboard/Mouse Port
Power Requirement DC 5V/12V power required, optional 5VSB for ATX
Onboard 4-pin power connector & 3-pin ATX connector
Dimension 185mm x 122mm
Temperature Operating within 0~60 centigrade
Storage within –20~85 centigrade
Ordering Code
HS-773TXDG2 Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, LAN, USB2.0, HD
Audio, SATAII ,SATAIII, SMBUS, LPC, IrDA, SIM, GPIO
and PCI Express mini card
All product specifications are subject to change without notice.
For further product information please visit the website at TUhttp://www.commell.com.twUT

HS-773 User’s Manual
-8-

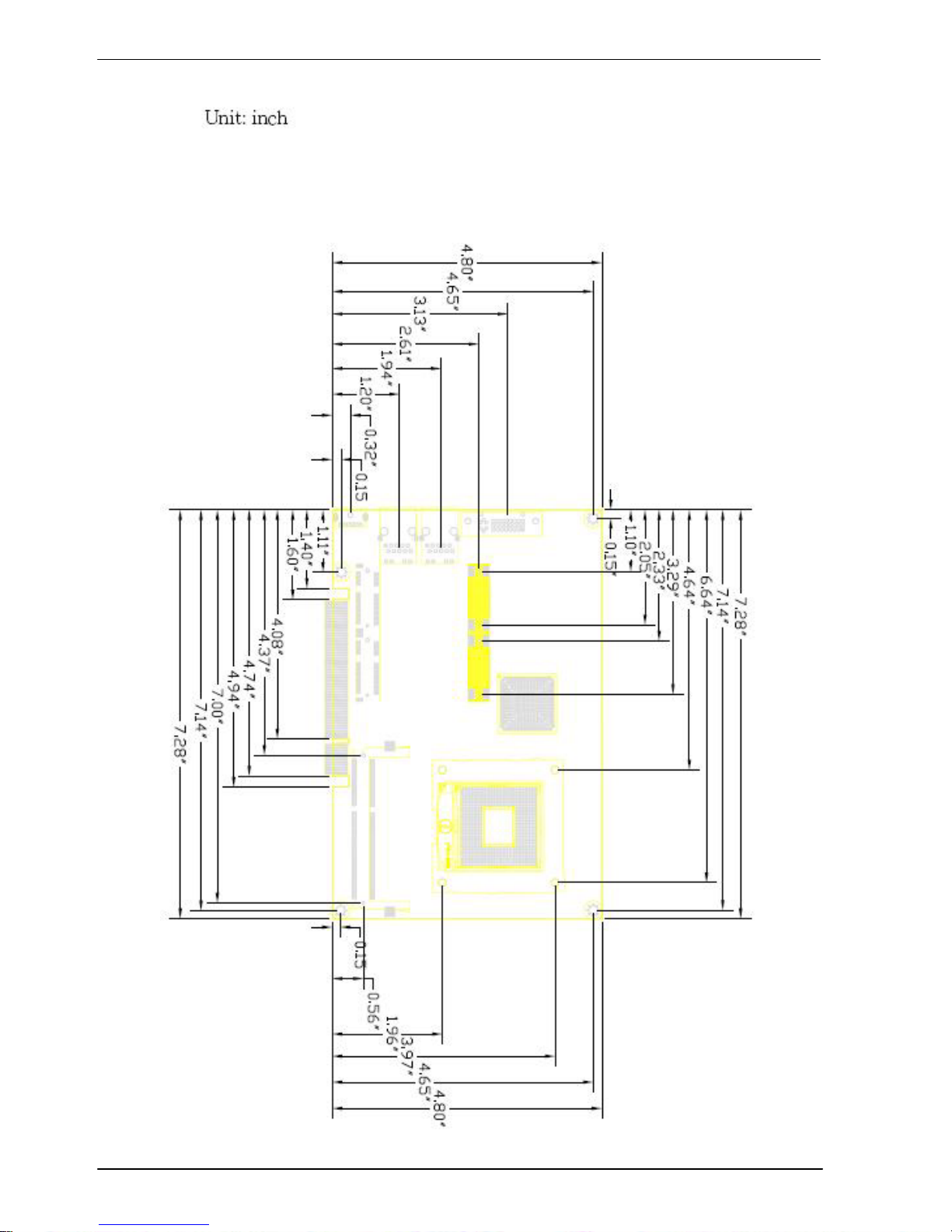

1.3 <Mechanical Drawing>

HS-773 User’s Manual
-9-
1.4 <Block Diagram>
QM67
W25X64 SPI
2 x Intel 82574L
1 x RS232/422/485
1 x COM & GPIO & IrD
A
2nd Generation Intel® Core™ i7,
Core™ i5, Core™ i3
and Celeron® Mobile Processor 2 x 204-pin DDR3
SO-DIMM
1066/1333/1600 MHz
up to 16GB
1 x LVDS
2 x Serial ATAII
8 x USB 2.0
2 x PCI Express mini card
1 x DVI-I
2 x Serial ATAIII
4 x COM
ALC888 HD
F81216
SI383
PCI Bus

HS-773 User’s Manual
-10-
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
PS2DVI RJ45_1 RJ45_2
JFRNTCN_PS
CN_ATKB SYSFAN
CN_INV
SO-DIMM1
DC_IN
CN_IR
CD_IN
CN_LVDS CPUFAN
CN_AUDIO
CN_SMBUS
MINI_CARD1
SO-DIMM2
MINI_CARD2
SIMM
CN_USB 2 / 3
CN_DIO
CN_CRT
CN_LPC
CN_USB 1 / 4
COM 5 / 6
COM 3 / 4
COM 1 / 2
SATA3
SATA1
SATA2
SATA4

HS-773 User’s Manual
-11-

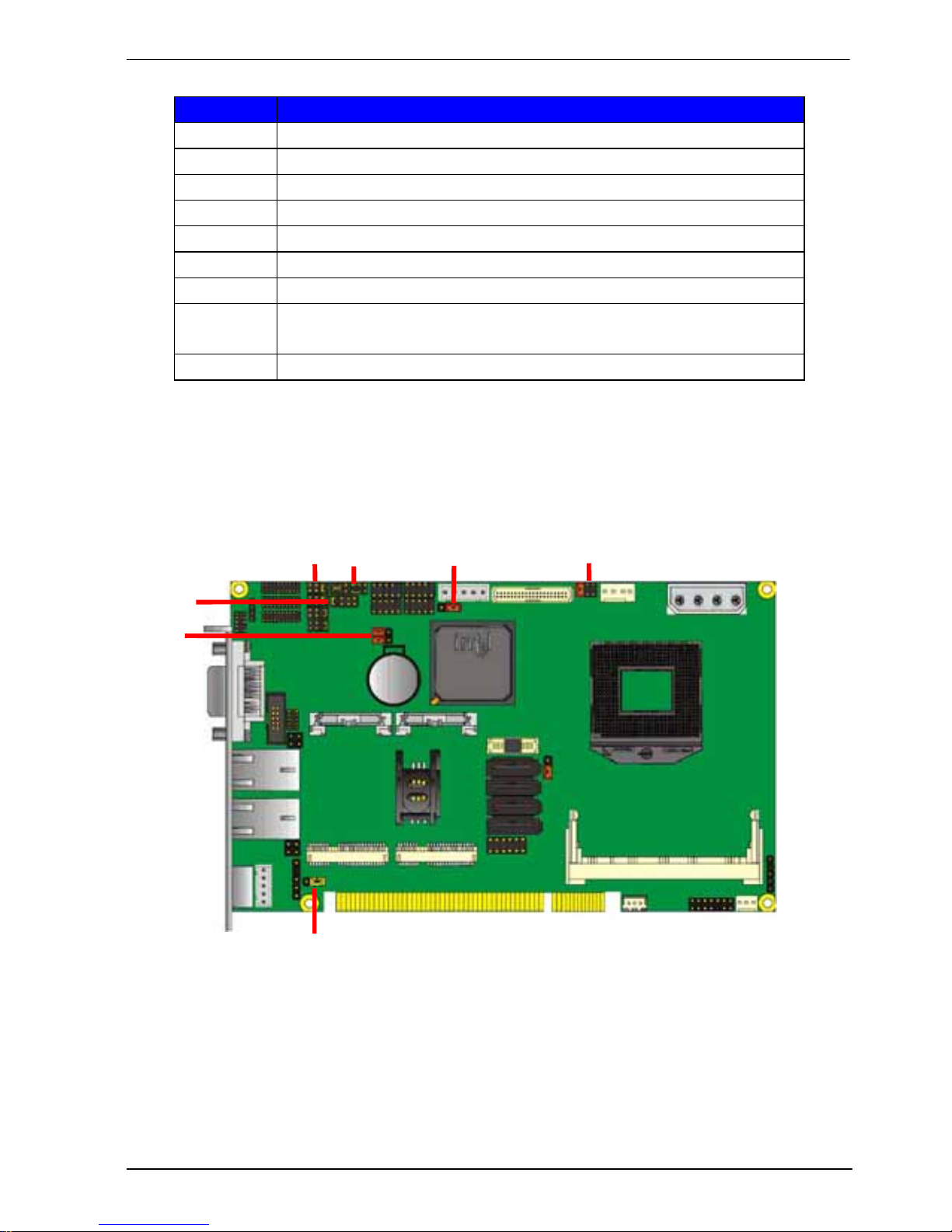

2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel Voltage Setting
JAT Power mode select
JP1 COM1 Voltage Setting (For Pin 9)
JP2 COM2 Voltage Setting (For Pin 9)
JP3 COM3 Voltage Setting (For Pin 9)
JP4 COM4 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2 CN_COM2 RS-232 RS422 RS485 Setting
CN_IR IrDA Setting
JVUSB USB Voltage Setting
JVLCDJRTC
JAT
JP1
JP2
JVUSB
JP4
JP3
JCSEL1
JCSEL2

HS-773 User’s Manual
-12-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU Socket rPGA988B for PGA988 CPU
SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket
SATA 1/2 7-pin Serial ATAIII connector
SATA 3/4 7-pin Serial ATAII connector
DC_IN 4-pin power supply connector
CN_AUDIO 5 x 2-pin audio connector
CD_IN 4-pin CD-ROM audio input connector
CN_DIO 6 x 2-pin digital I/O connector
CN_USB
1/2/3/4 5 x 2-pin USB connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 3-pin system cooler fan connector
CN_LVDS 20 x 2-pin LVDS connector
CN_INV 5-pin LCD inverter connector
CN_IR 5-pin IrDA connector
CN_COM
1/2 ,3/4, 5/6 19-pin RS232 & RS422/485/232 connector
CN_LPC 5 x 2-pin LPC connector
JFRNT 14-pin front panel switch/indicator
connector
Mini-PCIE1/2 2 x 52-pin Mini-PCIE socket
JAT Power mode select
JSPD 1/2 LAN Speed LED connector
JACT 1/2 LAN Activity LED connector
2.3.2 <External Connectors>
Connector Function Remark
DVI DVI-I connector
RJ45_1/2 RJ45 LAN connector
PS/2 PS/2 keyboard and mouse connector

HS-773 User’s Manual
-13-
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>

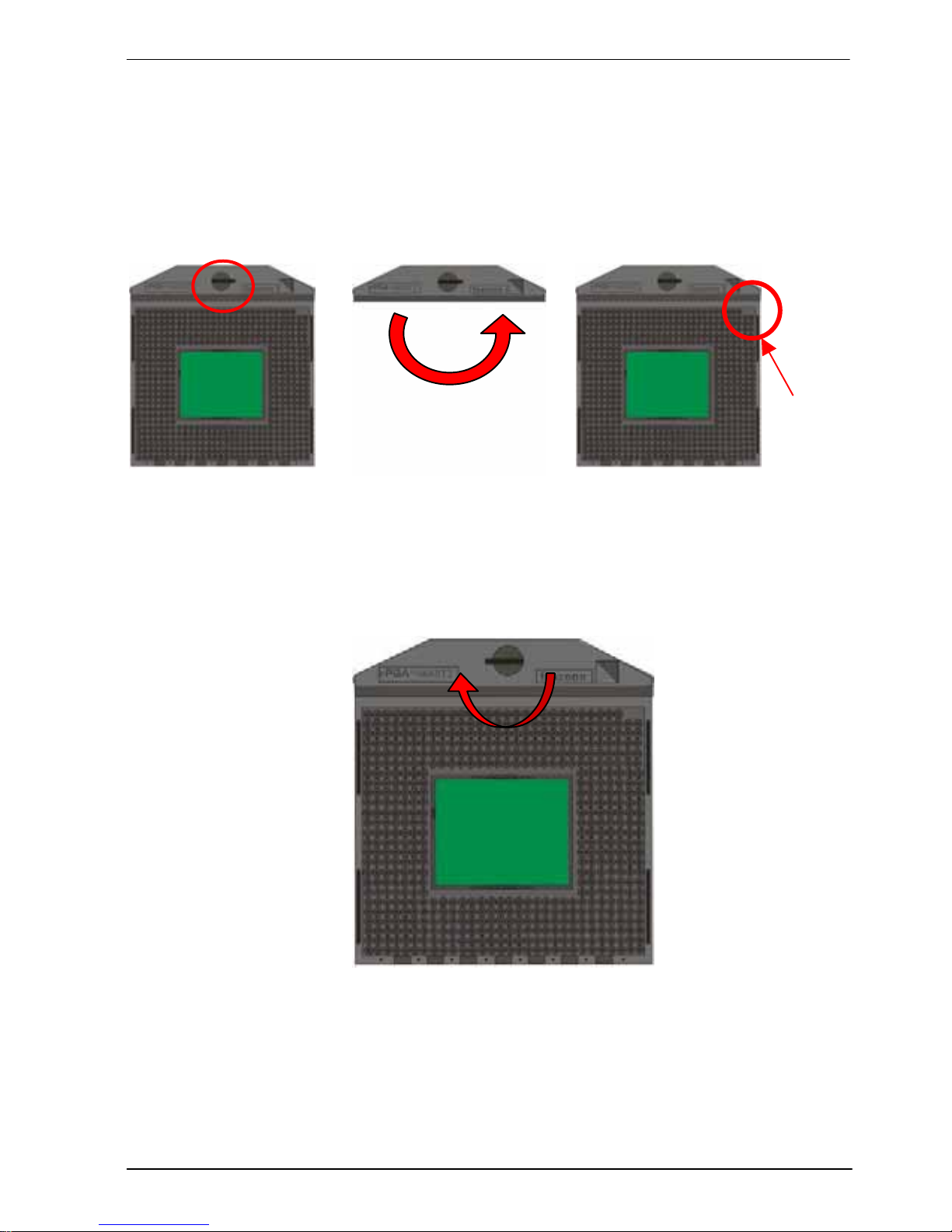

The board comes with the socket rPGA988 for Intel Sandy Bridge Processor, Please
follow the instructions to install the CPU properly.
1. Use a slotted screwdrive to
unlock the CPU socket
Unlock wa
y
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Socket CPU
Check point

HS-773 User’s Manual
-14-

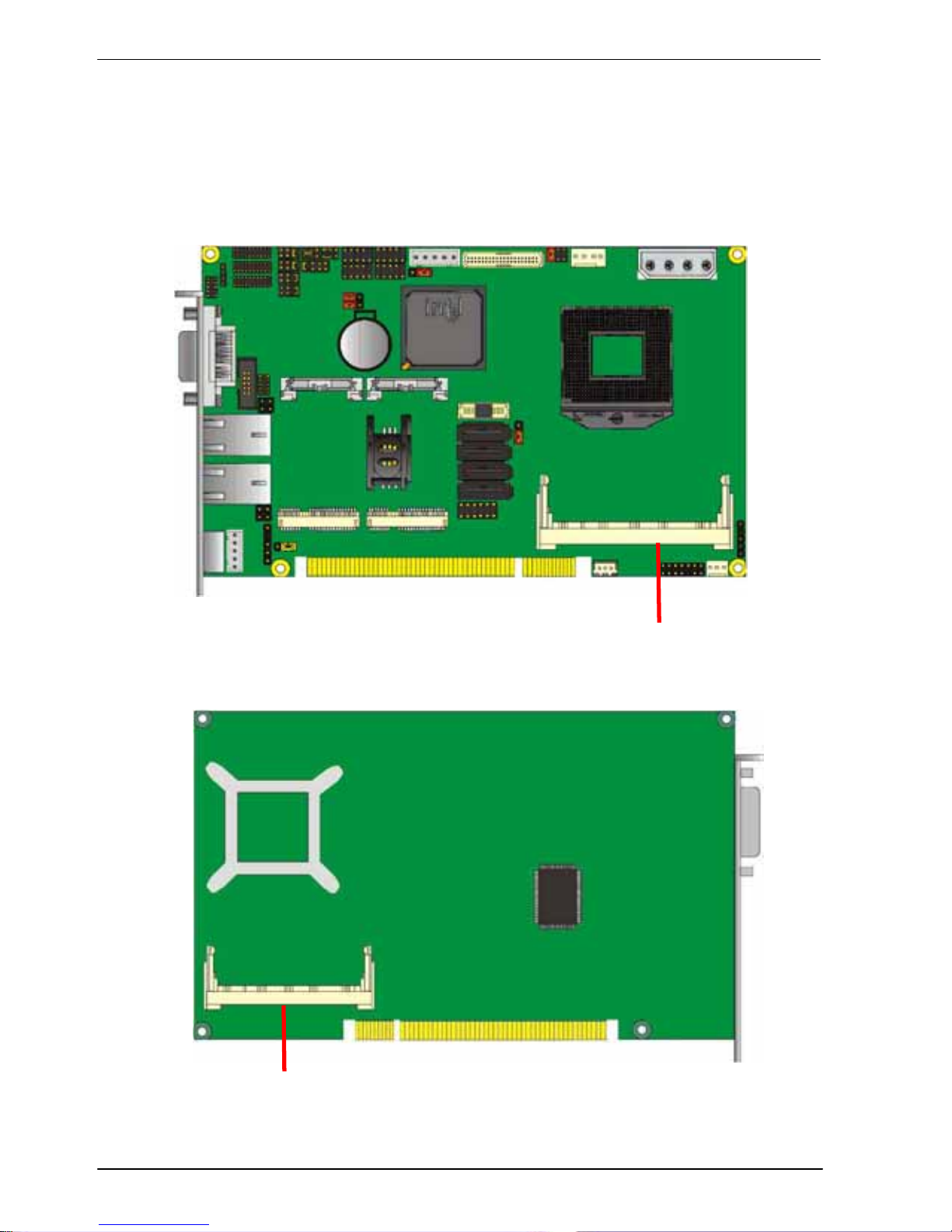

2.4.2 <Memory Setup>
The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3
memory module up to 16GB.
Support Non-ECC, unbuffered memory only
SO-DIMM1
SO-DIMM2

HS-773 User’s Manual
-15-
2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be set in BIOS. If the board refuses to boot due
to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS
to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting: 2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting:2-3
JRTC
13
JAT
1 3
1 3

HS-773 User’s Manual
-16-
2.6 <Serial ATA Interface>
LV-67H has Two Serial ATA II (SATA Port3/4) & Two Serial ATA III (SATA Port1/2)
interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s
& Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/ for more
about Serial ATA technology information. Based on Intel® PCH, it supports Intel®Matrix
Storage Technology with combination of RAID 0,1,5 and 10. The main features of
RAID on Intel® QM67 PCH are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six Serial ATA ports.
3. Supports for Serial ATAATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
SATA Port 1
SATA Port 2
SATA Port 3
SATA Port 4

HS-773 User’s Manual
-17-
2.7 <Ethernet Interface>
The board integrates with two Intel PCI Express Gigabit Ethernet controllers, as the PCI
Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with
133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of
10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
RJ45 LAN connector

HS-773 User’s Manual
-18-
2.8 <Onboard Display Interface>
Based on Intel Sandy Bridge CPU with built-in HD Graphic, the board provides one
DB15 on DVI-I real external DVI VGA cable, one 40-pin LVDS interface with 5-pin LCD
backlight inverter connector and one DVI-I on bracket inverter connector and one DVI-I
on bracket.
2.8.1 <Analog Display>
Please connect your CRT or LCD monitor with DB15 to the DVI VGA cable DB15 female
connector on rear I/O port.
Connector: CN_CRT
Type: onboard 10-pin connector for CRT connector (Pitch = 2.0mm)
Pin Signal Pin Signal
1 5VCDA 2 5VCLK
3 -CRTATCH 4 BR
5 BG- 6 BB
7 5HSYNC 8 5VSYNC
9 VGAGND 10 VGAGND
DVI-I
DVI
DB15 VGA
1 2
9 10
CN_CRT

HS-773 User’s Manual
-19-

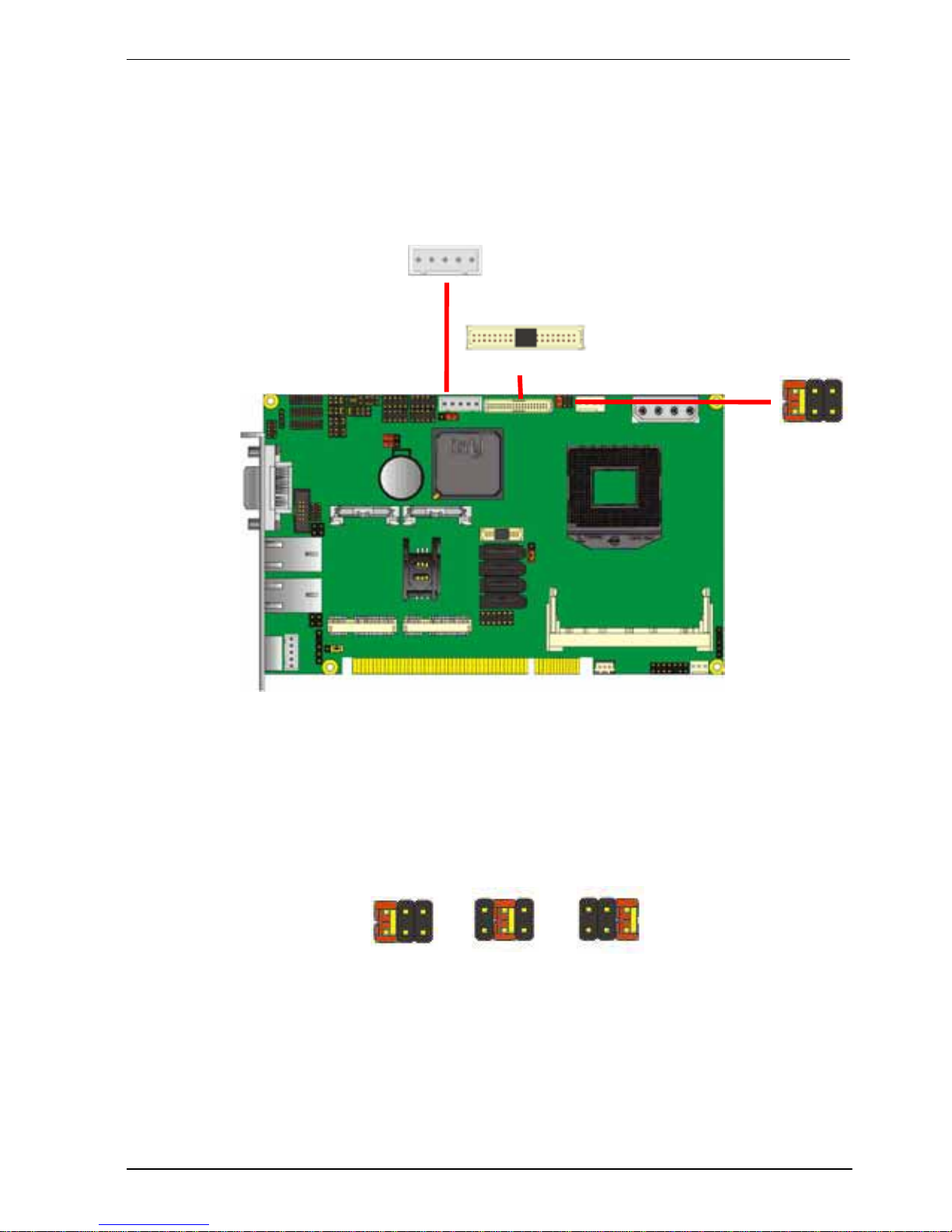

2.8.2 <Digital Display>
The board provides DVI external connector and one 40-pin LVDS connector for 24-bit
single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one
LCD backlight inverter connector and one jumper for panel voltage setting.
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: Others will cause damages.
1
2
CN_LVDS
40
39
2
1
JVLCD
2
1
5
6
3
4
5
6
5
CN_INV
1
