Commercial Electric FSXD30-MS-4K-BZ User manual

USE AND CARE GUIDE
FUSION X DUO LED TWIN HEAD
FLOOD LIGHT
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-844-584-3776
HOMEDEPOT.COM
Model No. FSXD30-MS-4K-BZ
FSXD30-MS-4K-WH

2
Table of Contents.......................... 2
Safety Information........................ 2
Pre-Installation.............................. 3
Planning Installation......................... 3
Specifications.................................... 3
Tools Required................................... 3
Package Contents............................ 4
Hardware Included............................ 4
Installation...................................... 5
Operation ....................................... 8
Care & Cleaning............................. 10
Troubleshooting............................ 10
Warranty.......................................... 11
TABLE OF CONTENTS
SAFETY INFORMATION
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
PRECAUTIONS
☐Please read and understand this entire
manual before attempting to assemble,
install, or operate this light fixture.
☐This light fixture requires a 120 Volt AC
power source.
☐Some codes require installation by a
qualified electrician.
☐This light fixture must be properly
grounded.
☐Make sure connections are secure using
wire nuts, crimp-on lugs or other approved
connecting devices
☐This light fixture should be installed
outdoors to a wall or eave.
WARNING:
breaker or fuse. Place tape over the circuit
light fixture.
WARNING: Risk of fire. Keep the fixture at
least 3 in. (76mm) from combustible materials.
CAUTION: Burn hazard. Allow the light fixture
to cool before touching.
NOTICE: Do not connect this fixture to a
dimmer switch.
INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any
interference received, including any interference that may cause undesired operation.
These limits are designed to provide reasonable protections against harmful interference when the
equipment is operated in a commercial environment.

PREINSTALLATION
PLANNING INSTALLATION
Before installing the light fixture, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do
not attempt to assemble, install, or operate this light fixture.
Lumens (Light Output)
Watts (Power Consumption)
3000 Lumens
22 Watts LED
Replaces 200W Incandescent
Lumens/Watts (Efficacy) 136 Lumens per watt
Power Requirements (Input Voltage) 120V
Light Color (CCT) 4000 Kelvin (Bright White)
Dimmable Non-Dimming (Do not wire to dimming switch)
Operating Modes Dusk-to-Dawn:
Automatically turns light fixture ON during night
and OFF during day.
Switch-Controlled:
Flip switch to turn light fixture ON and OFF.
Cover fixture's light sensor to utilize this
mode setting..
SPECIFICATIONS
TOOLS REQUIRED
Phillips
screwdriver
Wire strippers/
cutters
Circuit tester
Safety
goggles
Work
gloves
Silicone
sealant
Ladder
3HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

4
PREINSTALLATION CONTINUED
PACKAGE CONTENTS
Part Description Quantity
ALight fixture 2
BControl sensor 1
CMounting plate set screw (pre-installed) 1
DMounting plate with gasket (pre-installed) 1
E1
A
F
B
E
D
C
Hanger wire for hands-free installation (pre-installed)
F1Mounting screw cover plug
HARDWARE KIT
NOTE: Hardware not shown to actual size.
AA BB CC DD EE
Part Description Quantity
AA #8-32 x 3/4" Philips head screw 2
BB Wire nut 3
CC Mounting plate 1
DD 10-24 x 5/4 Philips head screw 1
EE Mounting screw cover plug 1

Wall Mount Eave Mount
INSTALLATION
1FOR BEST RESULTS
☐Install light 8-15 feet above the ground.
☐Do not mount fixture close to reflective
surfaces such as windows, white walls,
white surfaces and water.
☐Do NOT wire to dimming switch.
☐When mounting fixture, make sure the
control sensor orientation is at the bottom
for wall mount and away from building
for eave mount.
☐When mounting to a wall, make sure
the fixture is 7 in. on center away from
eave and 13 inches on center away from
inside corner of the exterior wall (fig 3).
1-1/2" 1-1/2"
Round Octagonal
NOTE: Mounting plate (D) mounts to standard
recessed junction boxes. Junction box must be
at least 1-1/2 inch deep for proper surface mount
installation (fig 2).
(fig 4).
2SHUT OFF ELECTRIC POWER OFF
☐Verify wall switch is in OFF position (fig 5).
☐
the circuit breaker that supplies power
At the main electrical panel, turn off
to the junction box you are working on
(fig 6).
☐For screw-in type fuses, unscrew the
fuse that supplies power to the
junction box you are working on (fig 7). (fig 5). (fig 6). (fig 7).
(fig 3).
(fig 1). (fig 2).
13 in. 13 in
7 in
5HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

6

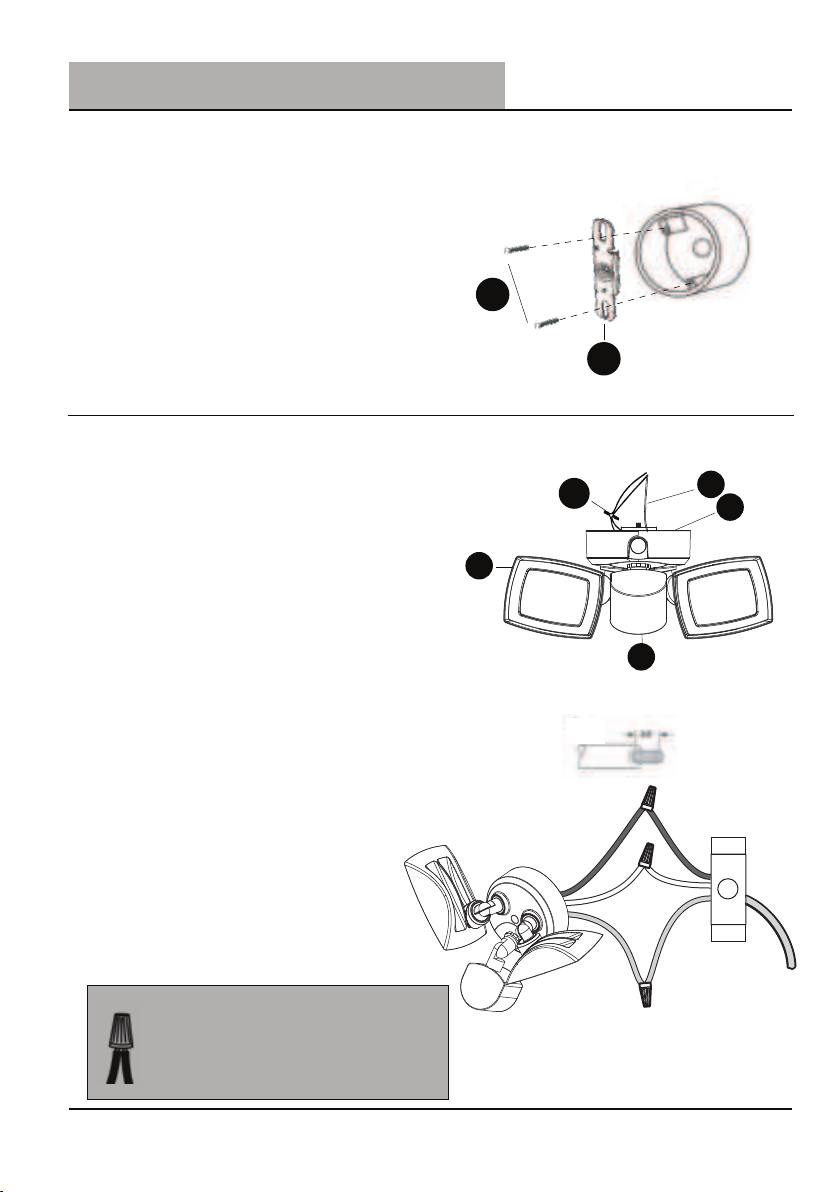

INSTALLATION CONTINUED
3INSTALL THE
MOUNTING PLATE
☐Align the holes on the mounting plate
bracket (D) with the holes of the
junction box. Use two #8 screws (AA) to
attach the mounting plate bracket (D) to
the junction box AA
D(fig 8).
TIP:
Hold stripped ends near each other and align any
frayed strands (do not twist wires).
Push the wires into wire nut (BB) and use your fingers
to twist the wire nut clockwise until tight. Check for
tightness by pulling wires.
(fig 9).
BB
B
E
D
A
Black (Line)
White (Common)
Green (Ground)
Junction Box
☐
☐
☐For wall mount, ensure the control sensor (B)
is facing downwards when light fixture
(A) is installed.
☐For eave mount, ensure the control sensor (B)
is facing away from the building when
light fixture (A) is installed.
4MAKE THE ELECTRICAL
CONNECTIONS
If necessary, strip 3/8" of insulation
from junction box and lighting fixture
wires (fig 10). Connect wires by twisting
the exposed wires together and using
the wire nuts (BB). Ensure no loose
wires.
Connect lighting fixture black wire to
junction box black wire, (line), lighting
fixture white wire to junction box white
wire (common), the junction box ground
wire to the green lighting fixture ground
wire, which is attached to the mounting
plate.
Non-Dimming Wiring Diagram

INSTALLATION CONTINUED
D
5MOUNT THE LIGHT
FIXTURE
☐Once wiring is complete, align the
mounting screw hole in the center of the
fixture with the mounting screw hole in
mounting plate bracket (D).
☐Verify the fixture is flush with the wall
and control sensor (B) is pointed downward
for wall mount or away from building on
eave mount.
☐Insert the mounting plate set screw (C) back
through the hole in the center of the fixture
and tighten until fixture is firmly secured
against the wall or eave.
7CAULK AROUND THE
LIGHT FIXTURE
☐Caulk around the light fixture (A) and
surface with silicone sealant (not
included).
6AIM THE LAMP HEADS
☐After fixture is securely mounted, loosen
screws on the lamp head arms with a
philips screwdriver.
☐Aim each lamp head (A) toward desired
direction.
☐Use a philips screwdriver to tighten the
lamp head arm screws, locking lamp heads
in desired position.
☐From the breaker and switch, turn power
back ON to the light fixture to verify it illuminates.
Make sure the control sensor (B) has no
light entering it when testing.
A
NOTICE: Failure to properly caulk around the
surface and light fixture (A) could lead
to water damage and is not covered under
warranty.
NOTE: When attaching this fixture (A) to a surface
mount junction box, caulk between the light fixture
and junction box.
A
A
CAUTION: Keep lamp heads 30° below
horizontal to prevent water damage and
electrical shock.
DD
(fig 10). (fig 12).
(fig 11).
C
F
7HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

8
☐
The control sensor on this product will turn on the light fixture when it detects motion.
The motion sensing can be disabled for Dusk-to-Dawn operation using the built-in
photosensor that automatically turns the light fixture on during night and off during
daytime. All sensors can be disabled for manual wall switch control.
The motion sensor must be tested before setting the
time and sensitivity levels. The TEST option is located
on the TIMER control knob on the underside of the sensor
head (fig 14.). To test the fixture, switch the wall switch that
controls power to the fixture to the ON position and turn the
rotary knob to “TEST". During TEST mode, the lights will
come on for 20 seconds, regardless of motion detection or
the time of day. The light will shut off automatically after 20
seconds. Leave the rotary knob in the “TEST” position and
test the sensitivity by crossing in the path of the sensor. The
light will come on only if it senses movement. Once
movement stops, it will turn off in 5 seconds. The test is now
complete.
Setting up control sensor
☐Adjusting motion sensitivity
The TIMER settings indicate how long the light stays on after
the control sensor detects motion. Once the fixture has
been tested for proper operation and sensitivity, rotate the
TIMER control knob clockwise to set the "stay on time" of the
motion sensor. TIMER can be adjusted up to 10 minutes ON
time. Rotating the knob counterclockwise shortens the "stay
on time" to as short as 10 seconds. It may be necessary to
adjust the TIMER knob several times until the desired ON
duration time is achieved. (fig 15)
The control knob located on the opposite side is marked
SENSITIVITY (fig 16), and determines the degree of motion
detection. Rotating this knob clockwise raises the sensitivity
of the motion sensor for up to 60 ft. of distance. Rotating the
knob counterclockwise lowers the sensitivity down to as close
as 10 ft. It may be necessary to adjust the SENSITIVITY knob
several times until the desired setting is achieved.
Step 2: Setting “STAY ON TIME” duration
after motion detection
Step 1: Testing motion activation
OPERATION

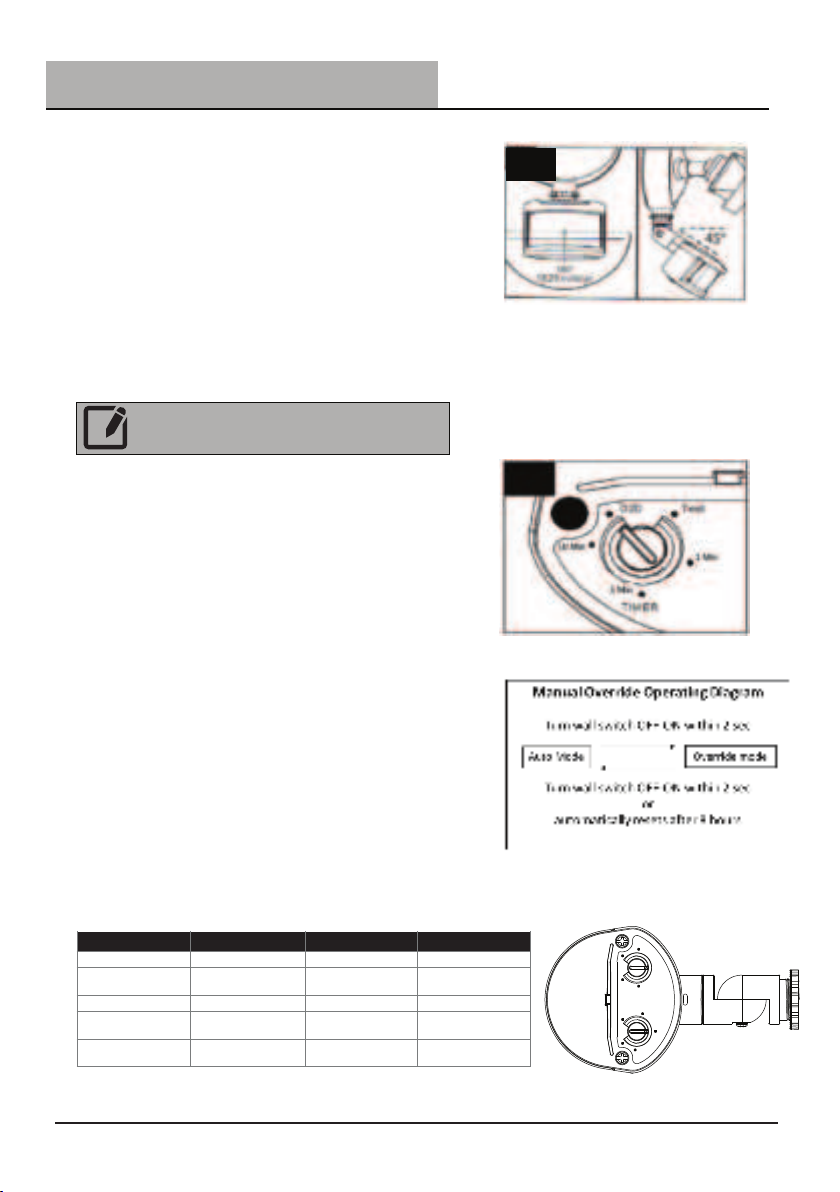

CONTROL SENSOR OPERATING INSTRUCTIONS
NOTE: The higher sensitivity level increases the
likelihood of a false activation being triggered.
(fig 14).
(fig 15).
(fig 16).
1
2
3

☐Aiming control sensor for best performance
The 180-degree coverage of the motion sensor is
measured side to side. Therefore, the sensor will better
detect motion across the field of view (side-to-side),
rather than motion coming straight at the sensor
(in-and-out). Adjust the motion sensor head so that it
detects motion moving across the desired area. The
position of the sensor head should not exceed 45
degrees from horizontal. Do not aim the motion sensor
at a body of water, bushes or plants that may move in
the wind, pedestrian traffic, moving cars, etc., as this will
trigger the motion sensor.
☐Bypassing motion activation for Dusk-to-Dawn operation
Rotate the TIMER control knob to the “D2D” position
(fig 18). The light will turn on at dusk and off at dawn
automatically, regardless of the presence of motion.
The “D2D” setting ensures lights are non-operational in
daylight and only function at night.
☐Manual override
LIGHT OPERATION
CONTROL SENSOR
When the TIMER control knob is set between “1 Min” and
“10 Min” (fig 19), the sensor is in Auto mode at this time.
To control the light from inside the home, activate
manual override mode by toggling the wall light switch
OFF and ON within 2 seconds. The security light will turn
on and stay on for approximately 8 hours, or until the
Dusk-to-Dawn sensor detects light in the morning. Once
the Dusk-to-Dawn sensor detects light, the manual
override mode will automatically go back to its original
settings of the AUTO motion sensor.
OPERATION CONTINUED
NOTE: If the sensor arm becomes loose, it will not hold
the sensor head at the joint screw on the
sensor arm.
(fig 17).
(fig 18).
(fig 19).
(fig 20).
4
5
1 Min
5 Min
TIMER
10 Min
D2D Test
50 Ft
MAX. 10 Ft
20 Ft
SENSITIVITY
MODE CONTROL KNOB WALL SWITCH SENSITIVITY KNOB
Test mode. Test position. On. Any setting.
AUTO motion sensor mode.
On. Any setting.
Dusk-to-Dawn mode. D2D position. On. Any setting.
Manual override mode. Timer set between
“1 Min” and “10 Min”.
Toggle OFF and ON
within two seconds.
Any setting.
Timer set between “1 Min”
and “10 Min”.
On. Any setting.
Return to AUTO motion
sensor mode.
Timer set between
“1 Min” and “10 Min ”.
9HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

10
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
CARE AND CLEANING
☐
appearance, clean the light fixture with clear water and a soft, damp cloth only.
Extreme hot or cold weather could affect the performance of the built-in sensors that detect
body heat. Certain winter clothing can shield a person’s body heat from the sensor during
extreme cold weather. During extreme hot weather, the sensor may not be able to distinguish
the difference between normal body temperatures and the surrounding high temperatures.
The sensor will begin working normally once weather conditions return to normal.
☐Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints,
solvents, or any other chemicals on this light fixture. They could cause a premature
deterioration of the finish and may void the warranty.
☐Do not spray the light fixture with a hose or power washer.
TROUBLESHOOTING
NOTE: Control sensor (B) may have a few minutes delay in D2D mode due to
its sensitivity to sudden light changes. When testing, shine a light/cover the
control sensor for a few minutes to check if fixture functions properly.
Light does not come
on at night when
motion is detected.
1. No power is being delivered to the fixture.
2. Another light source is causing the security light to
think it is daylight.
3. Dusk-to-Dawn sensor is faulty.
1. Check that circuit breaker and/or wall switch power is on.
2. Turn off surrounding lights and/or re-aim the sensor head.
3. Re-connect any loose wiring.
Security light comes on
during the day.
1. Wiring inside electrical box came loose.
2. Dusk-to-Dawn sensor is in shaded area and is fooled
into thinking it is nighttime.
1. Shine a flashlight onto the light sensor. If the security light
turns off then the fixture is mounted in an area that does not
allow enough light to enter the sensor. Relocate security light.
2. If under warranty, contact Customer Service.
Security light cycles ON
and OFF continuously.
1. Dusk-to-Dawn sensor is sensing reflected light from
the security light.
1. Change the position of the light head, aim light away from the
reflecting surfaces.
2. Put a small piece of black electrical tape over the
Dusk-to-Dawn sensor.
3. Relocate the security light to a different location where it no
longer causes reflected light.
Security light comes on
for no apparent reason
at night.
1. Light is sensing motion in the detection zone. 1. Make sure the sensor is not picking up moving objects such
as bushes, trees, traffic, water, etc.
2. Test the motion sensor by covering up the front curved lens
with cardboard to block the view. If the light turns off then
something in the detection zone is triggering the sensor.
Reposition the motion sensor or change the sensitivity
(distance) of the sensor.

5-Year Limited Warranty
This is a limited warranty offered by Commercial Electric for a period of five years from the date
of purchase to its customers. Commercial Electric warrants to customers that the products will
be free from defects in material and workmanship. The obligation of Commercial Electric under
this warranty is limited to the provision of replacement of products and is extended to the
original purchaser of the product on presenting valid purchase receipt or other proof of date of
original purchase acceptable to Commercial Electric. The receipt is required for rendering the
warranty performance. Any warranty claims without original proof of purchase would not be
accepted.
It should be noted that the warranty does not apply to Commercial Electric products that have
been altered or repaired by unauthorized personnel, have been subjected to neglect, abuse,
misuse or accident or damages caused during shipping. Any other products not manufactured
by Commercial Electric which have been supplied, installed and/or used in conjunction with
Commercial Electric products are not covered under this warranty. Any damages caused by
replacements bulbs, LEDs or corrosion or discoloration of brass components are also not
covered by this warranty.
Limitation of Liability:
In no event Commercial Electric shall be liable for indirect, consequential, incidental or special
damages, or lost profits. Commercial Electric is not liable for any claims or damage arising out of
or connected with the manufacture, sale, delivery, use, maintenance and repair or modification
of Commercial Electric products, or supply of any replacement parts that, exceed the purchase
price of Commercial Electric products giving rise to a claim. Labor charges to remove or install
the fixtures will not be accepted.
To Claim:
Please contact Commercial Electric customer service at 1-844-584-3776.
11 HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-844-584-3776
HOMEDEPOT.COM
Retain this manual for future use.
