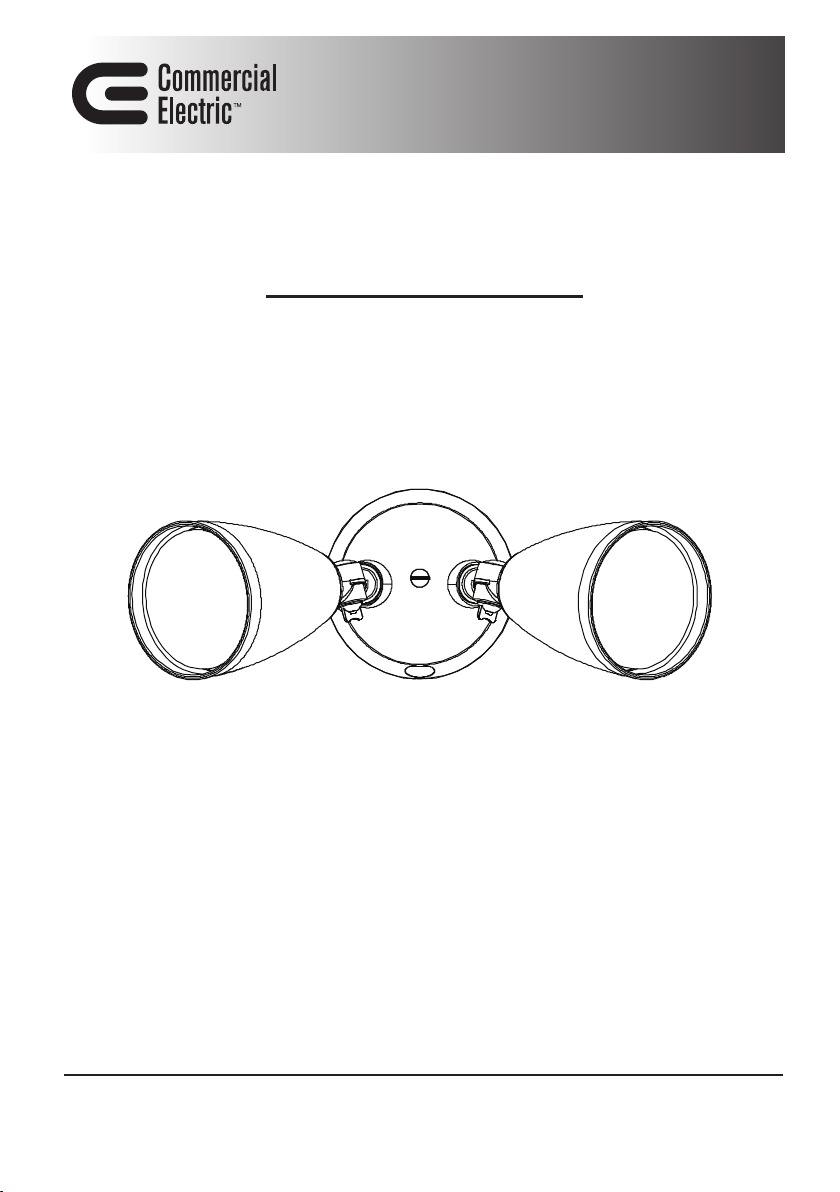

Commercial Electric TPAR2-PC-4K-BZ User manual

TPAR2 TWIN HEAD
FLOOD LIGHT
USE AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-844-584-3776
HOMEDEPOT.COM
Model No. TPAR2-PC-4K-BZ
TPAR2-PC-4K-WH

2
Table of Contents.......................... 2
Safety Information........................ 2
Pre-Installation.............................. 3
Planning Installation............................ 3
Specifications....................................... 3
Tools Required...................................... 3
Hardware Included.............................. 4
Package Contents................................ 4
Installation..................................... 5
Care & Cleaning............................. 10
Troubleshooting............................ 10
Operation...................................... 9
Warranty.......................................... 11
TABLE OF CONTENTS
SAFETY INFORMATION
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE NATIONAL
ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
PRECAUTIONS
☐Please read and understand this entire
manual before attempting to assemble,
install, or operate this light fixture.
☐This light fixture requires a 120 Volt AC
power source.
☐Some codes require installation by a
qualified electrician.
☐This light fixture must be properly
grounded.
☐Make sure connections are secure using
wire nuts, crimp-on lugs or other
approved connecting devices
☐This light fixture should be installed
outdoors to a wall or eave.
WARNING:
breaker or fuse. Place tape over the circuit
light fixture.
WARNING: Risk of fire. Keep the fixture at
least 3 in. (76mm) from combustible materials.
CAUTION: Burn hazard. Allow the light fixture
to cool before touching.
NOTICE: Do not connect this fixture to a
dimmer switch.
INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any
interference received, including any interference that may cause undesired operation.
These limits are designed to provide reasonable protections against harmful interference when the equip-
ment is operated in a commercial environment.

PREINSTALLATION
PLANNING INSTALLATION
Before installing the light fixture, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do
not attempt to assemble, install, or operate this light fixture.
SPECIFICATIONS

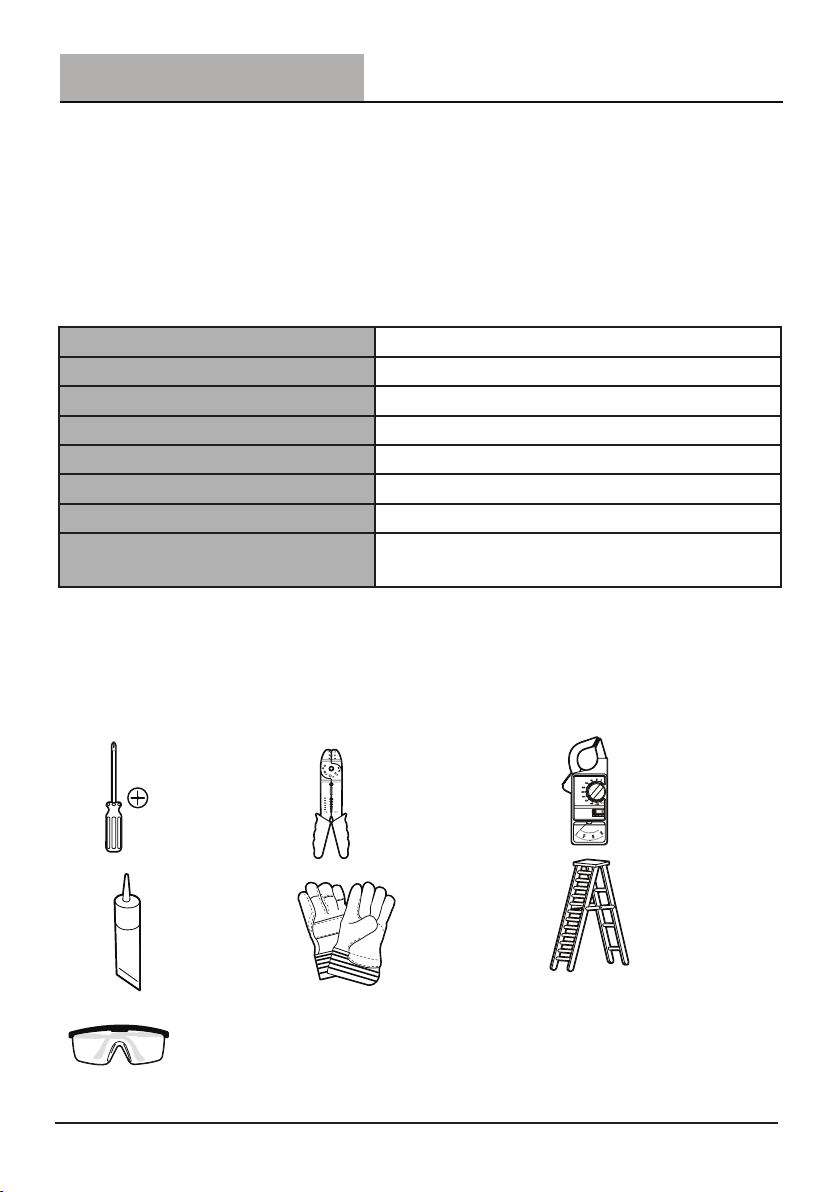

TOOLS REQUIRED
Wire strippers/
cutters
Circuit tester
Safety
goggles
Work
gloves
Silicone
sealant
Ladder
Phillips
screwdriver
Lumens (Light Output) 1500 Lumens
Watts (Power Consumption) 20 Watts LED
Replaces 75W Incandescent
Lumens/Watts (Efficacy) 100 Lumens per watt
Power Requirements (Input Voltage) 120V
Light Color (CCT) 4000 Kelvin (Bright White)
Dimmable Non-Dimming (Do not wire to dimming switch)
Operating Modes Switch-Controlled:
Flip switch to turn light fixture ON and OFF.
3HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

4
PREINSTALLATION CONTINUED

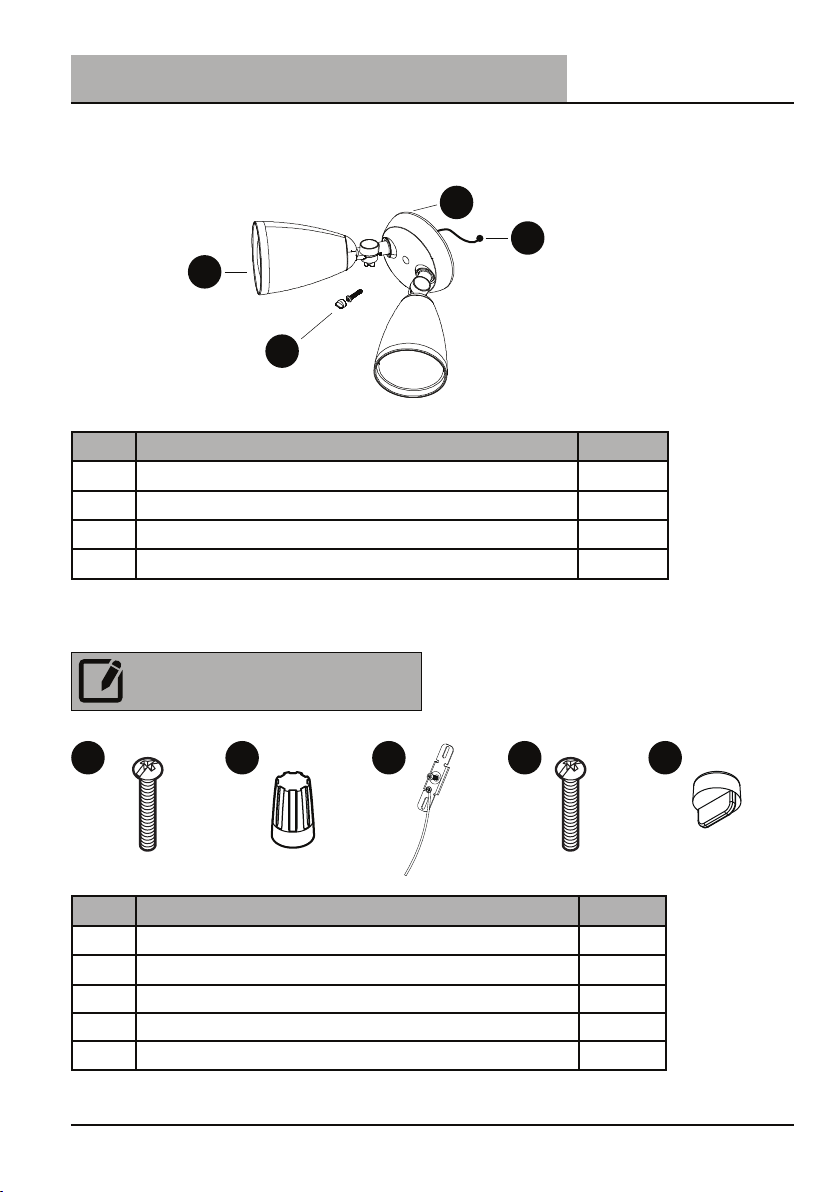

PACKAGE CONTENTS
Part Description Quantity
ALight fixture 1
B1
C
Mounting plate tightening screw (pre-installed)
1
D
Mounting plate bracket (pre-installed)
1
Hanger wire for hands-free installation (pre-installed)
B
A
D
C
HARDWARE KIT
NOTE: Hardware not shown to actual size.
AA BB CC DD EE
Part Description Quantity
AA #8-32 x 3/4" Philips head screw 2
BB Wire nut 3
CC Mounting plate with ground wire 1
DD 10-24 x 5/4 Philips head screw 1
EE Mounting screw cover plug 1

INSTALLATION

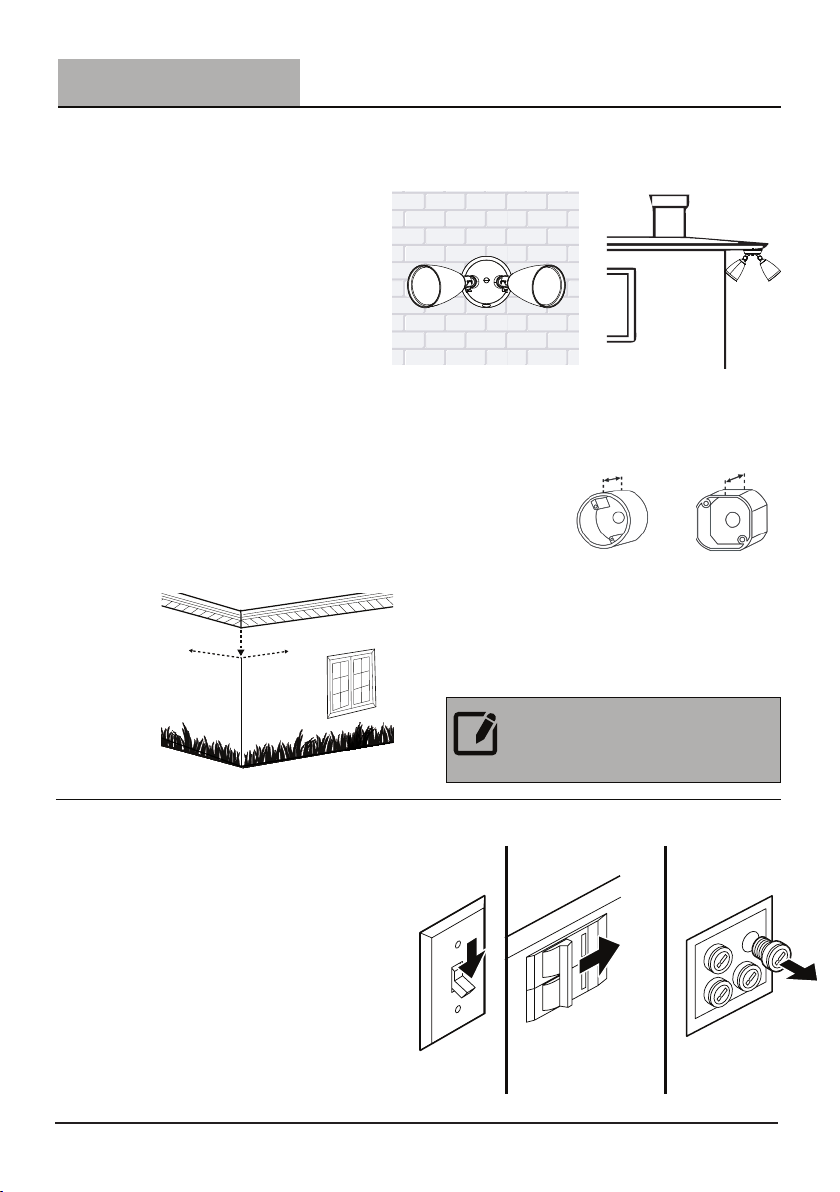

1FOR BEST RESULTS
☐Install light 8-15 feet above the ground.
☐Do NOT wire to dimming switch.
☐When mounting to a wall, make sure
the fixture is 7 in. away from eave and
13 inches away from inside corner of
the exterior wall (fig 2).
Wall Mount Eave Mount
1-1/2" 1-1/2"
Round Octagonal
NOTE:
Mounting plate bracket (C) mounts to standard
recessed junction boxes. Junction box must
be at least 1-1/2 inch deep for proper
installation. (fig 3).
(fig 3).
(fig 1).
(fig 2).
2SHUT OFF ELECTRIC POWER OFF
☐Verify wall switch is in OFF position (fig 4).
☐
the circuit breaker that supplies power
At the main electrical panel, turn off
to the junction box you are working on
(fig 5).
☐For screw-in type fuses, unscrew the
fuse that supplies power to the junction box
you are working on (fig 6). (fig 4). (fig 5). (fig 6).
13 in. 13 in
7 in
5HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

(fig 7).
6
INSTALLATION CONTINUED

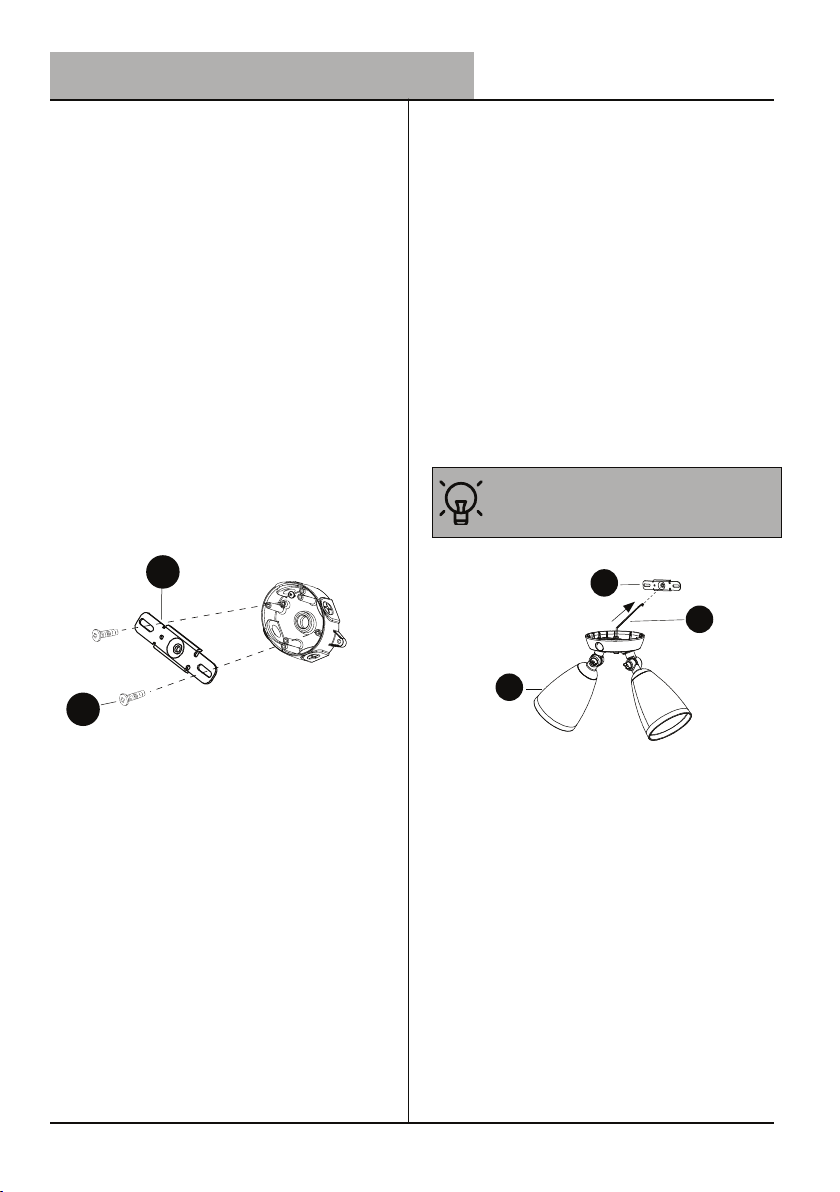

3
☐Align the slots on the mounting plate
bracket (C) with the holes of the junction
box. Use two (2) or four (4) philips head
screws (AA) to attach the mounting plate
bracket (C) to the junction box.
☐For wall mount, the "TOP" arrow must
point upward.
☐For eave mount, the "TOP" arrow must
point toward the building.
AA
C
4HANG FIXTURE FROM
MOUNTING PLATE
BRACKET
☐For hands free mounting, place the hanger
wire hook into the slot of the mounting plate
bracket (C) to support the fixture while
connecting the wires.
TIP: Ensure the light fixture (A) can safely
hang onto the mounting plate bracket (C) to allow
use of both hands to make the wiring connections
(fig 8).
(fig 8).
D
C
A
INSTALL THE
MOUNTING
PLATE TO THE
JUNCTION BOX

INSTALLATION CONTINUED

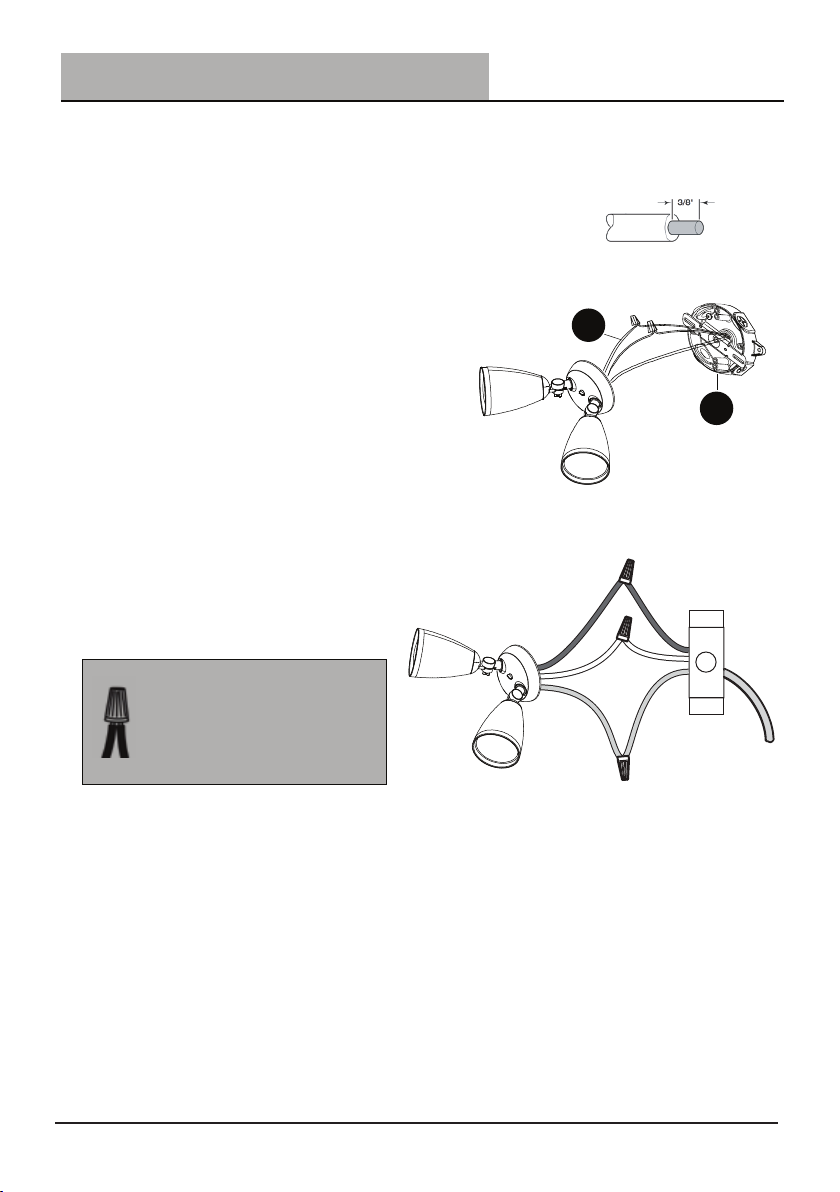

5MAKE THE ELECTRICAL
CONNECTIONS
BB
C
☐
☐
If necessary, strip 3/8" of insulation
from junction box and lighting fixture
wires (fig 10). Connect wires by twisting
the exposed wires together and using
the wire nuts (BB). Ensure no loose
wires.
Connect lighting fixture black wire to
junction box black wire (line), lighting
fixture white wire to junction box white
wire (common), the junction box ground
wire to the green lighting fixture ground
wire, which is attached to the mounting
plate (C)
(fig 9).
Black (Line)
White
(Common)
Green (Ground)
Junction Box
Non-Dimming Wiring Diagram
TIP:
Hold stripped ends near each other and
align any frayed strands (do not twist wires).
Push the wires into wire nut (BB) and use
your fingers to twist the wire nut clockwise
until tight. Check for tightness by pulling
wires.
7HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

(fig 10).
(fig 11).
(fig 12).
8
INSTALLATION CONTINUED

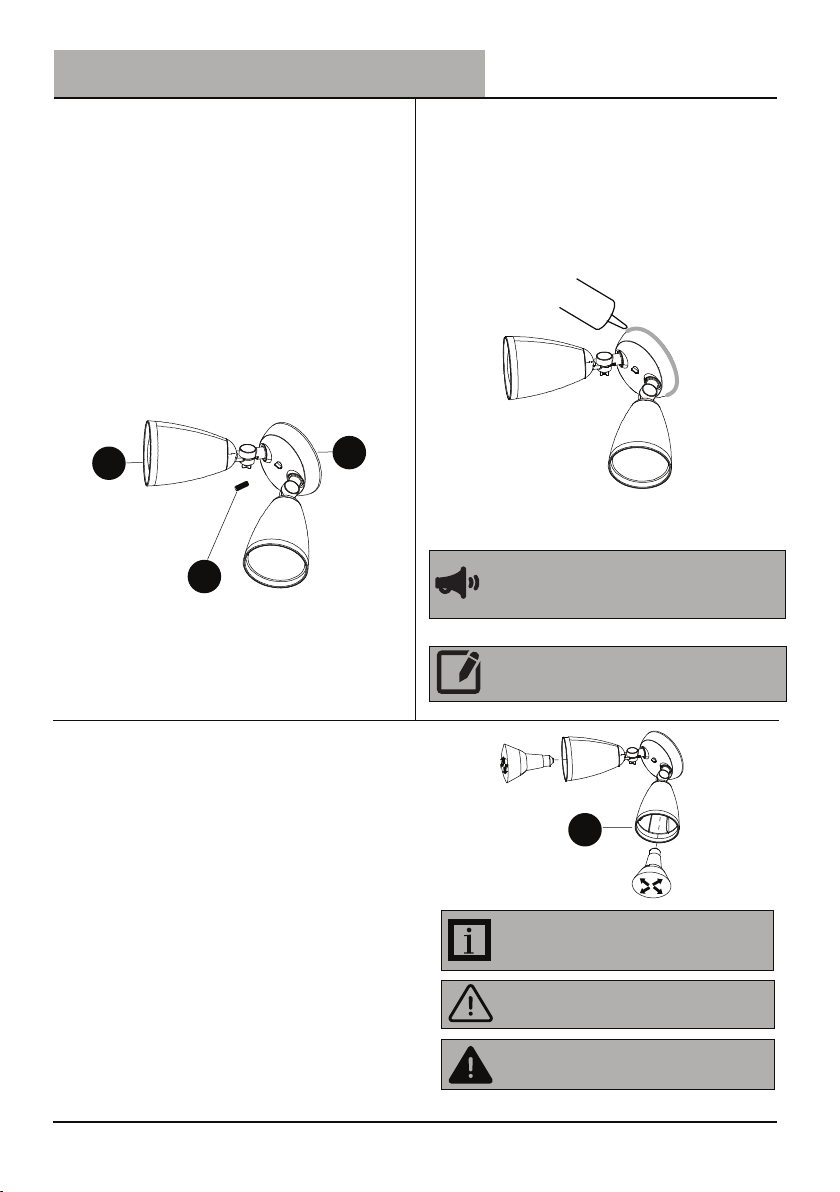

6MOUNT THE LIGHT
FIXTURE
☐Verify the fixture is flush with the wall.
☐Once wiring is complete, align the
mounting screw hole in the light
fixture with the mounting screw hole
in the mounting plate bracket (C).
☐Tighten the mounting plate screw (B)
until the fixture (A) is firmly secured
against the wall or eave.
7CAULK AROUND THE
LIGHT FIXTURE
8INSTALL BULBS AND
AIM THE LAMP HEADS
☐After fixture is securely mounted, install
two PAR halogen or LED bulbs (sold
separately) into the lamp heads.
☐Loosen the thumb screw on each lamp
head to allow rotation for aiming each
lamp head. Once aimed, tighten the
screws on each lamp head to fix the
desired angle.
☐From the breaker and switch, turn
power back ON to the light fixture to
verify light fixture illuminates.
WARNING: Risk of fire. Keep the lamp heads
at least 12 in. from combustible materials.
CAUTION: Keep lamp heads 30° below
horizontal to prevent water damage and
electrical shock.
IMPORTANT INFORMATION: PAR Halogen/LED
bulbs are sold separately. If you need to
purchase please contact your retail store.
A
C
A
BNOTICE: Failure to properly caulk around the
back face of the light fixture and mounting surface
could lead to water damage and is not covered under
warranty.
NOTE: When attaching the light fixture (A) to a
surface mount junction box, caulk between the
mounting plate and junction box.
☐Caulk around the back face of the light fixture
shown in (fig 12) with silicone sealant
(not included).

☐Ensure the switch powering the light
fixture is turned to the ON position and
leave it ON at all times to ensure
automatic dusk-to-dawn operation.
SWITCH
CONTROLLED
OPERATION
1
2
DUSKTODAWN MODE
DUSK-TO-DAWN OPERATION
AUTOMATIC
NIGHTTIME ON
DAYTIME OFF
A
Light fixture (A) includes integral photocell for dusk-to-dawn operation which
enables the light fixture to automatically turn ON when dark outside and turn
OFF when the sun rises, thus saving you energy.
NOTE: If photocell is located in an area
under heavy shade, the photocell may not
detect enough light and may turn the light
fixture on.
TIP: To test if the light fixture and photocell
work properly, run power to the fixture and
cover the photocell to turn fixture ON.
Shine a light into the photocell to see if
fixture turns OFF.
SWITCH CONTROLLED
Switch controlled operation enables the light fixture to
turn ON and OFF by flipping a switch that controls the
electricity to the junction box powering the fixture. The
light fixture will not turn ON and OFF automatically, but is
manually controlled.
(fig 13).
(fig 14).
9HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

CARE AND CLEANING
☐
appearance, clean the light fixture with clear water and a soft, damp cloth only.
☐Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints,
solvents, or any other chemicals on this light fixture. They could cause a premature
deterioration of the finish and may void the warranty.
☐Do not spray the light fixture with a hose or power washer.
TROUBLESHOOTING
10
Problem Possible Cause Solution
Light does not
turn ON
No power to the fixture
Check if circuit breaker is tripped
Confirm wall switch is On Verify
wiring to fixture is correct (turn
Fixture is sensing daylight Cover photocell. Wait several
seconds until fixture turns ON.
Light cycles
ON and OFF
continuously
Photocell light sensor is
sensing reflected light
Relocate light fixture to a location
where there is no reflected light.
OR Cover photocell light sensor and
use the wall switch to turn the light
fixture ON and OFF
OR Cover the photocell light sensor
and use the wall switch to turn the
light fixture ON and OFF
Light stays ON
Photocell light sensor is in
a shaded area
Shine a flashlight into the light sensor
and wait a couple minutes. If the light
turns OFF, the fixture should be
moved to a location with enough light
in the daylight hours for the light
sensor to work.
Photocell light sensor is faulty
a flashlight is shined on the light
sensor for a few minutes, then
the sensor may be faulty. Please
contact customer service.

YEAR LIMITED WARRANTY
This is a limited warranty offered by Commercial Electric for a period of five years from the date of
purchase to its customers. Commercial Electric warrants to customers that the products will be
free from defects in material and workmanship. The obligation of Commercial Electric under this
warranty is limited to the provision of replacement of products and is extended to the original
purchaser of the product on presenting valid purchase receipt or other proof of date of original
purchase acceptable to Commercial Electric. The receipt is required for rendering the warranty
performance. Any warranty claims without original proof of purchase would not be accepted.
It should be noted that the warranty does not apply to Commercial Electric products that have
been altered or repaired by unauthorized personnel, have been subjected to neglect, abuse,
misuse or accident or damages caused during shipping. Any other products not manufactured by
Commercial Electric which have been supplied, installed and/or used in conjunction with
Commercial Electric products are not covered under this warranty. Any damages caused by
replacements bulbs, LEDs or corrosion or discoloration of brass components are also not
covered by this warranty.
Limitation of Liability:
In no event Commercial Electric shall be liable for indirect, consequential, incidental or special
damages, or lost profits. Commercial Electric is not liable for any claims or damage arising out of
or connected with the manufacture, sale, delivery, use, maintenance and repair or modification of
Commercial Electric products, or supply of any replacement parts that, exceed the purchase
price of Commercial Electric products giving rise to a claim. Labor charges to remove or install
the fixtures will not be accepted.
To Claim:
Please contact Commercial Electric customer service at 1-844-584-3776.
11 HOMEDEPOT.com
Please contact 1-844-584-3776 for further assistance.

Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-844-584-3776
HOMEDEPOT.COM
Retain this manual for future use.
