Commercial Electric HPSA21CWB User manual

THANK YOU
USER GUIDE
3-Way Smart Light Switch
We appreciate the trust and confidence you have placed in Commercial Electric
through the purchase of this Smart Light Switch. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of
products available for your home improvement needs. Thank you for choosing
Commercial Electric!
Item# 1008 435 695
Model #HPSA21CWB

Safety Information
.................................................
2
FCC Regulation
..........................................
3
Wireless Protocol ............................................ 5
Warranty ..................................................................
..........................................
...............................................................
.......................................................
................................................
.............................................................
5
Package Contents 6
Operation
7
Installation
14
16
17
Table of Contents
Specification
Troubleshooting

NOTE:
Make sure to use this product together with 15A circuit
breaker in the upstream.
Safety Information
-2-
WARNING:
• Not compatible with standard 4-way. Do not exceed the
load power rating limit of the device. Maximum total wattage
rating: Up to 300 total watts for LED and CFL; 600W/120V for
Incandescent/Halogen.
• For indoor use only. Do not use in wet location.
• This product is to be installed or used in accordance with
electrical codes and regulations. If you are unsure of any part
of the instructions, consult an electrician.
• Save this instruction sheet. It contains important technical
data along with testing and troubleshooting information which
will be useful after installation is complete.
• Do not disassemble the product or make repairs yourself. You
run the risk of electric shock and voiding the limited warranty.
If you need service, or If you need assistance, please contact
Customer Service.
TO REDUCE THE RISK OF OVERHEATING AND POSSIBLE DAMAGE
TO OTHER EQUIPMENT, DO NOT INSTALL TO CONTROL A RECEPTACLE,
A MOTOR OPERATED APPLIANCE, A FLUORESCENT LIGHTING FIXTURE,
OR A TRANSFORMER-SUPPLIED APPLIANCE.
CAUTION:

FCC Regulation
Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Responsible Party
Leedarson America, Inc. 300 Technology Court SE Suite 100; Smyrna,
GA 30082 1-678-293-8382
Unique Identifier: HPSA21CWB (SKU # 1008 435 695)
Contains FCC ID: 2AB2Q-LA02301
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment.
This equipment should be installed and operated with minimum
distance of 20 cm between the radiator and your body.
-3-

FCC Regulation (continued)
This devicecomplies with Part 15 of the FCCRules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this devicemust acceptanyinterferencereceived,
including interference that may cause undesired operation.
expressly approved bytheparty responsible for compliance could
void the user's authority to operate the equipment.
Note: Thisequipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits aredesigned to providereasonable protection
againstharmful interferencein aresidential installation. This
equipment generates, uses, and can radiateradio frequencyenergy
and, ifnotinstalled and used in accordance with the instructions,
may cause harmful interference to radiocommunications. However,
thereis no guarantee that interference will not occur in aparticular
installation. If this equipmentdoes cause harmful interferenceto
radio or television reception, which can be determined by turning the
equipment offand on, theuser is encouraged totry to correct the
interference by one or more of the following measures:
—Reorient or relocatethereceiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on acircuitdifferent from
—Consult thedealer or an experienced radio/TV technician for help.
-4-

Wireless Protocol
The Wi-Fi CERTIFIED™ Logo is a registered trademark of Wi-Fi
Alliance®. Apple and the Apple logos are trademarks of Apple, Inc.,
registered in the U.S., and other countries. App Store is a service mark
of Apple Inc. Google, Google Play and Google Home are trademarks of
Google LLC.
-5-
1 YEAR LIMITED WARRANTY
Warranty
This product is guaranteed to be free of defects in
materials and workmanship for 1 year from the date of
purchase. Guarantee does not include normal wear and
tear. 5003280

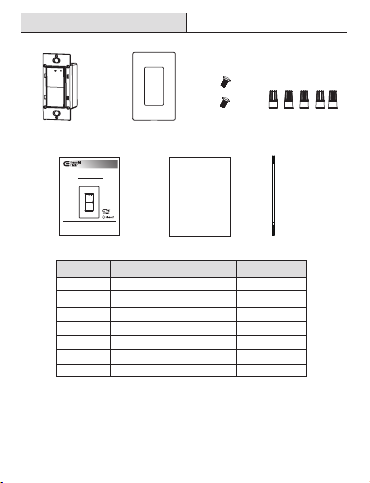

Package Contents
-6-
Part Description Quantity
ASmart Light Switch 1
B Wall Plate 1
C
D
Screws
Wire Nuts
2
5
E
F
User Guide
Quick Start Guide
1
1
GSpare Wire 1
EF G

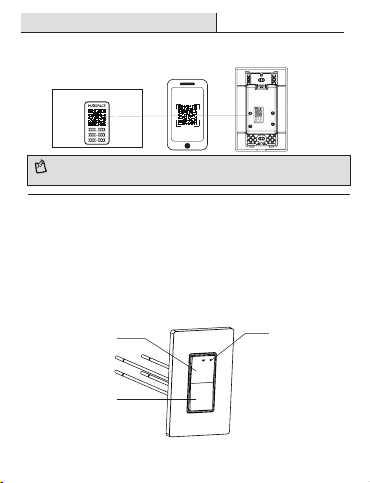

HUBSPACEAPP QUICK START GUIDE
THANKYOU
USER GUIDE
3-Way Smart Light Switch
Weappreciate the trust and confidence you have placed in Commercial Electric
throughthe purchase of this Smart Outlet. We strive to continually create quality
productsdesigned to enhance your home. Visit us online to see our full line of
productsavailable for your home improvement needs. Thank you for choosing
CommercialElectric!
Item#1008 435 695
Model#HPSA21CWB
A B C D

Installation

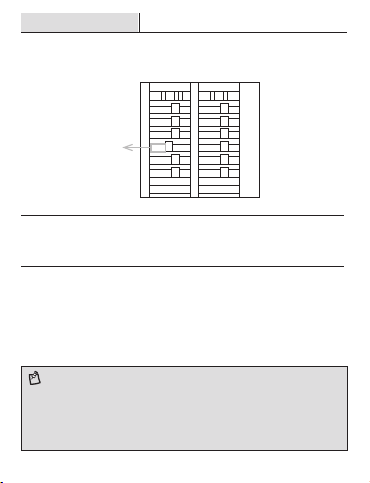

Turn power off at the circuit breaker or fuse for the
light switch that you are replacing.
1
Remove the old light switch by disconnecting all wires.
2
-7-
OFF ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
Connect the new light switch with the following diagram
in the manual or the Home Depot website. If the wires
are different than the diagram shown or on the website,
or you are uncomfortable with the installation, call a
licensed electrician for help.
3
NOTE:
□
□
□
□
□
Make sure that the power at the circuit breaker is off before wiring.
Neutral Wire is required. Conrm the wall box contains a Neutral Wire (Typically white).
If the wall box doesn't have a Neutral Wire, please try another location in your home or call a
professional electrician to install the switch.
The wire colors in the wall box indicated in this manual are the usual colors and may differ in
some homes.
Ensure the Wire Nuts (D) are securely fastened to each wire.
Additional instructions are available on the Homedepot.com.

Installation (continued)
A. Single-Pole Only - for lights controlled from 1 location.
-8-
Connect GROUND wire to Smart Switch.
Use the included Wire Nuts (D): Connect black LINE/LOAD wire on Smart
Switch to LINE/HOT wire (typically black).
Connect white NEUTRAL wire on Smart Switch to NEUTRAL wire (typically white).
Connect red TRAVELER 1 wire on Smart Switch to LOAD wire (typically black).
Screw a Wire Nut (D) onto red TRAVELERT 2 wire.
NOTE:
□
□
LINE/HOT wire on the switch that is being replaced is typically connected toward the top of the
existing switch, near the ON switch position. Mark this wire to identify as the LINE/HOT wire.
LINE/HOT wire can also be identied with a voltage tester. This wire is always energized while
circuit breaker is on, regardless of switch position. Refer to instructions specic to voltage testing
device for safe and proper testing.
GROUND
Neutral (White)
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Ground (Green)
Line/Load (Black)
Traveler1(Red)
Wire Connection Details (Single-Pole Only):
□
□
□
□
□

Installation (continued)
-9-
B. 3-Way Only - for lights controlled from 2 locations.

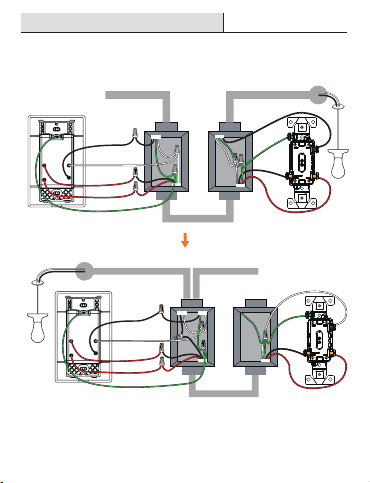

1) Smart switch + traditional switch with load light.
GROUND
GROUND
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Neutral (White)
Ground (Green)
Ground
(Green)
ROMEX(TRAVELER BOX TO BOX)
Neutral
(White)
ROMEX(BOX TO LIGHT)
120V POWER SUPPLY
Line/Load(Black)
Traveler 1 (Red)
Traveler 2 (Red)
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
ROMEX(TRAVELER BOX TO BOX)
ROMEX(BOX TO LIGHT)
Neutral (White)
Ground (Green)
Line/Load (Black)
Traveler 1 (Red)
Traveler 2 (Red)
Traveler
(Black)
Traveler (Red)
Ground
(Green)
Load (Use White traveler wire)
OR
→
Traveler
(Black)
Traveler (Red)
Line/Load (Black)
SMART
SWITCH
TRADITIONAL
SWITCH
SMART
SWITCH
TRADITIONAL
SWITCH
120V POWER SUPPLY

Installation (continued)
2) Smart switch with load light + traditional switch.
-10-
GROUND
GROUND
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Line/Load (Black)
Neutral (White)
Ground (Green)
ROMEX(TRAVELER BOX TO BOX)
ROMEX(BOX TO LIGHT)
Traveler 1 (Red)
Traveler 2 (Red)
Line (Use White traveler wire)
Traveler (Red)
Traveler
(Black)
Ground
(Green)
OR
→
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Line/Load (Black)
Neutral (White)
Ground (Green)
ROMEX(TRAVELER BOX TO BOX)
ROMEX(BOX TO LIGHT)
Traveler 1 (Red)
Traveler 2 (Red)
Line (Use White traveler wire)
Traveler
(Black)
Traveler (Red)
Ground
(Green)
120V POWER SUPPLY
120V POWER SUPPLY
SMART
SWITCH
TRADITIONAL
SWITCH
SMART
SWITCH
TRADITIONAL
SWITCH

Installation (continued)
3) Two smart switches wiring.
-11-
GROUND
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Tr
Tr
ROMEX(TRAVELER BOX TO BOX)
Load (Black)
Load
(Black)
Neutral (White)
Ground (Green)
Traveler 1 (Red)
Traveler 2 (Red)
OR
→
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Line(Black)
Neutral (White)
Ground
(Green)
Traveler 1
(Red)
Traveler 2
(Red)
120V POWER SUPPLY
SMART
SWITCH
SMART
SWITCH
ROMEX(BOX TO LIGHT)
Line
(Black)
GROUND
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
ROMEX(TRAVELER BOX TO BOX)
Load (Black)
Neutral (White)
Ground (Green)
Traveler 1 (Red)
Traveler 2 (Red)
LINE/LOAD
TRAVELER1
TRAVELER2
NEUTRAL
Line(Black)
Neutral (White)
Ground
(Green)
Traveler 1
(Red)
Traveler 2
(Red)
Load (Black)Load (Black)
120V POWER SUPPLY
SMART
SWITCH
SMART
SWITCH
ROMEX(BOX TO LIGHT)

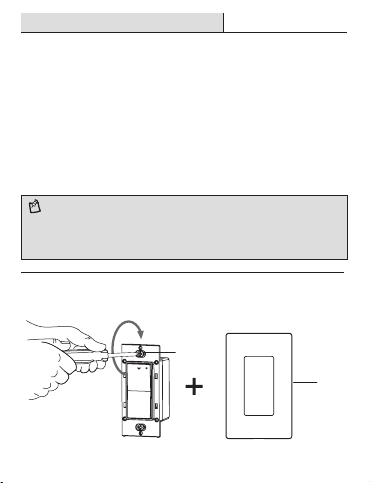

Mount the light switch with the screws (C) and attach
Wall Plate (B).
4
B
C
-12-
Connect GROUND wire to Smart Switch.
Use the included Wire Nuts (D): Connect TRAVELER 1 and TRAVELER 2
wires on Smart Switch to red and black TRAVELER wires in wall.
Connect white NEUTRAL wire on Smart Switch to NEUTRAL wire in wall
(typically white).
Connect LINE/LOAD wire according to diagrams (1,2, or 3):
1) Connect black LINE/LOAD wire on Smart Switch to LINE wire (typically black).
2) Connect black LINE/LOAD wire on Smart Switch to LOAD wire (typically black).
3) Connect black LINE/LOAD wire on one Smart Switch to LINE wire. Connect
the black LINE/LOAD wire on the other Smart Switch to the LOAD wire.
NOTE:
□
□
LINE/HOT wire on the switch that is being replaced is typically connected to a unique darker color
screw or a screw/wire labeled COMM. Mark this wire to identify as the LINE/HOT wire.
LINE/HOT wire can also be identied with a voltage tester. This wire is always energized while
circuit breaker is on, regardless of switch status. Refer to instructions specic to voltage testing
device for safe and proper testing.
Wire Connection Details (for all 3-way setups shown):
□
□
□
□
Installation (continued)

Installation (continued)

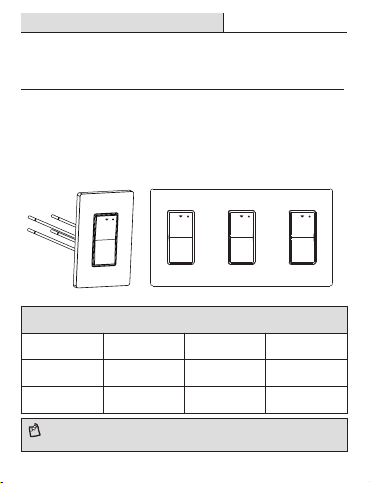

Maximum Load Per Light Switch for Multi-Gang
Load Bulb Single Two-Gang Three-Gang
LED/CFL
Incandescent/
Halogen
300W 300W 300W
600W 500W 500W
NOTE:
□No derating is required for LED or CFL bulb applications.
-13-
Install the smart light switch in a multi-gang application.
In multi-light switch installations, the reduction of the light switch’s
capacity may be required. Refer to below chart for maximum
load per light switch.
Turn power ON at the circuit breaker or fuse.
Installation is complete.
5

4Tap the ‘+’ button in the upper-right corner on the
app screen to add your light switch.
My Home
NOTE: Bluetooth access is required for product setup. Android phones must also
enable Location services to allow for Bluetooth scanning.
Operation
®
-14-
NOTE:
□
□
This Hubspace product requires a 2.4GHz Wi-Fi channel. Hubspace only shows Wi-Fi networks
that your product can use.
If you do not see your Wi-Fi network name when you attempt to connect your product, please
check your router settings or move your product closer to your Wi-Fi router.
3Connect your light switch to power and follow the
instructions on the app screen.
1Download the Hubspace™ app from the Apple App
Store or the Google Play Store.
2Sign in if you have an account, or register to create
an account then sign in.

Operation (continued)
On: Status LED
Click the “on”
button to
toggle light on
Off:
Click the “off”
button to
toggle light off
-15-
To turn your Smart Light Switch on or off, tap the On/Off button on
the Hubspace Home screen.
To set a schedule or timer, tap the name of the Smart Light Switch
on the Hubspace Home screen. You will see options for setting
Schedules and Auto-Off Timers.
You can also control the light manually by pressing the button on
the Smart Light Switch.
6Using your Smart Light Switch.
□
□
□
5Scan the QR code on the light switch or in the Quick
Start Guide.
NOTE: If the QR code cannot be scanned, you can enter the code manually. Tap Enter Code
and follow the instructions.
You can nd the QR code either on the front side or the back side of light switch housing.
HUBSPACE APP QUICK START GUIDE

Input 120VAC, 60Hz
Output 120VAC, 60Hz, Incandescent/Halogen
600W, CFL/LED 300W Maximum load
Network Wireless Type 2.4GHz, IEEE 802.11b/g/n
Operating Temperature 32° F(0°C)–104° F(40°C)
Operating Humidity 5-85% RH, Non-condensing
FCC, ETL
Specification
Operation (continued)
-16-
7Set up your Voice Assistant.
You can connect your Smart Light Switch to Google Home and Alexa
from the Hubspace app. Or, you can sign in to the Alexa app or Google
Home and connect to your Hubspace product from there.

Troubleshooting
Problem Solution
Light or LED indicator
do not turn ON.
Circuit breaker or fuse has tripped.
Load bulb is burned out.
Neutral connection of the loading bulb is not wired.
Could not control the light.
Make sure light switch is connected to the network.
Make sure the wiring installation is correct.
Make sure the two smart light switches are not in
the same group and is not being group controlled
in the same 3-way circut.
Make sure your product is connected to a power
source with correct wiring. Your internet connection
or Wi-Fi network may be down.
Make sure you have a 2.4GHz capable Wi-Fi network
within range of the product you are trying to add.
My Hubspace product
is not connecting to
Wi-Fi.
My product cannot nd
any Wi-Fi networks.
My product is in a location
that does not have Wi-Fi.
Can I still use it with the
Hubspace app?
Yes. Use the app on a phone with an internet
connection like LTE. The phone must be within
Bluetooth range of your Hubspace product and have
Bluetooth enabled.
Maximum total wattage rating:
-Up to 300 total watts for LED and CFL
-600W/120V for Incandescent/Halogen
What product can be
controlled with the
Smart Light Switch?
Lights are ickering.
Loading bulb has a bad connection.
Rewire or replace the light bulb.
-17-

I lost my QR code. How
do I add a product?
1. Make sure the product is connected to power.
2. In the Hubspace app, tap +, then Add Product.
3. On the Scan Product screen, tap the Search
button in the lower-right corner.
4. Follow the on-screen instructions.
A product is on another
account. How do I
transfer it?
Scan the QR code and it will transfer to your
account.
My product is ofine for
long periods of time.
Make sure your Wi-Fi signal strength is suf cient.
You may need to move your router, use mesh
Wi-Fi, or Wi-Fi extenders.
Can I scan the same QR
code to add multiple
products?
No. Each product has a unique QR code.
Problem Solution
The product is on and I
scanned the QR code,
but the app cannot
connect to it.
For Android phones, make sure Location is
enabled because it is required for Bluetooth
scanning. Turn off Bluetooth on your phone and
turn it back on. Then, scan the QR code. If the
problem persists, turn your phone off and on, then
try again.
Troubleshooting (continued)
-18-
I cannot nd the
QR code.
The QR code has become
damaged. How do I add the
product?
It is on the light switch housing. A copy of the QR
code is also included in your product’s documentation.
Under the QR code is a 24-digit code. You can
enter those manually instead of scanning the code.

Questions, problems, missing parts? Before returning to the store,
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-592-5233
Retain this manual for future use.
call Hubspace Customer Service
HOMEDEPOT.COM/Hubspace
