ComNav SinoGNSS M300 Pro User manual

M300 Pro GNSS Receiver User Guide
ComNav Technology
User Guide
M300PRO GNSS Receiver
2018 April

M300 Pro GNSS Receiver User Guide
II
CONTENTS
1. Introduction ..................................................................................................................................1
1.1 Safety Information...............................................................................................................1
1.2 Warning and Cautions.........................................................................................................1
1.3 Use and Care .......................................................................................................................1
1.4 Technical Assistance............................................................................................................2
1.5 Your Comments...................................................................................................................2
2. Overview .......................................................................................................................................3
2.1 Receiver features.................................................................................................................3
2.2 Technical specifications.......................................................................................................3
2.3 M300Pro Basic Kit ...............................................................................................................5
3. Setting up the receiver..................................................................................................................7
3.1 Guidelines............................................................................................................................7
3.1.1 Environmental requirements ...................................................................................7
3.1.2 Power supply............................................................................................................7
3.1.3 Mounting the antenna .............................................................................................7

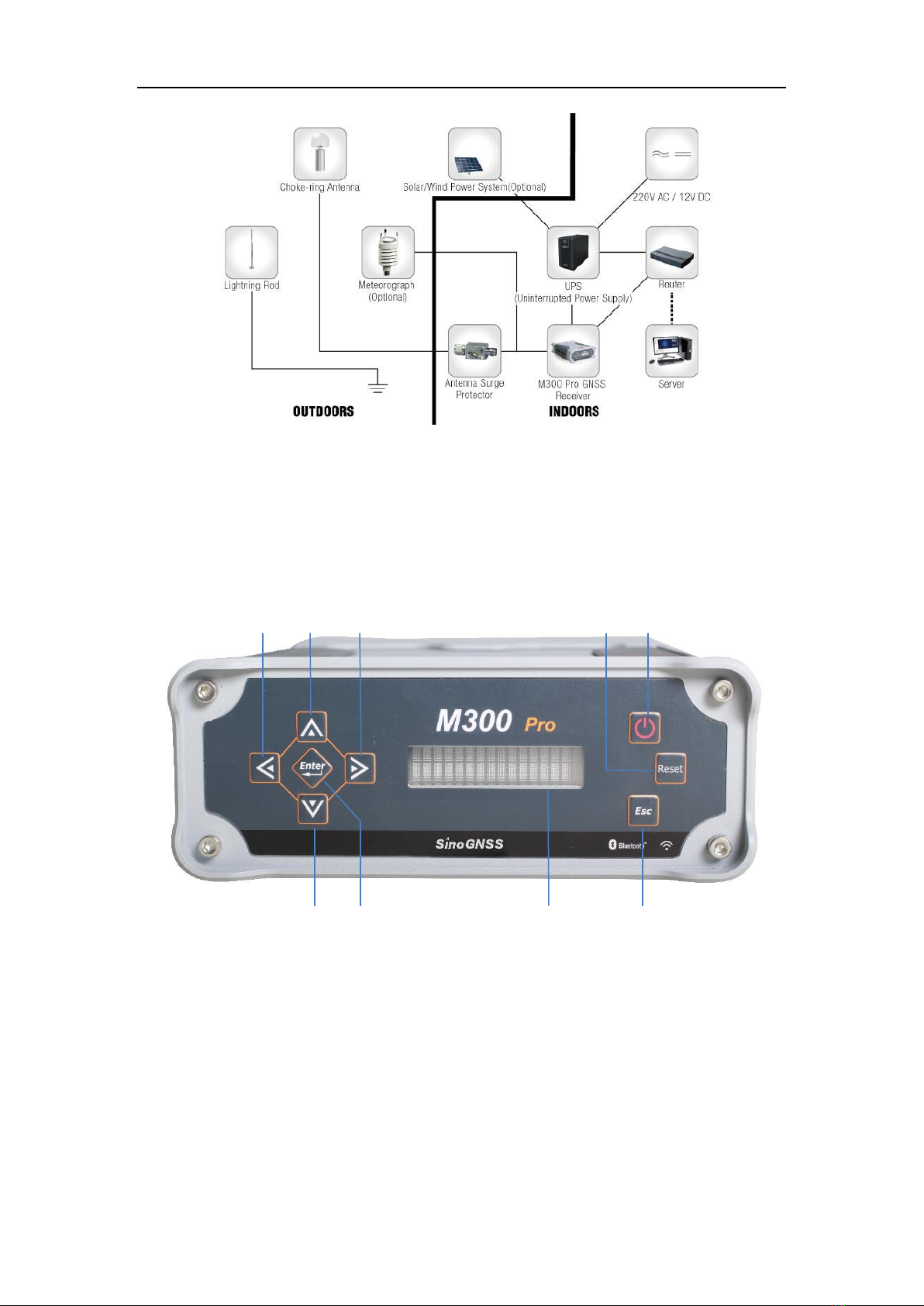

3.1.4 M300Pro connection view .......................................................................................8
3.2 Front Panel ..........................................................................................................................9
3.2.1 Button functions.......................................................................................................9
3.2.2 Status screens.........................................................................................................10
3.3 Rear connectors ................................................................................................................11
4. Receiver configuration through a Web Browser .........................................................................12

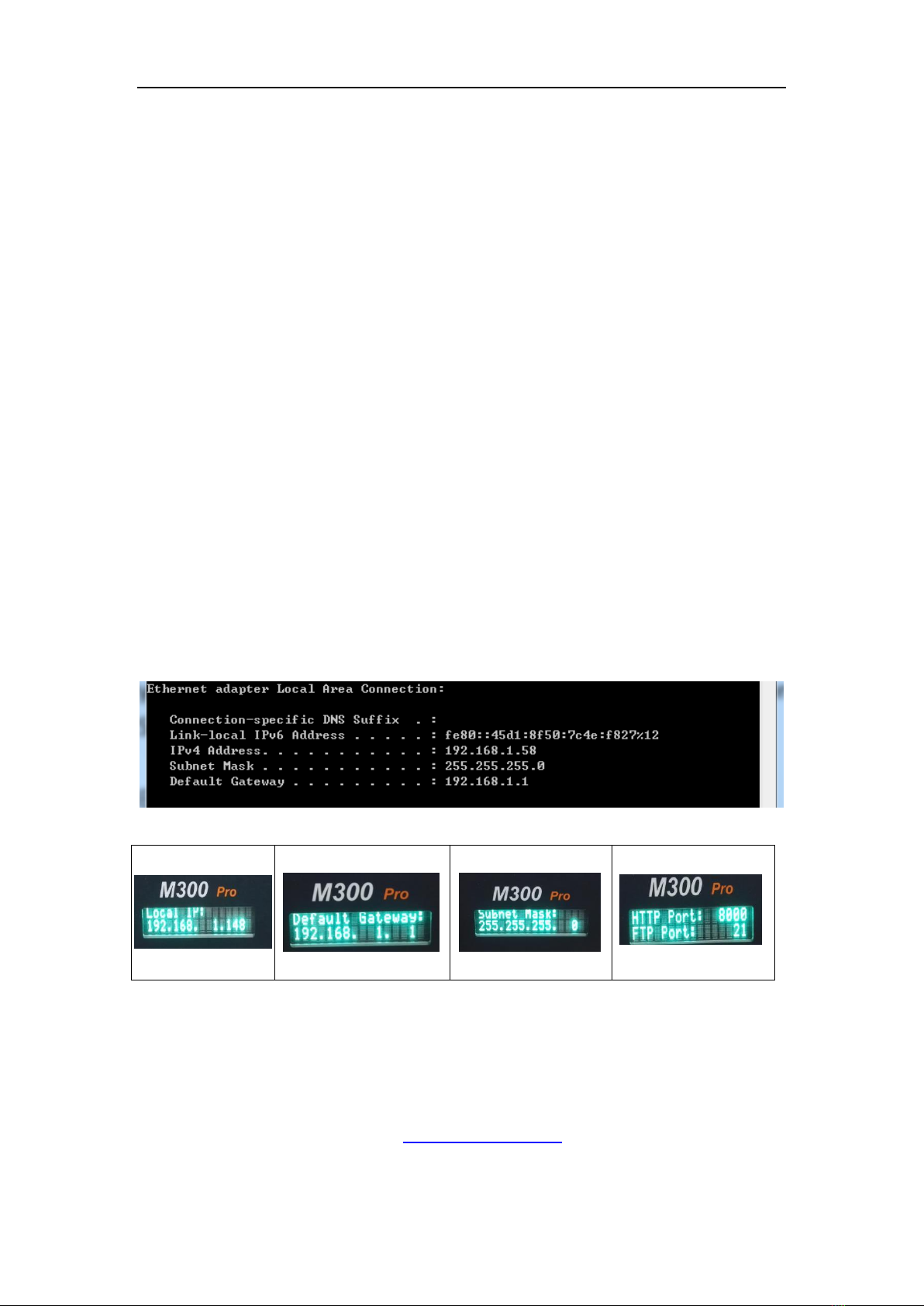

4.1 Login the configuration page of M300Pro ........................................................................12

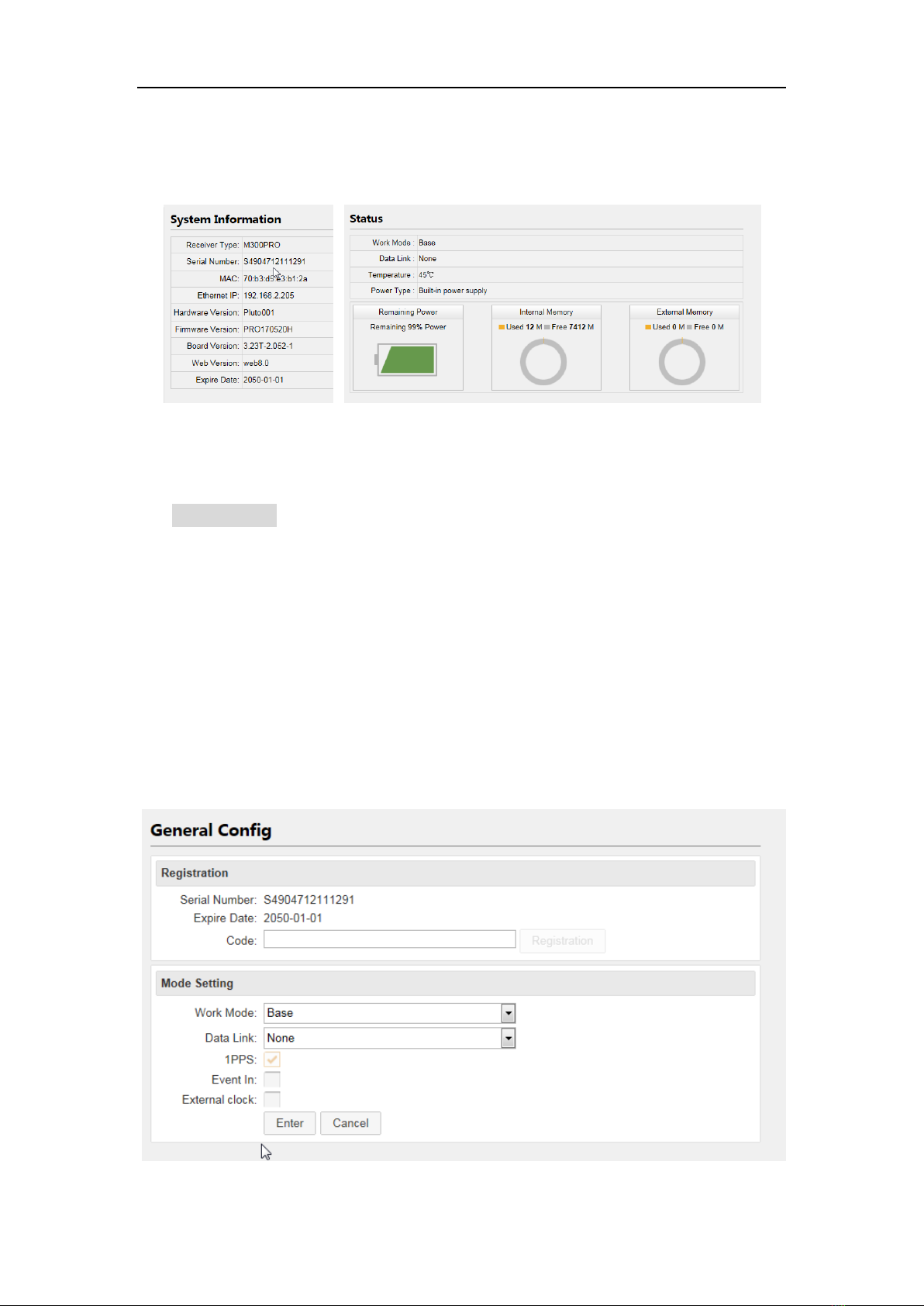

4.2 Checking the receiver status .............................................................................................13
4.3 Receiver Configuration......................................................................................................14
4.3.1 General Config........................................................................................................14
4.3.2 Antenna Setup........................................................................................................15
4.3.3 Base setup..............................................................................................................15
4.3.4 Satellite Tracking ....................................................................................................16
4.3.5 Receiver Utility .......................................................................................................16
4.3.6 Running Log............................................................................................................17
4.3.7 Default Language....................................................................................................17
4.4 Satellite Information..........................................................................................................17
4.5 Data Record.......................................................................................................................18
4.5.1 Recording Config ....................................................................................................18
4.5.2 Data Download.......................................................................................................20
4.6 I/O Configuration ..............................................................................................................21

M300 Pro GNSS Receiver User Guide
III
4.6.1 Serial Port Config....................................................................................................21
4.6.2 TCP/IP Config..........................................................................................................22
4.6.2.1 Direct connection model.....................................................................................23
4.6.3 NtripConfig.............................................................................................................23
4.7 Internet Service.................................................................................................................27
4.7.1 Internet Config .......................................................................................................27
4.7.2 Email Client.............................................................................................................28
4.7.3 Email Alert..............................................................................................................28
4.8 Firmware Update ..............................................................................................................29
4.9 User Management.............................................................................................................30
5. Programmatic Interface ..............................................................................................................30
5.1 Frequently used commands..............................................................................................31
5.2 Commands related to external devices.............................................................................32
5.2.1 Event marker ..........................................................................................................32
5.2.2 PPS output..............................................................................................................33
5.2.3 10 MHz frequency input.........................................................................................34
Appendix A：Beidou Coverage and the positioning stability.........................................................35
Appendix B：Advantages of Beidou B3 signal................................................................................37

M300 Pro GNSS Receiver User Guide
1
1. Introduction
Thank you for choosing the M300Pro GNSS receiver.
This Getting Started Guide will provide useful information about M300Pro. It will also
guide you through your first step of using M300Pro GNSS receiver.
1.1 Safety Information
Before using the receiver, please make sure that you have read and understood this
Getting Started Guide, as well as the safety requirements.
The M300Pro has a built-in internal Lithium battery, and a damaged battery can
cause personal injury or property damage. Please obey the following regulations:
-Be sure that power off M300Pro when delivering
-Do not put the battery in water
-Do not use the damaged battery
-Do not expose the battery to fire or high temperature
-Internal battery can be replaced only at Authorized ComNav distributors.
1.2 Warning and Cautions
An absence of specific alerts does not mean that there are no safety risks involved. A
Warning or Caution information is intended to minimize the risk of personal injury
and/or damage to the equipment.
WARNING-A Warning alerts you to a potential misused or wrong setting of the equipment.
CAUTION- A Caution alerts you to a possible risk of serious injury to your person and/or damage to
the equipment.
1.3 Use and Care
The M300Pro is designed to withstand the rough environment that typically occurs in
the field. However, the M300Pro is high-precision electronic equipment and should
be treated with reasonable care.

M300 Pro GNSS Receiver User Guide
2
1.4 Technical Assistance
If you have any question and can’t find the answer that you need in this manual,
please contact your local dealer from which you purchased the M300Pro.
Alternatively, please request technical support using the ComNav Website at:
www.comnavtech.com or technical support email: sup[email protected]om.
1.5 Your Comments
Your feedback about this Getting Started Guide will help us to improve it with future
revisions. Please email your comments to: [e-mail].

M300 Pro GNSS Receiver User Guide
3
2. Overview
This chapter will introduce the main features, technical specifications and basic kit of
M300Pro receiver.
2.1 Receiver features
The M300Pro is designed as a multi-purpose GNSS receiver for a wide range of
applications. With its powerful integration ability, the M300Pro serves as a key part
of positioning infrastructure, active geodetic network, deformation monitoring
system, machine guidance, harbor construction, land surveying, marine surveying
and in any project that accuracy and reliability matter the most.
With all communication ports and interfaces available in the front panel, the
M300Pro is ready to track all constellation signals in any mode. External GNSS
antenna design makes the receiver easy and safe to operate in various kinds of
environment.
With its advanced dynamic acquisition ability and high accurate carrier phase
algorithm, the high dynamic processing engine enhances the reliability and
consistency of survey in challenging environments for GNSS signal tracking.
The M300Pro is based on IP and ready for GNSS Cloud Computing. Easily configured
by an advanced built-in web server, the M300Pro supports all the GNSS standards
such RTCM, NTRIP, RINEX, NMEA. New and existing GNSS positioning infrastructures
(GNSS Networks and CORS) will benefit of such plug-and-play architecture. Powered
by RTK and E-RTK processing on-board for positioning and integrity monitoring, the
M300Pro is designed for professionals engaged in high-precision positioning projects.
2.2 Technical specifications
Signal Tracking
•496 channels with simultaneously tracked
Satellite signals
- GPS: L1 C/A code, L1/L2 P code, L2C, L5
- BeiDou: B1, B2, B3(See Appendix A)
- GLONASS: L1, L2
- Galileo: E1, E5-A, E5-B
- QZSS: Reserved
- SBAS: WAAS, EGNOS, MSAS, GAGAN
- Extended NMEA-0183 BDGGA,
GPNTR, GPCDT, GPHPR
•Observations
ComNav binary, BINEX, RTCM3.X,
compatible with major CORS software
(VRS, FKP and iMax).
Data logging
•Loop recording data function

M300 Pro GNSS Receiver User Guide
4
•Advanced multipath mitigation technology
•Low noise carrier phase measurements
with <1 mm
precision in a 1 Hz bandwidth
•High precision multiple correlates for
GNSS
pseudo range measurements
•Signal Noise Ratios reported in dB-Hz
Time Precision
•GPS+Glonass+Beidou 10ns
Positioning Specifications
•Post Processing Static
- Horizontal: 2 mm + 0.5ppm RMS
- Vertical: 4 mm +0.5 ppm RMS
•Single Baseline RTK(<30KM)
- Horizontal: 8 mm + 1 ppm RMS
- Vertical: 15 mm + 1 ppm RMS
•Network RTK
- Horizontal: 8 mm +0.5 ppm RMS
- Vertical: 15 mm + 0.5 ppm RMS
•E-RTK
- Horizontal: 0.2 m +1 ppm RMS
- Vertical: 0.4 m + 1 ppm RMS
•DGPS : 0.5 m 3D RMS
•SBAS : 1 m 3D RMS
•Standalone : 1.5 m 3D RMS
Communications
•3 Lemo Ports
- 1 Lemo port(2 pin): power supply and
battery charging
- 2 Lemo ports(7 pin): USB UART port,
system
debugging and static data download;
RS485 Protocol
configuring and connecting with external
supports long time record
•Data logging frequency, maximum
50Hz
•Storage capacity
- 32 GB internal memory
- 1TB External memory maximum
•File format
- Rinex 3. X or 2.X or ComNav binary
format
•File log session
- Days or hours can be set by user
•Data transfer
- FTP access download directly
Physical
•Size (L x W x H): 202mm x 163mm x
75mm
•Weight: 2.4 kg
•Case: Rugged and light high
performance metal
Environmental
•Operating temperature: -40°C to
+80°C
•Storage temperature: -45°C to +85°C
•Humidity: 100% no condensation
•Water proof and dust proof: IP67,
survives the temporary
immersion to a depth of 1 m
•Shock: rugged aluminum case plus
plastic ring seal, designed to
survive a 1m drop onto concrete
Electrical
•Power consumption: 3.5W
•External power input:9.5-15 VDC,
with over-voltage protection
•Integrated 17.6Ah Li-ion battery, 30

M300 Pro GNSS Receiver User Guide
5
device(meteorological
sensor/barograph/inclinometer)
•1 DB9 male port
- Standard RS232 protocol
•1 Standard USB port,
- Connect with external storage card
•1 RJ45 LAN Ethe17rnet port (10/100M
Bit) supports
protocols HTTP, HTTPS, TCP/IP, UDP,
FTP, NTRIP
•3 SMA male connectors
- 1 PPS output
- Event input
- Reserve for WLAN and Bluetooth
•2 TNC connectors
- GNSS Antenna connector
- Frequency-marker oscillator input
connector
Data Format
•Correction data I/O:
- RTCM 2.x, 3.x, RTCM3.2, MSM4,
MSM5, CMR (GPS only), CMR+(GPS only)
•Positioning data outputs:
- ASCII: NMEA-0183 GSV, RMC, HDT,
VHD, GGA, GSA, ZDA,
VTG, GST, PJK, PTNL
hours continuously working
Antenna
•AT330 GNSS Geodetic Antenna
•AT500 GNSS Choke Ring Antenna
User Interface
•Button and front LCD panel
- 5 functional buttons on the left and 3
buttons on the right
- LCD panel shows the status and
setting
•ComNav M300 Pro Web Server
M300 Pro
Specifications subject to change
without notice.
2.3 M300Pro Basic Kit
The table below provides an overview of items included in the M300Pro basic Kit.

M300 Pro GNSS Receiver User Guide
6
Items
M300Pro GNSS Receiver
Charger
Network Cable
GNSS Antenna Cable/
Special cable can be
provided if you require
Transport Case
Lemo to USB cable

M300 Pro GNSS Receiver User Guide
7
Double Female DB9 Serial
Port Cable
ComNav also supply various types of antennas, for additional introduction please see
chapter 3.1.3.
3. Setting up the receiver
3.1 Guidelines
Please follow these guidelines when setting up your receiver.
3.1.1 Environmental requirements
To keep the receiver with a reliable performance, it is better to use the receiver in
safe environmental conditions.
•Operating temperature: -40°C to +80°C
•Storage temperature: -45°C to +85°C
•Out of corrosive fluids and gases
3.1.2 Power supply
The M300Pro has a built-in internal Lithium battery, which can work for up to 16
hours. If you set M300Pro as a permanent site (reference station), a uninterruptible
power supply (UPS) is recommended to protect receivers from power surges and
power outage.
3.1.3 Mounting the antenna
Choosing the optimal location for the GNSS antenna is critical to the performance
quality of your M300Pro receiver. Poor or incorrect placement of the antenna may
impact the accuracy and reliability of observation, resulting a degraded performance
of normal operation.
Follow these guidelines to select the antenna location:
If the application is mobile / kinematic, place the antenna on a flat surface

M300 Pro GNSS Receiver User Guide
8
along the centerline of the vehicle.
Choose an area with open view to the sky and far from metallic objects.
Avoid areas with high vibration, excessive heat, electrical interference or
strong magnetic fields.
Avoid mounting the antenna close to electrical cables, metal masts and
generally close to other antennas
AT-series antenna is recommended, if use other kinds of antenna please check the
specifications with the ComNav support team.
3.1.4 M300Pro connection view
M300Pro is mainly used as a CORS reference station, the below figure explains the
connection of each equipment. The GNSS antenna and lighting rod are fixed on the
ground or top of building, inner devices including the M300Pro, the power supply
and internet, are settled in the office.
Antenna
type
AT330
AT350
AT500
AT500 3D
Descripti
on
Geodetic,
Mobile
survey,
machine
control
Mini chock ring
GNSS antenna,
mainly used as
monitoring
Chock ring antenna,
high accuracy
geodetic antenna,
CORS station
antenna
Chock ring antenna,
very high accuracy,
national CORS
reference station
antenna

M300 Pro GNSS Receiver User Guide
9
3.2 Front Panel
You can do some basic settings for receivers including IP, port, storage mode and
check the receiver status, such as the version, SN number, current position, residual
memory and power etc.
3.2.1 Button functions
①~④Direction button
Switch the page of display screen and modify settings
⑤Enter button
Press it to confirm your configuration
⑥Display Screen
Display the basic configuration information
⑦Reset button(Reserved)
Make the receiver to recover to factory default settings.
③
②
①
⑦
⑧
⑨
⑥
⑤
④

M300 Pro GNSS Receiver User Guide
10
⑧Power button
Turn on or off the receiver
Receiver is turned on automatically when connecting with the power charger.
Without the power supply, press the power button to turn on the receiver
with screen display【M300 pro System Init…】.
To turn off the receiver, please hold power button down for 3 seconds, the
display shows【Power Off?】, press Enter button to select Yes, press Esc button
to select No.
⑨Cancel button
Cancel the modification setting.
3.2.2 Status screens
To review and change the receiver’s settings, press direction button to display status
screens. There are 13 status screens showing the following information:
Home screen: the number of satellites, the battery level and internal storage.
In power-saving mode, the display screen will go dark If non-operation for a
short time. Press any button to reactivate the screen.
Latitude and longitude
PDOP, and height values
Receiver serial number
Receiver version
Expired date
Configurable items
Receiver local IP address
Receiver default gateway
Current subnet mask
Auto IP
HTTP, FTP port
Storage setting and format SD
Default and reset settings
To change the above settings, using left and right buttons to move the cursor, up and
down buttons to change the setting.

M300 Pro GNSS Receiver User Guide
11
3.3 Rear connectors
All connectors are located on the back of the receiver, you can connect other
external devices through these connectors.
①Power Supply and Battery Charge Port
Port for external power supply, and internal Battery charging of the receiver
②Ethernet Port
Connect to internet
③Com1 Port of Main Board (RS232 port)
Control the mainboard and request data from this port
④EVENT Signal Connector
Access Event signal trigger and can be configured through a web browser
⑤PPS Connector
Output PPS signal and can be configured through the web browser
⑥GNSS Antenna Connector
Connect to the GNSS antenna
⑦USB
Connect to external USB drive for external data logging
⑧Lemo to USB Data Download Connector
Connect with PC to download raw data from the internal memory
⑨Com2 Port of Main Board
Connect with Meteorological sensor, RS-485 communication protocol; receive and
save meteorological data in RINEX format
⑥
⑩
⑪
⑨
⑧
⑦
⑤
④
③
②
①

M300 Pro GNSS Receiver User Guide
12
⑩10 MHz frequency input
10MHz external frequency input, Used for precision timing
⑪WIFI Antenna connector(Reserved)
4. Receiver configuration through a Web Browser
M300Pro has the advanced built-in web server, you can access the web setting page
and do configurations remotely. This section describes how to change receiver’s
settings through a web server.
4.1 Login the configuration page of M300Pro
The M300Pro receiver can connect to an Ethernet network through its Ethernet port.
It means that you can configure and monitor the receiver’s settings without serial
cable connection.
1. Firstly, make sure that the M300Pro and your computer are within the same
Local Area Network (LAN). Then change your receiver’IP address through the
front panel based on your office computer. For example IP address in your
computer:
IP address of M300Pro:
2. Enter the IP address and HTTP port of the receiver into the address bar, you will
access the configuration page of M300Pro.The default setting for the HTTP port
is 80, which is the standard port for web servers. However, HTTP port need to be
changed in some cases.
For example, using default port 80:http://192.168.1.148
If your receiver has a port other than 80, you must enter the IP address followed by

M300 Pro GNSS Receiver User Guide
13
port number. As example showed above: http://192.168.1.148:8000
3. Enter the default login settings to access the main page:
Username: admin
Password: admin
After accessing the main page, configuration menus are listed on the left, and
receiver’s settings on the right. Each configuration menu will be demonstrated in the
following sections.
4.2 Checking the receiver status
Click Status->System Information, Status or Position information, you can check the
corresponding receiver status, including:
System information: IP address, SN, Firmware Version, Web Version etc.

M300 Pro GNSS Receiver User Guide
14
Status: work mode (Base, Rover or Single point positioning), Disk Capacity etc.
Position Information: GNSS constellation system tracked etc.
4.3 Receiver Configuration
Use configuration menu to do basic configurations of your receiver.
4.3.1 General Config
There are 2 work modes you can choose:
Base station: configure the receiver as a Base station, you can change its
settings in Base Setup menu
Rover: setting the receiver as a rover, and Base Setup menu is not available
for rover mode.
Also, active the external input/output as 1pps, please enable Event Marker and
External clock only when the external clock or events are connected.

M300 Pro GNSS Receiver User Guide
15
4.3.2 Antenna Setup
Enter the proper values of marker name and antenna height (height limited 0 to
6.5535m), select the antenna type and measurement method.
4.3.3 Base setup
After setting M300Pro in the base mode, the base setup menu is available for you.
However, you can change the base setup only when it’s on manually start station
mode with stopped status.
To configure the base station:
Change base start mode from automatically to manually -> press enter,
ensure that Base Start Mode is on manual
Press Stop to restart editing
Then input coordinates of known sites, or press Get Position button to get
coordinates of the current position
Set proper base station ID based on your project planning
Change base start mode from manually to Automatically, then click Start to
active configuration

M300 Pro GNSS Receiver User Guide
16
4.3.4 Satellite Tracking
Select smooth pseudorange, setup the mask angle and select the types of the
tracking signal based on surveying requirements.
4.3.5 Receiver Utility
In this section, you can control M300Pro remotely, including:
Clean EPH: delete ephemeris information saved in the receiver
Reboot: Restart the receiver
Power Off: Turn off the receiver
Factory Default: recover the receiver to factory default setting

M300 Pro GNSS Receiver User Guide
17
4.3.6 Running Log
Download user/system log to local;
User Log contains power on/off, search satellite completed, TCP changed,
data record changed, email alert, OEM status
System Log contains system warning and system info.
4.3.7 Default Language
Two language options are available: Chinese/English
4.4 Satellite Information
Satellite information menus provide you an overall view of satellite tracking details,
