COMPANION COMP202 User manual

OWNERS MANUAL
PART NO. COMP202
2-BURNER
LP GAS STOVE
15,000 BTU
AUSTRALIA AND NEW ZEALAND
GAS SAFETY CERTIFICATION
®


2
IMPORTANT: Read these instructions for use carefully. Familiarise yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.
GENERAL WARNINGS
This appliance shall only be used with a ULPG rellable
cylinder certied to Standard AS 2469 that has a 3/8"
LH BSP inlet tting.
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER
TYPES OF GAS CONTAINERS.
ONLY USE IN WELL-VENTILATED AREAS.
CARBON MONOXIDE HAZARD - USING THIS APPLIANCE
IN AN ENCLOSED SPACE MAY CAUSE DEATH. DO NOT
USE IN CARAVANS, TENTS, MARINE CRAFT, CARS,
MOBILE HOMES OR SIMILAR LOCATIONS.
WARNING! USE OUTDOORS ONLY.
CAUTION: accessible parts may be very hot. Keep young
children away.
SAFETY INFORMATION
Inspect the appliance regularly for signs of wear, leaks
or incorrect operation. If symptoms such as aring of
the burner, issues with lighting, damages to hoses
or connections or leaks from seals or gas controls
are identied do not attempt to repair, return to your
authorised stockist for service and maintenance.
Do not modify this appliance.
Check that seals between the appliance and the gas
container are in place and in good condition before
connecting the gas container. See gure 1.
Do not use this appliance if it has damaged or worn
seals.
Do not use the appliance if it is leaking, damaged or
does not operate properly.
This appliance is to be operated on a stable, horizontal,
non-ammable surface.
The appliance should be protected from direct drafts
and in a well ventilated place.
Gas orices and burner must be kept clear of dirt and
cobwebs. Flow of combustion and ventilation air through
the perforated portions of the appliance must not be
obstructed.
Any cleaning agent used on the appliance must be of a
non-combustible and non-corrosive nature.
Gas containers shall be changed in a well-ventilated
location, preferably outside, away from people and any
source of ignition, such as naked ames, pilot ame,
electric heaters/equipment.

3
2-BURNER LP GAS STOVE OWNERS MANUAL
CARBON MONOXIDE HAZARD
Using this appliance in an enclosed space may cause DEATH.
Do not use in caravans, tents, marine craft, cars, mobile homes
or similar locations.
Only use the hose assembly supplied with this appliance
for connection to the cylinder - DO NOT USE ADAPTORS.
Do not use hoses with a length greater than 1200 mm.
Return to your place of purchase for spare parts, service
and repair.
This appliance must only be serviced by an authorised
person.
This appliance must be operated away from any
ammable material or surfaces and materials.
Always operate appliance a minimum of 1000 mm from
ammable materials, walls and ceiling.
Ensure all packaging is removed prior to use.
Do not operate this appliance before reading the
instruction booklet.
Do not place articles on or against this appliance.
Do not store chemicals or ammable materials, or spray
aerosols near this appliance.
Do not operate with panels, covers or guards removed
from this appliance.
Do not operate in an enclosed area without ventilation.
Do not operate in a boat, caravan or tent.

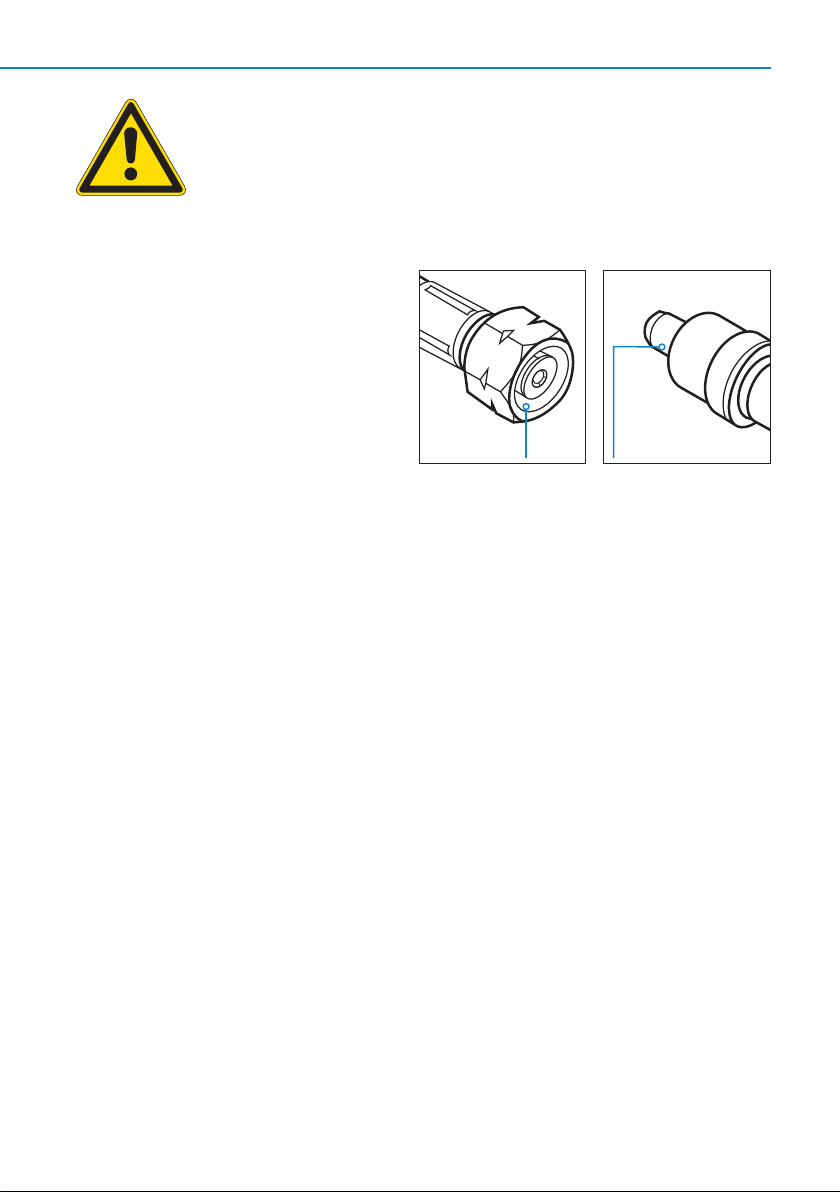

Figure 1: O-Ring seals located inside the gas hose ttings.

4
UNDERSTANDING YOUR APPLIANCE
OFF
GAS HOSE
WINDSHIELD
BURNER
STOVE CONNECTION
TRIVET
ADJUSTABLE GAS CONTROL
STAND
WINDSHIELD
BURNER
STOVE CONNECTION
TRIVET
STAND
ADJUSTABLE GAS CONTROL

5
2-BURNER LP GAS STOVE OWNERS MANUAL
CONNECTION
Your stove is designed to connect directly on to a 3/8"LH
BSP camping gas cylinder using the specially designed
LP Gas hose supplied with the appliance.

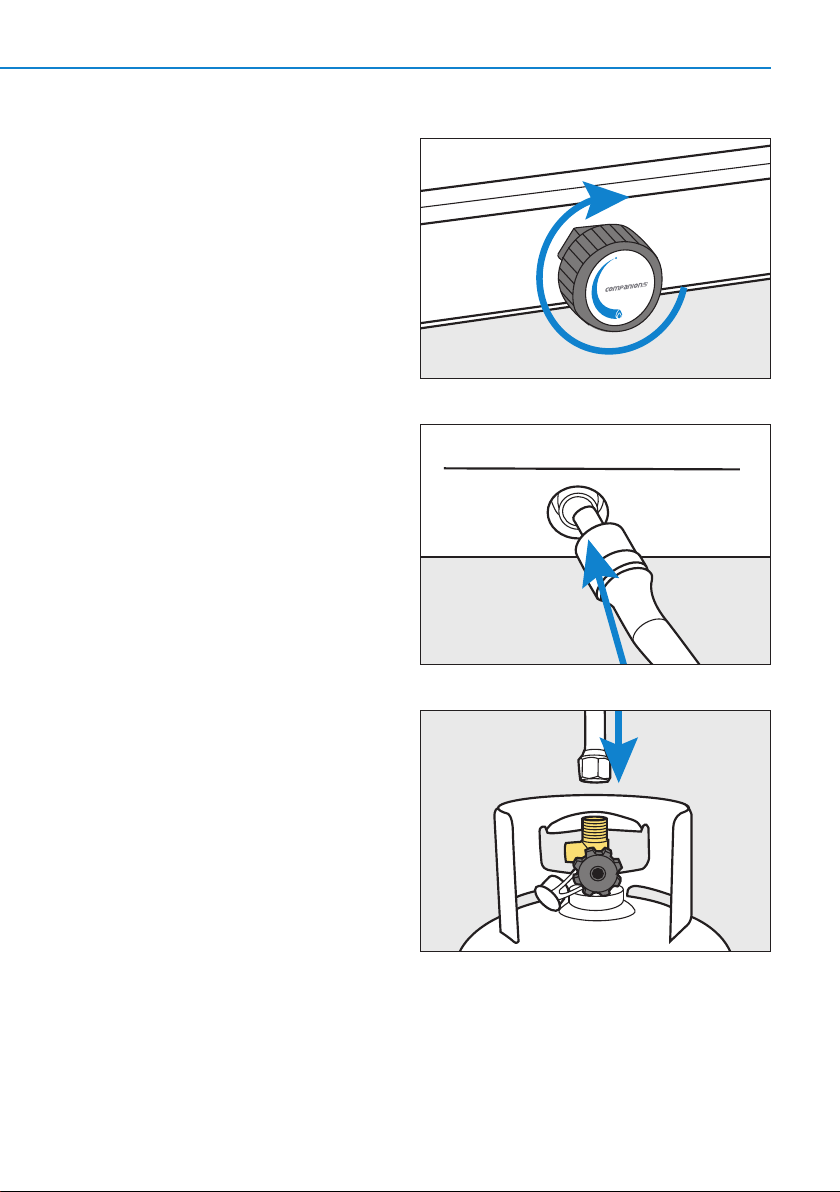

Check that the gas controls are in the OFF position
(turned fully clockwise). See figure 2.
Take the stove connector head of the hose and attach to
the gas inlet on the appliance, tighten up using fingers.
See figure 3.
Attach the other end of the hose to the gas cylinder,
tightening using a spanner. See figure 4.
Turn the cylinder gas valve on in an anti-clockwise
direction for one full turn and then check the connections
for leaks with soapy water, if a leak is detected turn the
cylinder gas valve OFF and retighten all connections then
retest.
OFF
Figure 3
Figure 4
Figure 2

6
CHECKING FOR GAS LEAKS
Check that all connections are tight and that the gas
cylinder connection has been tightened before you turn
the cylinder gas valve on.
If there is a leak on your appliance (smell of gas)
immediately attempt to turn off the cylinder valve.
Remove the appliance to a well-ventilated location away
from any ignition source.
NEVER check for leaks with a ame or pilot light.
Check for leaks using Companion Gas Leak Detection
Spray or soapy water, coat all connections, if bubbles
appear turn the cylinder gas control off and re-tighten
the connection before re-testing.
SAFE LOCATIONS
This appliance shall only be used in an above ground
open air situation with natural ventilation, without
stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind and natural
convection.
Any enclosure in which the appliance is used shall
comply with one of the following:
An enclosure with walls on all sides, but with no
overhead cover (see example 1).
Within a partial enclosure that includes an overhead
cover and no more than two walls (see examples 2 & 3)
Within a partial enclosure that includes an overhead
cover and more than two walls, the following shall apply:
At least 25% of the total wall area is completely open.
30% or more in total of the remaining wall side, back
and front wall areas is open and unrestricted
(see examples 4 & 5).
In the case of balconies, 20% or more of the total wall
area shall remain open and unrestricted.

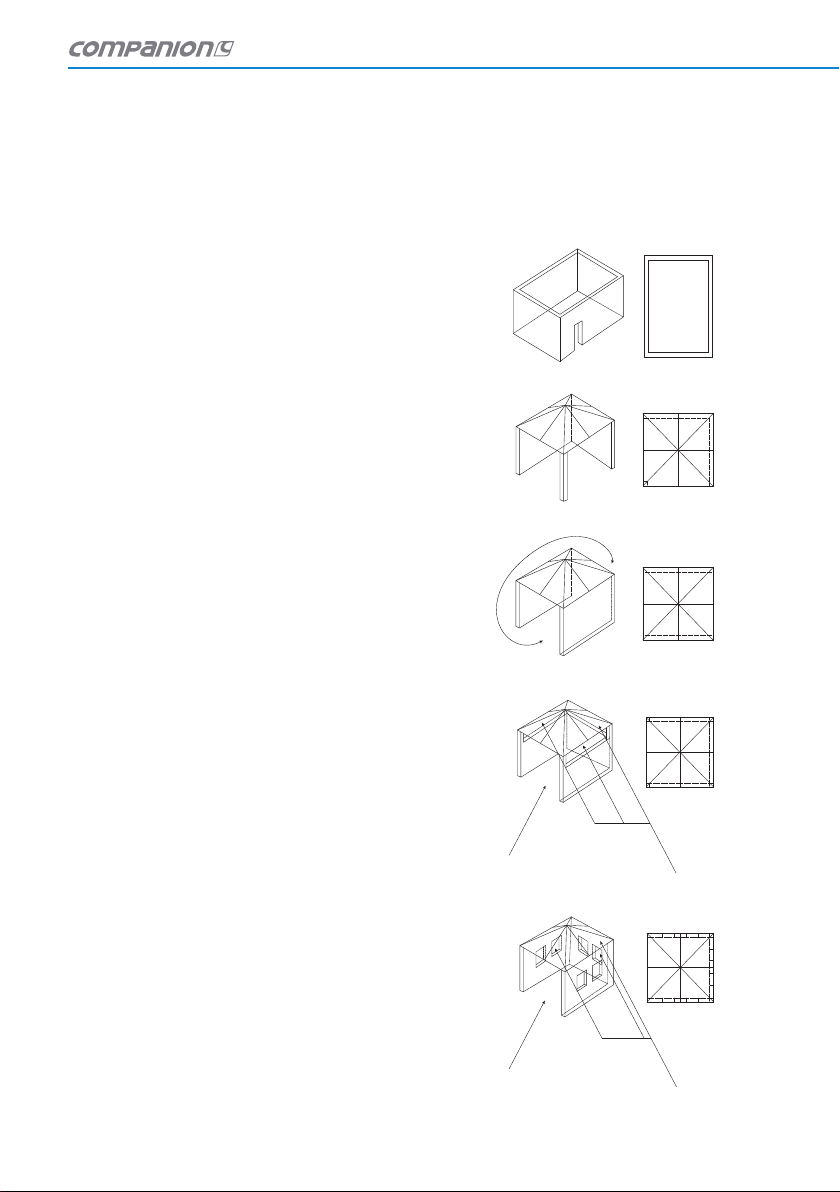

DIAGRAMMATIC REPRESENTATION OF OUTDOOR AREAS
The following examples are diagrammatic
representations of outdoor areas. Rectangular areas
have been used in these examples - the same principles
apply to any other shaped area.
Example 1
Example 2
Example 3
Example 4
Example 5
Both ends open
Open side at least 25% of total wall area.
30% or more in total of the remaining wall area is open and unrestricted.
Open side at least 25% of total wall area.
30% or more in total of the remaining wall area is open and unrestricted.

7
2-BURNER LP GAS STOVE OWNERS MANUAL
IMPORTANT INFORMATION FOR USE
During operation all surfaces will be extremely hot and
should not be touched or handled.
Take care that the primary air intakes, located on the
burner tube of this appliance are not obstructed, or that
air ow is restricted by placing items or other appliances
close to or adjacent to the inlets.
Do not attempt to move or relocate the appliance when
it is operating, extinguish the burner and allow to cool,
disengage the gas cylinder then move the appliance.
This appliance is to be stored in a dry and well-
ventilated location free from direct sunlight. Do not store
when still connected to the cylinder.
Make sure that the cylinder is disconnected and is stored
in a well ventilated area, out of the reach of children,
free from direct sunlight, heat and ignition sources. If
being stored indoors, ensure that the location complies
with the standard AS/NZS 1596.
Never leave appliance unattended when operating.
Do not use a multiple appliances to heat a single utensil.
Only cooking vessels with a minimum diameter of 20 cm
and a maximum diameter of 30 cm are to be used with
this appliance.
Do not use as a space heater.
Use as a cooking appliance only, is not to be used as
heater or modify for any other reason.
Avoid boil over and spills on to burners.
To check if gas remains in the cylinder, disconnect from
the appliance and hold the cylinder in a vertical position
then shake from side to side, if there is a sound or feel of
liquid movement inside, the cylinder contains gas.

8

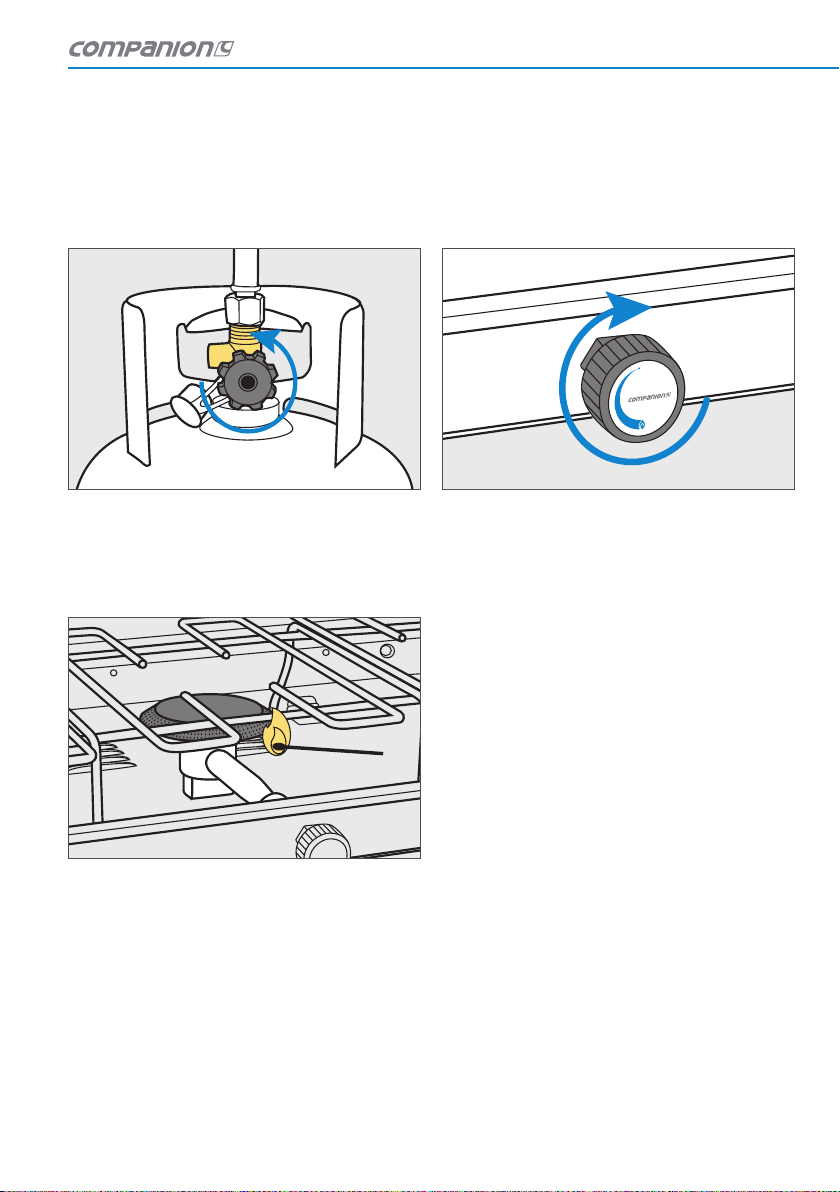

LIGHTING THE BURNER
Step 1. Check that the gas control is shut off, then
turn the gas cylinder valve on in an anti-clockwise
direction for one full turn.
Step 2. Take a lit match or lighter and position close
to the edge of the burner that is to be ignited, slowly
turn the gas control in an anti-clockwise direction
approximately ¼ of a turn.
Step 3. If the burner does not ignite, turn the gas
control in the clockwise direction to the OFF position
and allow the residual gas to disperse before
attempting to reignite the burner.
OFF

9
2-BURNER LP GAS STOVE OWNERS MANUAL
ADJUSTING THE FLAME
Turn the gas control in an anti-clockwise direction to
achieve a higher ame and in the clockwise direction
for a lower ame.
Note: When operating the appliance in windy conditions
it is important to regularly check the burner to ensure
that the ame has not been extinguished. If so turn the
gas control off, allow residual gas to disperse. Relocate
the appliance to a more sheltered position before
attempting to reignite the burner.
TURNING THE APPLIANCE OFF
If the appliance is no longer to be used and to reduce the
risk of blocked gas jets caused by excess gas being left
in the hose, all remaining gas must be expelled from the
hose assembly.
Step 1. With the ame still operating, turn the valve
on the gas cylinder in the clockwise direction until it
is OFF. Allow the ame to burn down then extinguish
once all remaining gas in the hose has been used.
Step 2. Turn the gas controls on the appliance
clockwise to the OFF position.
OFF
OFF

10
CARE INSTRUCTIONS
Your appliance is manufactured with a hard wearing
powder coated nish on the cabinet, chrome plated
burners and trivet and is easy to clean.
Using warm soapy water with a mild detergent wipe
down all surfaces and areas of the appliance, taking
care not to allow water to enter the burner outlets or
aeration holes located in the burner tube.
Do not submerge the appliance in a sink or bowl.
Do not use abrasive cleaners or bleach.
MAINTENANCE AND SERVICE
During operation if it is noted that the burner ame is
unstable, is changing colour from blue to yellow or has a
distinct smell it is important that you take the appliance
to your local authorised gas appliance repairer for
inspection.
Periodically check the gas control is tight and has no
leaks, follow the testing for leaks procedure. Check
the gas hose for any signs of wear, cuts or fraying, if
identied replace immediately with a Gas Certied
replacement hose.
For further information or assistance please contact
customer service.
A selection of spare parts and components are available
for your appliance to ensure years of operation.
For more information in Australia call 1300 555 197
or email: [e-mail]
For more information in New Zealand call 09 525 6667
or email: [e-mail]
SPECIFICATIONS
Part no. COMP203
Model 2-Burner LP Gas Stove
Gas type ULPG
Gas jet size Large: 0.18 mm
Medium: 0.15 mm
Gas consumption Large: 9.1 MJ/h - 180 g/h
Medium: 6.8 MJ/h - 136 g/h
Total: 15.9 MJ/h
BTU output (total) 15,000 BTU
Inlet pressure Cylinder Pressure
Dimensions 464L x 289W x 90H mm
Weight 4.3 kg
Certicate number AGA 4411 G

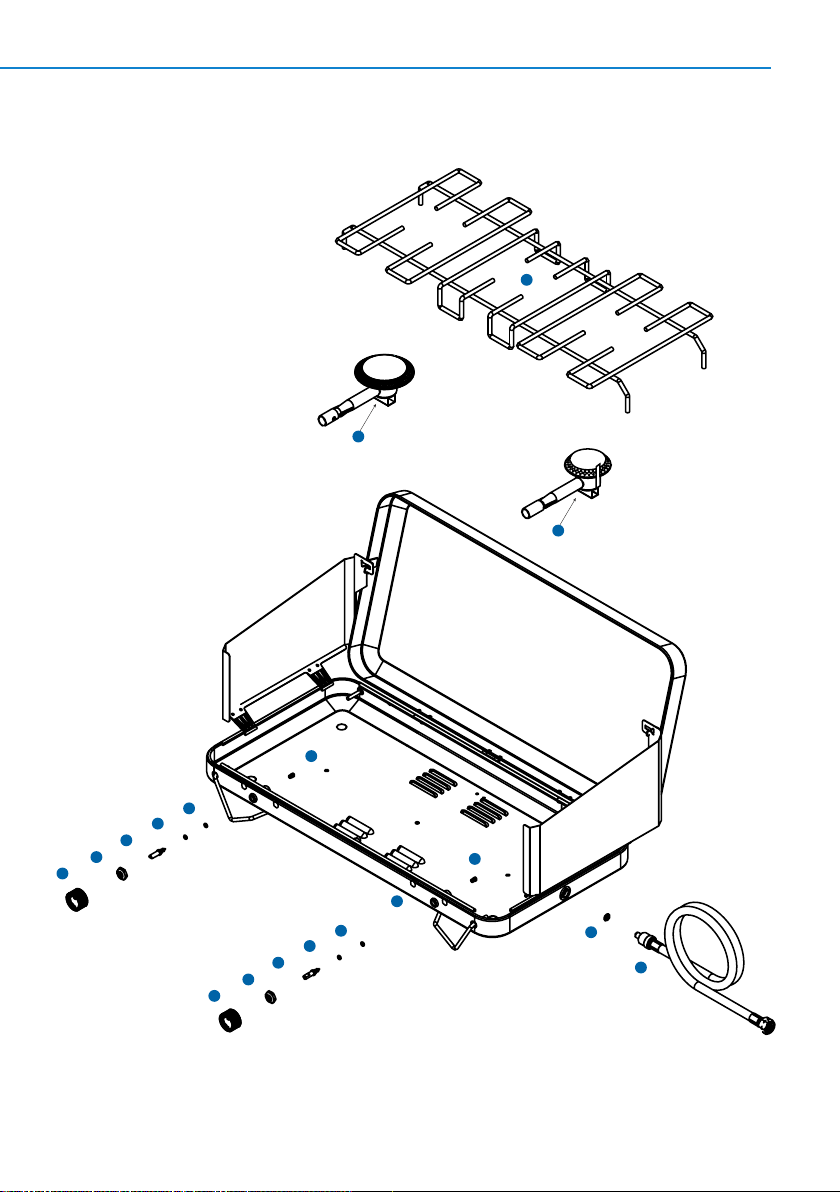

SPARE PARTS LIST
1PCS7012 Trivet
2PCS6023 Medium Burner
3PCS6012 Large Burner
4PCS5012 Large Gas Jet
5PCS5023 Small Gas Jet
6PCS8951 Gas Spindle O-Ring
7PCS8950 Gas Spindle
8PCS8952 Lock Nut
9PCS8949 Control Knob
10 PCS8414 Gas Hose O-Ring
11 HP1200F Gas Hose

11
2-BURNER LP GAS STOVE OWNERS MANUAL
4
5
6
6
7
8
9
6
6
7
8
9
10
11
12
3
2
1

Distributed by:
Adventure Trading Australia Pty Ltd
www.companionleisure.com.au
Distibuted in New Zealand by:
Gladiator Sports Ltd 201910
