COMPANION COMP546 User manual

OWNERS MANUAL
1
2 BURNER STOVE WITH GRILL
Part No. COMP546
Australia’s original Outdoor brand
OWNERS MANUAL
9
IMPORTANT:
Read these instructions for use carefully.
Familiarise yourself with the appliance before
connecting it to a gas container. Keep these
instructions for future reference.

2
GENERAL WARNINGS
• This appliance shall only be connected to a cylinder with a POL cylinder valve certified to AS2469
standards.
• This appliance is designed for outdoor use only and must be operated away from any flammable
material or surfaces and materials.
• This appliance is to be stored in a dry and well ventilated location free from direct sunlight.
• Do not store when valve is still connected to the cylinder.
• Make sure that the cylinder is disconnected and is stored in a well ventilated area, free from direct
sunlight, heat and ignition sources.
• If being stored indoors, ensure that the location complies with the standard AS/NZS1596.
• This appliance must only be serviced by an authorised service agent, return to your place of purchase
for service and repair.
DANGER!
• During operation all surfaces will be extremely hot and should not be touched or handled.
• Do not use the appliance if it is leaking, damaged or does not operate properly.
• Handle with care even after brief use, always pick up using the handles, not the cylinder.
• It may be hazardous to attempt to fit other types of gas containers or cartridges.
• Use only in well ventilated areas.
• Always operate appliance a minimum of 900mm from flammable materials, walls
and 1200mm from the ceiling.
• Do not use adaptors. Do not modify appliance to fit other connectors or cylinders.
• Do not use multiple appliances to heat a single utensil.
• Children must be supervised by an adult at all times.
• Never leave appliance unattended when operating.
• Use as a cooking appliance only, not to be used as heater or modified for any other reason.
• Avoid boil over and spills on to burners.
CARBON MONOXIDE HAZARD
Using this appliance in an enclosed space may cause DEATH.
Do not use in caravans, tents, marine craft, cars, mobile
homes or similar locations.

OWNERS MANUAL
3
IMPORTANT
• Use outdoors only.
• Keep children away at all times.
• CAUTION: Accessible parts may be very hot. Please take care when handling or moving the appliance.
• Appliance is to be used on a stable, level, flat, non-flammable surface. The appliance should be
protected from direct drafts and in a well ventilated place.
• Only cooking vessels with a minimum diameter of 250mm and a maximum of 300mm are to be used
with this appliance.
• Take care that the primary air intakes, located on the burner tube of this appliance are not obstructed,
or that air flow is restricted by placing items or other appliances close to or adjacent to the inlets.
• If you smell gas, immediately turn the gas off at the cylinder and move the appliance and cylinder to a
well ventilated area outside, keeping well away from sources of heat such as naked flames and pilot
lights.
• Do not attempt to move or relocate the appliance when it is operating, extinguish the burner and allow
to cool, disengage the gas cylinder then move the appliance.
CHECKING FOR GAS LEAKS
• Check that all connections are tight and that the gas cylinder connection has been
tightened before you turn the cylinder gas valve on.
• NEVER check for leaks with a flame or pilot light.
• Using Companion Gas Leak Detection Spray or soapy water, coat all connections,
if bubbles appear turn the cylinder gas control off and retighten the connection
before re-testing.
• Inspect the appliance regularly for signs of wear, leaks or incorrect operation.
If symptoms such as flaring of the burner, issues with lighting, damages to hoses
or connections or leaks from seals or gas controls are identified do not attempt
to repair, return to your authorised stockist for service and maintenance.
CHANGING GAS CYLINDER
• To check if gas remains in the cylinder, disconnect from the appliance and hold the cylinder in a vertical
position then shake from side to side, if there is a sound or feel of liquid movement inside, the cylinder
contains gas.
• When changing gas cylinders ensure this is conducted outside in a well ventilated location free from
people, animals and ignition sources such as naked flames, pilot lights and electrical equipment with
heaters or elements.
COMP10256

4
SAFETY INSTRUCTIONS

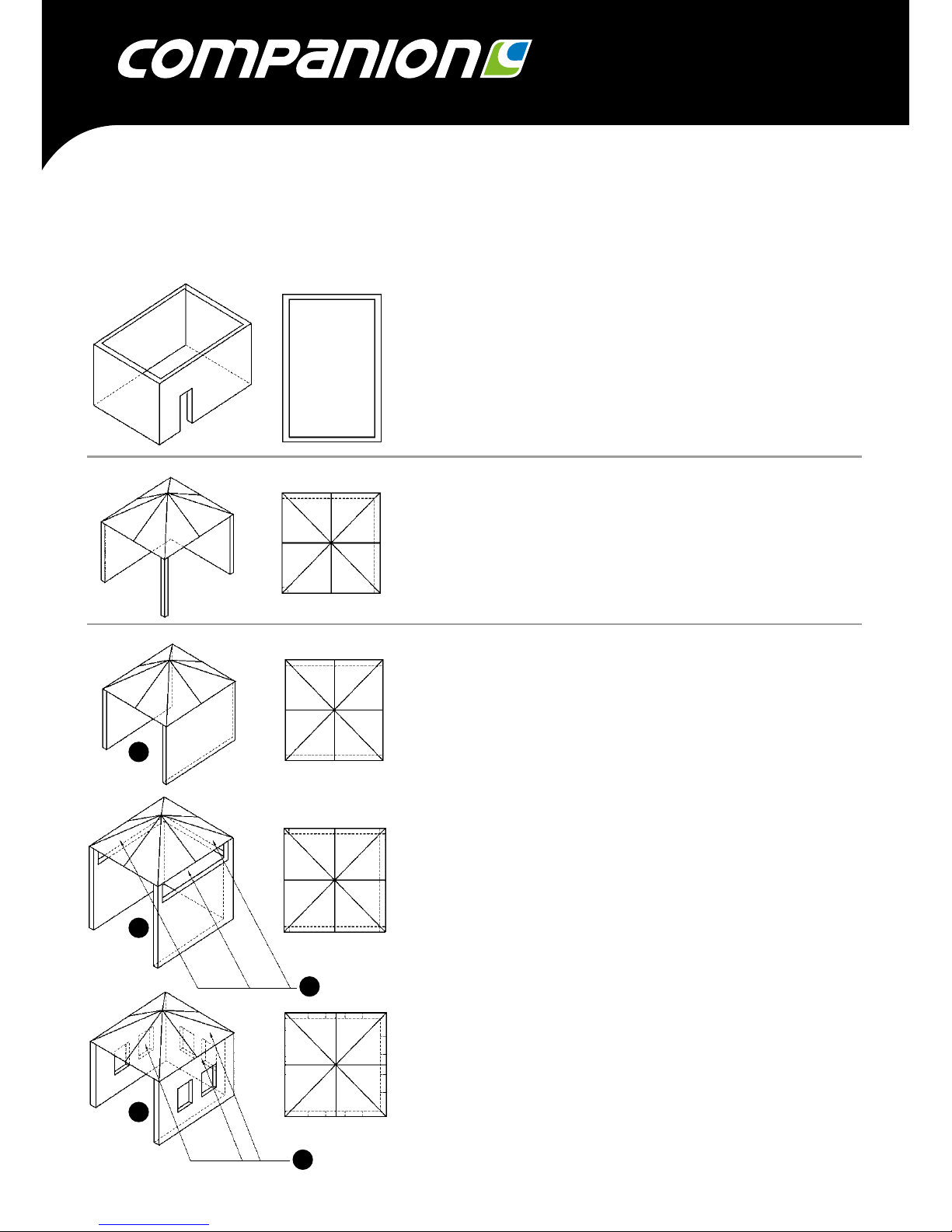

This appliance shall only be used in an above ground open air situation with natural ventilation without stagnant areas,
where gas leakage is rapidly dispersed by wind and natural convection.
Any enclosure in which the appliance is
used should comply with one of the following:
A. An enclosure with walls on all sides, but
with no overhead cover.
B. Within a partial enclosure that includes an
overhead cover and no more than two walls.
C. Within a partial enclosure that includes an
overhead cover and more than two walls,
the following must apply:
1. At least 25% of the total wall area is
completely open.
2. 30% or more in total of the remaining
wall side, back and front wall areas is
open and unrestricted.
3. In the case of balconies, 20% or more
of the total wall area must remain open
and unrestricted.
The figures shown are diagrammatic
representations of outdoor areas.
Rectangular areas have been used in
these figures - the same principles apply
to any other shaped areas.
1
1
1
2
2

OWNERS MANUAL
5

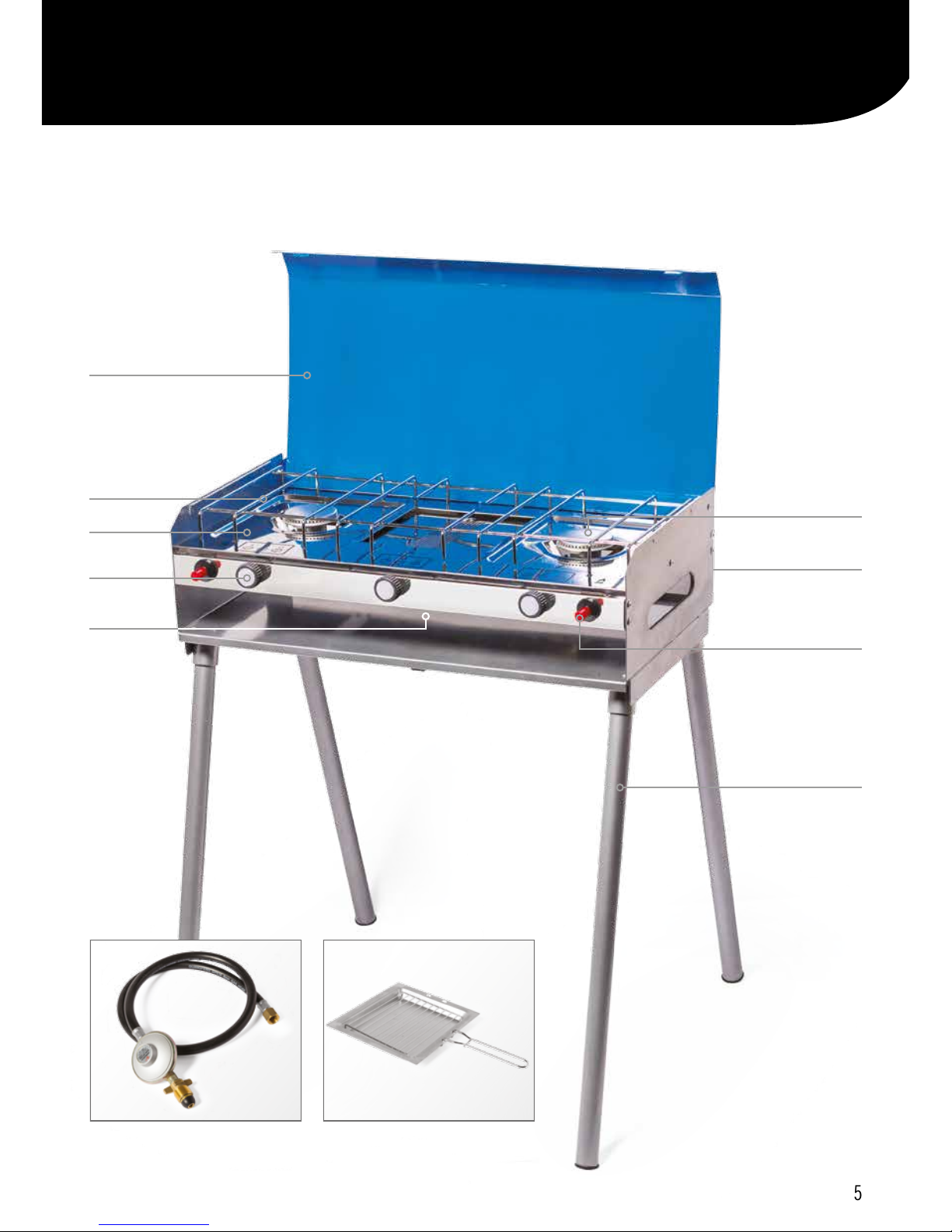

UNDERSTANDING YOUR APPLIANCE
LID
GAS CONTROL
GRILL
DRIP TRAY
TRIVET
BURNER
PIEZO IGNITION
GAS INLET
LEG
3/8” SAE HOSE AND
REGULATOR - 1.2m
GRILL TRAY
- REMOVABLE HANDLE

6
1. LEG ASSEMBLY
Step 2. Insert legs into locating brackets.
Step 1. Turn cooker upside down and release legs from storage.
Step 3. Turn cooker over and locate on a solid and stable surface.
2
1
3

OWNERS MANUAL
7
2. CONNECTION
Your cooker is designed to connect directly to a gas cylinder with a POL
cylinder valve using the specially designed LP Gas hose and regulator supplied.
Step 1. Check that the cylinder gas control is in the “OFF” position
(turned fully clockwise)
Step 2. Take the hose and attach to the gas inlet on the appliance, tighten up
using a spanner. DO NOT use fingers to tighten connection.
Step 4. Check that the gas control on the cooker is turned “OFF”, then turn
the cylinder gas valve on in an anti-clockwise direction for one full
turn and then check the connections for leaks with Companion Gas
Leak Detection Spray or soapy water. If a leak is detected turn the
cylinder gas valve “OFF” and retighten all connections then retest.
Step 3. Attach the other end of the hose with the regulator to the gas cylinder,
tightening using the two finger support posts.
2
1
3
4

8
3. LIGHTING STOVE AND GRILL BURNER
Step 1. Select the burner to be ignited, depress the gas control, turn to the
“MAX” position and release.
Step 2. Depress the Piezo button firmly and look for a spark from the electrode
positioned above the burner.
Step 3. If the burner does not ignite, depress and turn the gas control in the
clockwise direction to the “Off” position and allow the residual gas to
disperse before attempting to reignite the burner.
1
3
2
MIN
MAX
OFF
要求：
黑字印刷
耐温不低于100°C
耐酸耐碱
请使用编号为BBQ-169A-WB-08的丝印网板
名称：操作面板丝印
编码：BBQ-169A-SY-08
版本号：01
Asialord Electric
Designed by: Checked by: Approved by:
批准:
审核:
设计:
文档类别：JS110

OWNERS MANUAL
9
4. ADJUSTING FLAME
5. TURN OFF
Step 1. Depress the gas control and turn to “MIN” for a lower flame.
Step 1. When burner is no longer required, depress the gas control and turn
to the “OFF” position.
1
1

10
SPECIFICATIONS
Part number COMP546
Model number BBQ-169AH
Gas jet size 0.48mm
Gas consumption Stove: 172g/h - 10.8mj/h, Grill: 86g/h - 5.4mj/h
BTU output Stove: 5,100BTU, Grill: 5,100BTU (Total 15,300BTU)
Inlet pressure 2.75kPa
Dimensions 545 x 385 x 160mm
Weight 5.2kg
Certificate number 8508G
TECHNICAL DETAILS
CARE INSTRUCTIONS
Using warm soapy water with a mild detergent wipe down all surfaces and areas of the appliance, taking care not to allow
water to enter the burner outlets or aeration holes located in the burner tube.
DO NOT submerge the appliance in a sink or bowl.
DO NOT use abrasive cleaners or bleach.
MAINTENANCE AND SERVICE
During operation if it is noted that the burner flame is unstable, is changing colour from blue to yellow or has a distinct
smell it is important that you take the appliance to your local authorised gas appliance repairer for inspection.
Periodically check the gas control is tight and has no leaks, follow the testing for leaks procedure. Check the gas
connection and regulator for any signs of wear or damage, if identified contact customer service for a replacement
assembly immediately.
For further information or assistance please contact customer service on 1300 555 197 or email
[email protected]

OWNERS MANUAL
11
NOTES

COM5117
Distributed by
Companion Brands
Bundoora Victoria 3083
www.companionbrands.com.au
