Hardware Reference Guide
Compaq Evo Desktop Family: Small Form
Factor Models - Intel Celeron Versions
Document Part Number: 243848-002
January 2002
This book provides basic information for upgrading this series of
computers.
243848-xx2.book Page i Monday, November 26, 2001 4:59 PM

© 2002 Compaq Computer Corporation
Compaq, the Compaq logo, and Evo are trademarks of Compaq Information
Technologies Group, L.P.
Microsoft, MS-DOS, Windows, Windows NT are trademarks of Microsoft
Corporation.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel Corporation.
All other product names mentioned herein may be trademarks of their respective
companies.
Compaq shall not be liable for technical or editorial errors or omissions
contained herein. The information in this document is provided “as is” without
warranty of any kind and is subject to change without notice. The warranties for
Compaq products are set forth in the express limited warranty statements
accompanying such products. Nothing herein should be construed as
constituting an additional warranty.
ÅWARNING: Text set off in this manner indicates that failure to follow
directions could result in bodily harm or loss of life.
ÄCAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
Printed in the U.S.A.
Hardware Reference Guide
Second Edition (January 2002)
Document Part Number: 243848-002
243848-xx2.book Page ii Monday, November 26, 2001 4:59 PM

Hardware Reference Guide iii
Contents
1 Product Features
Standard Configuration Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Front Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3
Easy Access Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Easy Access Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Reprogramming the Easy Access Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Locking and Unlocking the Easy Access Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
Easy Access Paper Icon Insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Windows Logo Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Special Mouse Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Serial Number Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7
2 Hardware Upgrades
Installation Sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Drawer Installation Method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Smart Cover Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3
Using the Smart Cover FailSafe Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3
Removing the Computer Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–5
Installing Additional Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
DIMMs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
Memory Module Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8
Removing the Expansion Card Cage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–11
Installing an Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–12
Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–15
Installing Additional Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16
Upgrading the Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–16
Removing a CD-ROM Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–18
Installing an optional CD-ROM or DVD-ROM Drive. . . . . . . . . . . . . . . . . . . . . 2–20
243848-xx2.book Page iii Monday, November 26, 2001 4:59 PM

iv Hardware Reference Guide
Contents
A Specifications
B Hard Drive Installation Guidelines
Using the Cable-Select Feature with Ultra ATA Devices. . . . . . . . . . . . . . . . . . . . . . . B–1
Guidelines for Installing Ultra ATA Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2
SCSI Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–3
Guidelines for Using SCSI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–3
Guidelines for Installing Optional SCSI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . B–5
SCSI Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–5
SCSI Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–6
Using a SCSI Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–6
Using SCSISelect with SCSI Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–6
Choosing the Quiet Drive Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–7
C Battery Replacement
D Security Lock Provisions
Installing a Security Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D–1
E Electrostatic Discharge
Preventing Electrostatic Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–1
Grounding Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–1
F Routine Computer Care and Shipping Preparation
Routine Computer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–1
CD-ROM Drive Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–2
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–2
Shipping Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–3
Index
243848-xx2.book Page iv Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 1–1
1
Product Features
Standard Configuration Features
The Compaq Evo™ Small Form Factor Personal Computer comes
with features that may vary depending on your model. For a complete
listing of the hardware and software installed in your computer, run
Compaq Diagnostics for Windows or the INSPECT utility (available
on some models). Instructions for using these utilities are provided in
the Troubleshooting Guide on the Reference Library CD.
243848-xx2.book Page 1 Monday, November 26, 2001 4:59 PM

1–2 Hardware Reference Guide
Product Features
Front Panel Components
Front Panel Components
1CD-ROM Drive Busy Indicator 6Microphone Connector
2CD-ROM Eject Button 7Stereo Headphone Jack (system)
3Power-On Light 8Diskette Drive Activity Light
4Dual-State Power Button 9Diskette Eject Button
5Hard Drive Activity Light
243848-xx2.book Page 2 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 1–3
Product Features

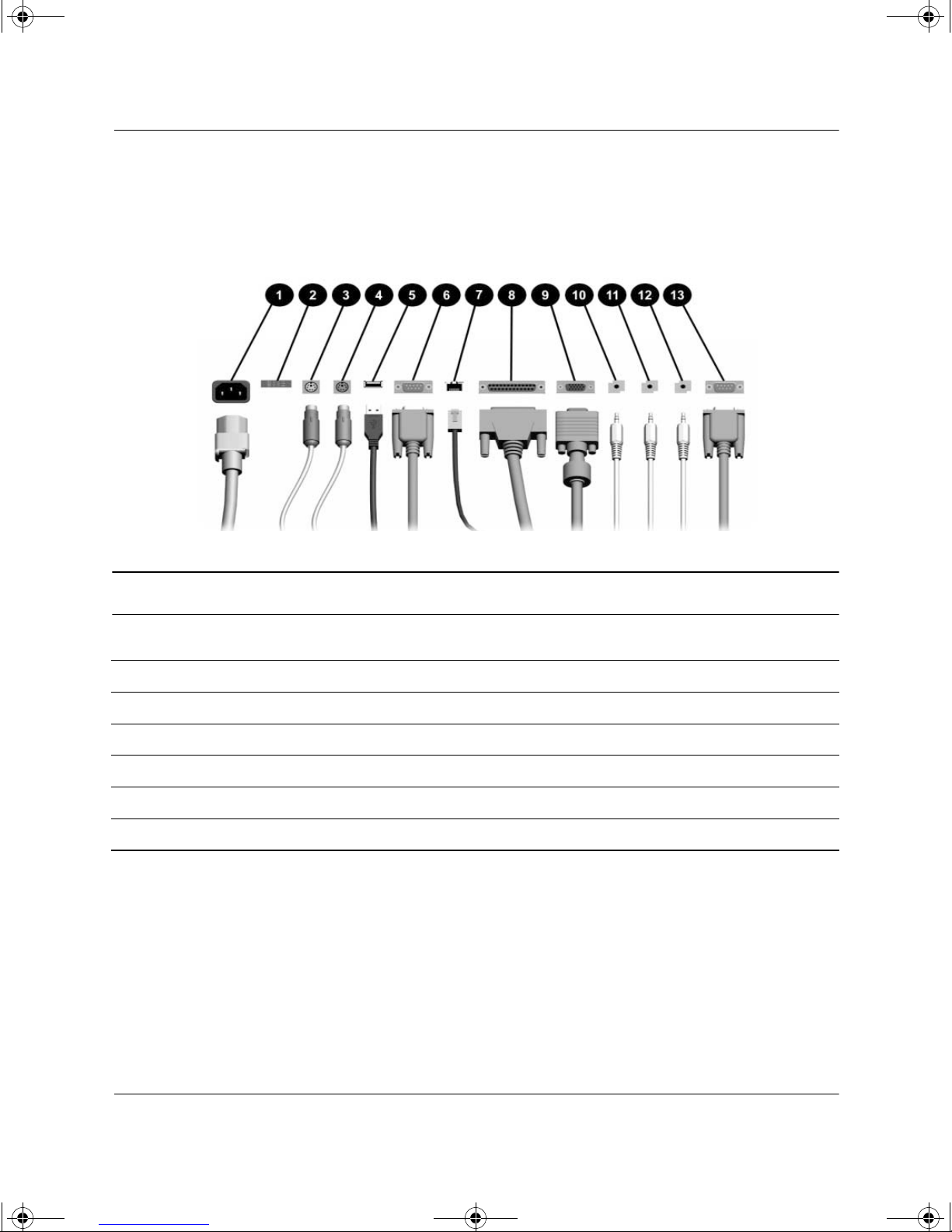

Rear Panel Components
Rear Panel Components
1Power Cord Connector 8Parallel Connector
2Voltage Select Switch 9Monitor Connector
3Mouse Connector -Headphone/Line-out Connector
4Keyboard Connector qLine-in Audio Connector
5Universal Serial Bus (USB) Connector wMicrophone Connector
6Serial Connector (COM1) eSerial Connector (COM2)
7Ethernet RJ-45 Connector
243848-xx2.book Page 3 Monday, November 26, 2001 4:59 PM

1–4 Hardware Reference Guide
Product Features

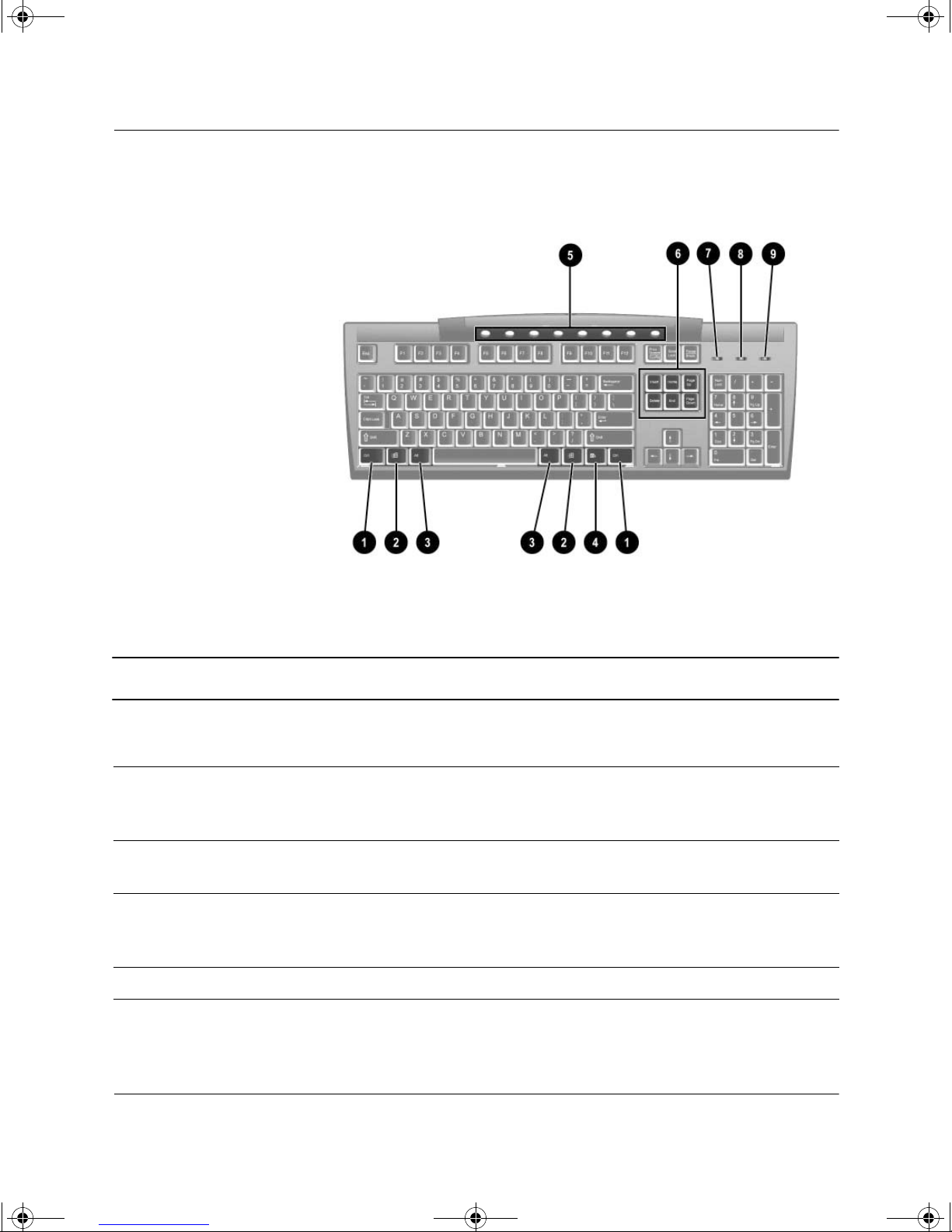

Easy Access Keyboard
Compaq Easy Access Keyboard Components
1Ctrl Key Used in combination with another key; its effect
depends on the application software you are using.
2Windows Logo Key* Used to open the Start menu in Microsoft Windows.
Used in combination with other keys to perform other
functions.
3Alt Key Used in combination with another key; its effect
depends on the application software you are using.
4Application Key* Used (like the right mouse button) to open pop-up
menus in a Microsoft Office application. May perform
other functions in other software applications.
5Internet Keys Provides quick access to specific Internet destinations.
243848-xx2.book Page 4 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 1–5
Product Features
Easy Access Software
Your Easy Access Keyboard Buttons are programmed to default
assignments. The pre installed Easy Access Software allows you to
reprogram the Easy Access Buttons to reflect your personal
preferences. The buttons can be reprogrammed to any program or
service of your choice or to any Web site (URL).
Reprogramming the Easy Access Buttons
The Easy Access Keyboard icon is located on the Windows desktop
status bar. Refer to the Readme-user.txt file for instructions about
reprogramming the Easy Access Buttons.
Locking and Unlocking the Easy Access Buttons
The System Administrator can lock and unlock the Easy Access
Buttons. Once locked, the buttons can only be reprogrammed by
modifying the .bcf file. For administrative privileges, which require
control of the Easy Access Button destinations, refer to the
Readme-admin.txt file.
6Editing Keys Includes the following: Insert, Home, Page Up, Delete,
End, and Page Down.
✎Holding down Ctrl and Alt while pressing Delete
allows you to restart your computer.
7Num Lock light Indicates whether the Num Lock feature is on or off.
8Caps Lock light Indicates whether the Caps Lock feature is on or off.
9Scroll Lock light Indicates whether the Scroll Lock feature is on or off.
*Keys available in select geographic regions.
Compaq Easy Access Keyboard Components (Continued)
243848-xx2.book Page 5 Monday, November 26, 2001 4:59 PM

1–6 Hardware Reference Guide
Product Features
Easy Access Paper Icon Insert
The paper icon insert functions as a visual aid in identifying the
programmed destination of each Easy Access Button. Whenever you
reprogram an Easy Access Button, use the Paper Insert Template
document to select and print an icon that reflects the new button
assignment. The Paper Insert Template.doc is installed, by default,
under C:\Program files\Compaq\Easy Access Keyboard.
For proper alignment, the spacing around the icons may require
adjustment.
Windows Logo Key
Use the Windows Logo Key in combination with other keys to
perform certain functions available in the Windows operating
systems.
Special Mouse Functions
Most software applications support the use of a mouse. The functions
assigned to each mouse button depend on the software applications
you are using.
Windows Logo Key + F1 Displays a pop-up menu for the selected object
Windows Logo Key + Tab Activates the next Taskbar button
Windows Logo Key + eLaunches Explore My Computer
Windows Logo Key + f Launches Find Document
Windows Logo Key + Ctrl +fLaunches Find Computer
Windows Logo Key + mMinimizes all open applications
Shift + Windows Logo Key + mUndoes Minimize All
Windows Logo Key + rDisplays the Run dialog box
243848-xx2.book Page 6 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 1–7
Product Features

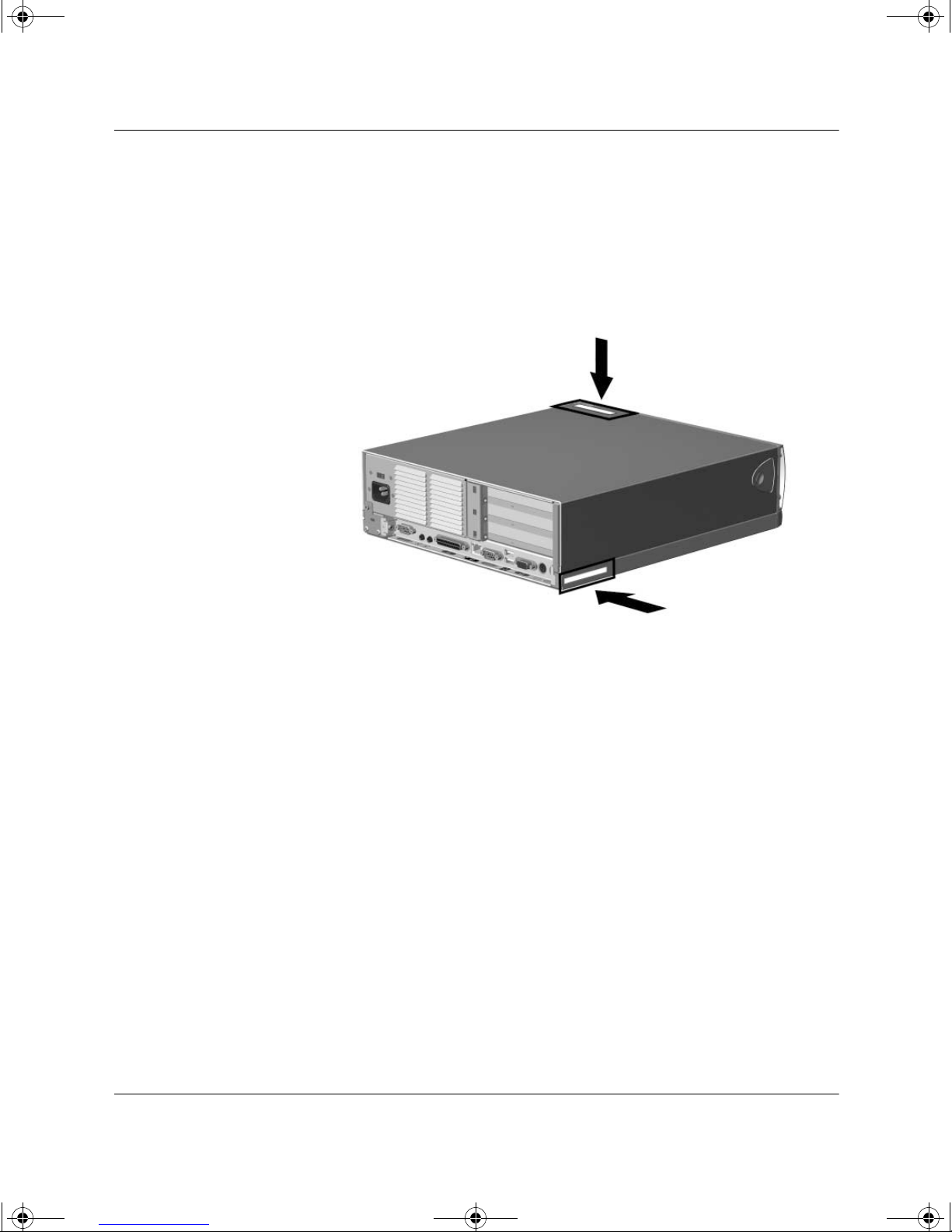

Serial Number Location
Each computer has a unique serial number which may be located on
the cover top or the side panel of the computer. Keep this number
available for use when contacting Compaq customer service for
assistance.
Serial Number Location
243848-xx2.book Page 7 Monday, November 26, 2001 4:59 PM

1–8 Hardware Reference Guide
Product Features
243848-xx2.book Page 8 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 2–1
2
Hardware Upgrades
Installation Sequence
It is very important that you follow this sequence of steps to ensure
the proper installation of any optional equipment.
1. If your computer includes the Smart Cover Lock feature and you
have set the lock, use Computer Setup to unlock the lock and
disable the Smart Cover Sensor.
For more information about Computer Setup, refer to the Computer
Setup Guide.
2. If the computer is already on, turn it off and disconnect the power
cord from the wall outlet.
ÅWARNING: To reduce the risk of personal injury from electrical shock
and/or hot surfaces, be sure to disconnect the power cord from the wall
outlet, and allow the internal system components to cool before
touching.
ÅWARNING: To reduce the risk of electrical shock, fire, or damage to the
equipment, do not plug telecommunications or telephone connectors
into the network interface controller (NIC) receptacles.
ÄCAUTION: Static electricity can damage the electronic components of
the computer or optional equipment. Before beginning these
procedures, ensure that you are discharged of static electricity by briefly
touching a grounded metal object. See Appendix E, “Electrostatic
Discharge,” for more information.
3. Open the computer by removing its outside cover. See the section
“Removing the Computer Cover” in this chapter.
243848-xx2.book Page 1 Monday, November 26, 2001 4:59 PM

2–2 Hardware Reference Guide
Hardware Upgrades
4. Install any optional equipment. See the applicable sections of this
guide or refer to the documentation provided with the optional
equipment for instructions.
5. Replace the computer cover.
6. Turn on the monitor, computer, and any devices you want to test.
7. Reconfigure the computer, if necessary. Refer to the Computer
Setup Guide for instructions about using Computer Setup.
If you normally lock the Smart Cover Lock, use Computer Setup
to relock the lock and enable the cover removal sensor.
Drawer Installation Method
When installing the computer chassis in a drawer, the following
conditions must be met to ensure proper air flow:
■At least 3 inches (7.6 cm) of clear space between the back of the
drawer and anything behind it, such as a wall or the back panel of
a desk.
■At least two 2-inch (5.1-cm) diameter holes in the back of the
drawer. One hole must be immediately behind the power supply
for exhaust air, and the other should be used for routing the
cables.
ÄCAUTION: Cables should not be run through the exhaust air hole.
■At least nine holes in the front drawer panel or in the bottom of
the drawer in front of the chassis for fresh air intake. The
diameter of the holes must be between 0.38 and 0.5 inch (1.0 and
1.3 cm).
■At least 1 inch (2.54 cm) of clear space below the drawer to
ensure proper air flow if vent holes are located in the bottom of
the mounting drawer.
■At least 1 inch (2.54 cm) of clear space above the top of the
chassis.
243848-xx2.book Page 2 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 2–3
Hardware Upgrades
Smart Cover Lock
✎The Smart Cover Lock is an optional feature and is available on select
models only.
The Smart Cover Lock is a software-controllable cover lock,
controlled by the setup password. This lock prevents unauthorized
access to the internal components. The computer ships with the Smart
Cover Lock in the unlocked position. For more information about
locking the Smart Cover Lock, refer to the Desktop Management
guide.
Using the Smart Cover FailSafe Key
If you enable the Smart Cover Lock and cannot enter your password
to disable the lock, you will need a Smart Cover FailSafe Key to open
the computer cover. You will need the key in any of the following
circumstances:
■Power outage
■Startup failure
■PC component (for example, processor or power supply) failure
■Forgotten password
ÄCAUTION: The Smart Cover FailSafe Key is a specialized tool available
from Compaq. Be prepared; order this key before you need one.
243848-xx2.book Page 3 Monday, November 26, 2001 4:59 PM

2–4 Hardware Reference Guide
Hardware Upgrades
To obtain a FailSafe Key:
■Contact your authorized Compaq reseller or service provider.
■Refer to the Compaq Web site (www.compaq.com) for ordering
information.
■Call the appropriate number listed in the warranty.
To open the computer cover:
1. Turn off the computer and any external devices.
2. Disconnect the power cord from the power outlet, and disconnect
any external devices.
3. Using the Smart Cover FailSafe Key, remove the two
tamper-proof screws that secure the Smart Cover Lock to the
chassis.
Removing the Smart Cover Lock Screws
4. Remove the Smart Cover Lock.
To reattach the Smart Cover Lock, secure the lock in place with the
tamper-proof screws.
243848-xx2.book Page 4 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 2–5
Hardware Upgrades
Removing the Computer Cover
To install optional equipment, you must remove the computer cover
to gain access to internal components. The quick release cover latches
located on the sides of the computer allow easy removal of the
computer cover without the use of tools. To remove the cover, follow
these steps:
1. If you have locked the Smart Cover Lock, see the previous
section on Smart Cover Lock or use Computer Setup to unlock it.
2. Turn off the computer and any external devices.
3. Disconnect the power cord from the power outlet, and disconnect
any external devices.
ÅWARNING: Before removing the computer cover, ensure that the
computer is turned off and that the power cord is disconnected from the
electrical outlet.
4. Press in the button on each side of the front bezel to release the
quick release cover latches.
243848-xx2.book Page 5 Monday, November 26, 2001 4:59 PM

2–6 Hardware Reference Guide
Hardware Upgrades
5. As you slide the computer cover forward, release the buttons and
allow them to return to the original position, then lift the cover up
and off the unit.
✎To replace the cover, reverse this procedure.
Removing the Computer Cover
243848-xx2.book Page 6 Monday, November 26, 2001 4:59 PM

Hardware Reference Guide 2–7
Hardware Upgrades
Installing Additional Memory
The computer comes with synchronous dynamic random access
memory (SDRAM) dual inline memory modules (DIMMs).
DIMMs
The memory sockets on the Intel 815e chipset-based system board
can be populated with industry-standard DIMMs. These memory
module slots are populated with at least one preinstalled memory
module. To achieve the maximum memory support, you may be
required to replace the preinstalled DIMM with a higher capacity
DIMM.
For proper system operation, the DIMMs must be industry-standard
168-pin, unbuffered PC100- or PC133-compliant SDRAM DIMMs,
depending on the model. The SDRAM DIMMs must support CAS
Latency 2 or 3 (CL = 2 or CL = 3). They must also contain the
mandatory Joint Electronic Device Engineering Council (JEDEC)
Serial Presence Detect (SPD) information. DIMMs constructed with
x4 SDRAM are not supported; the system will not start using
unsupported DIMMs.
The Intel 815e chipset supports both PC100 and PC133 SDRAM
DIMMs. PC133 DIMMs should be used for optimal operation. If both
PC100 and PC133 SDRAM DIMMs are installed in a computer, the
system memory will run at the lower 100Mhz speed. Some
configurations of PC133 SDRAMs may run at 100Mhz, instead of
133Mhz.
ÄCAUTION: Some models support ECC memory and some support
non-ECC memory. For those systems that do support ECC, Compaq
does not support mixing ECC and non-ECC memory. Doing so will
cause the system to blink the NUMLOCK LED on the keyboard
continuously and, if a speaker is installed in the system, there will be a
short beep followed by 2 long beeps. In addition, the system will not
boot the operating system.
243848-xx2.book Page 7 Monday, November 26, 2001 4:59 PM

2–8 Hardware Reference Guide
Hardware Upgrades
Memory Module Installation
ÄCAUTION: Your memory module sockets have gold metal contacts.
When upgrading your memory, it is important to use memory modules
with gold metal contacts to prevent corrosion and/or oxidation resulting
from having incompatible metals in contact with each other.
ÄCAUTION: Static electricity can damage the electronic components of
the computer or optional cards. Before beginning these procedures,
ensure that you are discharged of static electricity by briefly touching a
grounded metal object. See Appendix E, “Electrostatic Discharge,” for
more information.
ÄCAUTION: When handling a memory module, be careful not to touch
any of the contacts. Doing so may damage the module.
1. If you have locked the Smart Cover Lock, use Computer Setup to
unlock the lock.
2. Shut down the operating system properly, then turn off the
computer and any external devices, then disconnect the power
cord from the power outlet.
3. Remove the computer cover.
4. Rotate the easy access drive bay to an upright position.
243848-xx2.book Page 8 Monday, November 26, 2001 4:59 PM
