4 REPLACING THE POWER SUPPLY
Replacing the
Power Supply
The power supply monitors
power output on the startup
of your computer and
changes the volts of
alternating current (AC)
from the power line into
direct current (DC) for the
components of your
computer.
Introduction
Your Compaq Internet PC has an Easy Access panel. This
design makes accessing the internal parts easy. This document
describes how to remove and replace the power supply
(see Figure 1-1).
Figure 1-1
▲Caution: Do not open the power supply. The electronics inside
the power supply are not repairable by the end-user and are
usually not worth the expense of professional repair.

REPLACING THE POWER SUPPLY 5
Tools Needed
A Phillips screwdriver is needed to remove and replace the
power supply.
Warranty Statement
Compaq provides these detailed instructions to ensure your
safety and to keep your PC from being damaged. Following
these instructions also ensures that your PC remains
warranted by Compaq.
Your replacement part is warranted for the longer of 90 days
from the date the part was delivered to you, or the original
One Year Limited Warranty that came with your Compaq
Presario.
Preparing Your Computer for Disassembly
Before beginning the removal and replacement procedure,
complete the following procedure:
1. Remove any diskette or compact discs (CDs) from the
computer.
2. Turn off the computer and any peripheral devices
connected to your computer (see Figure 1-2).
3. Disconnect the power cord from the electrical outlet, and
then from the computer (see Figure 1-3).
4. Disconnect all peripheral device cables from the computer.
Failure to disconnect the power from the computer may result
in personal injury.

6 REPLACING THE POWER SUPPLY
I. Disconnecting the Power

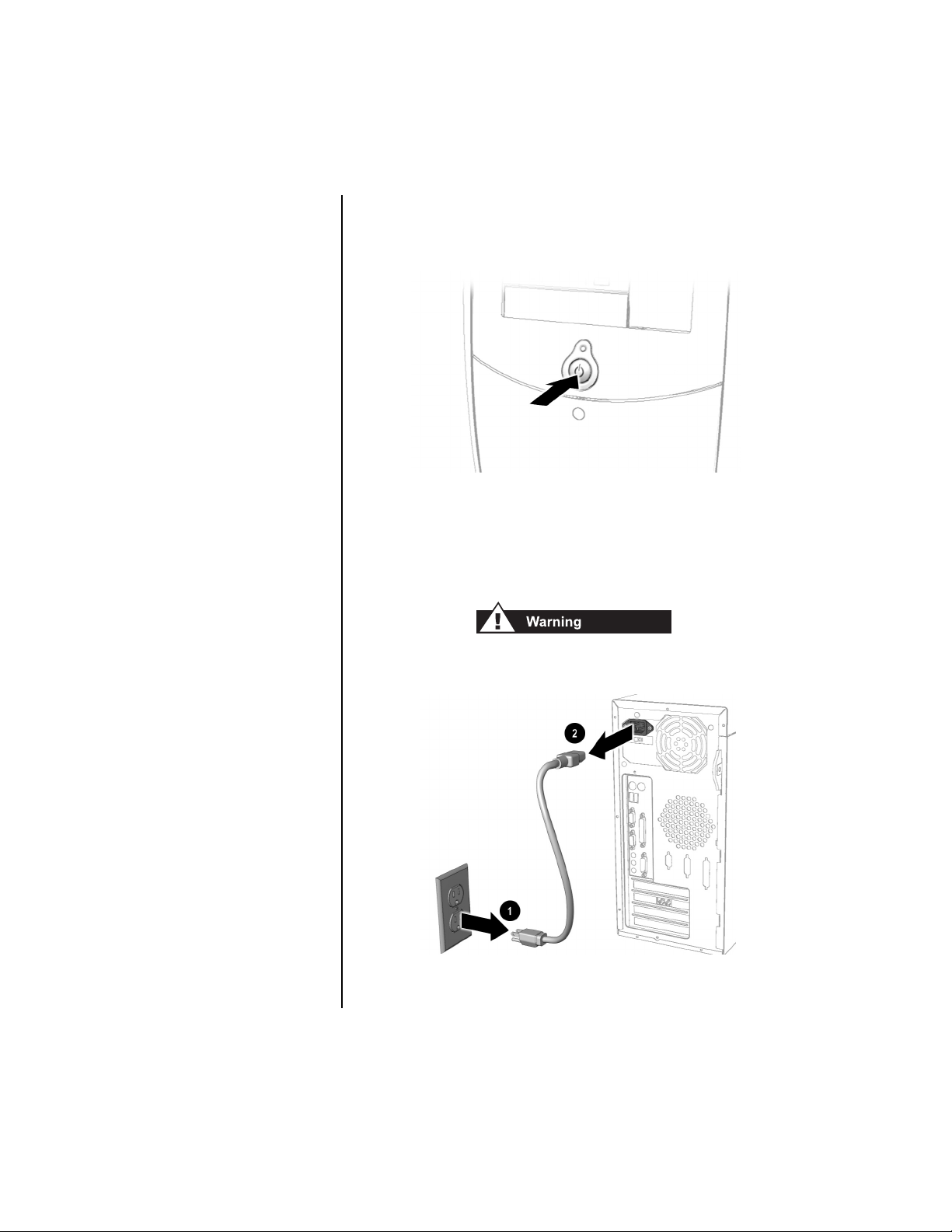

1. Turn off the computer using the Power button
(see Figure 1-2).
Figure 1-2
2. Disconnect the power cord from the electrical outlet 1
and computer 2(see Figure 1-3).
Failure to disconnect the power from the computer may
result in personal injury.
Figure 1-3

REPLACING THE POWER SUPPLY 7
You do not have to replace the
screw securing the side access
panel. The screw securing the
side panel is used for shipping
purposes only.
II. Opening the Side Access Panel
1. Remove the screw 1securing the side access panel.
Locate the latch 2directly below the screw, press down,
and hold in the down position (see Figure 2-1).
Figure 2-1
Important: Some models may not have a screw 1. This screw is used
for shipping purposes only.
2. Grab the handle and slide the side panel from the chassis
(see Figure 2-2).
▲Caution: Before doing any work inside your computer, ground
yourself by touching a metal part of the chassis.
Figure 2-2

8 REPLACING THE POWER SUPPLY
III. Locating the Power Supply

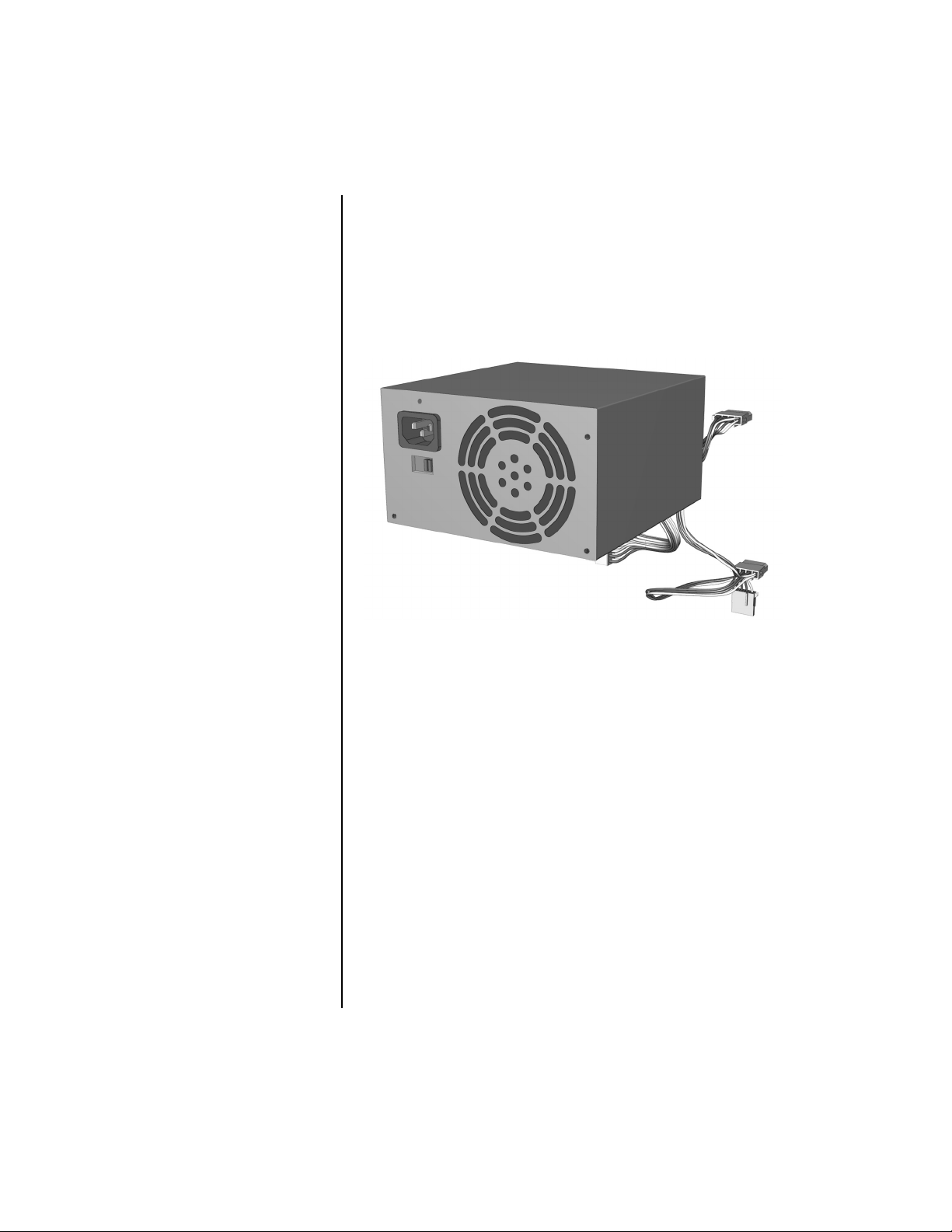

The illustration below shows the power supply inside the
chassis (see Figure 3-1).
Figure 3-1
Look at the replacement part
carefully to help identify and
locate the component to be
replaced.

REPLACING THE POWER SUPPLY 9
IV. Removing the Power Supply
To remove the power supply, complete the following
procedure.
1. Turn the computer over on its side (open side facing up)
and locate the power supply.

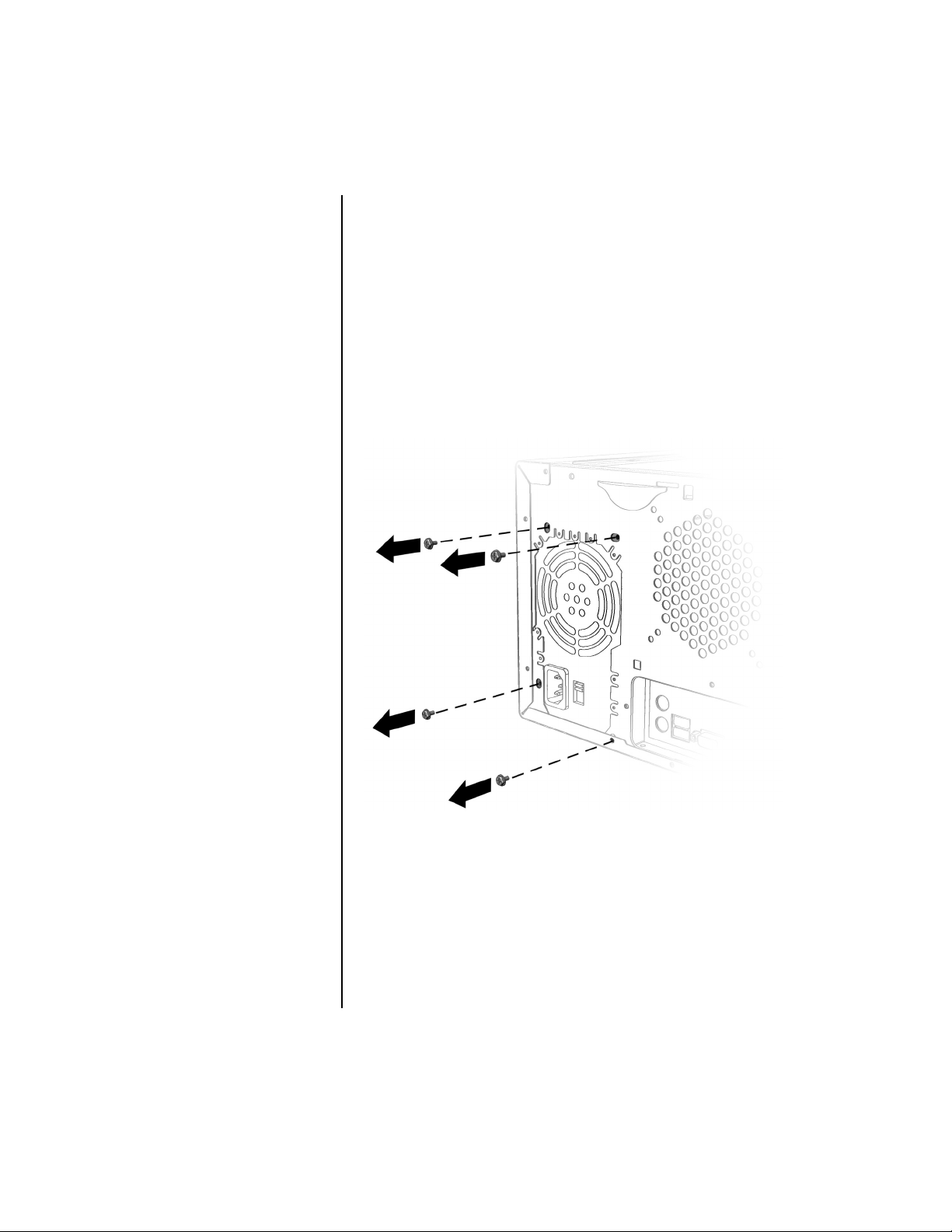

2. Remove the four screws located at the top of the rear of the
chassis that secures the power supply to the chassis
(see Figure 4-1).
Figure 4-1

10 REPLACING THE POWER SUPPLY

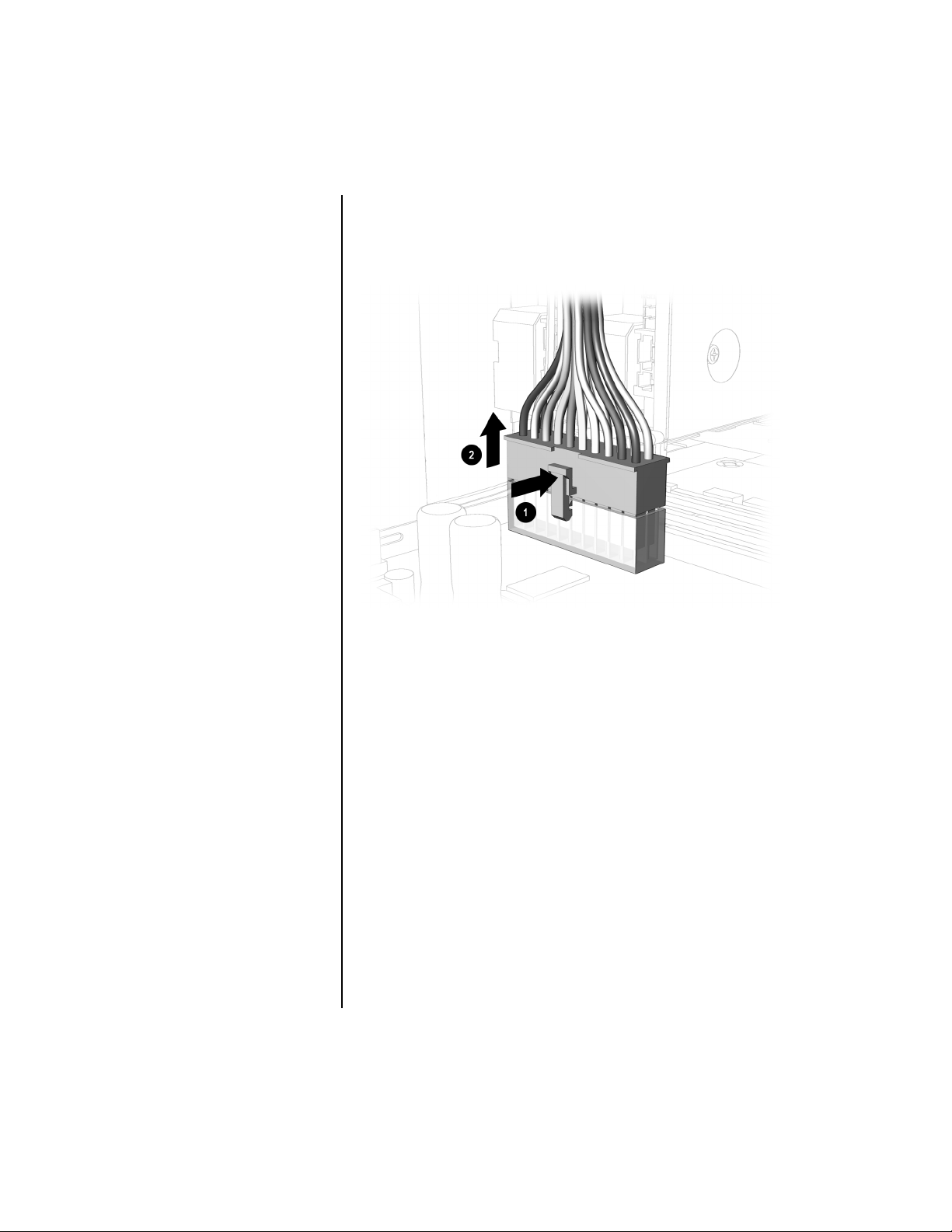

3. Push the power supply cable clip inward 1and pull the
power cable 2from the connector on the System Board
(see Figure 4-2).
Figure 4-2

REPLACING THE POWER SUPPLY 11

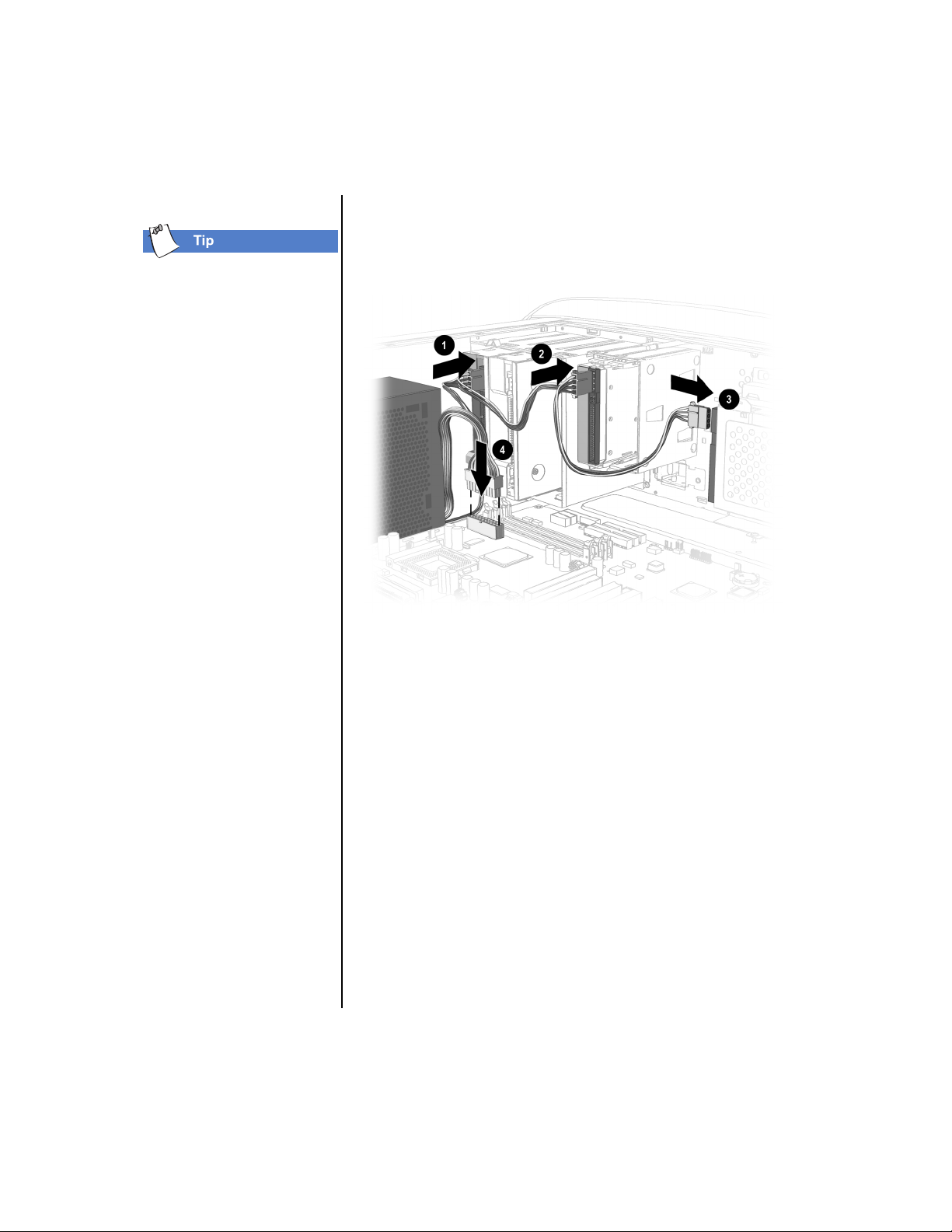

4. Disconnect the power supply power cables from the CD 1,
CD-RW 1, and/or DVD drive 1, Diskette drive 2,
Hard drive 3, and System board 4(see Figure 4-3).
Figure 4-3
Important: The location of the CD, CD-RW, and/or DVD drives may vary
by model.
It is recommended that you
mark the power cable
connectors so that you use the
same connectors when
reattaching them to the system
components. However, you
can actually use any available
connector on the power cable.

12 REPLACING THE POWER SUPPLY
5. Lift the power supply from the chassis (see Figure 4-4).
Figure 4-4

REPLACING THE POWER SUPPLY 13
V. Replacing the Power Supply
To replace the power supply, complete the following
procedure.
1. Position the power supply inside the chassis
(see Figure 5-1).
Figure 5-1

14 REPLACING THE POWER SUPPLY

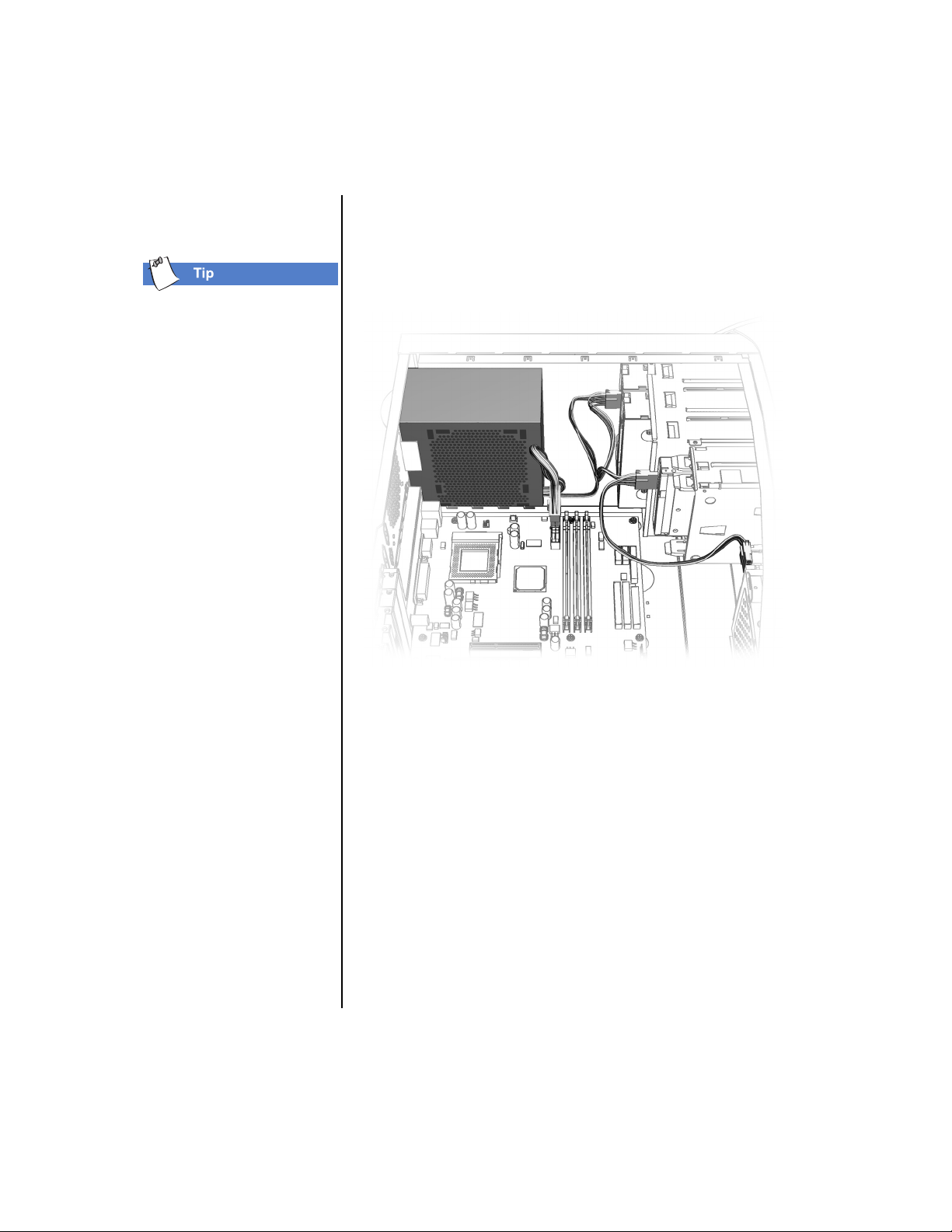

2. Reconnect the power supply power cables to the CD 1,
CD-RW 1and/or DVD drive 1, Diskette drive 2,
Hard drive 3,andSystemBoard4(see Figure 5-2).
Figure 5-2
The power cord connector
which attaches to the system
board is notched in order to
help you position the
connector correctly when
reattaching the cable to the
system board.

REPLACING THE POWER SUPPLY 15
3. Replace the four screws to the top of the rear of the chassis
(see Figure 5-3).
Figure 5-3

16 REPLACING THE POWER SUPPLY
VI. Replacing the Side Access Panel
Align the tabs on the top and bottom of the side access panel
with the slots (located on the top and bottom edge) of the
chassis and slide the side access panel into place
(see Figure 6-1).
Figure 6-1
You do not have to replace the
screw securing the side access
panel. The screw securing the
side panel is used for shipping
purposes only.

REPLACING THE POWER SUPPLY 17
VII. Checking To See If the Replacement Part Is
Installed Properly
1. Reconnect the power cord to the electrical outlet and
computer.
2. Turn on the computer to verify that the replacement part is
properly installed.
3. If the problem persists, repeat the Removing and
Replacing procedures.
4. If you are still experiencing problems, contact Compaq
Support: 1-800-984-9350.
VIII. Returning the Defective Part
Please refer to the Compaq Part Return Instructions that
came with your replacement part for instructions on returning
the defective part.
