Compass Nav CN-M5 User manual

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
1
2013 Santa Fe Base radio
2013 Santa Fe 4.3 Color Touchscreen

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
2
-Follow installation manual instructions carefully. Installer must careful to not cause interference between Navigator System c
abling and active / passive car safety device (Ex: Air bags, seat belts, indicators, etc…)
-Turn OFF the radio.
-Before any attempt of component removal, the installer must disconnect the vehicle battery and isolate the ends of the cable
.
-Do not attempt this installation operation if there are missing components. Please check the bill of materials carefully to ens
ure the kit is complete.
-Installation requires careful attention. If you have concerns about your abilities to perform delicate operations, then do not b
egin the installation.
-The car must be secured to not move during installation. Parking brake must be engaged at all times.
-Operation should be made in a clean, safe and well ventilated environment without trip hazards and slippery floors
-Do not install by yourself if you do not have qualifications and/or tools to perform the retrofit. You may damage the car’s co
mponents and/or the Navigator if not professionally installed.
-Poor installation can result in poor performance, personal injuries and will immediately void the factory warranty.
-Do not install the Navigator in a position that blocks the driver's view or hinders safe vehicle operation.

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
3
Caution
Installation Time is around 3 hours with additional
time required for options installation
Do NOT RUSH and if issues occur contact technical support

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
4
Table of contents:
1. Tools Required –Page 5
2. Bill of Materials –Page 6
3. Cables interconnection identification –Page 10
4. Touchscreen Connections identification –Page 17
5. TRIP Module connection identification –Page 21
6. Vehicle Preparation –Page 24
7. Radio Preparation –Page 33
8. Radio Bracket Installation –Page 45
9. Glove Box Preparation –Page 47
10. Electrical Connections –Page 51
11. Installation in Vehicle –Page 58
12. Appendix 1 –Reverse Camera Installation Page 68
13. Appendix 2 –Parking Assist Page 71
14. Appendix 3 –RDS Traffic Tuner Page 74
15. Appendix 4 –4.3” factory color screen supplement Page 76
16. Tips & Tricks Page 83

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
Tools required for successful install -#1 = Patience!!!
5
Vice Grip Shop Towels & Alcohol Gloves
Electrical tape Hacksaw
Philips #2 screwdriver magnetic 3M Industrial double sided tape
Wide flat blade screwdriver Knife
Masking Tape Side cutters Wire strippers

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
6
Bill of materials
Aux
cable
Main I/O 1
Cable
Main I/O 2
Cable
Keypad Cable
(Pre-installed)
Audio Patch
Cord

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
7
Bill of materials

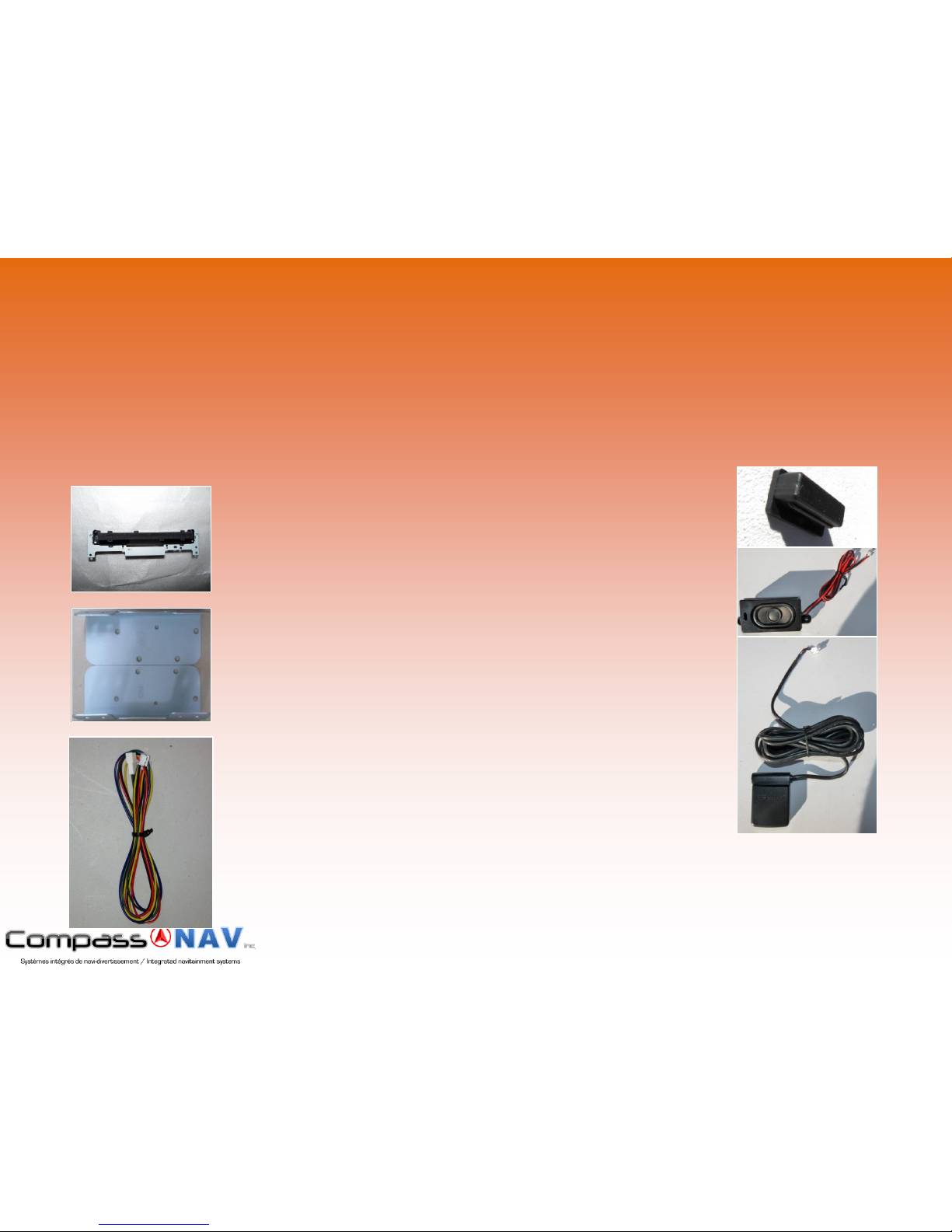

Radio
securing
Brackets
Radio face
plate
Flat ribbon
rubber block
Mini Speaker
and one screw
GPS
antenna
TRIP Serial cable

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
8
Bill of materials

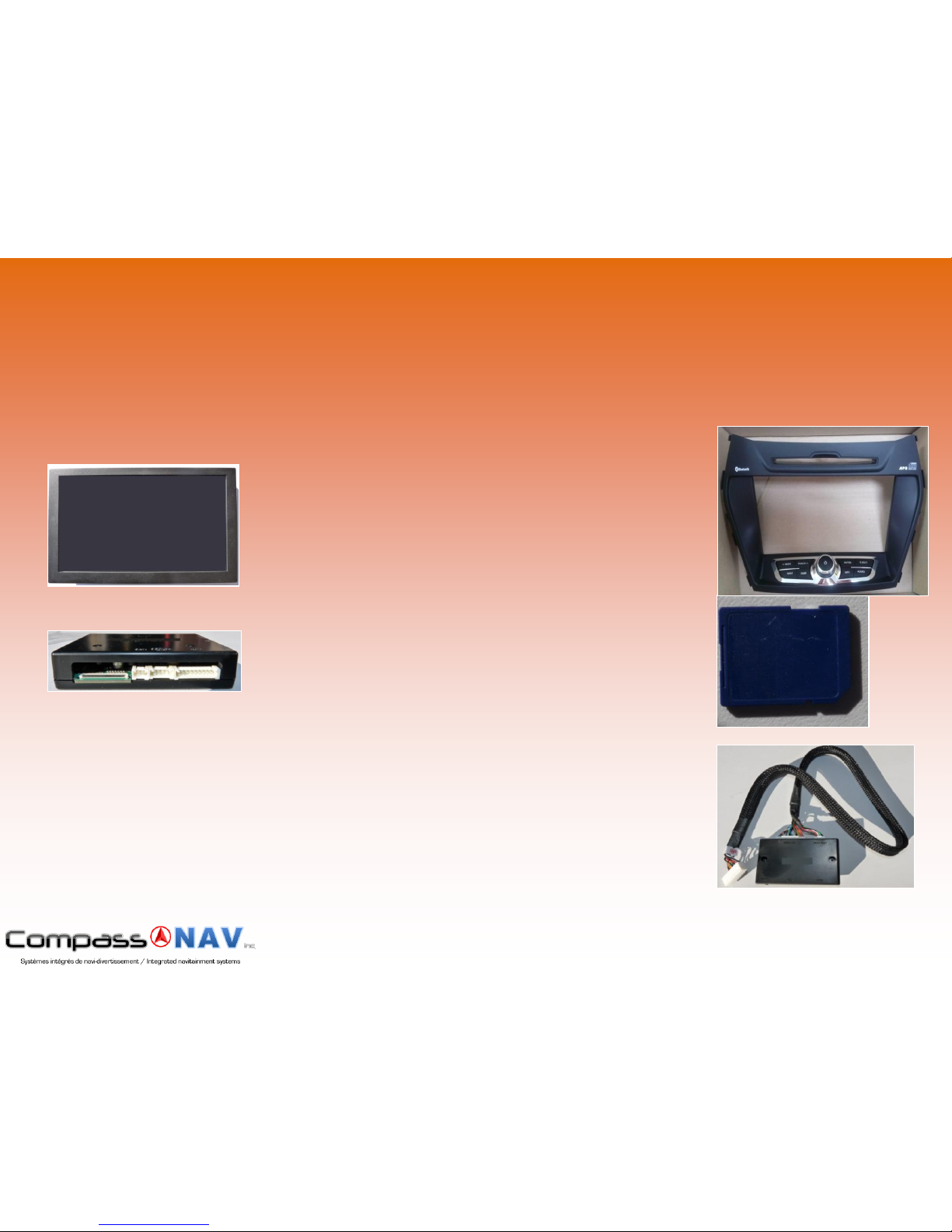

Main Touchscreen
(Pre-installed into
Fascia molding)
TRIP Module
and two screws
Fascia
Molding
SD Card (Pre-inserted
into Ext. Media Box
External
USB & SD
Card Box

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
9
Bill of materials

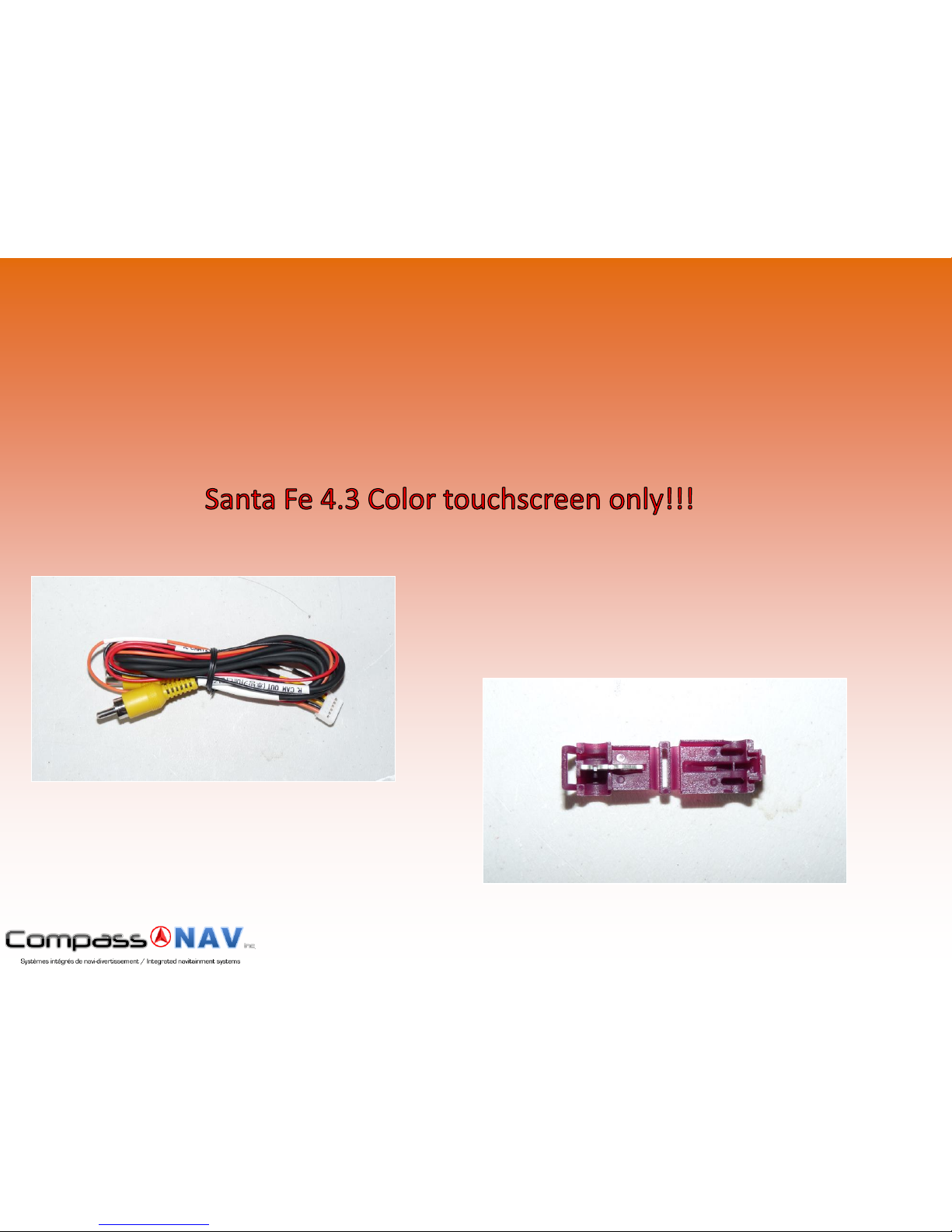

Trip module Video & Signal cable
T-Tap Terminal

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
10
Section 3
System Cable
Connections and
Identification

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
11
Rear Backup Camera
Cable - Main I/O 1
GPS Antenna Connection
–Main I/O 1
Backup lamp +12V
from Camera RED wire
Ground

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
12
External Speaker
Connection –Main I/O 1
TRIP Serial Cable connection:
- 5 Pin to TRIP Module
- 3 Pin(Yellow, Red and Black) to
MAIN I/O 1 Trip Serial cable
- 2 Pin(Blue and Green) to Audio
Patch Cord

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
13
Aux Cable connection
–Main I/O 1
AV In connection –
Main I/O 1 (Optional)
Composite & stereo jacks
DVD, Game console etc…
To Audio Patch cord AUX IN (see next page)

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
14
Audio Patch Cord:
- AUX IN (previous page) to
Audio Switcher input jack.
- Steering wheel control
wires (2 pin from TRIP
SERIAL Cable (P:7).
AUDIO SWITCHER

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
15

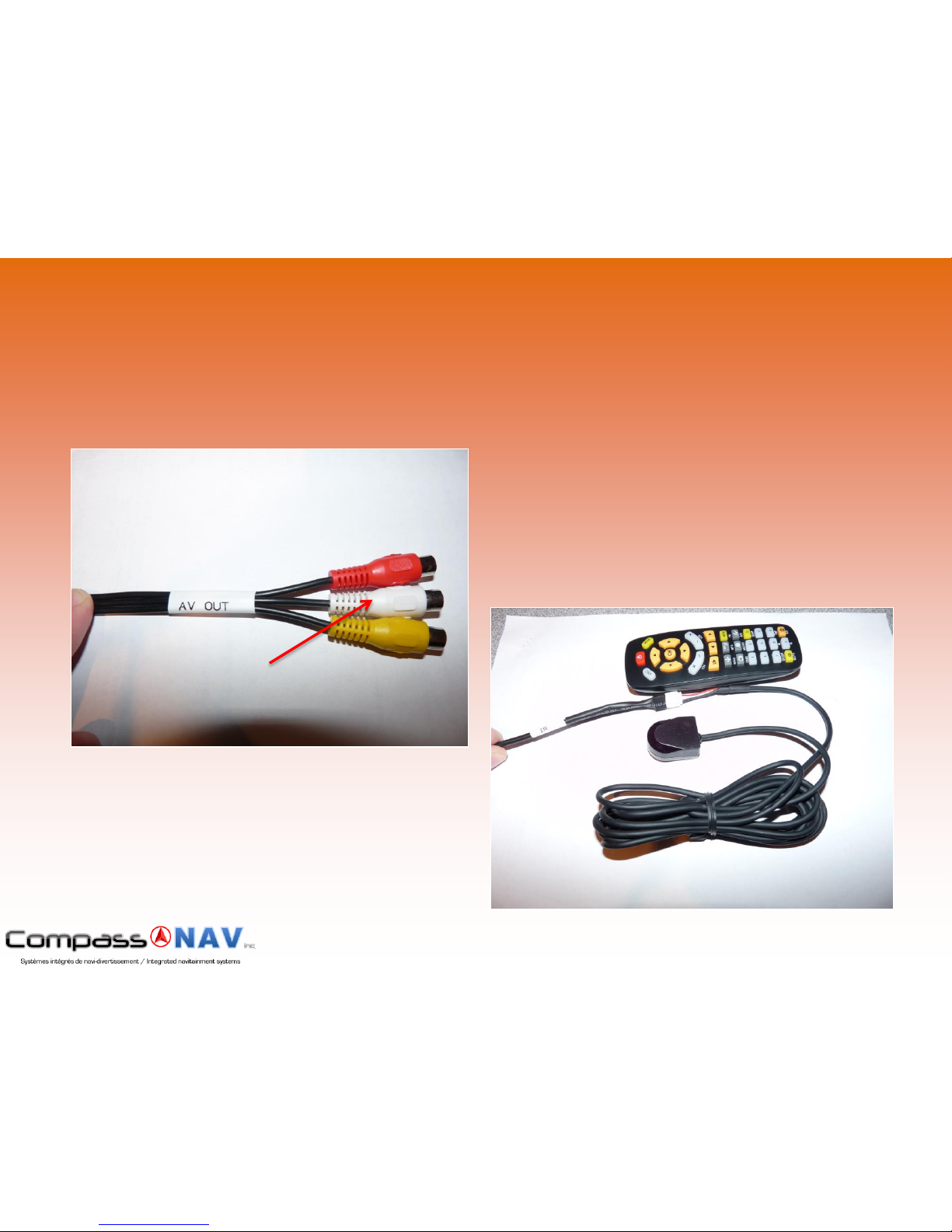

AV Out Connection –
Main I/O 2
IR Sensor and Remote –
Main I/O 2 (Optional)
Rear seats Composite stereo jacks

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
16

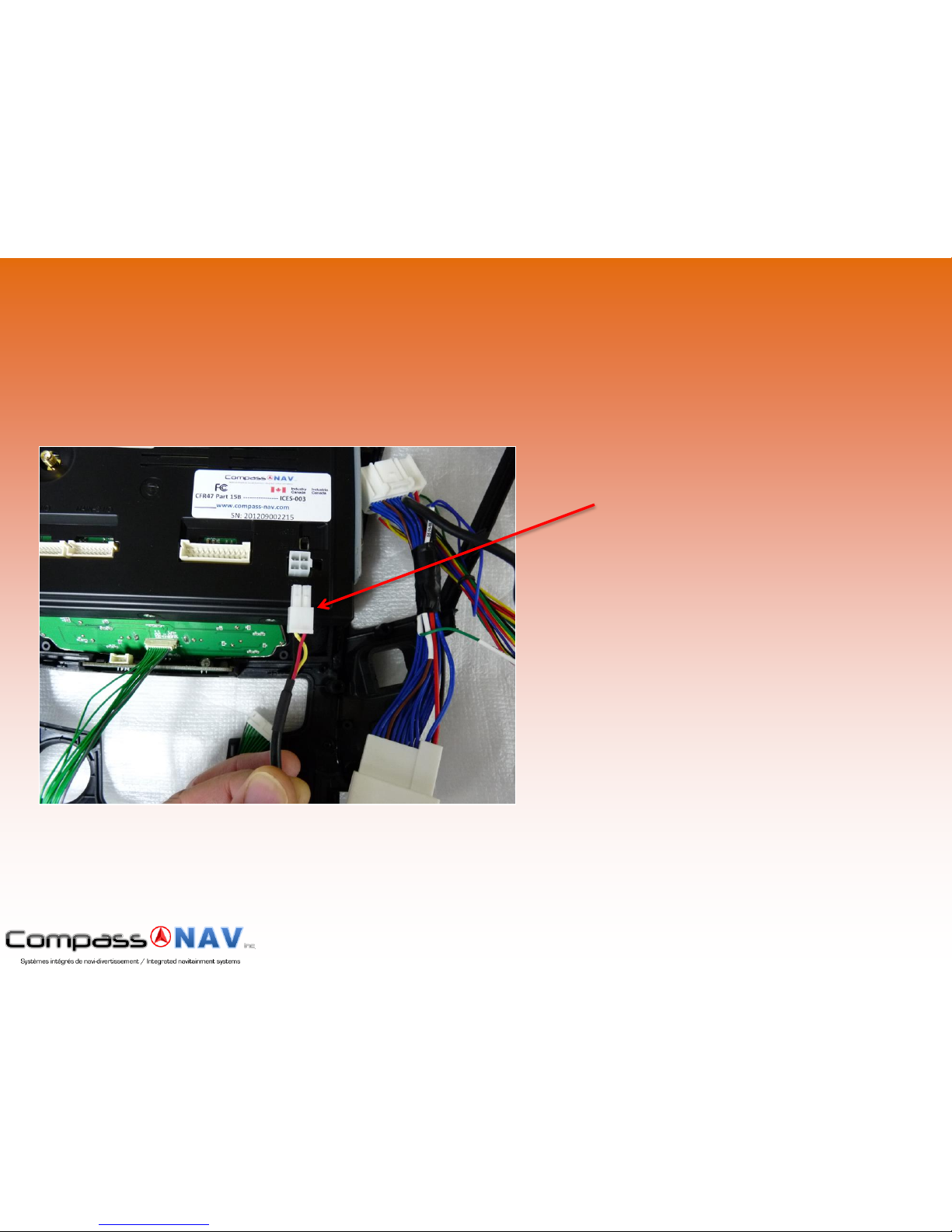

Power connector for the CN-M5
Navigator coming from the Audio
Patch cable

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
17
Section 4
Touchscreen Connection
identification

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
18

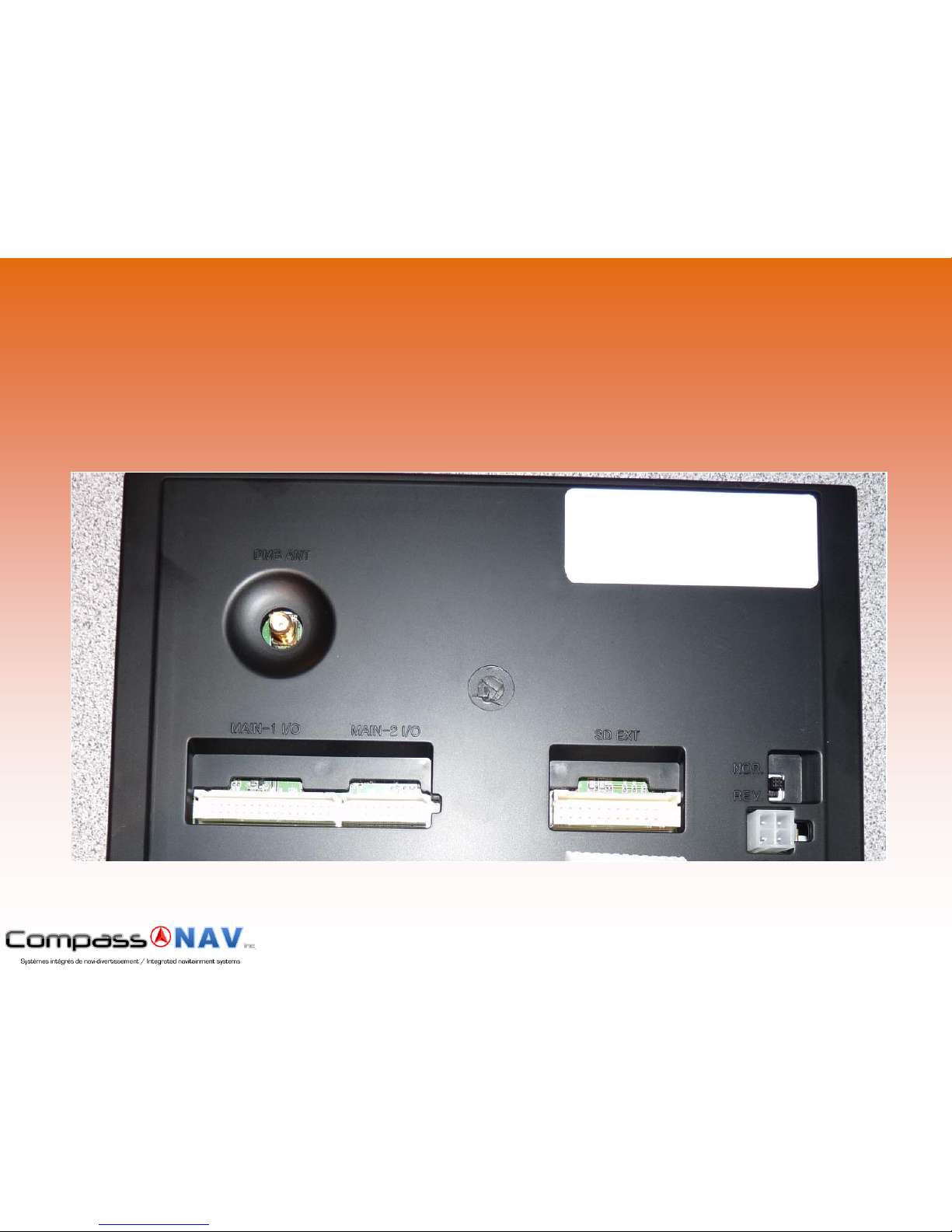

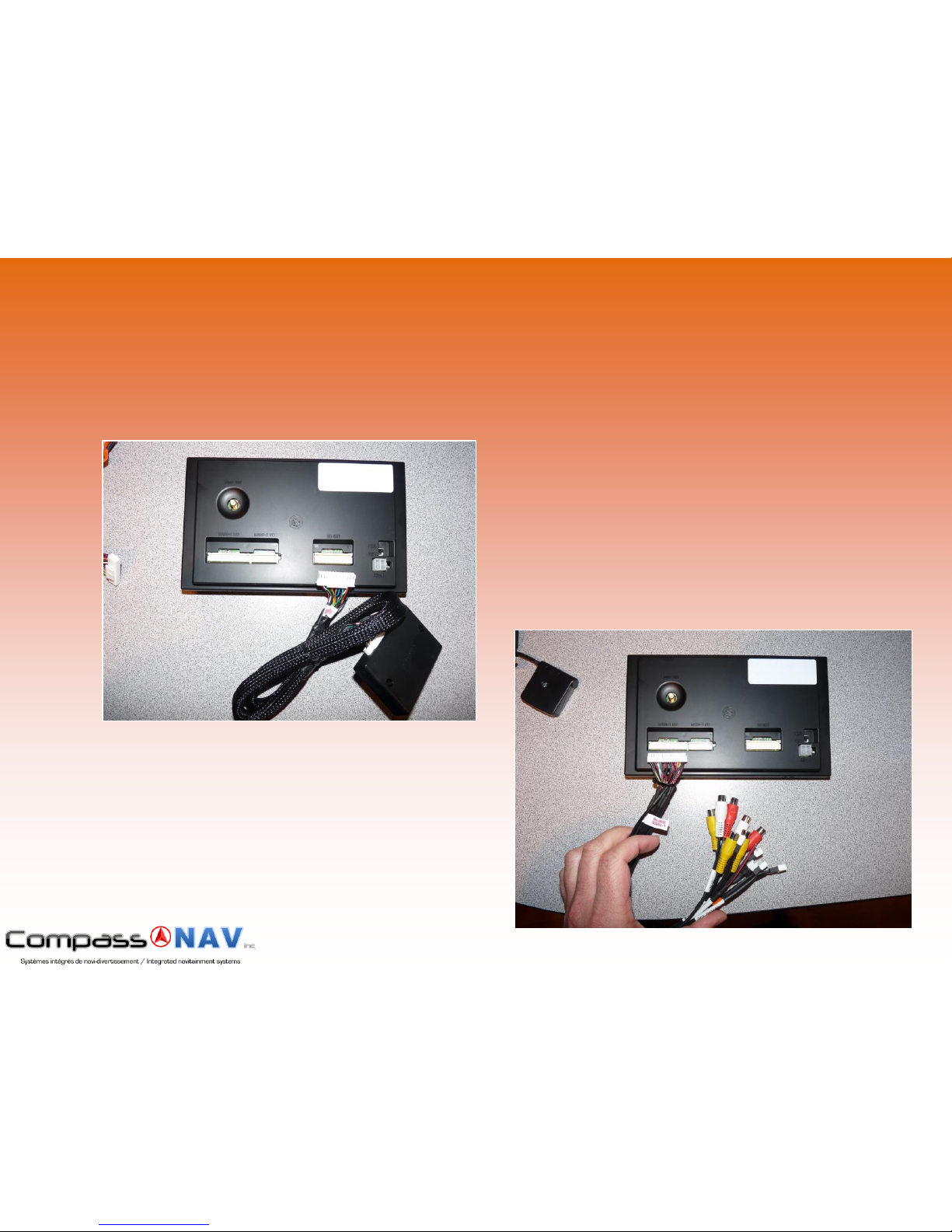

Reserved for
future use
Main I/O 1 Main I/O 2 SD/USB connect
Power Connection

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
19
SD/USB
Interface
SD/USB connection
box to SD EXT
connection
Main I/O Connection #1

Santa Fe CN-M5
Installation manual
Caution –Documentation is an aid to successful installation. No liability is assumed for incorrect installation. If
unsure of expertise required, please consult a qualified installation tech.
20
Main I/O Connection #2
Main Power
Connection for
Touchsreen
