Assembly Instructions
Rise Freedom Extended Medical Rolling Cart SKU: MCRSTDEXW/B
©
Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | [e-mail] | [phone] Sheet 1 of 2
5
TIGHTEN SCREWS
INSTALL
UPPER ASSEMBLY
(IF INSTALLING
SHELF
INSTALL NOW)
LOOSEN TO INSTALL
UPPER ASSEMBLY
TIGHTEN AFTER
INSTALLATION
AT DESIRED
WORKING HEIGHT
60”
152.4cm
43.4”
110.2cm
12”
304.8mm
CASTER ASSEMBLY WITH
SQUARE HOLE
PLACE CASTER ASSEMBLY ON FLOOR WITH CASTERS FACING UPWARDS
LOWER TUBE
LOWER TUBE
COVER
TIGHTEN USING
TORX WRENCH
PROVIDED
M6 X 16mm
TORX SCREWS
CASTER ASSEMBLY WITH
SEVEN (7) HOLES
CASTER ASSEMBLY WITH
SIX (6) HOLES
M6 x 12mm BUTTON
HEAD TORX SCREW
TIGHTEN USING
TORX WRENCH PROVIDED

7
6

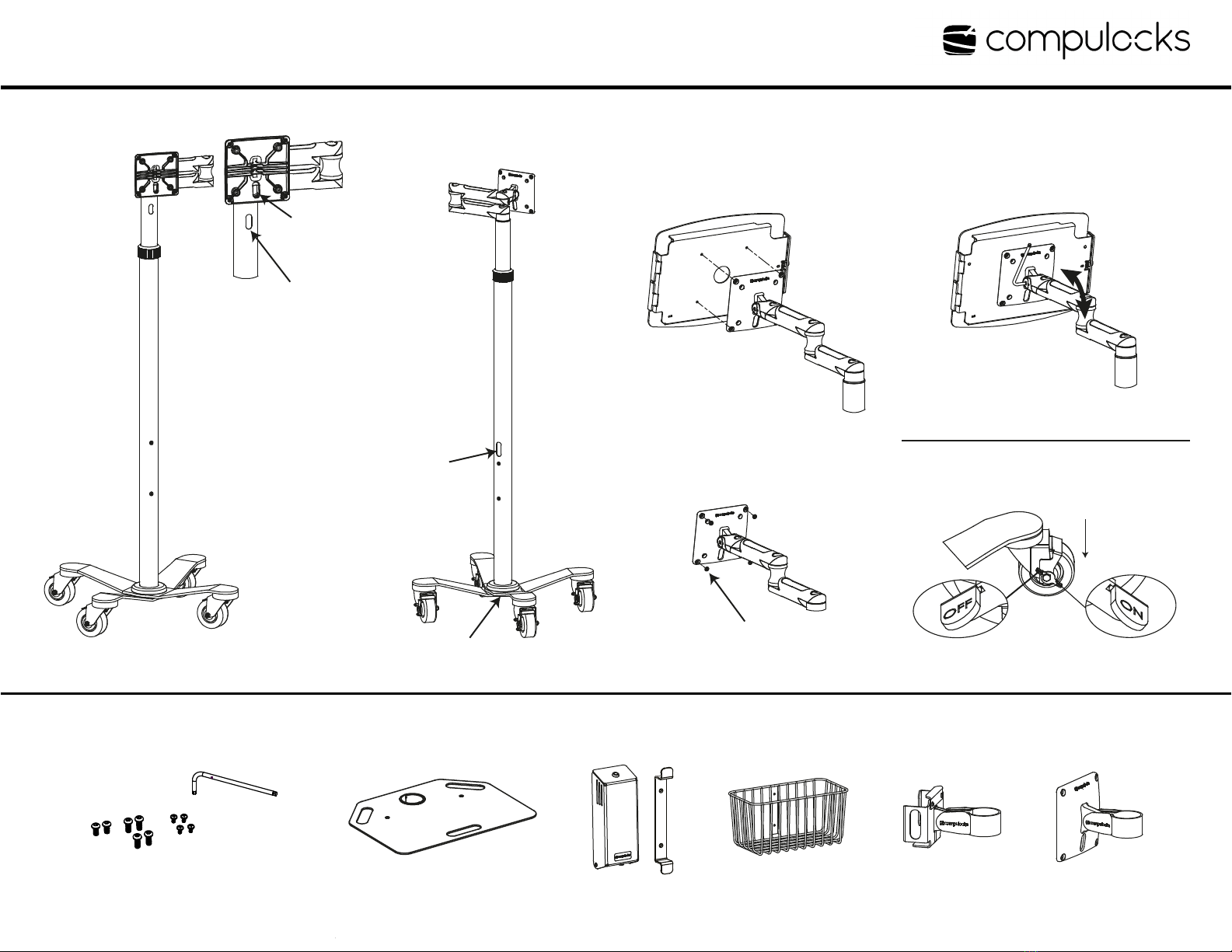

Assembly Instructions
©
Compulocks Brands Inc. All Rights Reserved.j
www.compulocks.com | [e-mail] | [phone] Sheet 2 of 2
8
LOCKING THE CASTER
IN THE BOX ACCESSORIES
Hardware Kit Keyboard / Writing Shelf Kit Power Module Kit Accessory Basket Kit JBL GO 2 Speaker
Bracket
Single Add On
Bracket Kit
IF MOUNTING TO A MONITOR
REMOVE M4 PRESS IN NUTS
Rise Freedom Extended Medical Rolling Cart SKU: MCRSTDEXW/B
WIRE PASS THRU
FROM ENCLOSURE
WIRE INLET
IN UPPER TUBE ASSEMBLY
OPTIONAL WIRE OUTLET
WIRE OUTLET
FOR POWER MODULE
INSTALL YOUR TABLET ENCLOSURE
AS SHOWN USING M4 SCREWS
PROVIDED WITH RISE FREEDOM
EXTENDED ROLLING STAND
ADJUST TILT / TENSION
