COMSOL HD5014K User manual

HD5014K
5 Port 4K2K HDMI Switch
User Manual
1. Introduction ............................................................................... 1
2. Automatic Function .................................................................. 1
3. Features ..................................................................................... 1
4. Specifications............................................................................ 2
5. Package Contents..................................................................... 2
6. Panel Descriptions.................................................................... 3
7. Connection & Operation .......................................................... 3

5 Port HDMI Switch
1
1. Introduction
This 4K2K HDMI switch will switch up to five HDMI sources to one HDTV or
HDMI monitor. Perfect for switching between your DVD, Blu-ray player, set top
box, gaming console, media player, foxtel box or other HDMI source.
Switch between inputs using push button, included remote control or
automatic function.
2. Automatic Function
When the HDMI switch is powered on, the switch will automatically switch to
the first input with a powered on source device in the following order – input 1
→ input 2 → input 3 → input 4 → input 5.
If a new source device is powered on, the switch will automatically switch to
this input.
If the source device is powered off, the switch will automatically switch to the
next powered on source device in the following order – input 1 → input 2 →
input 3 → input 4 → input 5.
Please Note:
If the source device is turned off but is in stand-by mode, the automatic
function may not work correctly.
3. Features
•Switch up to five HDMI sources to one HDTV or HDMI monitor
•Switch inputs using push button, remote control or automatic function
•Supports 4K Ultra HD 2160p (3840 x 2160) @30Hz
•Supports Full HD 1080p (1920 x 1080) @60Hz
•Supports all current 3D formats
•Supports 36-bit deep colour
•32 channel digital audio supports Dolby® True HD and DTS-HD
•Supports HDCP 1.3 (High-bandwidth Digital Content Protection)
•5 x LEDs to indicate selected input
•Compliant with HDMI version 1.4

5 Port HDMI Switch
2
4. Specifications
Input Connector
5 x HDMI Female Connectors
Output Connector
1 x HDMI Female Connector
Maximum Resolution
3840 x 2160 @30Hz
Video Bandwidth per Channel
300MHz/3Gbps
Total Video Bandwidth
10.2Gbps
HDCP Version
HDCP 1.3
HDMI Version
HDMI v1.4
Operating Temperature
0℃ to 70℃
Operating Humidity
10% to 85% RH (no condensation)
Storage Temperature
-10℃ to +80℃
Storage Humidity
5% to 90% RH (no condensation)
Power Supply
5V DC
Power Consumption (Max)
5W
5. Package Contents
•5 Port HDMI Switch
•Remote Control
•IR Receiver for Remote Control
•5V DC Power Adapter
•User Manual

5 Port HDMI Switch
3

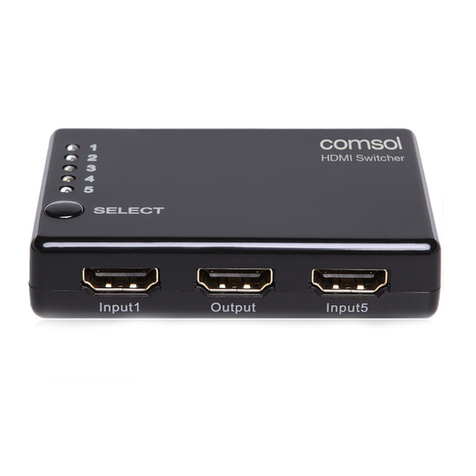

6. Panel Descriptions
7. Connection & Operation
1. Connect one end of an HDMI cable into the output port of the switch and
the other end of the cable into the HDMI port on your HDTV or HDMI
monitor.
2. Connect one end of an HDMI cable into the input port 1 of the switch and
the other end of the cable into the output port of your source device such
as set top box, media player, Blu-ray player, foxtel box, gaming console or
computer.
3. Repeat step 2 for additional source devices.
4. Plug the AC power adapter into the power port on the switch.
www.mycomsol.com.au
