Con-Treat Grinder Dolly User manual

Grinder Dolly
For 9” Hand Grinders
SAFETY & OPERATORS MANUAL
& PARTS LISTING
CAUTION: Read the instruction manual before using the appliance.
V060314

Page 1
Contents
Safety instructions ............................................................................................................................................2
Safety instructions ............................................................................................................................................3
Assembly instructions.......................................................................................................................................4
Assembly instructions.......................................................................................................................................5
Assembly instructions.......................................................................................................................................6
Operating Instructions .....................................................................................................................................7
Operating Instructions .....................................................................................................................................8
Electrical safety .................................................................................................................................................9
Problem solving...............................................................................................................................................10
Diamonds.........................................................................................................................................................11
Diamonds.........................................................................................................................................................12
Parts Listing..................................................................................................................................................... 13
Parts Listing..................................................................................................................................................... 15
Warranty..........................................................................................................................................................16

Page 2
Safety instructions
1. Read and understand the instructions on the machine and in this manual and engine manual (if applicable).
Different models may have different parts and controls.
2. Equipment should only be operated by trained personnel, in good physical condition and mental health (not
fatigued). The operator and maintenance personnel must physically be able to handle the bulk weight and
power of this machine.
3. The Dolly must only be used according to the instructions given in this manual. Any other work
methods or practices could result in injury or death
4. This is a one person machine. Maintain a safe operating distance to other personnel. Remember ‘one
machine, one operator’.
5. This equipment is intended for commercial use.
6. For the operators’ safety and the safety of others, always keep all guards and shrouds in place.
7. Never start or run machine when it is unattended.
8. This machine is only intended for use on floor surfaces such as concrete, terrazzo and other hard floor
surfaces.
9. Never start or run machine when disk(s) are not in contact with the surface.
10. Do not lend or rent machine without the operating and safety instructions for the machine (and the engine, if
applicable).
11. Wear clothing suitable for the job and for the work place including, safety shoes, hard hat, hearing protection,
non-fogging vented safety goggles, and dust mask suitable for dust.
12. Keep body parts or any loose clothing away from moving parts. Failure to comply could result in bodily injury.
13. Do not modify machine in any way. Only use genuine parts and accessories.
14. Repairs should be performed by qualified persons only.
15. Ensure parts have stopped moving and disconnect power or spark plug when servicing or changing blades or
accessories.
16. Never operate machine in rain or if heavy moisture is present.
17. Petrol is extremely flammable and poisonous. Petrol should only be dispensed in well ventilated areas, and
only when engine is cool.

Page 3
Safety instructions
18. WARNING! POISONOUS EXHAUST GASES. Do not operate petrol powered equipment, including generators,
without adequate ventilation. Carbon monoxide is and invisible odourless gas that can harm or can kill.
19. Do not operate Dolly with any covers or doors removed or open.
20. The Dolly can produce sound pressure levels greater than 85db. The operator must wear approved safety
ear protection.
21. Do not allow the supply cord to come in contact with the cutting blade/head or other moving parts of this
machine.

Page 4
Assembly instructions
22. The Dolly is designed to be fitted to Metabo 9” Hand grinders that has a suitable diamond disk and a dust
shroud fitted to it. The intention is that the hand grinder can be used without the user being on their hands
knees.
23. Other Brands of hand Grinders may fit but it is not guaranteed
24. Due to the Nature of hand grinders it is almost impossible to simulate the ability to follow the floor when
using a D handle, Due to this, the dolly may be susceptible to leave groves and gouges and also miss certain
sections of the floor that are lower. This can be expected.

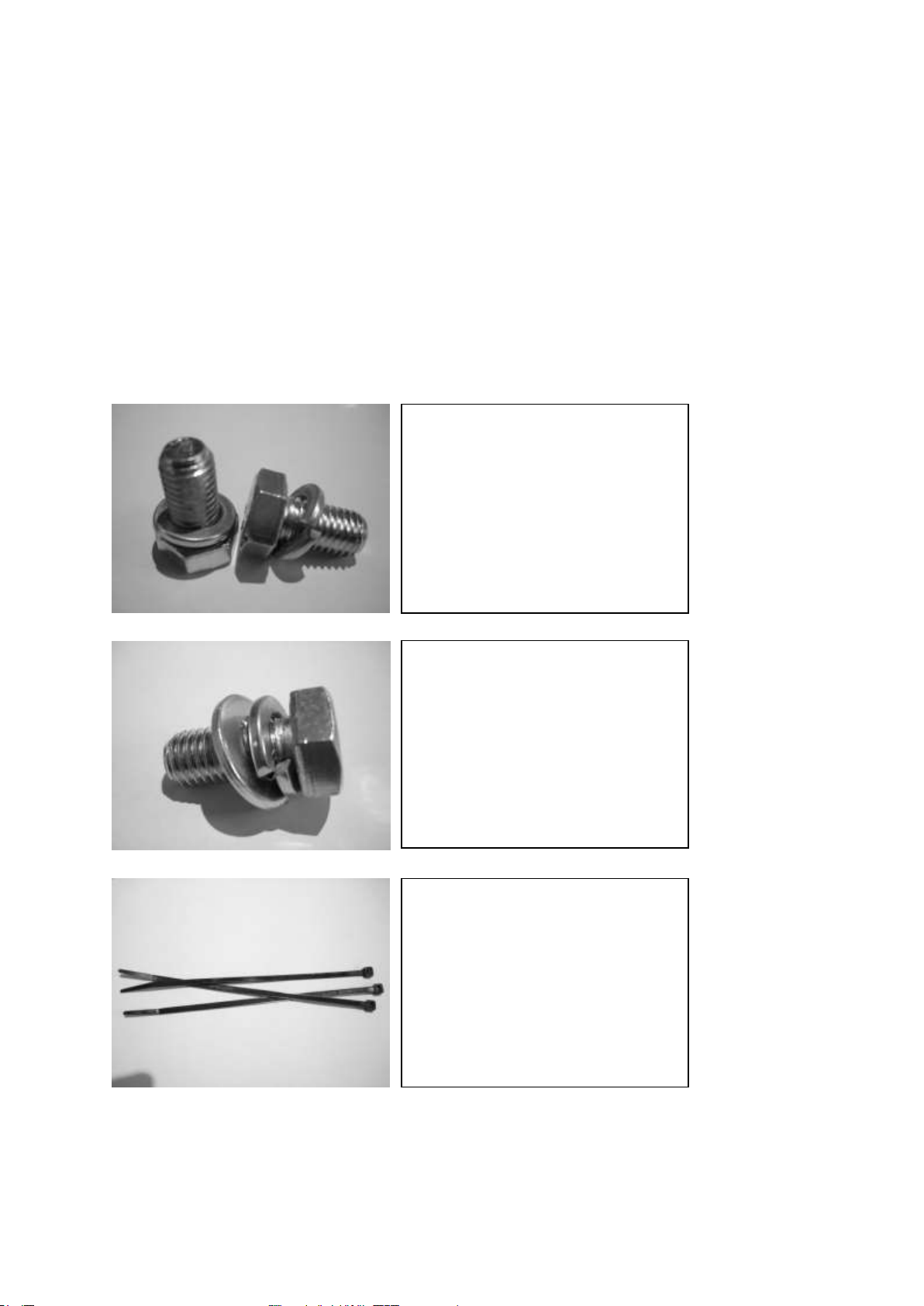

25. This Dolly is supplied with the following fasteners.
26.
27.
28.
2X M14 X 25
With spring washer
For side arms
Do not over tighten!
1 X M14 X 30
With spring and flat washer
For top chassis mount
Tighten!
3 X Cable Ties
For clamping switch and
holding excess cable onto the
handle

Page 5
Assembly instructions
29. The First Step is to place the hand grinder over the dolly and loosely install the 3 Bolts in the positions shown
below.
30.
31. Next Pull the body of the grinder up to the chassis until the grinder body is aligned with the chassis and then
tighten the top Bolt.
32.
33. Now tighten the two side bolts until firm but not tight. These never need to be totally tightened.
M14 X 30 with
spring washer and
flat washer
M14 X 25 with
spring washer only
(both Sides)
Parallel
Tighten

Page 6
Assembly instructions
34. Adjust the two cross knobs shown below until the grinding disk is sitting flat onto the floor. You can move the
grinder along the flor side to side and forward and backward to analyse if the disk is flat on the floor.
35. While adjusting you may find that the knobs become too tight to turn. If this is the case please loosen the top
bolt and let the main chassis move forward or back so the cross knob threads align with the side arms again
and re-tighten the bolt again.
36.
37. Next plug the Grinder lead into the socket coming from the control box.
38. Use the cable tie provided to clamp the main switch of the grinder in the on position. This must be removed is
the grinder is ever removed from the frame for safety.
39.
Finally cable tie up the spare cable from the hand grinder onto the handle.
Cross Knobs
Cable Tie the Switch in the
on Position

Page 7
Operating Instructions
40. Wear clothes suitable for the job and for the work place including, safety shoes, hard hat, hearing protection,
non-fogging vented safety goggles, and dust respirator suitable for dust.
41. The Dolly must only be used according to the instructions given in this manual. Any other work
methods or practices could result in injury or death
42. WARNING! POISONOUS EXHAUST GASES. Do not operate petrol powered equipment, including generators,
without adequate ventilation. Carbon monoxide is and invisible odourless gas that can harm or can kill.
43. Be sure all equipment is tested and tagged prior to use on any job.
44. Inspect entire area to be ground before grinding and remove any bolts or concrete nails (etc) that could
damage tooling or the machine and which could cause a hazardous situation.
45. Ensure there are no obstacles or existing structures that could present a hazard to the operator. If so, take
necessary action to eliminate the hazard.
46. Tilt the machine back so handle is resting along the floor.
47. Install appropriate diamond tooling or other available tooling into the machine. Only use genuine tooling.
Failure to comply could result in bodily injury.
48. Tilt machine back onto the disk.
49. Connect machine to suitable power outlet. Only use heavy duty power lead suitable for high current use
(preferably 2.5mm² cable), no longer than 20 meters.
50. If no power is available within the specified distance, have a qualified person install a suitable power outlet
closer to your work. Alternatively use 4mm² cable for up to 50 meters.
51. Connect a suitable dust extractor to the machine via a 38 or 50mm flexible hose. The machine is designed to
take the standard 50mm hose ends to make connection of dust extractors easy and hassle free.
52. Keep machine clear of drainage pits, grates, steps or major lips or such hazard. Failure to comply could result
in bodily injury and or could damage the machine or property.
53. This machine is designed to operate with the wheels in contact with the floor at all times. Do not operate with
wheels off the floor.

Page 8
Operating Instructions
54. Switch on the dust extractor.
55. Hold the handles firmly and switch the Dolly on by pulling the toggle switch on with your finger.
56. Do not attempt to make any adjustments while the machine is in operation. Any adjustments must only be
performed when machine is stopped and power disconnected.
57. After a few minutes of grinding check the wear of the diamond tooling. This will pay handsomely if the
diamonds are wearing out fast due to soft concrete / abrasive concrete. There is a wide range of diamonds
available to suit every need.
58. WARNING! As with any diamond tooling, breathable silica may be generated by use and maintenance of this
machine. Silica can cause severe and permanent lung damage, cancer, and or other serious diseases. Do not
breathe the dust. Do not rely on your sight or smell to determine if dust is in the air. Silica may be in the air
without a visible dust cloud. If air monitoring for silica is not provided by your employer at your work site, you
must wear appropriate respiratory protection when operating or maintaining this equipment. Consult your
employer for proper respiratory protection.

Page 9
Electrical safety
59. All electrical maintenance and repairs are to be carried out by qualified persons only.
60. CAUTION - Line terminals may be alive when main switch is in the off position. Disconnect the machine
completely before performing any maintenance or repairs.
61. WARNING - DO NOT operate the machine with any electrical panels open.
62. Never operate machine in the rain or if heavy moisture is present.
63. Never bypass over current devices in this machine.
64. Never connect or disconnect power cables with voltage present or while under load.
65. Disconnect all power connections and observe lock out / tag out procedures before attempting to carry out
any maintenance or repair on any equipment.
66. Avoid any contact with any rotating parts or driven parts.
67. Never use equipment that has not been tested and tagged (including cords).
68. Before connecting the machine to power, check the condition of all power leads and cables on, or used in
conjunction with the machine. DO NOT USE it if any faults, cuts, wear marks, etc… Get qualified persons to
repair and re-tag it as required by regulations in your country.
69. Connect machine to suitable power outlet. Only use heavy duty power lead suitable for high current use
(preferably 2.5 mm2 cable), no longer than 20 meters.
70. If no power is available within the specified distance have a qualified person install a suitable power outlet
closer to your work. Alternatively use 4 mm² cable for up to 50 meters.
71. Do not operate Dolly with any covers or doors removed or open.

Page 10
Problem solving
73. Diamond Grinding has many variables. When you understand some of these, you can solve a lot of problems
without a lot of bother and expense.
NOTE: THIS IS A GUIDE ONLY
PROBLEM
CAUSE
REMEDY
EXPLAINATION
Machine will not start
/ run.
No power is present at
cable end.
Check the power is present
with another tool.
Using another tool confirms power
is present
Machine is trying to
start on glue or other
sticky substance.
Clear a patch with a scraper
and grind into the glue a
little at a time.
This means it only tackles a small
amount of glue at a time and
keeps the glue residue coated with
dust, preventing glue sticking and
building up on the diamonds.
Power lead is too small
in capacity or too long.
Upgrade the power lead to
2.5mm² (20meters max) or
4mm² (50 meters max).
The long / small capacity cable is
too restrictive and can’t allow
enough power through for the
machine to start / run properly.
Machine is not
grinding at all.
No blades /
accessories in unit.
Fit blades. Note; check wear
on machine.
Very hard concrete or
glazed topping on
concrete.
Turn dust extractor down /
restrict flow. Only just
control the dust from
escaping.
The extra dust accumulating on
the floor acts as an abrasive
between the segments and the
floor thus exposing the diamonds
better.
Place river sand or cement
on the floor.
The sand is an abrasive as
described above.
Use softer grade of diamond
tooling.
The softer grade will expose the
diamonds better.
Use coarser diamond
tooling.
The coarser diamond tooling can
get through hard toppings without
wearing out the diamonds too
fast.
The diamonds are
wearing out too fast.
The concrete is:
*Soft
*Abrasive
*Rain Damaged
*A rough finish
(Scarified or shot
blasted).
Use a powerful dust
extractor to remove as much
dust as possible.
The dust, as described acts as an
abrasive between the segments
exposing the diamonds
prematurely, wasting them.
Use harder diamond matrix.
The harder segments don’t expose
as easily.
Use tooling with more
segments or area² of
segment.
The tooling with more segments
or area² doesn’t have the same
weight on them, reducing wear.

Floorex Dolly Page 13
Parts Listing
3
4
2
7
8
9
6
5
1
10

Page 14
11
14
15
16
12
13
17
1
20
18
19

Page 15
Parts Listing
Item Number
Description
QTY
1
Cross Knob M8 Male
2
2
Switch Toggle Apem Momentary
1
3
Handle Grip
2
4
Electrical Box
1
5
Handle Section Lower
1
6
Electrical Box Lid
1
7
Cable Gland M16 Nylon
2
8
Socket Screw Type 1 Phase
1
9
Plug Screw Type 1 Phase
1
10
Handle Section Upper
1
11
Chassis Section With Weight
1
12
Cross Knob Axle Height
2
13
Wheel 125mm Blue
2
14
Bolt M14 X 30 With Spring and Flat Washer
1
15
Bolt M14 X 25 With Spring Only
2
16
Side arm Set Left and Right
1
17
Axle 12mm
1
18
Axle Clip 12mm Push on
2
19
Washer M12
4
20
Axle Bush 12mm
2

Page 16
Warranty
The Dolly is offered with a 1 year Limited manufacturer’s Warranty against defects. This does not mean the machine
is indestructible or will not require replacement parts as there are some parts which are normal replacement items
and the wear is not a fault of manufacture.
Warranty on Metabo or other brand tools are subject to that manufacturer’s warranty terms. For warranty on the
hand tool please take the tool to your local agent.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
As these goods are not of a kind ordinarily acquired for domestic, household or personal use, Con-Treat is entitled
to limit their liability to sellers (companies or individuals who resell the machine) to the cost of replacing the
goods, having the goods repaired or obtaining equivalent goods (whichever is lowest).
Consumer Guarantees are a contract between the seller and the consumer. For this reason if goods are purchased to
be resold or to be transformed into a product that is sold, the consumer guarantees between Con-Treat and the re-
seller will not apply.
Compensation - Manufacturers are not responsible for problems with goods beyond their control. For this reason
Con-Treat will not be held liable for:
1. An act, default, omission or representation made by some other person (excluding an employee or agent of
the manufacturer).
2. Contract penalties such as promises for completion date of jobs. These are at the risk of the parties involved.
3. A cause independent of human control that occurs after the goods left the manufacturer’s control
The consumer guarantees require you to return goods to the place where they were purchased unless it is not
reasonable for you to do so. For example, it would be reasonable to expect you to return an item if you would be able
to easily take it away with you when you purchased it. However, if the item is large, heavy or bulky or needed to be
delivered, the seller should arrange for this to be returned.
For this reason for timely repairs and as little downtime for the consumer, Con-Treat may offer to have the
machine repaired by a nominated repairer close by.
