CONCORD Detail Steel Hutch User manual

The esponsible Solution
Installation Manual Detail
Steel Hutch

Steel Hutch
Explosion
View
Step 1
*SAFETY ISSUE/DANGE : THE
HUTCH TO BE BOLTED TO
THE WO K TOP TO P EVENT
ACCIDENTAL TIPPING
LH SUPPO T
H SUPPO T
“L” ANGLE (fits worktop :NOT
SHOWN IN IMAGE. SEE NEXT
PAGE)
BACKWALL WITH SLOTTED END
CHANNELS
“L” ANGLE B ACKET MUST BE INSTALLED AND FASTEND ONTO THE
DESK TO SECU E THE HUTCH TO IT
INSIDE STOWING
FLIPPE DOO
LH CABINET
SIDE
H CABINET
SIDE
END VIEW
1

INSTALL SEQUENCE
1.FI ST, ALIGN LH SUPPO T WITH BACKWALL SO THE SELF
CUTTING SC EWS FASTENS THE LH SUPPO T WITH THE
BACKWALL. EPEAT STEP FO THE H SUPPO T
LH SUPPO T
BACKWALL WITH SLOTTED
END CHANNELS
TOP VIEW OF BACKWALL AND SHELF
SUPPO T DETAIL
SELF CUTTING
SC EW
LH SUPPO T
BACKWALL WITH
SLOTTED END
CHANNELS
2
SEE
NEXT
PAGE
1
2
“L” ANGLE SLIDES ON THE INSIDE OF
THE H AND LEFT HAND SUPPO T
THE “L” ANGLE SLIDES ONTO
THE WO K SU FACE AND #10
SELF CUTTING SC EWS IS
USED TO SECU E THE HUTCH
TO THE WO K SU FACE
3
WO KTOP
“L” ANGLE
MOUNTED ON
THE INSIDE OF THE
LH SUPPO T

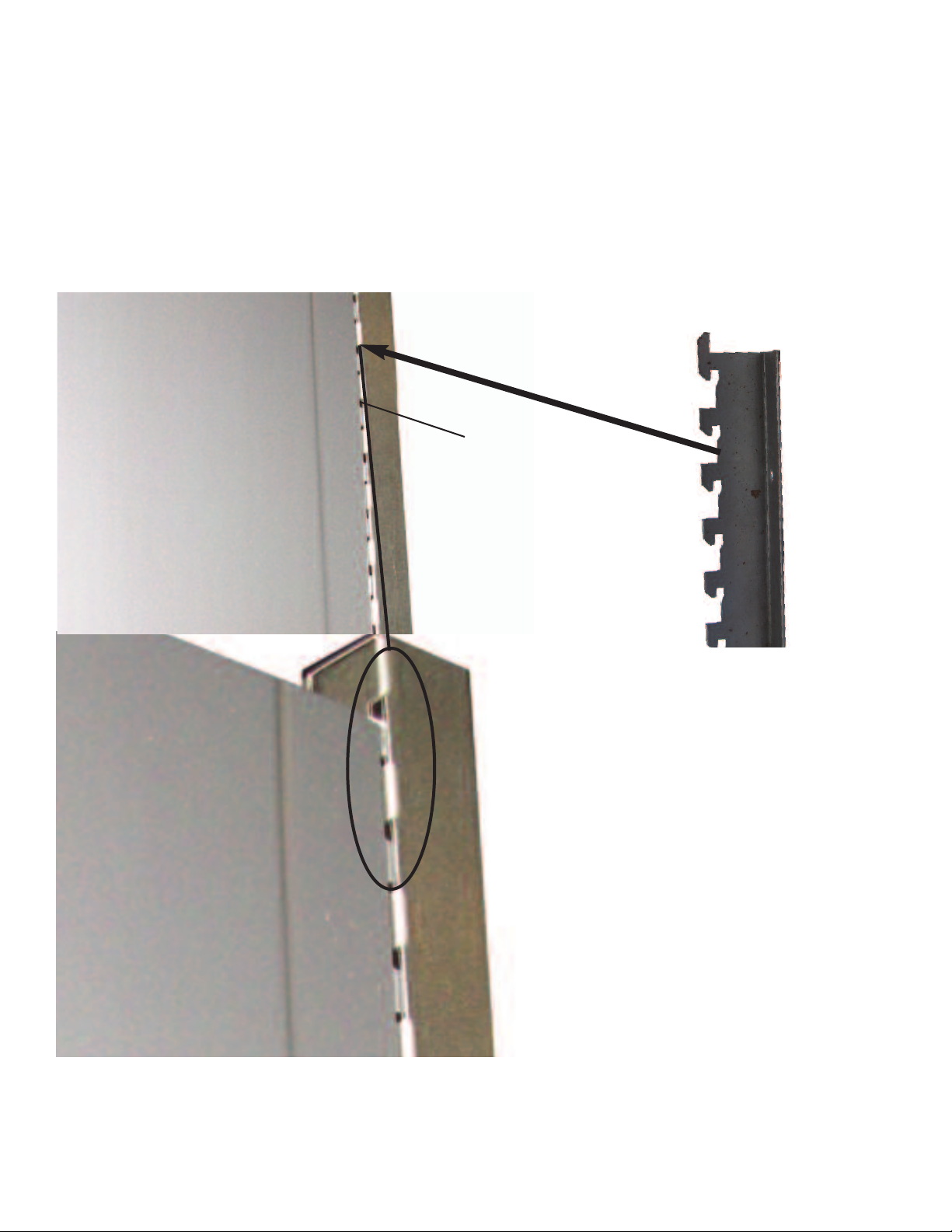

*IN THESE PHOTOS SHOWING OUTSIDE OF THE H FLIPPE DOO SIDE BEING ENGAGED
INTO THE BACK WALL SLOTS USING THE HOOKS F OM THE FLIPPE DOO SIDE. (IMAGES
SHOWN ABOVE)
2.SECOND, ENGAGE THE HOOKS OF THE FLIPPE DOO SIDE
INTO THE SLOTTED END CHANNELS ON THE BACKWALL.
CA EFULLY SIT THE FLIPPE DOO SIDE ON TOP OF THE LH AND
H SUPPO T. THEN USE #10 PAN HEAD SHEET METAL SC EW
TO INSTALL TOP AND BOTTOM SHELF THEN INSTALL FLIPPE
DOO F ONT.
2
3

INSIDE OF FLIPPE DOO SIDE ENGAGED INTO THE BACK WALL
SLOTS USING THE HOOKS SHOWN IN IMAGE ON
P EVIOUS PAGE.
UNDE NEATH THE FLIPPE DOO
SIDE SITTING ON TOP OF THE H
SUPPO T
BACKWALL WITH
SLOTTED END
CHANNELS
H SUPPO T
USING SELF CUTTING #10
SC EWS TO FIT INTO 3/16
HOLES TO SECU E THE H
SUPPO T AND FLIPPE
DOO SIDE INTO PLACE
4
