Concox GS503 User manual
GS503 Elderly Phone
User Manual-V1.5_GPS
This model is with Location-based service, SIM with GPRS is required.

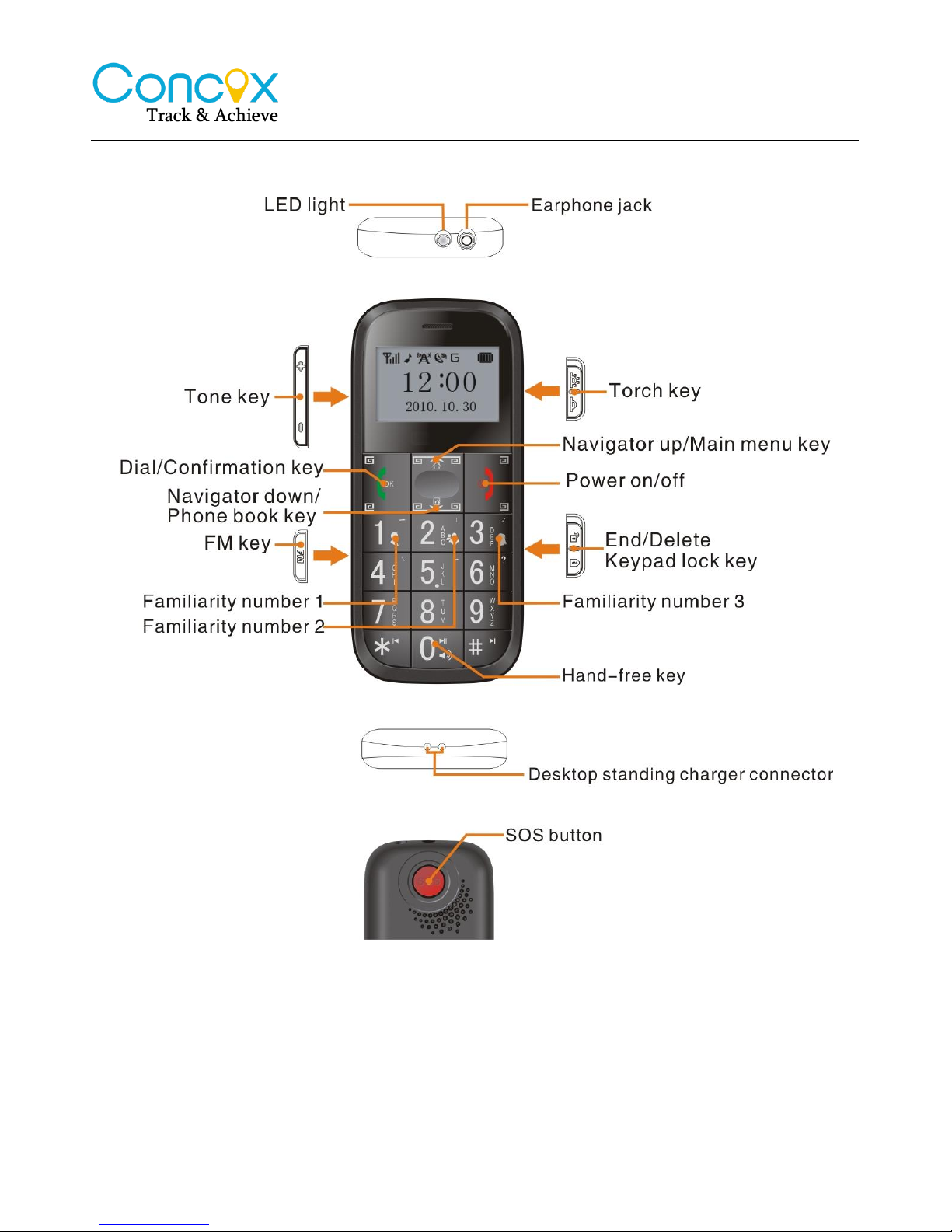

1. Phone overview
2. Definition of keys
Buttons
Function
Dial/Confirmation
Key
Dial
Pick up
At standby mode: Enter into calling log
At operation：To be a confirmation key
Power on/off
End/Delete Key
When power off: Long press to turn on
When power on: Long press to turn off
At operation: Return to upper menu interface / Long press to return at
standby interface
Navigation Up /
Main menu Key
At standby mode: Enter into main menu
At operation: Move up the cursor
At FM radio :Add 0.1MHz each time
Navigation Down /
Phone Book Key
At standby mode: Enter into phone book
At operation: Move down the cursor
At FM radio : Reduce 0.1MHz each time
Key
When edit: Switch smart input
At FM radio: Switch to next channel
At standby mode: Switch to vibration mode or not
At FM channel edit interface: Input “.”
* Key
When edit: Insert common symbol
At FM radio: Switch to last channel
At dialing number interface: Press two times to input “+”
Tone Key
“+”Enhance volume
“-”Reduce volume
FM Key
At standby mode: Turn on the radio
When radio on: Turn off the radio
Torch Key
Push up to turn on
Push down to turn off
Keypad Lock
Push up to unlock
Push down to lock
Hand-free key
At operation: Long press to switch to Loudspeaker/Handset mode
At FM radio: When the earphone being installed, long press to switch from
earphone mode to hand-free model. Short press to pause it.
SOS key
Long press to make an emergency call
3. Getting start
Install SIM Install Battery
Long Press to Turn on
Please use GSM SIM Card
4. Other functions
4.1 Torch
Push up the torch key to turn on the light, there is no matter with whether the mobile is on or off.
4.2 Keypad lock
Move down: Lock
Move up: Unlock
5. Functional menu
5.1 Phone book
5.1.1 View record: View the saved mobile number
5.1.2 Search contact: To find the contact by names
5.1.3 Add new contact:【Enter into option】→【Select “Add new contact to SIM card or mobile phone”】→【input contact
name and cell phone numbers】→After inputting the information, press the hang off key to save and then press
confirmation key to confirm.
5.1.4 Delete contact: The contact information can be all deleted or single deleted from SIM card or mobile phone.
5.1.5 Copy phonebook: Providing two ways of copying phonebook: from mobile to SIM card and from SIM card to mobile.
5.1.6 Memory status：It shows the memory of phone and sim card. Phone and sim card can save 50pcs of sms in
maximum.
5.2 SOS
5.2.1 SOS number setting: Three SOS Numbers could be set
Select 【SOS】→ SOS Number Setting → Select the number from the phonebook
5.2.2 SOS alarm mode
There are three SOS alarm modes: Calling only/SMS & Calling/SMS only.
The default mode is SMS & Calling
5.2.3 SOS calling tone and repeat times
The default mode of SOS calling tone is on. The repeat time can be once/twice and three times. It is defaulted as
three times.
5.3 Fast-dial
Long press the number key 1~9 so as to dial the familiarity number/the corresponding phone number quickly.
Set familiarity number：Can set 3 familiarity numbers, corresponding number key is 1~3.
Set fast dial number：Can set 6 numbers, corresponding number key 4~9.
Setting method：Select【One key call】→【Set familiarity number】/【Set fast dial number】.
Directly invoke the right number you want to set from phonebook.
5.4 Messaging
5.4.1 New message
5.4.2 Inbox
5.4.3 Outbox
5.4.4 Delete message
5.4.5 Saving message to: SIM/Phone
5.4.6 Memory status: Maximum items at Phone/40
Maximum items at SIM/50
5.5 Call history
5.5.1 To show Missed Calls / Dialed Calls / Received Calls
5.5.2 The Call Logs could be deleted.
5.6 Settings
5.6.1 Phone setup
●Date and Time
Time Zone Setting: Select a time zone
Set time
Set date
Note: The first time successfully locating by GPS，time zone, date, time will be automatically adjusted. While under the
circumstance that GPS cannot locate successfully, the time zone, date, time will need to be manually adjusted.
Time Format Setting: 12 hours / 24 hours
●Language：English / Spanish/ Portuguese/ German/ French /Italian/Dutch /Russian
●Input Method: ABC/abc/SP/sp/ PT/pt / DE/de /FR/fr/ IT/it/ /NL/nl/Russia/123/.
●LCD Backlight
Brightness: Adjust the brightness
Time (Seconds): Adjust the time of screen lighting
●LCD Contrast: Adjust the extent
5.6.2 Sounds & Alerts
●Ring tone
Incoming calls: 25 groups of ringtone could be selected
Power on: 7 groups
Power off: 7 groups
Message tone: 11 groups
Key tone: Silent / Click / Tone/ human voice
Note: After selecting human voice, there would has voice broadcast when dial numbers.
●Volume
Ringtone: Turn the ringtone up or down.
Keypad tone: Turn the keypad tone up or down.
●Warning tone type
The warning tone type for option：Ring only/Vibrate only/ Vibrate and ring/Ring after vibrate/Quiet only.
5.6.3 Reset to the factory settings：Enter password 1122 to reset the factory settings.
5.7 FM radio
5.7.1 Turn on the radio：In standby status，long press FM key to turn on the radio.
5.7.2 Turn off the radio：In radio operation interface，long press FM key to turn off the radio.
5.7.3 Operating procedure: After turn on the radio you will enter into listening interface. Press navigator up and down key
to set the frequency channel. Add or reduce 0.1 for each time by press navigator up or down key once. You can also input
the frequency directly, press call key in listening interface to select【manually input】menu to input frequency manually,
select【automatically search】menu to search frequency channel by phone automatically. Select【Frequency channel list】
to search often used channel，press * key in listening interface to listen last channel and # for the next one.
Note: When install earphone, there are two ways to switch earphone mode to hand-free mode: long press 0; change from
FM menu.
6. Monitor
SOS numbers can send SMS command to monitor.
SMS command：MONITOR#
Note：SOS number is not equal to familiarity number.
After the mobile get reply Ok, then it will dial the SOS number. Once the call gets through, it enters monitor status.
7. SOS emergency call
Press SOS key for more than 3 s（will active GPS function automatically）， the phone will vibrate one time with alarm tone ,
the phone will dial the existed SOS numbers by cycles until any of SOS numbers answer the phone. The phone will dial the
SOS number for 3 times maximum if there is no answer. After dialing the SOS number, it will send google map link to SOS
numbers.
Note：1 To cover this function you need set SOS number successfully in advance.
2 If the platform function turns off, the device would not receive Google map link.
8. GPS timing and locating function.
The GPS will be activated and its led will start to flash once the mobile power on. If the GPS locate successfully within 5
minutes, the GPS data will be uploaded to platform and then the GPS led will keep solid bright and go off after 20s.
If the phone is placed inside room all the time or other places which have no GPS signal there，the phone will turn off the
GPS after searching signal for over 5 minutes. At this moment, the phone will start timing and locating system no matter
the phone is located successfully or not, default timing and locating is 30 minutes, that is to say, the phone will start GPS
for every 30 minutes to update the latest location and satellite data to platform.
9. Start GPS and check the device location
There are two ways to start GPS function:
9.1 Platform online
GPS is always off except the set timing. If you need to start GPS when it is off, you can click the “Start satellite locating”
button on location service platform, the cell phone will start GPS location function.
9.2 SMS
ONLY the three SOS numbers can be used to check location. Other phone number will receive error message, for example:
ERROR: 110.
●9.2.1 SOS numbers send sms command to senior cellphone：WHERE #
The senior phone will response longitude and latitude, for example：
Lat:N22.541005,Lon:E113.951553,Course:99.43,Speed:1.9816,DateTime:10-11-04 10:19:53
●9.2.2 SOS numbers send sms command to the phone：URL#
The senior phone will response google map link, for example:
<DateTime:10-11-10 10:30:18>Http://maps.google.com/maps?q=N22.541228,E113.951407
Note：GPS could be located only in the open air and outside; GPS can not be located inside room/under obstacles,/ under
high building or other places with low or even no GPS signal. While LBS can be located as long as GSM signal is existed.
10. Position service
10.1 To check the location, please turn on platform service function. Then the phone will send location data to platform.
You can check its location in platform or by sending location SMS. The platform service is turned on as default.
Note: When turn on the platform service and the phone is disconnected with platform for some reasons, the senior phone
will restart automatically 20minutes later to try to reconnect with the server.
Usually there are two reasons are:
1 The GPRS function of the sim card is not activated.
2 GPRS connecting timeout
10.2 Service information
When senior phone receive information from platform, it would pop up a form on the screen which says “new service
information”. Press Confirmation Key to check the information or check it from the server message box
Note：When the sms inbox is full, the phone can not receive any new sms any more. In this case, please delete the inbox
sms first.
