Confetti Maker TCMFX Confetti Gun Operator's manual

User documentation The Confetti Maker FX Ⓡ

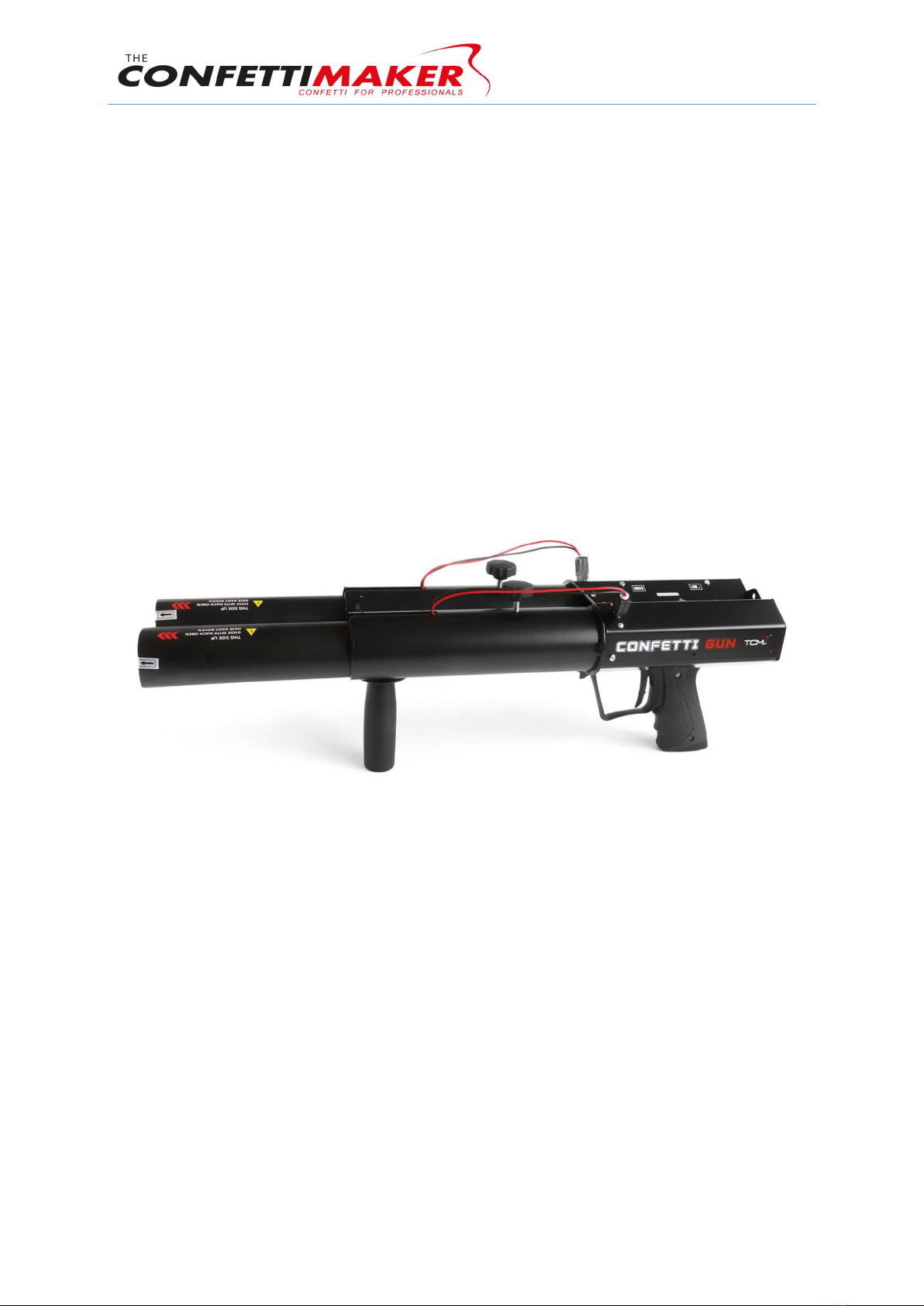

TCMFX Confetti Gun
Article : TCMFX Confetti Gun
Product Code : TCM344
Version : 1.0
Date : 18-07-2017

User documentation The Confetti Maker FX Ⓡ
Foreword
Thank you for purchasing the TCMFX Confetti Gun.
The Confetti Maker is manufacturer of biodegradable, colorfast and fireproof confetti
products and special effects.
The products we manufacture are used for various events, such as concerts, opening
ceremonies, sporting events and theater show productions. With our products your party
is guaranteed to be a great success.
“We create experiences”
This manual describes the TCMFX Confetti Gun.
All information in this manual is important for the safe and proper functioning of the
TCMFX Confetti Gun.
Please read the manual carefully if you are not familiar with this device.
The Confetti Maker wishes you lots of fun with your purchase!
© Copyright 2017 The Confetti Maker FX®. This manual and its content is copyright of
the Confetti Maker FX®. All rights Reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
including photocopying and recording without the written permission of the copyright
holder.
The Confetti Maker Reserves the right to make any changes without direct knowledge of
the customer.
Please contact your supplier for additional information regarding maintenance and
repair.
This user manual has been written with care and attention to detail; however, should you
find any errors or omissions, please contact your supplier and inform them of your
findings.
Please be aware that The Confetti Maker FX® shall not be held liable by the user for any
damages, losses or third party claims arising from any uses of this product.

User documentation The Confetti Maker FX Ⓡ
General Safety
WARNING!
Read the manual carefully before using the TCMFX Confetti Gun.
The Confetti Maker ® is not liable for injury, damage and / or excessive wear
resulting from improper maintenance, improper use or modifications to the
device.
If you have any questions, issues or problems that do not get discussed in this
guide, please tell your supervisor or call/e-mail the technical support from
The Confetti Maker®.
TCMFX Confetti Gun and the manual may not be modified without permission of
The Confetti Maker®.
In case of damage or problems, always consult The Confetti Maker® as soon as
possible.
DECLARATION OF CONFORMITY
Manufacturer: The Confetti Maker
Product: TCMFX Confetti Gun
We declare that the above products meet the following European directives
and standards:
- Low Voltage Directive 2006/42/EC
- EMC Directive 2004/108/EC
- RoHS Directive 2002/95/EC
Year of Manufacturing: 2017
Name: The Confetti Maker
Place: Rotterdam
Date: 11-07-2017
Director: H. S. Maikoe

User documentation The Confetti Maker FX Ⓡ
Specifications
Output : 12V
Safety : Trigger Safety
Weight : 3Kg
Size : 41 x 13 x 18cm (L x B x H)
Voltage : 230V AC 50/60Hz
Power : 100W
Battery Life : 12 Hours
Confetti Tubes
Electric Confetti Cannons 40cm: Reach 6m
Electric Confetti Cannons 80cm: Reach 12m
Electric Streamer Cannons 40cm: Reach 10m
Electric Streamer Cannons 80cm: Reach 20m

User documentation The Confetti Maker FX Ⓡ
Ideal environmental values
Temperature : 0 – 45 ◦c
Humidity : max. 75%
Keep away from:
- Dust
- Corrosive gasses
- High concentrations of organic gasses.
Power Socket to Powercon cable

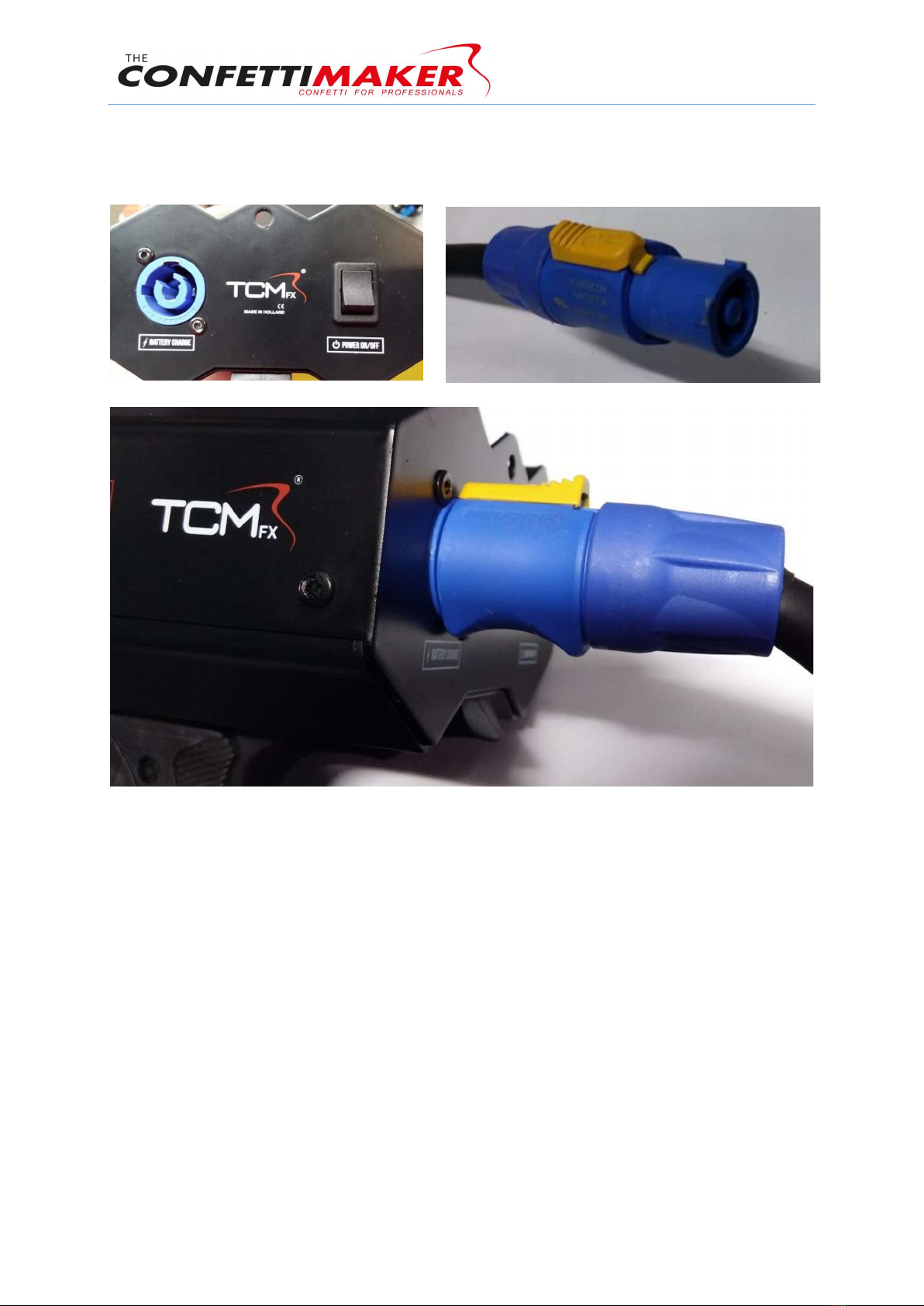

The power socket to Powercon cable functions as a charger for the Confetti gun. Connect the
power plug side to a power socket. Plug the blue Powercon in the blue connector on the back
of the Confetti Gun and turn clockwise until you hear a click.

User documentation The Confetti Maker FX Ⓡ
Turn on the device

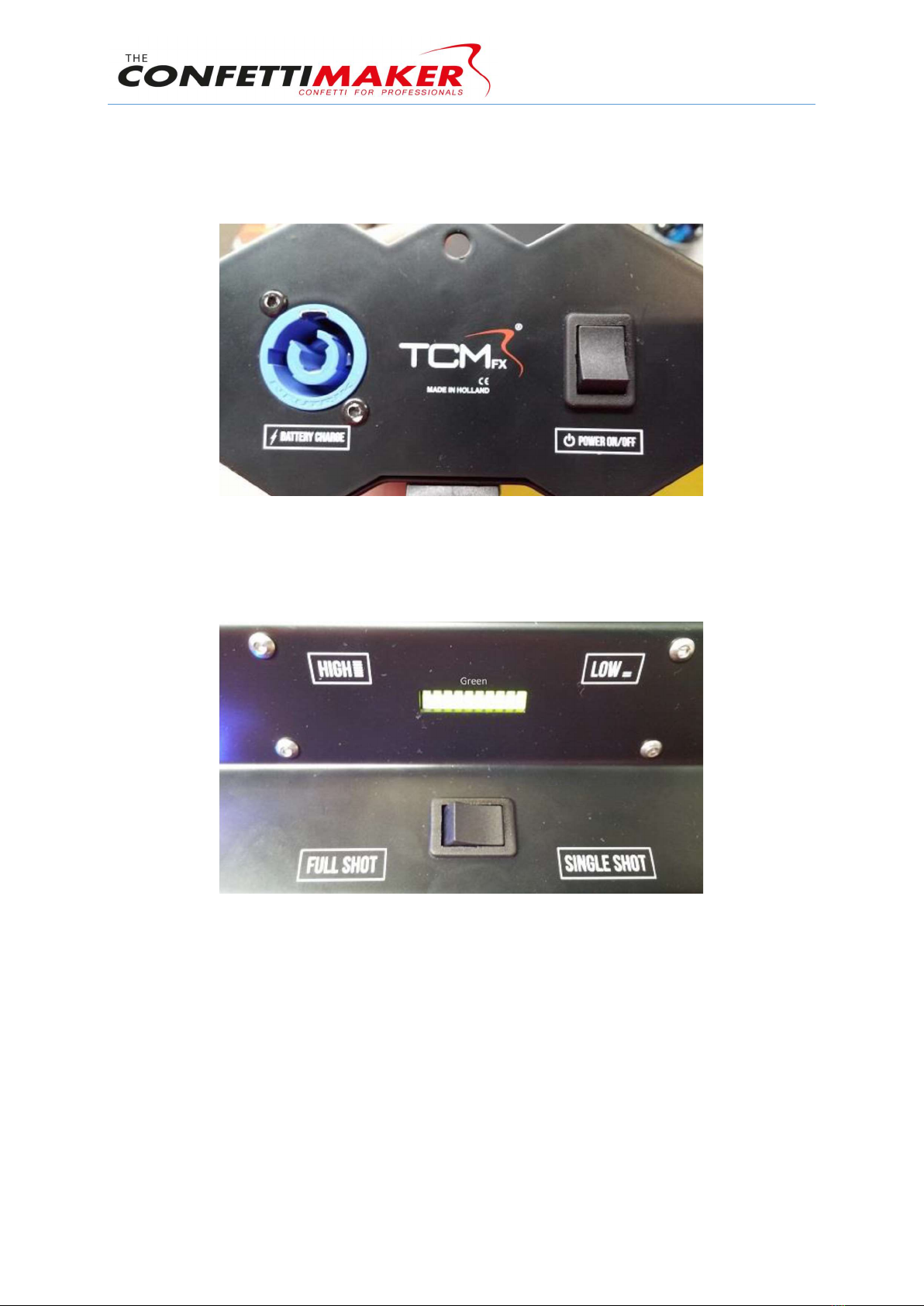

The power switch is located on the back of the Confetti Gun. To power on the Confetti Gun
toggle the switch upwards as shown in the picture below.
When the Confetti Gun is switched on a green bar on the side of the gun should light
up as shown in the picture below.
If the bar on the side of the Confetti Gun does not turn on, please go to the Charging
chapter.
The green bar represents the capacity of the battery in the gun. When fully charged
the Bar will be completely green. When the battery is depleted only the first led on the
bar will flash red.

User documentation The Confetti Maker FX Ⓡ
Charging
The battery in the Confetti Gun can be charged by connecting the Powercon cable to
the connector on the back of the Confetti Gun.
When the LED bar on the side of the gun is completely green, the battery is fully charged.

User documentation The Confetti Maker FX Ⓡ
Connecting a Confetti Tube to the Confetti Gun

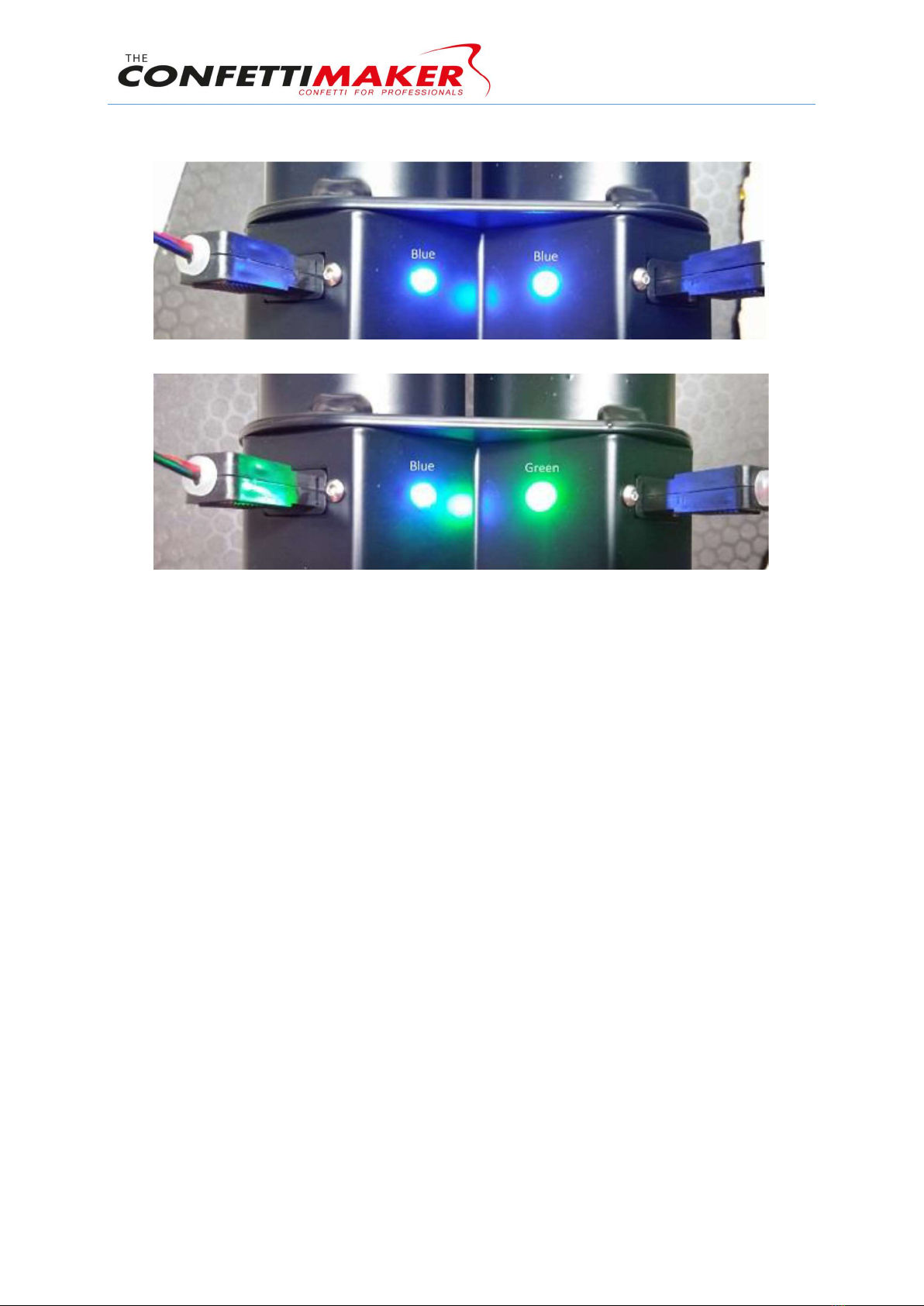

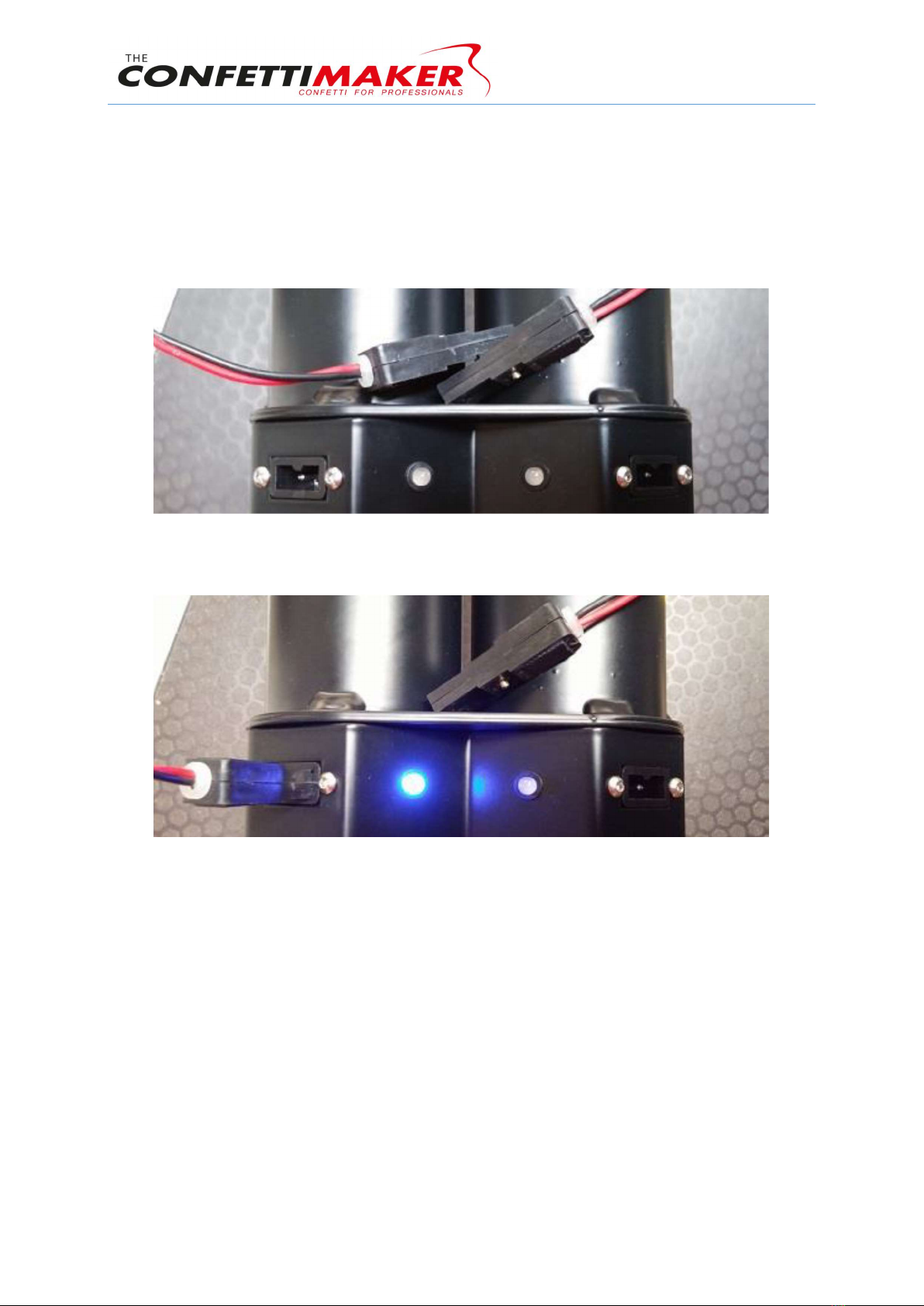

The Confetti Gun can detect if a Confetti Tube is connected to the gun. When a
Confetti Tube is connected a blue indication LED turns on. When two Confetti Tubes
are connected both indication LED’s will turn on. These indication LED’s can be both
blue, or one blue and one green. This depends on the state of the Single/Full shot
switch.
No Confetti Tubes connected
One Confetti Tube connected

User documentation The Confetti Maker FX Ⓡ
Two Confetti Tubes connected

User documentation The Confetti Maker FX Ⓡ

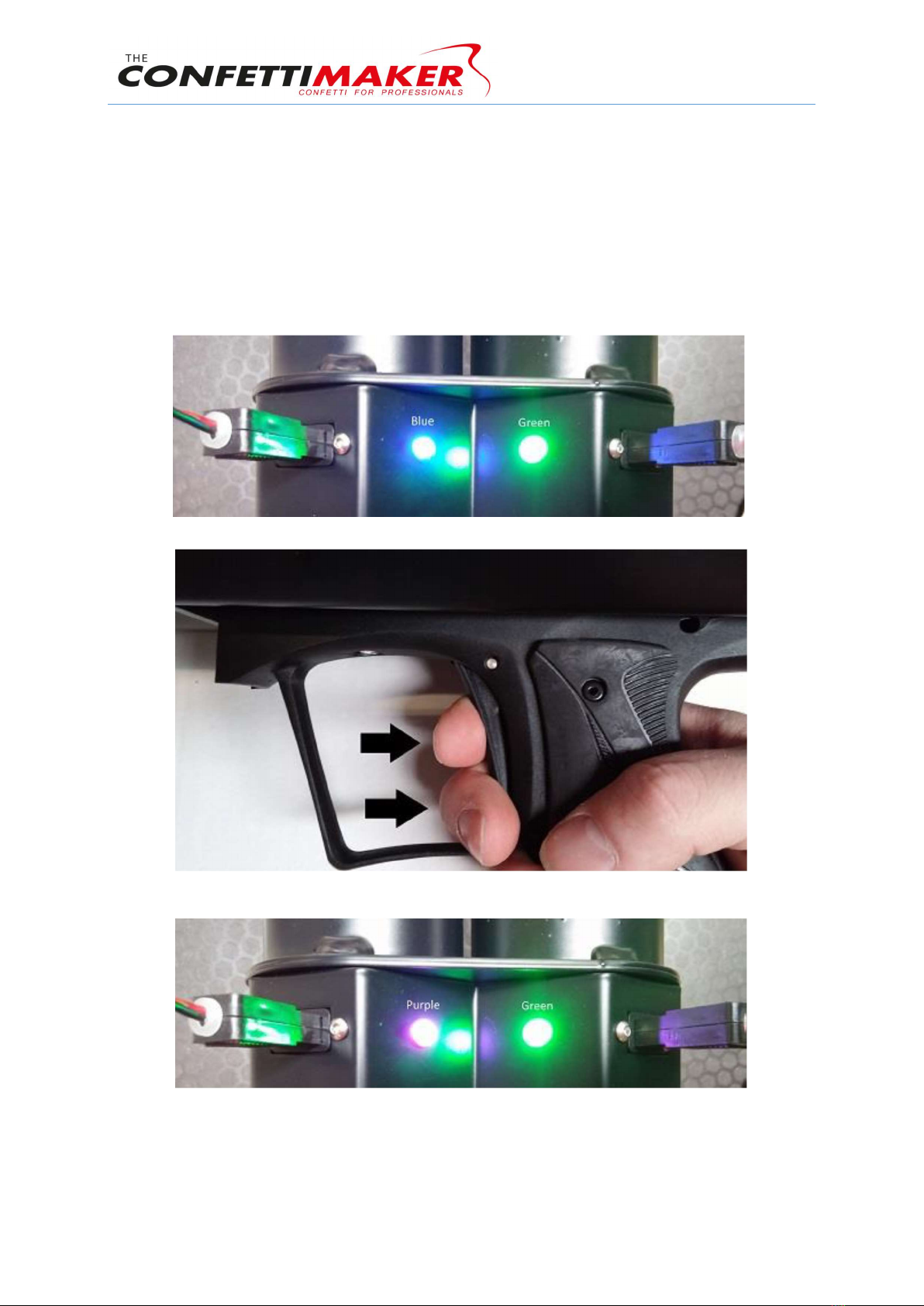

Single Shot
When switching the Single/Full shot switch to Single Shot, the Confetti Gun can fire
one Confetti Tube at a time. You can check the current state of the switch with the
color of the indication LED’s. The Confetti Gun is in a Single Shot state when a blue
and a green LED are ON simultaneously.
Before being able to fire the Confetti Tubes the trigger must be pulled for two seconds
and then released for 2 seconds. This is a build in safety feature to make sure the
Confetti Gun won’t be fired on accident.
Single shot connected mode
Pull the trigger for 2 seconds
Single shot arming mode

User documentation The Confetti Maker FX Ⓡ
Release the trigger for 2 seconds
Single Shot ready to fire
Pull trigger to fire

User documentation The Confetti Maker FX Ⓡ
Full Shot
By setting the Single/Full Shot switch to Full Shot, the Confetti Gun can fire two
Confetti Tubes at the same time. You can check the current state of the switch with
the color of the indication LED’s. The Confetti Gun is in a Full Shot state when two
blue LED’s are ON simultaneously.
Before being able to fire the Confetti Tubes the trigger must be pulled for two seconds
and then released for 2 seconds. This is a build in safety feature to make sure the
Confetti Gun won’t be fired on accident.

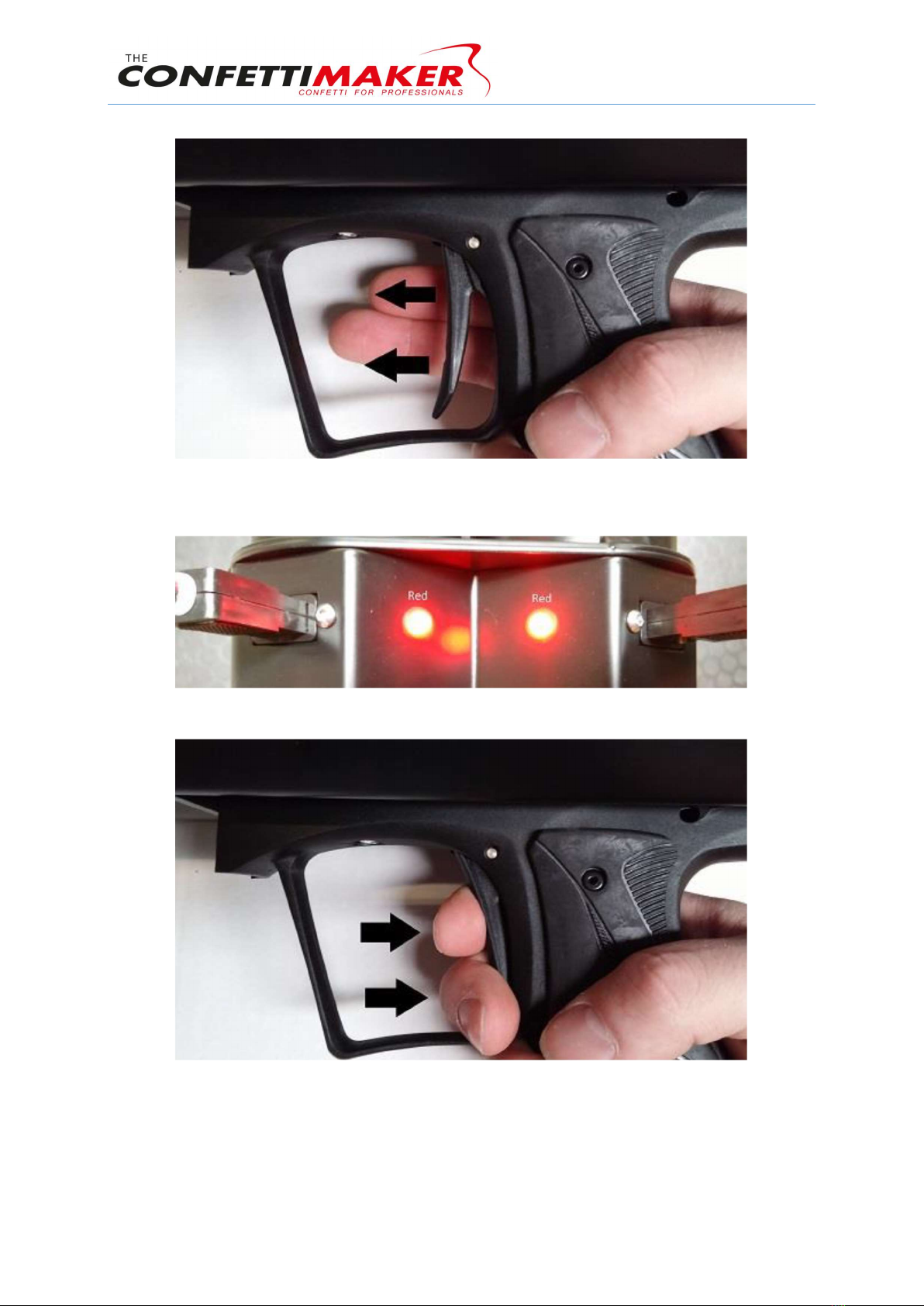

Full Shot connected mode
Pull trigger for two seconds
Full shot arming mode

User documentation The Confetti Maker FX Ⓡ
Release trigger for two seconds
Full Shot ready to fire mode
Pull trigger to fire

User documentation The Confetti Maker FX Ⓡ
Warranty
The Confetti Gun has a 3 year warranty which will be void if the Confetti Gun is
handled differently than described in this manual.
The warranty is void when the Confetti Gun has been opened by anyone other than
the Confetti Maker.
The Confetti maker is not responsible for any paint or hardware damaged as a result
of rough handling.
CAUTION! Always contact your supplier in case of malfunctions.
Never try to repair the Confetti Gun yourself.
WARNING
READ THIS DOCUMENT BEFORE INSTALLING OR USING Confetti Gun
IMPROPER SELECTION, IMPROPER USE, USE BY ANYONE OTHER THAN TRAINED
USERS HAVING APPROPRIATE TECHNIAL EXPERTISE OF THE Confetti Gun CAN
CAUSE DAMAGE TO EQUIPMENT OR PROPERTY.
This document and other information from the Confetti Gun , its subsidiaries and authorized
distributors together only provide product installation guidelines and product or system usage options,
each of which are intended to operate in conjunction with further investigation by trained users having
appropriate technical expertise to facilitate the safe handling and use of the Confetti Gun.
The Confetti Gun is not intended to be used or handled by any users other tan trained users having
appropriate technical expertise. The information and documentation contained in our catalog and on
the website, www.theconfettimaker.com, is only provided for technical illustration purposes only and
may not be used or relied upon as a statement of suitability for use in any particular application. Users,
through their own analysis and testing, are solely responsible for assuring that the Confetti Gun is used
in a safe and intended manner with all performance, endurance, maintenance, safety and warning
requirements necessary for safe application being met.
