Connect Tech PSG013 User manual

Connect Tech Inc. Tel:[phone]
42 Arrow Road Toll: 800-426-8979 (North America only)
Guelph, Ontario Fax:[phone]
N1K 1S6 Email:[e-mail]
www.connecttech.com suppo[email protected]m
CTIM-00428 Revision 0.00 –Sept. 16, 2014
Xtreme/PSU-UC
Users Guide

Connect Tech Xtreme/PSU-UC User Manual
Revision 0.00
2
Copyright Notice
The information contained in this document is subject to change without notice. Connect Tech
Inc. shall not be liable for errors contained herein or for incidental consequential damages in
connection with the furnishing, performance, or use of this material. This document contains
proprietary information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated to another language without the prior
written consent of Connect Tech Inc.
Copyright

2013 by Connect Tech Inc.
Trademark Acknowledgment
Connect Tech Inc. acknowledges all trademarks, registered trademarks and/or copyrights
referred to in this document as the property of their respective owners.
Not listing all possible trademarks or copyright acknowledgments does not constitute a lack of
acknowledgment to the rightful owners of the trademarks and copyrights mentioned in this
document.

Connect Tech Xtreme Xtreme/PSU-UC User Manual
Revision 0.00
3
Table of Contents
Xtreme/PSU-UC............................................................................................................................................................... 1
Copyright Notice............................................................................................................................................................... 2
Trademark Acknowledgment............................................................................................................................................ 2
Table of Contents.............................................................................................................................................................. 3
Revision History............................................................................................................................................................... 3
Customer Support Overview............................................................................................................................................. 4
Contact Information.......................................................................................................................................................... 4
Introduction....................................................................................................................................................................... 6
Detailed Technical Specifications..................................................................................................................................... 7
Board Diagram.................................................................................................................................................................. 8
.......................................................................................................................................................................................... 8
Functional Block Diagram................................................................................................................................................ 8
Part Number Information.................................................................................................................................................. 8
Hardware Installation.......................................................................................................................................................10
Input Power......................................................................................................................................................................11
Input Power Circuit Diagram..............................................................................................................11
Technical Specifications......................................................................................................................11
Input Power Connector Pinout ............................................................................................................11
Output Power...................................................................................................................................................................12
Technical Specifications......................................................................................................................12
Output Power Connector Pinout..........................................................................................................12
Configuration Jumpers.....................................................................................................................................................13
J1: Charge Voltage Control Jumper.....................................................................................................13
RS-232 Connector Pinout (P4) .......................................................................................................................................13
External Module Charging...............................................................................................................................................14
Remote ON/OFF Functionality........................................................................................................................................14
Turn Supply ON.................................................................................................................................14
Turn Supply OFF ...............................................................................................................................15
Software Interface............................................................................................................................................................16
RS-232..............................................................................................................................................16
USB..................................................................................................................................................16
Power Sequencing Details ...............................................................................................................................................17
Detailed Specifications and Derating Graphs ..................................................................................................................18
Revision History
Revision
Date
Author(s)
Change(s)
0.00
2014-09-16
RC
Initial Manual Revision Created

Connect Tech Xtreme/PSU-UC User Manual
Revision 0.00
4
Customer Support Overview
If you experience difficulties after reading the manual and/or using the product, contact the
Connect Tech Inc. reseller from which you purchased the product. In most cases the reseller can
help you with product installation and difficulties.
In the event that the reseller is unable to resolve your problem, our highly qualified support staff
can assist you. Our support section is available 24 hours a day, 7 days a week on our website at:
www.connecttech.com/sub/support/support.asp. See the contact information section below for
more information on how to contact us directly. Our technical support is always free.
Limited Warranty
Connect Tech Inc. provides a 90 Day Warranty for this product. Should this product, in Connect Tech
Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its
option, repair or replace this product at no charge, provided that the product has not been subjected to
abuse, misuse, accident, disaster or non-Connect Tech Inc. authorized modification or repair.
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business
partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must
be pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on
the outside of the package and sent prepaid, insured and packaged for safe shipment. Connect Tech Inc.
will return this product by prepaid ground shipment service.
The Connect Tech Inc. Warranty is only valid over the serviceable life of the product. This is defined as the
period during which all components are available. Should the product prove to be irreparable, Connect
Tech Inc. reserves the right to substitute an equivalent product if available or to retract the Warranty if no
replacement is available.
The above warranty is the only warranty authorized by Connect Tech Inc. Under no circumstances will
Connect Tech Inc. be liable in any way for any damages, including any lost profits, lost savings or other
incidental or consequential damages arising out of the use of, or inability to use, such product.

Connect Tech Xtreme Xtreme/PSU-UC User Manual
Revision 0.00
5
Contact Information
We offer three ways for you to contact us:
Mail/Courier
You may contact us by letter at: Connect Tech Inc.
Technical Support
42 Arrow Road, Guelph, ON
Canada N1K 1S6
Email/Internet
You may contact us through the Internet. Our email and URL addresses on the Internet are:
[email protected]m
[email protected]m
www.connecttech.com
Note:
Please go to the Download Zone or the Knowledge Database in the Support Center on the
Connect Tech Inc. website for product manuals, installation guides, device driver software and
technical tips. Submit your technical support questions to our customer support engineers via
the Support Center on the Connect Tech Inc. website.
Telephone/Facsimile
Technical Support representatives are ready to answer your call Monday through Friday, from
8:30 a.m. to 5:00 p.m. Eastern Standard Time. Our numbers for calls are:
Telephone: [phone] (North America only)
Telephone: [phone] (Live assistance available 8:30 a.m. to 5:00 p.m. EST, Monday to
Friday)
Facsimile: 519-836-4878 (online 24 hours)

Connect Tech Xtreme/PSU-UC User Manual
Revision 0.00
6
Introduction
Connect Tech’s Xtreme/PSU-UC is a high efficiency, high powered PC/104 form factor power supply with extended
temperature capabilities. Xtreme/PSU-UC is a highly reliable power supply which provides 154W of total output power
with +5V, +3.3V, +12V, -12V and +5V-Standby output voltages. It can be used as a stand-alone power supply to
power any other embedded system, or used directly to power any PCI-104 stack or single board computer (SBC). The
Xtreme/PSU-UC has a wide input voltage range that accepts +9V to +36V DC and is specifically designed for use in a
broad range of rugged applications including military, industrial, and air and ground vehicles. Xtreme/PSU-UC can be
used in combination with Connect Tech’s stackable CPU and expansion boards for a total design solution.
In addition to the power supply capabilities, the Xtreme/PSU-UC also has the ability to charge, monitor and switch
from main supply to a backup SMART battery, providing transparent backup power to all voltage outputs. The
Xtreme/PSU-UC is a Level 2 SMART battery charger and works with all SMART batteries, supporting charge voltages
up to +16V and charging current up to 4A.
ESD Warning
Electronic components and circuits are sensitive to
ElectroStatic Discharge (ESD). When handling any circuit
board assemblies including Connect Tech COM Express
carrier assemblies, it is recommended that ESD safety
precautions be observed. ESD safe best practices include,
but are not limited to:
Leaving circuit boards in their antistatic packaging
until they are ready to be installed.
Using a grounded wrist strap when handling circuit
boards, at a minimum you should touch a grounded
metal object to dissipate any static charge that may
be present on you.
Only handling circuit boards in ESD safe areas,
which may include ESD floor and table mats, wrist
strap stations and ESD safe lab coats.
Avoiding handling circuit boards in carpeted areas.
Try to handle the board by the edges, avoiding
contact with components.

Connect Tech Xtreme Xtreme/PSU-UC User Manual
Revision 0.00
7
Detailed Technical Specifications
Specification
Details
Dimensions
3.550” x 3.775” (90mm x 96) PC/104 Compliant
Fully meets the PC/104 component height requirements
Download 3D Model Files (Click Here) - .step model files
Input Voltage Range
+9V to +36V DC
Input Suppression Diode and Series Fuse and Reverse Polarity Input Protection
15A fused maximum power draw protection
+5V Output
10A (50W) maximum
1% Output regulation accuracy
<50mV p-p ripple at full load.
Output Current Limiting Protection
Output Overvoltage Protection
Remote ON/OFF control via SHUTDOWN# switch, USB UART and RS-232.
+12V Output
5A (60W) maximum
1% Output regulation
<40mV p-p ripple at full load.
Output Current Limiting Protection
Output Overvoltage Protection
Remote ON/OFF control via SHUTDOWN# switch, USB UART and RS-232.
+5V Standby Output
1A (5W) maximum
1% Output regulation accuracy
<15mV p-p ripple at full load.
Current limiting protected
Ultra Capacitors
11x 10F Ultracapacitors in series –0.909 farads
Energy Capacity - 262 joules
Expansion capabilities for the addition of external modules
Operating
Temperature
-40 to +85 Degrees Celsius
See derating section for full details on current consumption vs. input voltage.
Warranty and
Support
90 Day Product Warranty
Free Technical Support

Connect Tech Xtreme/PSU-UC User Manual
Revision 0.00
8

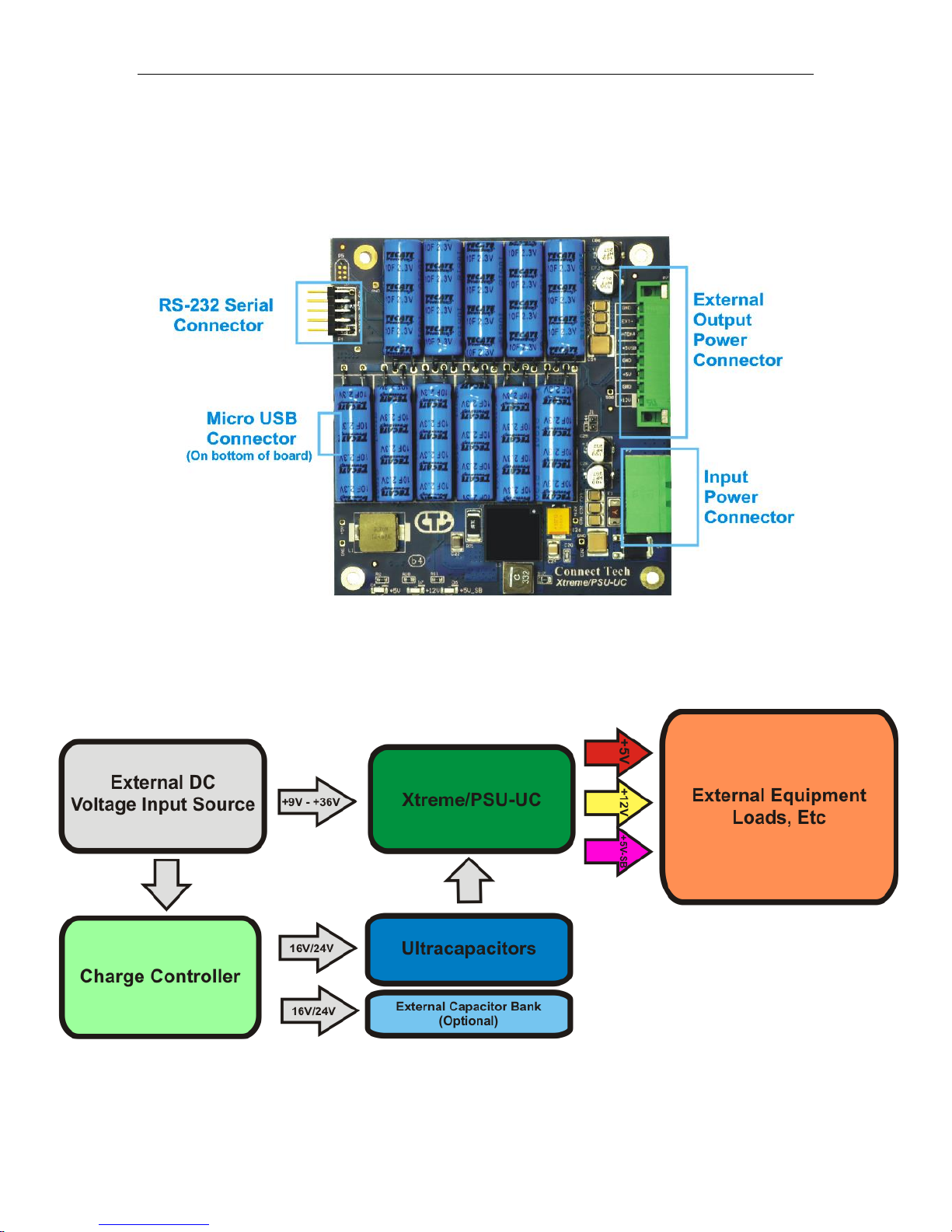

Board Diagram
Functional Block Diagram

Connect Tech Xtreme Xtreme/PSU-UC User Manual
Revision 0.00
9
Part Number Information
Part Number
Features
Board Image
PSG013
-+5V @ 10A, +12V @ 5A, +5VSB @ 1A
Other available ordering options:
5V or 12V output only build option available
Aluminum caps removed/replaced for vacuum application
To order any of these part numbers or to inquire about the other available ordering options please contact
[email protected]m for further information.

Connect Tech Xtreme/PSU-UC User Manual
Revision 0.00
10
Hardware Installation
The Xtreme/PSU-UC can be installed into a PC/104 stack to provide power to the stack through its external
power connector. The Xtreme/PSU-UC can also be used as a stand-alone embedded power supply to
provide power to any other piece of equipment or embedded SBC.
To install the Xtreme/PSU-UC in your system please follow these steps:
1. Ensure your DC input power is OFF (+9V to +36V)
2. Install standoffs into system
3. Insert Xtreme/PSU-UC onto stack (bottom, middle or top).
4. Ensure board is bolted/screwed into stack
5. Connect any external power connections to the Xtreme/PSU-UC’s External Power Connector
6. Connect input power connection to the Xtreme/PSU-UC’ Input Power Connector
*** WARNING: NEVER PLUG IN A LIVE CONNECTION TO THE INPUT POWER ***
7. Power on input power to power up the system.
