ConServ RF 1012 DC S User manual

Model - RF 1012 DC S
REFRIGERATOR-FREEZER
Read the instructions carefully and keep for future reference
OWNER’S MANUAL
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

blocking ventilation
using solvents
Mishandling e.g. breakage of door handle or shelves
Conserv Appliances
10222 Georgibelle Drive, Suite 200
Houston, TX 77043-5249
Conserv Appliances undertakes to the consumer-owner to repair or, at our option, to replace any part of
this product which proves to be defective in workmanship or materials under normal personal, family or
household use, in the USA and Canada, for a period of one year from the date of original purchase.
For commercial use, the product is warranted for a period of 90 days. During this period, we will provide
all labor and parts necessary to correct such defect, free of charge, if the appliance has been installed
and operated in accordance with the written instructions with the appliance. Ready access to the
appliance, for service, is the responsibility of the consumer-owner. Service would be provided from
Monday to Friday between normal business hours.
In no event shall Conserv Appliances be liable for incidental or consequential damages or for
damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This
warranty does not cover service calls which do not involve defective workmanship or materials covered
by this warranty. Accordingly, diagnosis and repair costs for a service call which does not involve
defective workmanship or materials will be the responsibility of the consumer-owner.
Most work is covered. The defining factor is, has the machine malfunctioned (Conserv Appliances is
responsible) or has the customer omitted or done something to cause the machine to malfunction
(customer is responsible). Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation of exclusion may not apply to you.
Specifically, the following work is not covered under warranty and does not constitute warranty
work
Since it is the responsibility of the consumer-owner to establish the warranty period by verifying the
original purchase date, Conserv Appliances recommends that a receipt, delivery slip or some other
appropriate payment record be kept for that purpose.
This warranty gives you specific legal rights, and you may also have other rights which vary from
State to State.
1-800-776-3538
-
1. Open Smart Phone
2. Open Photo
3. Scan QR Code
4. Click the Link
You can register you Warranty by either of the following methods:
2. Online at: ApplianceDesk.com/Warranty
1. Scan the QR Code
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

State of California Proposition 65 Warnings:
WARNING:This product contains one or more chemicals known to the State of California to cause cancer.
WARNING:This product contains one or more chemicals known to the State of California to cause birth defects or
other reproductive harm.
Do not puncture or damage refrigerant tubing.
Safe Disposal
Before discarding the refrigerator, remove doors and shelves in order to prevent risk
of child entrapment.
U
Use a dedicated power outlet and a three prong power socket, that is properly
grounded.
Do not use the power cord or plug if it is damaged.
When removing the power plug, do not pull on the cord. Grasp the plug firmly and pull
it out from the socket.
Unplug the unit first when doing maintenance or repair and when replacing the light bulb.
Keep ventilation openings free of obstructions.
Dispose off this appliance in accordance with local regulations.
Do not use extension cords or ungrounded two prong adapters.
This appliance is not intended for use by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not
play with the appliance.
Customer Service.
Do not put acid or flammable or volatile materials inside the appliance.
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

The refrigerator can be operated with a 12V DC voltage supply.
98.5"
157.5"
236.2"
393.7"
196.8"
315"
472.4"
787.4"
Check the voltage specification on the data plate to make sure
it is the same as the power supply.
To avoid voltage drops and loss of performance, keep the connection
cable as short as possible and directly connected from the power
source to the DC wire connection of the unit. Therefore avoid additional
switches, plugs or power strips.
When connecting to DC power supply, the circuit shall be protected
by fuses with maximum of 15 Amps, the red cable of the DC power
supply connects to the positive pole of the battery and the white cable
connects to the negative pole of the battery.
It is recommended that the cable length should not exceed 2 meters
2
and the cross section of the cable should not be less than 2mm .
Please check the following ross section it the cable exceeds 2 meters
long.
Disconnect the cooling device and all power source connections from
the battery before you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
To protect the battery, the refrigerator switches off automatically if the
voltage is insufficient (see below table).
Power Supply
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

1. Open the refrigerator and freezer doors 120˚ or more
2. Unscrew and remove the control panel box
3. Disconnect the wiring harness
4. Remove the base plate
5. Remove the control panel
6. Rotate the control box 180˚
7. Reinstall the control panel on the control box
8. Screw the control box onto the other side
Reverse the Control Panel Box
Reversing the Doors
The following set of instructions will guide you to reverse the doors.
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Reverse the doors and handles
1. Unscrew and remove the upper hinge pin
2. Pull the door(s) out about an inch and then up to separate from the
bottom hinge pin
3. Remove the handle parts from the door(s)
4. Rotate the door(s) 180˚
5. Reinstall the handle parts to the door on the other side
Remove and Reinstall the Magnet Housing Assembly
1. Unscrew and remove the magnet housing assembly from the refrigerator
door
2. Rotate the door 180˚
3. Reinstall the magnet housing assembly on the other side
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

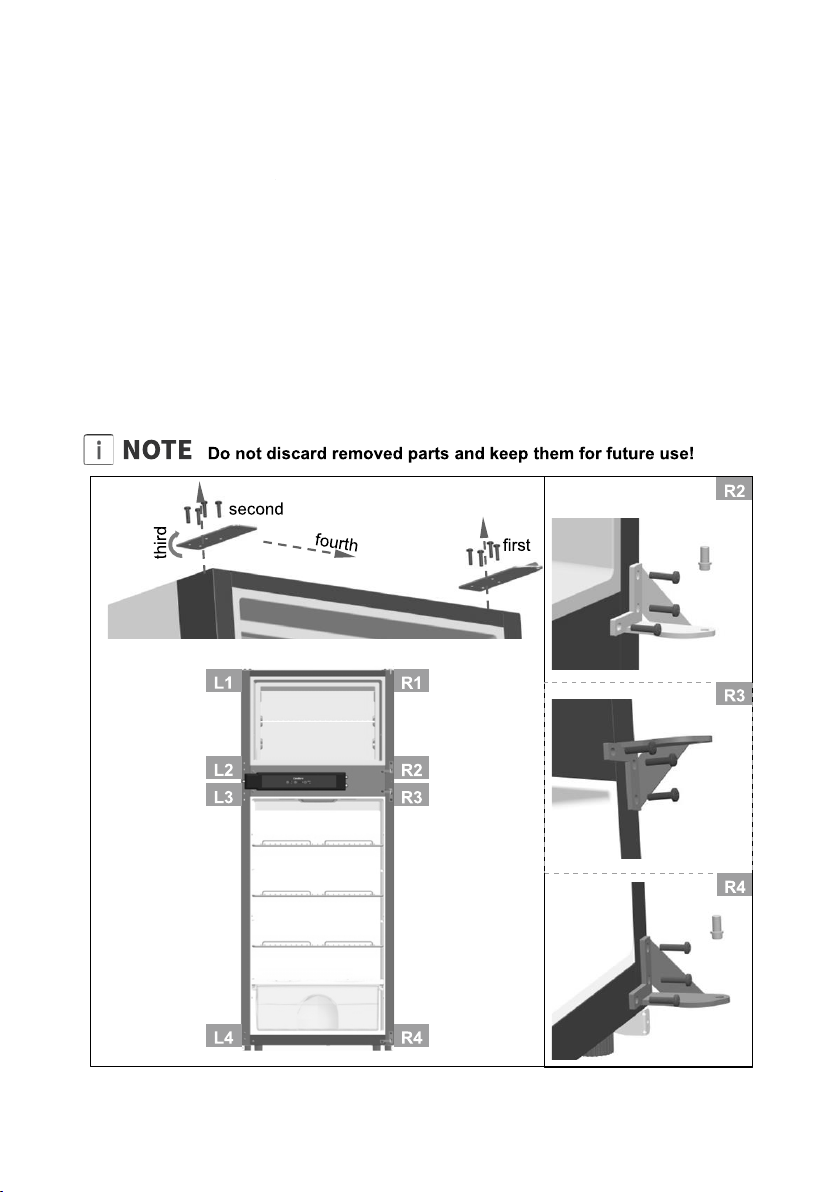

Remove hinges and pins
1. Remove right upper hinge and hinge hole plug
2. Rotate hinge hole plug 180˚ and reinstall in position R1
3. Take left upper hinge from accessory bag and install in position L1
4. Take upper hinge from accessory bag and install in position L2
5. Remove bottom hinge pin from position R2 and reinstall in position L2
6. Remove bottom hinge from position R2 and reinstall in position L3
7. Remove upper hinge from position R3 and reinstall in position L4
8. Remove bottom hinge from position R4 and reinstall in position L4
9. Remove the bottom hinge from position R4
10. Reinstall latch plate in position R2 and R3
11. Reinstall the doors
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Attaching the Refrigerator
1. Connect the Refrigerator drain pipe
2. Open the refrigerator door
3. Place the refrigerator into the desired space
4. Attach the refrigerator using screws and cover the openings
with plugs
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Attaching top and bottom grills
1. Push the top grill into the recess
2. Attach it in place using screws
3. Push the bottom grill onto the mounting bracket
Ensure the ventilation grills are not blocked or covered.
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Press the Power button for 1 second. A beep will sound and all
the indicator lights will illuminate for 10 seconds and then go off,
except for the DC indicator light, which will remain on. It will take a
few moments for the compressor to start working.
Press the Power button for 3 seconds to power off the unit.
A beep will sound and all indicator lights will go off.
Power on

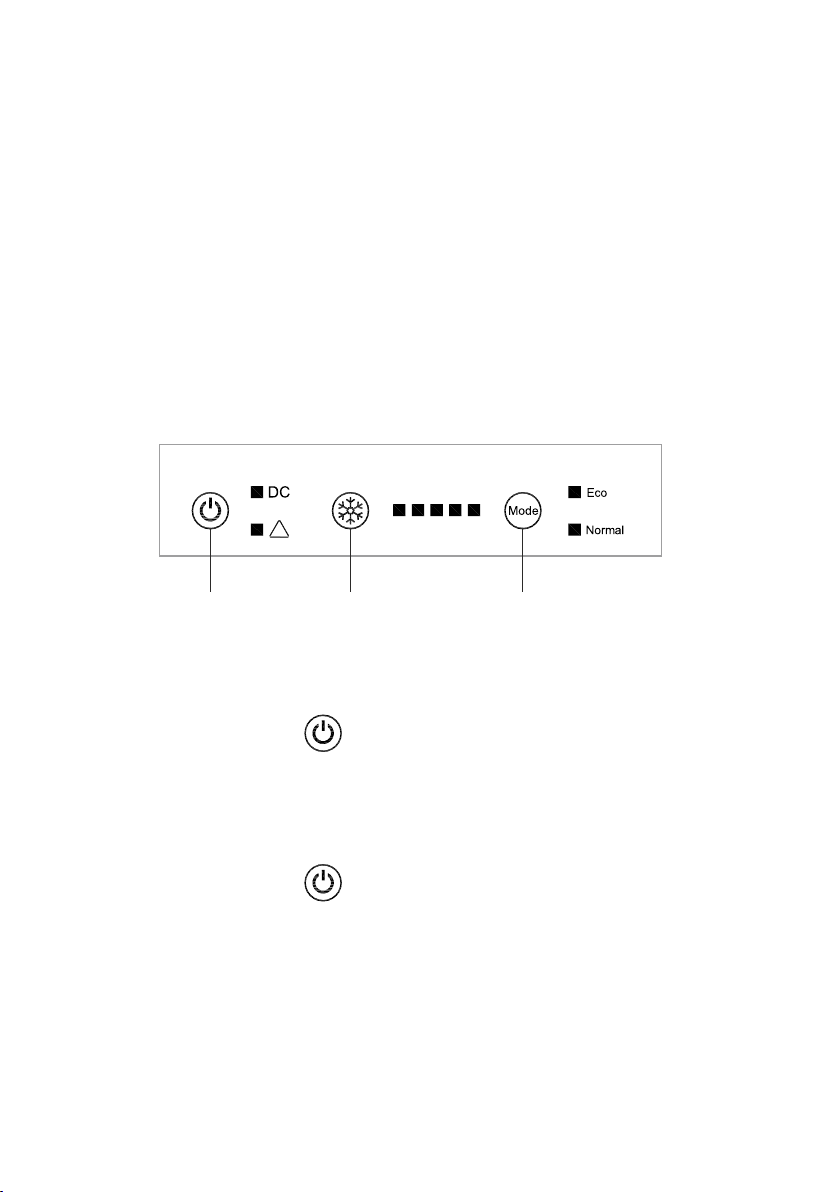

Control Panel
Operation
The appliance is designed to be operated with 12V DC supply.
This refrigerator is made for use in a recreational vehicle.
Place the refrigerator in a well-ventilated place. Maintain space
around and behind the refrigerator, and do not cover or block the
grill on the rear cover plate of compressor at the back of refrigerator.
!
Power Temperature
Setting
Mode
Setting
Let the refrigerator stand upright for 6 hours before turning it on.
Let it cool for 4 hours before putting food in.
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

There are 2 modes of operation – Eco and Normal.
Press the Mode button to select the operation mode.
Eco: The fan and compressor operate at low speed, to reduce
noise.
Normal: The compressor operates at normal speed for normal
cooling.
Mode
Temperature Setting
Press the Temperature Setting button to set the level of cold.
Each time you press this button, the 5 indicator lights to the right
will illuminate, with one light being the least cold and all 5 lights
illuminated showing the coldest setting. 3 lights is the default setting.
After the temperature is set, the indicator light(s) will go off.
Temperatures for each setting are shown in the table below:
Light
Refrigerator o
42.8~50 F o 39.2~46.4 F o 35.6~42.8 F o 32~39.2 F o 28.4~35.6 F
Freezer o
1.4~14 F o -2.2~10.4 F o -4~6.8 F o -5.8~5 F o
-7.6~3.2 F
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

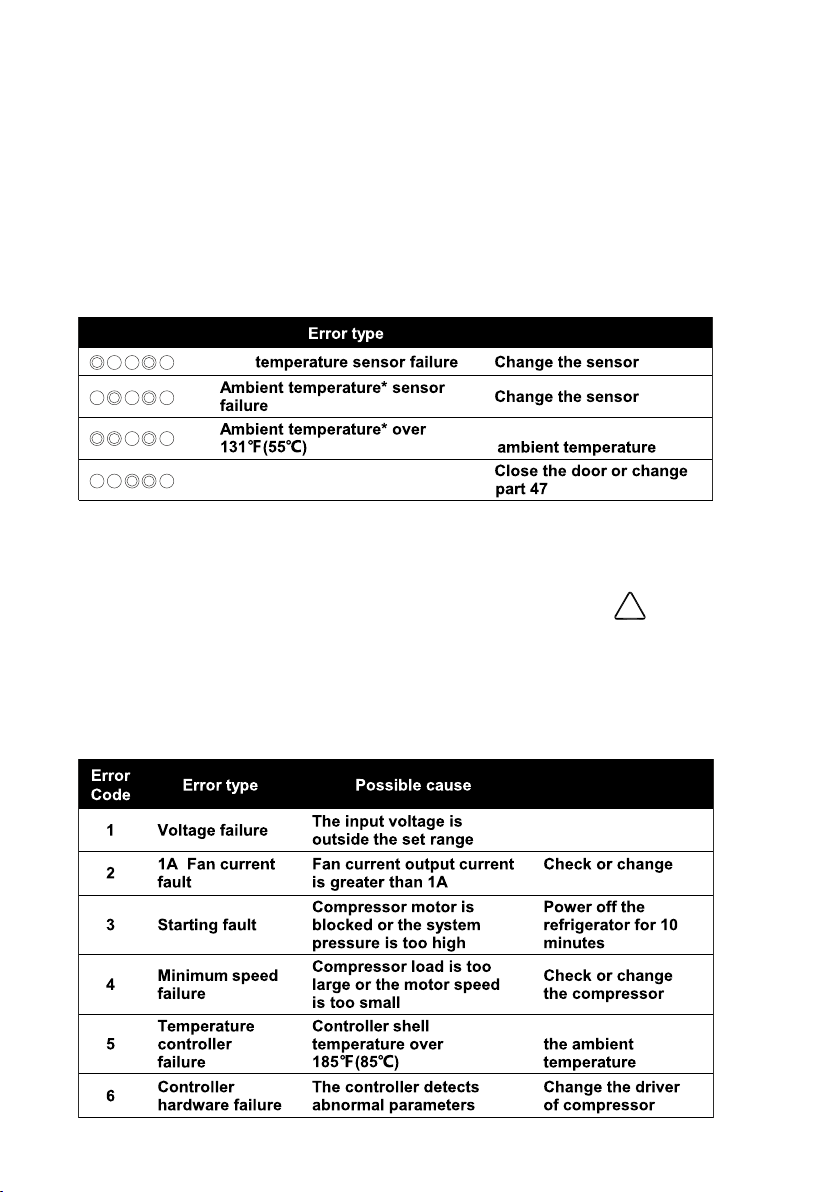

Refrigerator Fault Alarm
If a fault occurs, a beep will sound and the indicator lights will flash in
a specific pattern to diagnose the type of error. The indicator lights
flash 5 times every 5 seconds. If multiple errors occur at the same
time, the lights will display in a loop every 5 seconds. Beeping will
continue until the problem is resolved or any button is touched.
The table below shows the indicator light patterns, the error and
the solution.
Compressor Fault Alarm
If a fault occurs in the compressor, the Warning Light will illuminate.
The light will flash every 3 seconds. The number of times it flashes
corresponds to the error code. The codes, error descriptions, possible
causes and remedies are listed in the table below.
!
Light
Ref
Door not closing
Solution
Ventilate or reduce the
Solution
See section on
Power Supply
Ventilate or reduce
Condenser fan
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Defrosting
When ice builds up at the back wall of the refrigerator or freezer, turn
off the appliance. Let the ice melt and clean the appliance before
turning it on again.
Removing Shelves and Door Bins
To remove shelves, lift the back of the shelf up slightly and pull out.
To remove door bins, lift up 2” and pull out.
Storage

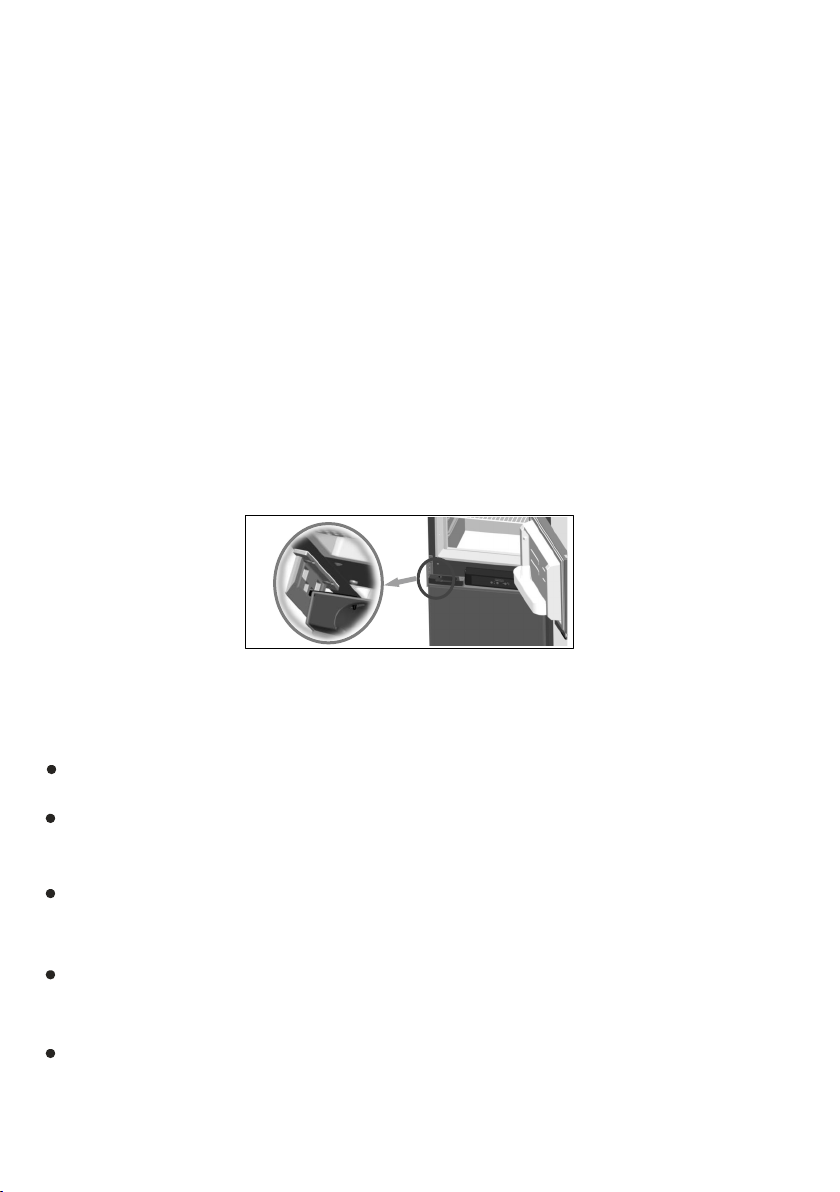

If the refrigerator is not being used for a long period of time, power it
off by disconnecting the DC power supply. Empty, defrost and clean
the appliance and leave the door open for ventilation. Push out the
vent lock on the door handle assembly.
Clean inside, behind and around the refrigerator regularly, using
water and mild detergent, and a damp cloth (not wet).
Clean the door gasket regularly to ensure that the door closes and
seals properly.
Never use boiling water, harsh cleaning chemicals or abrasive
materials.
Always remove all items and unplug the unit before cleaning.
Dry all surfaces thoroughly.
Maintenance
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

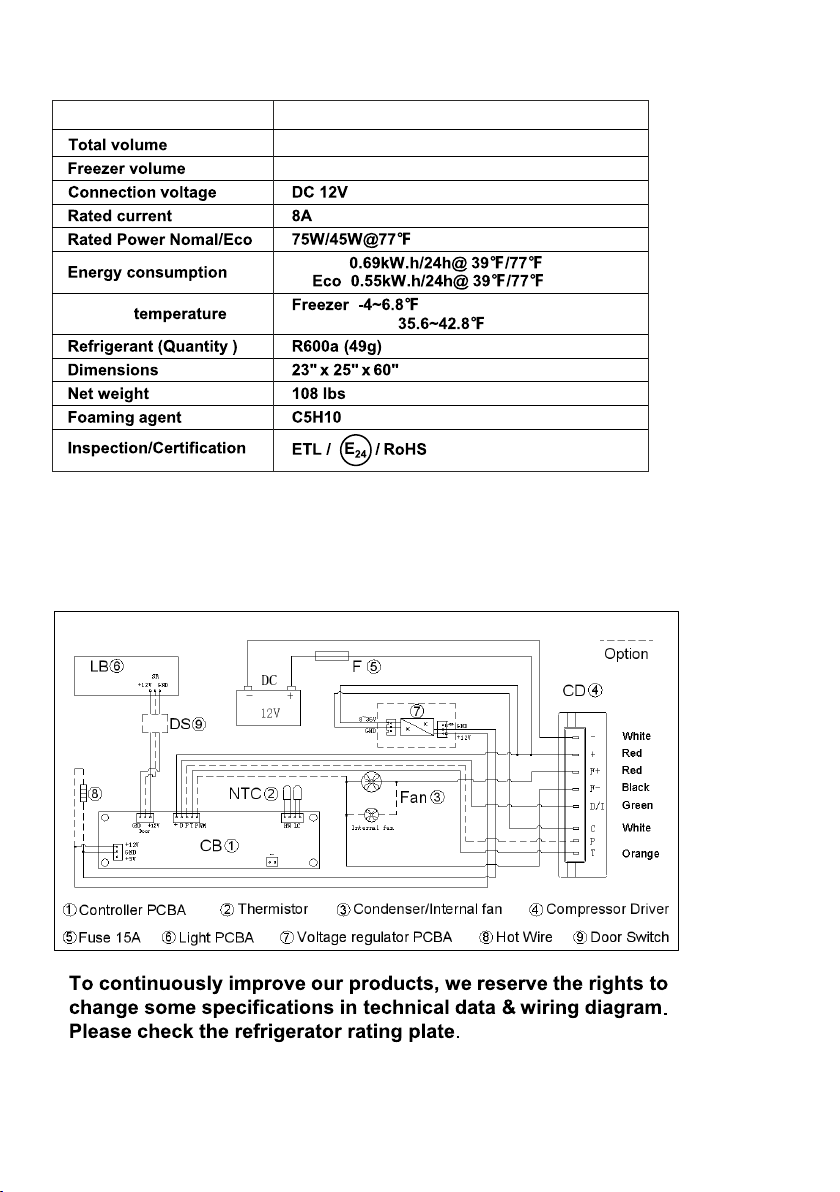

Technical Specifications
Wiring Diagram
9.53 cu. ft.
2.47 cu. ft.
Default Refrigerator
Model No. RF 1012 DC S
Normal
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Troubleshooting
POSSIBLE CAUSEPROBLEM
Doesn’t work
• A fuse may be blown or the circuit breaker tripped
• Plug not fully inserted into the wall outlet
• Temperature setting is too warm
• Door is not shut properly or opened frequently
• Exhaust vent is obstructed
• A large quantity of warm food has been placed in the unit
• Close proximity to heat source or direct sunlight
• Ambient temperature or humidity is very high
Appliance runs continuously • Temperature setting is too cold
• Door not shut properly or opened frequently
• Exhaust vent is obstructed
•
• Close proximity to heat source or direct sunlight
• Ambient temperature or humidity is very high
Internal temperature is too cold • Temperature setting is too cold
Noises • Parts are expanding and / or the refrigerant is circulating;
this is normal
•
•
•
Doors cannot be closed properly •
•
A large quantity of warm food has been placed in the unit
Power is not on or the unit is not connected to power
Low voltage
Floor is not flat, and the unit is not placed in a stable position.
The door is obstructed by items inside the unit.
The door gasket is not providing a good seal.
Heat the gasket with a hair dryer.
Internal temperature not cold
enough
The following phenomenon is normal
A gurgline sound is caused by the refrigerant flowing inside the
system pipe.
While the units runs, heat is emitted from both sides of the cabinet.
When the environment is too humid, the edges around door may
have a little moisture, simply wipe it with dry cloth.
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Cabinet
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Door
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Refrigerator shelf
Cabinet
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

Refrigerator door panel retainer
Refrigerator door panel
Refrigerator door
Refrigerator door bin
o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1

o
41-48.2 F o 46.4-50 F o
46.4-53.6 F o 57.2-60.8 F o Under 59 F o 60.8-71.6 F
1
