Contec SPI-Q6700-LLVA User manual

SPI-Q6700-LLVA
PICMG 1.3 Full-size SBC
User’s Manual
Version 1.0
2012.08

This page is intentionally left blank.

- I -
Index
Table of Contents
Chapter 1 - Introduction....................................................................1
1.1 Copyright Notice ...............................................................2
1.2 Declaration of Conformity ................................................2
1.3 About This User’s Manual ................................................4
1.4 Warning ..............................................................................4
1.5 Replacing the Lithium Battery .........................................4
1.6 Technical Support .............................................................4
1.7 Warranty.............................................................................4
1.8 Packing List .......................................................................5
1.9 Ordering Information ........................................................6
1.10 Specications..................................................................7

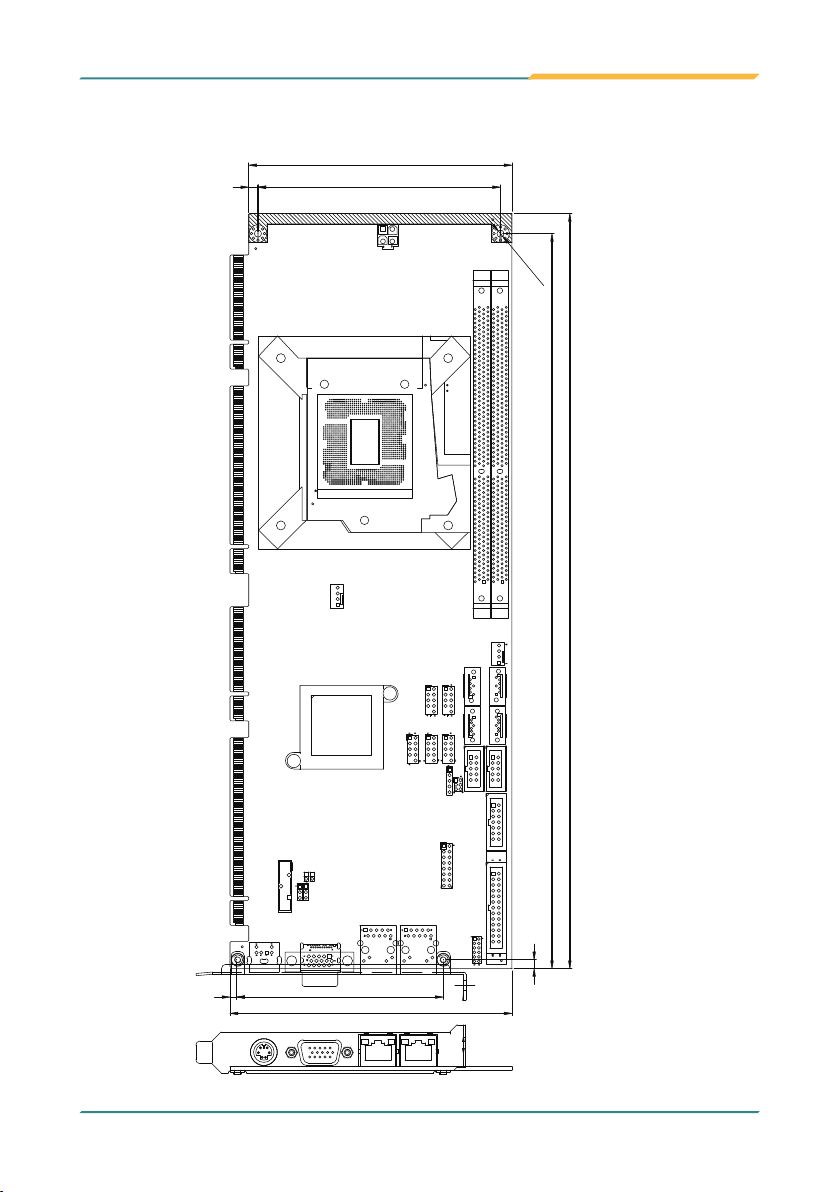

1.11 Board Dimensions...........................................................8

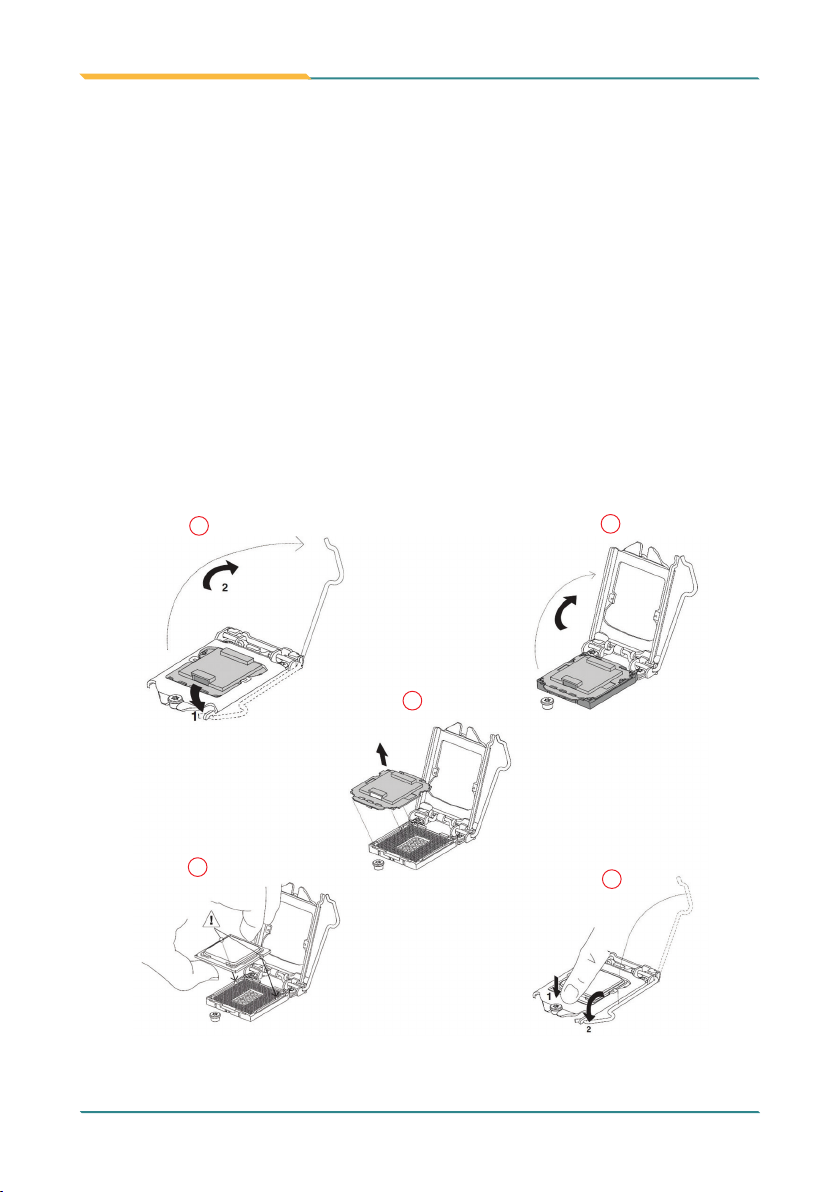

1.12 Installing the CPU ...........................................................9
1.13 Installing the Memory ...................................................10
Chapter 2 - Installation.................................................................... 11
2.1 Block Diagram ................................................................12
2.2 Jumpers and Connectors...............................................13
2.3 Jumpers & Connectors Location...................................14
2.4 Jumpers ...........................................................................15
2.5 Connectors ......................................................................17
2.6 The Installation Paths of CD Driver ...............................27
Chapter 3 - BIOS..............................................................................29
3.1 BIOS Introduction ...........................................................30
3.2 Advanced Settings ..........................................................32
3.2.1 ACPI Settings ................................................................. 33
3.2.2 CPU Conguration......................................................... 34
3.2.3 SATA Conguration ....................................................... 36
3.2.4 Intel®IGD SWSCI OpRegion ......................................... 37
3.2.5 Intel® Trusted Execution Technology Conguration .. 38
3.2.6 USB Conguration......................................................... 39
3.2.7 Super IO Conguration ................................................. 40
3.2.8 H/W Monitor.................................................................... 44
3.3 Advanced Chipset Settings............................................45
3.3.1 North Bridge................................................................... 46
3.3.2 South Bridge ................................................................. 47

- II -
Index
3.3.3 ME Subsystem .............................................................. 50
3.4 Boot Settings...................................................................52
3.5 Security ............................................................................54
3.6 Exit Options .....................................................................55
3.7 Beep Sound codes list....................................................56
3.7.1 Boot Block Beep Codes .............................................. 56
3.7.2 POST BIOS Beep Codes.............................................. 56
3.7.3 Troubleshooting POST BIOS Beep Codes ................ 57
3.8 AMI BIOS Checkpoints ...................................................58
3.8.1 Bootblock Initialization Code Checkpoints............... 58
3.8.2 Bootblock Recovery Code Checkpoints.................... 60
3.8.3 POST Code Checkpoints............................................. 62
3.8.4 DIM Code Checkpoints................................................ 66
3.8.5 ACPI Runtime Checkpoints ........................................ 67
Appendix ..........................................................................................69
Appendix A: I/O Port Address Map......................................70
Appendix B: BIOS Memory Map ..........................................72
Appendix C: Interrupt Request Lines (IRQ)........................74
Appendix D: Digital I/O Setting ............................................75
Appendix E: Watchdog Timer (WDT) Setting ......................81

- 1 -
Introduction
1Chapter 1
Introduction
Chapter 1 - Introduction

- 2 -
Introduction
1.1 Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
1.2 Declaration of Conformity
CE
The CE symbol on your product indicates that it is in compliance with the
directives of the Union European (EU). A Certicate of Compliance is available
by contacting Technical Support.
This product has passed the CE test for environmental specications when
shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from Contec Solution. Please
contact your local supplier for ordering information.
This product has passed the CE test for environmental specications. Test
conditions for passing included the equipment being operated within an
industrial enclosure. In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the
use of CE-compliant industrial enclosure products.
Warning
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:

- 3 -
Introduction
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference
that may cause undesired operation.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
RoHS
Contec Solution Corp. certies that all components in its products are in
compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive
2002/95/EC.
The above mentioned directive was published on 2/13/2003. The main
purpose of the directive is to prohibit the use of lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated
diphenyl ethers (PBDE) in electrical and electronic products. Member states of
the EU are to enforce by 7/1/2006.
Contec Solution Corp. hereby states that the listed products do not
contain unintentional additions of lead, mercury, hex chrome, PBB or PBDB that
exceed a maximum concentration value of 0.1% by weight or for cadmium
exceed 0.01% by weight, per homogenous material. Homogenous
material is dened as a substance or mixture of substances with uniform
composition (such as solders, resins, plating, etc.). Lead-free solder is used for all
terminations (Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).
SVHC / REACH
To minimize the environmental impact and take more responsibility to the
earth we live, Contec Solution hereby conrms all products comply with the
restriction of SVHC (Substances of Very High Concern) in (EC) 1907/2006
(REACH --Registration, Evaluation, Authorization, and Restriction of
Chemicals) regulated by the European Union.
All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- 4 -
Introduction
1.3 About This User’s Manual
This user’s manual provides general information and installation instructions
about the product. This User’s Manual is intended for experienced users and
integrators with hardware knowledge of personal computers. If you are not
sure about any description in this booklet. Please consult your vendor before
further handling.
1.4 Warning
Single Board Computers and their components contain very delicate
Integrated Circuits (IC). To protect the Single Board Computer and its
components against damage from static electricity, you should always follow
the following precautions when handling it :
1. Disconnect your Single Board Computer from the power source when you
want to work on the inside.
2. Hold the board by the edges and try not to touch the IC chips, leads or
circuitry.
3. Use a grounded wrist strap when handling computer components.
4. Place components on a grounded antistatic pad or on the bag that comes
with the Single Board Computer, whenever components are separated
from the system.
1.5 Replacing the Lithium Battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trash-can. It must be disposed of in
accordance with local regulations concerning special waste.
1.6 Technical Support
If you have any technical difculties, please do not hesitate to call or e-mail our
customer service.
1.7 Warranty
This product is warranted to be in good working order for a period of two years
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does

- 5 -
Introduction
1.8 Packing List
Packing List
Before you begin installing your single board, please make sure that the following
materials have been shipped:
1 x SPI-Q6700-LLVA PICMG 1.3 Full-size SBC
1 x Driver CD
1 x Quick Installation Guide
CBK-06-67Q1-00
Cable Kit
1 x RS-232 cable
1 x RS-232/422/485 cable
1 x SATA cable
1 x USB cable w/ bracket
1 x Keyboard & Mouse cable
1 x AUDIO cable
not apply to products damaged by misuse, modications, accident or disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Vendors disclaim all other warranties, either expressed or implied, including
but not limited to implied warranties of merchantability and tness for a
particular purpose, with respect to the hardware, the accompanying product’s
manual(s) and written materials, and any accompanying hardware. This limited
warranty gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.

- 6 -
Introduction
1.9 Ordering Information
SPI-Q6700-LLVA Socket LGA1155 for Intel® Sandy Bridge processor
Full-size SBC with BIOS to support 1 x PCIex4
SPI-Q6701-LLVA Socket LGA1155 for Intel® Sandy Bridge processor
Full-size SBC with BIOS to support 4 x PCIex1
HS-67Q1-C1 Aluminium CPU cooler for Pentium G850
HS-67Q1-C2 Copper CPU cooler for Core-i series
PBPE-07SA 7 slots PICMG 1.3 backplane
PBPE-10SA 10 slots PICMG 1.3 backplane
PBPE-13SA 13 slots PICMG 1.3 backplane
Note:
SPI-Q6700-LLVA supports 1 x PCIex4. SPI-Q6701-LLVA supports 4 x PCIex1.
PCIe x4 slot and PCIe x1 slot can’t work at the same time with the same BIOS
version. Therefore, 2 BIOS versions are required to be applied as following
congurations.
Update BIOS in DOS:
- PCIex1.bat: BIOS set as PCIe x1 enabled.
- PCIex4.bat: BIOS set as PCIe x4 enabled.
If any of the above items is damaged or missing, contact your vendor
immediately.

- 7 -
Introduction
1.10 Specications
Form Factor PICMG 1.3 Full-size SBC
Processor
Socket LGA1155 for Intel 32nm Sandy Bridge
processors (i7-2600 at 3.4GHz, i5-2400 at 3.1GHz,
i3-2120 at 3.3GHz, or Pentium G850 at 2.9GHz)
Chipset Intel® PCH Q67
System Memory 2 x 240-pin Long-DIMM sockets, supporting DDR3
1066/1333MHz, up to 8GB
Graphics Integrated Intel HD Graphics 200
Display 1 x Analog RGB supported, up to 2048 x 1536 @60Hz
Super I/O Fintek F71869ED
BIOS AMI BIOS
Serial ATA
2 x SATA 600MB/s ports,
4 x SATA 300MB/s ports (2 x SATA ports on SBC,
2 x SATA ports through GF to Backplane)
Support RAID 0, 1, 5, 10
Ethernet 2 x Intel 82583V PCIe GbE controllers
USB 2.0 14 x USB 2.0 ports: 10 x ports by pin-header, 4 x ports
to GF
Serial Port 2 x COM ports: COM1 RS-232, COM2 RS-232/422/485
selectable
Parallel Port SPP/EPP/ECP mode
Digital I/O 8-bit programmable digital I/O
Keyboard/
Mouse
One 6-pin Mini-DIN connector for keyboard and mouse
(PS/2 standard via Y-cable)
Audio HD Audio Codec ALC886, Line-in/ Line-out/MIC
Expansion Bus Standard SHB Express
Power Connector 4-pin ATX 12V type and ATX feature
Certication CE/FCC
Operation Temp. 0oC ~ 60oC (32oF ~ 140oF)
Humidity 0% ~ 95% non-condensing
Dimension (L x W) 338 x 126 mm (13.3"x 4.96")

- 8 -
Introduction
1.11 Board Dimensions
1
2
9
10
1
2
9
10
12 11
2
1
16 15
2
20
19
2
1
41
2
9
10
9
10
10
9
1
10
9
2
10
9
2 1
10
6
15 11
5 1
6 5
4 3 2 1
26 25
2 1
1
1
1
6
5
2
+ +
3
4
3.44 92.2
4.00
329.58
338.60
4.12 108.77
126.4
118.00
Ø3.2 x Ø8.0
Unit:mm

- 9 -
Introduction
1.12 Installing the CPU
The LGA1155 processor socket comes with a lever to secure the processor.
Please refer to the pictures step by step as below.
1. Push the lever down to unclip it and lift it.
2. Open the load plate.
3. Remove the protective cover from the load plate. Do not discard the protective
cover. Always replace the socket cover if the processor is removed from the
socket.
4. Hold processor with your thumb and index ngers, oriented as shown. Ensure
your ngers align to the socket cutouts. Align the notches with the socket.
Lower the processor straight down without tilting or sliding the processor in
the socket.
5. Close the load plate. Pressing down on the load plate, close and engage
the socket lever.
12
3
5
4

- 10 -
Introduction
To install the Memory module, locate the Memory DIMM slot on the board and
perform as below:
1. Hold the Memory module so that the key of the Memory module align with
those on the Memory DIMM slot.
2. Gently push the Memory module in an upright position and a right way
until the clips of the DIMM slot close to lock the Memory module in place,
when the Memory module touches the bottom of the DIMM slot.
3. To remove the Memory module, just pressing the clips of DIMM slot with
both hands.
Lock Lock
1.13 Installing the Memory

- 11 -
Installation
2Chapter 2
Installation
Chapter 2 - Installation

- 12 -
Installation
2.1 Block Diagram
HiCORE-i67Q1
PICMG 1.3 Socket LGA1155
for Intel®
i3-2120/
i5-2400/
i7-2600
Processor
Intel®
Q67
PCH
Analog R.G.B.
COM1 RS-232,
COM2 RS-232/422/485 selectable
DMI
(x4)
1066/1333 MT/z
Dual Channel DDR3
FDI
VGA
LPC I/F
Fintek
F71869ED
Super I/O
COM1~2 COM1~2
8-bit Digital I/O Digital I/O
Parallel Port LPT 2*13
IrDA IrDA
KB, MS PS/2 KB/ MS
Serial ATA I/F
4 x SATA
Serial ATA I/F
PCIex1
GbE 82583V GbE
Controller
1 x RJ-45
PCIex1
GbE
1 x RJ-45
HD Audio
Link
Line-in/out, MIC ALC886
7.1 Channel
10 x USB 2.0 ports
USB ports
4 x USB ports
2 x 240-pin DDR3
DIMM socket
4 x PCI Masters
PICMG 1.3
PCIe GF
BIOS SPI
4 x PCIex1 Lanes
PICMG 1.3
PCI GF
PICMG 1.3
USB GF
PCIex16 I/F
PICMG 1.3
PCIex16 GF
82583V GbE
Controller
PICMG 1.3
SATA GF

- 13 -
Installation
2.2 Jumpers and Connectors
Jumpers/ Connectors Quick Reference
Connectors
Label Description
AUDIO1 AUDIO Connector
COM1 RS-232 Connector
COM2 RS-232/422/485 Connector
DIO1 Digital I/O Connector
IR1 Infrared Connector
J2, J3, J5, J6 SATA Connectors
J4 LPT Connector
J7 ATX1 2V power Connector
JFAN1~2 Fan Connectors
JFRT1 Switches and Indicators
JUSB1~5 USB Port Connectors
KBM1 Keyboard and Mouse Connector
LAN1~2 Ethernet Connectors
VGA1 Analog RGB Connector
Jumpers
Label Description
JBAT1 Protected RTC Setting
JBAT2 Clear CMOS Setting
JRS1 COM2 RS-232/422/485 Selection

- 14 -
Installation
2.3 Jumpers & Connectors Location
2
9
10
9
10
10
9
1
10
9
2
10
9
2 1
1
1
6
5
2
3
J7
10
4
1 2
1
1
11
2
12
25 26
21
21
1615
1
1
1
1
1
Socket
LGA1155
JFAN2
9
JUSB3
8
JUSB1
7
JUSB2
6
JUSB5
5
JUSB4
4
JFRT1
3
JBAT2
2
JBAT1
1
JFAN1
11
J5
12
J2
13
J6
14
J3
15
DIO1
16
COM2
17
JRS1
18
COM1
19
IR1
20
J4
21
AUDIO1
22
LAN1
23
LAN2
24
VGA1
25
KBM1
26

- 15 -
Installation
JBAT2: Clear CMOS Setting (2)
If the board refuses to boot due to inappropriate CMOS settings here is how
to proceed to clear (reset) the CMOS to its default values.
Connector type: 2.54mm pitch 1x3-pin headers
Pin Mode
1-2 Keep CMOS (Default)
2 31
2-3 Clear CMOS
2 31
You may need to clear the CMOS if your system cannot boot up because you
forgot your password, the CPU clock setup is incorrect, or the CMOS settings
need to be reset to default values after the system BIOS has been updated.
Refer to the following solutions to reset your CMOS setting:
Solution A:
1. Power off the system and disconnect the power cable.
2. Place a shunt to short pin 2 and pin 3 of JBAT1 for ve seconds.
3. Place the shunt back to pin 1 and pin 2 of JBAT1.
4. Power on the system.
Solution B:
If the CPU Clock setup is incorrect, you may not be able to boot up. In this
case, follow these instructions:
1. Turn the system off, then on again. The CPU will automatically boot up us-
ing standard parameters.
2. As the system boots, enter BIOS and set up the CPU clock.
JBAT1: Protected RTS Setting (1)
If the board refuses to boot due to inappropriate CMOS settings here is how
to proceed to clear (reset) the CMOS to its default values.
Connector type: 2.54mm pitch 1x3-pin headers
Pin Mode
1-2 Keep Protected (Default)
2 31
2-3 Clear CMOS
2 31
2.4 Jumpers

- 16 -
Installation
JRS1: COM2 RS-232 / 422 / 485 Selection (18)
Connector type: 2.00mm pitch 2x3-pin headers.
Mode RS-232 (Default) RS-422 RS-485
1-2 Short Open Open
3-4 Open Short Open
5-6 Open Open Short
65
21
65
21
65
21
2
9
10
9
10
10
9
1
10
9
2
10
9
2
1
1
1
6
5
2
3 4
1 2
1
1
11
2
12
25 26
21
21
1615
1 1
1
1
1
Socket
LGA1155
JRS1
2
9
10
9
10
10
9
1
10
9
2
10
9
2
1
1
1
6
5
2
3 4
1 2
1
1
11
2
12
25 26
21
21
1615
1 1
1
1
1
Socket
LGA1155
JBAT1
JBAT2
Note:
If you are unable to enter BIOS setup, turn the system on and off a few times.
