Contec SH-9008AT-POE User manual

Reference Manual
CONTENTS
Industrial 8-port unmanaged Gigabit PoE Ethernet Switching HUB
SH-9008AT-POE
Introduction.................................................................. 4
Safety Precautions...................................................... 9
Product Nomenclature and Function ...............16
Setting Up ...................................................................24
Appendix......................................................................30
Customer Support and Inquiry............................35

- 2 -
Table of Contents
Introduction ......................................................................4
1. Related Manuals......................................................................................................................................................5
2. About the Product..................................................................................................................................................6
3. Features ......................................................................................................................................................................7
4. Product Configuration List ..................................................................................................................................8
Safety Precautions ............................................................9
1. Safety Information...............................................................................................................................................10
2. Handling Precautions.........................................................................................................................................11
1. FCC PART 15 Class A Notice......................................................................................................................13
2. EN55032Class A Notice ..............................................................................................................................13
3. Usage limitation ...................................................................................................................................................14
4. Environment...........................................................................................................................................................15
5. Inspection ...............................................................................................................................................................15
6. Storage.....................................................................................................................................................................15
7. Disposal ...................................................................................................................................................................15
Product Nomenclature and Function........................... 16
1. Nomenclature of Product Components .....................................................................................................17
2. Description of Product Components ...........................................................................................................18
1. LAN Port ...........................................................................................................................................................18

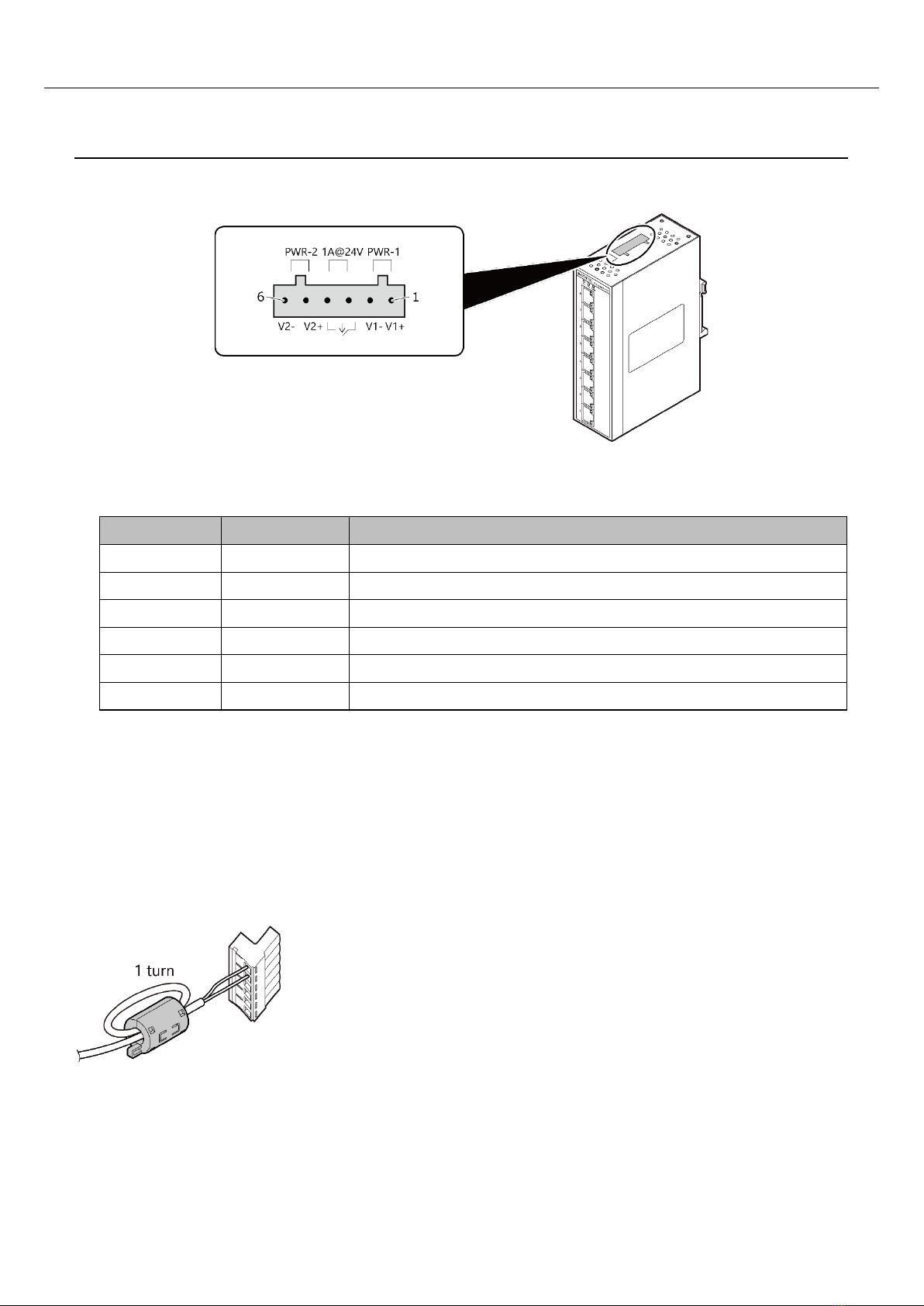

2. Power Supply Connector............................................................................................................................19
3. Power Failure Detection DIP Switch.......................................................................................................20
4. LED Indicator...................................................................................................................................................21
3. Connecting to Network.....................................................................................................................................22
1. Network Cable................................................................................................................................................22
2. Connection Restrictions..............................................................................................................................23
Setting Up....................................................................... 24
1. Power Supplies .....................................................................................................................................................25
2. Installation ..............................................................................................................................................................26
1. Mounting on a DIN rail...............................................................................................................................26
2. Removing from a DIN Rail.........................................................................................................................27
3. Setting on the Wall.......................................................................................................................................28
4. Spacing between the system unit and any surrounding objects...............................................29
Appendix ........................................................................ 30
1. Hardware Specifications....................................................................................................................................31
2. Physical Dimensions ...........................................................................................................................................33

- 3 -
Table of Contents
Customer Support and Inquiry..................................... 35
1. Services ....................................................................................................................................................................36

- 4 -
Introduction
This section provides necessary information of the product
such as the outline, bundled items and manuals before
actual use.

—
Introduction
—
SH-9008AT-POE Reference Manual
- 5 -
1.Related Manuals
The manuals related to the product are listed below.
Read them as necessary along with this document.
Must Read the Following Manuals.
Name
Purpose
Contents
How to get
Product Guide
Must read this after
opening the package.
This lists the product
configuration and describes
the precautions.
Included in the package
(Printed matter)
Reference Manual
(This document)
Read this when operating
the product.
This describes the hardware
aspects such as functions and
settings.
Download from
the Contec
website (PDF)
Download Manuals
Download the manuals accordingly from the following URL.
Download
https://www.contec.com/download/

—
Introduction
—
SH-9008AT-POE Reference Manual
- 6 -
2.About the Product
This product is an 8-port industrial switching HUB which conforms to IEEE802.3ab (1000BASE-T)
/IEEE802.3u (100BASE-TX) /IEEE802.3 (10BASE-T) standard, and it is capable of PoE power supply
based on IEEE802.3af, IEEE802.3at.
By using a LAN cable of category 5 or greater, power can be supplied to PoE devices that conform
to IEEE802.3af and IEEE802.3at.
The functions including jumbo frames, AutoMDI / MDI-X, and auto negotiations are within.
Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime
of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the
product to be operated in the temperature between -35°C and +70°C. The product can be set on
35mm-DIN rail or on the wall with the supplied brackets.
Carefully read this Reference Manual to connect the product with devices and establish the system.

—
Introduction
—
SH-9008AT-POE Reference Manual
- 7 -
3.Features
PoE power supply function based on IEEE802.3af,
IEEE802.3at
Power can be supplied to PoE devices that conform to IEEE802.3af, IEEE802.3at. Up to 30W per port and up to 120W * for all ports can
be powered.
*There is a limit to supply the power depending on the power input voltages.
Eight of 1000BASE-T ports are equipped
The product has eight ports which conform to IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX)/ IEEE802.3(10BASE-T).
Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired.
Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -35 °C and
+70 °C.
Capable of operating in a wide-ranged power inputs,
and features dual power support
The product is capable of operating in a wide range of DC power between 12 and 57VDC. Moreover, dual power supports the product
to continue to work even if one of the power supplies fails. Failures of the power supply can be seen with the LED on the front panel or
the failure detection relay circuit.
DIN rail mounting or Wall installation
With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall.

—
Introduction
—
SH-9008AT-POE Reference Manual
- 8 -

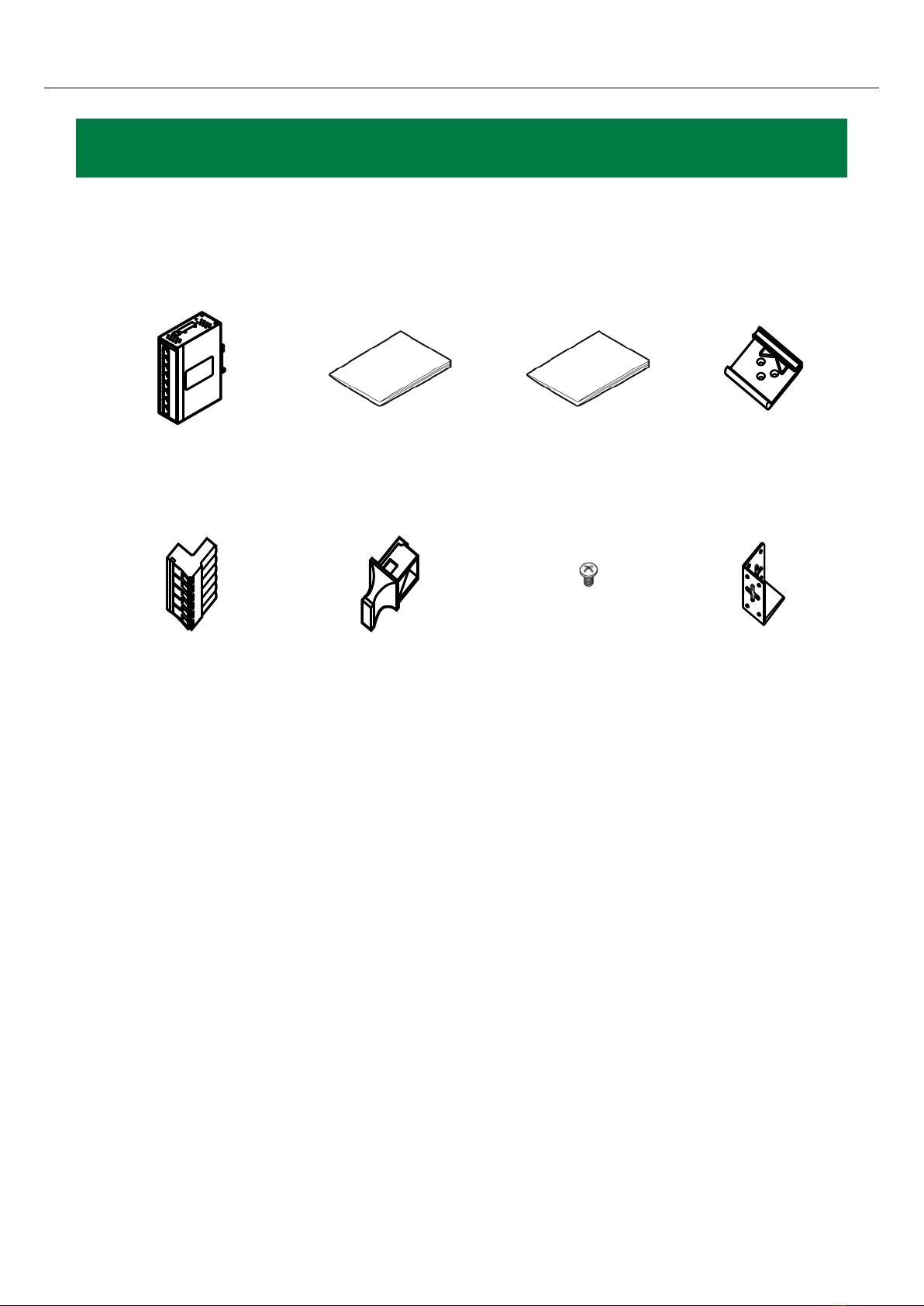

4.Product Configuration List
The product consists of the items listed below.
Check, with the following list, that your package is complete.
If you discover damaged or missing items, contact your retailer.
Product…1
Product Guide...1
Warranty Certificate...1
DIN-Rail Mounting
Bracket...1
(attached to the
product)
Power Connector...1
RJ45 Protection Cap...8
Screw…8
Wall Bracket...2

- 9 -
Safety Precautions
Understand the following definitions and precautions to
use the product safely.
Never fail to read them before using the product.

—
Safety Precautions
—
SH-9008AT-POE Reference Manual
- 10 -
1. Safety Information
This document provides safety information using the following symbols to prevent accidents
resulting in injury or death and the destruction of equipment and resources.
Understand the meanings of these labels to operate the equipment safely.
DANGER
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury or in property damage.
