CONTEGO VIP User manual

PEDICURE SPA
OWNER’S MANUAL
Version 1.5
Aug 8, 2019

Information to the User
Safety Information
Receiving and Inspection
Specifications
Identifying parts for VIP Model
Important Installation Information
Installation Specifications
Types of Installation
Gravity Drain Installation
Drain Pump Installation
Air Vent (OPTIONAL)
BackFlow Valve Specifications
Operation Instructions
View of the VIP Pedi-Spa Chair
Spa Basin Operation / Cleaning Instructions
After Each Customer and Every Night
Massage Instructions
Massage Chair Remote Control Operation
Manual Operation
Special Function
Limited Warranty
3
4
5
5
6
7
7
8
8
8
8
9
9
10
11
12
12
12
12
12
13

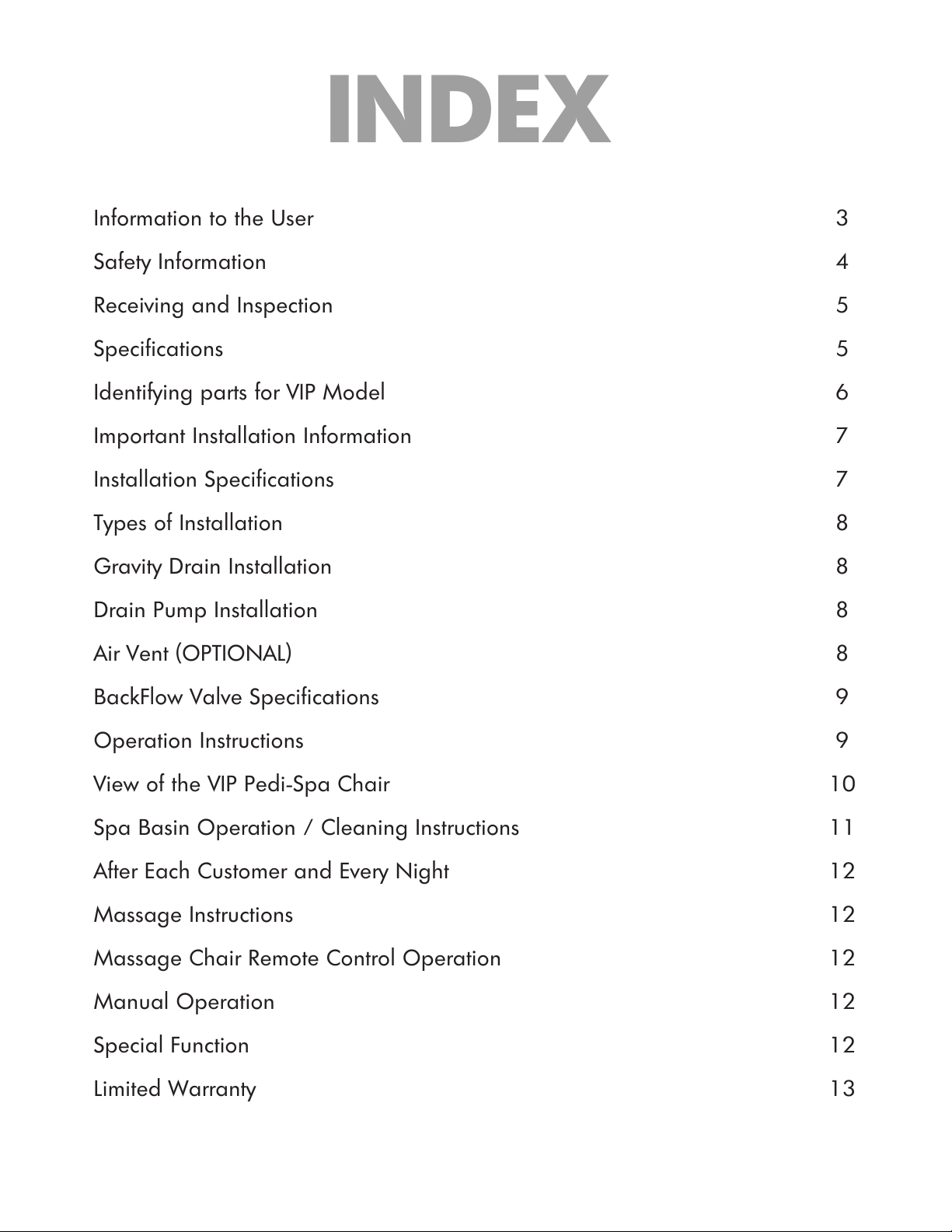

INDEX

Please take a moment to read this entire User Manual before installation and use.
!! SAVE THESE INSTRUCTIONS !!
Information to the User
The information in this manual can be subject to change without notification and
should not be construed as a commitment by CONTÉGO assuming no
responsibilities for any errors that may appear in this document. This manual is
believed to be complete and accurate at the time of publication. In no event
shall CONTÉGO be liable for incidental or consequential damages in
connection with, or arising from the use of this manual.
© 2012 CONTÉGO Spa Designs Inc. All Rights reserved.
This book, or any part thereof, may not be reproduced in any form without
the express written permission of the publisher.
12856 Brookhurst St, Garden Grove, CA 92840 USA
Phone: [phone]
E-mail: [email protected]
Website: www.contegospa.com
SUPPORT / CONTACT
Customer Support is available by phone, fax, mail or email at:
3

The following precautionary instructions are included to ensure the safe operation of your
VIP Pedicure Spa. Before installing or using the VIP Pedicure Spa, read through
the following guidelines in this manual. Please always keep this book nearby for all operators
to ensure the instructions are followed. In case of a missing or damaged book, please contact us
to get a replacement. Failure to comply with the instructions in this manual may pose
dangerous risk to the user and will void manufacturer’s warranty. It is important to
follow the operating and cleaning procedures provided on page 11 to ensure the spa is
sanitized for each use. CONTÉGO is not liable for any infections or disease that may
result from improper following of both operating and/or cleaning instructions.
In Emergency, immediately TURN OFF power and unplug..
Safety Information
Important Safeguards
GROUNDING IS REQUIRED!
The unit should be installed by a qualified service representative
and grounded. All outlets connected to the pedicure spas must
include a GFCI device (Ground Fault Circuit Interrupter). This will
reduce the rick of electric shock.
CAUTION!
Risk of Electric Shock. Disconnect electric power before servicing.
WARNING!
Do NOT permit children to use the unit unless an adult closely
supervises them at all times.
WARNING!
To avoid danger of suffocation, please keep the Jet-Liner AWAY
from babies and children. The thin film may cling to nose and
mouth and prevent breathing.
WARNING!
Excessive water temperature is dangerous and should be checked
BEFORE use. Maximum Temperature of water should NEVER
exceed 100
WARNING!
NEVER bring and/or operate any electrical devices in or near the
Pedicure Spa.
WARNING!
Do NOT step or stand in the bowl basin. To avoid injury, ALWAYS
enter and exit the pedicure Spa slowly and carefully.
WARNING!
Maximum Load in the spa chair is 250lbs (114kg).
STOPSTOP
! !
4

SHIPPING DIMENSIONS
42” L engthX 56”WidthX 60”Height ( 1 Pallet )
107 cm. L engthX 142 cm.WidthX 152 cm.Height
SHIPPING WEIGHT
330 lb. ( pounds )
TUB CAPACITY
4.5 U S G allons ( 17 L iters )
SWITCH
On/ O ff AirActivated
JET SYSTEM
100% Disposable C O NTÉG O Jet- L iner
POWER SOURCE
120 VAC,60 Hz,3 AMP
PLUMBING
Hot/Cold Water:1 / 2”FIPFittings
Drain:1”PVC S lip Male Fitting
O ptionalDrain Pump:3 / 4”PVC S lip Female Fitting
AIR VENT SYSTEM
2”DiameterAirHose ( OPTIO NA L )
SPECIFICATIONS
PLEASE TAKE NOTE!
Thoroughly inspect each shipment immdiately upon arrival. It is important
that you notify the driver and insist on a notation of the damages. Make this
notation directly on the freight company’s waybill or bill of lading. Failure to
note the damage on the waybill or bill of lading may impede and/or
prevent any claims that you may have against the freight carrier.
If missing parts or damage is found, then please notify the carrier at once
and request an inspection. DO NOT DISCARD THIS SHIPPING BOX. If you
give the carrier a clear receipt for goods that have been damaged in
transit, you do so at your own risk and expense.
RECEIVING AND INSPECTION
U.S. Patent No.: US 9,439,831 B2
U.S. Patent No.: US 9,289,353 B2
U.S. Patent No.: US 7,950,079 B2
5

BACK REST
CUSHION
WITH MASSAGE
LARGE
BACKREST
ARMREST
CONTEGO
JET-LINER
AIRJET
SWITCH
DRAIN PLUG
CONTROL
INFINITY
OVERFLOW
ADJUSTABLE
FOOT RESTS
HOT/COLD
WATER
VALVE
EASYDRAIN
PULL
HANDLE AIR VENT
(OPTIONAL)

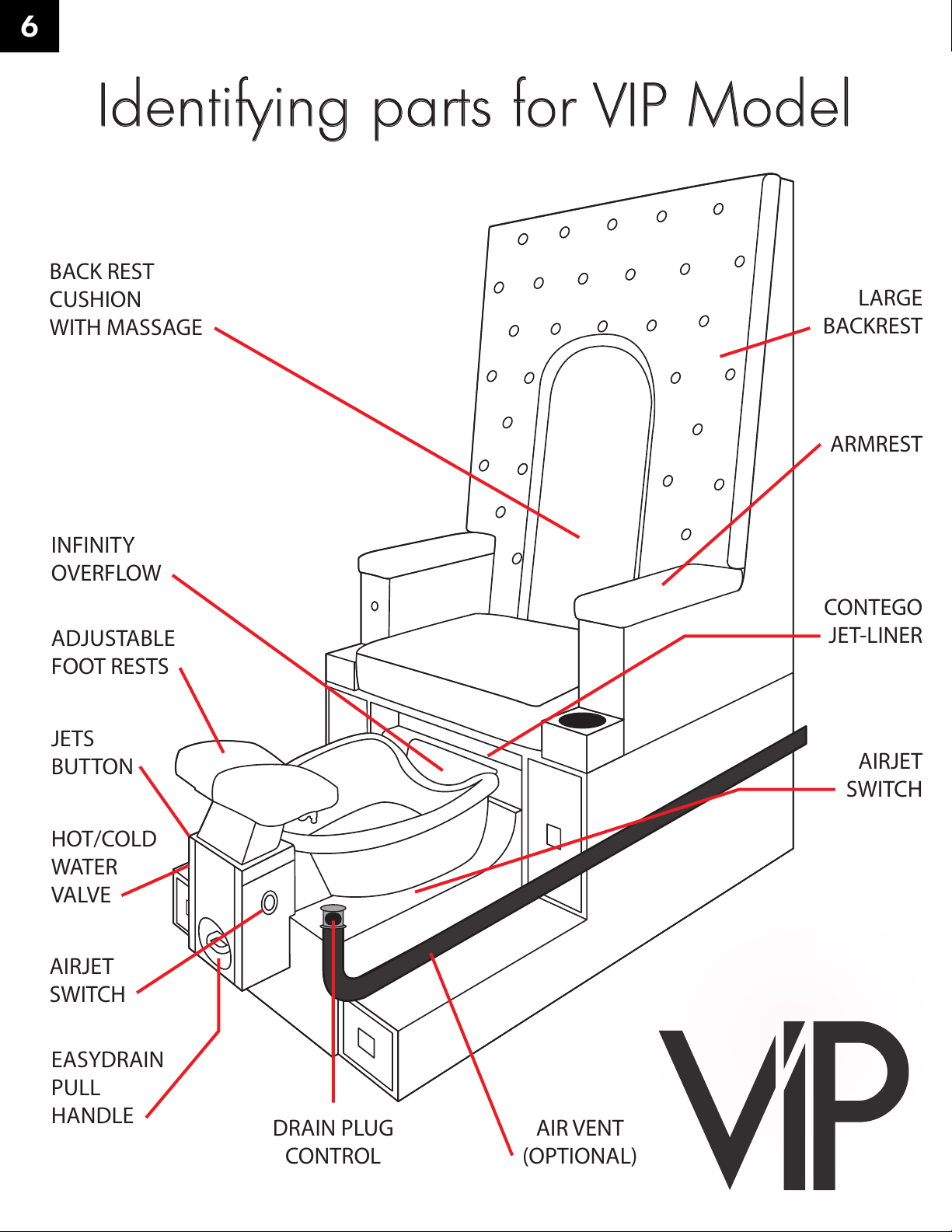

Identifying parts for VIP Model
6
AIRJET
SWITCH
JETS
BUTTON

54 in
68 in
16 in

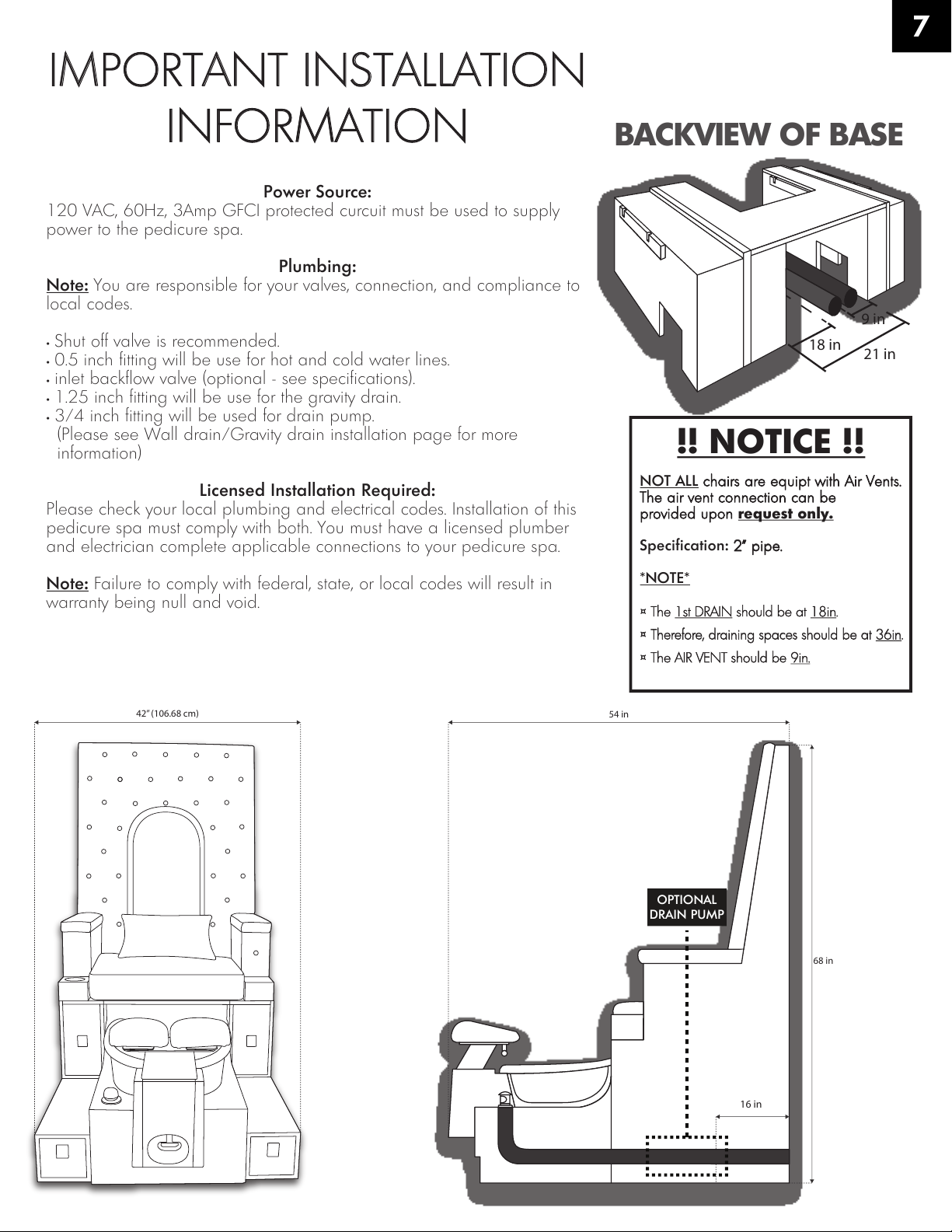

IMPORTANT INSTALLATION
INFORMATION
Power Source:
120 VAC, 60Hz, 3Amp GFCI protected curcuit must be used to supply
power to the pedicure spa.
Plumbing:
Note: You are responsible for your valves, connection, and compliance to
local codes.
• Shut off valve is recommended.
• 0.5 inch fitting will be use for hot and cold water lines.
• inlet backflow valve (optional - see specifications).
• 1.25 inch fitting will be use for the gravity drain.
• 3/4 inch fitting will be used for drain pump.
(Please see Wall drain/Gravity drain installation page for more
information)
Licensed Installation Required:
Please check your local plumbing and electrical codes. Installation of this
pedicure spa must comply with both. You must have a licensed plumber
and electrician complete applicable connections to your pedicure spa.
Note: Failure to comply with federal, state, or local codes will result in
warranty being null and void.
OPTIONAL
DRAIN PUMP
7
NOT ALL chairs are equipt with Air Vents.
The air vent connection can be
provided upon request only.
Specification: 2” pipe.
*NOTE*
 The 1st DRAIN should be at 18in.
 Therefore, draining spaces should be at 36in.
 The AIR VENT should be 9in.
!! NOTICE !!
42” (106.68 cm)
21 in
9 in
18 in
BACKVIEW OF BASE

TYPES OF INSTALLATION
W A
L L
W A
L L
UNDERGROUND PLUMBING
The complex diagram below illustrates the ideal placement and sources of
both water, drainage, and electrical power for the VIP Pedicure Spa Chair.
The utilities should be placed exactly within the footprint of the whole chair.
8
AI R VENT S
THE AIR VENT CAN BE
OPENED OR CLOSED
Not all chairs are equipped with Air Vents. The air vent
connection can be provided upon request only.
Specification: 2” pipe.
*NOTE*
 The 1st DRAIN should be at 18in.
 Therefore, draining spaces should be at 36in.
 The AIR VENT should be 9in.
8cm – 10cm
11/2” or 1.5”(4 cm)
Electrical Box
GFI Outlet
1/2“ (1 cm) HOT / COLD
Water Valve
Electrical Wire
Hot/Cold Water Supply
LED Light
OPTIONAL:
Drain Pump
3/4“ (2cm)
PVC Slip
Check
Valve
S IDEVIEW
3“ - 4“
Flex Hose
22” (56 cm)
Distribution Box
S IDEVIEW
11/2” or 1.5” (4 cm)
4” (10 cm)
26-30” (66-76 cm)
Electrical Box
GFI Outlet
Distribution
Box
Flex Hose
LED Light
Hot/Cold
Water Valve
1/2“ or 0.5” (1 cm) HOT / COLD
Water Valve
1” (2.5 cm)
PVC
4” (10 cm)
OPENING
INSIDE WALL
BETWEEN
CHAIRS FOR
CONNECT
PLUMBING
2”
4 in
36 in
54 in
19 in
26 in

BackFlow Valve
Vacuum Breaker for Inlet water may be needed. This is based on
City Specifications. Please check with the city on their plumbing requirments.
Note: Additional Pipe fittings may be needed for installation.
Operation Instructions
Sea Basin Operation
Adding Water :
1. Prepare the basin following cleaning instructions on page 11.
2. Place the Jet-Liner with AirJet in the bowl (See Instructions on next page).
3. Add water to the basin by lifting the fill valve. Turn towards RED for hot water and
BLUE for cold water. Continue to fill the water until the basin is full or else the water will
start to overflow.
CAUTION: Always check water temperature before use. The water
temperature should NOT 
4. Turn off water by pushing handle downward.
5. Press the silver On/Off button to start or stop Jet-Liner
Draining Water :
6. Ensure the Jet-Liner is turned off by pressing the silver button.
7. Pull on EasyDrain to rip the Jet-Liner and begin draining.
8. If needed, Press the silver button to activate the drain pump.
9. When the basin has been completely drained (Turn off the draim pump if needed),
remove and dispose the Jet-Liner (See instructions on next page).
9

FRONT
VIEW
DIAGONAL VIEW VIEW OF
THE VIP
PEDI SPA
CHAIR
SIDE VIEW
10
EASYDRAIN
PULL HANDLE
HOT/COLD
WATER VALVE
AIRJET
SWITCH
BUTTON

PLACE THE JET-LINER IN THE PEDI-BOWL AND INSERT
THE AIRJET (TUBES) INTO CHANNELS.
FILL THE BOWL WITH WATER.
SERVICE THE CLIENT. WHEN FINISHED, PULL THE EASYDRAIN HANDLE AND
LET THE WATER DRAIN UNTIL ITS COMPLETELY EMPTY.
REMOVE BOTH THE JET-LINER AND AIRJET (TUBES)
FROM THE BOWL AND DISPOSE IN TRASH.
BASIC STEPS OF USING THE
IMPORTANT NOTE:
TO ENSURE THE SAFETY FOR THE
CUSTOMER, BOTH THE CONTEGO
JET-LINER AND ITS AIRJET IS
ONLY ONE TIME USE. AFTER EACH
SERVICE, PLEASE PROPERLY DISPOSE
OF BOTH IN THE TRASH. IT IS
REQUIRED TO REPLACE BOTH THE
JET-LINER AND AIRJET WITH ANOTHER
ONE AND MAKE SURE TO CLEAN
THE PEDI-BOWL WITH EACH USE!
CLEANING INSTRUCTIONS
Please check with the state board code in your area for specific spa disinfectant procedures.
AFTER EACH CUSTOMER AND EVERY NIGHT
1. Remove and disposed of any Jet-Liner and AirJet.
2. Thoroughly clean the inside surface of the spa tub, foot rest, and armrest with a Sanitex Disinfectant Solution.
3. Thoroughly clean the rest of the spa basin surface with a Sanitex Disinfectant Solution.
11
1
2
4 5 6
3
MAKE SURE THE PEDI-BOWL IS
PROPERLY (100%) CLEAN!!!
BEFORE BEING READY TO USE!

MASSAGE INSTRUCTIONS
USING THE REMOTE CONTROL
12
POWER
ON/OFF
VIBRATION
HEAT
LOWER MASSAGE
UPPER MASSAGE
AUTOMATIC MASSAGE

13
VIP PEDICURE SPA
Limited Warranty
CONTÉGO Spa Designs Inc., has designed and manufactured the VIP Pedicure Spa to the highest standards. Accordingly,
CONTÉGO Spa Designs Inc., expressly warrants the VIP Pedicure Spa as follows:
To the original owner of the VIP Pedicure Spa, CONTÉGO Spa Designs Inc., may repair or replace, as optional, any VIP
Pedicure Spa that are found to be defective in material or workmanship upon inspection by a factory authorized representative of
CONTÉGO Spa Designs Inc., This Limited Warranty covers the following:
• Air Pumps: Twenty Four (24) months from date of shipment from CONTÉGO facility.
• Basin: Twelve (12) months from date of shipment from CONTÉGO facility.
• Other Components/Parts: Twelve (12) months from shipment from CONTÉGO facility
• Accessories: Twelve (12) months from shipment from CONTÉGO facility
• Shipping Costs: Twelve (12) months from the date of shipment CONTÉGO will cover normal shipping costs
associated with replacement parts. Expedited shipping costs will incur an additional charge.
The exchange of a VIP Pedicure Spa is limited to supplying a replacement VIP Pedicure Spa of equal style. Owner is responsible for all
labor and shipping costs necessary to replace a VIP Pedicure Spa.
NO CONSEQUENTIAL, INCIDENTAL, CONTINGENT, INDIRECT, SPECIAL OR OTHER DAMAGES WILL BE ALLOWED WHATSOEVER.
This limited warranty is null and void if the VIP is removed from it’s original installation, or is not installed in accordance with specifications
of CONTÉGO Spa Designs Inc., or national, state or local codes, regulations and ordinances. Furthermore, this limited warranty is null and
void if the VIP Pedicure Spa is subjected to improper installation or maintenance, negligence, improper cleaning or any other circumstanc-
es beyond CONTÉGO Spa Designs Inc., control. In order for your Limited Warranty to be valid, your VIP Pedicure Spa must be installed by
a licensed professional in accordance with CONTÉGO Spa Designs Inc., installation instructions.
EXCLUDED FROM LIMITED WARRANTY:
1) Unauthorized repairs.
2) Damage due to freight, accident, natural disaster and/or abuse.
3) Staining, fading or discoloration of the seat, seat back, armrests or pivoting leg supports.
4) Damage or malfunctions due to improper installation including but not limited to, failure to comply with all national,
state and local plumbing, electrical and building codes.
5) Damage or malfunctions due to improper installation including but not limited to, failure to comply with all national,
state and local plumbing, electrical and building codes.
6) Fading, discoloration or staining of any part due to improper water additives or harmful cleaning agents or chemicals.
Damage to drain pump due to obstruction in drain hose.
For service or information regarding this limited warranty, please contact:
Contégo Spa Designs Inc, • 12856 Brookhurst St, Garden Grove, CA 92840 USA
Phone [phone] • www.contegospa.com
This limited warranty is to the original owner and is not transferable. The original owner agrees by using the VIP Pedicure Spa the
obligation of CONTÉGO Spa Designs Inc., shall not extend to indirect or contingent damages or injury. Furthermore, the obligations of
CONTÉGO Spa Designs Inc., are limited to those set forth herein. This limited warranty is the exclusive remedy and is in lieu of all other
warranties, express or limited, including, but not limited to, any implied warranty of fitness or merchantability for a particular purpose. No
distributor, dealer or other person has the right or authority to bind CONTÉGO Spa Designs Inc., to changes to this limited warranty.
Consequently, CONTÉGO Spa Designs Inc., is not responsible for such warranties or representations.
ADDITIONAL PROVISIONS
• Any assistance CONTÉGO Spa Designs Inc., provides to the original owner above and beyond the scope of this
limited warranty does not constitute a waiver of such terms, limitations or exclusions. Furthermore, such assistance
does not extend this limited warranty.
• CONTÉGO Spa Designs Inc., shall not be liable for any other obligations or liabilities as a result of breach of
contract of warranty, negligence or strict liability with regards to the VIP Pedicure Spa.
• This Limited Warranty applies only to the VIP Pedicure Spas installed in any one of the fifty states of the
United States, the District of Columbia or provinces of Canada.
