IR-RXC Installer Reference Guide
Introduction
The IR-RXC External IR Receiver extends IR reception for many iC-series controllers. Using the included swivel mount, the
unit can mounting in any position and aimed for best reception. Powered by the external IR IN input on an iC-series
controller, the IR-RXC is switchable for sensing Contemporary Research high-frequency 57 KHz (default) and low-
frequency 38 KHz IR, the IR-RXC can be mounted in any position.
Compatible iC controllers and tuners are:
ICC2-IRC ICC2-VDC 232-STS 232-ATSC
Specifications
Enclosure: All aluminum with durable black powder coat paint
Size: Receiver: 1.13" [29mm] high x 2.35" [60mm] wide x 2.65" [67mm] deep
Bracket: 1.00" [25mm] high x 2.59" [66mm] wide x 2.95" [75mm] deep
Combined: 1.13" [29mm] high x 2.60" [66mm] wide x 4.95" [67mm] deep (typical)
Weight: 3 oz [85g]
IR Reception: Includes high-frequency (57 KHz) or low-frequency (38 KHz) sensors, selected by DIP switch
DIP Switch: 4-position switch selects IR operating modes
Status LED: Red LED indicates IR code reception
IR Out: 3.5mm jack to connect IR signal and power to an iC controller or tuner
Power: 10.5-16 VDC (12 typical), 10 mA typical, 25 mA max, powered by iC controller or tuner
Includes
IR connection cable, 6’, 3.5mm male plugs at each end
Swivel-mount bracket
Installation
If needed, change DIP switch settings to match requirements. Only one switch in each pair (1&2, 3&4) should be on.
1 On = enable 38KHz
2 On = enable 57KHz (default)
3 On = output normal (default)
4 On = output inverted
Use included IR connection cable to connect IR-RXC to iC unit’s IR In input. If you need to create a custom-length
extension cable, wire connectors as follows:
3.5mm stereo plugs
Tip= IR data signal
Sleeve= DC power+ from IR In jack on iC unit
Ring= Ground (GND)
Contemporary Research •17630 Davenport Rd., Suite 113 •Dallas, TX 75252
Phone: [phone] •Toll Free: 888-972-2728 •Fax: [phone]
Doc 5032-026 0203 © 2002
IR In Jack 2.59"2.35"
1234
On
2.65"
4.95"
2.30"

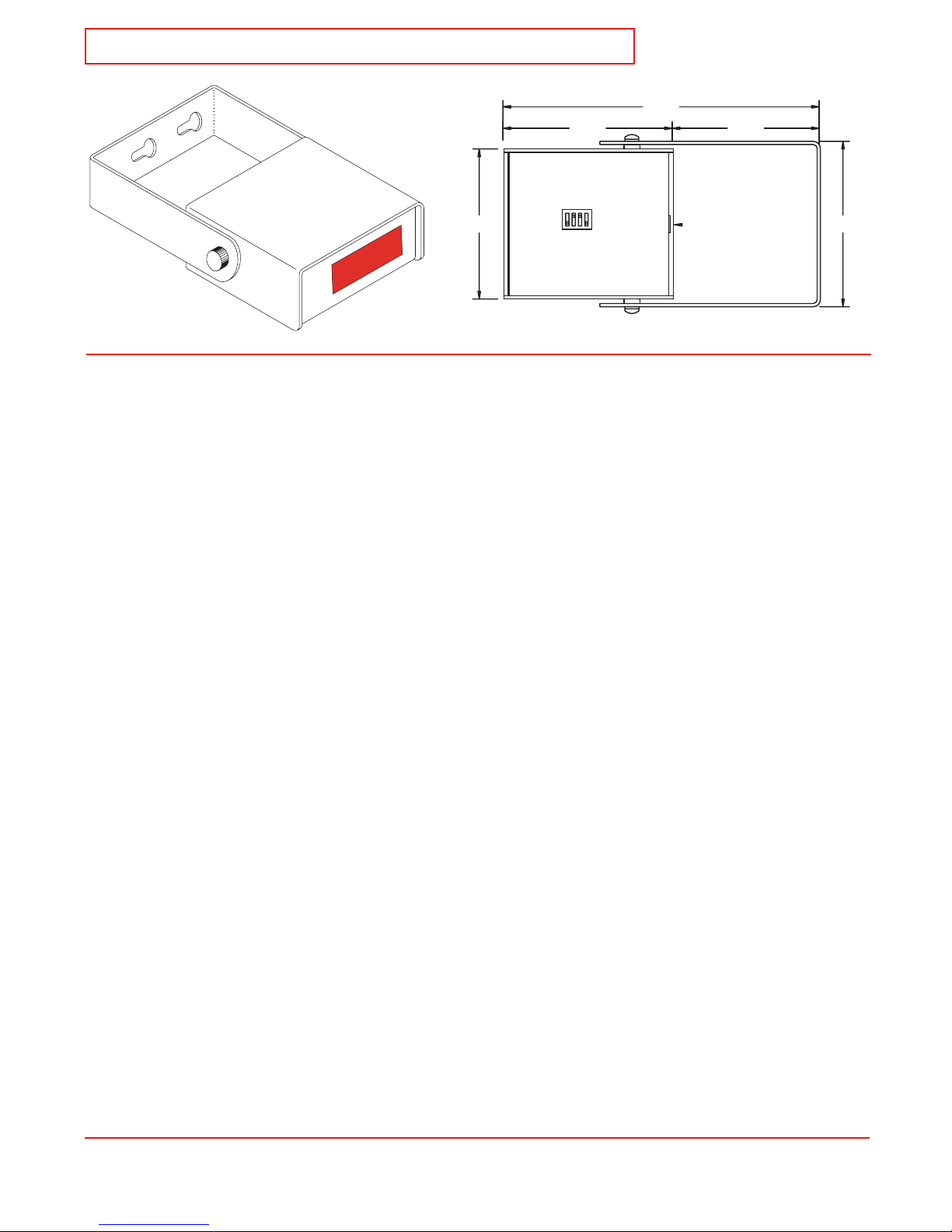

IR-RXC - Bottom View
