Contest CEIL6TC-MKII User manual

USER GUIDE
10658 - Version 1 / 01-2017
COMPACT PROJECTOR WITH 6 RGB LEDS

English CEIL6TC-MKII - Compact projector with 6 RGB LEDs
Page 2
This symbol signals an important
safety precaution. The CAUTION symbol signals a risk of product dete-
rioration.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
Important safety information
Symbols used
Any maintenance procedure must be performed by a
CONTEST authorised technical service. Basic clea-
ning operations must thoroughly follow our safety
instructions.
This product contains non-isolated electrical com-
ponents. Do not undertake any maintenance opera-
tion when it is switched on as it may result in electric
shock.
WARNING : This unit contains no user-serviceable parts. Do not
open the housing or attempt any maintenance by yourself. In the
unlikely even your unit may require service, please contact your
nearest dealer.
Risk of electric shock
In order to avoid any electrical malfunction,
please do not use any multi-socket, power
cord extension or connecting system without
making sure they are perfectly isolated and
present no defect.
Recycling your device
• As HITMUSIC is really involved in the environmental cause, we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection
and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment.
Note : The legislation requires that every device set up in a public space
features a double fixation bracket. This security system must hold 10 times the
weight of the device.
1 - Safety information
Warning
This product is equipped with Class 2 LEDs.
Please avoid looking directly at the beam as it
may cause severe eye injuries.

English
CEIL6TC-MKII - Compact projector with 6 RGB LEDs
Page 3
1 - Please read carefully :
We strongly recommend to read carefully and understand
the safety instructions before attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for
future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every
safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any
physical harm or property damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other
wet locations.
6 - Installation :
We strongly encourage you to only use a
fixation system or support recommended by
the manufacturer or supplied with this product.
Carefully follow the installation instructions and
use the adequate tools.
Always ensure this unit is firmly fixed to avoid
vibration and slipping while operating as it may result in
physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling
or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid
any overheating risk.
Do not obstruct or cover these vents as it may result in
overheating and potential physical injury or product damage.
This product should never been operated in a closed non-
ventilated area such as a flight case or a rack, unless cooling
vents are provided for the purpose .
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause
overheating and product damages. Please keep this product
away from any heat source such as a heaters, amplifiers, hot
plates, etc...
10 - Electric power supply :
This product can only be operated according to
a very specific voltage. These information are
specified on the label located at the rear of the
product.
11 - Power cords protection:
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at lugs, convenience receptacles
and the point where they exit from the fixture.
Instructions and recommendations
12 - Cleaning precautions :
Unplug the product before attempting any cleaning
operation. This product should be cleaned only with
accessories recommended by the manufacturer.
Use a damp cloth to clean the surface. Do not
wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long
periods of non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it
may result in electric shock or fire.
Never spill any liquid on this product as it may
infiltrate the electronic components and result in
electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into
the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by
yourself. Refer all servicing to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C,
relative humidity must be less than 85% (when
cooling vents are not obstructed).
Do not operate this product in a non-ventilated,
very humid or warm place..

English CEIL6TC-MKII - Compact projector with 6 RGB LEDs
Page 4
Your CEIL6TC-MKII is a waterproof projectors equipped with 6 x 3W RGB LEDs, delivered with its fixation
bracket.
It must be connected to a PILOT series power supply unit via its RJ45 socket.

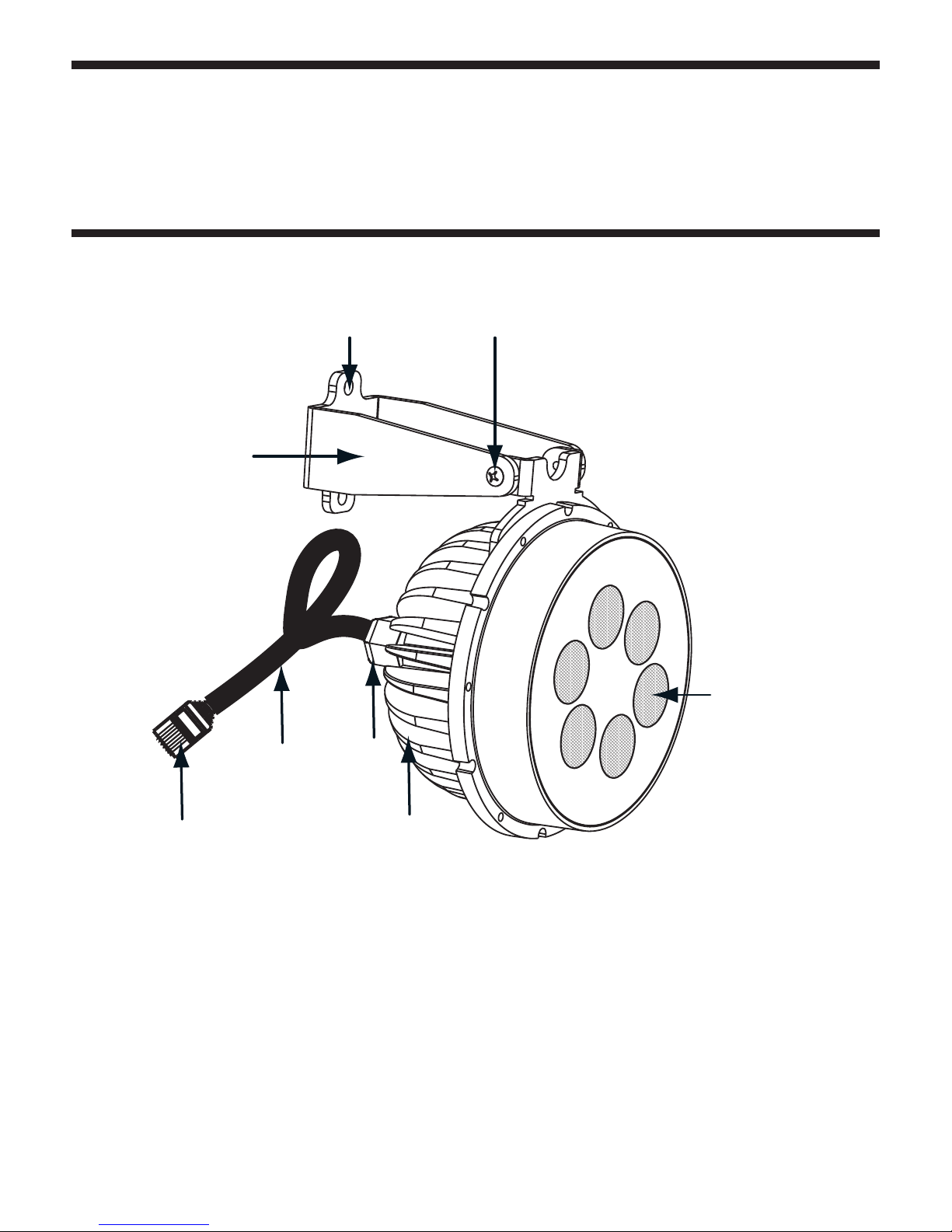

1- Fixation bracket
2- 2 x 5 mm holes and 1 x 10 mm hole for fixation or hooks
3- Fastening screws
4- Beam lens
5- Aluminium housing finned for thermal dissipation
6- Cable gland to ensure perfect sealing
7- Multicore cable
8- 8-pin RJ45 connector
2 - Introduction
3 - Description
1
3
4
2
5
6
7
8

English
CEIL6TC-MKII - Compact projector with 6 RGB LEDs
Page 5
CEIL6TC-MKII projectors are passive, they must be connected to devices able to power them up and
control them.
Please find the wiring diagram below.
4-1 : Controller:
The controller allows to remotely control the power supply unit, and thus select colours. It uses the
DMX512 protocol and allows to command several channels, the PILOT-TOUCH, using 3 channels (Red,
Green, Blue) is used for the sake of this example.
4-2 : Power supply unit:
The power supply units transforms the command signal (DMX) into power signal (+48V 350mA max.) to
power up the projector LEDs. The PILOT-120, with 2 output zones, was used for the sake of this example.
4-3 : Splitter:
The splitter allows to multiply the number of projectors on the same chain. Most of the times, it also
allows to reduce cable length. It can feature RJ45 (LINK-SPLIT) connectors or waterproof connectors
(LINK-IPBOX).
4-4 : Cables:
RJ45 connectors are used for their simplicity and small size. They are different cable lengths (LINK-RJ).
Please make sure to connect your device as indicated below.
4 - Installation
Projecteurs
Splitter
Alimentation
Contrôleur
LINK-SPLIT

English CEIL6TC-MKII - Compact projector with 6 RGB LEDs
Page 6
Pins Thread colour RGBW LED matching
1 Black Red +
2 Brown Green +
3 Red Blue +
4 N/A
5 Orange Red -
6 Yellow Green -
7 Green Blue -
8 N/A
Fiche RJ45 8 broches
Vue côté des broches
Control:
- Driver: 3-channel DMX512
Optical:
- 6 x3W RGB LEDs
- Lenses with filter to ensure perfect light diffusion
- Almost infinite colour variations without ghosting
- No infrared or UV emission
- LEDs lifespan: 25.000 hours at full power
- Flux (Lm): 590 +/-2.5%
- Efficiency (Lm/W): 33
- Light output of 266 Lux at3 m with white
- Beam angle: 20°
Material:
- Extruded aluminium housing
- Convection-cooled
- Cable gland to ensure perfect sealing
- IP tightness: 65 (fully protected against dust and water splashes)
Additional characteristics:
- Power supply: 12-48V, DC 350 mA (max)
- Power supply: 18 W
- Compatible power and command blocks: PILOT60/120/240
- Cable: 1m Cat.5e with 8-pin RJ45 connector
- Operating temperature: -10°C ~ 40°C
- Dimensions: diameter 111 mm x length 72 mm (without cable gland) 92mm (with cable gland)
- Weight : 775 g
5 - RJ45 socket pinout
6 - Technical specificatinos

English
CEIL6TC-MKII - Compact projector with 6 RGB LEDs
Page 7

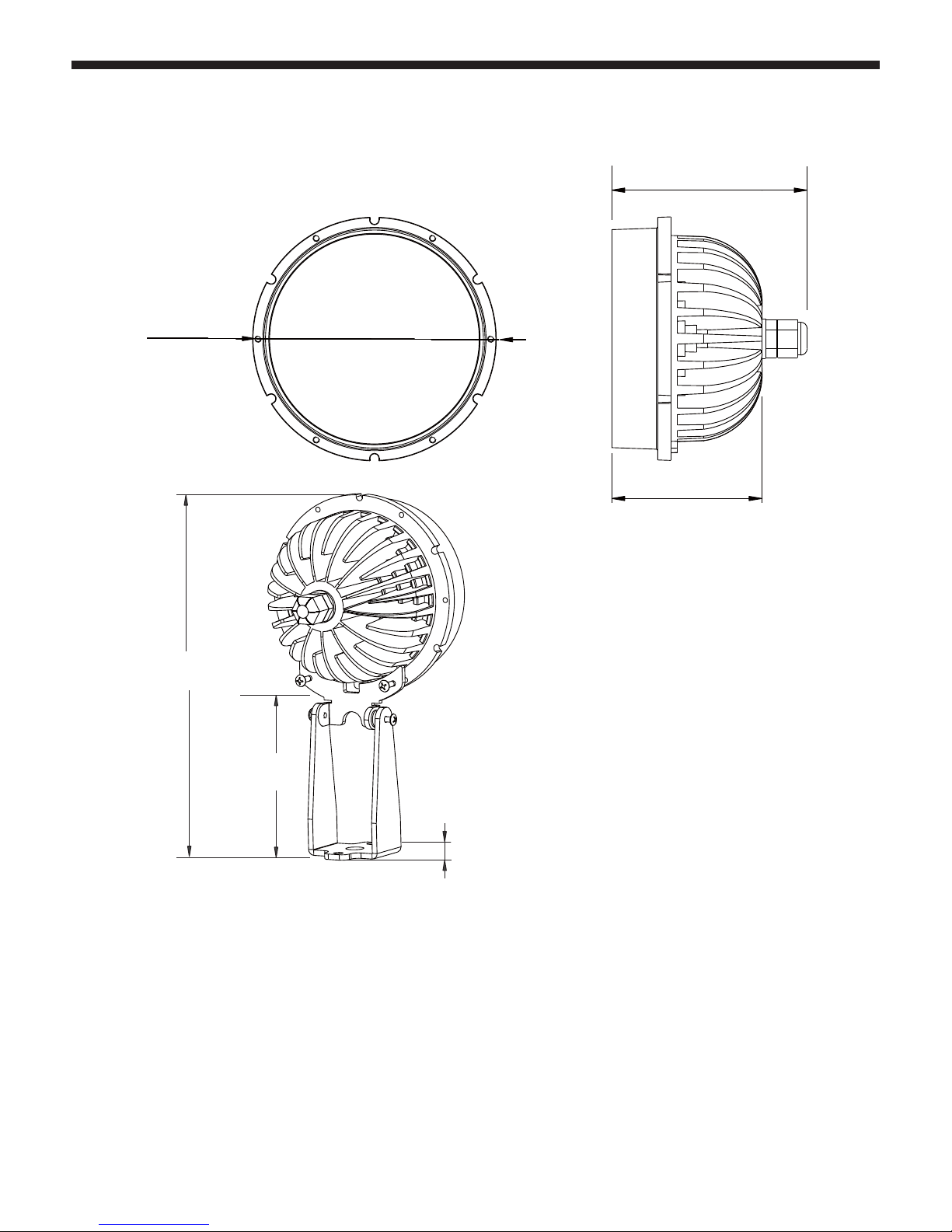

7 - Dimensions
84 mm
92 mm
72 mm
111 mm
47 mm
195 mm

Because CONTEST®takes the utmost care in its products to make sure you only get the best possible quality, our
products are subjects to modifications without prior notice. That is why technical specifications and the products
physical configuration might differ from the illustrations.
Make sure you get the latest news and updates about the CONTEST®products on www.contest-lighting.com
CONTEST® is a trademark of HITMUSIC S.A.S. - Zone Cahors sud - 46230 FONTANES - FRANCE
